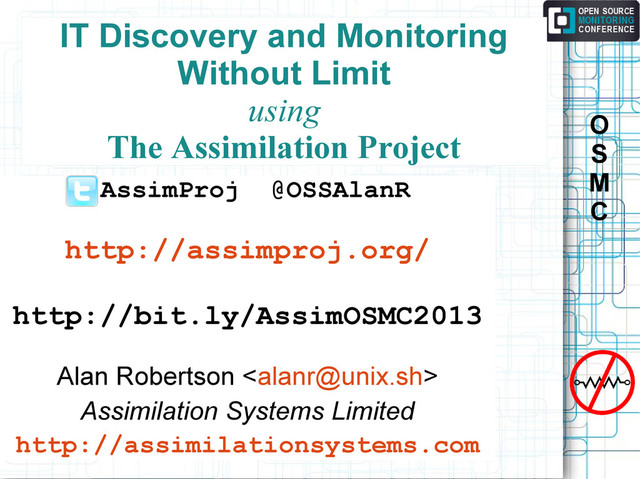

O S M C IT Discovery and Monitoring Without Limit
using The Assimilation Project #AssimProj @OSSAlanR http://assimproj.org/ http://bit.ly/AssimOSMC2013 Alan Robertson <[email protected]> Assimilation Systems Limited http://assimilationsystems.com -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 2/45
O S M C Project Scope Zero-network-footprint continuous Discovery integrated with extreme-scale Monitoring • Continuous extensible discovery – systems, switches, services, dependencies – zero network footprint • Extensible exception monitoring – more than 100K systems • All data goes into central graph database -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 3/45
O S M C Assimilation Project History • Inspired by 2 million core computer (cyclops64) • Concerns for extreme scale • Topology aware monitoring • Topology discovery w/out security issues =►Discovery of everything! -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 5/45
O S M C An 8-dimensional overview • Problems Addressed • Unique Capabilities • Distribution of Work • Architectural Components • Discovery Graph Schema • Extensible Discovery API • Current Status • Project Needs -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 6/45
O S M C First Dimension: Problems Addressed Risk Management at extreme scale 1. Maintaining detailed discovery database 2. Discovering systems you've forgotten about 3. Discovering what (licensed) software you're running – and where 4. Monitoring services, systems and switches 5. Finding services you aren't monitoring -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 7/45
O S M C Risk Management/Mitigation • Intrusions • Licensed Software • Audit Risk • Outages • System management -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 8/45
O S M C Why Discovery? (DevOps) • Documentation: incomplete, incorrect • Dependencies: unknown • Planning: Needs accurate data • Best Practices: Verification needs data • ITIL CMDB (Configuration Mgmt DataBase) Our Discovery: continuous, low-profile -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 9/45
O S M C Second Dimension: Unique Powerful Features 1. Continuous Discovery 2. Zero network footprint 3. Centralized graph database 4. We know everything that changes 5. Discover and update dependency information -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 10/45
O S M C (even more) Features... 6. Discovery and monitoring tightly integrated 7. Discovery and monitoring easily extensible 8. Naturally scalable to > 100K systems 9. Server failures distinguishable from switch failures 10.Minimal network load 11.Multi-tenant support -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 11/45
O S M C This all sounds unreasonable... • Huge scalability without complexity? • Discovery without sending packets? Really? -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 12/45
O S M C Third Dimension: Uniformly, fully distributed work Two philosophical underpinnings 1. Monitoring and Discovery are fully distributed 2. Reliable “no news is good news” Only responses to changes are centralized -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 13/45
O S M C Simple Scalability • I can explain how we distribute work so your grandmother would understand -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 14/45
O S M C Massive Scalability – or “I see dead servers in O(1) time” • Adding systems does not increase the monitoring work on any system • Each server monitors 2 (or 4) neighbors • Each server monitors its own services • Ring repair and alerting is O(n) – but a very small amount of work • Ring repair for a million nodes is less than 10K packets per day (approximately 1 packet per 9 seconds) Current Implementation -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 15/45
O S M C Minimizing Network Footprint (planned) • Support diagnosing switch issues • Minimize network traffic • Ideal for multi-site arrangements -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 16/45
O S M C Fourth Dimension: Architectural Components Three Architectural Compnents Collective Management Authority • One CMA per installation Nanoprobes • One nanoprobe per system Data Storage • Central Neo4j graph database -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 17/45
O S M C Nanoprobe Functions ('C') Announce self to CMA • Reserved multicast address (can be unicast address or name if no multicast) Do what CMA says • receive configuration information – CMA addresses, ports, defaults • send/expect heartbeats • perform discovery actions • perform monitoring actions No persistent state across reboots -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 18/45
O S M C Service Monitoring based on Linux-HA/Pacemaker LRM • LRM == Local Resource Manager • Well-proven architecture: – “no news is good news” AKA management by exception • Implements Open Cluster Framework standard (and others) • Each system monitors own services • Can also start, stop, migrate services -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 19/45
O S M C Basic CMA Functions (python) Nanoprobe management • Configure & direct • Hear alerts & discovery • Update rings: join/leave Update database Issue alerts -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 20/45
O S M C Monitoring Pros and Cons Pros Simple & Scalable Uniform work distribution No single point of failure Distinguishes switch vs host failure Easy on LAN, WAN Multi-tenant approach Cons Active agents Potential slowness at power-on -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 21/45
O S M C Why a graph database? (Neo4j) • Humans describe systems as graphs • Dependency & Discovery information: graph • Speed of graph traversals depends on size of subgraph, not total graph size • Root cause queries graph traversals – notoriously slow in relational databases • Visualization is Natural • Schema-less design: good for constantly changing heterogeneous environment • Graph Model === Object Model -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 22/45
O S M C Fifth Dimension: Discovery API Scripts perform discovery – output JSON Three Discovery Snippets • OS information • Service discovery • Client discovery -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 23/45
O S M C How does discovery work? Nanoprobe scripts perform discovery • Each discovers one kind of information • Can take arguments from environment • Output JSON CMA stores Discovery Information • JSON stored in Neo4j database • CMA discovery plugins => graph nodes and relationships -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 24/45
O S M C OS discovery JSON Snippet { "nodename": "alanr-1225B", "operating-system": "GNU/Linux", "machine": "x86_64", "processor": "x86_64", "hardware-platform": "x86_64", "kernel-name": "Linux", "kernel-release": "3.8.0-31-generic", "kernel-version": "#46-Ubuntu SMP ...", "Distributor ID": "Ubuntu", "Description": "Ubuntu 13.04", "Release": "13.04", "Codename": "raring" } -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 25/45
O S M C sshd Service JSON Snippet (from netstat and /proc) "sshd": { "exe": "/usr/sbin/sshd", "cmdline": [ "/usr/sbin/sshd", "-D" ], "uid": "root", "gid": "root", "cwd": "/", "listenaddrs": { "0.0.0.0:22": { "proto": "tcp", "addr": "0.0.0.0", "port": 22 }, and so on... -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 26/45
O S M C ssh Client JSON Snippet (from netstat and /proc) "ssh": { "exe": "/usr/sbin/ssh", "cmdline": [ "ssh", "servidor" ], "uid": "alanr", "gid": "alanr", "cwd": "/home/alanr/monitor/src", "clientaddrs": { "10.10.10.5:22": { "proto": "tcp", "addr": "10.10.10.5", "port": 22 }, and so on... -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 27/45
O S M C Sixth Dimension: Graph Schema Two Schema subgraphs • Client / server dependency • Switch interconnect -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 28/45
O S M C ssh -> sshd dependency graph -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 29/45
O S M C Switch Discovery Data from LLDP (or CDP) CRM transforms LLDP (CDP) Data to JSON -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 30/45
O S M C Seventh Dimension: Current Status • First release April 2013 • Great unit tests • Nanoprobe code works well • Several discovery methods written • CMA restructuring finishing up • UI development underway • Licensed under GPL: commercial options available -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 31/45
O S M C Eighth Dimension: Get Involved! We need every talent! • Early adopters • Testers, Continuous Integration • Designers • Developers (C,Python, Shell, PowerShell, JavaScript) • Porters (esp Windows) • Promoters, publicists • Packagers • And so on... -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 32/45
O S M C Get Involved! Powerful Ideas and Infrastucture Fun, ground-breaking project Looking for early adopters, testers!! Needs for every kind of skill • Awesome User Interfaces (UI/UX) • Evangelism, community building • Test Code (simulate 106 servers!) • Python, C, script coding • Documentation • Feedback: Testing, Ideas, Plans • Many others! -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 33/45
O S M C Resistance Is Futile! Mailing List bit.ly/AssimML #AssimProj @OSSAlanR Project Web Site assimproj.org Blog techthoughts.typepad.com assimilationsystems.com -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 34/45
O S M C My Older GeekGirl -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 35/45
O S M C Discovery Discovering • systems you've forgotten • what you're not monitoring • whatever you'd like • without setting off network security alarms -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 36/45
O S M C Monitoring Monitoring • extreme scale • topology aware • integrated with discovery • easy-to-configure -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 37/45
O S M C Why Assimilation Software? • Management Perspective • DevOps Perspective -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 38/45
O S M C How does this apply to clouds? • Fits nicely into a cloud infrastructure – Should integrate into OpenStack, et al – Can control VMs • Can monitor customer VMs – Add nanoprobe to base image – bottom level of rings disappear without LLDP or CDP -
OSMC 24 October 2013 © 2013 Assimilation Systems Limited 39/45
O S M C Future Plans • Production grade by end of year • Purchased support • “Real digital signatures, compression, encryption • Other security enhancements • Much more discovery • GUI • Alerting • Reporting • Add Statistical Monitoring • Best Practice Audits • Dynamic (aka cloud) specialization • Hundreds more ideas – See: https://trello.com/b/OpaED3AT
