The Impact of Test Case Summaries on Bug Fixing Performance: An Empirical Investigation

Automated test generation tools have been widely investigated
with the goal of reducing the cost of testing activities.
However, generated tests have been shown not to help developers in detecting and finding more bugs even though
they reach higher structural coverage compared to manual
testing. The main reason is that generated tests are di-
cult to understand and maintain. Our paper proposes an
approach, coined TestDescriber, which automatically generates
test case summaries of the portion of code exercised by
each individual test, thereby improving understandability.
We argue that this approach can complement the current
techniques around automated unit test generation or search based techniques designed to generate a possibly minimal set
of test cases. In evaluating our approach we found that (1)
developers find twice as many bugs, and (2) test case summaries
significantly improve the comprehensibility of test
cases, which is considered particularly useful by developers.

Transcript

1. The Impact of Test Case Summaries on Bug Fixing Performance: An Empirical Investigation Sebastiano Panichella Annibale Panichella Moritz Beller Andy Zaidam Harald Gall
2. Why? @Test public void test0() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } @Test public void test1() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); option0.setLongOpt("adafv"); option1.setLongOpt("adafv"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } 2 Class Name: Option.java Library: Apache Commons-Cli
3. @Test public void test0() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } @Test public void test1() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); option0.setLongOpt("adafv"); option1.setLongOpt("adafv"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } Class Name: Option.java Library: Apache Commons-Cli Why? 3 Q1: What are the main differences? Q2: Do they cover different parts of the code?
4. @Test public void test0() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } @Test public void test1() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); option0.setLongOpt("adafv"); option1.setLongOpt("adafv"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } Class Name: Option.java Library: Apache Commons-Cli 4 Why? Q1: What are the main differences? Q2: Do they cover different parts of the code?
5. @Test public void test0() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } @Test public void test1() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); option0.setLongOpt("adafv"); option1.setLongOpt("adafv"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } Class Name: Option.java Library: Apache Commons-Cli 5 Candidate Assertions Why? Q1: What are the main differences? Q2: Do they cover different parts of the code?
6. @Test public void test0() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } @Test public void test1() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); option0.setLongOpt("adafv"); option1.setLongOpt("adafv"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } Class Name: Option.java Library: Apache Commons-Cli 6 Q3: Are these assertions correct? Why? Q1: What are the main differences? Q2: Do they cover different parts of the code?
7. @Test public void test0() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } @Test public void test1() throws Throwable { Option option0 = new Option("aaabbb", true, "aaabbb"); Option option1 = new Option("aaabbb", true, "aaabbb"); option0.setLongOpt("adafv"); option1.setLongOpt("adafv"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } 7 Test Code Comprehension Generated Tests Production Code public class Options implements Serializable { private static final long serialVersionUID = 1L; /** a map of the options with the character key */ private Map shortOpts = new HashMap(); /** a map of the options with the long key */ private Map longOpts = new HashMap(); /** a map of the required options */ private List requiredOpts = new ArrayList(); Earl T. Barr, et al., “The Oracle Problem in Software Testing: A Survey”. IEEE Transactions on Software Engineering, 2015.
8. Are Generated Tests Helpful? G. Fraser et al., Does Automated Unit Test Generation Really Help Software Testers? A Controlled Empirical Study, TOSEM 2015. Do not lead to detection of more faults. 8 0% Testing Comprehension Testing time 75% 100%
9. Our Solution Test Case 9
10. Test Coverage Analysis COBERTURA Test Suite Generation Option.java TestDescriber @Test public void testProva() throws Throwable { Option option0 = new Option("aaa", true, "aaa"); Option option1 = new Option("aaa", true, "aaa"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } @Test public void testProva2() throws Throwable { Option option0 = new Option("aaa", true, "aaa"); Option option1 = new Option("aaa", true, "aaa"); option0.setLongOpt("adafv"); option1.setLongOpt("adafv"); boolean boolean0 = option1.equals((Object) option0); assertEquals("arg", option1.getArgName()); assertTrue(option0.hasArg()); assertTrue(boolean0); } Summary Generation 10
11. Summary Generator Software Words Usage Model: deriving <actions>, <themes>, and <secondary arguments> from class, methods, attributes and variable identifiers E. Hill et al. Automatically capturing source code context of NL-queries for software maintenance and reuse. ICSE 2009 11
12. Summary Generator public class Option { public Option(String opt, String longOpt, boolean hasArg, String descr) throws IllegalArgumentException { OptionValidator.validateOption(opt); this.opt = opt; this.longOpt = longOpt; if (hasArg) { this.numberOfArgs = 1; } this.description = descr; } ... } SWUM in TestDescriber: Covered Code 12
13. public class Option { public Option(String opt, String longOpt, boolean hasArg, String descr) throws IllegalArgumentException { OptionValidator.validateOption(opt); this.opt = opt; this.longOpt = longOpt; if (hasArg) { //FALSE this.numberOfArgs = 1; } this.description = descr; } ... } Summary Generator SWUM in TestDescriber: 1) Select the covered statements Covered Code 13
14. public class Option { public Option(String opt, String longOpt, boolean hasArg, String descr) throws IllegalArgumentException { OptionValidator.validateOption(opt); this opt = opt; this longOpt = longOpt; if (hasArg) {false } this description = descr; } ... } SWUM in TestDescriber: 1) Select the covered statements 2) Filter out Java keywords, etc. Summary Generator Covered Code 14
15. public class Option { public Option(String opt, String long Opt, boolean has Arg, String descr) throws IllegalArgumentException { Option Validator.validate Option(opt); this opt = opt; this long Opt = long Opt; if (has Arg) {false ; } this description = descr; } ... } SWUM in TestDescriber: 1) Select the covered statements 2) Filter out Java keywords, etc. 3) Identifier Splitting (Camel case) Summary Generator Covered Code 15
16. public class Option { public Option(String option, String long Option, boolean has Argument String description) throws IllegalArgumentException { Option Validator.validate Option(option); this option = option; this long Option = long Option; if (has Argument) {false } this description = description; } ... } SWUM in TestDescriber: 1) Select the covered statements 2) Filter out Java keywords, etc. 3) Identifier Splitting (Camel case) 4) Abbreviation Expansion (using external vocabularies) Summary Generator Covered Code 16
17. SWUM in TestDescriber: 1) Select the covered statements 2) Filter out Java keywords, etc. 3) Identifier Splitting (Camel case) 4) Abbreviation Expansion (using external vocabularies) 5) Part-of-Speech tagger Summary Generator <actions> = Verbs <themes> = Nouns/Subjects <secondary arguments> = Nouns / objectes, adjectives, etc public class Option { Option(String option, String long Option , boolean has Argument String description) throws IllegalArgumentException Option Validator.validate Option(option); this option = option ; this long Option = long Option; if (has Argument false } this description = description; } NOUN NOUN NOUN ADJ NOUN NOUN VERB NOUN NOUN NOUN NOUN VERB NOUN NOUN ADJ ADJ ADJ ADJ NOUN NOUN NOUN VERB ADJ NOUN CON NOUN ADJ Covered Code 17
18. Summary Generator NOUN NOUN NOUN ADJ NOUN NOUN VERB NOUN NOUN NOUN NOUN VERB NOUN NOUN ADJ ADJ ADJ ADJ NOUN NOUN NOUN VERB ADJ NOUN CON NOUN The test case instantiates an "Option" with: - option equal to “...” - long option equal to “...” - it has no argument - description equal to “…” An option validator validates it The test exercises the following condition: - "Option" has no argument public class Option { Option(String option, String long Option , boolean has Argument String description) throws IllegalArgumentException Option Validator.validate Option(option); this option = option ; this long Option = long Option; if (has Argument false } this description = description; } NOUN NOUN NOUN ADJ NOUN NOUN VERB NOUN NOUN NOUN NOUN VERB NOUN NOUN ADJ ADJ ADJ ADJ NOUN NOUN NOUN VERB ADJ NOUN CON NOUN ADJ Natural Language Sentences Parsed Code 18
19. The test case instantiates an "Option" with: - option equal to “...” - long option equal to “...” - it has no argument - description equal to “…” An option validator validates it The test exercises the following condition: - "Option" has no argument Natural Language Sentences 19 Class Level Method Level Statement Level Branch Level Summarisation Levels
20. Summarisation Levels The test case instantiates an "Option" with: - option equal to “...” - long option equal to “...” - it has no argument - description equal to “…” An option validator validates it The test exercises the following condition: - "Option" has no argument Natural Language Sentences 20 Class Level Method Level Statement Level Branch Level Do Test Summaries Improve Test Readability? Do Test Summaries Help Developers?
21. Case Study Bug Fixing Tasks Involving 30 Developers 21
22. Context Object: two Java classes from Apache Commons Primitives and Math4J that have been used in previous studies on search-based software testing [by Fraser et al. TOSEM 2015] Subjects: 30 Developers ArrayIntList.java Rational.java 22
23. Subjects: 30 Developers (23 Researchers and 7 Developers) Context Object: two Java classes from Apache Commons Primitives and Math4J that have been used in previous studies on search-based software testing [by Fraser et al. TOSEM 2015] ArrayIntList.java Rational.java 23
24. Study Procedure 24
25. Bug Fixing Tasks Group 1 Group 2 ArrayIntList.java Rational.java ArrayIntList.java Rational.java 25
26. Bug Fixing Tasks Group 1 Group 2 ArrayIntList.java Rational.java ArrayIntList.java Rational.java 26
27. Bug Fixing Tasks Group 1 Group 2 ArrayIntList.java Rational.java ArrayIntList.java Rational.java 27
28. Bug Fixing Tasks Group 1 Group 2 ArrayIntList.java Rational.java ArrayIntList.java Rational.java Comments Comments TestDescriber 28
29. Bug Fixing Tasks Experiment conducted Offline via a Survey platform Each participant received the experiment package consisting of: 1. A pretest questionnaire 2. Instructions and materials to perform the experiment 3. A post-test questionnaire We do not revealed the goal of the study 45 minutes of time for each task 29
30. How do test case summaries impact the number of bugs fixed by developers? RQ1
31. RQ1: How do test case summaries impact the number of bugs fixed by developers? 31
32. RQ1: How do test case summaries impact the number of bugs fixed by developers? Participants WITHOUT TestDescriber summaries fixed 40% of injected bugs None of them was able to fix all bugs. 32
33. RQ1: How do test case summaries impact the number of bugs fixed by developers? Participants, WITH TestDescriber summaries, fixed 60%-80% of injected bugs 31% of them fixed all the bugs. 33 Participants WITHOUT TestDescriber summaries fixed 40% of injected bugs None of them was able to fix all bugs.
34. RQ1: How do test case summaries impact the number of bugs fixed by developers? With summaries, the participants were able to fix twice as many number of bugs (+50%,+100%), in the same time window (45 minutes). The differences are statistically significant (Wilcoxon test with p-value<0.05) A12 Effect Size is always LARGE 34 Participants, WITH TestDescriber summaries, fixed 60%-80% of injected bugs 31% of them fixed all the bugs. Participants WITHOUT TestDescriber summaries fixed 40% of injected bugs None of them was able to fix all bugs.
35. RQ1: How do test case summaries impact the number of bugs fixed by developers? Results are not influenced by developers’ experience: (i) the number of bugs fixed is not significantly influenced by the programming experience; (ii)there is no significant interaction between the programming experience and the presence of test case summaries. 35 The differences are statistically significant (Wilcoxon test with p-value<0.05) A12 Effect Size is always LARGE
36. RQ1: How do test case summaries impact the number of bugs fixed by developers? Results are not influenced by developers’ experience: (i) the number of bugs fixed is not significantly influenced by the programming experience; (ii) there is no significant interaction between the programming experience and the presence of test case summaries. Summary: Using automatically generated test case summaries significantly helps developers to identify and fix more bugs. 36
37. How do test case summaries impact developers to change test cases in terms of structural and mutation coverage? RQ2
38. ArrayIntList.java Rational.java RQ2: How do test case summaries impact developers to change test cases in terms of structural and mutation coverage? 38
39. ArrayIntList.java Rational.java RQ2: How do test case summaries impact developers to change test cases in terms of structural and mutation coverage? ONLY for Rational there is an improvements of the mutation score (+10%) when tests are enriched with summaries. 10% 39
40. ArrayIntList.java Rational.java RQ2: How do test case summaries impact developers to change test cases in terms of structural and mutation coverage? ONLY for Rational there is an improvements of the mutation score (+10%) when tests are enriched with summaries. 10% Summary: Test case summaries do not influence how the developers manage the test cases in terms of structural coverage. 40
41. Test Cases Summaries and Comprehension Without With 4% 6% 14% 33% 14% 6% 32% 9% 36% 45% Medium High Very High Low Very Low Perceived test comprehensibility WITH and WITHOUT TestDescriber summaries 41
42. Test Cases Summaries and Comprehension WITH Summaries: (i) 46% of participants consider the test cases as “easy to understand”. (iii) Only 18% of participants considered the test cases as incomprehensible. Without With 4% 6% 14% 33% 14% 6% 32% 9% 36% 45% Medium High Very High Low Very Low Perceived test comprehensibility WITH and WITHOUT TestDescriber summaries 42
43. Test Cases Summaries and Comprehension WITHOUT Summaries: (i) Only 15% of participants consider the test cases as “easy to understand”. (iii) 40% of participants considered the test cases as incomprehensible. WITH Summaries: (i) 46% of participants consider the test cases as “easy to understand”. (iii) Only 18% of participants considered the test cases as incomprehensible. Without With 4% 6% 14% 33% 14% 6% 32% 9% 36% 45% Medium High Very High Low Very Low Perceived test comprehensibility WITH and WITHOUT TestDescriber summaries 43
44. Without With 4% 6% 14% 33% 14% 6% 32% 9% 36% 45% Medium High Very High Low Very Low Perceived test comprehensibility WITH and WITHOUT TestDescriber summaries Test Cases Summaries and Comprehension WITHOUT Summaries: (i) Only 15% of participants consider the test cases as “easy to understand”. (iii) 40% of participants considered the test cases as incomprehensible. WITH Summaries: (i) 46% of participants consider the test cases as “easy to understand”. (iii) Only 18% of participants considered the test cases as incomprehensible. Summary: Test summaries statistically improve the comprehensibility of automatically generated test case according to human judgments. 44

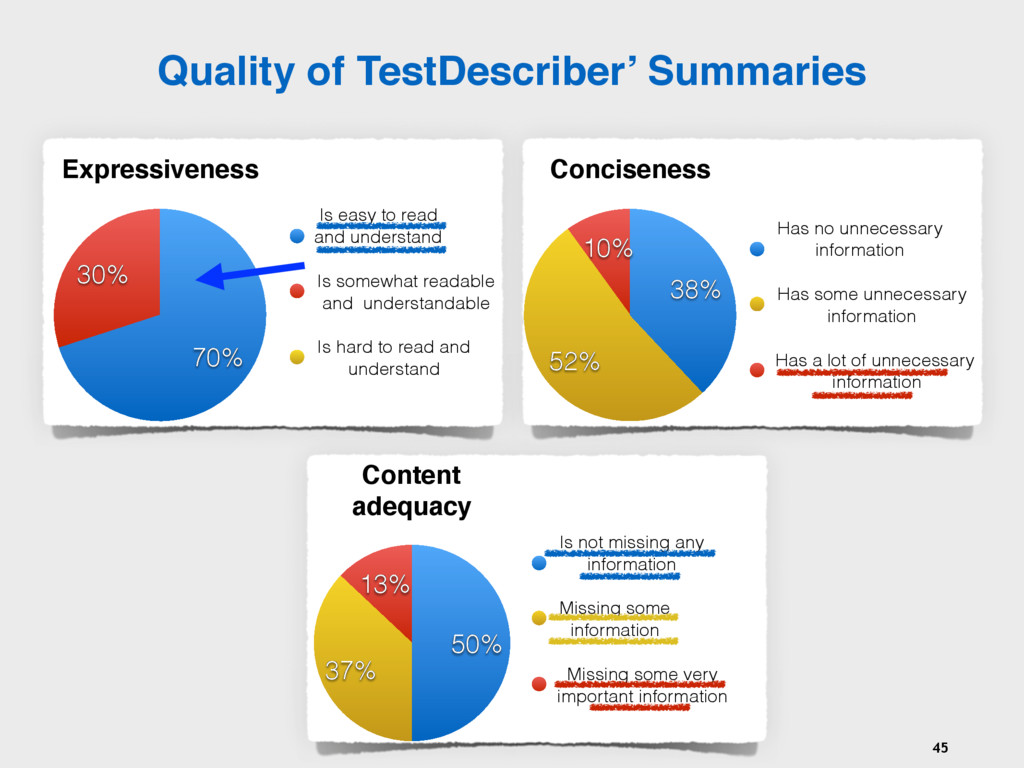

45. Quality of TestDescriber’ Summaries Expressiveness 30% 70% Is easy to read
 and understand
 Is somewhat readable
 and understandable Is hard to read and
 understand Conciseness 10% 52% 38% Has no unnecessary
 information
 Has some unnecessary
 information Has a lot of unnecessary
 information Content adequacy 13% 37% 50% Is not missing any
 information
 Missing some
 information Missing some very
 important information 45
46. Quality of TestDescriber’ Summaries Expressiveness 30% 70% Is easy to read
 and understand
 Is somewhat readable
 and understandable Is hard to read and
 understand Conciseness 10% 52% 38% Has no unnecessary
 information
 Has some unnecessary
 information Has a lot of unnecessary
 information Content adequacy 13% 37% 50% Is not missing any
 information
 Missing some
 information Missing some very
 important information 46
47. Quality of TestDescriber’ Summaries Expressiveness 30% 70% Is easy to read
 and understand
 Is somewhat readable
 and understandable Is hard to read and
 understand Conciseness 10% 52% 38% Has no unnecessary
 information
 Has some unnecessary
 information Has a lot of unnecessary
 information Content adequacy 13% 37% 50% Is not missing any
 information
 Missing some
 information Missing some very
 important information 47
48. Conclusion 1) Using automatically generated test case summaries significantly helps developers to identify and fix more bugs. 2) Test case summaries do not influence how the developers manage the test cases in terms of structural coverage. 3) Test summaries statistically improve the comprehensibility of automatically generated test case according to human judgments. Panichella et al. “The Impact of Test Case Summaries on Bug Fixing Performance: An Empirical Investigation”. ICSE 2016 48
