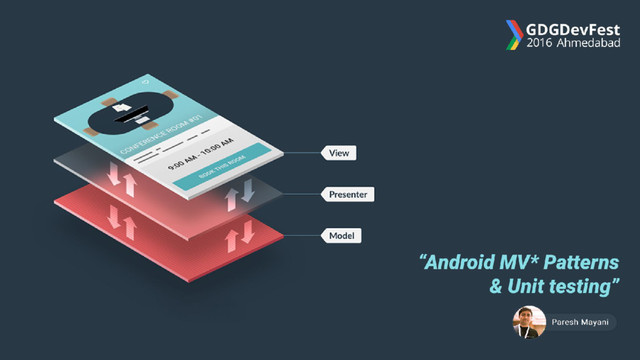

Android MV* Patterns & Unit Testing

"Android MV* Patterns & Unit Testing", talk delivered in DevFest Ahmedabad 2016 http://devfest.gdgahmedabad.com/

- Android MVC vs MVP vs MVVM
- Android Unit Testing
- Why Unit Testing
- Why Good code base
- Android Testing frameworks and tools
- Continuous Integration in Android

Transcript

1. View Slide

2. PareshMayani.apk
   Founder/Organizer, GDG Ahmedabad
   Technical Lead @ Lets Nurture
   Application Architect


   View Slide

3. Good/Clean code base?
   What is that? Why should we have good/clean code base?


   View Slide

4. Scalable


   View Slide

5. Scalable | Stable


   View Slide

6. Scalable | Stable | Testable


   View Slide

7. Scalable | Stable | Testable | Modular


   View Slide

8. Application Architecture?
   And why do I care?


   View Slide

9. MV* Patterns?
   And why do I care?


   View Slide

10. MV (C | P | VM)
    Model
    Business logic
    Data source of the application
    Network layer, database operations


    View Slide

11. MV (C | P | VM)
    View
    Business logic
    Data source of the application
    Network layer, database operations
    Responsible for displaying data
    Model


    View Slide

12. MVC
    Model View Controller


    View Slide

13. View
    Model
    Controller
    Controller manipulates, edit, uses data model
    and show it to users via View.


    View Slide

14. View
    Model
    Controller
    In Android, Activity/Fragments can act as both
    View and Controller


    View Slide

15. MVP
    Model View Presenter


    View Slide

16. Presenter
    Model
    View
    1 .. 1


    View Slide

17. Presenter
    Model
    View
    1 .. 1
    Presenter is a simple java class that do not
    contain any UI components, it just manipulates
    data from model and display in on View.


    View Slide

18. MVVM
    Model View ViewModel


    View Slide

19. ViewModel
    Model
    View
    1 .. *
    Many View can be mapped to one View-Model


    View Slide

20. MVC vs MVP vs MVVM
    Show me flow how it actually works


    View Slide

21. Passes
    call to
    Fire
    events
    Manipulates
    Model-View-Controller
    Controller Model
    View
    User Interaction


    View Slide

22. Passes
    call to
    Fire
    events
    Manipulates
    Model-View-Controller
    Controller Model
    View
    User Interaction
    Passes
    call to
    Manipulates
    Model-View-Presenter
    Presenter
    Model
    View
    Updates
    User Interaction
    Fire events


    View Slide

23. Passes
    call to
    Fire
    events
    Manipulates
    Model-View-Controller
    Controller Model
    View
    User Interaction
    Passes
    call to
    Manipulates
    Model-View-Presenter
    Presenter
    Model
    View Bi-directional
    Data Binding
    Manipulates
    Model-View-ViewModel
    ViewModel
    Model
    View
    Updates
    User Interaction User Interaction
    Fire
    events
    Fire events


    View Slide

24. MVC vs MVP vs MVVM
    Which one to follow?


    View Slide

25. Activity/Fragment/View
    should be Business logic free


    View Slide

26. Can you unit test everything?


    View Slide

27. Unit Testing
    Why to test?


    View Slide

28. Local unit tests
    Instrumented tests
    Test Types


    View Slide

29. Located at module-name/src/test/java/.
    These tests run on the local JVM and do not have
    access to functional Android framework APIs.
    Local unit tests


    View Slide

30. Located at module-name/src/androidTest/java/.
    These are all tests that must run on an Android
    hardware device or an Android emulator.
    Instrumented (end-to-end) tests


    View Slide

31. 1) Instrumented test 2) Local JVM Test


    View Slide

32. Why Unit Testing?
    Why should we write unit test?


    View Slide

33. “Unit Testing is a level of software testing where
    individual units/ components of a software are tested. “
    The purpose is to validate that each unit of the software
    performs as designed.”
    All possible scenarios


    View Slide

34. Unit tests are for the software developers
    Unit tests are written by software developers


    View Slide

35. Options: JUnit, Robolectric
    Frameworks: Mockito, PowerMock
    Unit Testing


    View Slide

36. Mocking => @mock
    @spy
    Stubbing => when().thenreturn(true/false)
    Verifying => verify()
    Mockito


    View Slide

37. // You can mock concrete classes and interfaces
    TrainSeats seats = mock(TrainSeats.class);
    // stubbing appears before the actual execution
    when(seats.book(Seat.near(WINDOW).in(FIRST_CLASS))).thenReturn(BOOKED);
    // the following prints "BOOKED"
    System.out.println(seats.book(Seat.near(WINDOW).in(FIRST_CLASS)));
    // the following prints "null" because .book(Seat.near(AISLE).in(FIRST_CLASS))) was not stubbed
    System.out.println(seats.book(Seat.near(AISLE).in(FIRST_CLASS)));
    // the following verification passes because .book(Seat.near(WINDOW).in(FIRST_CLASS)) has been
    invoked
    verify(seats).book(Seat.near(WINDOW).in(FIRST_CLASS))
    // the following verification fails because .book(Seat.in(SECOND_CLASS)) has not been invoked
    verify(seats).book(Seat.in(SECOND_CLASS))
    Example


    View Slide

38. Options: Robotium, Espresso
    Firebase Test lab support
    Android Studio test recorder
    Instrumentation tests


    View Slide

39. View Slide

40. View Slide

41. Continuous Integration
    Can I perform unit testing automatically whenever software builds?


    View Slide

42. Jenkins (Open source)
    Travis / Circle CI / Atlanssian Bamboo
    Performs testing on triggering actions like PR merge
    Automated reporting: Send email if build fails
    Auto publishing to play store
    Continuous Integration


    View Slide

43. Demo Time
    MVP Pattern & Unit Testing


    View Slide

44. https://goo.gl/Z4dy8G
    https://github.com/googlesamples/android-architecture
    Resources


    View Slide

45. No Questions!


    View Slide

46. Thank you!
    Paresh Mayani
    @pareshmayani
    Grab This Presentation
    https://goo.gl/Xsvpi3
