bioRad: biological analysis and visualization of weather radar data

Peter Desmet
September 22, 2019

bioRad: biological analysis and visualization of weather radar data

Talk at the 2nd International Radar Aeroecology Conference in Zhengzhou, China - September 22, 2019.

Weather surveillance radars are increasingly used for monitoring the movements and abundances of animals in the airspace. However, analysis of weather radar data remains a specialised task that can be technically challenging. Major hurdles are the difficulty of accessing and visualising radar data on a software platform familiar to ecologists and biologists, processing the low‐level data into products that are biologically meaningful, and summarizing these results in standardized measures. To overcome these hurdles, we developed the open source R package bioRad (described in Dokter et al. 2019, https://doi.org/10.1111/ecog.04028), which provides a toolbox for accessing, visualizing and analyzing weather radar data for biological studies. In this talk we will cover how bioRad provides functionality to access low‐level radar data, process these data into meaningful biological information on animal speeds and directions at different altitudes in the atmosphere, visualize these biological extractions, and calculate further summary statistics. We will also describe how the package introduces weather radar equivalents for familiar measures used in the field of migration ecology, facilitates the use and spread of interoperable data standards, and integrates with a research infrastructure for weather radar aeroecology in Europe and the United States.

Peter Desmet

September 22, 2019
Tweet

More Decks by Peter Desmet

Other Decks in Science

Transcript

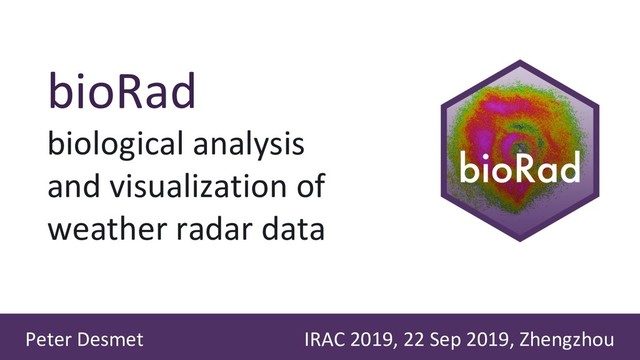

  1. bioRad
    biological analysis
    and visualization of
    weather radar data
    IRAC 2019, 22 Sep 2019, Zhengzhou
    Peter Desmet

    View full-size slide

  2. Bird migration on weather radars

    View full-size slide

  3. Bird migration on weather radars

    View full-size slide

  4. Bird migration on weather radars
    •  Reflectivity factor:
    how many animals?

    View full-size slide

  5. Bird migration on weather radars
    •  Reflectivity factor:
    how many animals?
    •  Radial velocity:
    where are they
    going?

    View full-size slide

  6. How to
    •  Read and inspect weather radar data
    •  Extract biological information: vertical profiling
    •  Analyze and integrate vertical profile data
    •  Standardize measures to compare studies

    View full-size slide

  7. bioRad
    •  R package for analysis and visualization
    of biological signals in weather radar data
    •  Open source
    •  Available on CRAN and GitHub
    adokter.github.io/bioRad

    View full-size slide

  8. Dokter et al. 2019 Ecography

    View full-size slide

  9. Authors
    Adriaan Dokter* Peter Desmet*
    Jurriaan Spaaks Stijn Van Hoey
    Lourens Veen Liesbeth Verlinden
    Cecilia Nilsson* Günther Haase
    Hidde Leijnse Andrew Farnsworth*
    Willem Bouten Judy Shamoun-Baranes*

    View full-size slide

  10. Functionality

    View full-size slide

  11. Installation
    # install bioRad from CRAN
    install.packages("bioRad")
    # load bioRad
    library("bioRad")

    View full-size slide

  12. pvol
    Read polar volume data
    pvol <- read_pvolfile("KBRO20170514_055831_pvol.h5")
    radar file

    View full-size slide

  13. pvol
    scan
    Read polar volume data
    pvol <- read_pvolfile("KBRO20170514_055831_pvol.h5")
    radar file

    View full-size slide

  14. pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor
    Read polar volume data
    pvol <- read_pvolfile("KBRO20170514_055831_pvol.h5")
    radar file

    View full-size slide

  15. pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor
    Read polar volume data
    pvol <- read_pvolfile("KBRO20170514_055831_pvol.h5")
    radar file

    View full-size slide

  16. pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor
    Read polar volume data
    pvol <- read_pvolfile("KBRO20170514_055831_pvol.h5")
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor
    radar file

    View full-size slide

  17. Inspect scan
    scan <- get_scan(pvol, 1.5)
    # use get_elevation_angles(pvol) to know angles
    pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor

    View full-size slide

  18. Inspect scan
    scan <- get_scan(pvol, 1.5)
    # use get_elevation_angles(pvol) to know angles
    pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor

    View full-size slide

  19. Plot scan
    plot(scan,

    param = "DBZH")
    pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor

    View full-size slide

  20. x
    y
    Project scan
    ppi <- project_as_ppi(scan, range_max = 120000)

    # ppi: plan position indicator
    pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor

    View full-size slide

  21. Project scan
    plot(ppi,

    param = "DBZH")
    pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor

    View full-size slide

  22. Project scan
    plot(ppi,

    param = "VRADH")
    pvol
    scan
    param: VRADH
    radial velocity
    param: DBZH
    reflectivity factor

    View full-size slide

  23. Vertical profiling
    calculate_vp(

    pvolfile = "KBRO20170514_055831_pvol.h5",

    vpfile = "KBRO20170514_055831_vp.h5"

    )
    # Makes use of vol2bird algorithm
    radar file

    View full-size slide

  24. Vertical profiling
    calculate_vp(

    pvolfile = "KBRO20170514_055831_pvol.h5",

    vpfile = "KBRO20170514_055831_vp.h5"

    )
    # Makes use of vol2bird algorithm
    radar file
    vp: vertical profile
    Vertical profile (class vp)
    radar: KBRO
    source: RAD:KBRO,PLC:BROWNSVILLE,state:TX
    nominal time: 2017-05-14 05:58:32
    generated by: vol2bird 0.3.18

    View full-size slide

  25. Plot vertical profile
    vp <- read_vpfiles(
    "KBRO20170514_055831_vp.h
    5")
    plot(vp,
    quantity = "dens")

    View full-size slide

  26. Plot vertical profile
    plot(vp,
    quantity = "ff")
    # ff: ground speed

    View full-size slide

  27. Time series of vertical profiles
    vpts <- bind_into_vpts(vp, vp, vp)
    # read file with: read_vpts("vpts_file.txt")
    # regularize with: regularize_vpts()
    vp: vertical profile

    View full-size slide

  28. Time series of vertical profiles
    vpts <- bind_into_vpts(vp, vp, vp)
    # read file with: read_vpts("vpts_file.txt")
    # regularize with: regularize_vpts()
    vp: vertical profile
    vp: vertical profile
    vp: vertical profile
    vp: vertical profile

    View full-size slide

  29. Time series of vertical profiles
    vpts <- bind_into_vpts(vp, vp, vp)
    # read file with: read_vpts("vpts_file.txt")
    # regularize with: regularize_vpts()
    vp: vertical profile Irregular time series of vertical

    profiles (class vpts)
    radar: KBRO
    # profiles: 95
    time range (UTC): 2017-05-14 00:09:00 –
    2017-05-14 13:25:00
    time step (s): min: 300 max: 1800
    vpts: vertical
    profile time series
    vp: vertical profile
    vp: vertical profile
    vp: vertical profile

    View full-size slide

  30. Time series of vertical profiles
    plot(vpts)

    View full-size slide

  31. Integrated vertical profiles
    vpi <- integrate_profile(vpi)
    vpts: vertical
    profile time series

    View full-size slide

  32. Integrated vertical profiles
    vpi <- integrate_profile(vpi)
    vpi: integrated
    vertical profile
    vpts: vertical
    profile time series

    View full-size slide

  33. Integrated vertical profiles
    plot(vpts,

    quantity = "mtr")
    # mtr: migration traffic
    rate (birds/km/hour)

    View full-size slide

  34. Documentation

    View full-size slide

  35. Help
    ?plot.vpts

    View full-size slide

  36. adokter.github.io/bioRad

    View full-size slide

  37. adokter.github.io/bioRad

    View full-size slide

  38. bioRad software note

    View full-size slide

  39. Supporting open
    reproducible science

    View full-size slide

  40. Common measures

    View full-size slide

  41. Common measures

    View full-size slide

  42. Common measures
    RCS = 11 cm2 Dokter et al. 2011 J. R. Soc. Interface

    View full-size slide

  43. Data standards
    •  Supported pvol formats:
    ODIM (Europe), NEXRAD (US),
    Vaisala Iris (e.g. Canada)
    radar file
    pvol: polar volume

    View full-size slide

  44. Data standards
    •  Supported pvol formats:
    ODIM (Europe), NEXRAD (US),
    Vaisala Iris (e.g. Canada)
    •  Export vp format of vol2bird:
    ODIM bird profile
    radar file
    pvol: polar volume
    vp: vertical profile

    View full-size slide

  45. vp: vertical profile
    vp: vertical profile
    Data standards
    •  Supported pvol formats:
    ODIM (Europe), NEXRAD (US),
    Vaisala Iris (e.g. Canada)
    •  Export vp format of vol2bird:
    ODIM bird profile
    •  Export vpts format:
    tabular format under discussion
    radar file
    pvol: polar volume
    vp: vertical profile
    vpts: vertical
    profile time series

    View full-size slide

  46. Collaborative effort

    View full-size slide

  47. Roadmap
    •  Range bias correction of PPIs
    •  Inclusion of the MistNet segmentation model
    (Lin et al. 2019 Methods Ecol. Evol.)
    •  Unit tests and continuous integration
    •  Submission for rOpenSci code review
    •  …

    View full-size slide

  48. bioRad is currently used for
    projects in Europe, US, Canada
    and Colombia…
    … but we hope it can become the
    go-to tool in R for all biological
    studies using weather radar data.

    View full-size slide

  49. Thank you!
    Desmet et al. (2019) Biological analysis and visualization of weather radar
    data. Presentation. http://bit.ly/biorad-irac2019
    adokter.github.io/bioRad
    oscibio.inbo.be

    View full-size slide
