PyConZA 2015: "Numberplate recognition using python, opencv and some other magic." by Kobus Wolvaardt

How to build/construct a numberplate recognition system for you or your neighbourhood. Using Python and OpenCV to detect and recognize numberplates from images, check and log it in a DB. Some challenges in getting usable numberplates at night and how the software was designed will be covered.

Pycon ZA

October 01, 2015

Transcript

20 slides
  1. How I got started • Got involved with neighbourhood watch

    • Cameras installation came up and I had the best CV: – Under the age of 70 – Own a computer • Got a test camera
  2. WIFI • Limits Camera placement • Solve wifi or get

    fiber • Resources: – Join a local WUG – Online tutorials – Buy a Mikrotik or Ubiquity kit and play with it
  3. Cameras • Many good options • Be careful of cheap

    cameras. – Thermal drift, lightning sensitivity, old codes eat BW • Numberplates at night: – Good sensor – Shutter configurable
  4. Plates at night • Car speed and angle • Light

    • Shutterspeed • Sensor quality

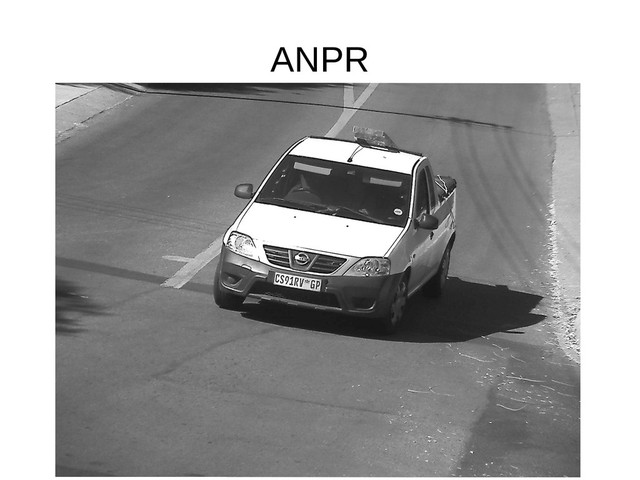

  5. ANPR • I am not a computer vision expert •

    CDD was used for the development – Wrote a c++/python hybrid many years ago (lost source code) – Want pure python rewrite – Promise you'll give talk at pycon (Conference Driven Development) • ANPR Basic process: – Pre-process image – Localize numberplate(s) in image – De-skew or rotate plate region – Segment characters – Recognize characters – Grammar / post processing
  6. ANPR • Pre-process – Equalisation or normalisation – Colour space

    preparation • Numberplate localization – Edge detection with vertical and horizontal count – Tophat Morphological Operations – Haar (and other trainable) classifiers, usually to find faces – Character detection (what I used)
  7. Character detection localiation • Numberplate characteristics: – High contrast in

    plate region – Similar sized closely grouped characters – Horizontally oriented • Do adaptive threshold: – thresh = cv2.adaptiveThreshold(image, 255, cv2.ADAPTIVE_THRESH_MEAN_C, cv2.THRESH_BINARY_INV, self.config["thesh_window"], self.config["thesh_offset"]) • Detect all blobs (CCA or contour finding) – (cnts, _) = cv2.findContours(self.thresh.copy(), cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE) • Filter blobs based on height and weight • Group filter blobs
  8. Grouped and filtered Row 1 Row 2 Row 3 Row

    4 0 2 4 6 8 10 12 Column 1 Column 2 Column 3
  9. Plate de-skew and rotate • De-skew: – Find edges of

    numberplate and four corners – Edges sometimes invisible M = cv2.getPerspectiveTransform(rect, dst) warped = cv2.warpPerspective(image, M, (maxWidth, maxHeight)) • Rotate: – Rotate gave me more consistant results – No need for numberplate edge – Use characters to determine plate angle M = cv2.getRotationMatrix2D((cX, cY), degrees, 1.0) rotated = cv2.warpAffine(plateregion, M, (w, h))
  10. Character segmentation • Adaptive Threshold • CCA (Contour) • Filter

    (stricter on height variance) • Copy and resize characters
  11. Character Recognition • Compare against averaged samples of all characters

    – Not accurate • Train ANN – Need lots of data and time to train (900 input layer and 36 output) – Not great at generalisation • Deep Belief Networks – Something to try next, seems to be a good tool import nolearn • Other tools – Tesserac does not like getting 30x30pixel single letter images – Suggestion would be welcome
  12. Questions • Code samples and ideas came from http://www.pyimagesearch.com/ check

    out Adrian's site if you want to learn computer vision • Questions?
