1. VR/AR/Mixed Reality Rabimba Karanjai @rabimba
2. VR/AR/MR in a Nutshell Rabimba Karanjai, Mozilla Research Mixed Reality Mozilla Tech Speaker @rabimba
3. What the Heck Doodle? ARKit ARCore MR VR XR AR Oculus Sony Vive Meta HoloLens

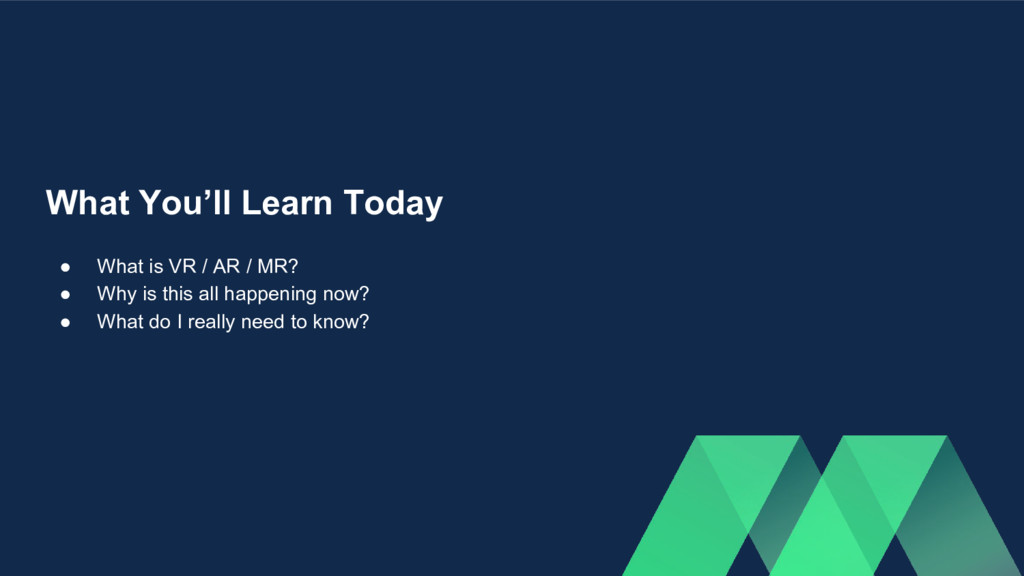

4. What You’ll Learn Today • What is VR / AR / MR? • Why is this all happening now? • What do I really need to know?

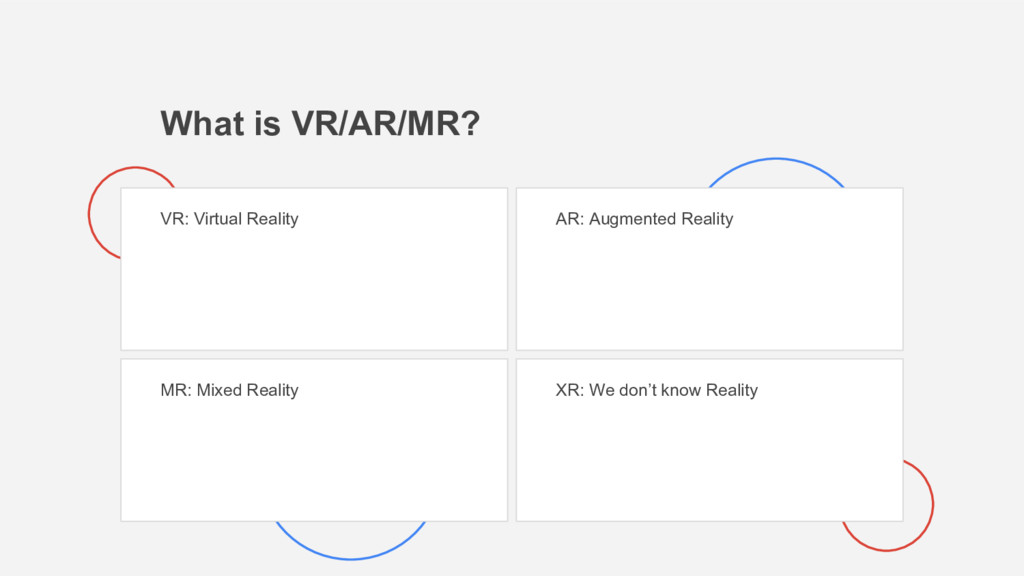

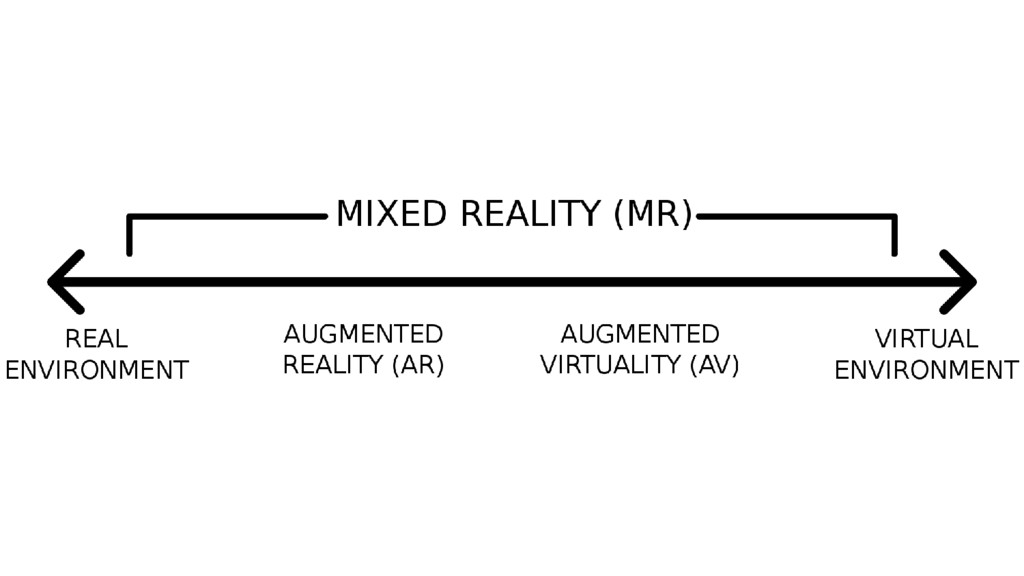

5. What is VR/AR/MR? VR: Virtual Reality AR: Augmented Reality MR: Mixed Reality XR: We don’t know Reality

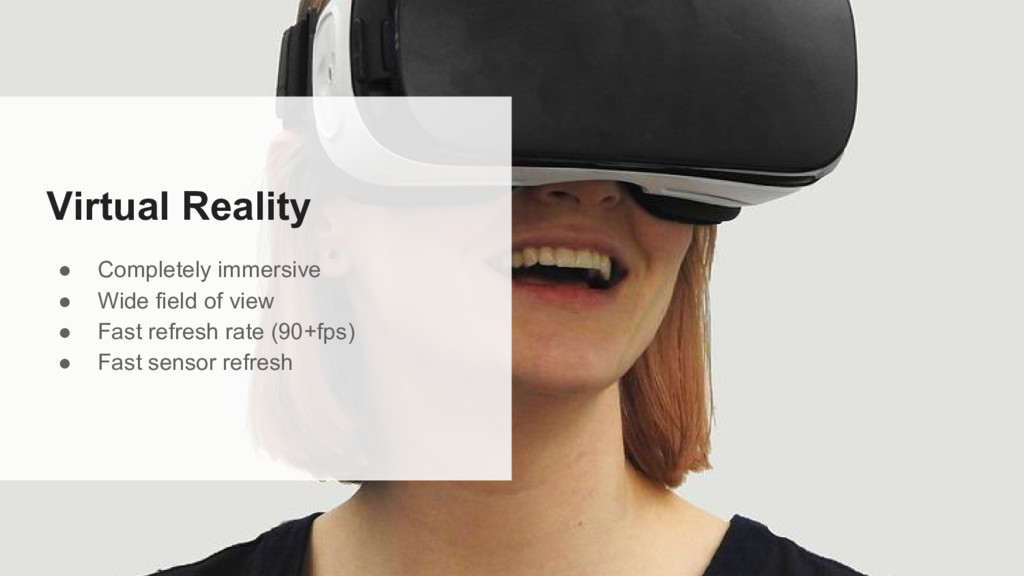

6. Virtual Reality • Completely immersive • Wide field of view • Fast refresh rate (90+fps) • Fast sensor refresh
7. Augmented Reality • Overlaid on real world • Anchored to real world • Non-immersive
9. Partial AR
13. Why Now?

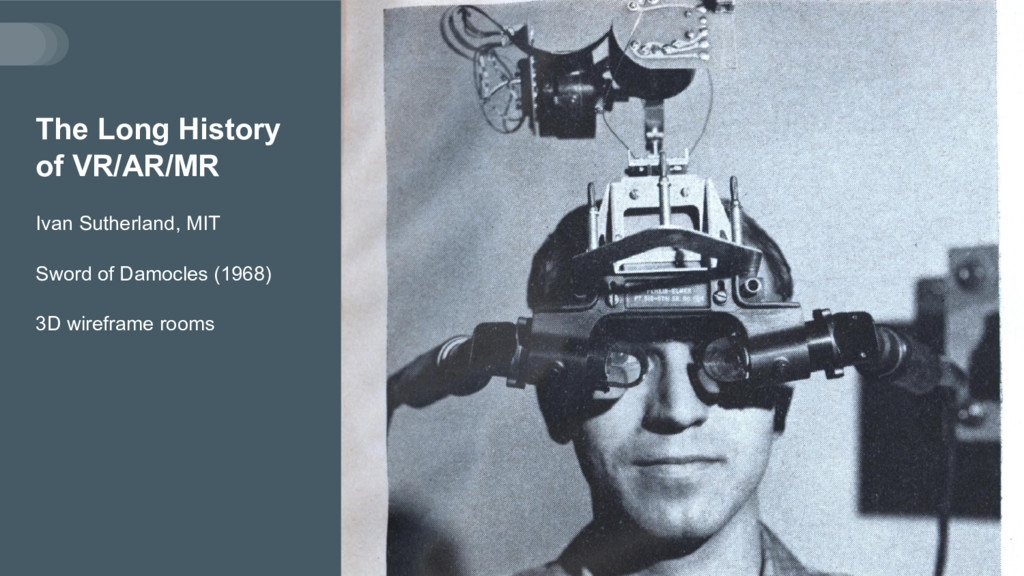

14. The Long History of VR/AR/MR Ivan Sutherland, MIT Sword of Damocles (1968) 3D wireframe rooms

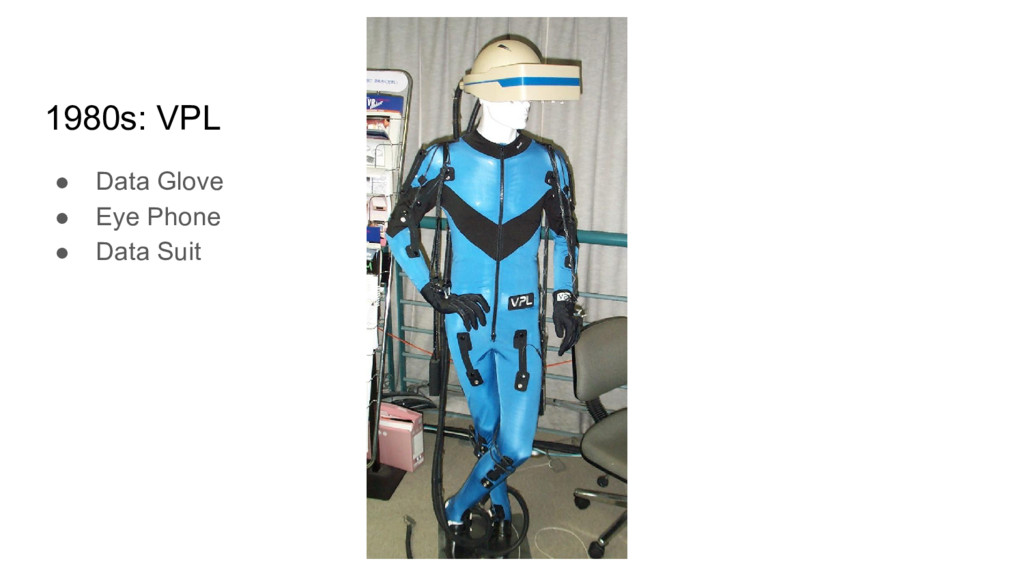

16. 1980s: VPL • Data Glove • Eye Phone • Data Suit

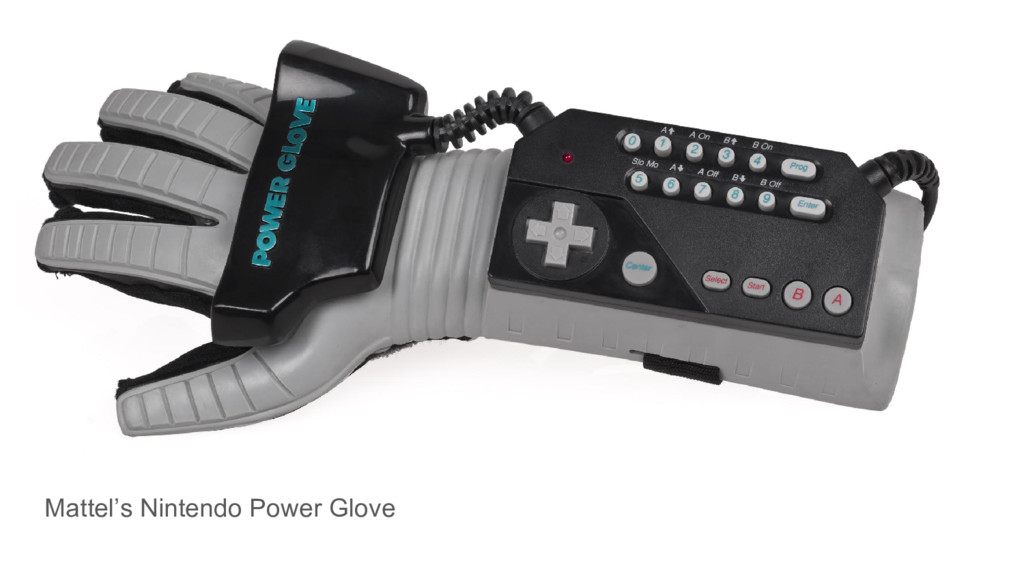

17. Mattel’s Nintendo Power Glove

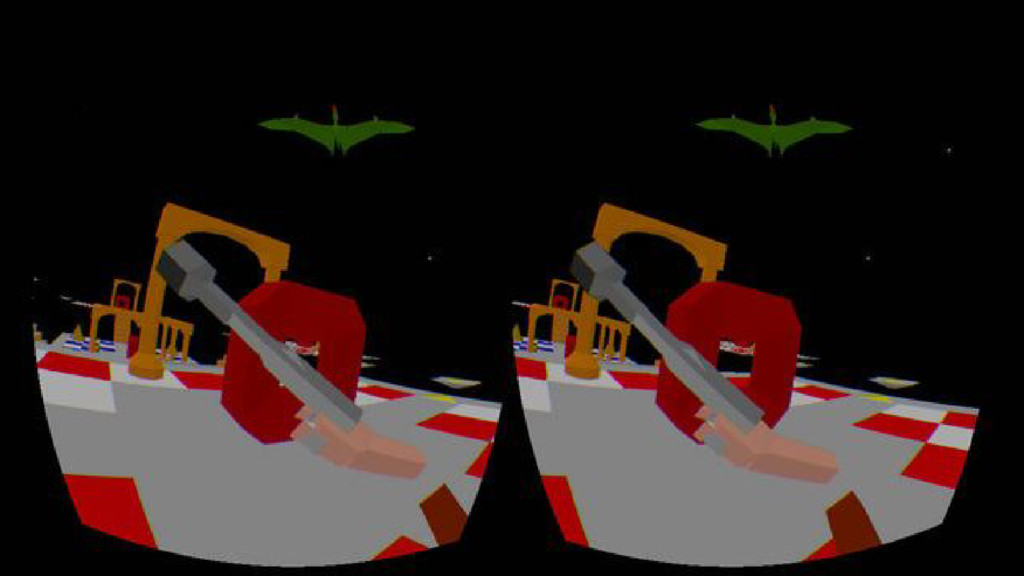

18. 1990s: Virtuality

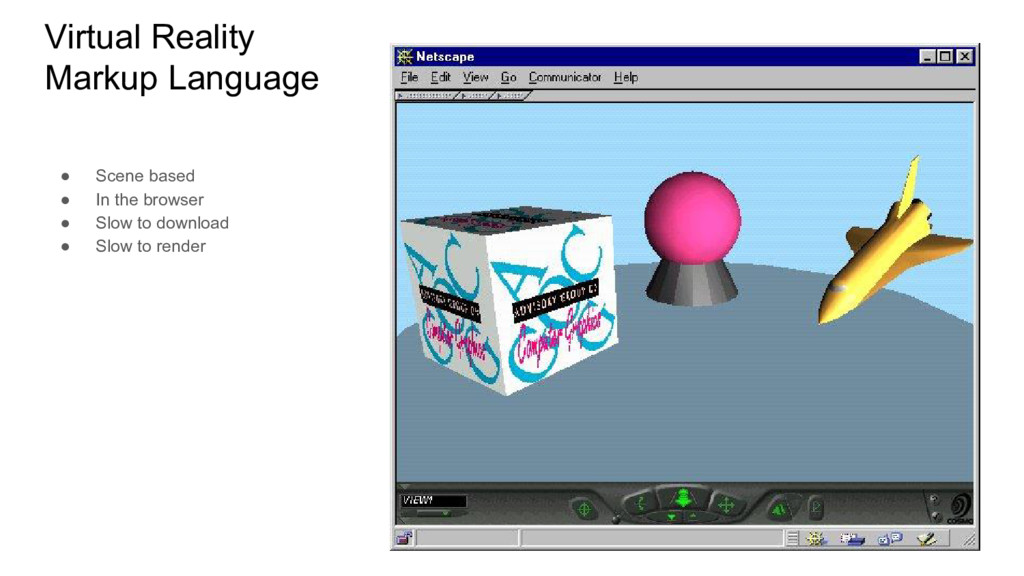

20. Virtual Reality Markup Language • Scene based • In the browser • Slow to download • Slow to render

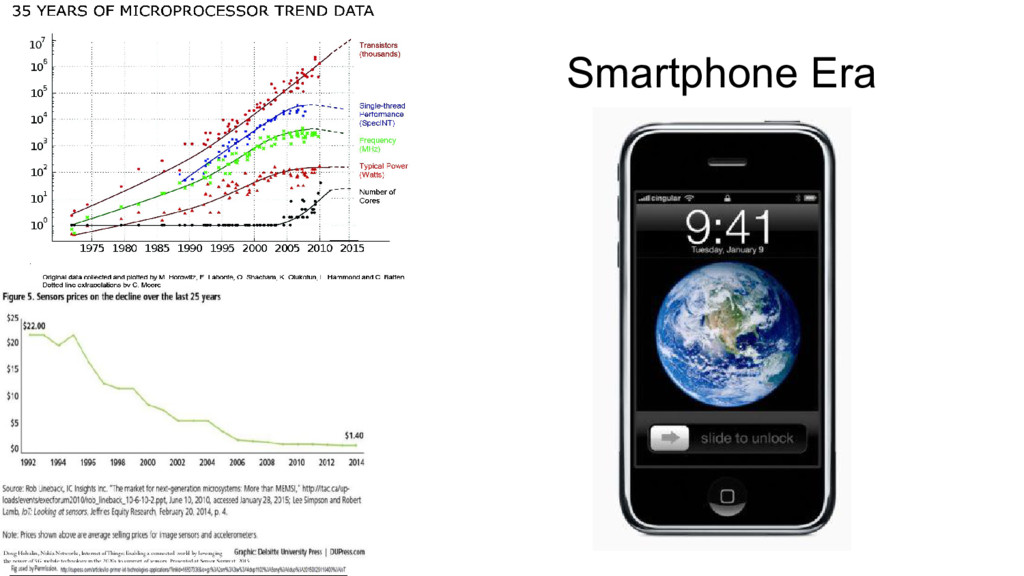

22. Smartphone Era

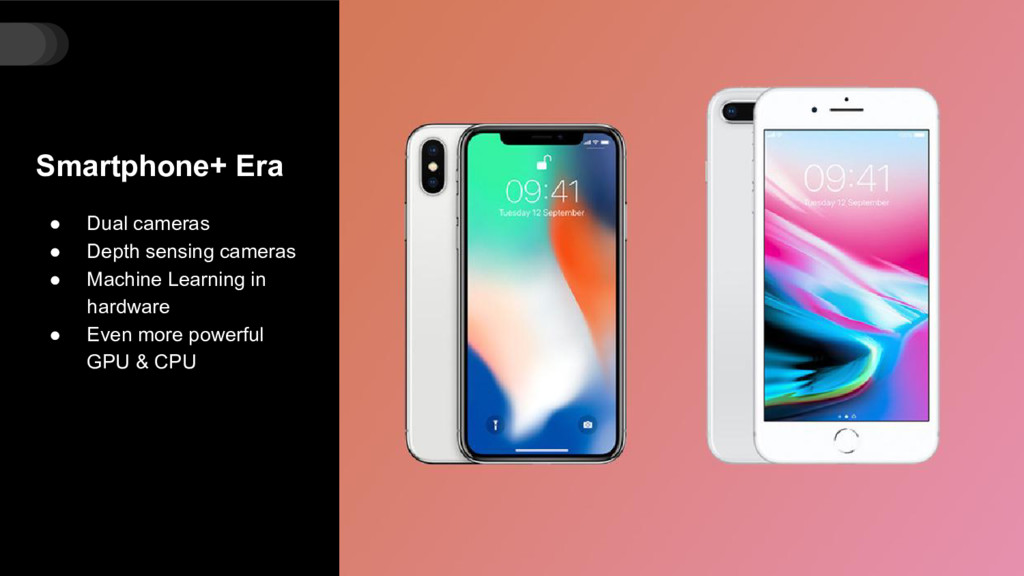

23. Smartphone+ Era • Dual cameras • Depth sensing cameras • Machine Learning in hardware • Even more powerful GPU & CPU

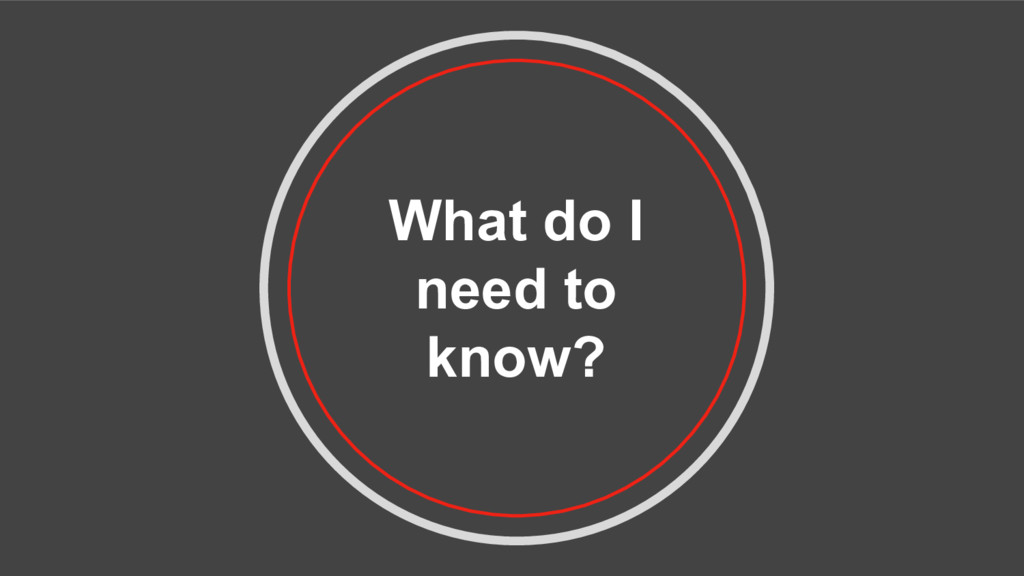

24. What do I need to know?

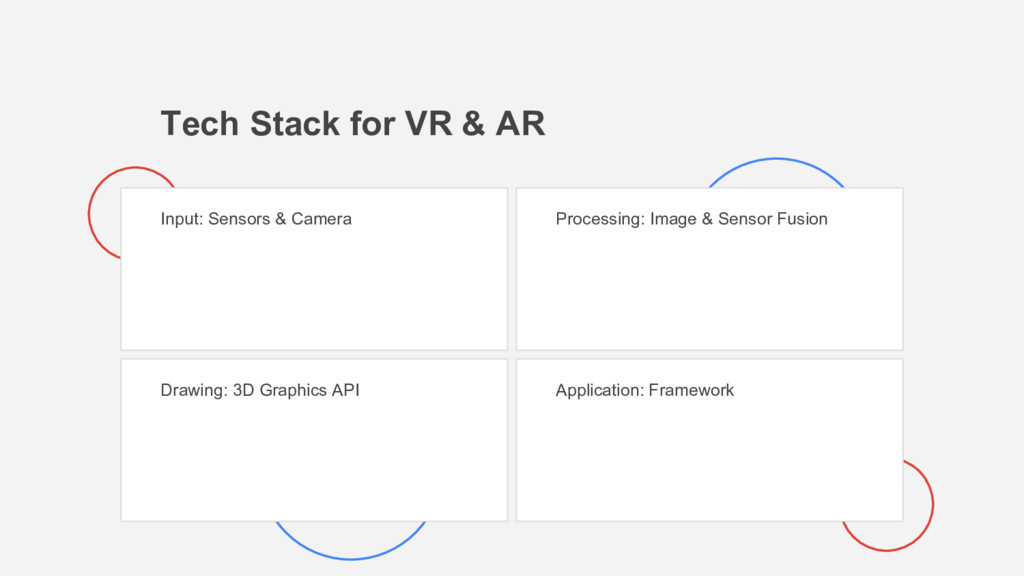

25. Tech Stack for VR & AR Input: Sensors & Camera Processing: Image & Sensor Fusion Drawing: 3D Graphics API Application: Framework

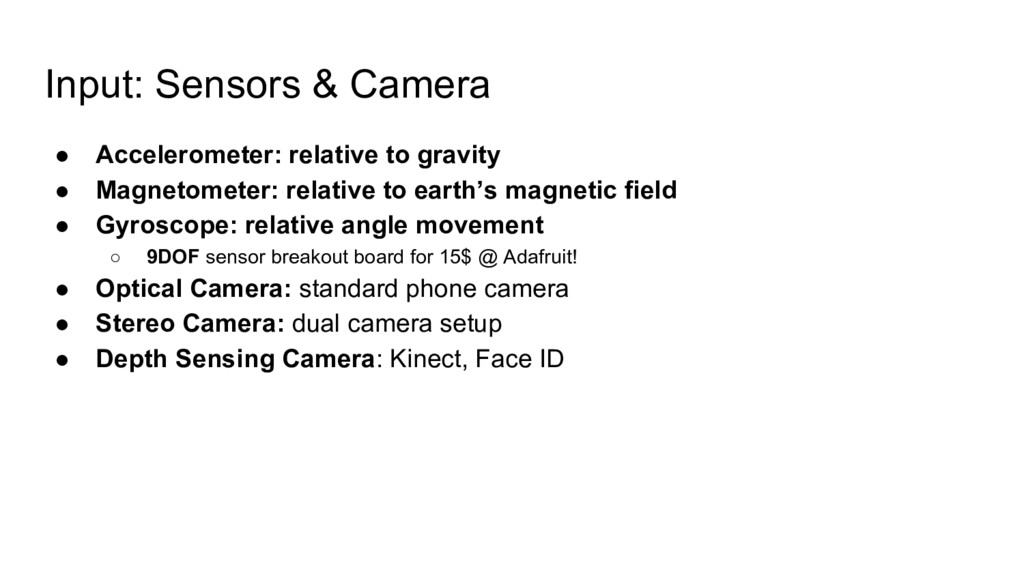

26. Input: Sensors & Camera • Accelerometer: relative to gravity • Magnetometer: relative to earth’s magnetic field • Gyroscope: relative angle movement ◦ 9DOF sensor breakout board for 15$ @ Adafruit! • Optical Camera: standard phone camera • Stereo Camera: dual camera setup • Depth Sensing Camera: Kinect, Face ID

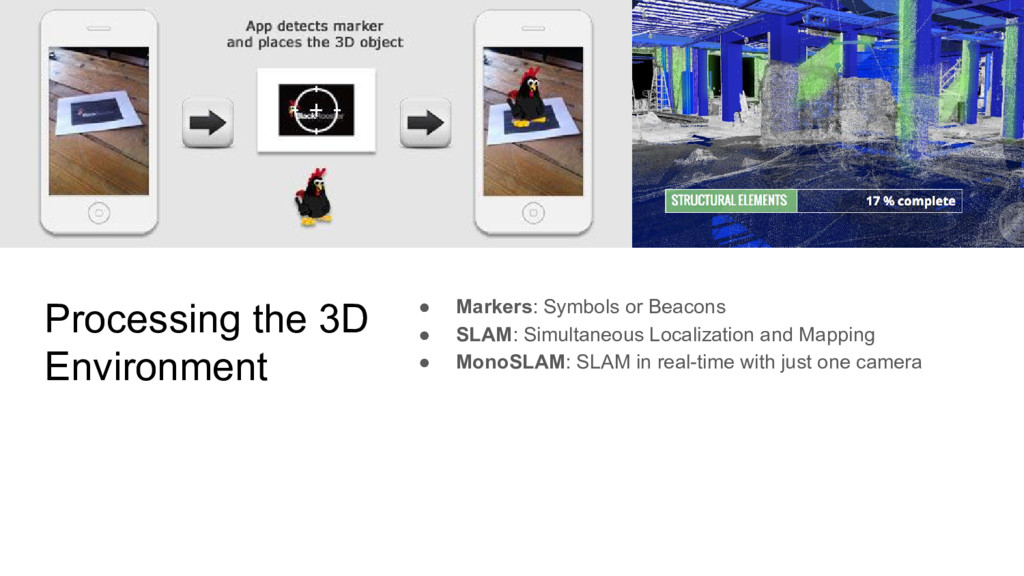

27. Processing the 3D Environment • Markers: Symbols or Beacons • SLAM: Simultaneous Localization and Mapping • MonoSLAM: SLAM in real-time with just one camera

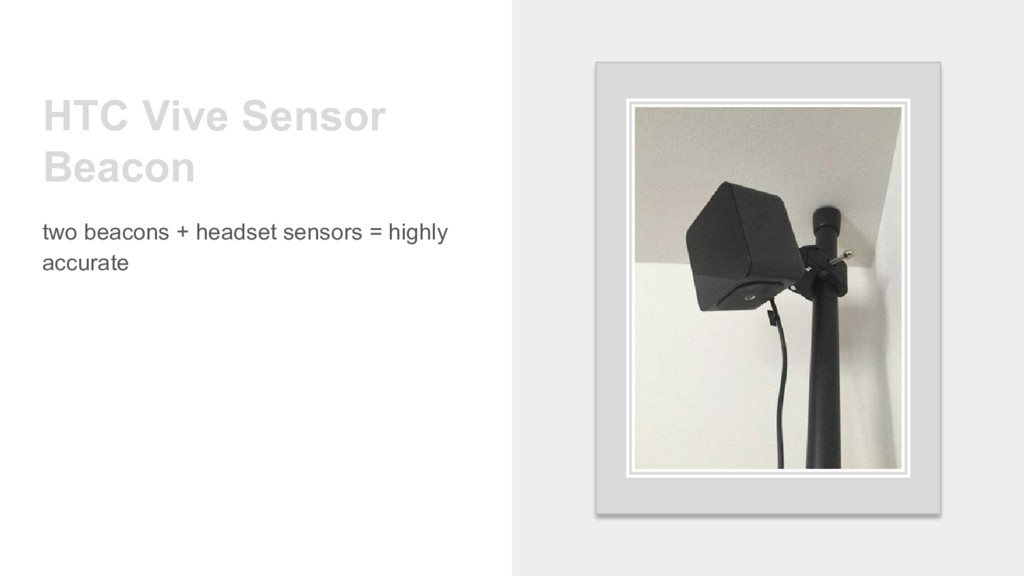

28. HTC Vive Sensor Beacon two beacons + headset sensors = highly accurate

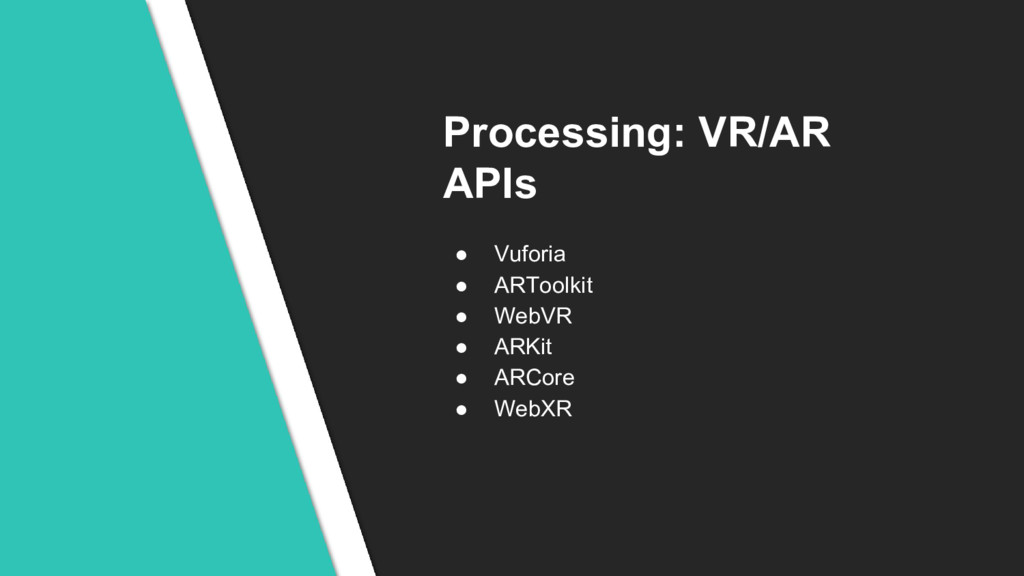

29. Processing: VR/AR APIs • Vuforia • ARToolkit • WebVR • ARKit • ARCore • WebXR

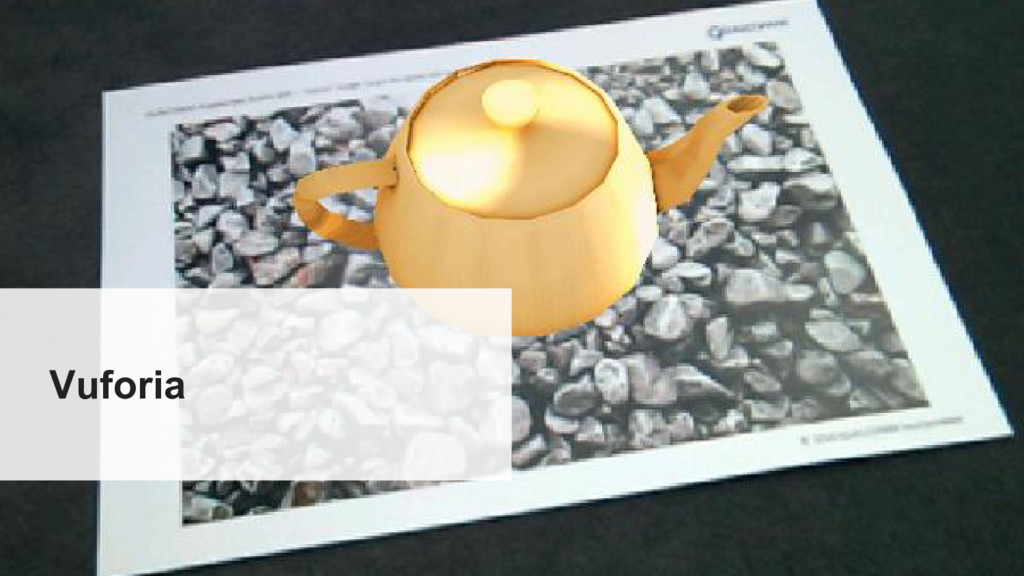

30. Vuforia

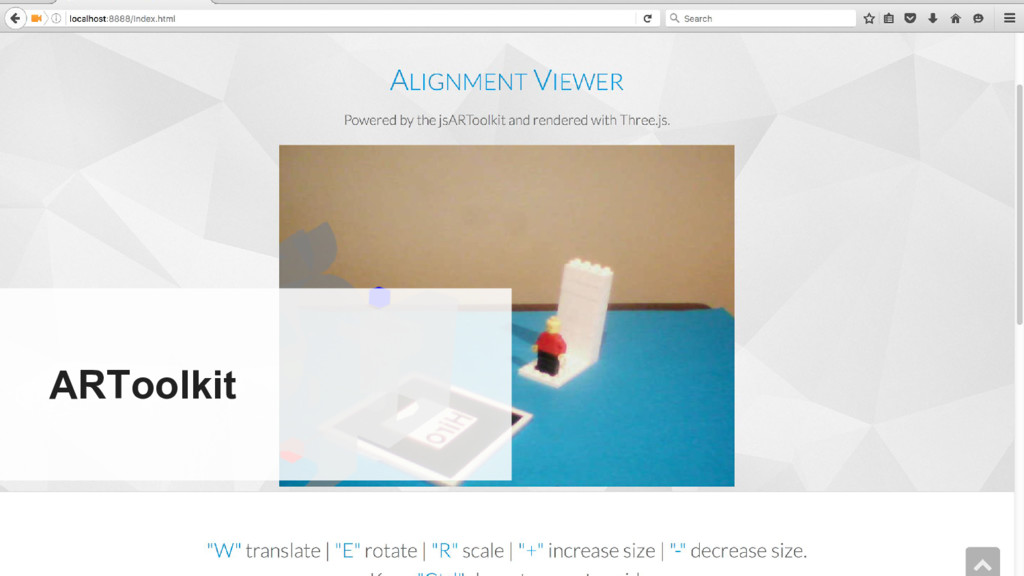

31. ARToolkit

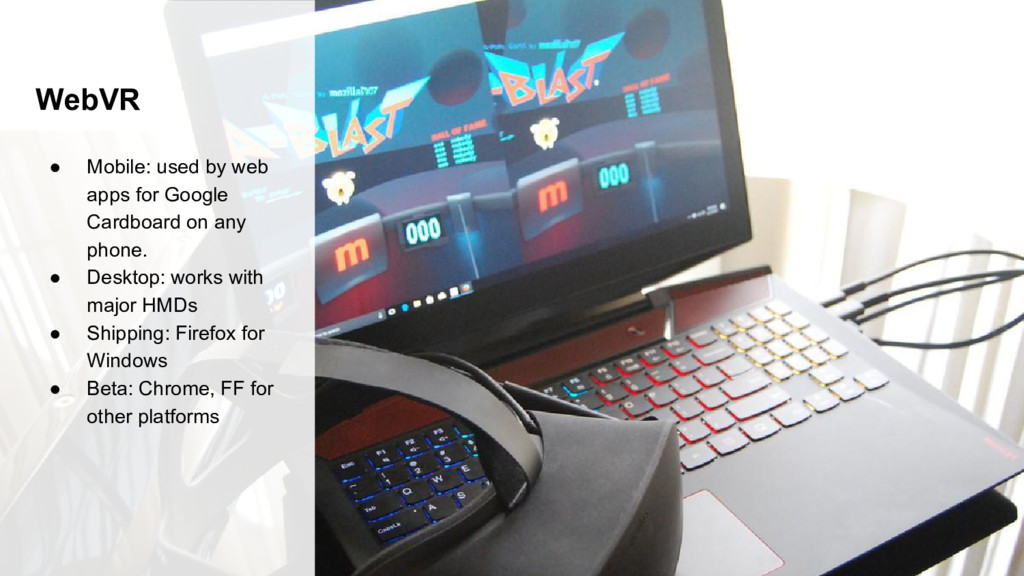

32. WebVR • Mobile: used by web apps for Google Cardboard on any phone. • Desktop: works with major HMDs • Shipping: Firefox for Windows • Beta: Chrome, FF for other platforms

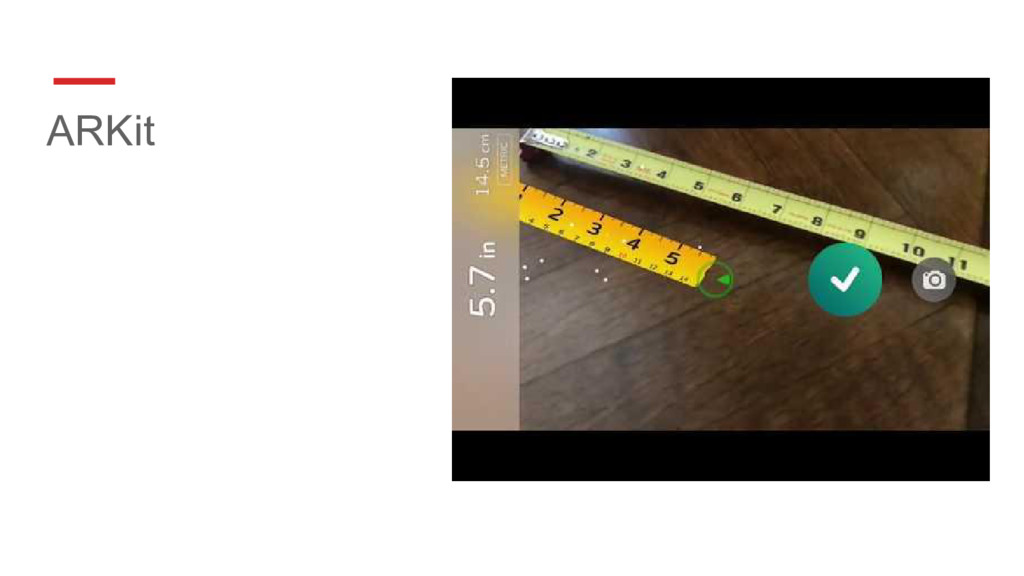

33. ARKit
34. Tango ARCore
35. WebXR: Work In Progress! • Proposed Future Web Standard • Extend WebVR with new features • Work with ARKit & ARCore • Polyfill for old browsers using WebRTC + sensors https://github.com/mozilla/webxr-api https://github.com/mozilla/webxr-polyfill

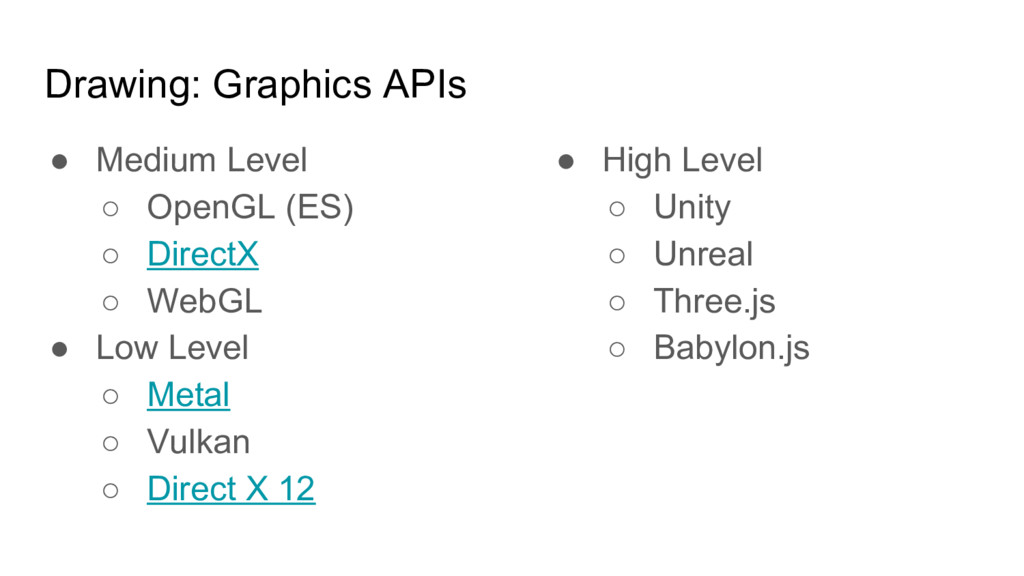

36. Drawing: Graphics APIs • Medium Level ◦ OpenGL (ES) ◦ DirectX ◦ WebGL • Low Level ◦ Metal ◦ Vulkan ◦ Direct X 12 • High Level ◦ Unity ◦ Unreal ◦ Three.js ◦ Babylon.js

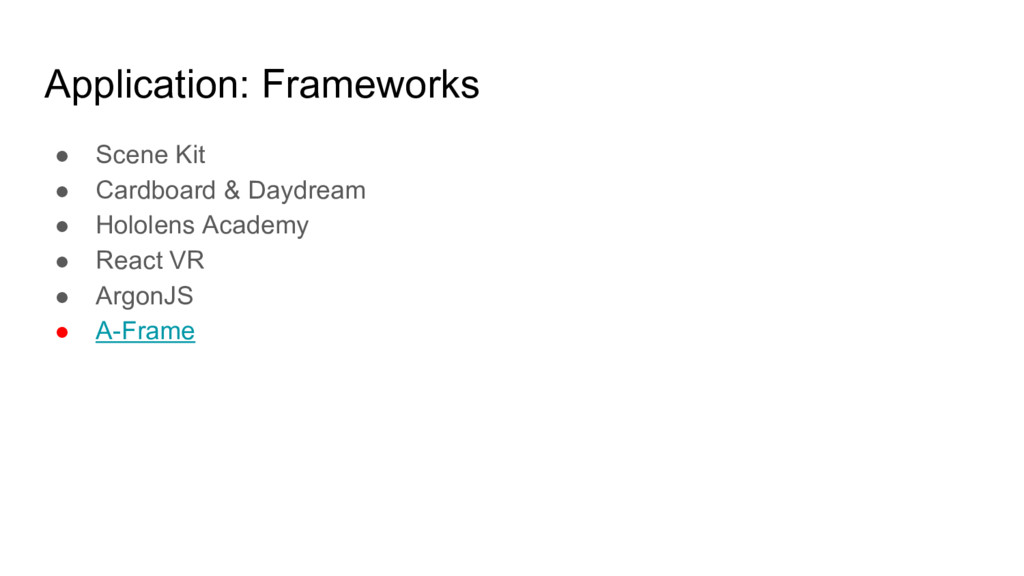

37. Application: Frameworks • Scene Kit • Cardboard & Daydream • Hololens Academy • React VR • ArgonJS • A-Frame

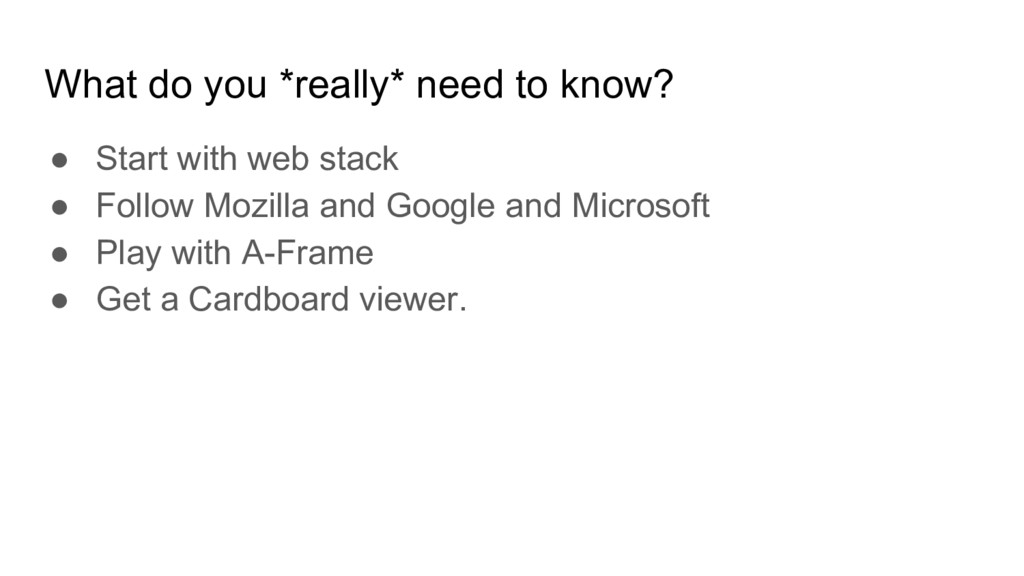

38. What do you *really* need to know? • Start with web stack • Follow Mozilla and Google and Microsoft • Play with A-Frame • Get a Cardboard viewer.

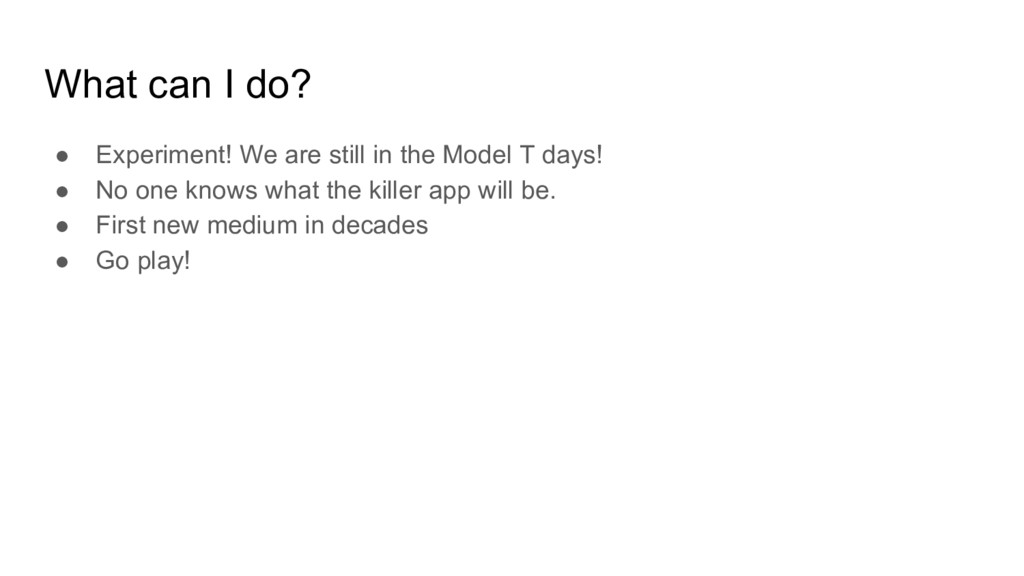

39. What can I do? • Experiment! We are still in the Model T days! • No one knows what the killer app will be. • First new medium in decades • Go play!
40. State of WebVR and Aframe The web framework for building VR experiences @rabimba | Mozilla VR | aframe.io
41. Friction of VR Ecosystems Gatekeepers Installs Closed
42. WebVR An open virtual reality platform with the advantages of the Web Open Connected Instant

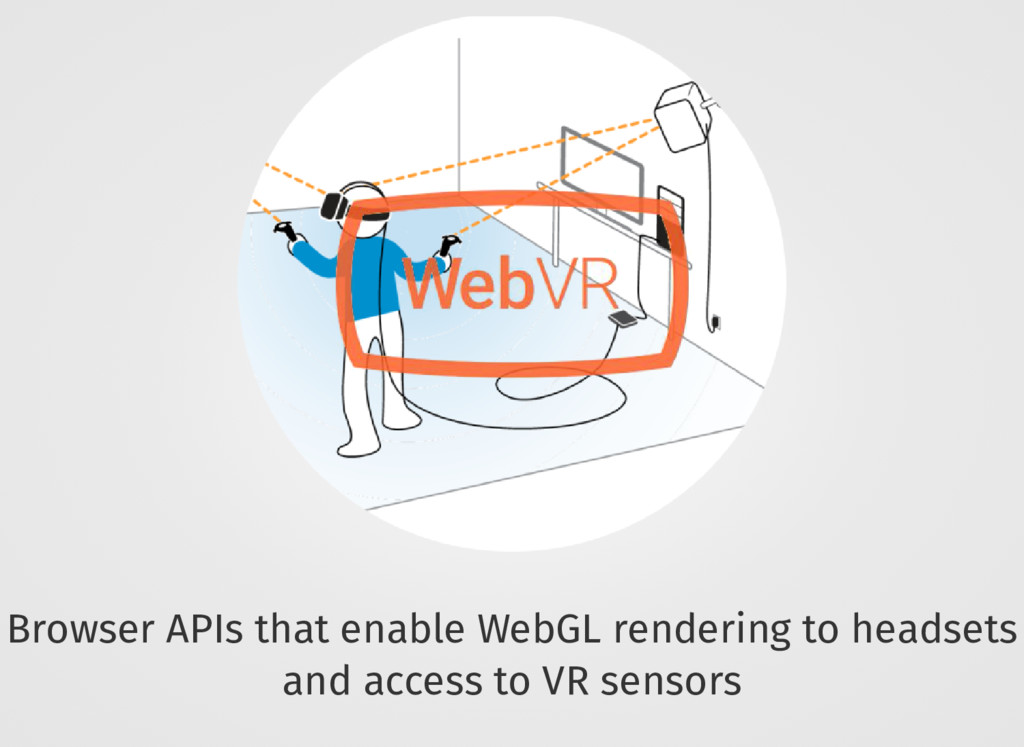

43. Browser APIs that enable WebGL rendering to headsets and access to VR sensors
44. https://w3c.github.io/webvr/
45. Firefox Nightly Chromium (Experimental) Samsung Internet Mobile Polyfill

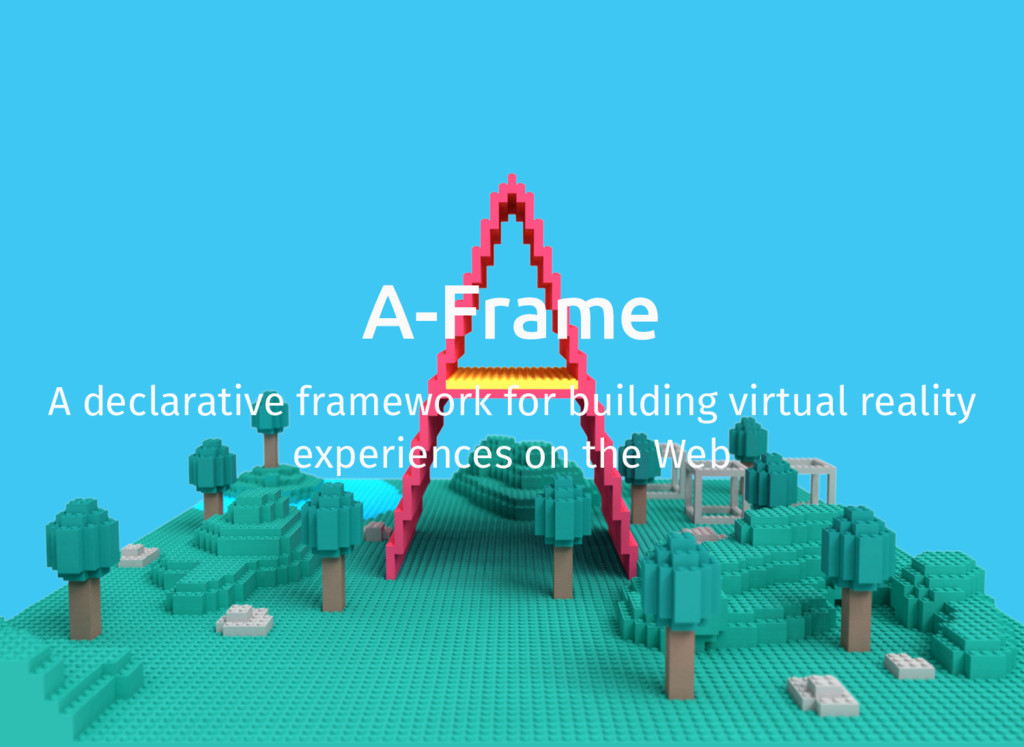

46. A-Frame A declarative framework for building virtual reality experiences on the Web

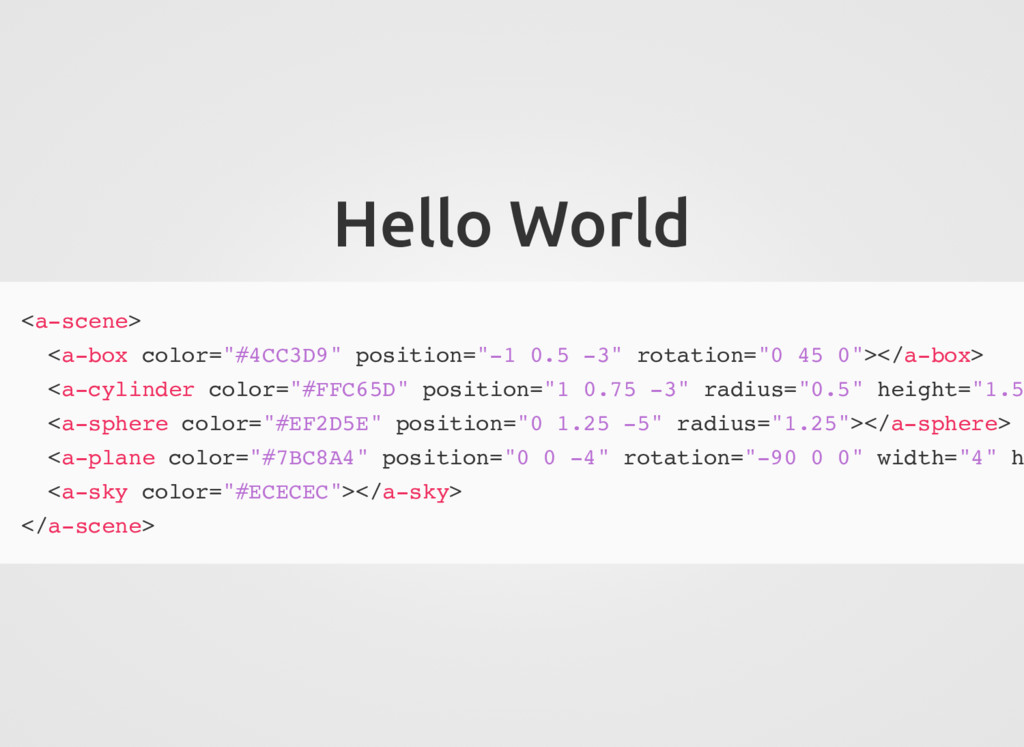

47. Hello World <a-scene> <a-box color="#4CC3D9" position="-1 0.5 -3" rotation="0 45 0"></a-box> <a-cylinder color="#FFC65D" position="1 0.75 -3" radius="0.5" height="1.5 <a-sphere color="#EF2D5E" position="0 1.25 -5" radius="1.25"></a-sphere> <a-plane color="#7BC8A4" position="0 0 -4" rotation="-90 0 0" width="4" h <a-sky color="#ECECEC"></a-sky> </a-scene>
48. Hello World

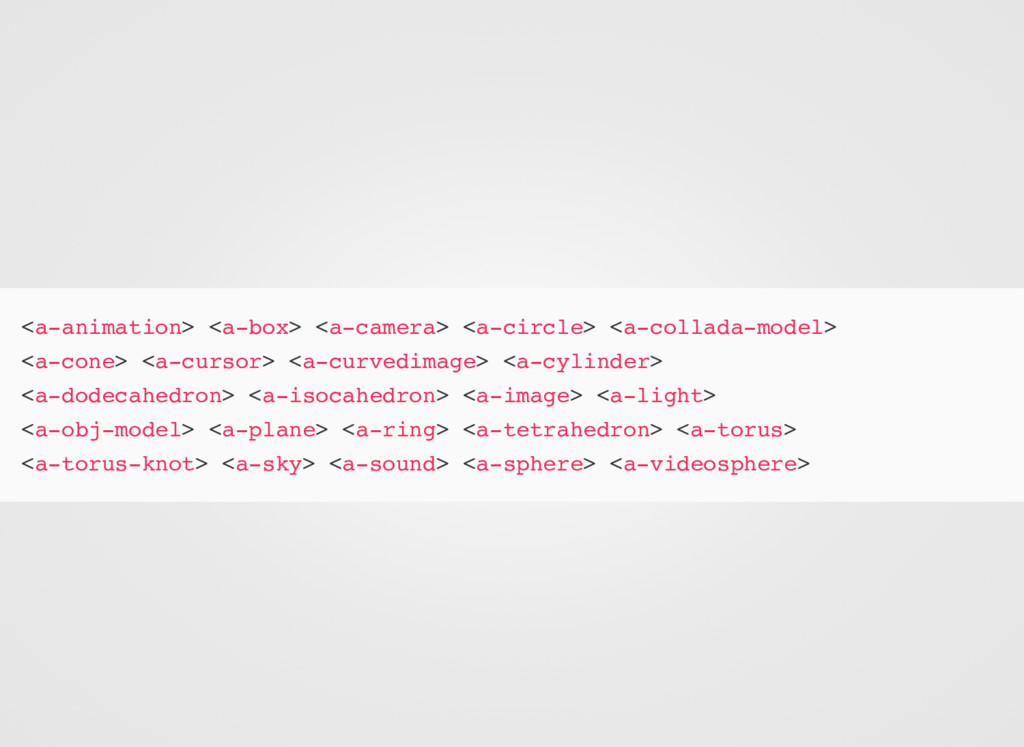

49. <a-animation> <a-box> <a-camera> <a-circle> <a-collada-model> <a-cone> <a-cursor> <a-curvedimage> <a-cylinder> <a-dodecahedron> <a-isocahedron> <a-image> <a-light> <a-obj-model> <a-plane> <a-ring> <a-tetrahedron> <a-torus> <a-torus-knot> <a-sky> <a-sound> <a-sphere> <a-videosphere>

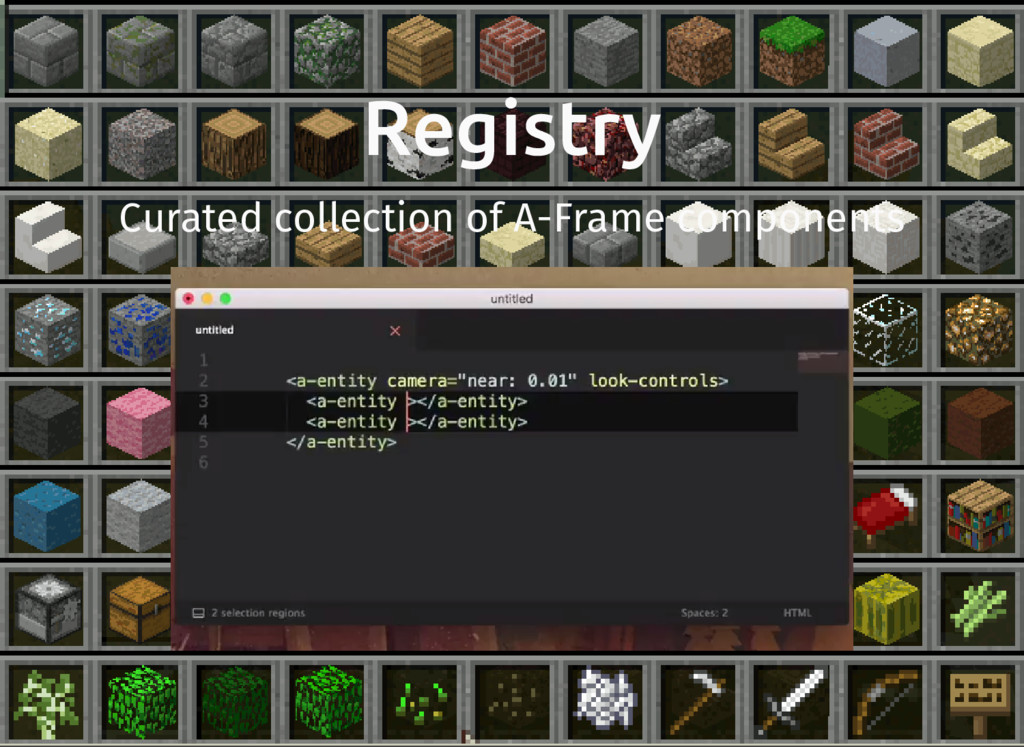

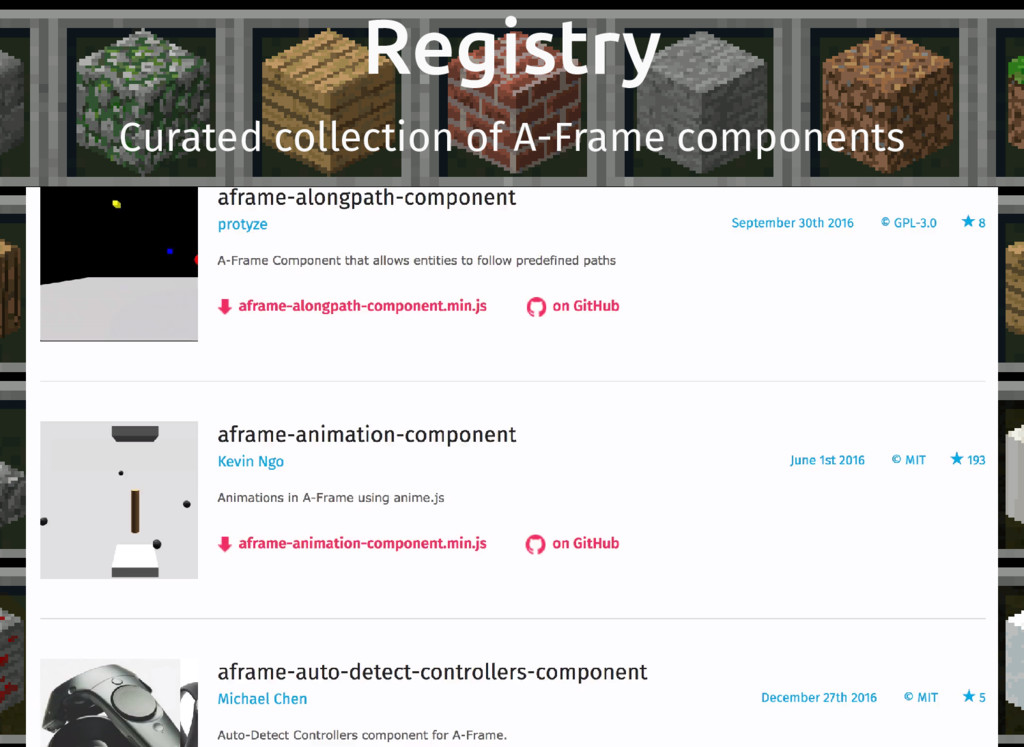

50. Registry Curated collection of A-Frame components

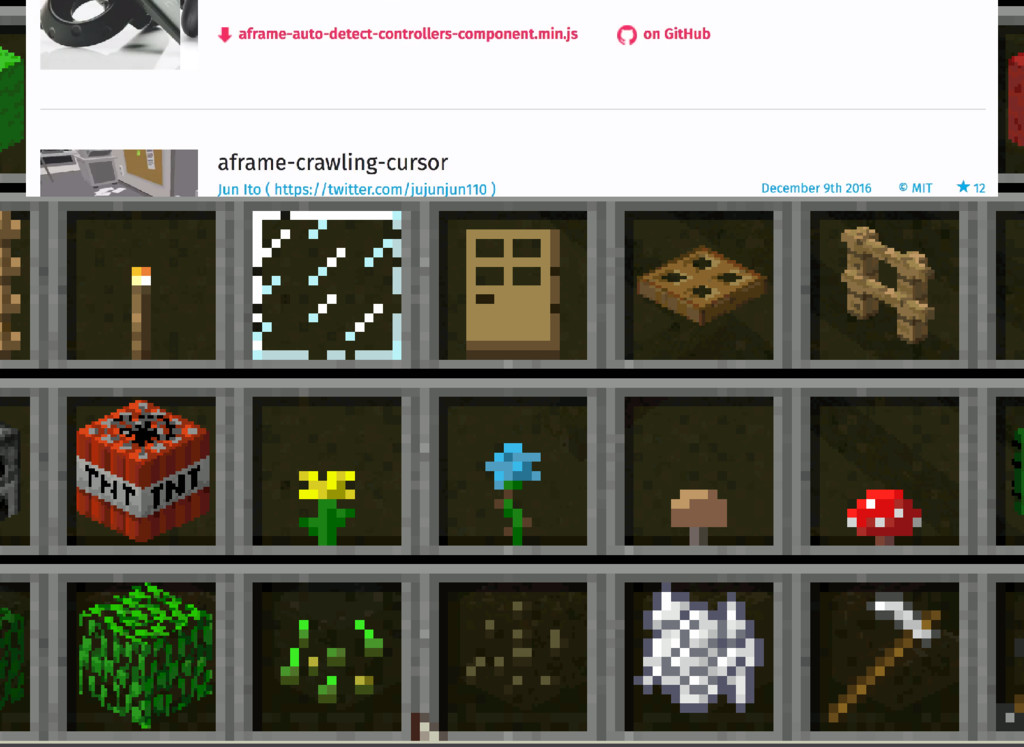

52. Registry Curated collection of A-Frame components
53. Motion Capture Record then develop room scale VR on the go Remix Glitch

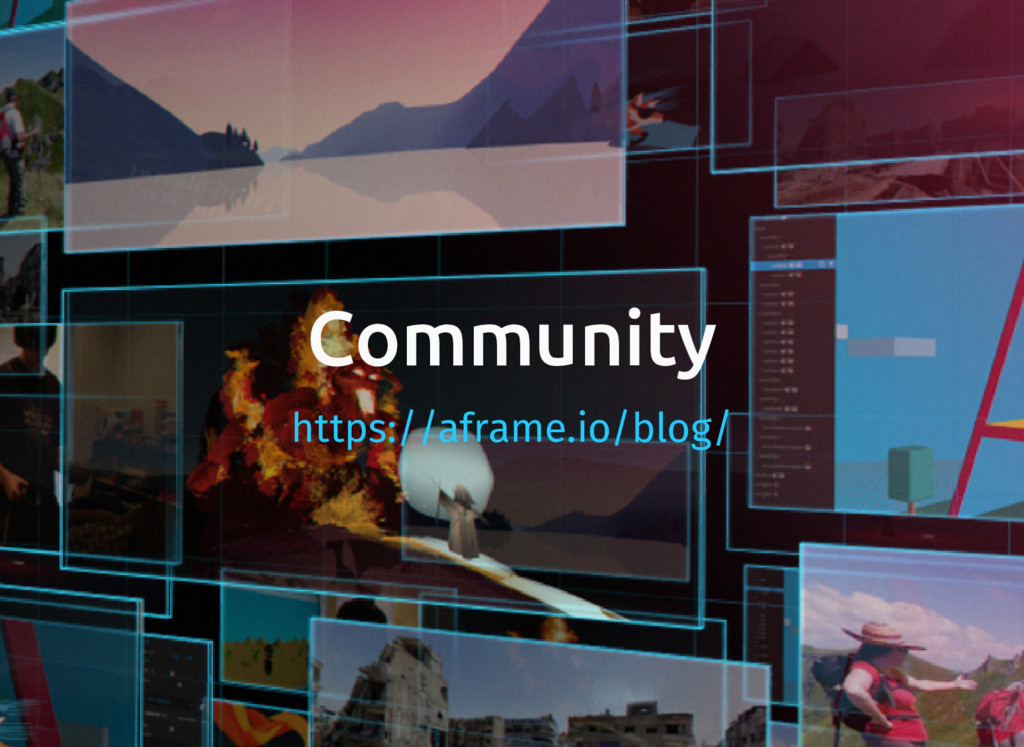

54. Community https://aframe.io/blog/

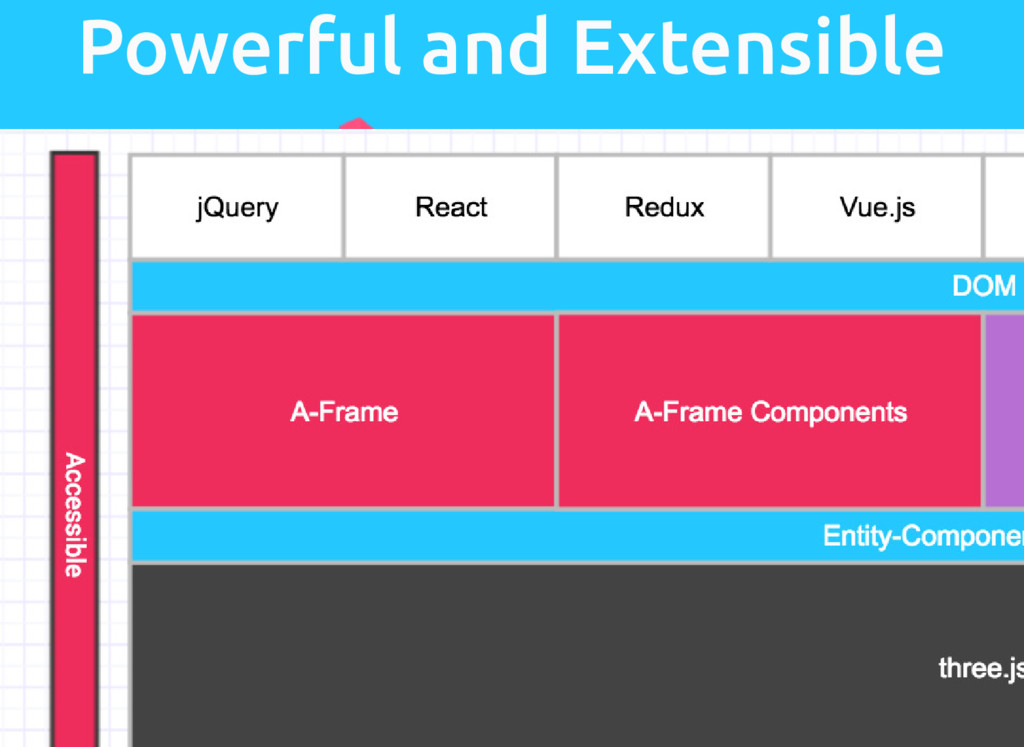

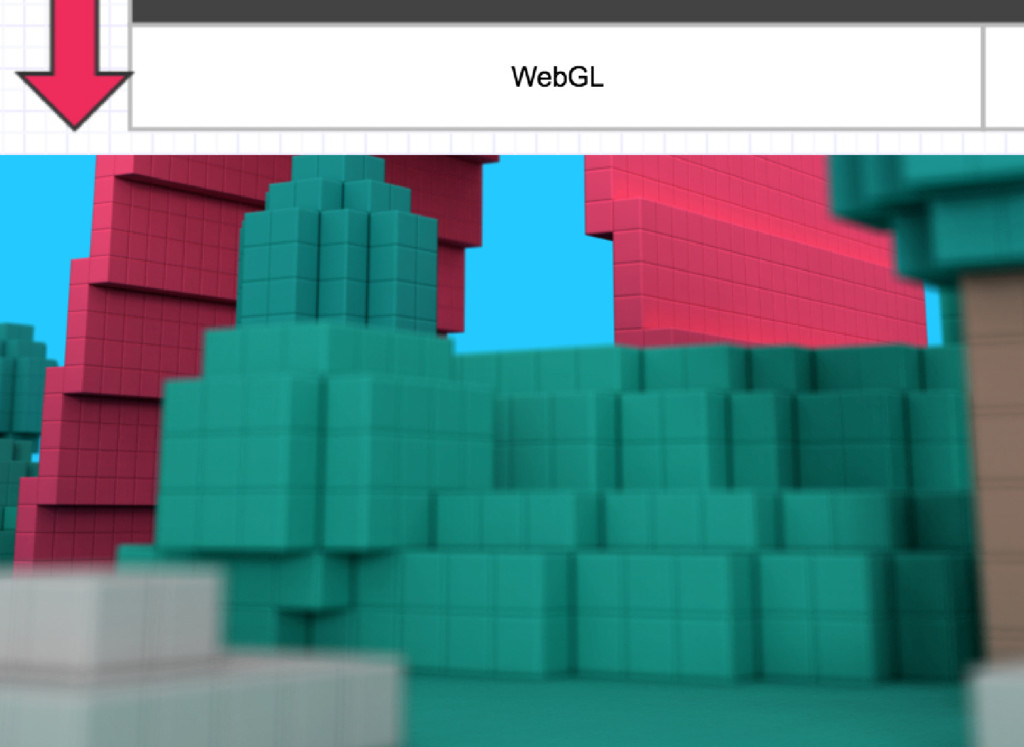

55. Powerful and Extensible

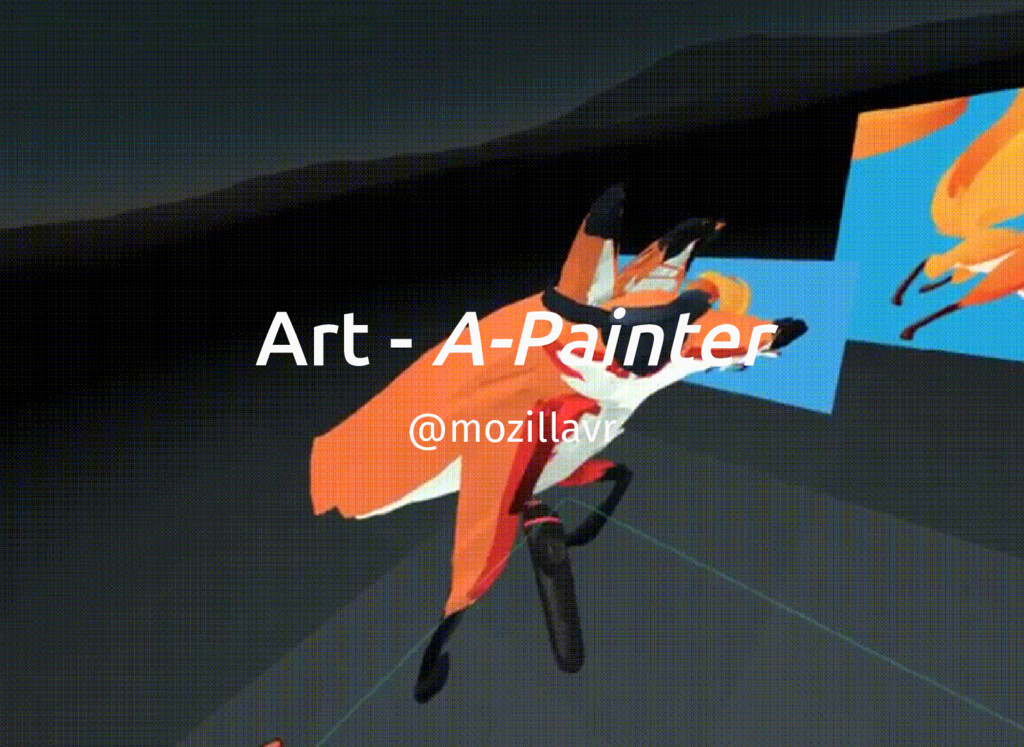

57. Art - A-Painter @mozillavr

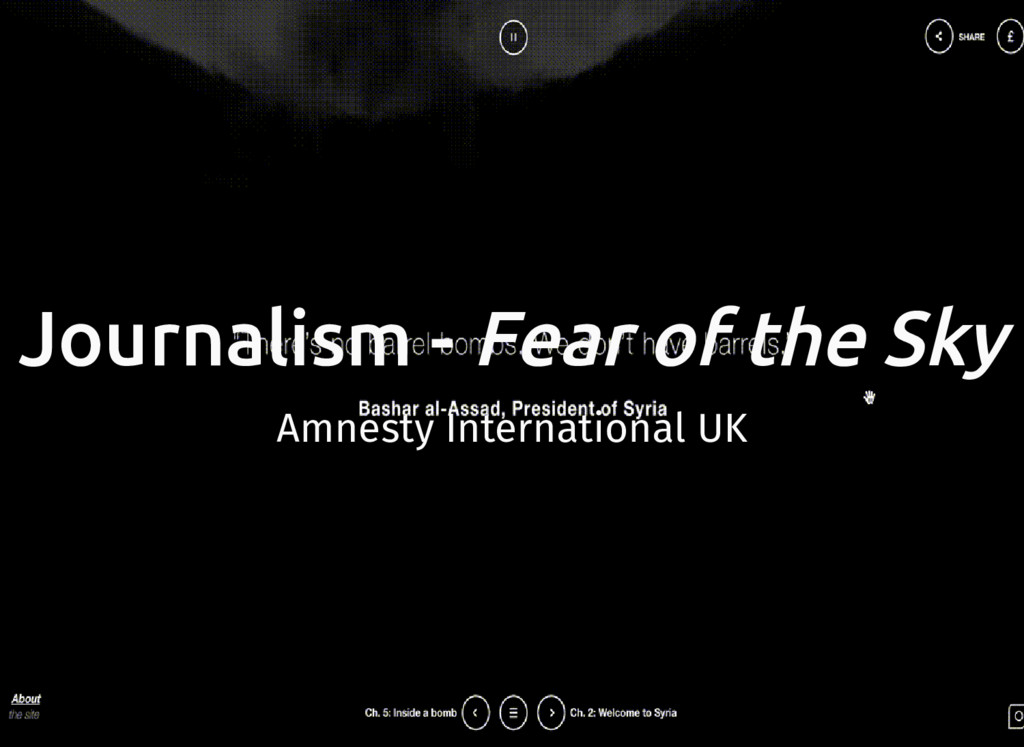

58. Journalism - Fear of the Sky Amnesty International UK

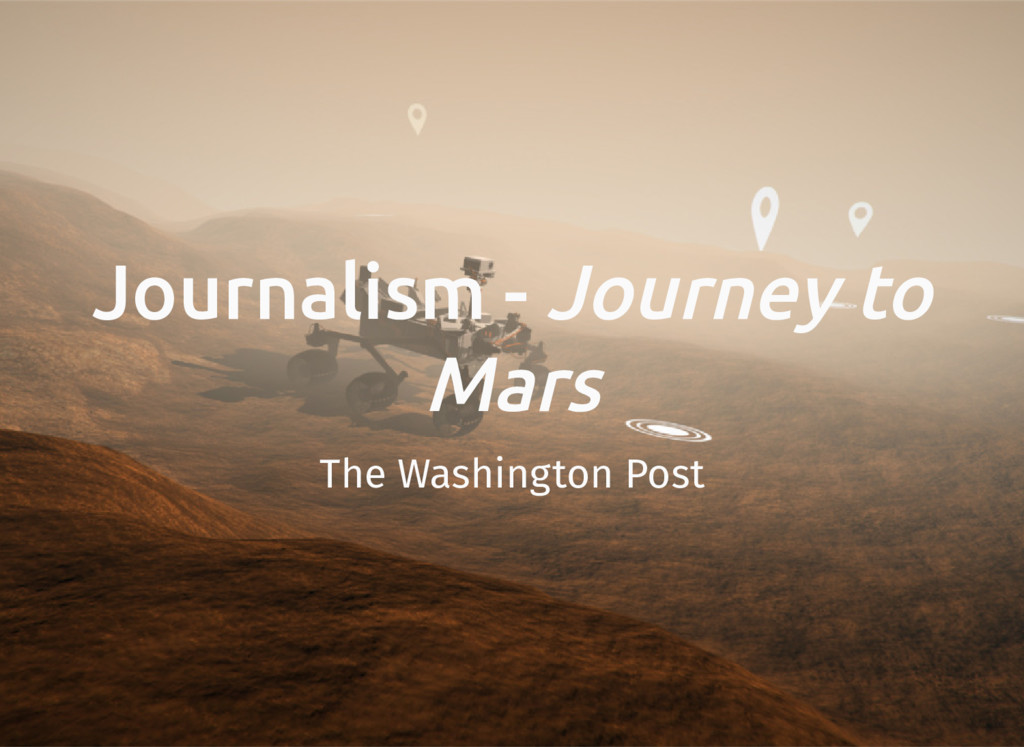

59. Journalism - Journey to Mars The Washington Post
60. Guri VR Build your own world in VR

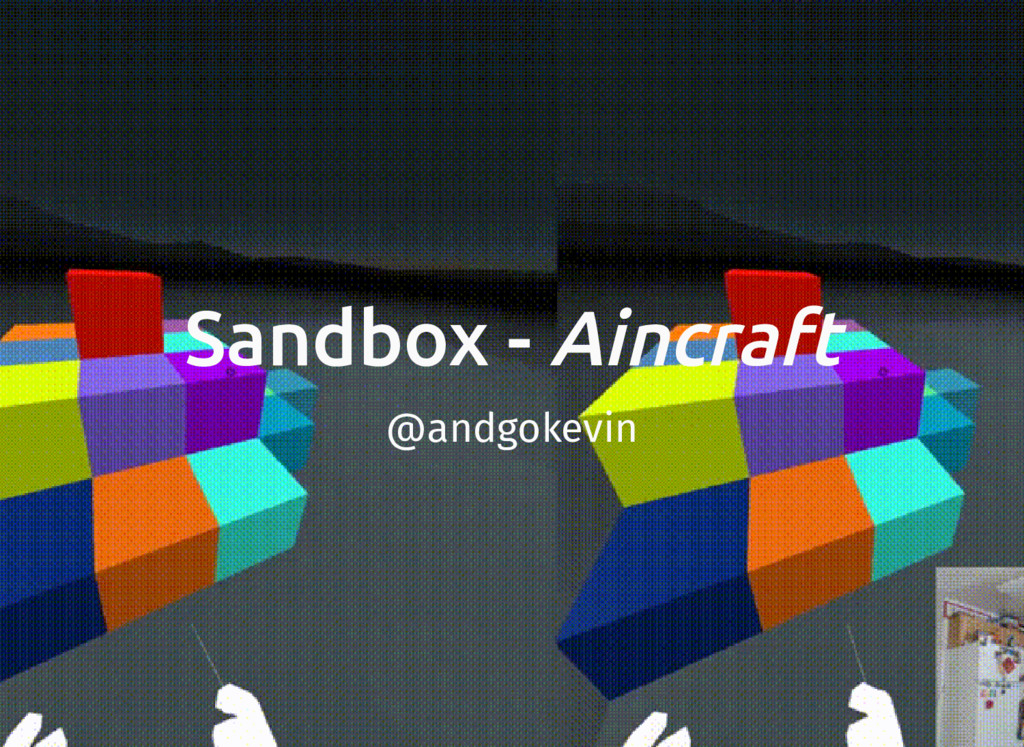

61. Sandbox - Aincraft @andgokevin
62. Aincraft Lets play

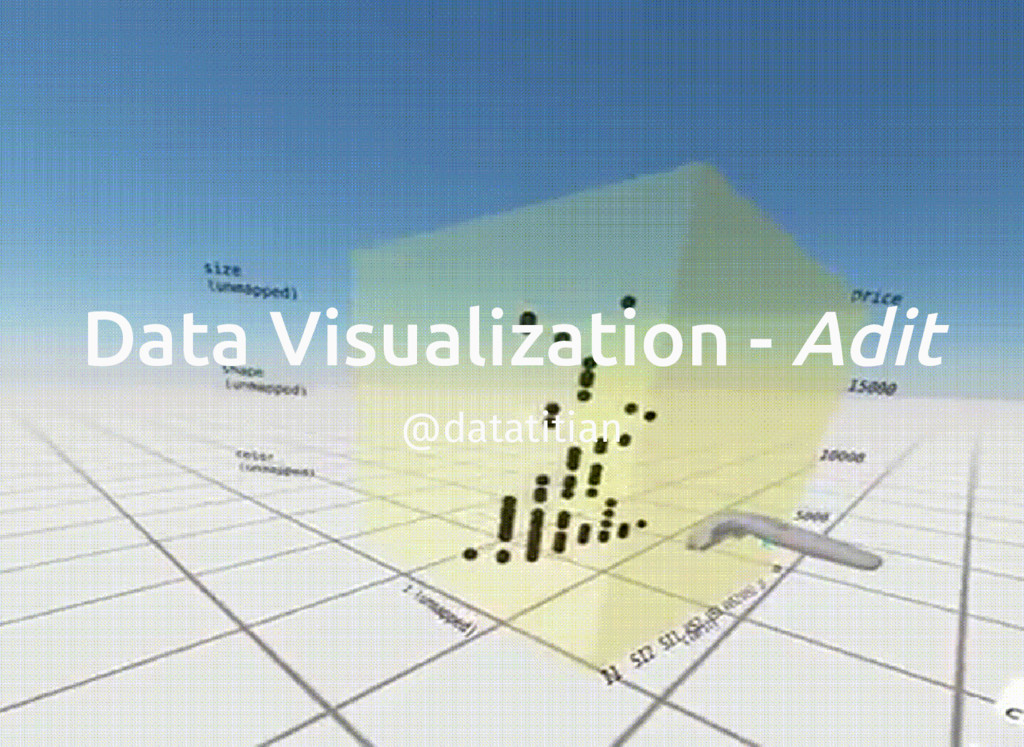

63. Data Visualization - Adit @datatitian

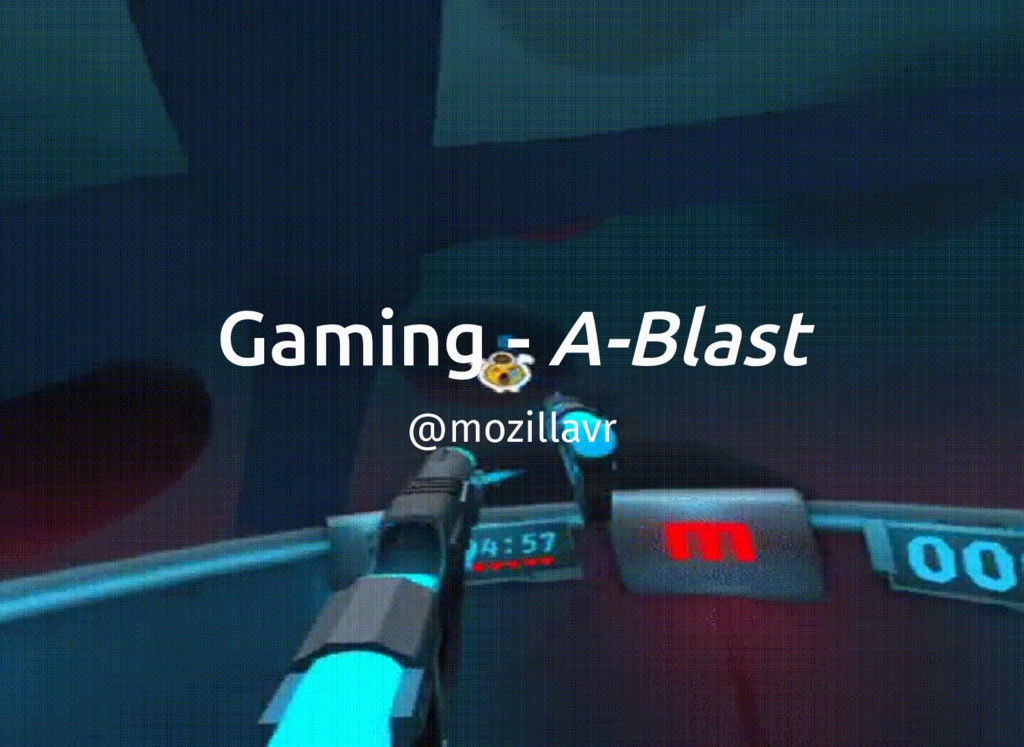

64. Gaming - A-Blast @mozillavr

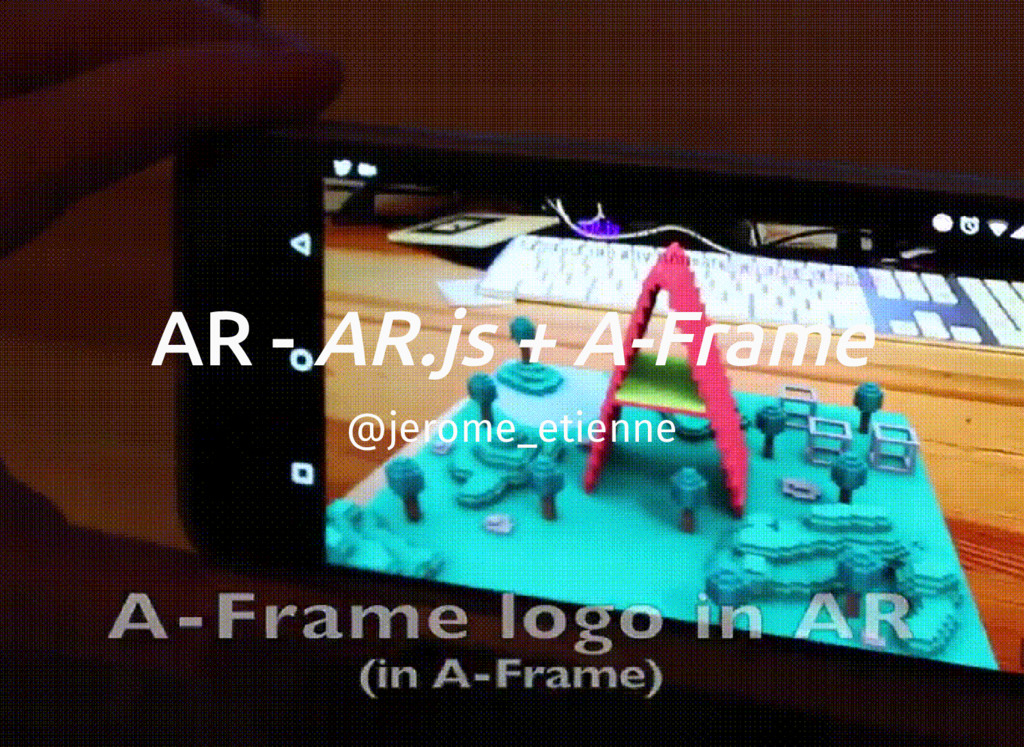

65. AR - AR.js + A-Frame @jerome_etienne

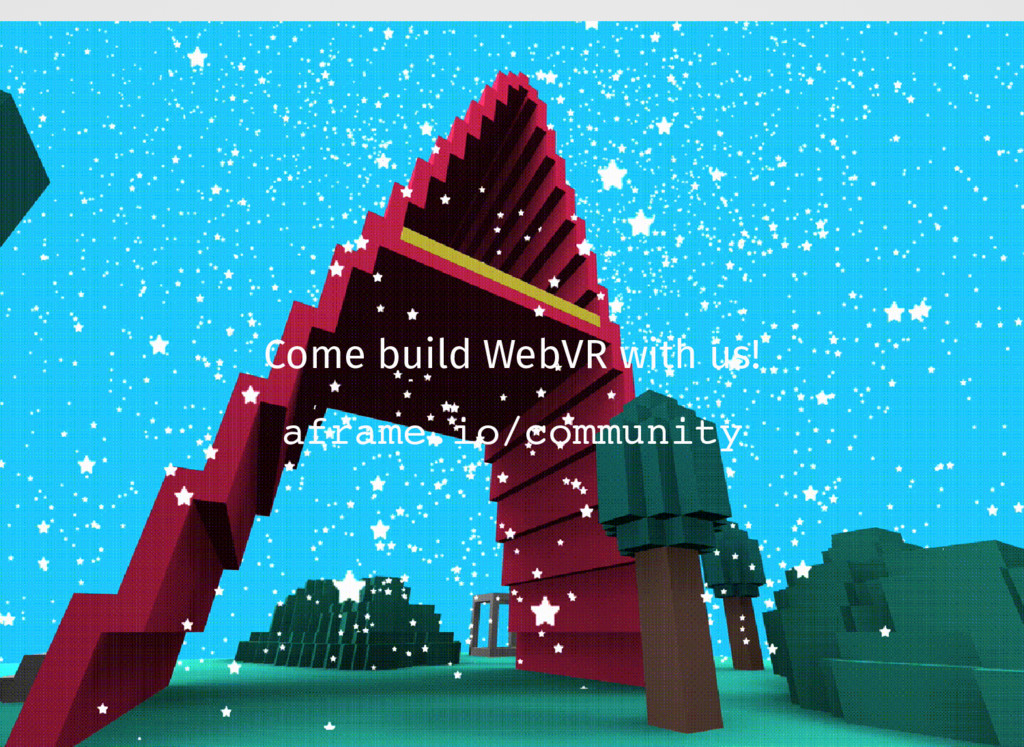

66. Come build WebVR with us! aframe.io/community
67. Thank you @rabimba | rabimba@mozilla.com| aframe.io
