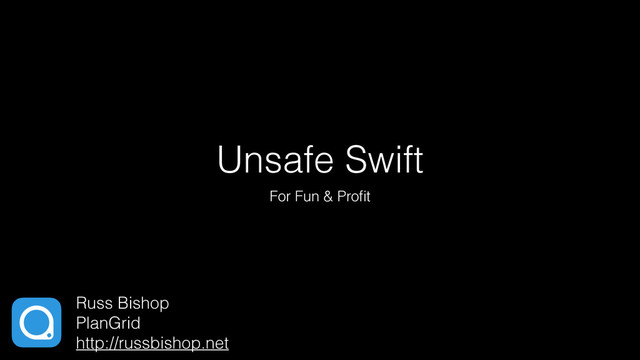

1. Russ Bishop PlanGrid http://russbishop.net Unsafe Swift For Fun & Profit
2. The Swift Language “Swift adopts safe programming patterns”
3. Why Safety?
4. Why Safety? • Memory safety • The Billion Dollar Mistake • Productivity • isa oops • Undefined Behavior • Why retainCount was removed
5. Why not just write wrappers in Objective-C? We’ve been down that dusty road before…
6. Bridging • In the C# world, we’ve been down that road before. • In theory unsafe{} blocks are no different than using C • In reality, it vastly limits the scope of potentially memory-unsafe operations. • When there are three functions in the whole project to audit, everyone says OK. • When there are 300 files to audit, everyone throws up their hands and says “we don’t have time”. • Definitely safe code is very distinct from potentially unsafe code • Calling “unsafe” code from Swift makes operations more explicit, easier to reason about
7. If you’re lucky:
8. If you’re unlucky… - (void) doBadThing { int *a = malloc(1); *a = 5; [self printValue:a]; } - (void) printValue:(int *)a { NSLog(@"Value is %d", *a); } 05 00 00 00 1FC0 1FC4 No crash… yet. Just corrupted memory.
9. The Toolbox Let’s run with safety scissors first
10. Less Dangerous Perfectly safe, so long as cs is truly NULL-terminated.
 static func fromCString(cs: UnsafePointer<CChar>) -> String? Strings
11. Less Dangerous Perfectly safe, so long as cs is truly NULL-terminated.
 static func fromCString(cs: UnsafePointer<CChar>) -> String? Wait, what?
 func withCString<Result>(@noescape f:UnsafePointer<Int8> -> Result) -> Result Strings
12. Lifetimes & Ownership

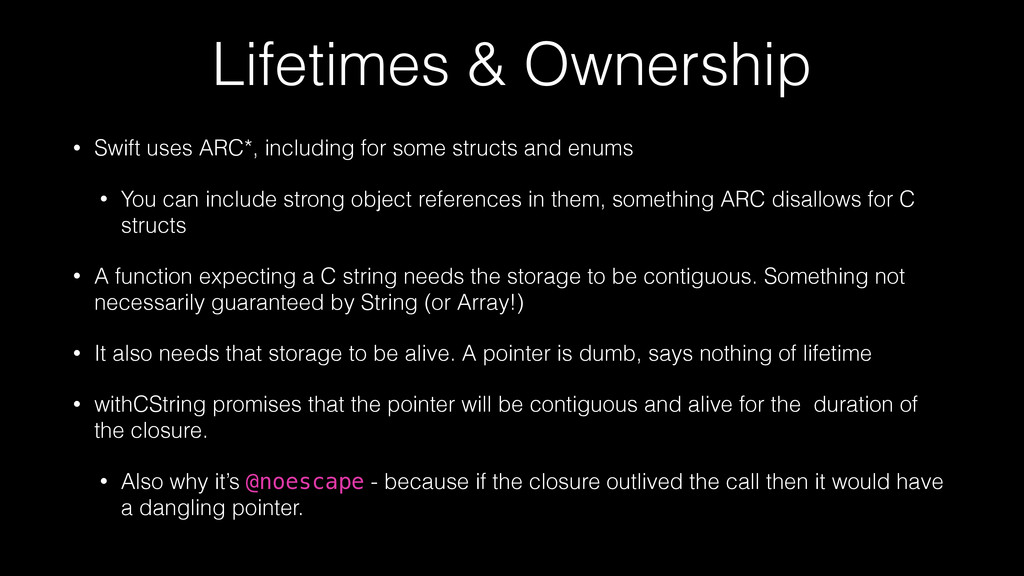

13. Lifetimes & Ownership • Swift uses ARC*, including for some structs and enums • You can include strong object references in them, something ARC disallows for C structs • A function expecting a C string needs the storage to be contiguous. Something not necessarily guaranteed by String (or Array!) • It also needs that storage to be alive. A pointer is dumb, says nothing of lifetime • withCString promises that the pointer will be contiguous and alive for the duration of the closure. • Also why it’s @noescape - because if the closure outlived the call then it would have a dangling pointer.
14. Lifetimes & Ownership • Arrays look like structs and have value semantics • But really the structs are just headers, the item storage is on the heap • Shared when it can be, copy-on-mutate • Does adding two arrays copy them or just use a linked list of slices? Doesn’t matter, it’s invisible to us! • So pass them with &myArray or use withUnsafeBufferPointer!
15. Unmanaged
16. Less Dangerous • Only for reference types (inherits NSObject or Swift Object) • fromOpaque / toOpaque allow conversion from/to COpaquePointer (aka void*) • passRetained / passUnretained • Get objects into Unmanaged<T> • takeRetainedValue / takeUnretainedValue • Get objects back out of Unmanaged<T> • retain / release / autorelease • Relive the glory days of Manual Reference Counting Unmanaged
17. Less Dangerous let o = OhMy() Unmanaged
18. Less Dangerous let o = OhMy() //Unbalanced retain +1 let context = Unmanaged.passRetained(o).toOpaque() Unmanaged
19. Less Dangerous let o = OhMy() //Unbalanced retain +1 let context = Unmanaged.passRetained(o).toOpaque() //UnsafeMutablePointer<Void> won't manage any memory let contextPointer = UnsafeMutablePointer<Void>(context) Unmanaged
20. Less Dangerous let o = OhMy() //Unbalanced retain +1 let context = Unmanaged.passRetained(o).toOpaque() //UnsafeMutablePointer<Void> won't manage any memory let contextPointer = UnsafeMutablePointer<Void>(context) dispatch_queue_set_specific(queue, &Keys.SomeKey, contextPointer, nil) Unmanaged
21. Less Dangerous • Unfortunately in that last example, we’d really like to pass a function as the last parameter • Swift currently has no support for exposing C function pointers • You can receive them and pass them along, but you can’t provide them or call them** • ** If you get an UnsafePointer to a function it’s a wrapper struct with a function object that itself contains a function address but that’s just asking for random crashes and breakage. • But it does prove it would be possible for Swift to allow this in the future Unmanaged
22. Unsafe Pointers
23. Less Dangerous • In many cases Swift now automatically converts for you • When in doubt, try passing as &myVar • Arrays, Ints, structs all work • You can cast pointers by passing them to init() UnsafePointer / UnsafeMutablePointer
24. Less Dangerous • Pointers in swift are in one of three states: • Unallocated - pointer is NULL or location was deallocated • Allocated - pointer points at a memory location, location is uninitialized • Initialized - pointer points to a memory location and that location has a valid value UnsafePointer / UnsafeMutablePointer
25. Less Dangerous
 let nullPtr = UnsafeMutablePointer<Int>(nil) UnsafePointer / UnsafeMutablePointer Null Pointer
26. Less Dangerous
 let nullPtr = UnsafeMutablePointer<Int>(nil) println(nullPtr.memory) UnsafePointer / UnsafeMutablePointer EXC_BAD_ACCESS
27. Less Dangerous
 let nullPtr = UnsafeMutablePointer<Int>(nil) println(nullPtr.memory) let ptr = UnsafeMutablePointer<Int>.alloc(1) UnsafePointer / UnsafeMutablePointer Equivalent to malloc(sizeof(Int))
28. Less Dangerous
 let nullPtr = UnsafeMutablePointer<Int>(nil) println(nullPtr.memory) let ptr = UnsafeMutablePointer<Int>.alloc(1) ptr.initialize(5) UnsafePointer / UnsafeMutablePointer ptr’s destination now has a defined value
29. Less Dangerous
 let nullPtr = UnsafeMutablePointer<Int>(nil) println(nullPtr.memory) let ptr = UnsafeMutablePointer<Int>.alloc(1) ptr.initialize(5) ptr.destroy() UnsafePointer / UnsafeMutablePointer ptr’s destination uninitialized, but memory is still allocated
30. Less Dangerous
 let nullPtr = UnsafeMutablePointer<Int>(nil) println(nullPtr.memory) let ptr = UnsafeMutablePointer<Int>.alloc(1) ptr.initialize(5) ptr.destroy() ptr.dealloc(1) UnsafePointer / UnsafeMutablePointer equivalent to free()
31. Yeah, but who cares? Remember what we said about ARC, Lifetimes, & Ownership
32. Lifetimes & Ownership • UnsafePointer<T> / UnsafeMutablePointer<T> participate in ARC lifetime rules (if T supports it) • It’s like pointers had __strong attributes by default • It also means assigning to the memory property releases any existing object and retains the new one (or any nested references for structs/enums)
33. Less Dangerous class OhMy { deinit { println("I got deinit'd!") } } struct Fancy { var objectRef:AnyObject? } UnsafePointer / UnsafeMutablePointer
34. Less Dangerous class OhMy { deinit { println("I got deinit'd!") } } struct Fancy { var objectRef:AnyObject? } let ptr = UnsafeMutablePointer<Fancy>.alloc(1) ptr.initialize(Fancy(objectRef: OhMy())) UnsafePointer / UnsafeMutablePointer
35. Less Dangerous class OhMy { deinit { println("I got deinit'd!") } } struct Fancy { var objectRef:AnyObject? } let ptr = UnsafeMutablePointer<Fancy>.alloc(1) ptr.initialize(Fancy(objectRef: OhMy())) //Oops, deinit never runs… ever UnsafePointer / UnsafeMutablePointer
36. Less Dangerous class OhMy { deinit { println("I got deinit'd!") } } struct Fancy { var objectRef:AnyObject? } let ptr = UnsafeMutablePointer<Fancy>.alloc(1) ptr.initialize(Fancy(objectRef: OhMy())) ptr.destroy() //deinit runs here! UnsafePointer / UnsafeMutablePointer
37. Less Dangerous class OhMy { deinit { println("I got deinit'd!") } } struct Fancy { var objectRef:AnyObject? } let ptr = UnsafeMutablePointer<Fancy>.alloc(1) ptr.initialize(Fancy(objectRef: OhMy())) ptr.destroy() //deinit runs here! ptr.dealloc(1) //don't leak memory UnsafePointer / UnsafeMutablePointer
38. Less Dangerous class OhMy { deinit { println("I got deinit'd!") } } struct Fancy { var objectRef:AnyObject? } let ptr = UnsafeMutablePointer<Fancy>.alloc(1) ptr.memory = Fancy(objectRef: OhMy()) ptr.destroy() //deinit runs here! ptr.dealloc(1) //don't leak memory UnsafePointer / UnsafeMutablePointer Memory is still uninitialized so assignment could try to free previous “garbage”
39. Less Dangerous • You may notice that with UnsafePointers, Swift treats them similarly to C • Pretend they’re an array by subscripting • Only you know if the pointer is to a single element or an array of 10,000 elements. UnsafePointer / UnsafeMutablePointer
40. Less Dangerous • move transfers ownership out of the current pointer. If the object isn’t retained elsewhere it will get cleaned up. • The source pointer becomes uninitialized in the process • moveInitializeFrom transfers ownership from some other pointer to this one, assuming this one is empty • If it isn’t then you’ll leak. • moveAssignFrom does the same but destroys any objects that already exist in the current pointer first • If it isn’t then you could crash. UnsafePointer / UnsafeMutablePointer
41. Less Dangerous • We can also do pointer arithmetic
 var values = UnsafeMutablePointer<some_struct_t>()
 for i in 0..<getSomeStructs(&values) {
 let valuePtr = values + i
 ...
 } • Or just subscript var values = UnsafeMutablePointer<some_struct_t>() for i in 0..<getSomeStructs(&values) { let value: some_struct_t = values[i] } UnsafePointer / UnsafeMutablePointer
42. Less Dangerous • Allows implicit conversions to cover in/out parameters. You’re already using it - anything that takes NSError**! • Nil turns into a NULL pointer • UnsafeMutablePointer<T> passed as-is • Object references (&myObj) are special • A temporary copy of the reference is allocated • On return, the reference is copied back into myObj which will retain it. • If it were a normal UnsafeMutablePointer<T>, Swift would assume the caller was returning a +1 retained object and not bother retaining it again. AutoreleasingUnsafeMutablePointer (✨Magic✨)
43. UnsafePointer Example let host = "www.apple.com" let port = "80"
44. UnsafePointer Example let host = "www.apple.com" let port = "80" var hints = addrinfo() hints.ai_family = PF_UNSPEC hints.ai_socktype = SOCK_STREAM hints.ai_protocol = IPPROTO_TCP
45. UnsafePointer Example let host = "www.apple.com" let port = "80" var hints = addrinfo() hints.ai_family = PF_UNSPEC hints.ai_socktype = SOCK_STREAM hints.ai_protocol = IPPROTO_TCP var firstResponse = UnsafeMutablePointer<addrinfo>() if getaddrinfo(host, port, &hints, &firstResponse) == 0 {
46. UnsafePointer Example let host = "www.apple.com" let port = "80" var hints = addrinfo() hints.ai_family = PF_UNSPEC hints.ai_socktype = SOCK_STREAM hints.ai_protocol = IPPROTO_TCP var firstResponse = UnsafeMutablePointer<addrinfo>() if getaddrinfo(host, port, &hints, &firstResponse) == 0 { for var response = firstResponse; response != nil; response = response.memory.ai_next { if response.memory.ai_family == AF_INET || response.memory.ai_family == AF_INET6 {
47. UnsafePointer Example let host = "www.apple.com" let port = "80" var hints = addrinfo() hints.ai_family = PF_UNSPEC hints.ai_socktype = SOCK_STREAM hints.ai_protocol = IPPROTO_TCP var firstResponse = UnsafeMutablePointer<addrinfo>() if getaddrinfo(host, port, &hints, &firstResponse) == 0 { for var response = firstResponse; response != nil; response = response.memory.ai_next { if response.memory.ai_family == AF_INET || response.memory.ai_family == AF_INET6 { var buffer = [CChar](count:Int(INET6_ADDRSTRLEN), repeatedValue: 0)
48. UnsafePointer Example let host = "www.apple.com" let port = "80" var hints = addrinfo() hints.ai_family = PF_UNSPEC hints.ai_socktype = SOCK_STREAM hints.ai_protocol = IPPROTO_TCP var firstResponse = UnsafeMutablePointer<addrinfo>() if getaddrinfo(host, port, &hints, &firstResponse) == 0 { for var response = firstResponse; response != nil; response = response.memory.ai_next { if response.memory.ai_family == AF_INET || response.memory.ai_family == AF_INET6 { var buffer = [CChar](count:Int(INET6_ADDRSTRLEN), repeatedValue: 0) if inet_ntop(response.memory.ai_family, response.memory.ai_addr, &buffer, socklen_t(buffer.count)) != nil { let ipString = String.fromCString(buffer) println("\(ipString)")
49. UnsafePointer Example let host = "www.apple.com" let port = "80" var hints = addrinfo() hints.ai_family = PF_UNSPEC hints.ai_socktype = SOCK_STREAM hints.ai_protocol = IPPROTO_TCP var firstResponse = UnsafeMutablePointer<addrinfo>() if getaddrinfo(host, port, &hints, &firstResponse) == 0 { for var response = firstResponse; response != nil; response = response.memory.ai_next { if response.memory.ai_family == AF_INET || response.memory.ai_family == AF_INET6 { var buffer = [CChar](count:Int(INET6_ADDRSTRLEN), repeatedValue: 0) if inet_ntop(response.memory.ai_family, response.memory.ai_addr, &buffer, socklen_t(buffer.count)) != nil { let ipString = String.fromCString(buffer) println("\(ipString)") } } } freeaddrinfo(firstResponse) }
50. UnsafePointer Example let host = "www.apple.com" let port = "80" var hints = addrinfo() hints.ai_family = PF_UNSPEC hints.ai_socktype = SOCK_STREAM hints.ai_protocol = IPPROTO_TCP var firstResponse = UnsafeMutablePointer<addrinfo>() if getaddrinfo(host, port, &hints, &firstResponse) == 0 { for var response = firstResponse; response != nil; response = response.memory.ai_next { if response.memory.ai_family == AF_INET || response.memory.ai_family == AF_INET6 { var buffer = [CChar](count:Int(INET6_ADDRSTRLEN), repeatedValue: 0) if inet_ntop(response.memory.ai_family, response.memory.ai_addr, &buffer, socklen_t(buffer.count)) != nil { let ipString = String.fromCString(buffer) println("\(ipString)") } } } freeaddrinfo(firstResponse) }
51. ManagedBuffer / ManagedBufferPointer
52. Less Dangerous • Now you too can implement your own version of Array! (or any other fancy data structure your heart desires) • Define your own copy-on-write struct • Internally references a ManagedBuffer • On mutate, if isUniquelyReferenced then mutate in place • Otherwise make a copy and mutate that ManagedBuffer / ManagedBufferPointer
53. Less Dangerous struct CustomArray <Element> { private var _buffer: CustomArrayBuffer<Int,Element> init(capacity:Int) { _buffer = CustomArrayBuffer<Int,Element>.create(capacity,
 initialValue: { (proto) -> Int in return capacity }) as! CustomArrayBuffer<Int,Element> } subscript(index:Int) -> Element { get { return _buffer[index] } mutating set { if !isUniquelyReferenced(&_buffer) { _buffer = _buffer.copy() } _buffer[index] = newValue } } } ManagedBuffer / ManagedBufferPointer
54. Less Dangerous struct CustomArray <Element> { private var _buffer: CustomArrayBuffer<Int,Element> init(capacity:Int) { _buffer = CustomArrayBuffer<Int,Element>.create(capacity,
 initialValue: { (proto) -> Int in return capacity }) as! CustomArrayBuffer<Int,Element> } subscript(index:Int) -> Element { get { return _buffer[index] } mutating set { if !isUniquelyReferenced(&_buffer) { _buffer = _buffer.copy() } _buffer[index] = newValue } } } ManagedBuffer / ManagedBufferPointer Only copy if necessary
55. Less Dangerous class CustomArrayBuffer<Value,Element> : ManagedBuffer<Int, Element> { deinit { withUnsafeMutablePointers { vptr, eptr -> Void in eptr.destroy(self.count) vptr.destroy() } } var count: Int { return self.value } func copy() -> CustomArrayBuffer<Int, Element> { let result = CustomArrayBuffer<Int, Element>.create(self.count,
 initialValue: { (proto) -> Int in return self.count }) as! CustomArrayBuffer<Int, Element>
 self.withUnsafeMutablePointerToElements { srcPtr -> Void in result.withUnsafeMutablePointerToElements { destPtr -> Void in destPtr.initializeFrom(srcPtr, count: self.count) } } return result } subscript(index:Int) -> Element { get { return withUnsafeMutablePointerToElements { $0.advancedBy(index).memory } } set { withUnsafeMutablePointerToElements { $0.advancedBy(index).memory = newValue } } } } ManagedBuffer / ManagedBufferPointer
56. Less Dangerous deinit { withUnsafeMutablePointers { vptr, eptr -> Void in eptr.destroy(self.count) vptr.destroy() } } ManagedBuffer / ManagedBufferPointer
57. Less Dangerous deinit { withUnsafeMutablePointers { vptr, eptr -> Void in eptr.destroy(self.count) vptr.destroy() } } subscript(index:Int) -> Element { get { return withUnsafeMutablePointerToElements {
 $0.advancedBy(index).memory } } set { withUnsafeMutablePointerToElements {
 $0.advancedBy(index).memory = newValue
 } } } ManagedBuffer / ManagedBufferPointer
58. Less Dangerous func copy() -> CustomArrayBuffer<Int, Element> { let result = CustomArrayBuffer<Int, Element>.create(self.count,
 initialValue: { self.count }) as! CustomArrayBuffer<Int, Element>
 self.withUnsafeMutablePointerToElements { srcPtr -> Void in result.withUnsafeMutablePointerToElements { destPtr -> Void in destPtr.initializeFrom(srcPtr, count: self.count) } } return result } ManagedBuffer / ManagedBufferPointer Copy the elements
60. The Toolbox Handle with Caution
61. Less Dangerous • Just a bag-o-bits • Useful for shoe-horning Unmanaged pointers into UnsafePointers and vice-versa COpaquePointer
62. Variadic Arguments
63. Variadic Arguments • Requires a va_list version of the function • Use withVaList; life of CVaListPointer is tied to the closure • Must implement CVarArgType • getVaList for cases where use-before-init rules prevent you from doing it properly • Auto-released object so has a runtime cost • Otherwise safe because it isn’t legal to use the va_list after returning
64. Variadic Arguments typedef struct some_struct { NSInteger a; NSInteger b; NSInteger c; } some_struct_t; void valistFunction(int count, va_list args);
65. Variadic Arguments typedef struct some_struct { NSInteger a; NSInteger b; NSInteger c; } some_struct_t; void valistFunction(int count, va_list args); //Swift Code: extension some_struct_t : CVarArgType { public func encode() -> [Word] { return self.a.encode() + self.b.encode() + self.c.encode() } } let s1 = some_struct_t(a: 42, b: 42, c: 42) let s2 = some_struct_t(a: 99, b: 99, c: 99) withVaList([s1, s2]) { p -> Void in valistFunction(2, p) }
66. unsafeUnwrap / unsafeDowncast
67. unsafeUnwrap • In debug builds, works exactly like ‘!’ • In release builds, doesn’t bother checking for nil • If you’re wrong, crash-city • Profile first! Unless this is a performance problem, it’s not worth it.
68. unsafeDowncast • In debug builds, works exactly like ‘as’ • In release builds, doesn’t bother checking the type • It’s wrong isa all over again • If you’re wrong: • Objective-C unrecognized selector • Swift maybe unrecognized selector, maybe just memory corruption (depends on optimization) • Again, profile first!
69. The Toolbox Handle with Extreme Caution The use of any of these in production should be an automatic red flag and trigger the highest level of code review and tests!
70. unsafeBitCast It’s brutal
71. unsafeBitCast It’s brutal (seriously)
72. unsafeBitCast • Blindly treat bits of X as a given type • Beta documentation comments described it as “brutal” • Release takes a softer approach:
 “There’s almost always a better way to do anything” • Personally, I agree. Nitroglycerin is extremely dangerous. • … but can be life-saving when you truly need it.
73. unsafeAddressOf • Blindly grab the address of the storage for X. • No guarantees about lifetime • You can accomplish just about anything with UnsafeMutablePointer and Unmanaged, so why bother with this?
75. The Toolbox Here there be dragons
76. @asmname • If you know a C function that exists (even if deprecated) • … or you know, private Swift functions • I highly recommend you understand the ABI and how Swift will marshal the parameters; you won’t get much compiler help here.
 @asmname("dispatch_get_current_queue") func _get_current_queue() -> dispatch_queue_t
77. Tips

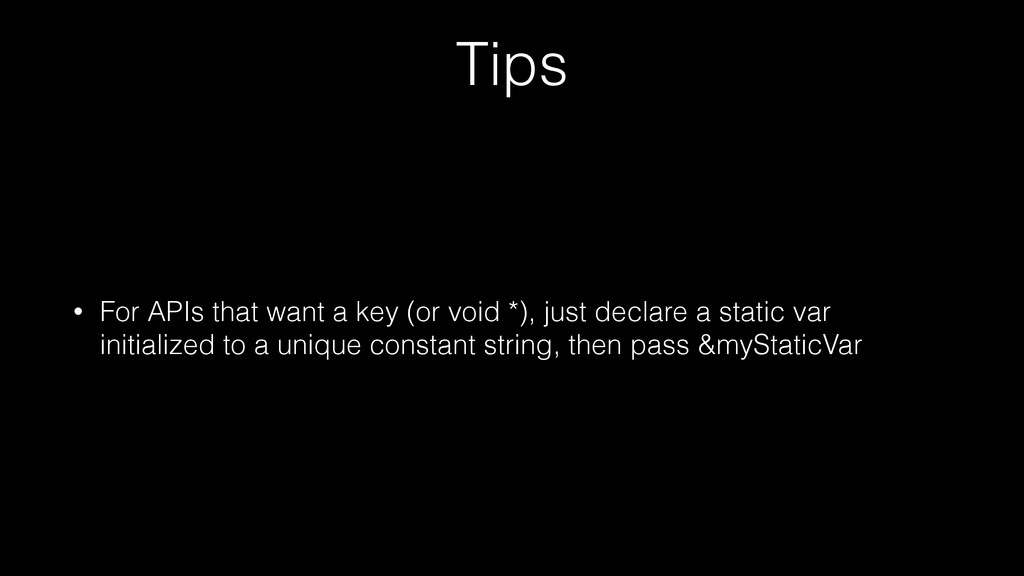

78. Tips • For APIs that want a key (or void *), just declare a static var initialized to a unique constant string, then pass &myStaticVar
79. Resources • Apple Swift Blog - https://developer.apple.com/swift/blog/ • Mike Ash - https://www.mikeash.com/pyblog/ • NSHipster - http://nshipster.com • objc.io - http://www.objc.io • my blog: http://russbishop.net
80. Fin.
