Leveraging Databricks for Spark Pipelines

How Coatue Management saved time and money by moving Spark pipelines to Databricks

Transcript

1. Leveraging Databricks for Spark Pipelines How Coatue Management saved time and money Rose Toomey AWS Data Analytics Week 27 February 2020 1

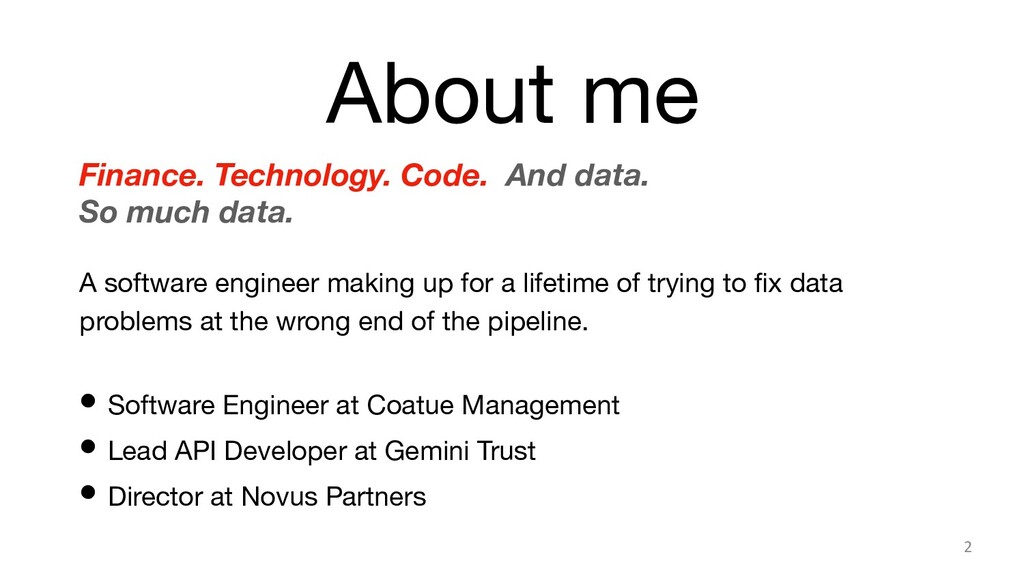

2. About me Finance. Technology. Code. And data. So much data. A software engineer making up for a lifetime of trying to fix data problems at the wrong end of the pipeline. • Software Engineer at Coatue Management • Lead API Developer at Gemini Trust • Director at Novus Partners 2

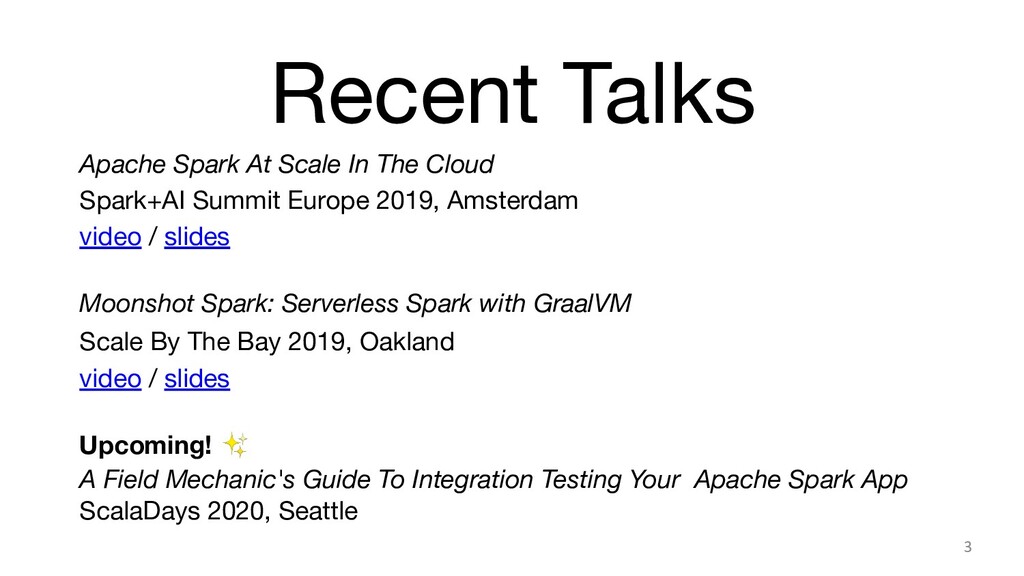

3. Apache Spark At Scale In The Cloud Spark+AI Summit Europe 2019, Amsterdam video / slides Moonshot Spark: Serverless Spark with GraalVM Scale By The Bay 2019, Oakland video / slides Upcoming! ✨ A Field Mechanic's Guide To Integration Testing Your Apache Spark App ScalaDays 2020, Seattle Recent Talks 3

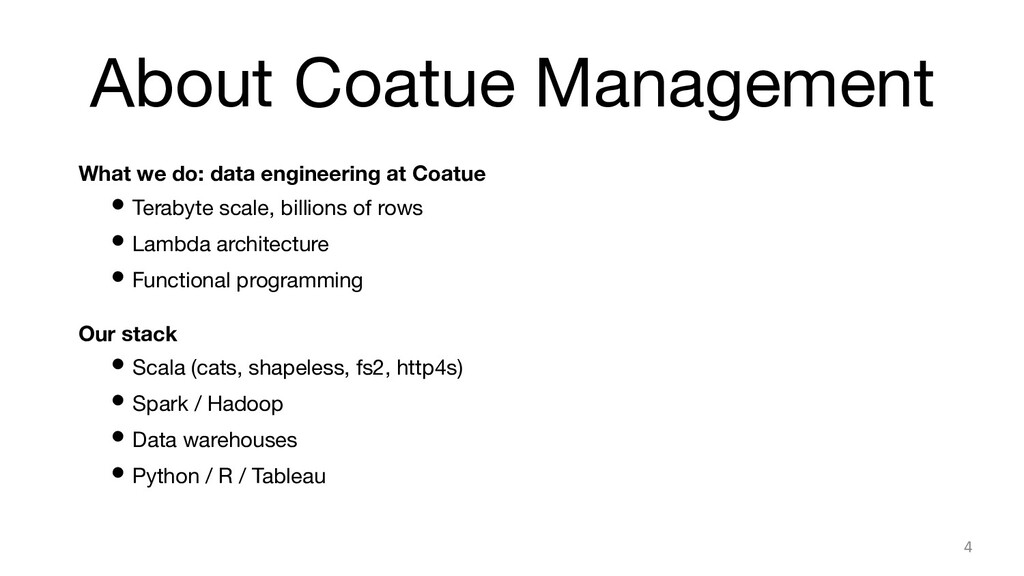

4. About Coatue Management What we do: data engineering at Coatue • Terabyte scale, billions of rows • Lambda architecture • Functional programming Our stack • Scala (cats, shapeless, fs2, http4s) • Spark / Hadoop • Data warehouses • Python / R / Tableau 4

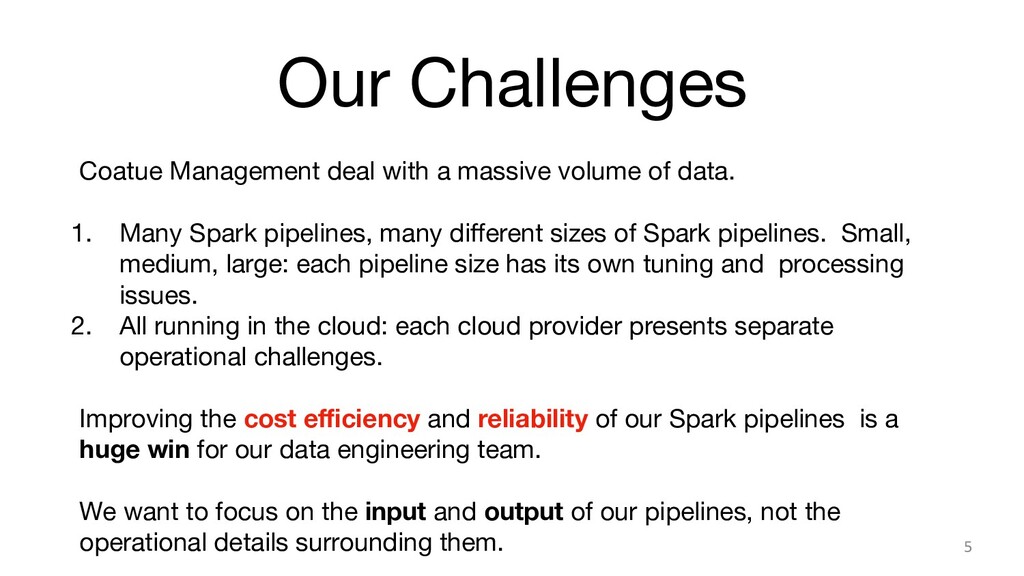

5. Our Challenges Coatue Management deal with a massive volume of data. 1. Many Spark pipelines, many different sizes of Spark pipelines. Small, medium, large: each pipeline size has its own tuning and processing issues. 2. All running in the cloud: each cloud provider presents separate operational challenges. Improving the cost efficiency and reliability of our Spark pipelines is a huge win for our data engineering team. We want to focus on the input and output of our pipelines, not the operational details surrounding them. 5

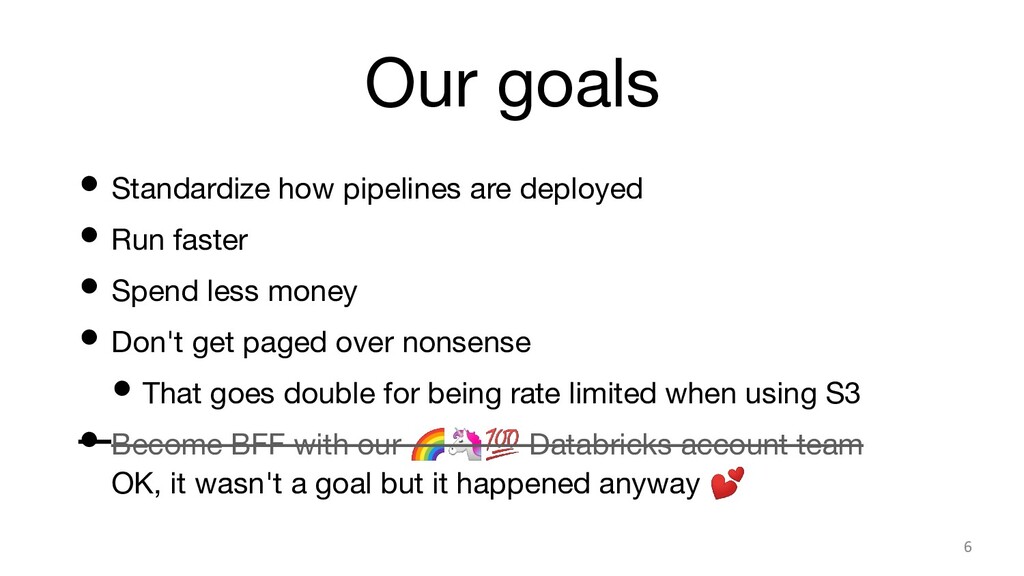

6. • Standardize how pipelines are deployed • Run faster • Spend less money • Don't get paged over nonsense • That goes double for being rate limited when using S3 • Become BFF with our Databricks account team OK, it wasn't a goal but it happened anyway Our goals 6

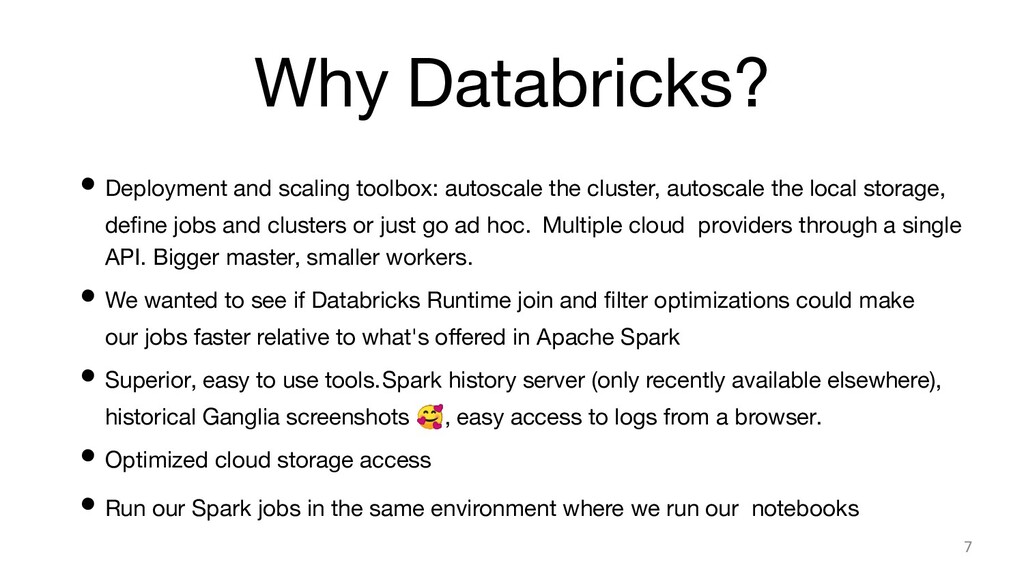

7. • Deployment and scaling toolbox: autoscale the cluster, autoscale the local storage, define jobs and clusters or just go ad hoc. Multiple cloud providers through a single API. Bigger master, smaller workers. • We wanted to see if Databricks Runtime join and filter optimizations could make our jobs faster relative to what's offered in Apache Spark • Superior, easy to use tools.Spark history server (only recently available elsewhere), historical Ganglia screenshots , easy access to logs from a browser. • Optimized cloud storage access • Run our Spark jobs in the same environment where we run our notebooks Why Databricks? 7

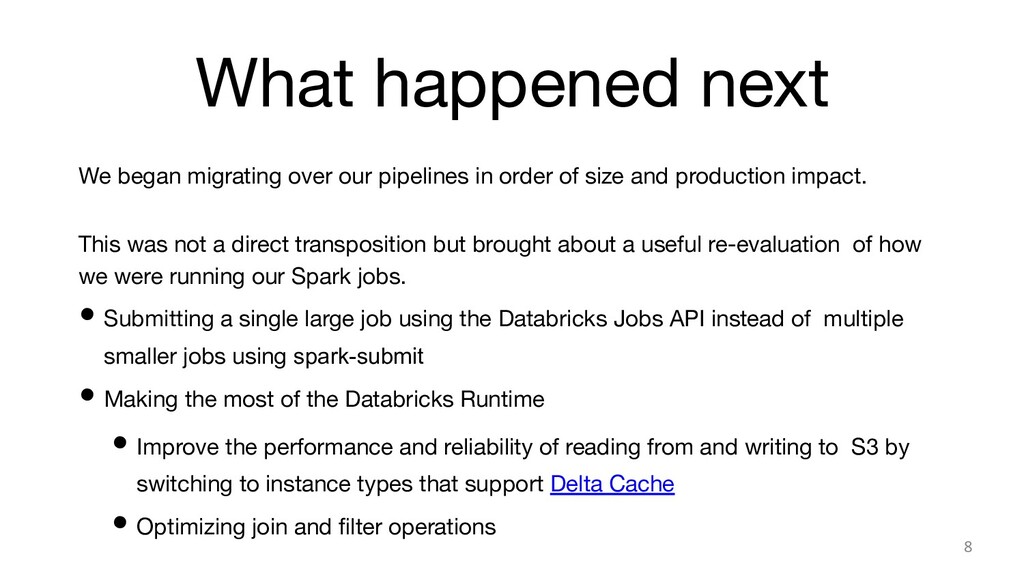

8. What happened next We began migrating over our pipelines in order of size and production impact. This was not a direct transposition but brought about a useful re-evaluation of how we were running our Spark jobs. • Submitting a single large job using the Databricks Jobs API instead of multiple smaller jobs using spark-submit • Making the most of the Databricks Runtime • Improve the performance and reliability of reading from and writing to S3 by switching to instance types that support Delta Cache • Optimizing join and filter operations 8
9. The Doge Pipeline Case study 1

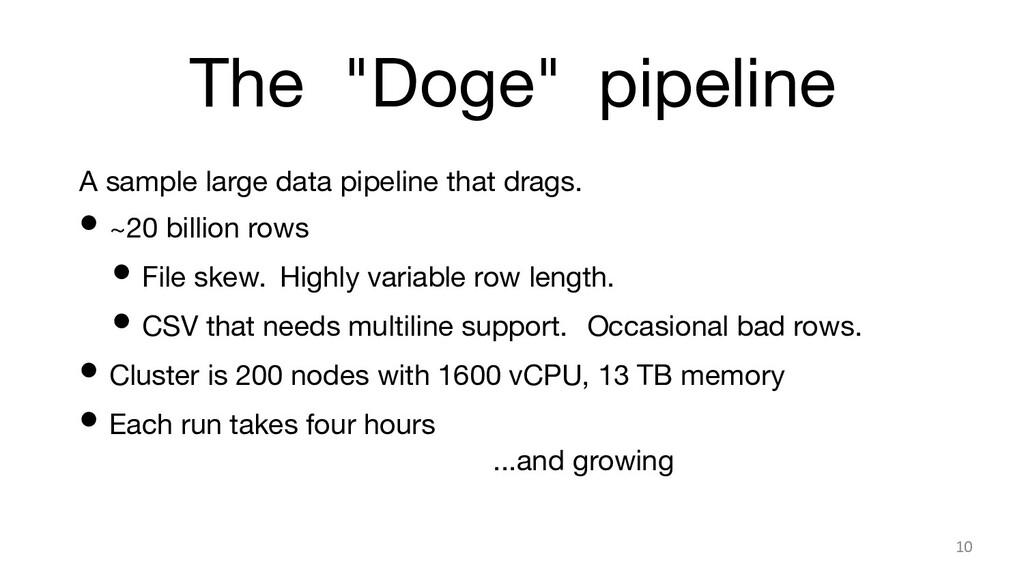

10. The "Doge" pipeline A sample large data pipeline that drags. • ~20 billion rows • File skew. Highly variable row length. • CSV that needs multiline support. Occasional bad rows. • Cluster is 200 nodes with 1600 vCPU, 13 TB memory • Each run takes four hours ...and growing 10

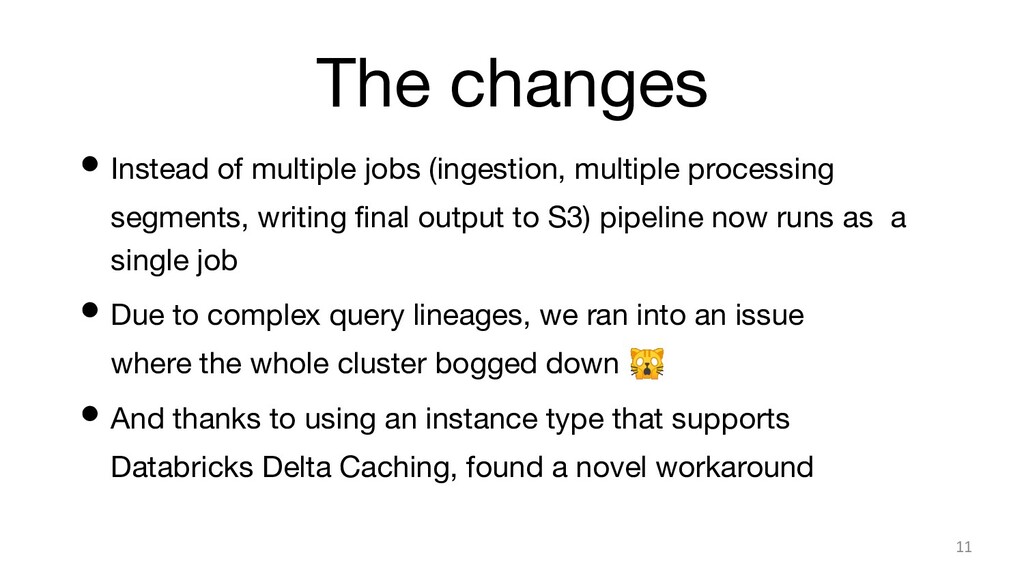

11. • Instead of multiple jobs (ingestion, multiple processing segments, writing final output to S3) pipeline now runs as a single job • Due to complex query lineages, we ran into an issue where the whole cluster bogged down • And thanks to using an instance type that supports Databricks Delta Caching, found a novel workaround The changes 11

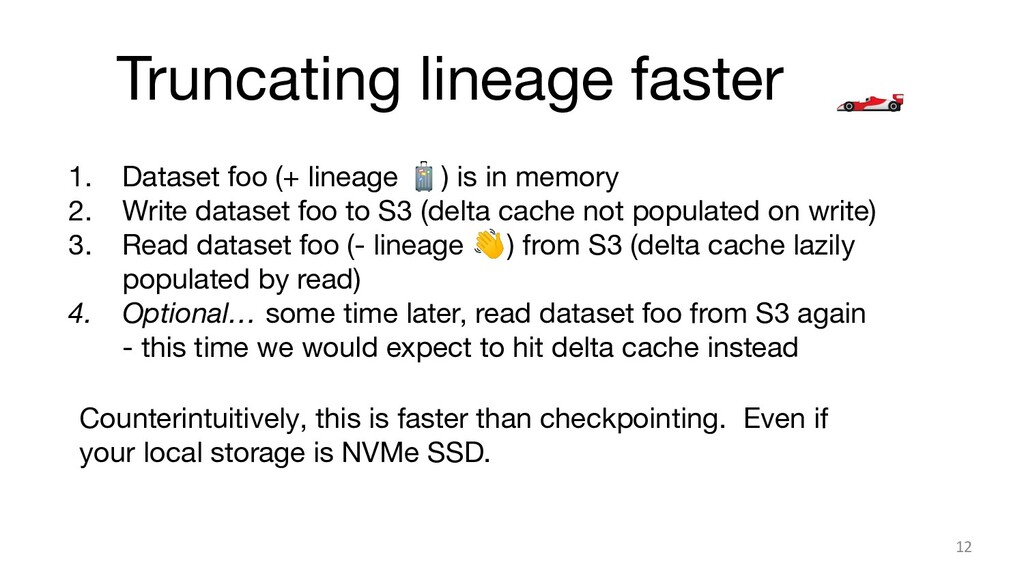

12. 1. Dataset foo (+ lineage ) is in memory 2. Write dataset foo to S3 (delta cache not populated on write) 3. Read dataset foo (- lineage ) from S3 (delta cache lazily populated by read) 4. Optional… some time later, read dataset foo from S3 again - this time we would expect to hit delta cache instead Counterintuitively, this is faster than checkpointing. Even if your local storage is NVMe SSD. Truncating lineage faster 12

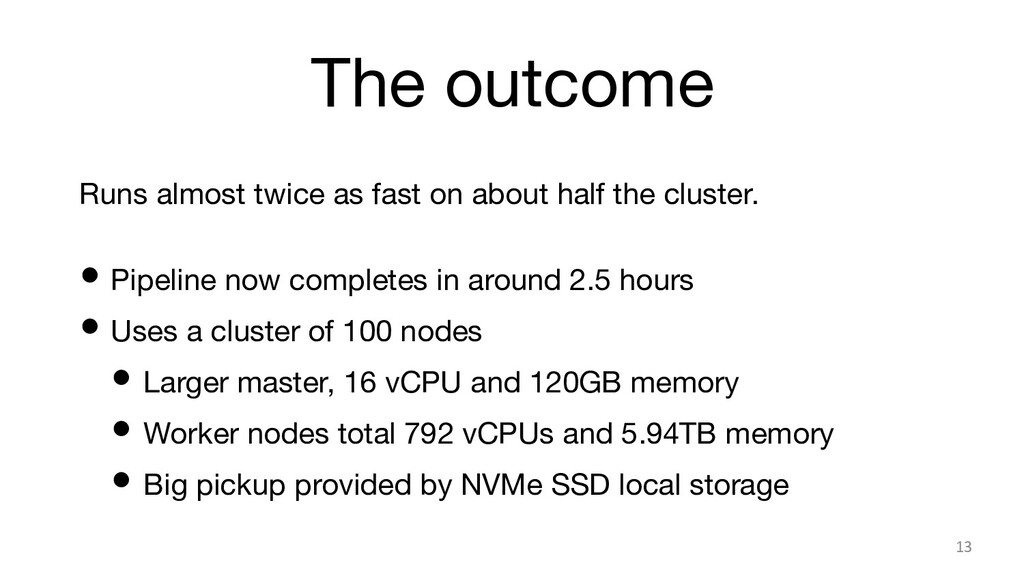

13. The outcome Runs almost twice as fast on about half the cluster. • Pipeline now completes in around 2.5 hours • Uses a cluster of 100 nodes • Larger master, 16 vCPU and 120GB memory • Worker nodes total 792 vCPUs and 5.94TB memory • Big pickup provided by NVMe SSD local storage 13
14. The Hamster Pipeline Case Study 2

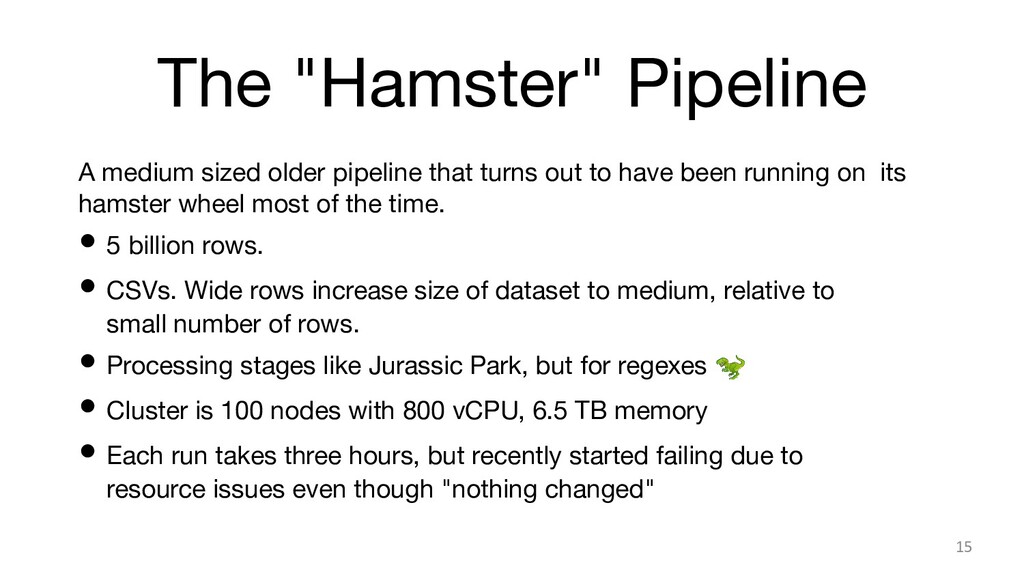

15. A medium sized older pipeline that turns out to have been running on its hamster wheel most of the time. • 5 billion rows. • CSVs. Wide rows increase size of dataset to medium, relative to small number of rows. • Processing stages like Jurassic Park, but for regexes • Cluster is 100 nodes with 800 vCPU, 6.5 TB memory • Each run takes three hours, but recently started failing due to resource issues even though "nothing changed" The "Hamster" Pipeline 15

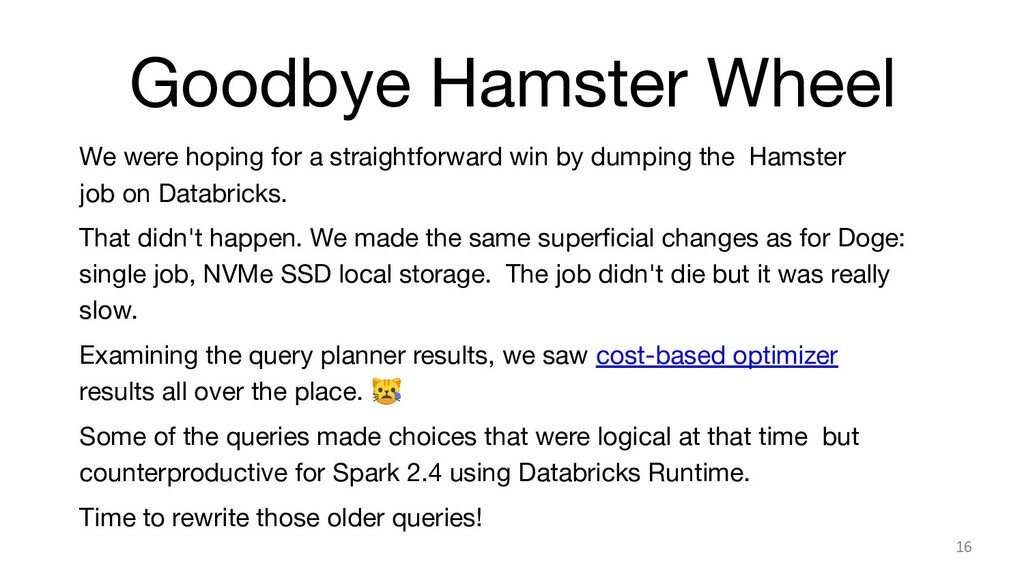

16. We were hoping for a straightforward win by dumping the Hamster job on Databricks. That didn't happen. We made the same superficial changes as for Doge: single job, NVMe SSD local storage. The job didn't die but it was really slow. Examining the query planner results, we saw cost-based optimizer results all over the place. Some of the queries made choices that were logical at that time but counterproductive for Spark 2.4 using Databricks Runtime. Time to rewrite those older queries! Goodbye Hamster Wheel 16

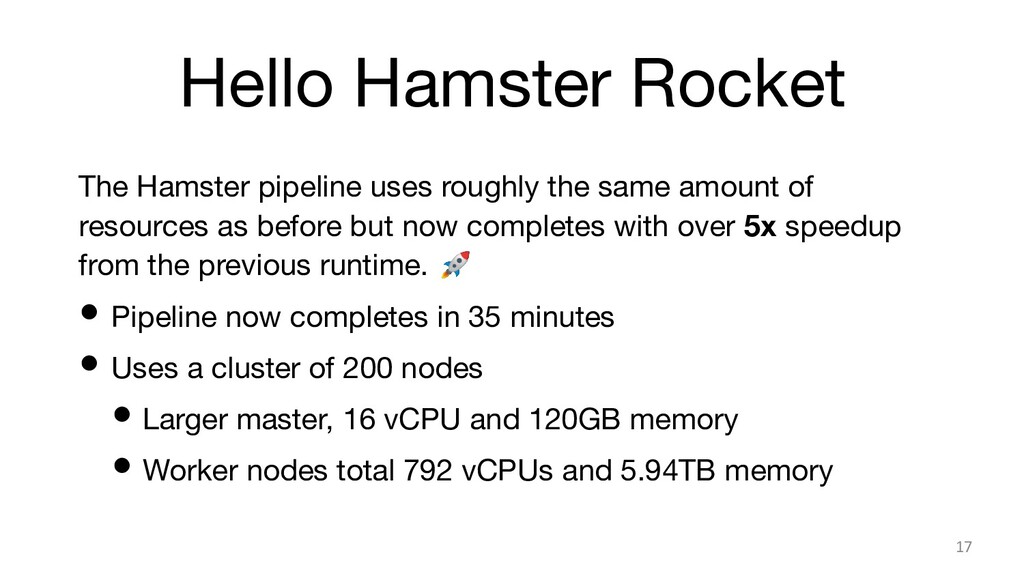

17. The Hamster pipeline uses roughly the same amount of resources as before but now completes with over 5x speedup from the previous runtime. • Pipeline now completes in 35 minutes • Uses a cluster of 200 nodes • Larger master, 16 vCPU and 120GB memory • Worker nodes total 792 vCPUs and 5.94TB memory Hello Hamster Rocket 17

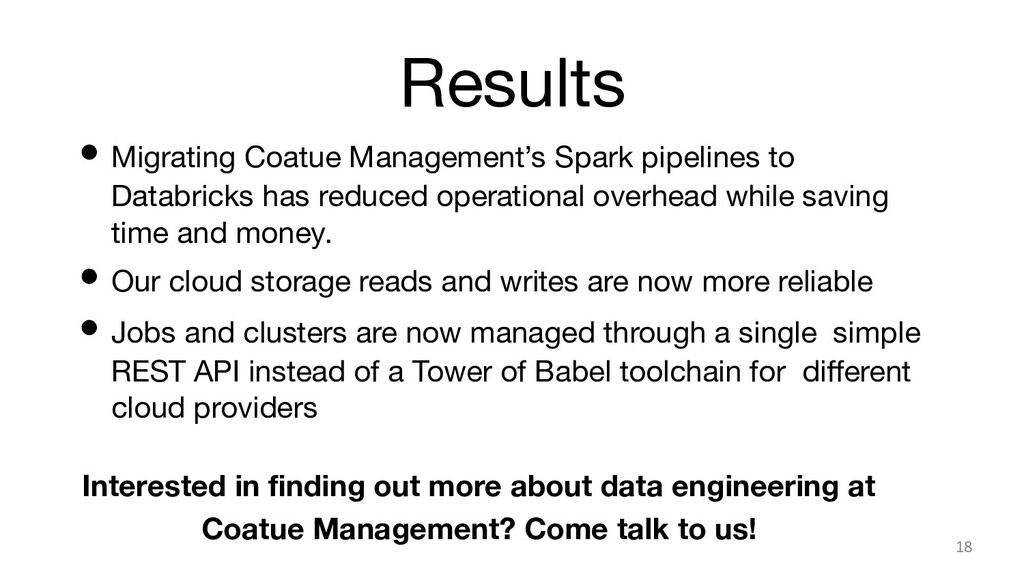

18. Results • Migrating Coatue Management’s Spark pipelines to Databricks has reduced operational overhead while saving time and money. • Our cloud storage reads and writes are now more reliable • Jobs and clusters are now managed through a single simple REST API instead of a Tower of Babel toolchain for different cloud providers Interested in finding out more about data engineering at Coatue Management? Come talk to us! 18
