How Gitlab Works

RubyConfChina presentation.

7777fbc132a52a9e5f71812645dc534d?s=128

Saito

November 18, 2012
Tweet

More Decks by Saito

See All by Saito
7777fbc132a52a9e5f71812645dc534d?s=48 saito
3
6k

Other Decks in Technology

See All in Technology
563dea298ceddda314223503683a66e3?s=48 tachibana
0
220
5b47136bedcba2799edf4fcd27ea66d7?s=48 yaegashi
3
610
00101a1274d1f92977f4e442ef73be86?s=48 ahana
0
110
2037978e199b5947c8304d0435de9944?s=48 irisuinwl
0
380
842515eaf8fbb2dfcc75197e7797dc15?s=48 sat
2
160
Eb6be531bcfaa99714d8d3b48665a5a9?s=48 budougumi0617
1
580
79dcb04101764d7bf66f898dd446838e?s=48 tsukubachallenge
0
230
2219597a939c895e5db6f8b7c94e2859?s=48 pojiro
0
320
Eae29f3898341b3daa24eb37249c43f0?s=48 ikeda7010
0
610
5d9c07f0c2044b1407a84d88362bc84d?s=48 estie
0
130
44b799f91cc48e38c5fe9f5d9c5ecc61?s=48 takaichi00
10
2.2k
13d936e697fe0f4fa96f926d0a712f6c?s=48 sansanbuildersbox
PRO
0
200

Featured

See All Featured
1177e050db6bafe62885362edf6e3537?s=48 lauravandoore
443
29k
E4f5d494ebdc9e7cce1aecf3ce3e8bc1?s=48 shpigford
167
19k
C86443373fbfe92996aa882d0d7a59f8?s=48 imathis
482
150k
88bc30284c6a424b63a92aad27d0ba36?s=48 jnunemaker
PRO
43
4.9k
E14f55d3f939977cecbf51b64ff6f861?s=48 keithpitt
404
20k
Fde6c3a50ca518a909ef35c22c0ee0e4?s=48 destraynor
225
48k
06f8b41980eb4c577fa40c41d5030c19?s=48 keathley
24
900
C4de88ea47538e4594750e3861a341c8?s=48 brettharned
96
3.3k
761be20b5ebd271008bcee1244fc5b52?s=48 matthewcrist
73
7.7k
3d4519fd34b76fb265fc0237f3792bd4?s=48 danielanewman
208
20k
2bb923c57a1fdc3a2eb484bb8d565fd2?s=48 ufuk
60
7.2k
828ace851b606e1206900f26459f55ad?s=48 speakerdeck
PRO
0
290

Transcript

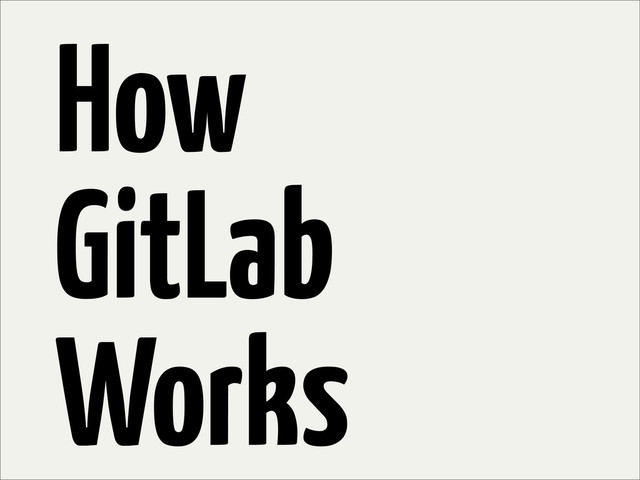

  1. How GitLab Works

  2. Saito github.com/saitowu @saitowu

  3. AIXForce

  4. GitLab?

  5. GitLab? Self Hosted Git Management Application

  6. None

  7. issues code snippet ssh & http wall ... code view

    wiki network graph merge request

  8. happy to use it.

  9. happy to use it. want to know how it works?

  10. None

  11. backend

  12. backend repo access

  13. backend repo access presentation layer

  14. Backend

  15. Can be backend:

  16. Can be backend: protocol

  17. Can be backend: file => (RW) git => (R) ssh

    => (RW) http => (RW) protocol

  18. Can be backend: file => (RW) git => (R) ssh

    => (RW) http => (RW) protocol x x

  19. Can be backend: file => (RW) git => (R) ssh

    => (RW) http => (RW) protocol x x #=> remote #=> authentication

  20. SSH:

  21. SSH: normal: authorized_keys

  22. SSH: normal: authorized_keys

  23. SSH:

  24. SSH: gitosis/gitolite: authorized_keys

  25. SSH: gitosis/gitolite: authorized_keys SSH magic command

  26. SSH: gitosis/gitolite: authorized_keys SSH magic command

  27. SSH:

  28. SSH: sshd: not authorized_keys

  29. SSH: sshd: not authorized_keys but patched sshd

  30. SSH: sshd: not authorized_keys but patched sshd

  31. SSH: sshd: not authorized_keys but patched sshd

  32. SSH: sshd: not authorized_keys but patched sshd <= instead of

    sshd

  33. SSH:

  34. SSH: GitLab v1.0: gitosis #=> python

  35. SSH: GitLab v1.0: gitosis #=> python GitLab v2.0: gitolite #=>

    perl

  36. HTTP:

  37. HTTP: before Git v1.6.6: dumb

  38. HTTP: before Git v1.6.6: dumb after Git v1.6.6: smart!!!

  39. HTTP: https://github.com/schacon/grack/blob/master/lib/git_http.rb#L10-23

  40. git-upload-pack #=> send git-receive-pack #=> receive HTTP:

  41. git-upload-pack #=> send git-receive-pack #=> receive HTTP: smart

  42. HTTP: GitLab v2.7: smart HTTP protocol

  43. Repo Access

  44. Grit: command-line wrapper

  45. Rugged: ruby bindings to libgit2

  46. Grit vs Rugged

  47. Grit vs Rugged win

  48. Grit vs Rugged win lose

  49. Grit vs Rugged win lose github will migrate from grit

    to rugged too

  50. Repo Browser

  51. Must Know:

  52. Must Know: Git object model

  53. Must Know: Git encoding strategy Git object model

  54. Must Know: Git encoding strategy Ruby encoding Git object model

  55. Git Object Model:

  56. Git Object Model: 4 basic objects: blob tree commit tag

  57. Git Object Model: 4 basic objects: blob tree commit tag

    stored in: .git/objects

  58. Git Object Model:

  59. Git Object Model: git show <sha>

  60. Git Object Model: git cat-file -p <sha> git show <sha>

  61. Git Object Model: http://saito.im/note/Git-Internals/

  62. Git Encoding Strategy: At the core level, git is character

    encoding agnostic. http://www.kernel.org/pub/software/scm/git/docs/v1.5.0.2/git-log.html#_discussion

  63. Git Encoding Strategy:

  64. Git Encoding Strategy: filename

  65. Git Encoding Strategy: filename blob contents

  66. Git Encoding Strategy: filename blob contents commit message

  67. Git Encoding Strategy: filename #=> tree blob blob contents commit

    message

  68. Git Encoding Strategy: filename #=> tree blob blob contents #=>

    blob commit message

  69. Git Encoding Strategy: filename #=> tree blob blob contents #=>

    blob commit message #=> commit tag

  70. Git Encoding Strategy:

  71. Git Encoding Strategy: no need #=> blob contents

  72. Git Encoding Strategy: no need #=> blob contents need #=>

    commit message, filename

  73. Git Encoding Strategy: no need #=> blob contents need #=>

    commit message, filename IMHO: #=> hg hybird strategy & svn

  74. Ruby Encoding: detect encoding:

  75. Ruby Encoding: detect encoding:the longer the better

  76. Ruby Encoding: detect encoding:the longer the better filename

  77. Ruby Encoding: detect encoding:the longer the better filename blob contents

  78. Ruby Encoding: detect encoding:the longer the better filename blob contents

    commit message

  79. Ruby Encoding: detect encoding:the longer the better #=> too short

    filename blob contents commit message

  80. Ruby Encoding: detect encoding:the longer the better #=> too short

    #=> good to detect filename blob contents commit message

  81. Ruby Encoding: detect encoding:the longer the better #=> too short

    #=> good to detect #=> not long enough filename blob contents commit message

  82. Ruby Encoding: Character encoding detection:

  83. Ruby Encoding: Character encoding detection: charlock_holmes

  84. Ruby Encoding: Character encoding detection: charlock_holmes rchardet19

  85. Ruby Encoding: Character encoding detection: charlock_holmes #=> libicu rchardet19

  86. Ruby Encoding: Character encoding detection: charlock_holmes #=> libicu rchardet19 #=>

    pure ruby

  87. Ruby Encoding:

  88. Ruby Encoding: blob contents:

  89. Ruby Encoding: blob contents: filename and commit message:

  90. Ruby Encoding: blob contents: filename and commit message: detect and

    encode

  91. Ruby Encoding: blob contents: filename and commit message: detect and

    encode hard to deal with

  92. Ruby Encoding:

  93. Ruby Encoding: CSI

  94. Ruby Encoding: CSI #=> Character Set Independent

  95. Ruby Encoding: CSI USC #=> Character Set Independent

  96. Ruby Encoding: CSI USC #=> Character Set Independent #=> Universal

    Character Set

  97. Ruby Encoding: CSI USC #=> Ruby #=> Character Set Independent

    #=> Universal Character Set

  98. Ruby Encoding: CSI USC #=> Ruby #=> Java Python Perl

    #=> Character Set Independent #=> Universal Character Set

  99. Ruby Encoding:

  100. Ruby Encoding: MRI 1.8:

  101. Ruby Encoding: MRI 1.8: defective encoding

  102. Ruby Encoding: MRI 1.8: MRI 1.9: defective encoding

  103. Ruby Encoding: MRI 1.8: MRI 1.9: defective encoding Encoding Class

  104. Ruby Encoding: MRI 1.8: MRI 1.9: defective encoding pros: regexp

    length Encoding Class

  105. Ruby Encoding: MRI 1.8: MRI 1.9: defective encoding pros: regexp

    length cons: incompatible character encodings Encoding Class

  106. Hooks

  107. Post-receive:

  108. Post-receive: push event to redis

  109. Post-receive: push event to redis resque it

  110. scalability : Web Hooks Post-receive:

  111. interoperability : API Post-receive:

  112. interoperability : API based on grape Post-receive:

  113. More

  114. Git: pull-request

  115. Git: pull-request git format-patch <br>..<br>

  116. Git: git apply --check <patch> pull-request git format-patch <br>..<br>

  117. Git: git apply --check <patch> pull-request git format-patch <br>..<br> git

    am <patch>

  118. Git: git cherry-pick <sha> cherry-pick

  119. One More Thing

  120. Gitlab CI

  121. Thanks
