Advanced Git

Advanced Git

satya sudheer

April 17, 2018

Transcript

25 slides
  1. HOW DOES GIT STORE INFORMATION? At its core, git is

    like a key value store. The Value (BLOB) = Data The Key (SHA1) = Hash of the Data

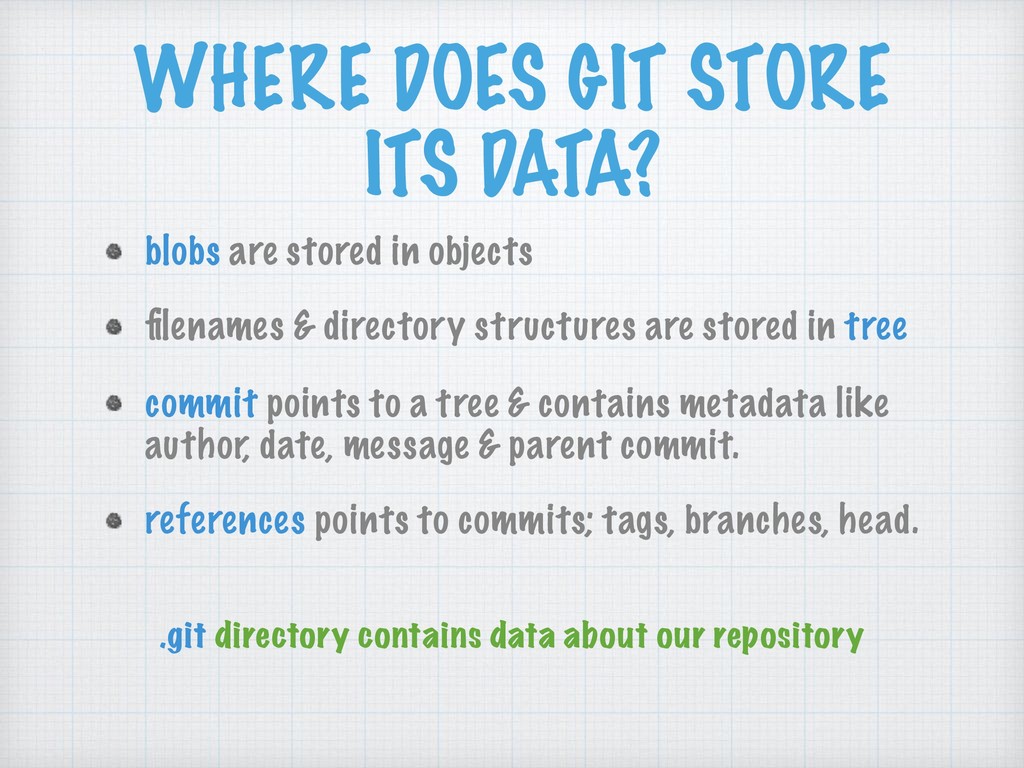

  2. WHERE DOES GIT STORE ITS DATA? blobs are stored in

    objects filenames & directory structures are stored in tree commit points to a tree & contains metadata like author, date, message & parent commit. references points to commits; tags, branches, head. .git directory contains data about our repository
  3. Optimisations: PACKFILES, DELTAS Git objects are compressed, further optimises by

    compressing these files together, into a Packfile. The Packfile stores the object, and deltas, or the differences between one version of the file and the next. Packfiles are generated when: you have too many objects, during gc, or during a push to a remote
  4. Three Areas Where Code Lives The Working Area The Staging

    Area (a.k.a Index, Cache) The Repository Working Area Staging Area Repo

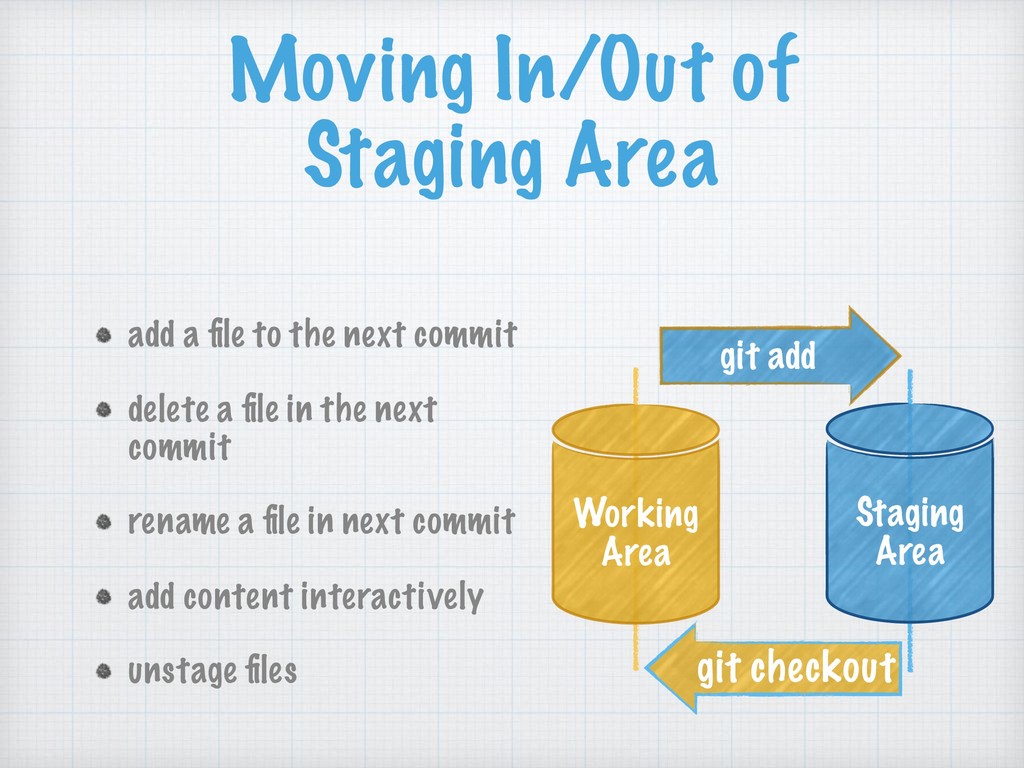

  5. Moving In/Out of Staging Area add a file to the

    next commit delete a file in the next commit rename a file in next commit add content interactively unstage files Working Area Staging Area git add git checkout

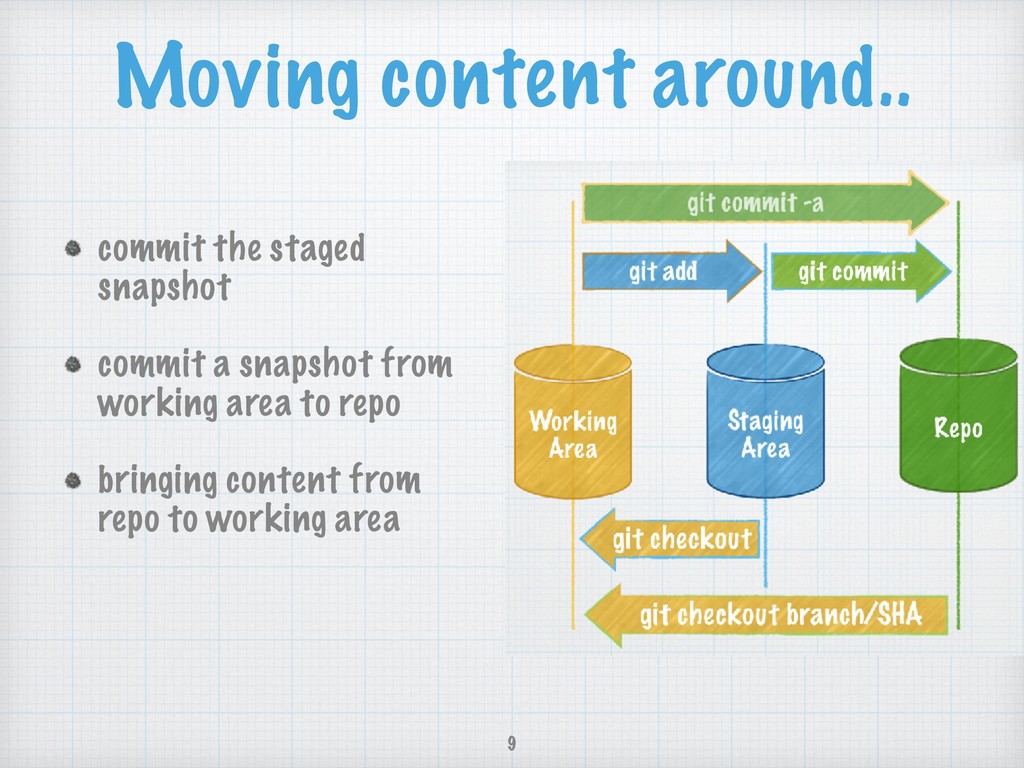

  6. Moving content around.. 9 commit the staged snapshot commit a

    snapshot from working area to repo bringing content from repo to working area
  7. The command line is the only place you can run

    all Git commands – most of the GUIs implement only a partial subset of Git functionality for simplicity. 10
  8. Initialising a new repository: git init Cloning an existing repository:

    git clone Saving changes to the repository: git add and git commit Inspecting a repository: git status, git log Repo-to-repo collaboration: git remote, git fetch, git pull, git push Switching between: git branch, git checkout Moving content across: git stash, git merge, git rebase, git cherry-pick Configuration & set up: git config
