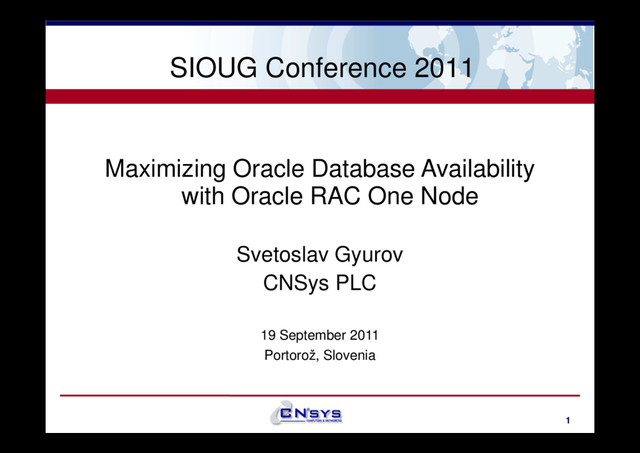

1. SIOUG Conference 2011
   Maximizing Oracle Database Availability
   with Oracle RAC One Node
   1
   Svetoslav Gyurov
   CNSys PLC
   19 September 2011
   Portorož, Slovenia


   View Slide

2. About me
   Senior DBA at CNSys PLC
   Responsible for system and database integrations.
   Working with Linux for 12 years, started with
   Slackware 3.6, Kernel 2.0.34
   2
   Slackware 3.6, Kernel 2.0.34
   Working with HP-UX for 6 years
   Started with Oracle 10g
   Oracle Certified Professional DBA 9i, 10g
   HP-UX Certified System Expert 11iv2, 11iv3


   View Slide

3. Agenda
   • Overview
   • Deployment
   • High Availability
   • Consolidation
   3
   • Demo


   View Slide

4. Agenda
   • Overview
   • Deployment
   • High Availability
   • Consolidation
   4
   • Demo


   View Slide

5. RAC One Node
   • New option to the Oracle Database 11.2 EE.
   • Unlike the Oracle RAC feature, RON is not available with SE.
   • The only new database addition with this release.
   • Introduced first with 11.2.0.1
   • Apply 9004119 to get the text based utilities.
   5
   • Apply 9004119 to get the text based utilities.
   • RAC One -- Changes in 11.2.0.2 [ID 1232802.1]
   • OUI and DBCA aware from 11.2.0.2.
   • Oracle RAC One Node is a single instance of an
   Oracle RAC enabled database.


   View Slide

6. RAC One Node
   • RAC One Node is an option of Oracle 11.2 EE.
   • $10,000 per processor.
   • Eligible for upgrade to full RAC.
   • All nodes on which RAC One Node is installed must
   be licensed for RAC One Node
   6
   be licensed for RAC One Node
   • RAC One node is eligible for 10-day rule in a calendar year.
   • Oracle RAC One Node can be online upgraded to full
   Oracle RAC (license!).
   • Supported on all platforms on which Oracle RAC is
   certified!
   • No additional certifications for RON.


   View Slide

7. The “Always on” single instance database
   • Solution to reduce planned downtime.
   • Online database relocation.
   • Online storage and server replacement.
   • Online OS and DB patching.
   7
   • Solution to reduce unplanned downtime.
   • Database Cold Failover.
   • Better storage and server resource utilization.
   • Instance caging and ASM.


   View Slide

8. Agenda
   • Overview
   • Deployment
   • High Availability
   • Consolidation
   8
   • Demo


   View Slide

9. Create RAC One Node 11.2.0.2 database
   • Install and configure 11.2.0.2 GI on all nodes.
   • Install 11.2.0.2 DB software by selecting RAC One in
   all nodes.
   • Create a RAC One Node database using DBCA.
   9
   • Create service – setup TAF or FAN correctly.


   View Slide

10. Database installer 11.2.0.2
    10


    View Slide

11. Database Configuration Assistant 11.2.0.2
    11


    View Slide

12. Typical deployment
    Server1
    DB1 DB2
    Server 2
    DB3
    instance 1
    instance 1 instance 2
    12
    DB1 DB2 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3


    View Slide

13. Agenda
    • Overview
    • Deployment
    • High Availability
    • Consolidation
    13
    • Demo


    View Slide

14. High availability
    • Oracle RAC One Node targets the failover market
    • But differs from other cold failover solutions.
    • Install rolling patches (no downtime).
    • Easy and online scale-out to multi-node RAC.
    14
    • RAC includes RAC One Node features.
    • OMotion - online migration of a database.


    View Slide

15. High availability
    • RAC One Node Support in Grid Control 11.1 [ID
    1308490.1].
    • Oracle RAC One Node is supported with Oracle Data
    Guard 11.2.0.2
    • Dataguard Broker is RAC One aware.
    15
    • Dataguard Broker is RAC One aware.
    • Oracle RAC One Node is supported with Oracle
    Goldengate [1320094.1].


    View Slide

16. Online Database Relocation
    Server1
    DB1 DB2
    Server 2
    DB3
    instance 1
    instance 1 instance 2
    Client
    connections
    16
    DB1 DB2 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3


    View Slide

17. Online Database Relocation
    Server1
    DB1 DB2
    Server 2
    DB3
    instance 1
    instance 1 instance 2
    Client
    connections
    DB2
    instance 2
    Omotion
    17
    DB1 DB2 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    Omotion


    View Slide

18. Online Database Relocation
    Server1
    DB1 DB2
    Server 2
    DB3
    instance 1
    instance 1 instance 2
    New client
    connections
    DB2
    instance 2
    Client
    connections
    Omotion
    18
    DB1 DB2 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    Omotion


    View Slide

19. Online Database Relocation
    Server1
    DB1 DB2
    Server 2
    DB3
    instance 1
    instance 1 instance 2
    New client
    connections
    DB2
    instance 2
    Client
    connections
    Omotion
    19
    DB1 DB2 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    Omotion


    View Slide

20. Online Database Relocation
    Server1
    DB1 DB2
    Server 2
    DB3
    instance 1
    instance 1 instance 2
    New client
    connections
    DB2
    instance 2
    Omotion
    20
    DB1 DB2 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    Omotion


    View Slide

21. Online Database Relocation
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    DB2
    instance 2
    21
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2


    View Slide

22. Online DB Patching
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    DB2
    instance 2
    22
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2


    View Slide

23. Online DB Patching
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    DB2
    instance 2
    Apply patch
    23
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2


    View Slide

24. Online DB Patching
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    DB2
    instance 2
    DB2
    instance 1 Omotion
    24
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    DB2
    DB_HOME 2
    Omotion


    View Slide

25. Online DB Patching
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    DB2
    instance 2
    DB2
    instance 1 Omotion
    New client
    connections
    25
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    DB2
    DB_HOME 2
    Omotion


    View Slide

26. Online DB Patching
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    DB2
    instance 2
    DB2
    instance 1 Omotion
    New client
    connections
    26
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    DB2
    DB_HOME 2
    Omotion


    View Slide

27. Online DB Patching
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    DB2
    instance 2
    DB2
    instance 1 Omotion
    New client
    connections
    27
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    DB2
    DB_HOME 2
    Omotion


    View Slide

28. Online DB Patching
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    DB2
    instance 1
    Client
    connections
    Apply patch
    28
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB_HOME 2
    DB2
    DB_HOME 2


    View Slide

29. Database Cold Failover
    Server1
    DB2
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    29
    DB2 DB3
    Shared storage
    ASM
    DB_HOME 2 DB_HOME 3


    View Slide

30. Database Cold Failover
    Server1
    DB2
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    30
    DB2 DB3
    Shared storage
    ASM
    DB_HOME 2 DB_HOME 3


    View Slide

31. Database Cold Failover
    Server1
    DB2
    Server 2
    DB3
    instance 1 instance 2
    Client
    connections
    DB2
    instance 1
    31
    DB2 DB3
    Shared storage
    ASM
    DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2


    View Slide

32. Database Cold Failover
    Server1
    DB2
    Server 2
    DB3
    instance 1 instance 2
    DB2
    instance 1
    Client
    connections
    32
    DB2 DB3
    Shared storage
    ASM
    DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2


    View Slide

33. Online upgrade to RAC
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    DB2
    instance 1
    Client
    connections
    Use srvctl to upgrade to RAC
    33
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2


    View Slide

34. Online upgrade to RAC
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    DB2
    instance 2
    DB2
    instance 1 RAC
    Client
    connections
    34
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    DB2
    DB_HOME 2
    RAC


    View Slide

35. Online upgrade to RAC
    Server1
    DB1
    Server 2
    DB3
    instance 1 instance 2
    DB2
    instance 2
    DB2
    instance 1 RAC
    Client
    connections
    New client
    connections
    35
    DB1 DB3
    Shared storage
    ASM
    DB_HOME 1 DB_HOME 2 DB_HOME 3
    DB2
    DB_HOME 2
    DB2
    DB_HOME 2
    RAC


    View Slide

36. Agenda
    • Overview
    • Deployment
    • High Availability
    • Consolidation
    36
    • Demo


    View Slide

37. Better consolidation
    • GI and ASM are running all the time on all nodes
    • Storage capacity is shared.
    • Disk groups are mounted all the time on all nodes
    • No volume migration during relocation or failover.
    • Instance caging
    37
    • Instance caging
    • Better workload and resource utilization.
    • Dynamic parameter (CPU_COUNT).
    • Two approaches - over-provisioning and partitioning.
    • RON can be admin or policy managed database


    View Slide

38. Instance caging - partitioning
    Server1
    DB1 DB2
    Server 2
    DB3
    38
    DB1 DB2 DB3
    Shared storage
    DB1 DB2
    8 CPUs 4 CPUs


    View Slide

39. Instance caging - over-provisioning
    Server1
    DB1 DB2
    Server 2
    DB3
    39
    DB1 DB2 DB3
    Shared storage
    DB1 DB2
    8 CPUs 8 CPUs


    View Slide

40. Oracle RAC One Node
    40


    View Slide

41. Conclusion
    • Oracle RAC One Node pros:
    • Single vendor solution.
    • Faster Failover of database.
    • Easy and online scale-out to multi-node RAC.
    • Tolerate planned and unplanned outages.
    41
    • Tolerate planned and unplanned outages.
    • Lower license cost than full RAC.
    • Oracle RAC One Node cons:
    • Several MOS notes and no docs!
    • Not available to SE.
    • Almost ½ from RAC price.


    View Slide

42. Q&A
    Thank you!
    42
    Thank you!
    Email: s.gyurov@cnsys.bg
    Blog: http://sve.to
    Twitter: sgyurov
