BPF in Stable Kernels

Transcript

1. 1 BPF in Stable Kernels LSF/MM/BPF Summit 2025 Shung-Hsi Yu

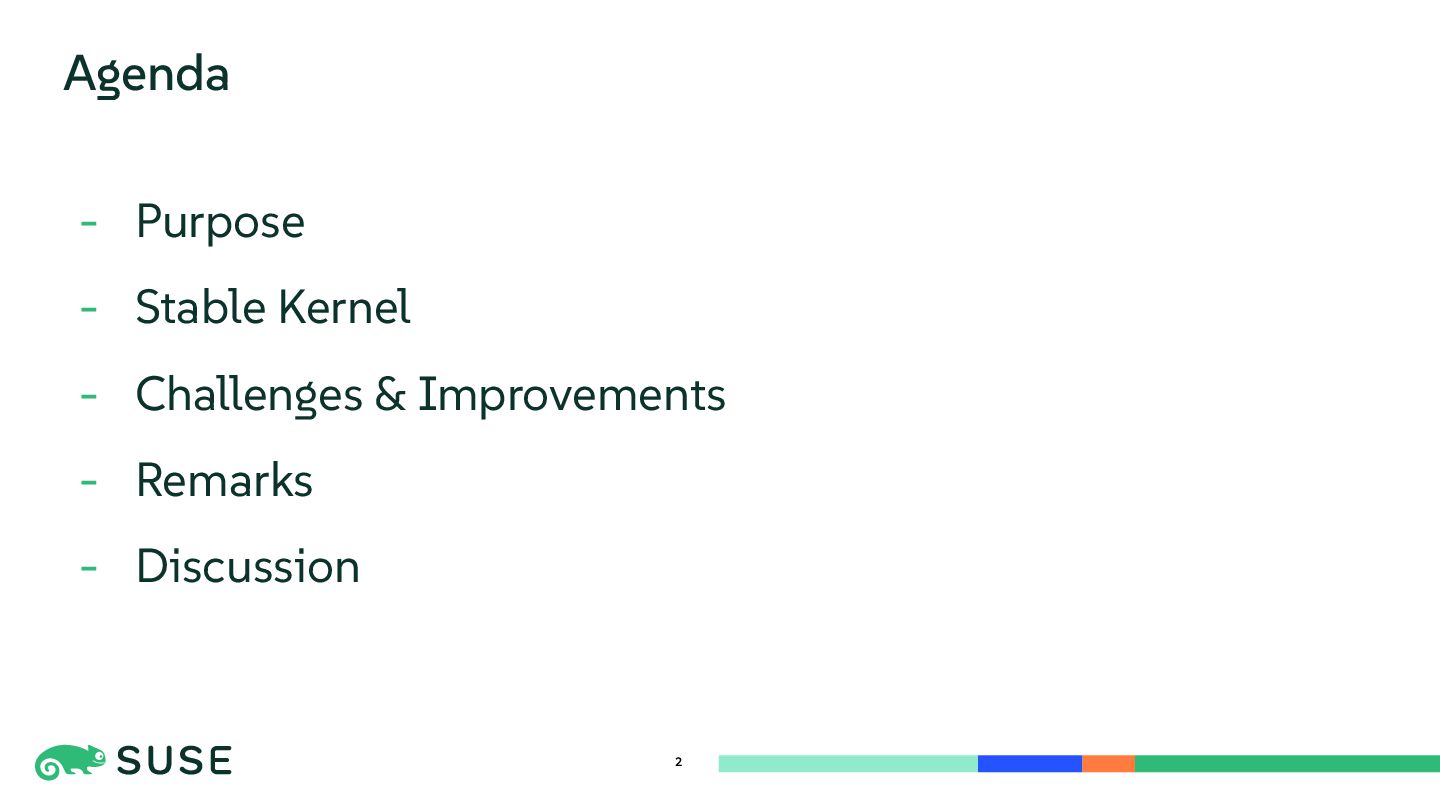

2. - Purpose - Stable Kernel - Challenges & Improvements - Remarks - Discussion 2 Agenda

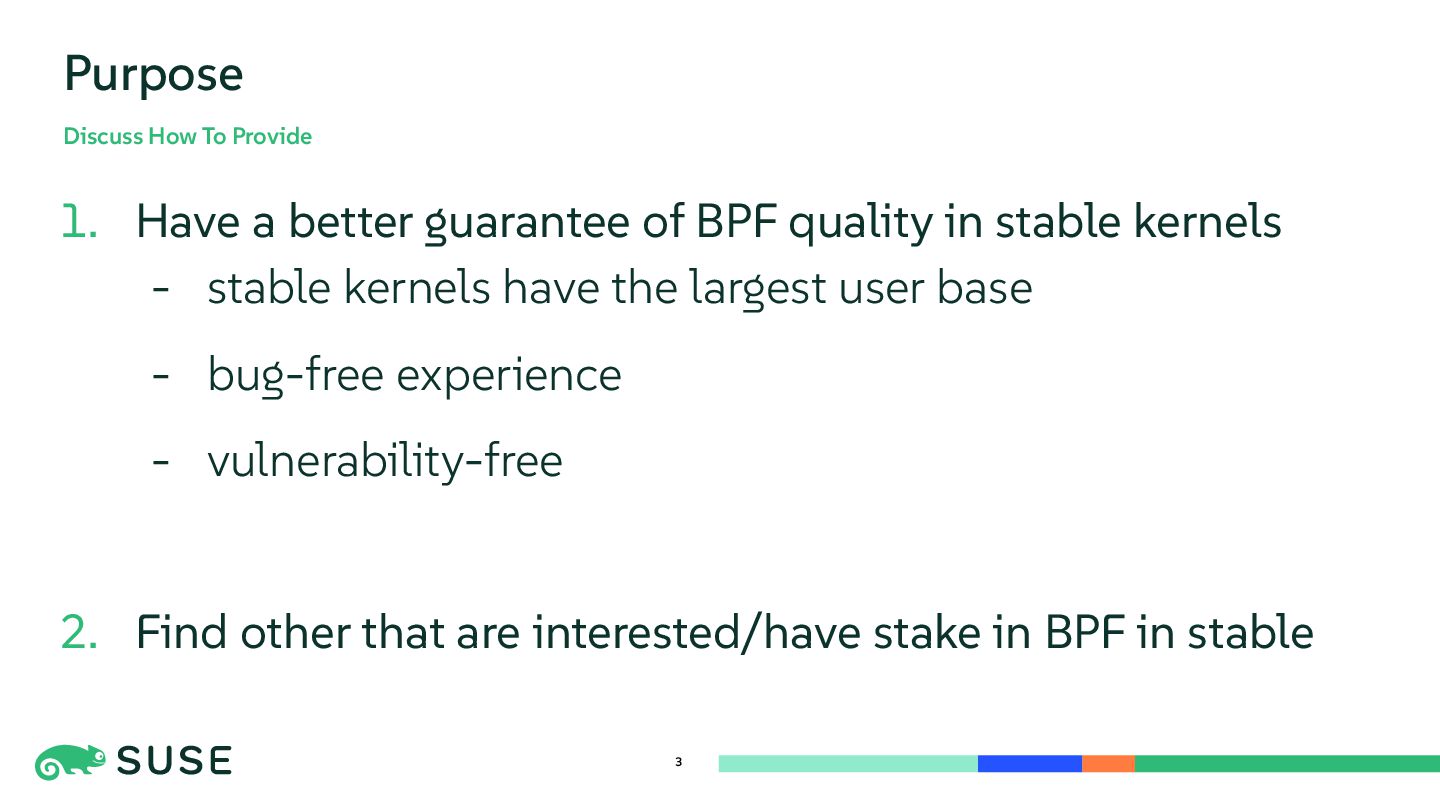

3. 1. Have a better guarantee of BPF quality in stable kernels - stable kernels have the largest user base - bug-free experience - vulnerability-free 2. Find other that are interested/have stake in BPF in stable 3 Purpose Discuss How To Provide

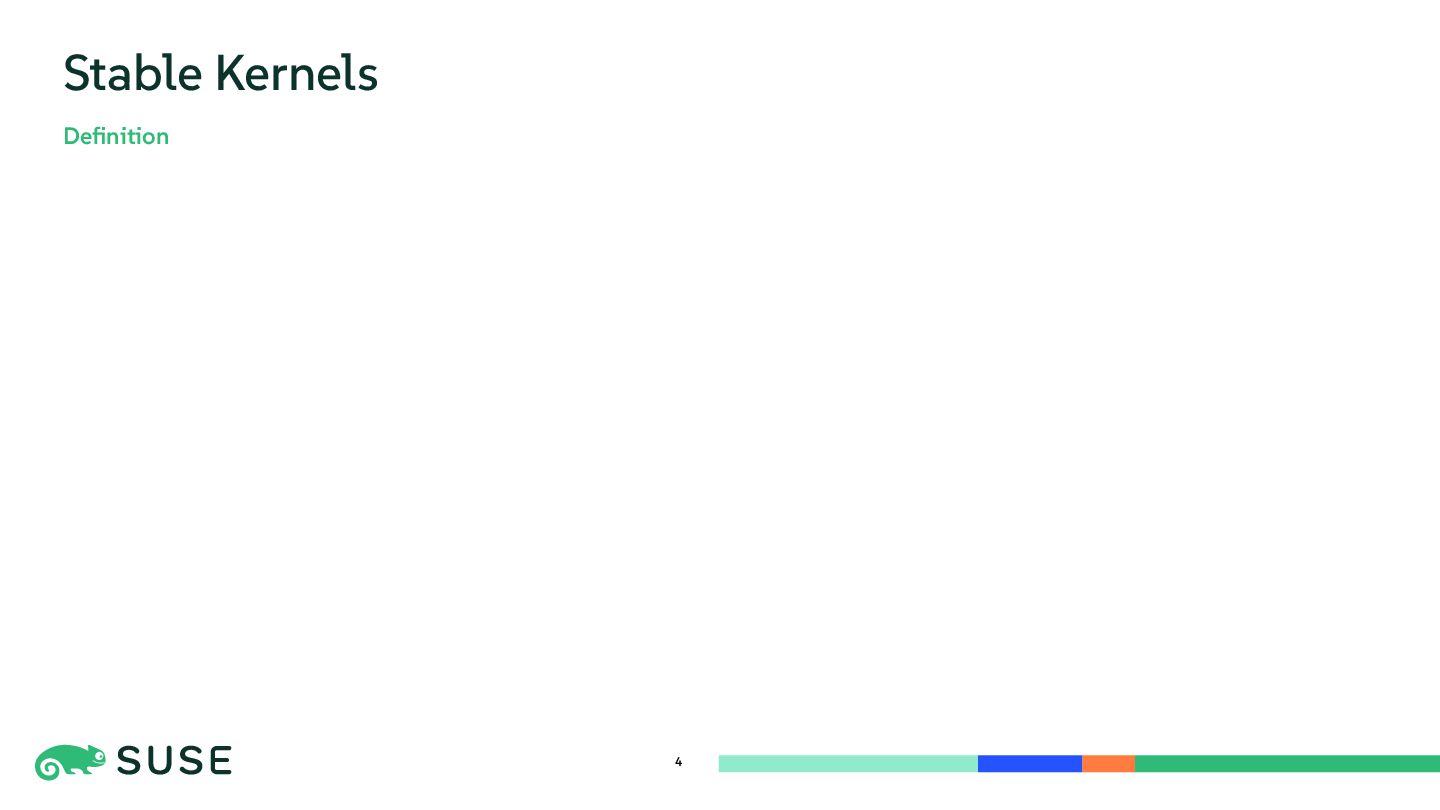

4. 4 Stable Kernels Definition
5. - stable/linux.git - Distro Kernels - Vendor Kernels - Android Common Kernel - Civil Infrastructure Platform Kernel 5 Stable Kernels

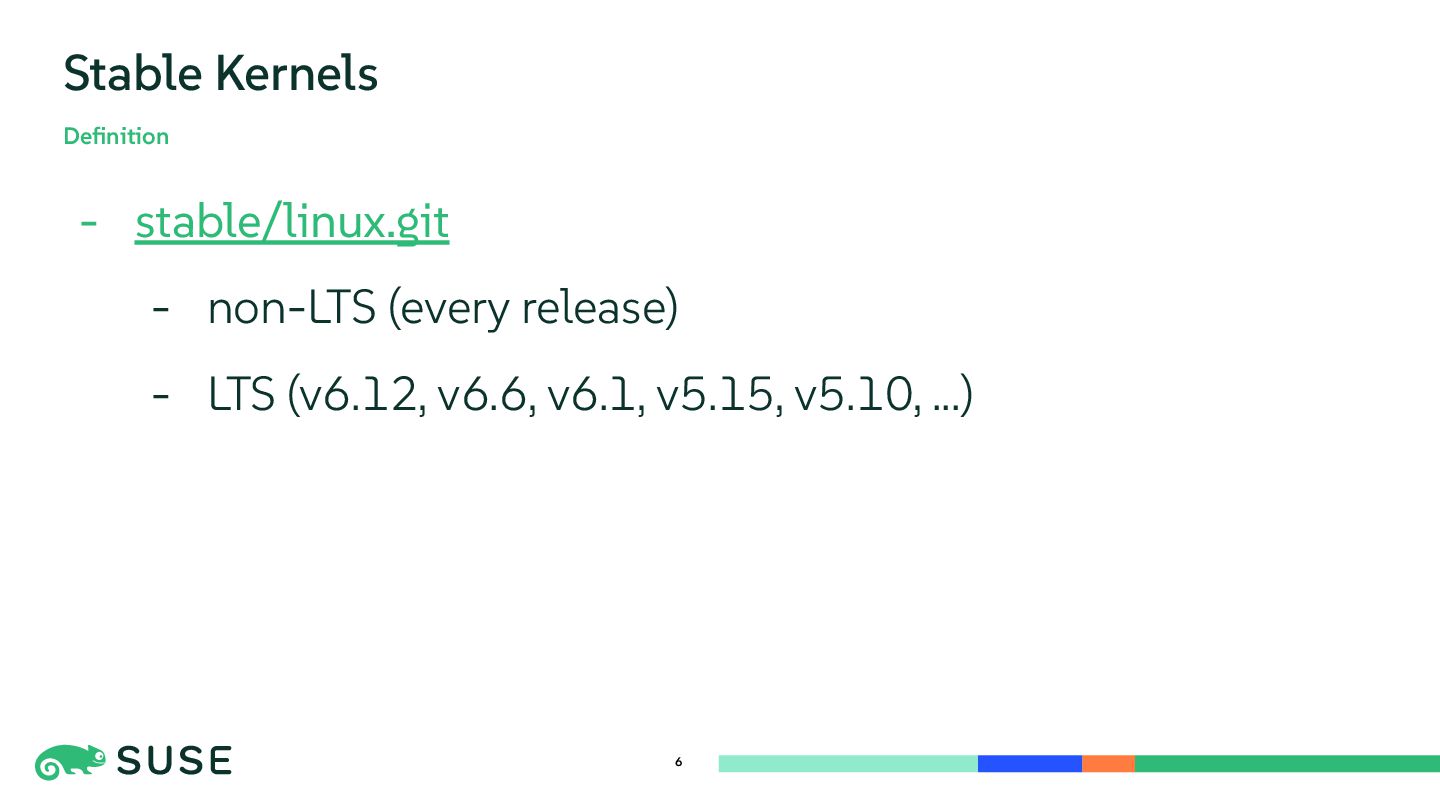

6. - stable/linux.git - non-LTS (every release) - LTS (v6.12, v6.6, v6.1, v5.15, v5.10, …) 6 Stable Kernels Definition

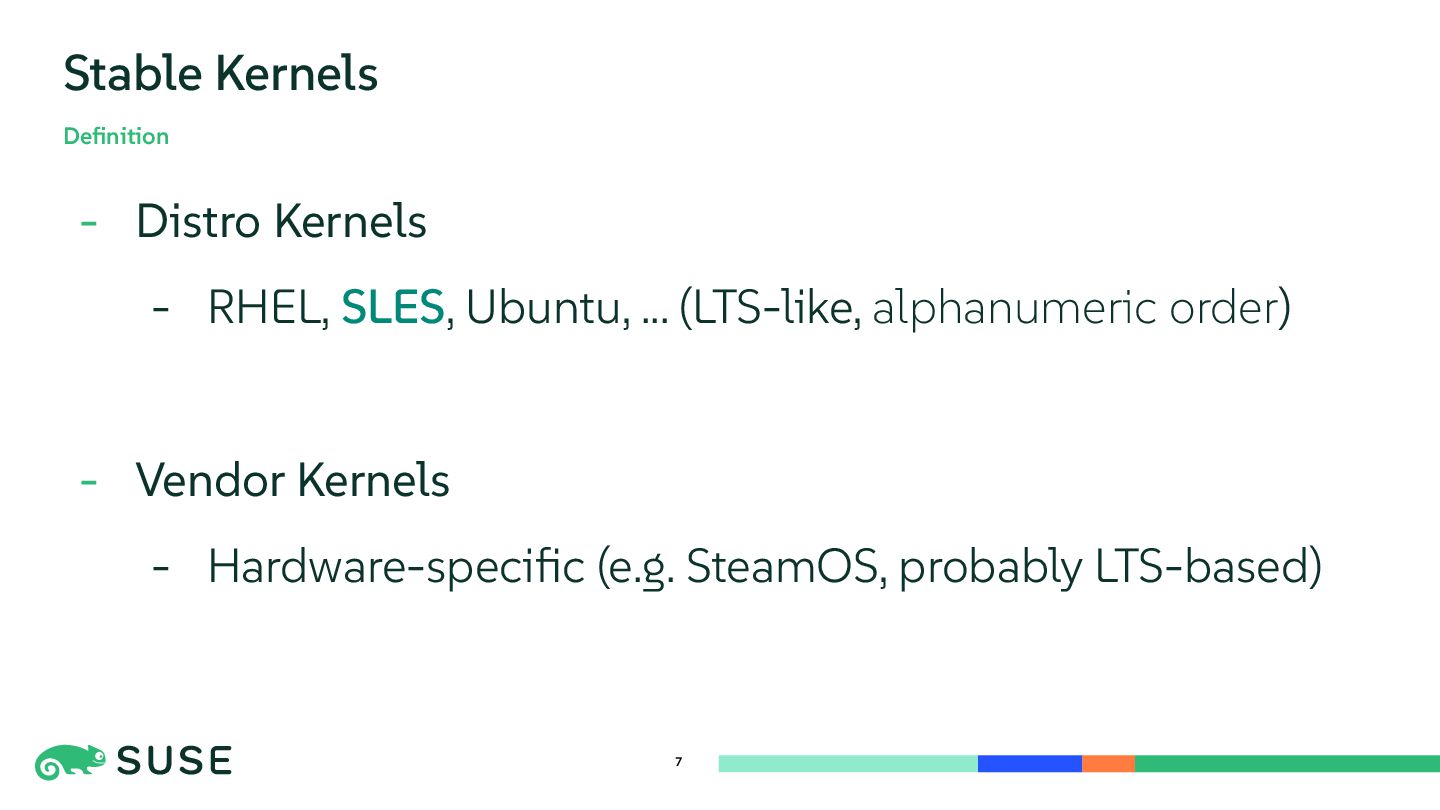

7. - Distro Kernels - RHEL, SLES, Ubuntu, … (LTS-like, alphanumeric order) - Vendor Kernels - Hardware-specific (e.g. SteamOS, probably LTS-based) 7 Stable Kernels Definition

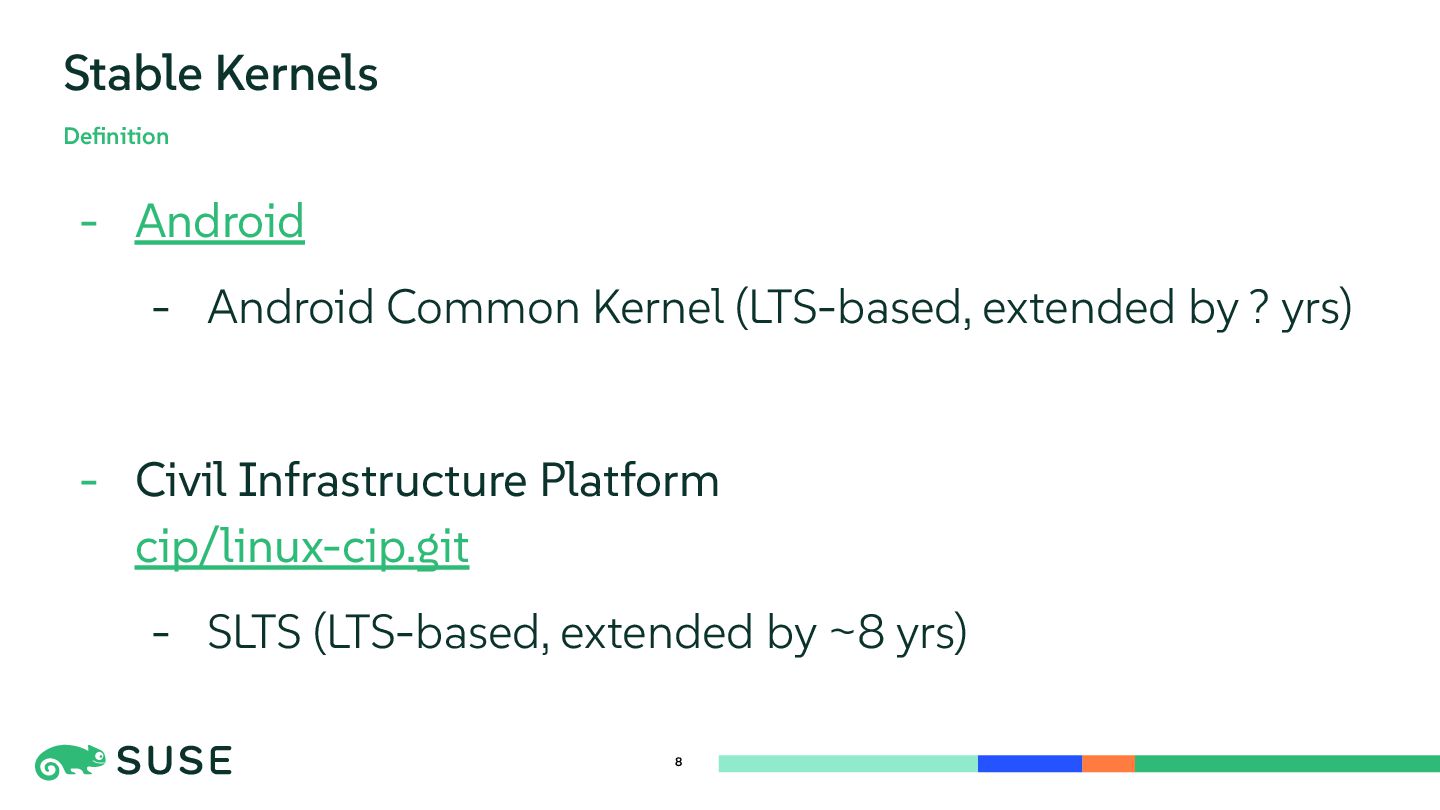

8. - Android - Android Common Kernel (LTS-based, extended by ? yrs) - Civil Infrastructure Platform cip/linux-cip.git - SLTS (LTS-based, extended by ~8 yrs) 8 Stable Kernels Definition

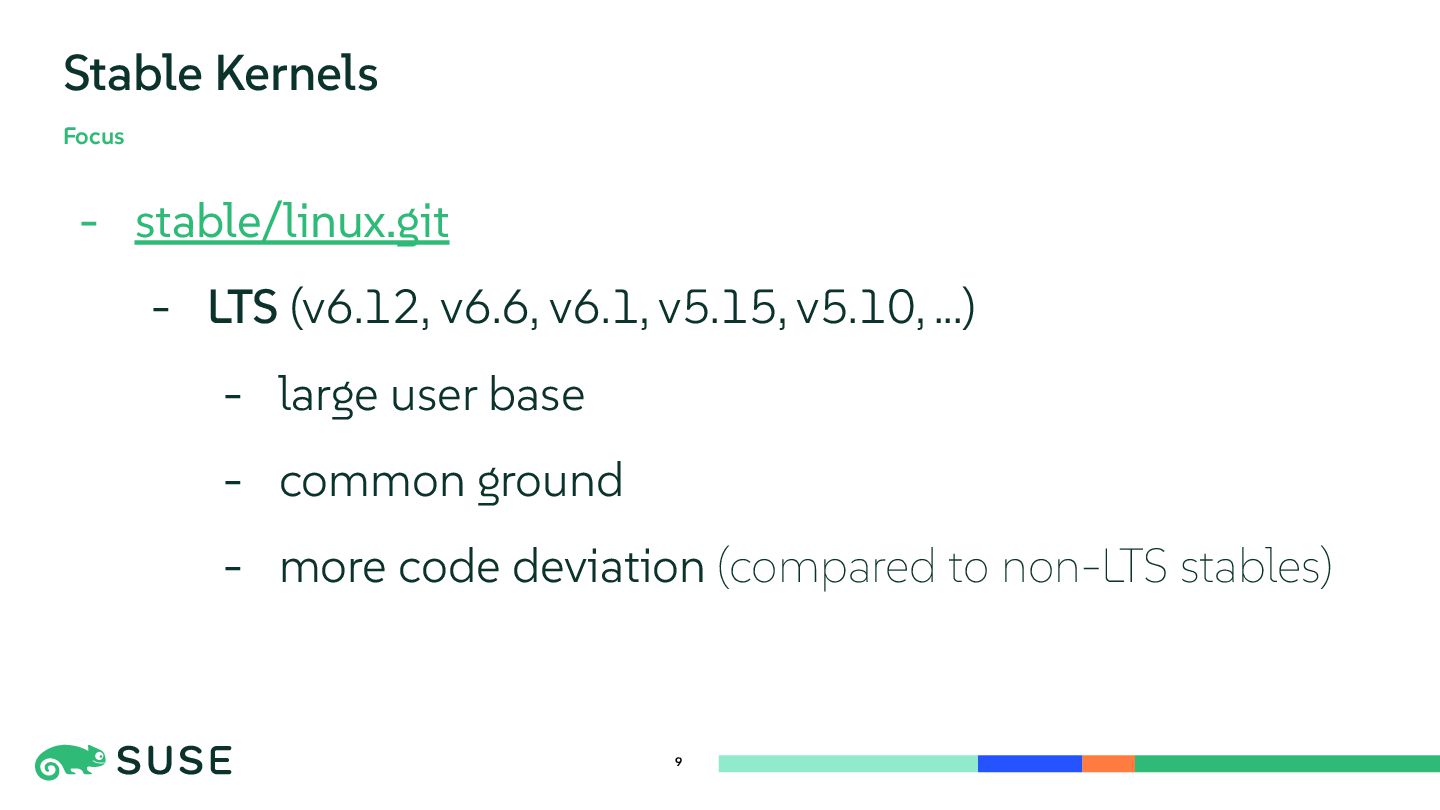

9. - stable/linux.git - LTS (v6.12, v6.6, v6.1, v5.15, v5.10, …) - large user base - common ground - more code deviation (compared to non-LTS stables) 9 Stable Kernels Focus

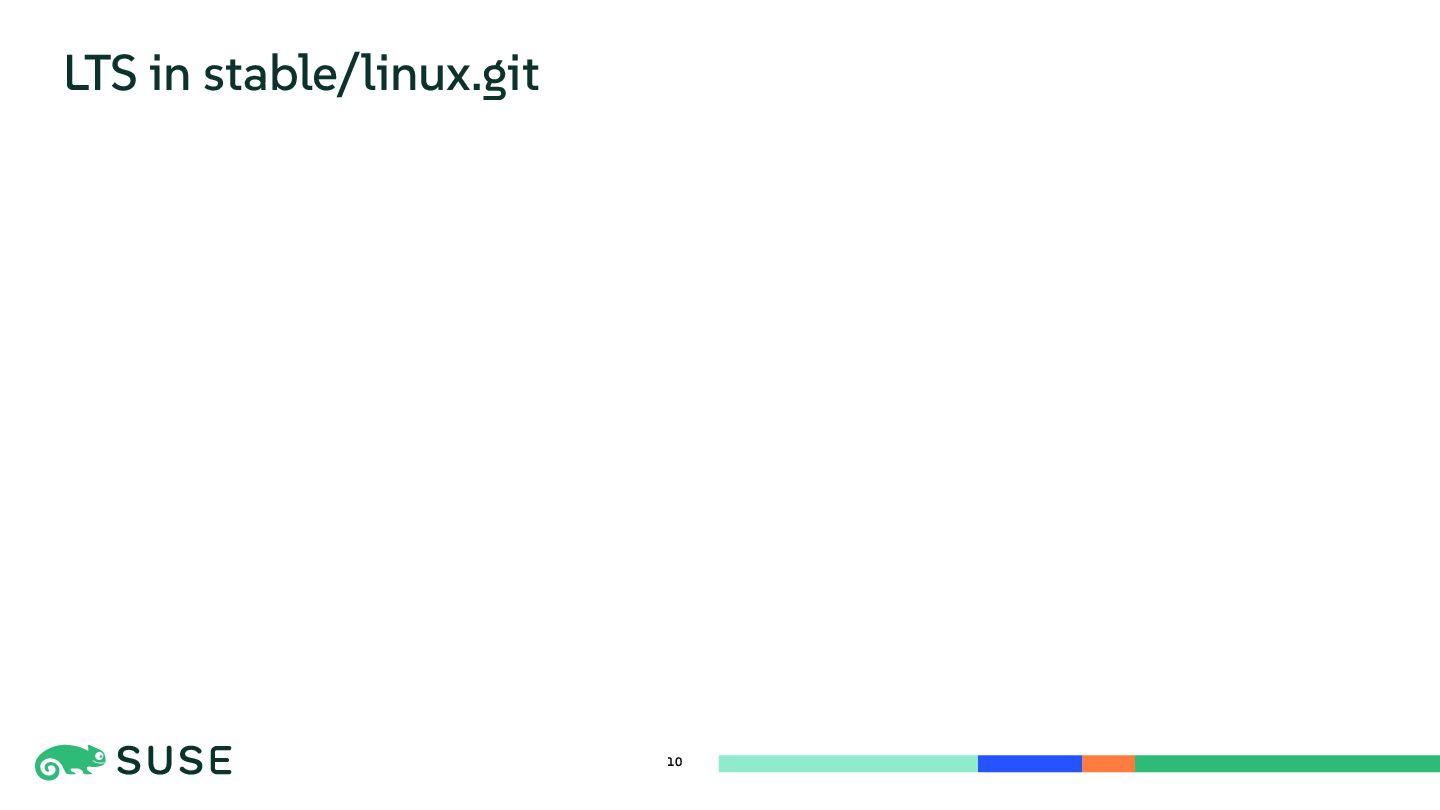

10. 10 LTS in stable/linux.git

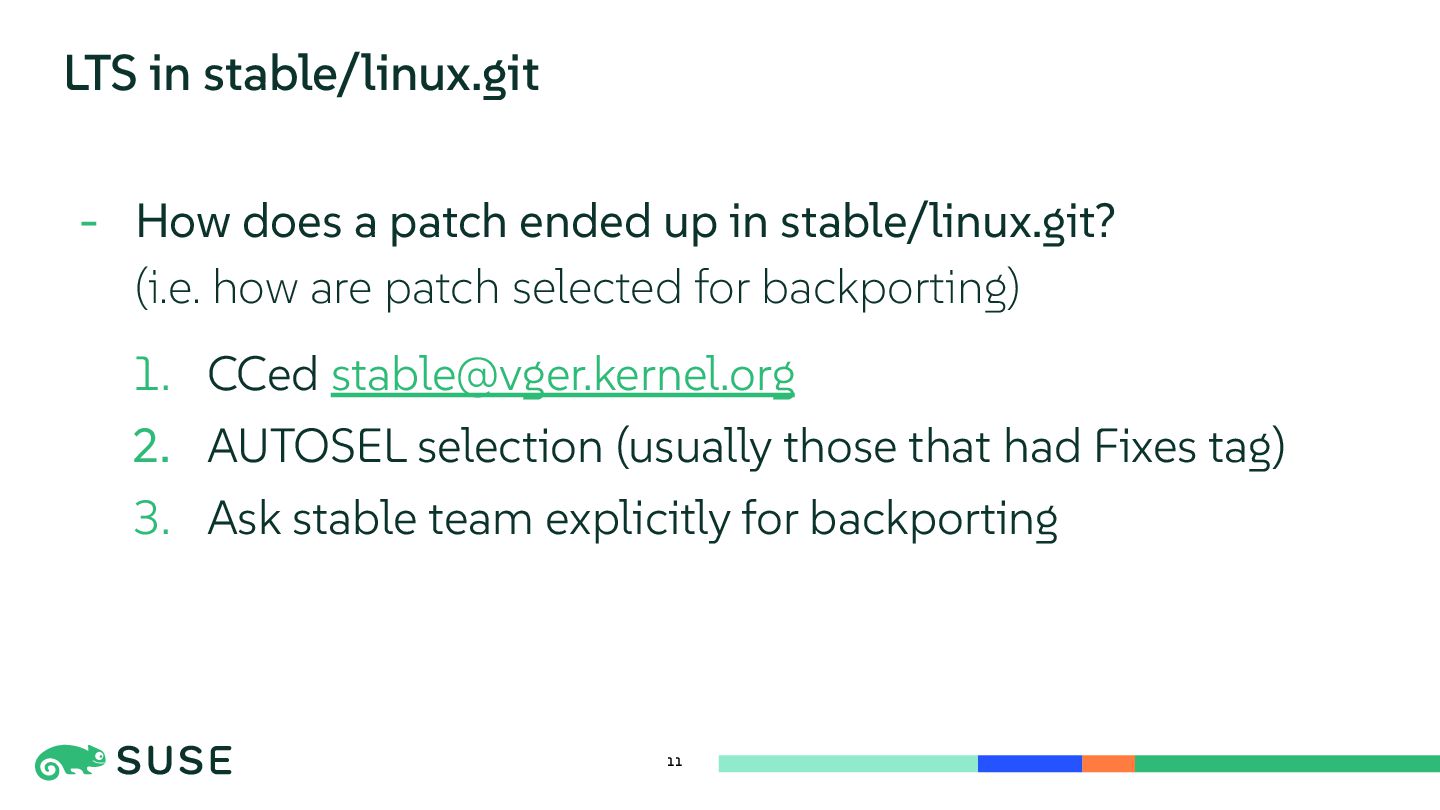

11. - How does a patch ended up in stable/linux.git? (i.e. how are patch selected for backporting) 1. CCed stable@vger.kernel.org 2. AUTOSEL selection (usually those that had Fixes tag) 3. Ask stable team explicitly for backporting 11 LTS in stable/linux.git

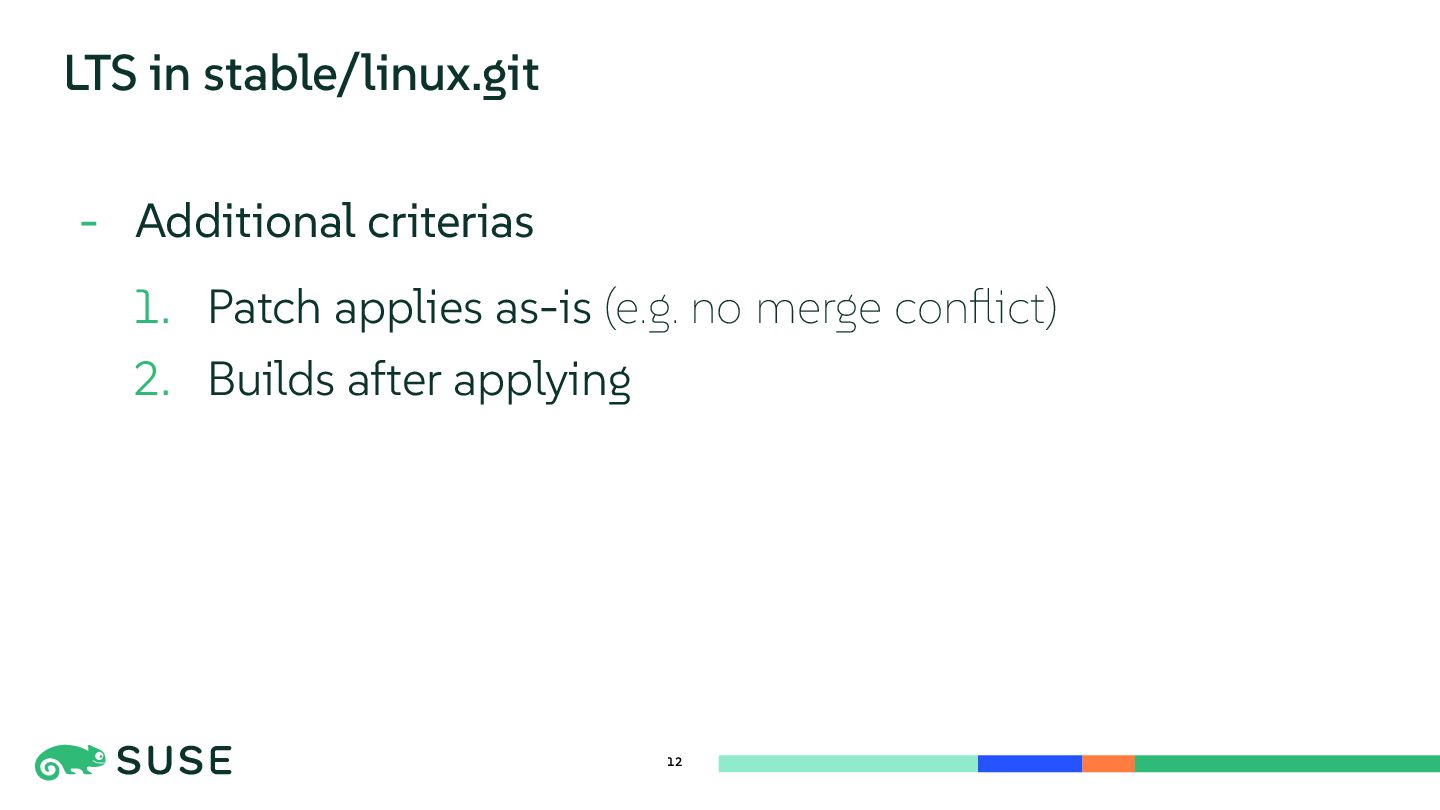

12. - Additional criterias 1. Patch applies as-is (e.g. no merge conflict) 2. Builds after applying 12 LTS in stable/linux.git

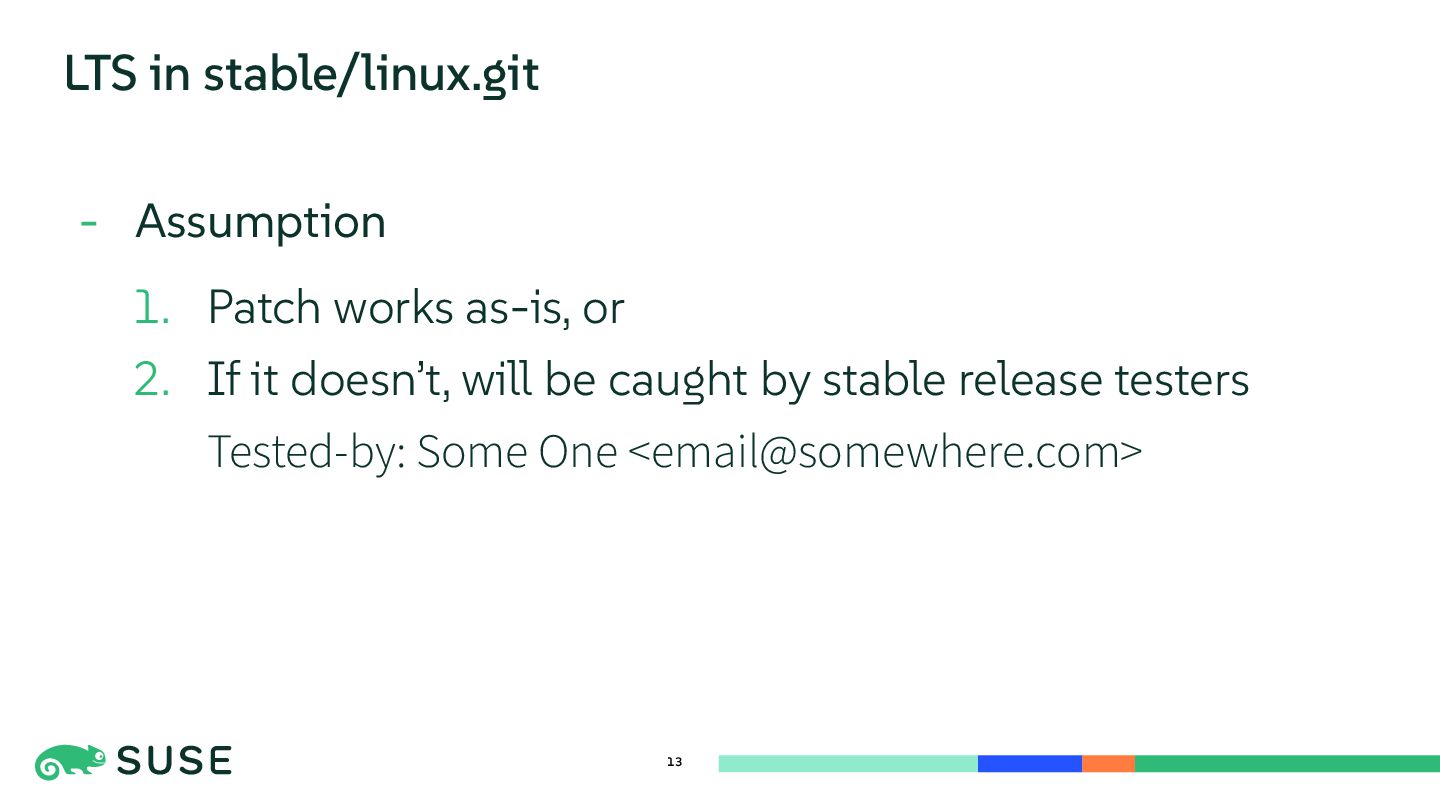

13. - Assumption 1. Patch works as-is, or 2. If it doesn’t, will be caught by stable release testers Tested-by: Some One <email@somewhere.com> 13 LTS in stable/linux.git

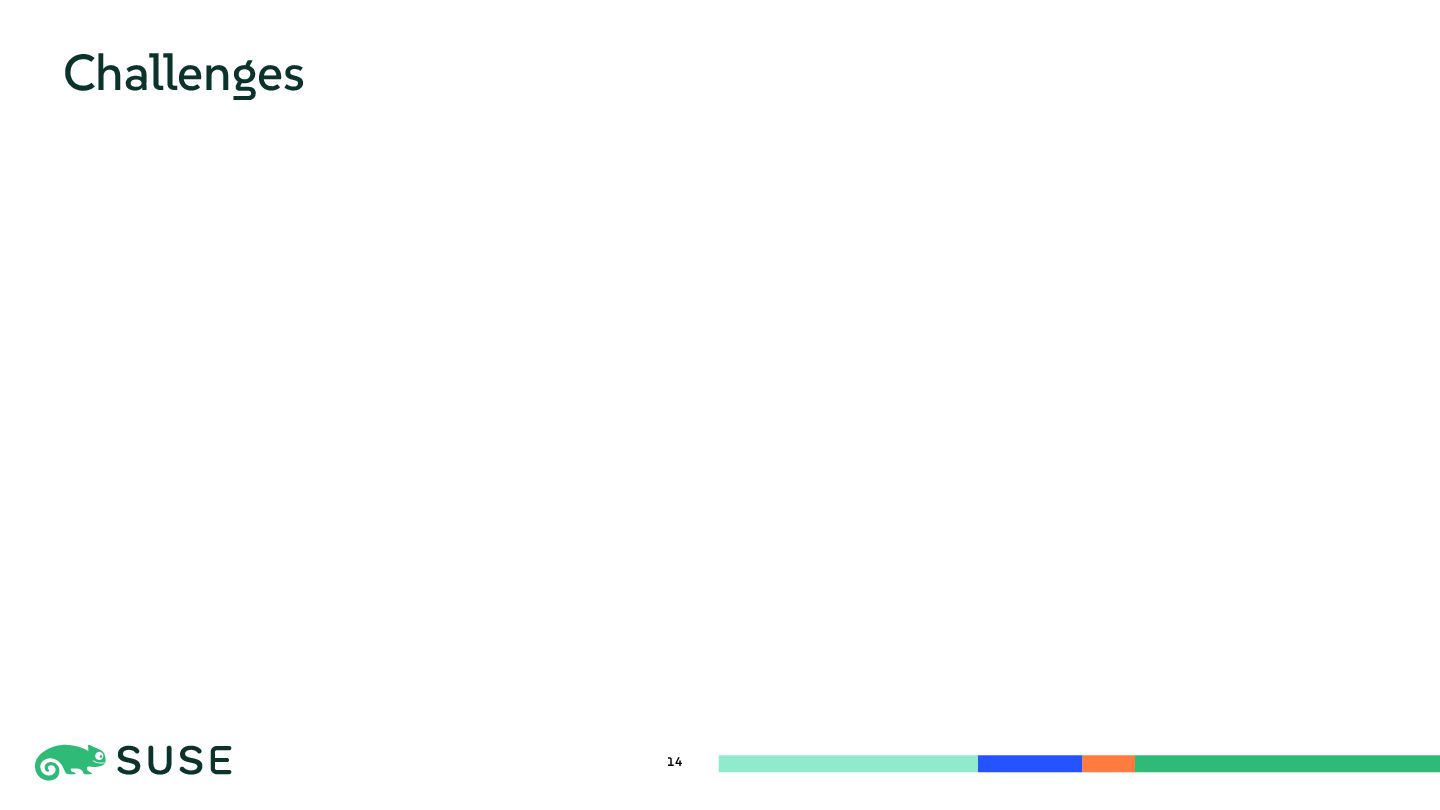

14. 14 Challenges

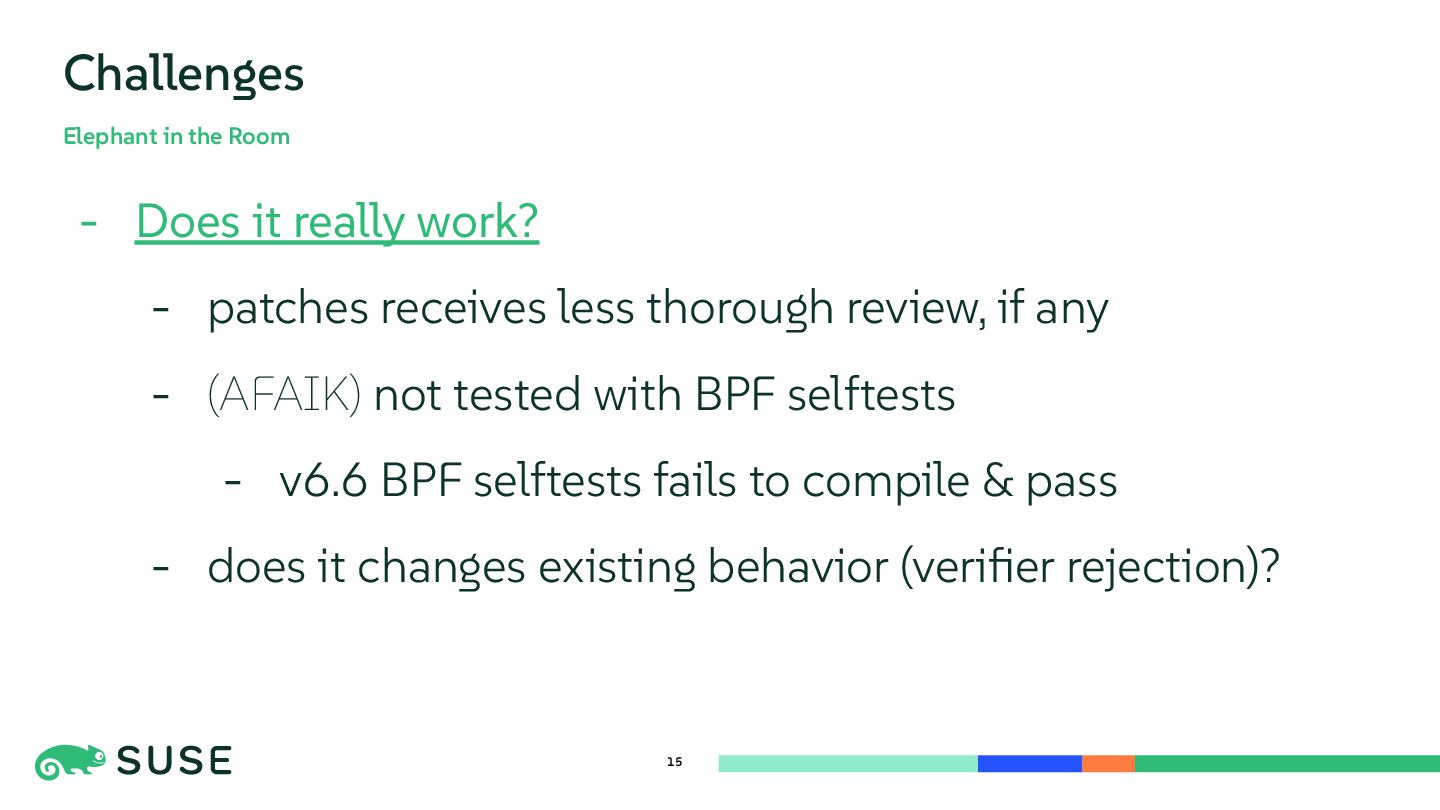

15. - Does it really work? - patches receives less thorough review, if any - (AFAIK) not tested with BPF selftests - v6.6 BPF selftests fails to compile & pass - does it changes existing behavior (verifier rejection)? 15 Challenges Elephant in the Room

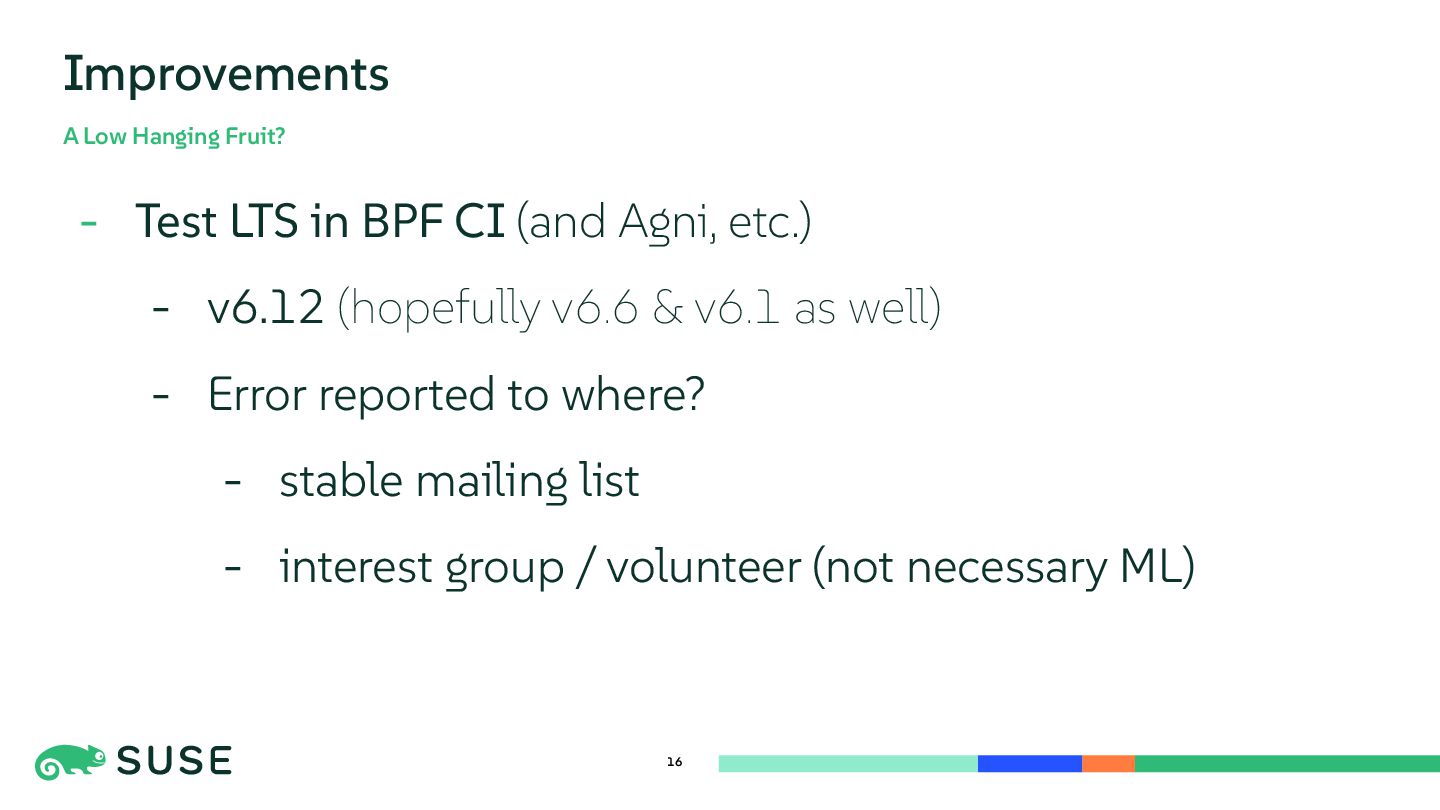

16. - Test LTS in BPF CI (and Agni, etc.) - v6.12 (hopefully v6.6 & v6.1 as well) - Error reported to where? - stable mailing list - interest group / volunteer (not necessary ML) 16 Improvements A Low Hanging Fruit?

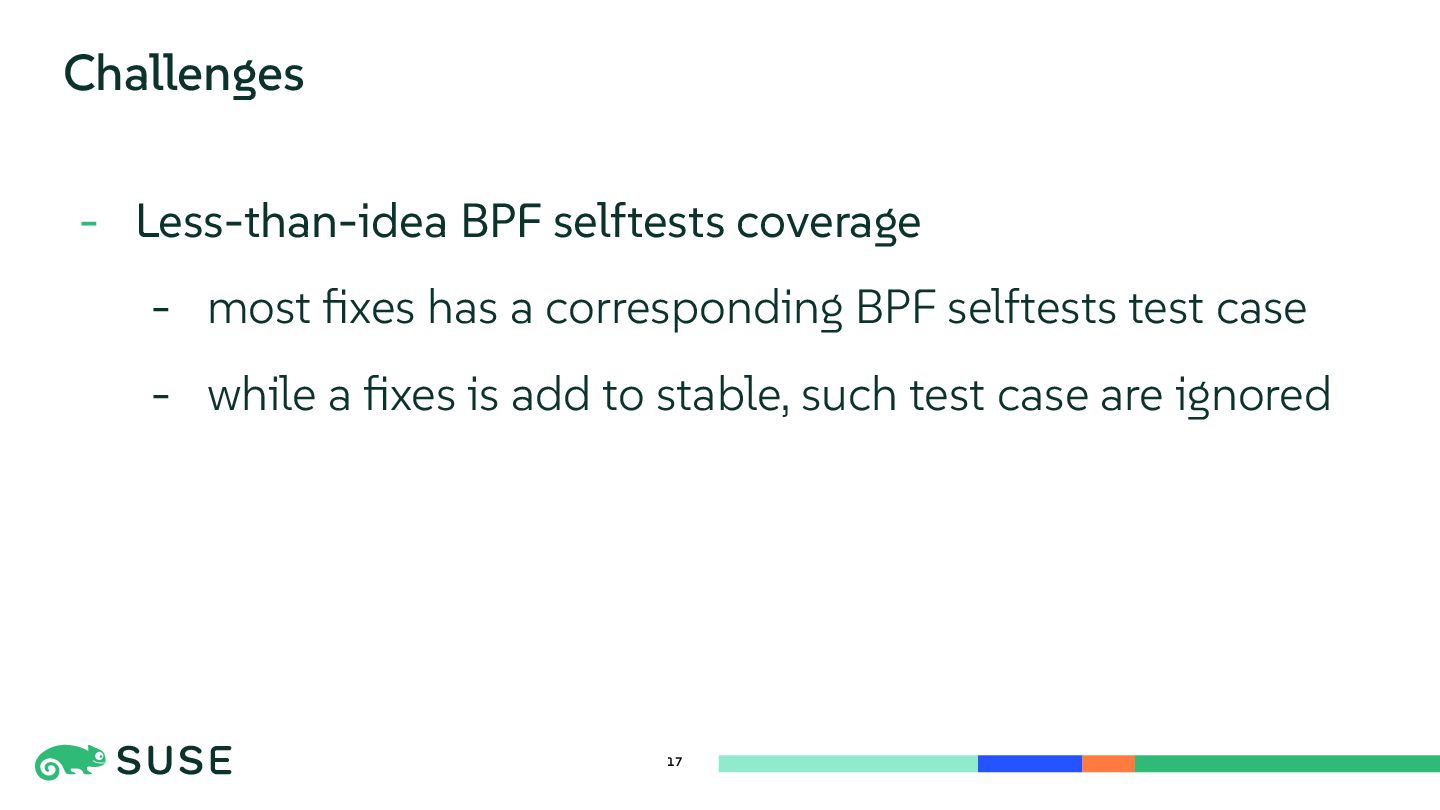

17. - Less-than-idea BPF selftests coverage - most fixes has a corresponding BPF selftests test case - while a fixes is add to stable, such test case are ignored 17 Challenges

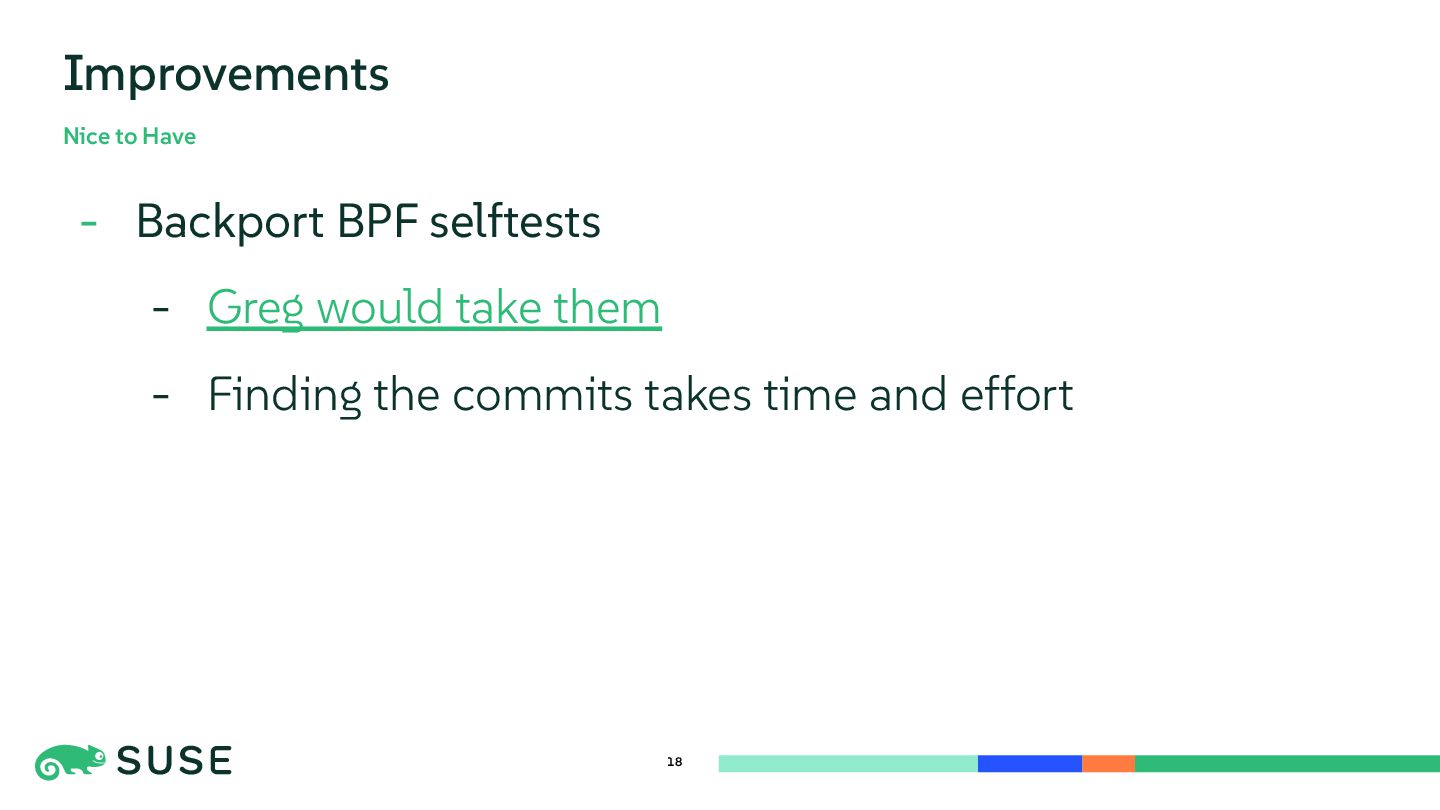

18. - Backport BPF selftests - Greg would take them - Finding the commits takes time and effort 18 Improvements Nice to Have

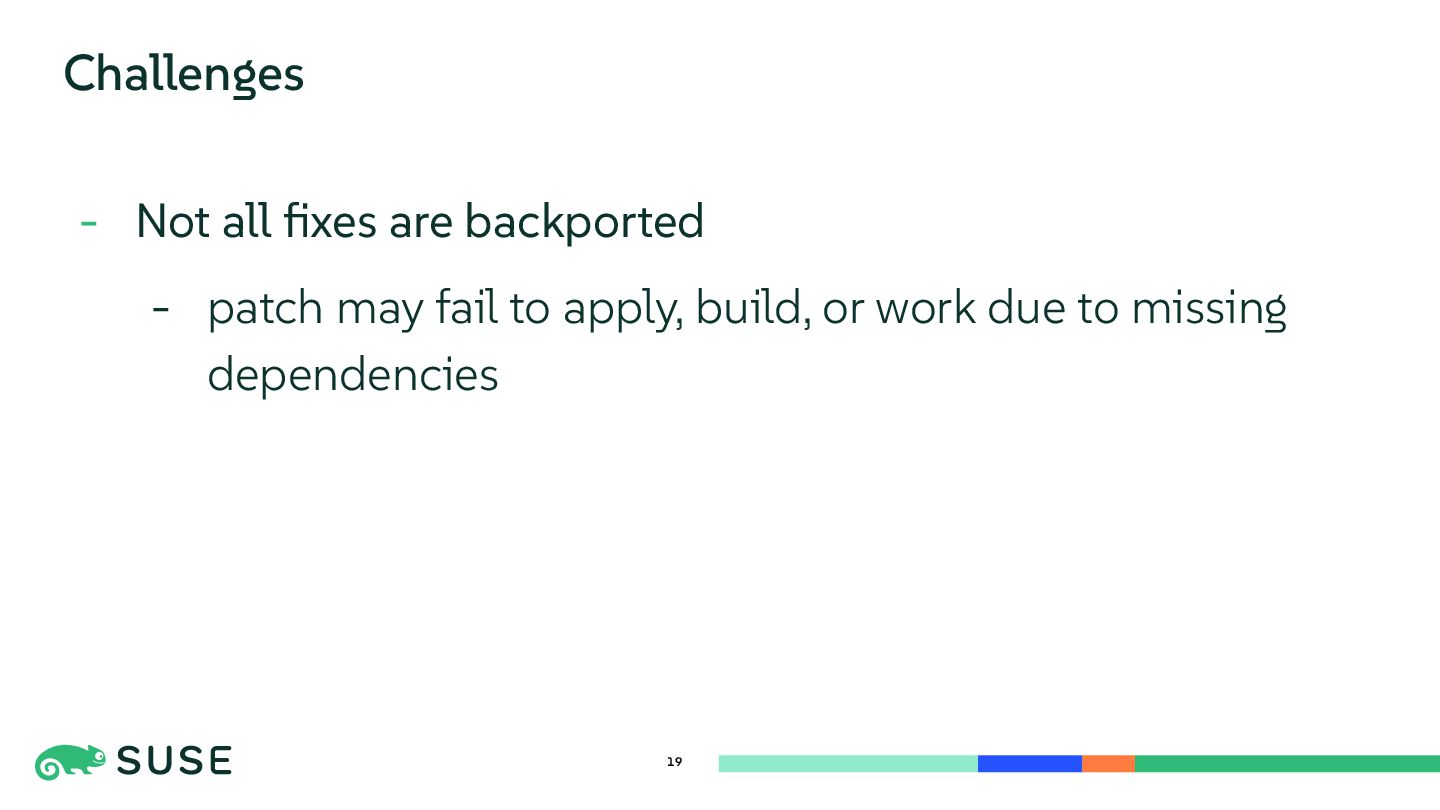

19. - Not all fixes are backported - patch may fail to apply, build, or work due to missing dependencies 19 Challenges

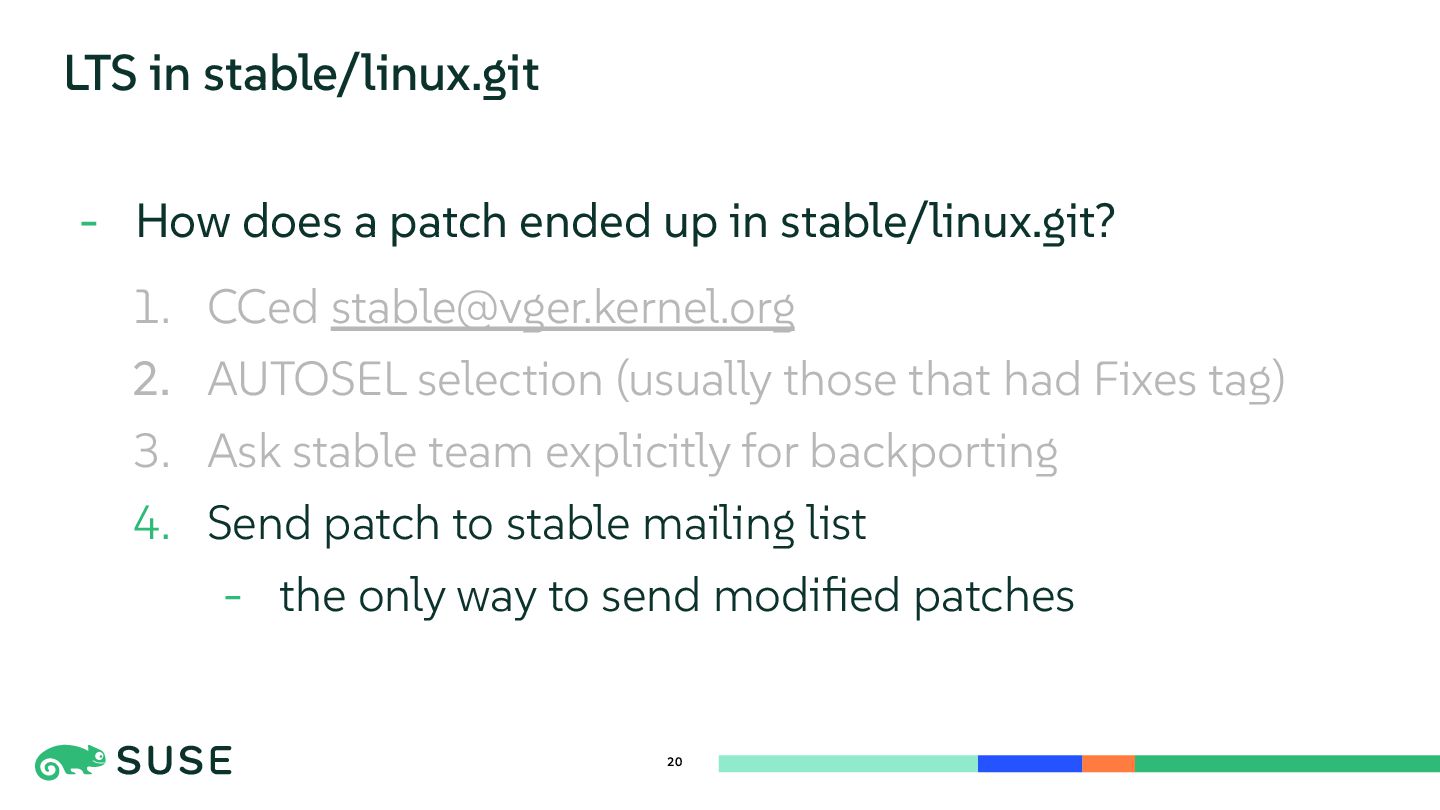

20. - How does a patch ended up in stable/linux.git? 1. CCed stable@vger.kernel.org 2. AUTOSEL selection (usually those that had Fixes tag) 3. Ask stable team explicitly for backporting 4. Send patch to stable mailing list - the only way to send modified patches 20 LTS in stable/linux.git
21. - Not all fixes are backported - patch may fail to apply, build, or work due to missing dependencies 21 Challenges

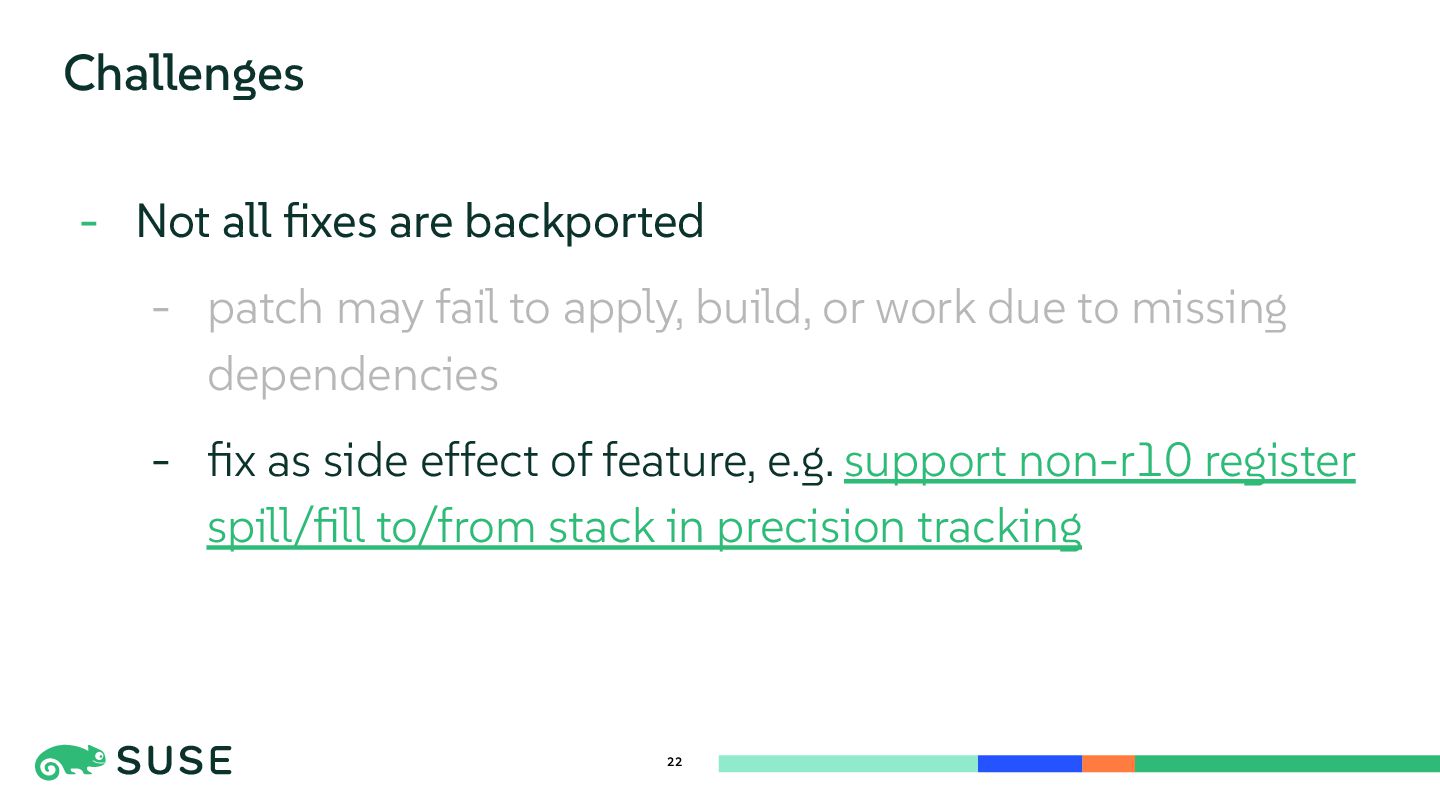

22. - Not all fixes are backported - patch may fail to apply, build, or work due to missing dependencies - fix as side effect of feature, e.g. support non-r10 register spill/fill to/from stack in precision tracking 22 Challenges

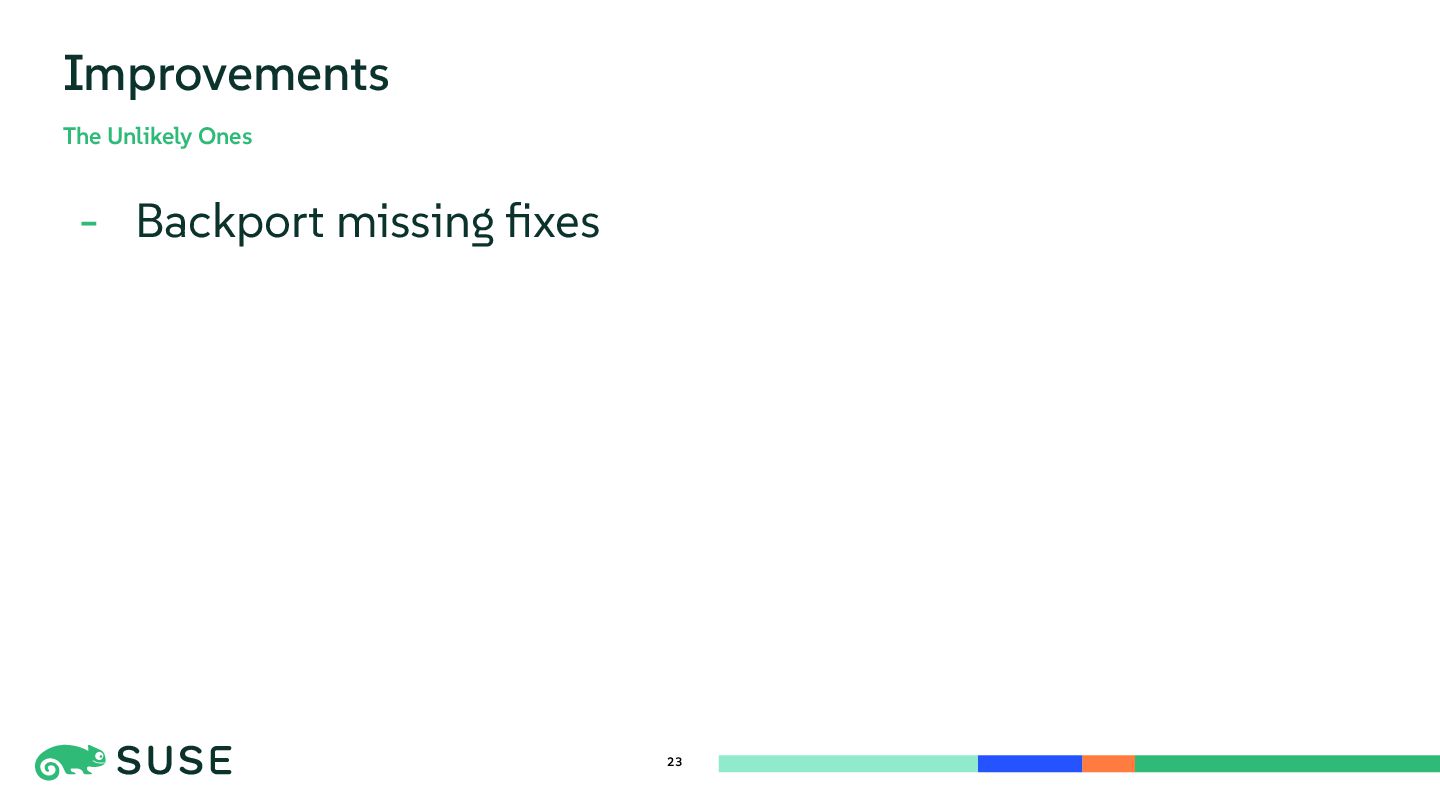

23. - Backport missing fixes 23 Improvements The Unlikely Ones

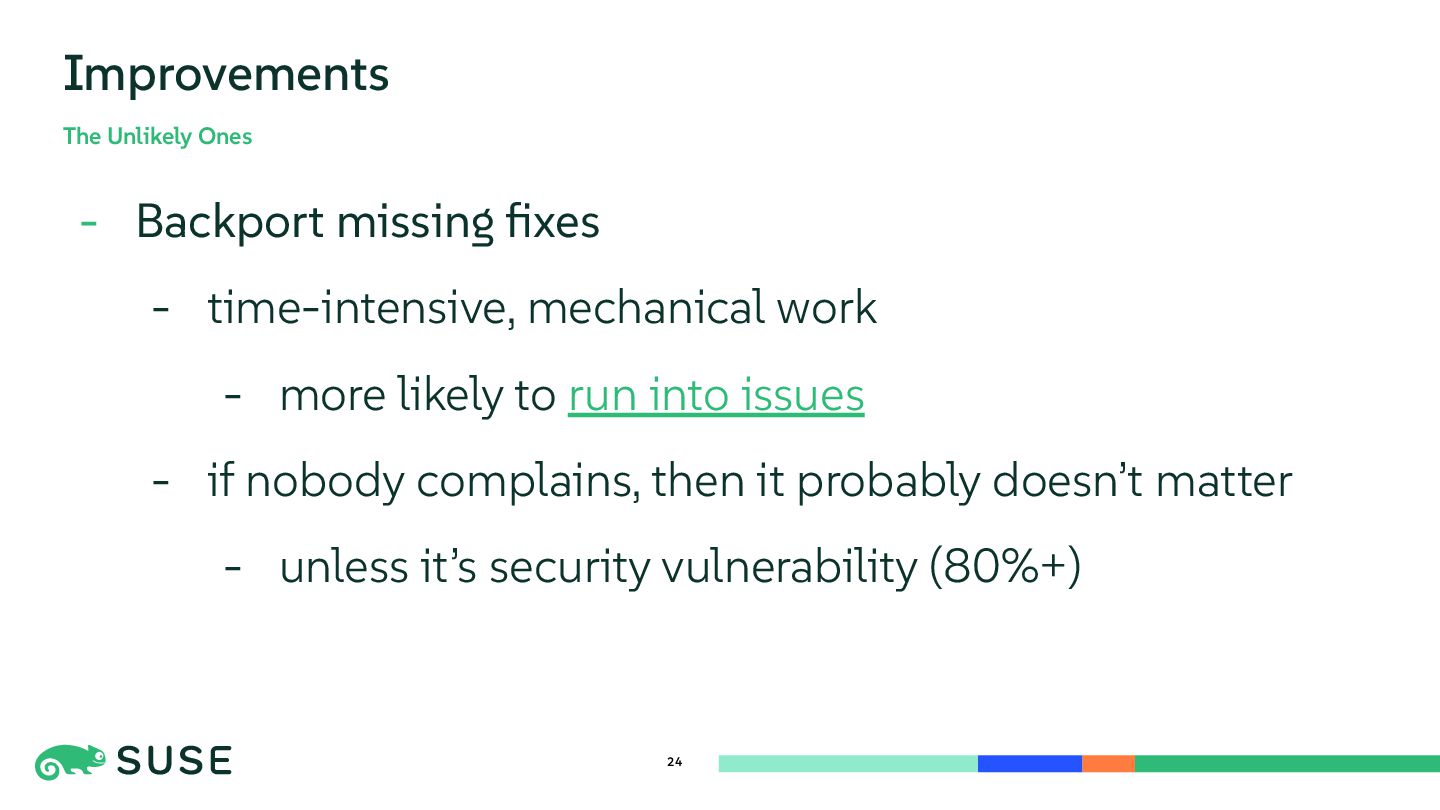

24. - Backport missing fixes - time-intensive, mechanical work - more likely to run into issues - if nobody complains, then it probably doesn’t matter - unless it’s security vulnerability (80%+) 24 Improvements The Unlikely Ones

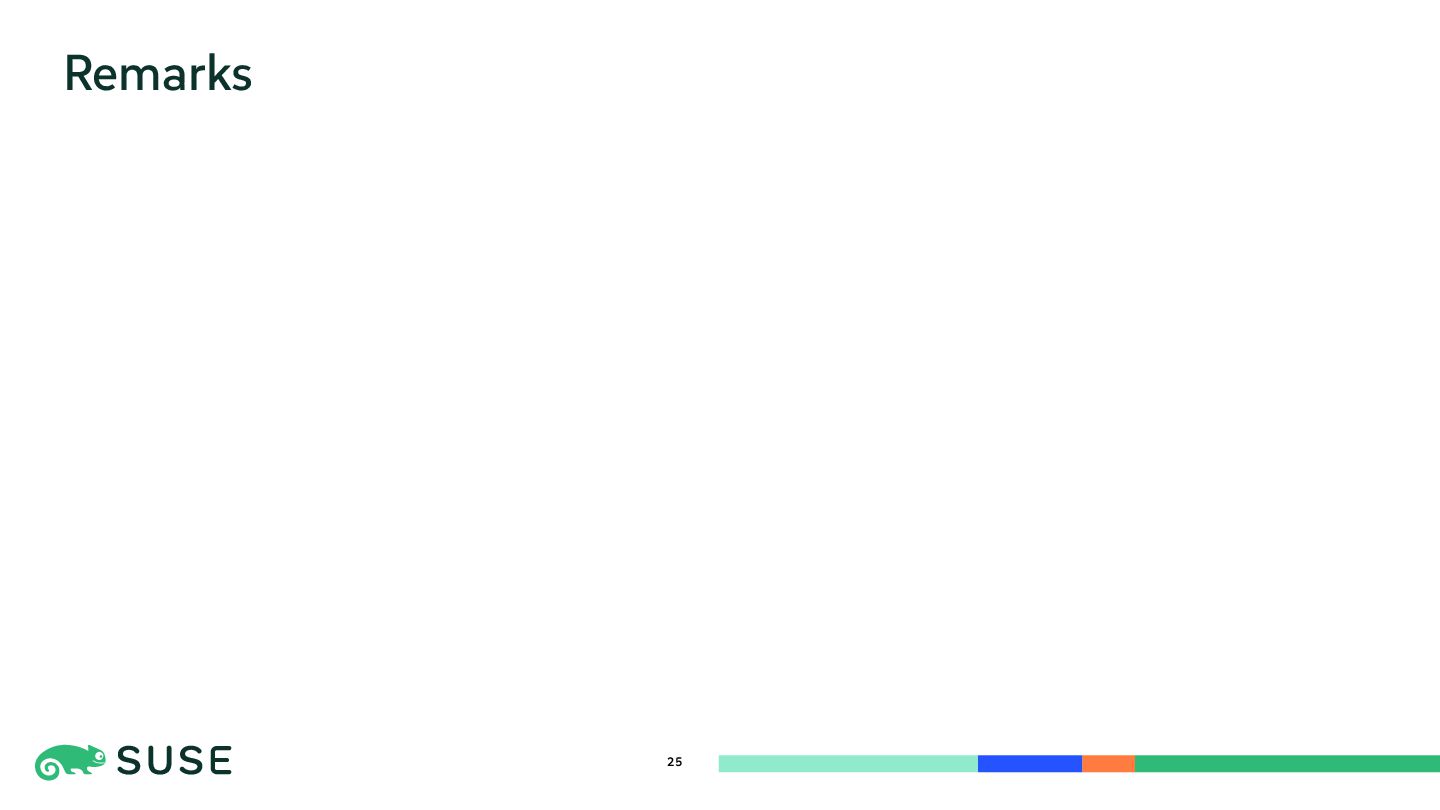

25. 25 Remarks

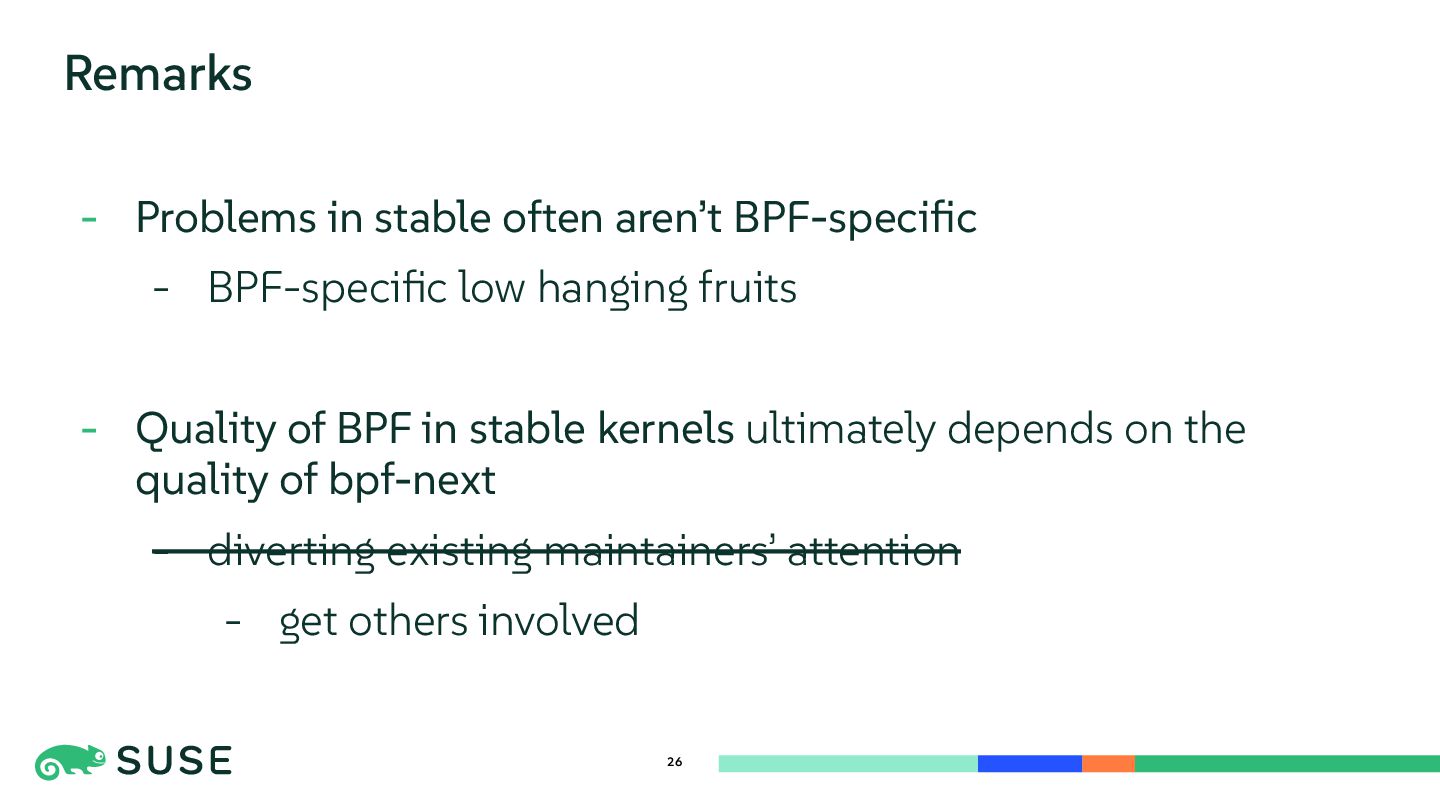

26. - Problems in stable often aren’t BPF-specific - BPF-specific low hanging fruits - Quality of BPF in stable kernels ultimately depends on the quality of bpf-next - diverting existing maintainers’ attention - get others involved 26 Remarks

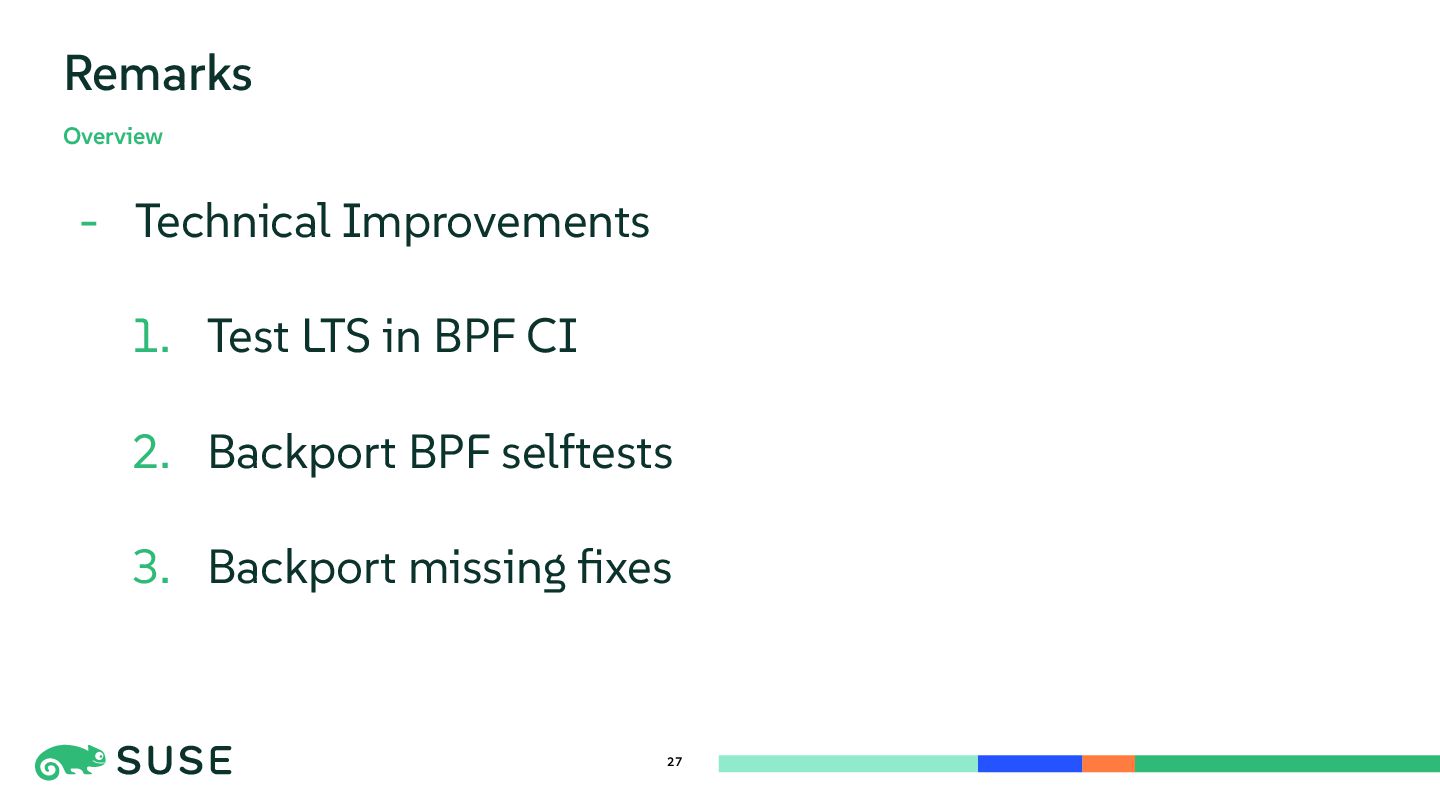

27. - Technical Improvements 1. Test LTS in BPF CI 2. Backport BPF selftests 3. Backport missing fixes 27 Remarks Overview

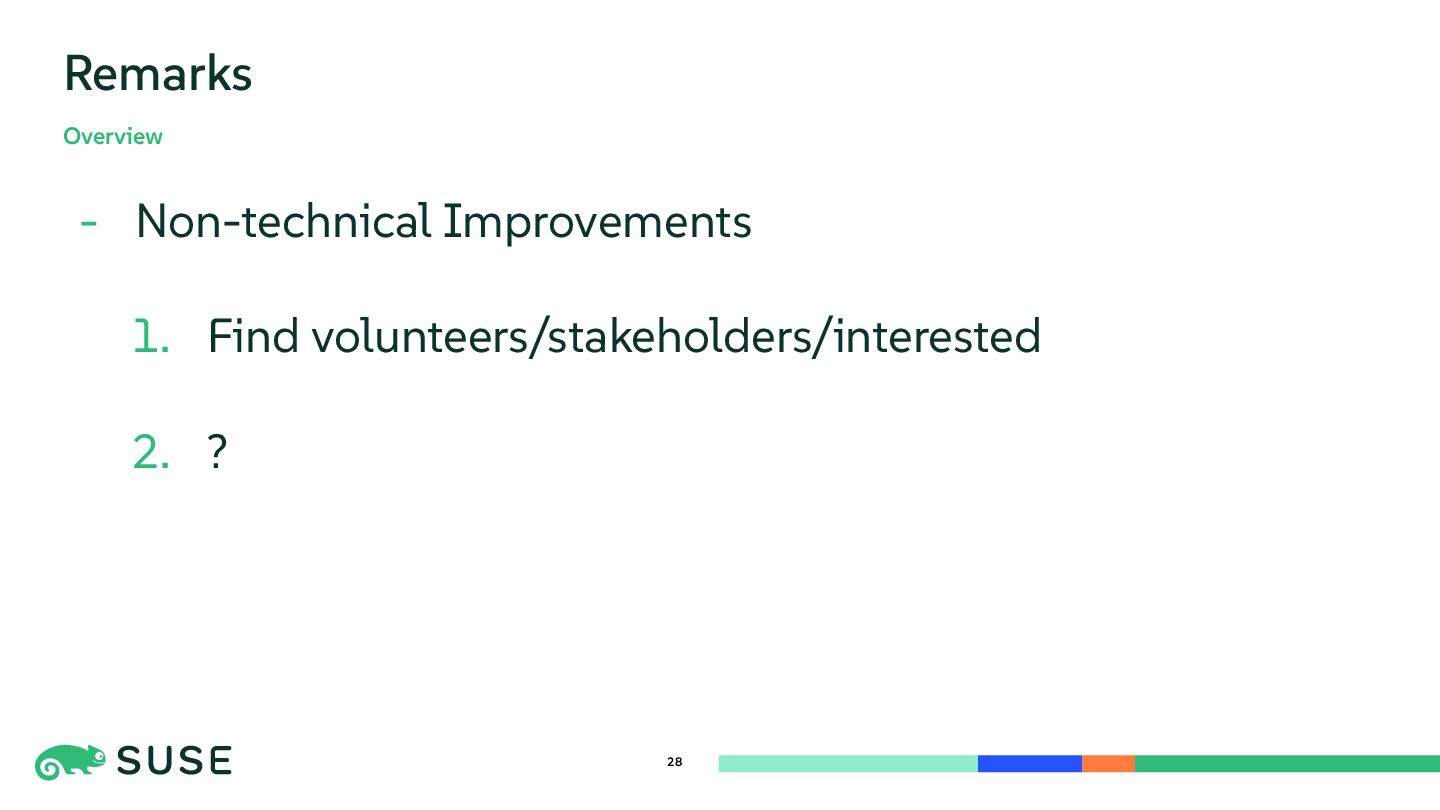

28. - Non-technical Improvements 1. Find volunteers/stakeholders/interested 2. ? 28 Remarks Overview
29. 29 ?

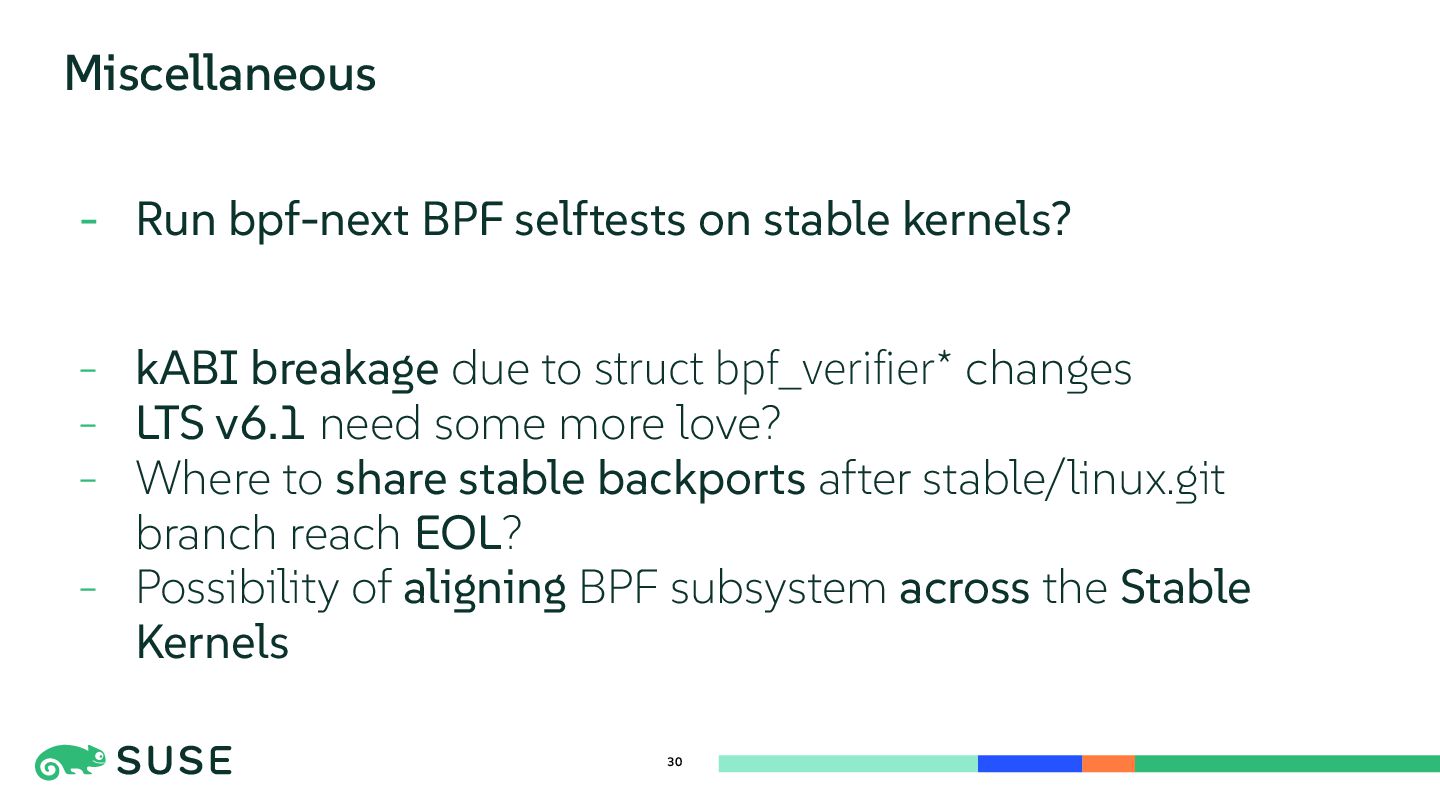

30. - Run bpf-next BPF selftests on stable kernels? - kABI breakage due to struct bpf_verifier* changes - LTS v6.1 need some more love? - Where to share stable backports after stable/linux.git branch reach EOL? - Possibility of aligning BPF subsystem across the Stable Kernels 30 Miscellaneous
