  1. 3 © 2016 Cisco and/or its affiliates. All rights reserved.

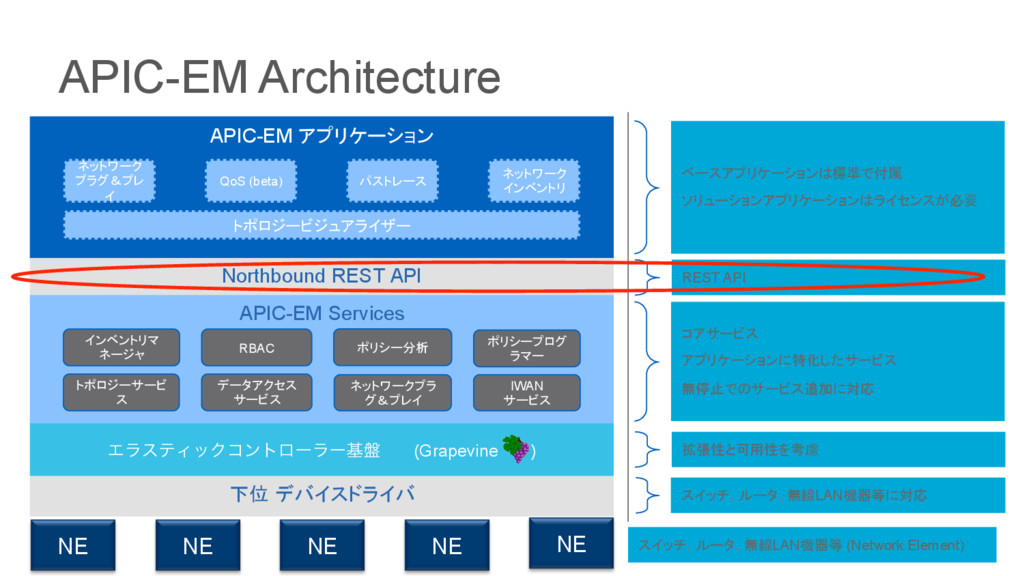

    Cisco Public Northbound REST API APIC-EM Architecture APIC-EM アプリケーション ΤϥεςΟοΫίϯτϩʔϥʔج൫ (Grapevine ) ネットワーク プラグ&プレ イ QoS (beta) パストレース ネットワーク インベントリ トポロジービジュアライザー APIC-EM Services インベントリマ ネージャ RBAC ポリシー分析 ポリシープログ ラマー ネットワークプラ グ&プレイ データアクセス サービス トポロジーサービ ス IWAN サービス ベースアプリケーションは標準で付属 ソリューションアプリケーションはライセンスが必要 REST API コアサービス アプリケーションに特化したサービス 無停止でのサービス追加に対応 拡張性と可用性を考慮 下位 デバイスドライバ スイッチ、ルータ、無線LAN機器等に対応 NE NE NE NE NE スイッチ、ルータ、無線LAN機器等 (Network Element)
  2. 4 © 2016 Cisco and/or its affiliates. All rights reserved.

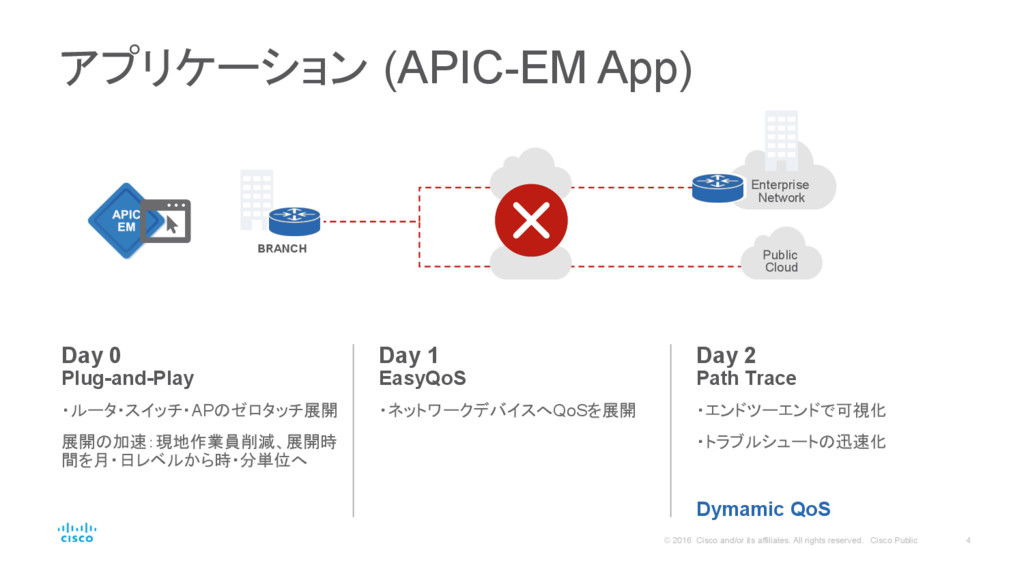

    Cisco Public アプリケーション (APIC-EM App) Public Cloud Enterprise Network Day 0 Plug-and-Play ・ルータ・スイッチ・APのゼロタッチ展開 展開の加速:現地作業員削減、展開時 間を月・日レベルから時・分単位へ Day 1 EasyQoS ・ネットワークデバイスへQoSを展開 Day 2 Path Trace ・エンドツーエンドで可視化 ・トラブルシュートの迅速化 Dymamic QoS BRANCH
  3. 5 © 2016 Cisco and/or its affiliates. All rights reserved.

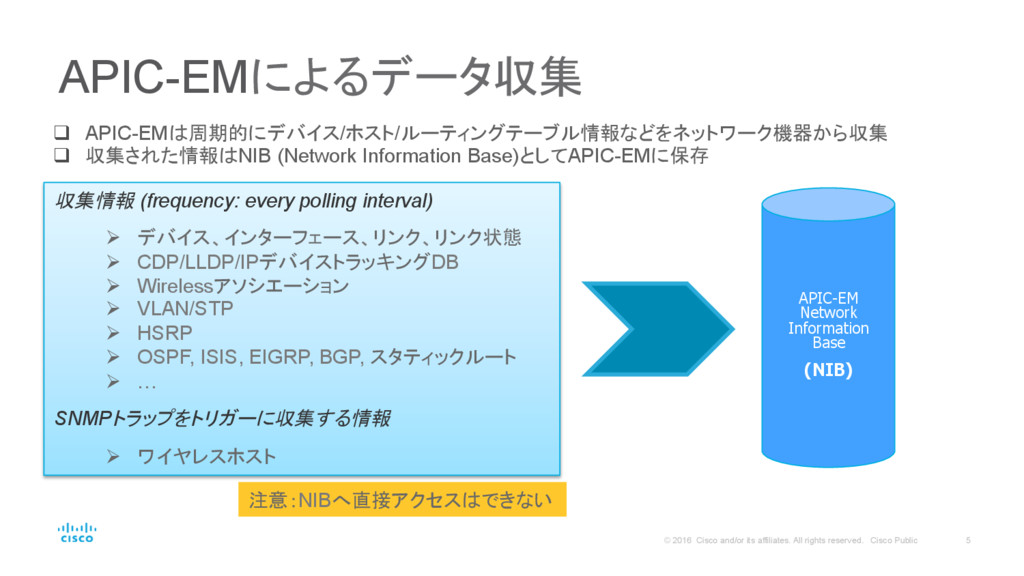

    Cisco Public APIC-EMによるデータ収集 収集情報 (frequency: every polling interval) Ø  デバイス、インターフェース、リンク、リンク状態 Ø  CDP/LLDP/IPデバイストラッキングDB Ø  Wirelessアソシエーション Ø  VLAN/STP Ø  HSRP Ø  OSPF, ISIS, EIGRP, BGP, スタティックルート Ø  … SNMPトラップをトリガーに収集する情報 Ø  ワイヤレスホスト APIC-EM Network Information Base (NIB) q  APIC-EMは周期的にデバイス/ホスト/ルーティングテーブル情報などをネットワーク機器から収集 q  収集された情報はNIB (Network Information Base)としてAPIC-EMに保存 注意:NIBへ直接アクセスはできない
  4. 6 © 2016 Cisco and/or its affiliates. All rights reserved.

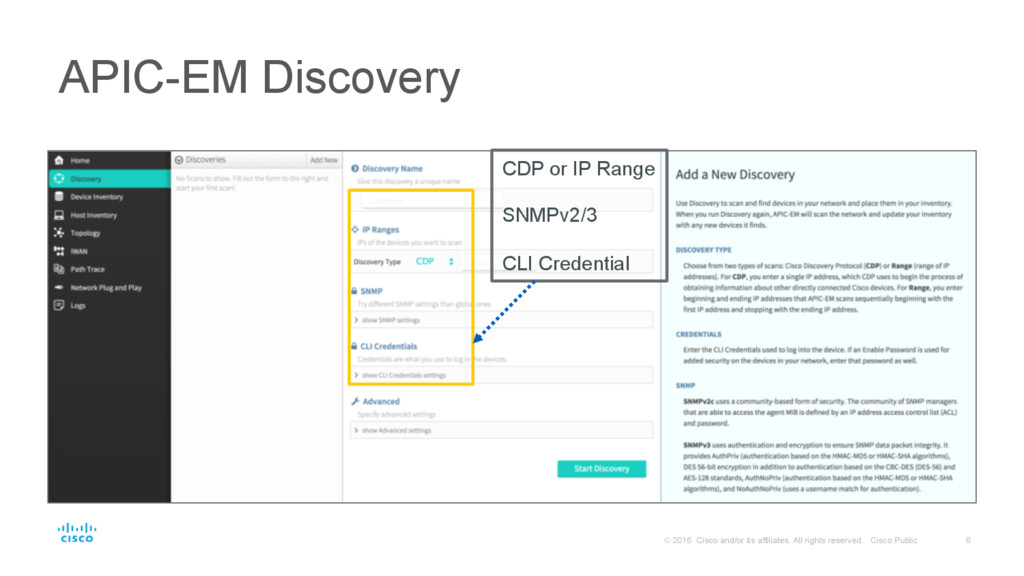

    Cisco Public APIC-EM Discovery CDP or IP Range SNMPv2/3 CLI Credential
  5. 7 © 2016 Cisco and/or its affiliates. All rights reserved.

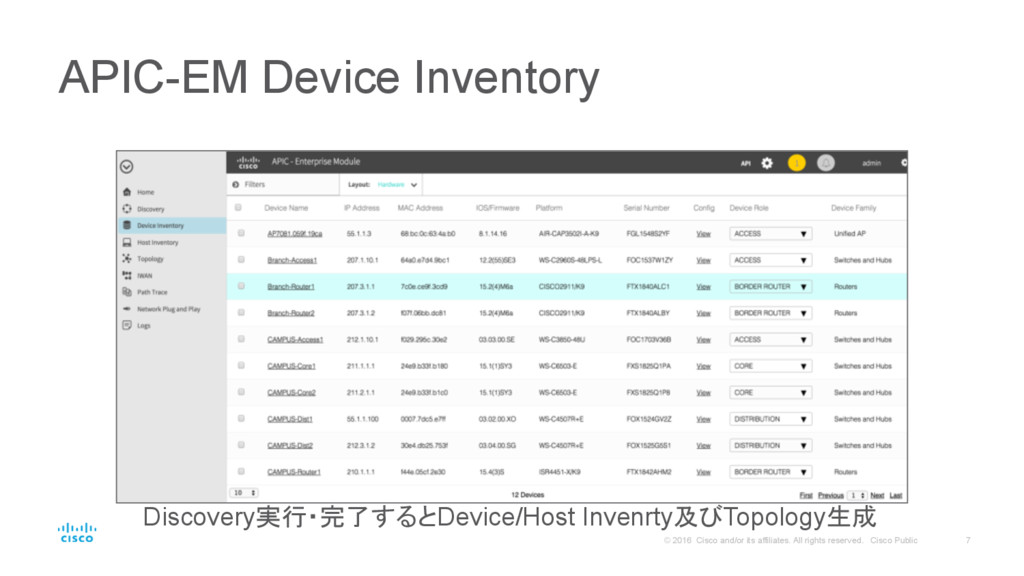

    Cisco Public APIC-EM Device Inventory Discovery実行・完了するとDevice/Host Invenrty及びTopology生成
  6. 8 © 2016 Cisco and/or its affiliates. All rights reserved.

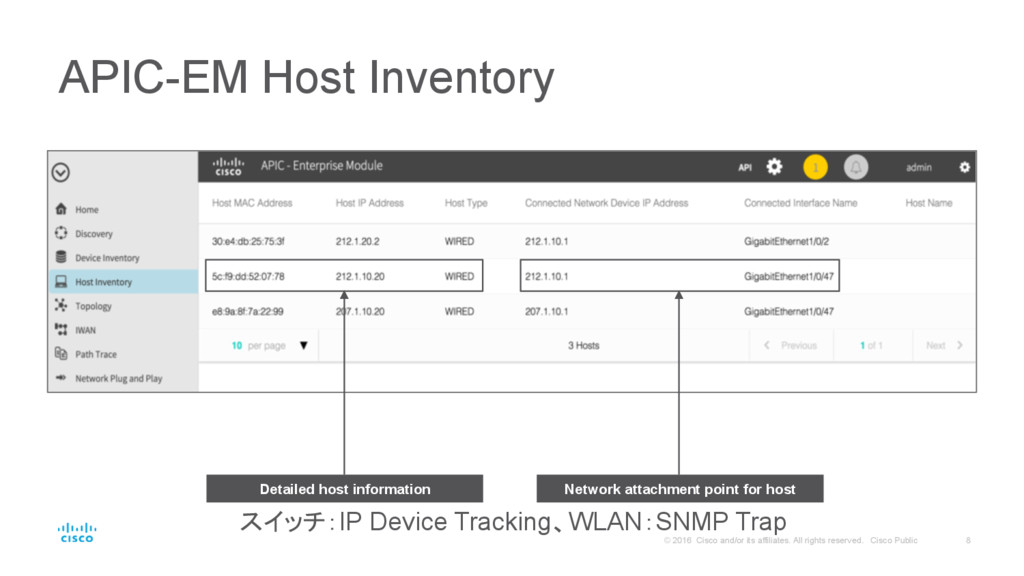

    Cisco Public APIC-EM Host Inventory Detailed host information Network attachment point for host スイッチ:IP Device Tracking、WLAN:SNMP Trap
  7. 9 © 2016 Cisco and/or its affiliates. All rights reserved.

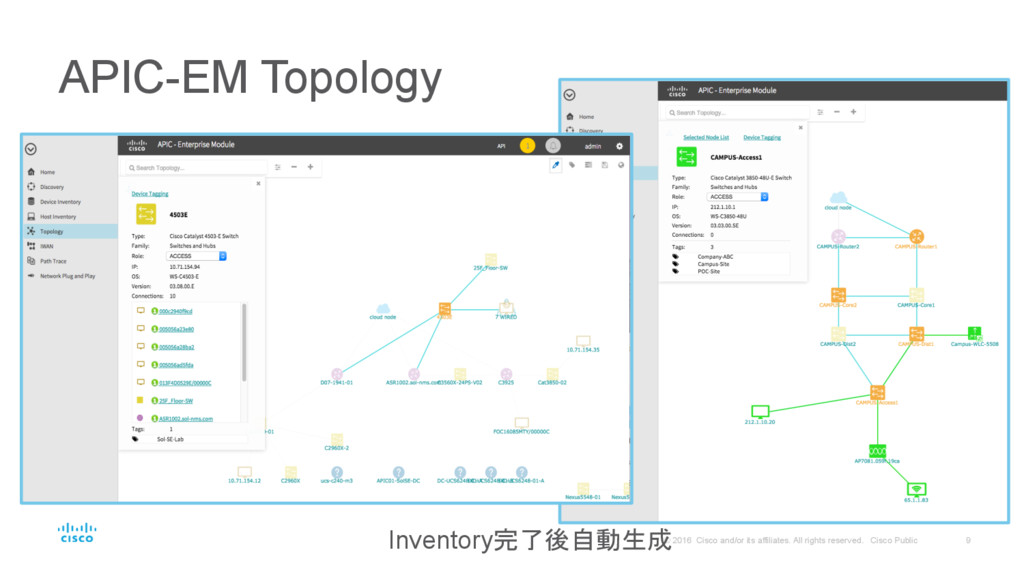

    Cisco Public APIC-EM Topology Inventory完了後自動生成
  8. 10 © 2016 Cisco and/or its affiliates. All rights reserved.

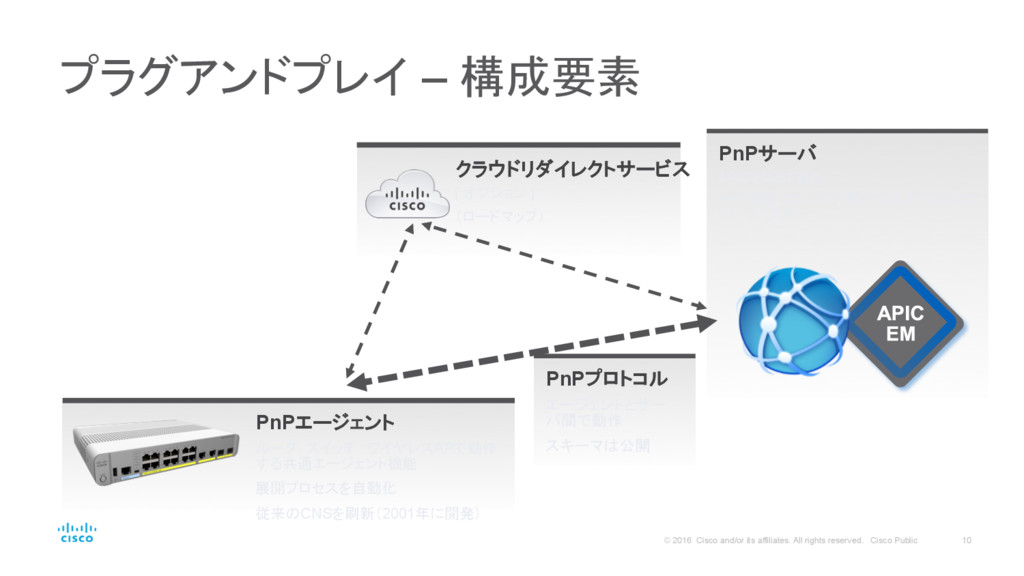

    Cisco Public プラグアンドプレイ – 構成要素 PnPエージェント ルータ、スイッチ、ワイヤレスAPで動作 する共通エージェント機能 展開プロセスを自動化 従来のCNSを刷新(2001年に開発) PnPサーバ APIC-EM上で動作 サイト管理、コンフィグ、デバイスイメージ(IOSな ど)、ワークフロー PnPプロトコル エージェントとサー バ間で動作 スキーマは公開 クラウドリダイレクトサービス [ オプション ] (ロードマップ)
  9. 11 © 2016 Cisco and/or its affiliates. All rights reserved.

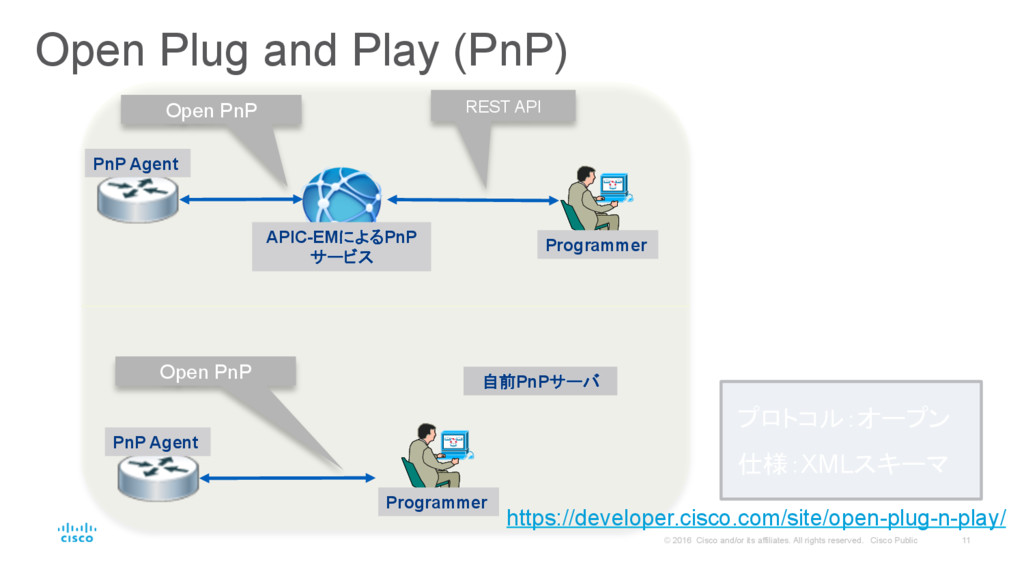

    Cisco Public プロトコル:オープン 仕様:XMLスキーマ Open Plug and Play (PnP) APIC-EMによるPnP サービス PnP Agent Programmer Open PnP REST API PnP Agent Programmer Open PnP 自前PnPサーバ https://developer.cisco.com/site/open-plug-n-play/
  10. 12 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Path Trace App Required Information ソースIP / デスティネーションIP アドレス (ホスト / L3インターフェース) Optional Information ソースポート / デスティネーションポート 番号 (TCP / UDP)
  11. 13 © 2016 Cisco and/or its affiliates. All rights reserved.

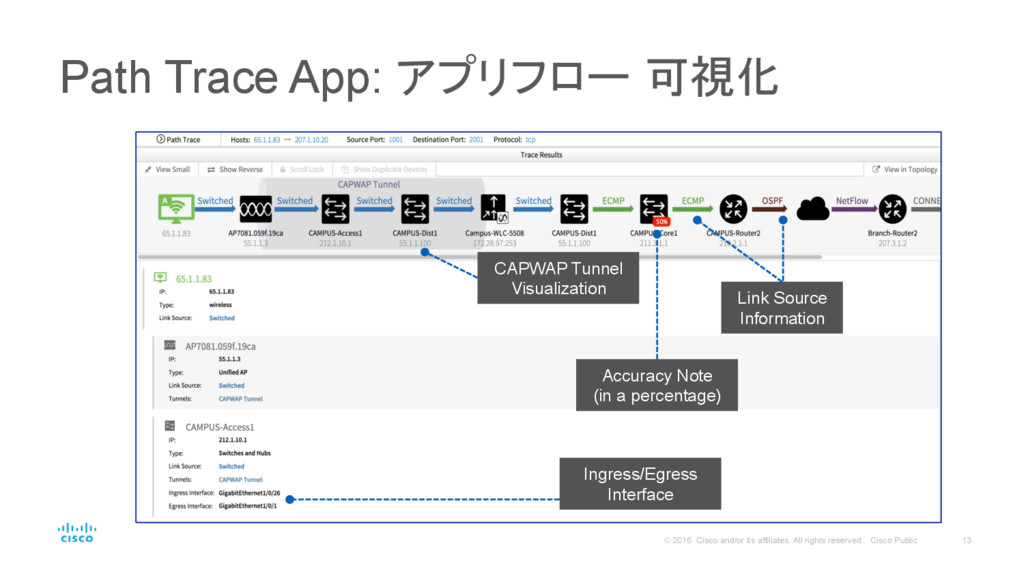

    Cisco Public Path Trace App: アプリフロー 可視化 CAPWAP Tunnel Visualization Accuracy Note (in a percentage) Link Source Information Ingress/Egress Interface
  12. 14 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Path Trace App: 該当フローのトポロジ確認
  13. 15 © 2016 Cisco and/or its affiliates. All rights reserved.

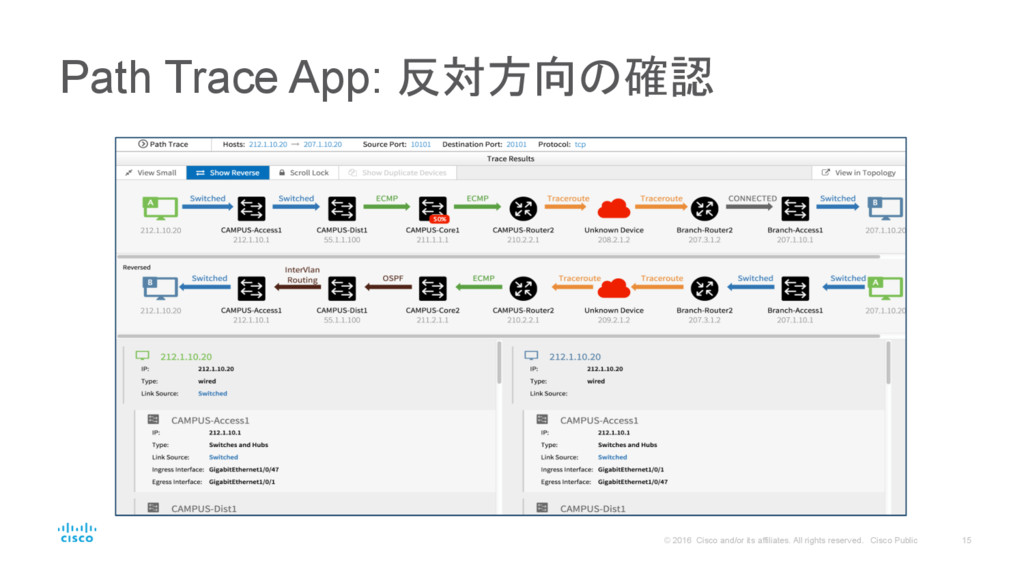

    Cisco Public Path Trace App: 反対方向の確認
  14. 16 © 2016 Cisco and/or its affiliates. All rights reserved.

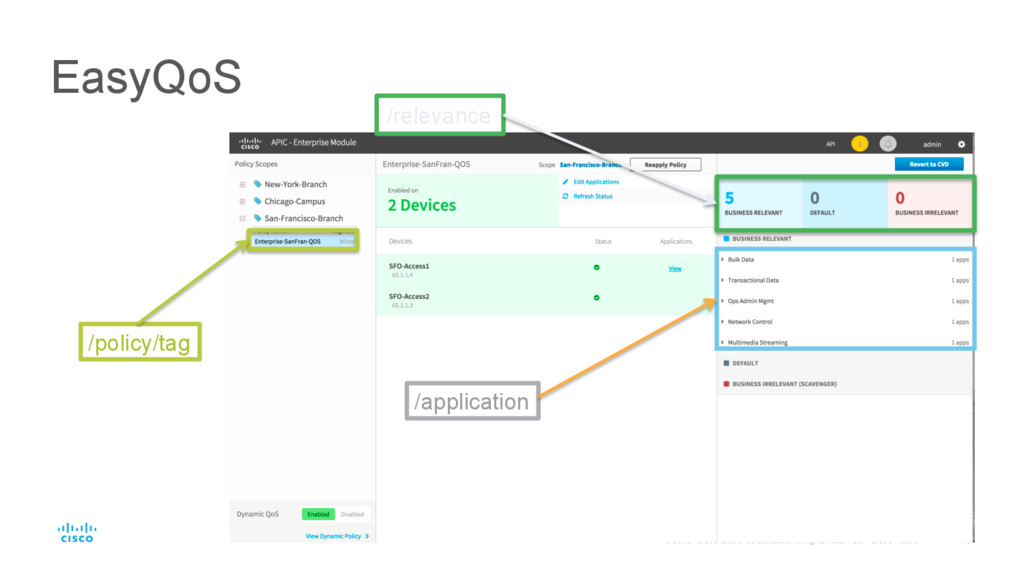

    Cisco Public EasyQoS 16 /policy/tag /relevance /application
  15. 17 © 2016 Cisco and/or its affiliates. All rights reserved.

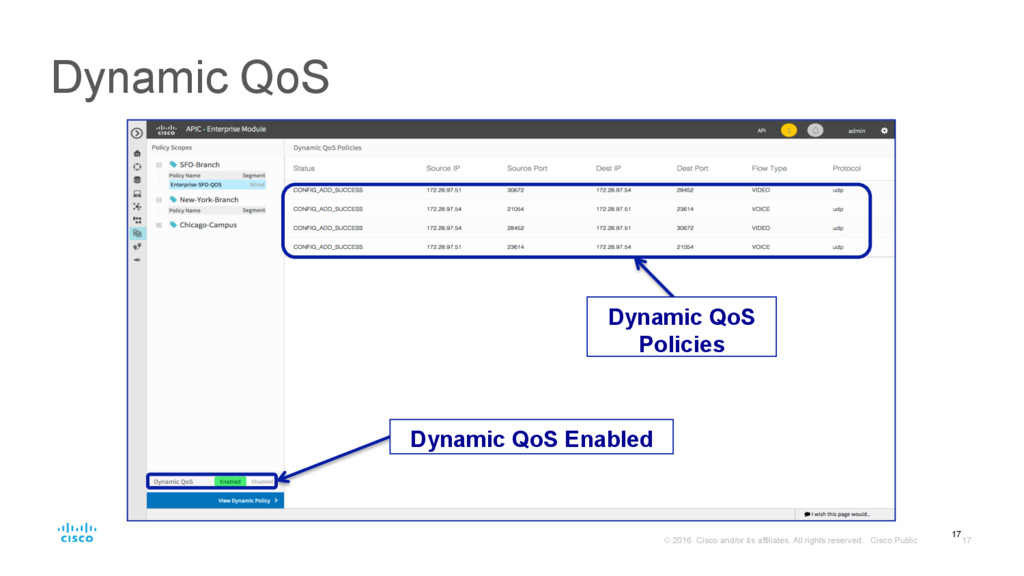

    Cisco Public Dynamic QoS 17 Dynamic QoS Enabled Dynamic QoS Policies
  16. 18 © 2016 Cisco and/or its affiliates. All rights reserved.

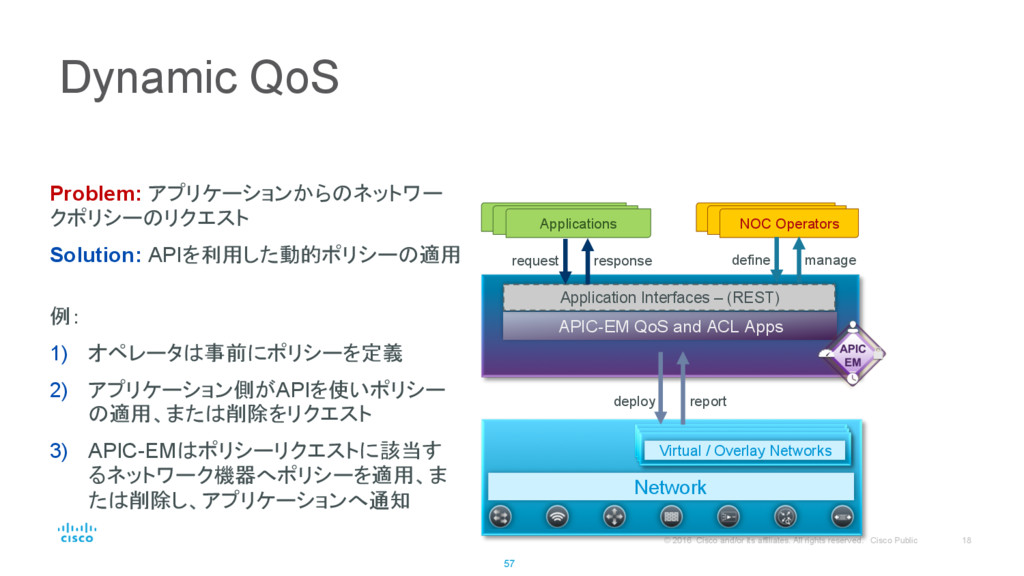

    Cisco Public Dynamic QoS Problem: アプリケーションからのネットワー クポリシーのリクエスト Solution: APIを利用した動的ポリシーの適用 例: 1)  オペレータは事前にポリシーを定義 2)  アプリケーション側がAPIを使いポリシー の適用、または削除をリクエスト 3)  APIC-EMはポリシーリクエストに該当す るネットワーク機器へポリシーを適用、ま たは削除し、アプリケーションへ通知 Virtual / Overlay Networks Network APIC-EM QoS and ACL Apps Applications Application Interfaces – (REST) report deploy NOC Operators response request manage define 57
  17. 19 © 2016 Cisco and/or its affiliates. All rights reserved.

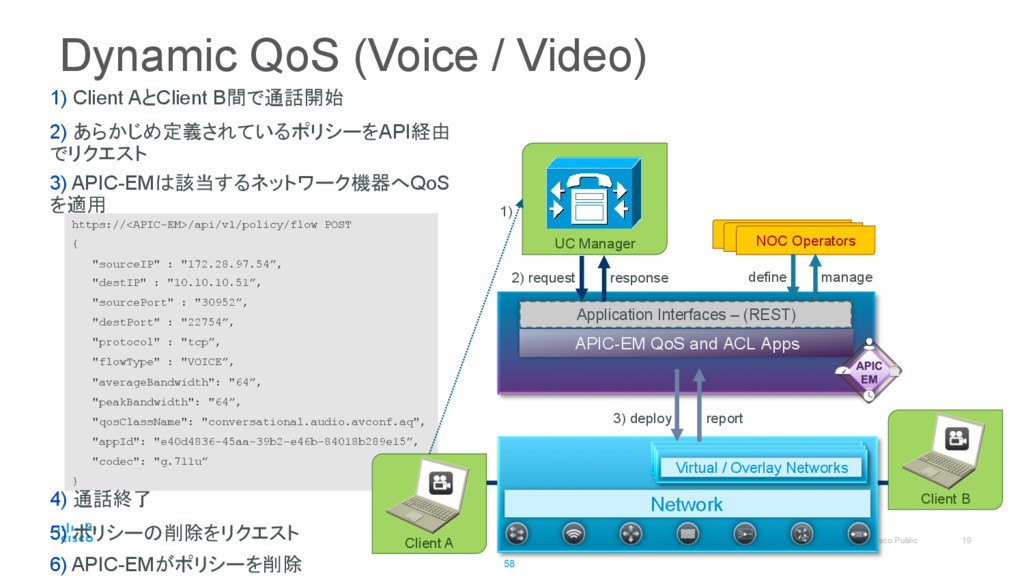

    Cisco Public https://<APIC-EM>/api/v1/policy/flow POST { "sourceIP" : "172.28.97.54”, "destIP" : "10.10.10.51”, "sourcePort" : "30952”, "destPort" : "22754”, "protocol" : "tcp”, "flowType" : "VOICE”, "averageBandwidth": "64”, "peakBandwidth": "64”, "qosClassName": "conversational.audio.avconf.aq", "appId": "e40d4836-45aa-39b2-e46b-84018b289e15”, "codec": "g.711u” } Dynamic QoS (Voice / Video) Virtual / Overlay Networks Network APIC-EM QoS and ACL Apps UC Manager Application Interfaces – (REST) report 3) deploy NOC Operators response 2) request manage define Client B Client A 1) Client AとClient B間で通話開始 1) 2) あらかじめ定義されているポリシーをAPI経由 でリクエスト 3) APIC-EMは該当するネットワーク機器へQoS を適用 4) 通話終了 5) ポリシーの削除をリクエスト 6) APIC-EMがポリシーを削除 58
  18. 20 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public APIC-EM REST API §  APIC-EMのAPIをたたくためにはセッショントークンが必要 −  トークンを作成するためにticket APIを使う −  ticket API以外はX-Auth-Tokenヘッダーにservice ticketを追加 §  APIC-EMのREST APIはJSONフォーマット −  content-typeヘッダーにapplication/jsonを追加 −  パースが容易 §  APIC-EMのAPIを試す方法 −  APIC-EM GUI (Swagger) −  Chrome POSTMAN −  プログラミング http://gblogs.cisco.com/jp/2015/12/getting-started-with-apic-em-rest-1/ http://gblogs.cisco.com/jp/2016/03/getting-started-with-apic-em-rest-2/ Step 1: service ticket をリクエスト Step 2: service ticket 取得 Step 3: X-Auth-Token ヘッダーに service ticket を追加
  19. 21 © 2016 Cisco and/or its affiliates. All rights reserved.

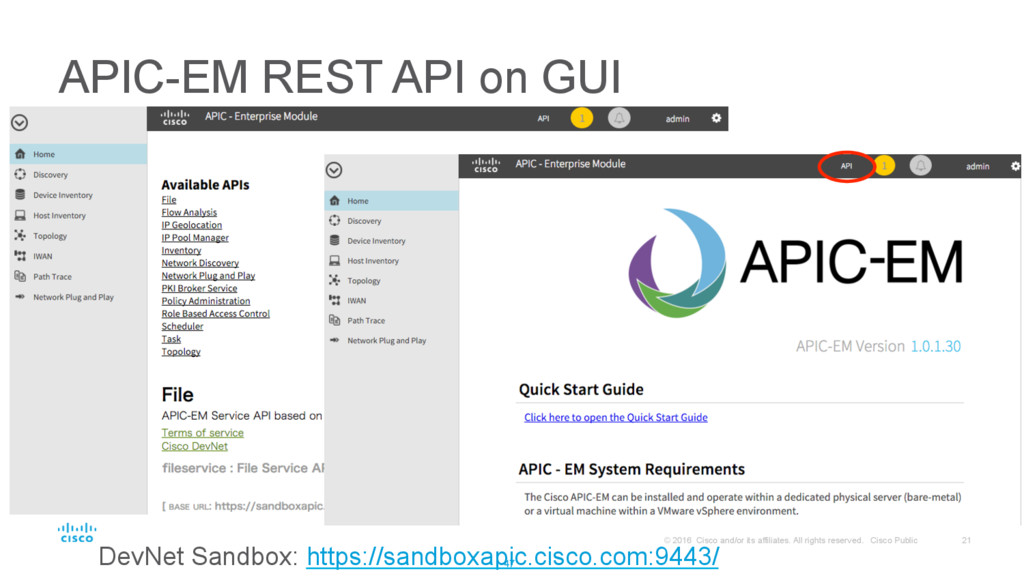

    Cisco Public APIC-EM REST API on GUI 47 DevNet Sandbox: https://sandboxapic.cisco.com:9443/
  20. 22 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public APIC-EM Northbound REST API 47
  21. 23 © 2016 Cisco and/or its affiliates. All rights reserved.

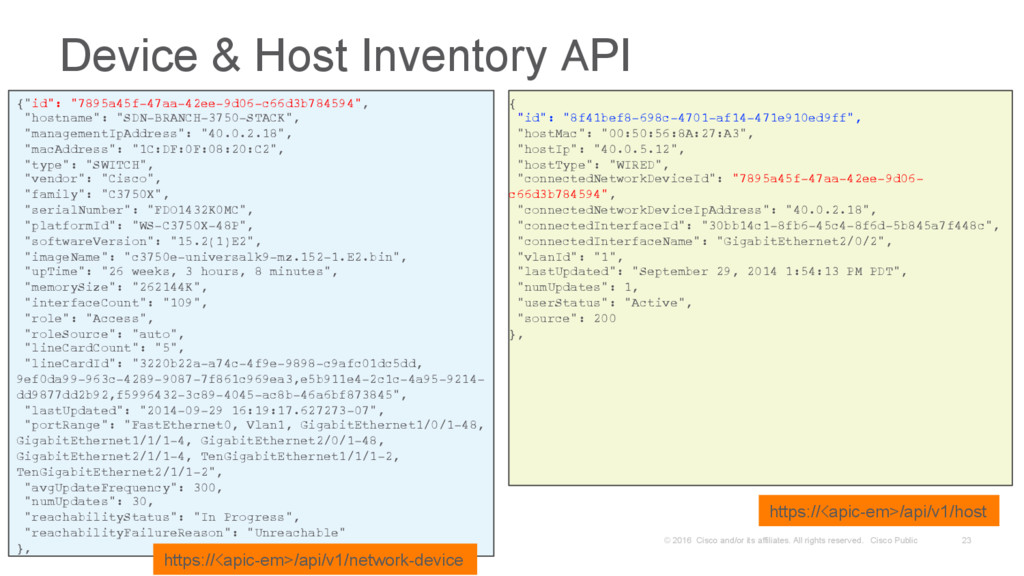

    Cisco Public Device & Host Inventory API {"id": "7895a45f-47aa-42ee-9d06-c66d3b784594", "hostname": "SDN-BRANCH-3750-STACK", "managementIpAddress": "40.0.2.18", "macAddress": "1C:DF:0F:08:20:C2", "type": "SWITCH", "vendor": "Cisco", "family": "C3750X", "serialNumber": "FDO1432K0MC", "platformId": "WS-C3750X-48P", "softwareVersion": "15.2(1)E2", "imageName": "c3750e-universalk9-mz.152-1.E2.bin", "upTime": "26 weeks, 3 hours, 8 minutes", "memorySize": "262144K", "interfaceCount": "109", "role": "Access", "roleSource": "auto", "lineCardCount": "5", "lineCardId": "3220b22a-a74c-4f9e-9898-c9afc01dc5dd, 9ef0da99-963c-4289-9087-7f861c969ea3,e5b911e4-2c1c-4a95-9214- dd9877dd2b92,f5996432-3c89-4045-ac8b-46a6bf873845", "lastUpdated": "2014-09-29 16:19:17.627273-07", "portRange": "FastEthernet0, Vlan1, GigabitEthernet1/0/1-48, GigabitEthernet1/1/1-4, GigabitEthernet2/0/1-48, GigabitEthernet2/1/1-4, TenGigabitEthernet1/1/1-2, TenGigabitEthernet2/1/1-2", "avgUpdateFrequency": 300, "numUpdates": 30, "reachabilityStatus": "In Progress", "reachabilityFailureReason": "Unreachable" }, { "id": "8f41bef8-698c-4701-af14-471e910ed9ff", "hostMac": "00:50:56:8A:27:A3", "hostIp": "40.0.5.12", "hostType": "WIRED", "connectedNetworkDeviceId": "7895a45f-47aa-42ee-9d06- c66d3b784594", "connectedNetworkDeviceIpAddress": "40.0.2.18", "connectedInterfaceId": "30bb14c1-8fb6-45c4-8f6d-5b845a7f448c", "connectedInterfaceName": "GigabitEthernet2/0/2", "vlanId": "1", "lastUpdated": "September 29, 2014 1:54:13 PM PDT", "numUpdates": 1, "userStatus": "Active", "source": 200 }, https://<apic-em>/api/v1/host https://<apic-em>/api/v1/network-device
  22. 24 © 2016 Cisco and/or its affiliates. All rights reserved.

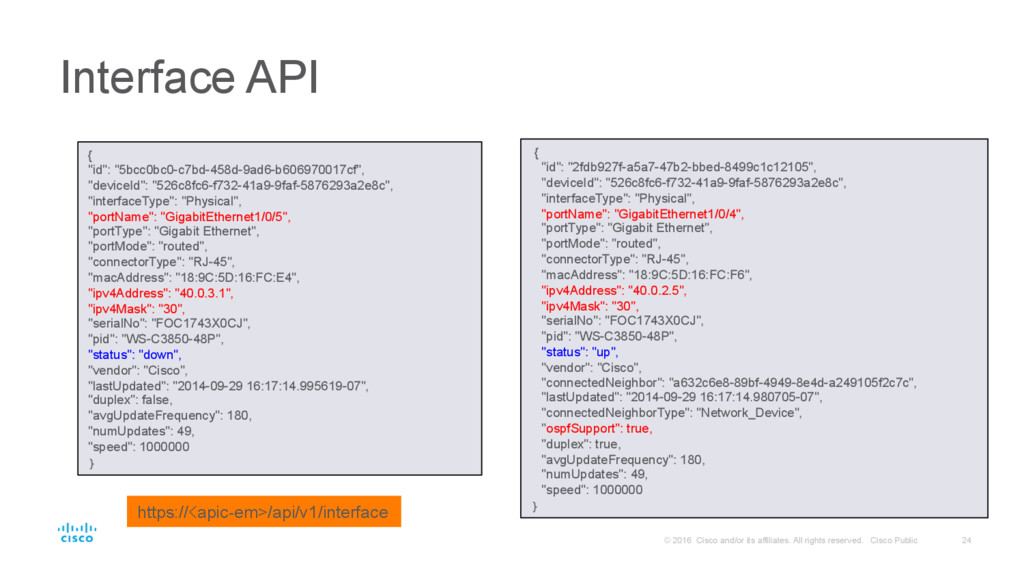

    Cisco Public Interface API { "id": "5bcc0bc0-c7bd-458d-9ad6-b606970017cf", "deviceId": "526c8fc6-f732-41a9-9faf-5876293a2e8c", "interfaceType": "Physical", "portName": "GigabitEthernet1/0/5", "portType": "Gigabit Ethernet", "portMode": "routed", "connectorType": "RJ-45", "macAddress": "18:9C:5D:16:FC:E4", "ipv4Address": "40.0.3.1", "ipv4Mask": "30", "serialNo": "FOC1743X0CJ", "pid": "WS-C3850-48P", "status": "down", "vendor": "Cisco", "lastUpdated": "2014-09-29 16:17:14.995619-07", "duplex": false, "avgUpdateFrequency": 180, "numUpdates": 49, "speed": 1000000 } { "id": "2fdb927f-a5a7-47b2-bbed-8499c1c12105", "deviceId": "526c8fc6-f732-41a9-9faf-5876293a2e8c", "interfaceType": "Physical", "portName": "GigabitEthernet1/0/4", "portType": "Gigabit Ethernet", "portMode": "routed", "connectorType": "RJ-45", "macAddress": "18:9C:5D:16:FC:F6", "ipv4Address": "40.0.2.5", "ipv4Mask": "30", "serialNo": "FOC1743X0CJ", "pid": "WS-C3850-48P", "status": "up", "vendor": "Cisco", "connectedNeighbor": "a632c6e8-89bf-4949-8e4d-a249105f2c7c", "lastUpdated": "2014-09-29 16:17:14.980705-07", "connectedNeighborType": "Network_Device", "ospfSupport": true, "duplex": true, "avgUpdateFrequency": 180, "numUpdates": 49, "speed": 1000000 } https://<apic-em>/api/v1/interface
  23. 25 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Topology Service "nodes": [ { "deviceType": "WIRED", "label": "40.0.0.15", "id": "51a75ce9-d5c9-4fe2-95a0-6fc01410e201", “nodeType”: “host”, “x": 48, “y": 198, … },{ "deviceType": "SWITCH", "label": "SDN-CAMPUS-C3850", "id": "f8c3fc68-cd26-4576-bcec-51f9b578f71e", "nodeType": "device", "x": 83, "y": 172, … } ........ (省略) ........... { "deviceType": "SWITCH", "label": "SDN-BRANCH-3750-STACK", "id": "7895a45f-47aa-42ee-9d06-c66d3b784594", "nodeType": "device", "x": 214, "y": 90, … }, { "deviceType": "WIRED", "label": "40.0.5.12", "id": "8f41bef8-698c-4701-af14-471e910ed9ff", "nodeType": "host", "x": 186, "y": 132, … } (アトリビュートは抜粋) "links":{ "source": "51a75ce9-d5c9-4fe2-95a0-6fc01410e201", "startPortID": "", "target": "f8c3fc68-cd26-4576-bcec-51f9b578f71e", "endPortID": "16e94527-33fd-4968-a0d7-0f7265b72904", "linkStatus": "UP" }, { "id": "459d7b7b-01c3-449a-841d-489e0250b8da", "source": "f8c3fc68-cd26-4576-bcec-51f9b578f71e", "startPortID": "0e841ab3-6192-4514-9736-d3ef63ed67f5", "target": "e5f93514-3ae5-4109-8b52-b9fa876e1eae", "endPortID": "02b1a0a6-3772-4b71-b2da-6d7cd87a5ec2", "linkStatus": "UP" }, ….... ………… (省略) ………………………. { "source": "7895a45f-47aa-42ee-9d06-c66d3b784594", "startPortID": "30bb14c1-8fb6-45c4-8f6d-5b845a7f448c", "target": "8f41bef8-698c-4701-af14-471e910ed9ff", "endPortID": "", "linkStatus": "UP" } https://<apic-em>/api/v1/topology/physical-topology
  24. 26 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Topology Service •  Nodes "deviceType": "SWITCH", "label": "SDN-BRANCH-3750-STACK", "id": "7895a45f-47aa-42ee-9d06-c66d3b784594", à /network-device/{id} "nodeType": "device", "x": 214, "y": 90, … "deviceType": "WIRED", "label": "40.0.5.12", "id": "8f41bef8-698c-4701-af14-471e910ed9ff", à /host/{id} "nodeType": "host", "x": 186, "y": 132, … "source": "7895a45f-47aa-42ee-9d06-c66d3b784594", "startPortID": "30bb14c1-8fb6-45c4-8f6d-5b845a7f448c", à /interface/{id} "target": "8f41bef8-698c-4701-af14-471e910ed9ff", "endPortID": "", "linkStatus": "UP" •  Links https://<apic-em>/api/v1/topology/physical-topology
  25. 27 © 2016 Cisco and/or its affiliates. All rights reserved.

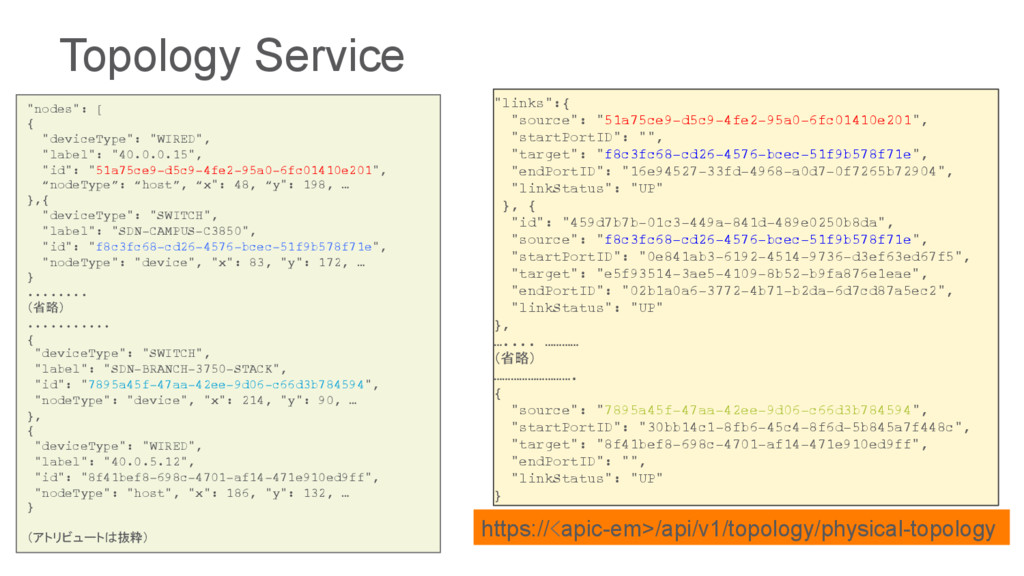

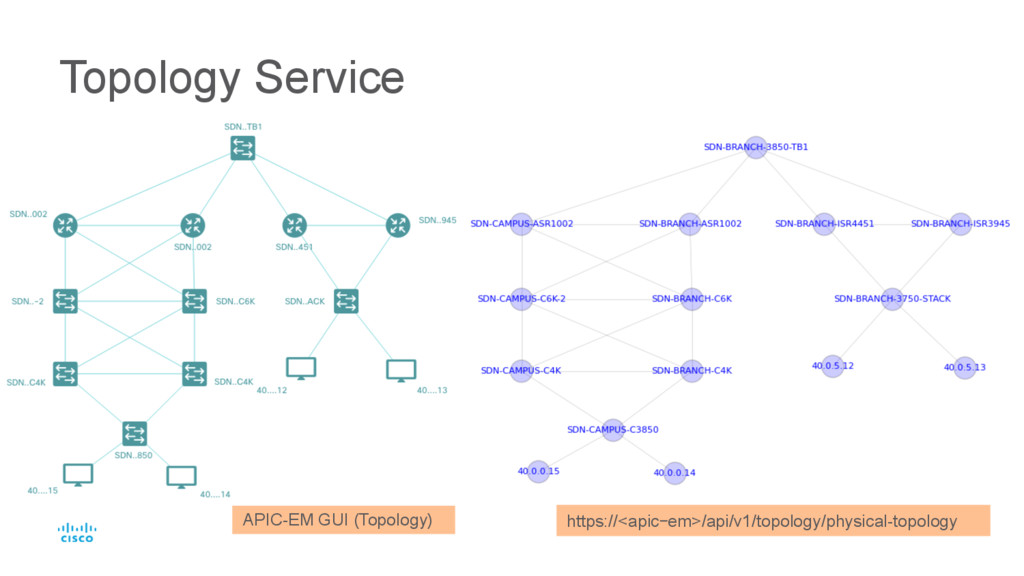

    Cisco Public Topology Service https://<apic-em>/api/v1/topology/physical-topology APIC-EM GUI (Topology)
  26. 28 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Flow Analysis API https://<apic-em>/api/v1/flow-analysis POST { "sourceIP" : "10.10.30.2", "destIP" : "10.10.20.7" } { "response": { "taskId": "028fd5f0-3060-4070-9bf0-24b7bf8f5261", "url": "/api/v1/task/028fd5f0-3060-4070-9bf0-24b7bf8f5261" }, "version": "0.0" }
  27. 29 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Task Service API { "response": { "rootId": "028fd5f0-3060-4070-9bf0-24b7bf8f5261", "serviceType": "Policy Analysis Service", "progress": "5ebd759d-fa19-427e-b6cf-4a7d91f41616", "startTime": 1420793759044, "endTime": 1420793769561, "id": "028fd5f0-3060-4070-9bf0-24b7bf8f5261" }, "version": "0.0" } https://<apic-em>/api/v1/flow-analysis/5ebd759d-fa19-427e-b6cf-4a7d91f41616 GET https://<apic-em>/api/v1/task/028fd5f0-3060-4070-9bf0-24b7bf8f5261 GET
  28. 30 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public https://<apic-em>/api/v1/flow-analysis POST { "response": { "taskId": "... https://<apic-em>/api/v1/task/{taskId} GET { "response": { "progress": "...
  29. 31 © 2016 Cisco and/or its affiliates. All rights reserved.

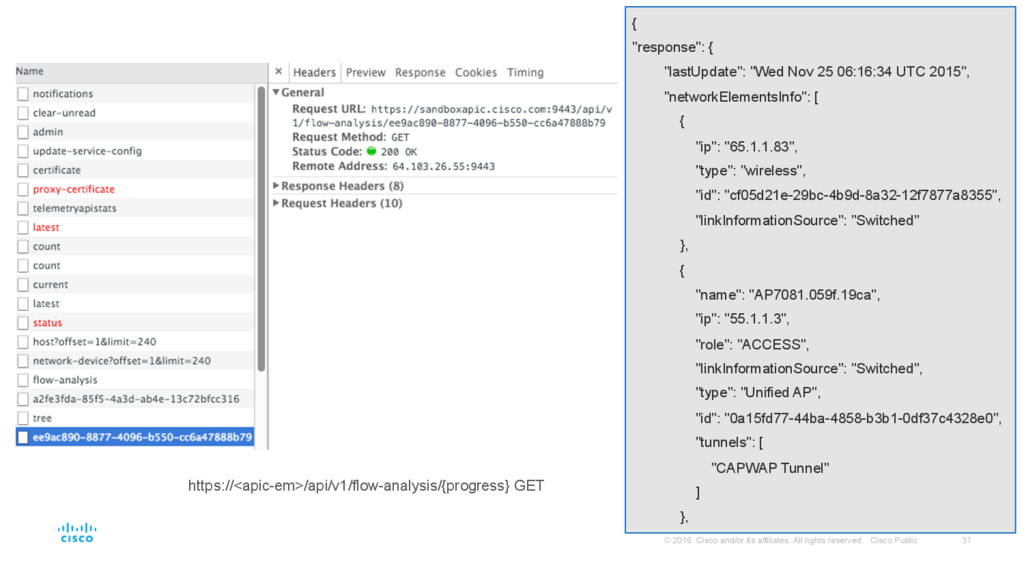

    Cisco Public { "response": { "lastUpdate": "Wed Nov 25 06:16:34 UTC 2015", "networkElementsInfo": [ { "ip": "65.1.1.83", "type": "wireless", "id": "cf05d21e-29bc-4b9d-8a32-12f7877a8355", "linkInformationSource": "Switched" }, { "name": "AP7081.059f.19ca", "ip": "55.1.1.3", "role": "ACCESS", "linkInformationSource": "Switched", "type": "Unified AP", "id": "0a15fd77-44ba-4858-b3b1-0df37c4328e0", "tunnels": [ "CAPWAP Tunnel" ] }, https://<apic-em>/api/v1/flow-analysis/{progress} GET
  30. 32 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public For More Information Cisco APIC EM http://www.cisco.com/go/apicem Cisco APIC EM Product Training Cisco DevNet APIC EM Site https://developer.cisco.com/site/apic-em/ Cisco DevNet Community APIC EM https://communities.cisco.com/community/developer/networking/cisco-one/apic-em http://www.cisco.com/c/en/us/products/se/training/Training_1440595679185.html https://learninglabs.cisco.com/labs/tags/APIC-EM Cisco DevNet Learning Labs APIC EM
  31. 33 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Prime Infrastructure API
  32. 34 © 2016 Cisco and/or its affiliates. All rights reserved.

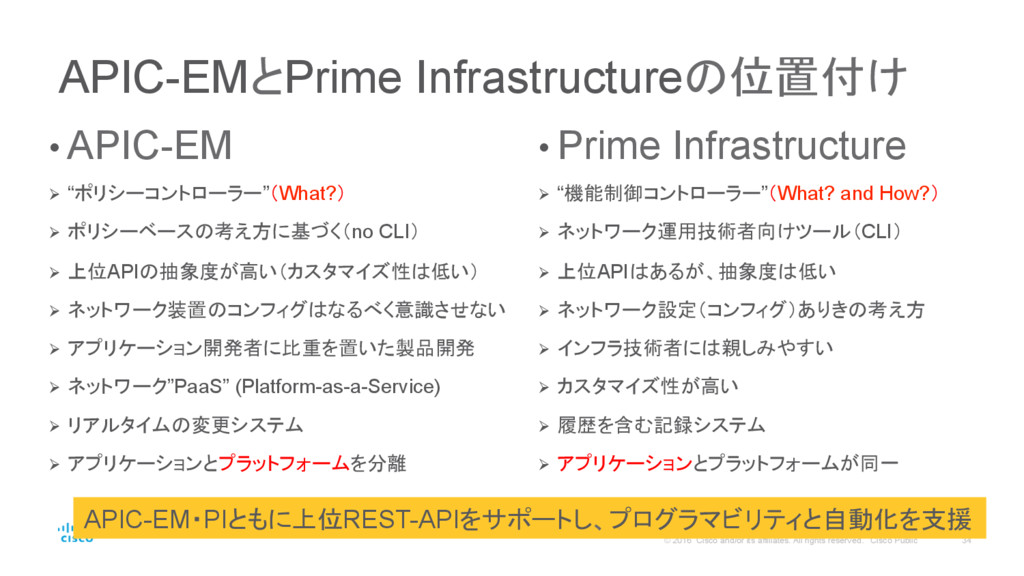

    Cisco Public • APIC-EM Ø  “ポリシーコントローラー”(What?) Ø  ポリシーベースの考え方に基づく(no CLI) Ø  上位APIの抽象度が高い(カスタマイズ性は低い) Ø  ネットワーク装置のコンフィグはなるべく意識させない Ø  アプリケーション開発者に比重を置いた製品開発 Ø  ネットワーク”PaaS” (Platform-as-a-Service) Ø  リアルタイムの変更システム Ø  アプリケーションとプラットフォームを分離 • Prime Infrastructure Ø  “機能制御コントローラー”(What? and How?) Ø  ネットワーク運用技術者向けツール(CLI) Ø  上位APIはあるが、抽象度は低い Ø  ネットワーク設定(コンフィグ)ありきの考え方 Ø  インフラ技術者には親しみやすい Ø  カスタマイズ性が高い Ø  履歴を含む記録システム Ø  アプリケーションとプラットフォームが同一 APIC-EMとPrime Infrastructureの位置付け APIC-EM・PIともに上位REST-APIをサポートし、プログラマビリティと自動化を支援
  33. 35 © 2016 Cisco and/or its affiliates. All rights reserved.

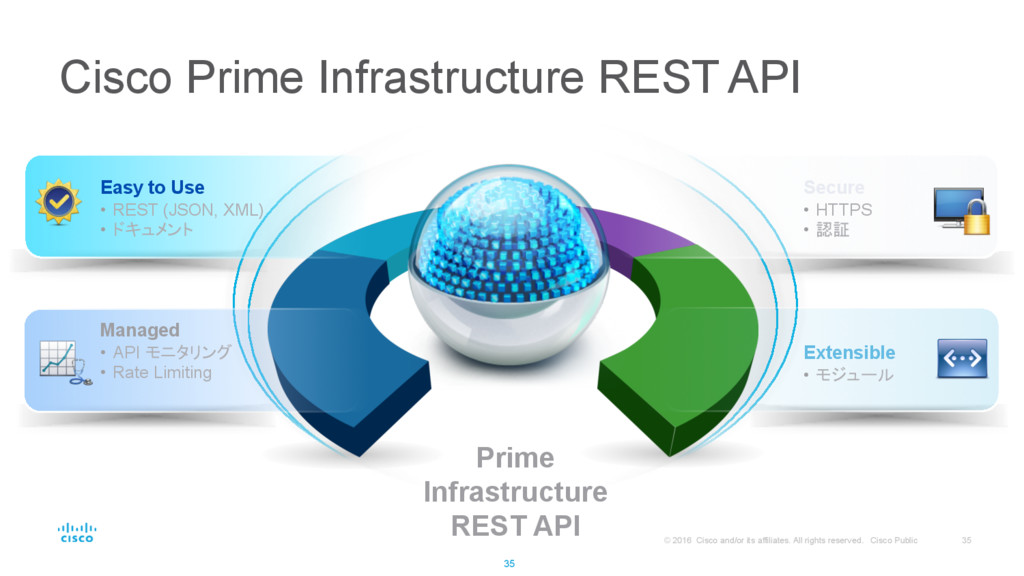

    Cisco Public Prime Infrastructure REST API Easy to Use •  REST (JSON, XML) •  ドキュメント Managed •  API モニタリング •  Rate Limiting Secure •  HTTPS •  認証 Extensible •  モジュール Cisco Prime Infrastructure REST API 35
  34. 36 © 2016 Cisco and/or its affiliates. All rights reserved.

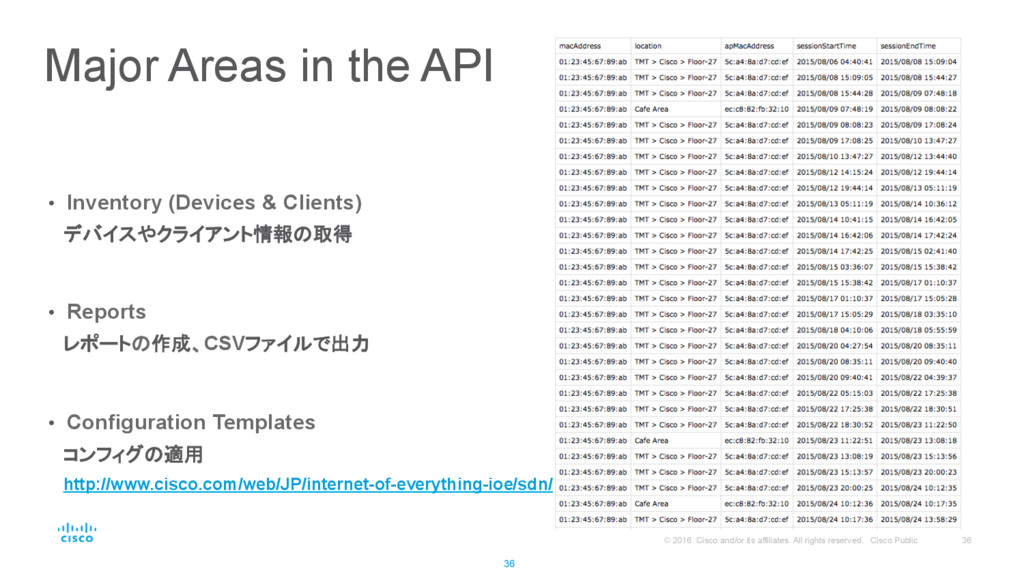

    Cisco Public Major Areas in the API •  Inventory (Devices & Clients) デバイスやクライアント情報の取得 •  Reports レポートの作成、CSVファイルで出力 •  Configuration Templates コンフィグの適用 http://www.cisco.com/web/JP/internet-of-everything-ioe/sdn/sp_hitachi.html 36
  35. 37 © 2016 Cisco and/or its affiliates. All rights reserved.

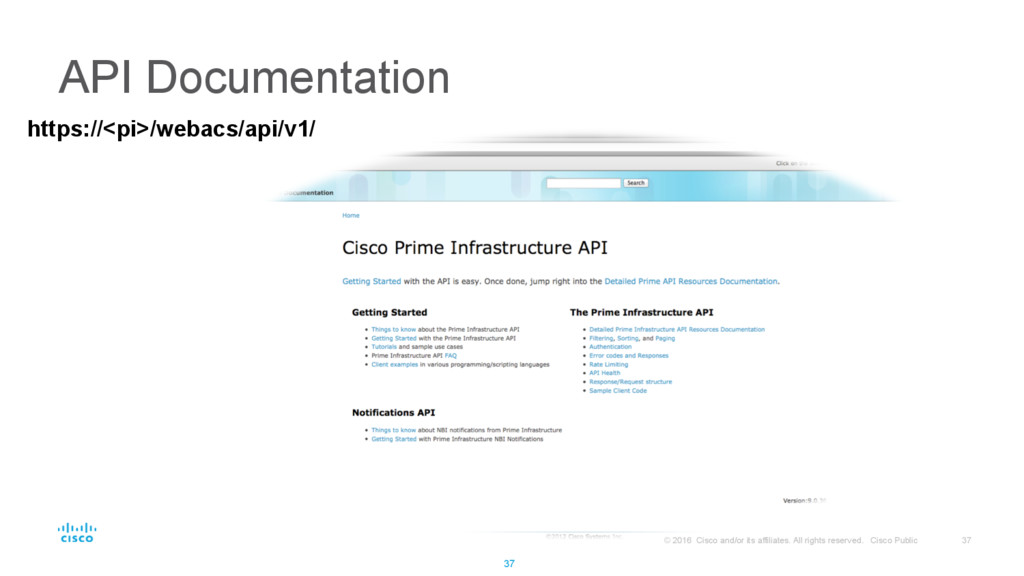

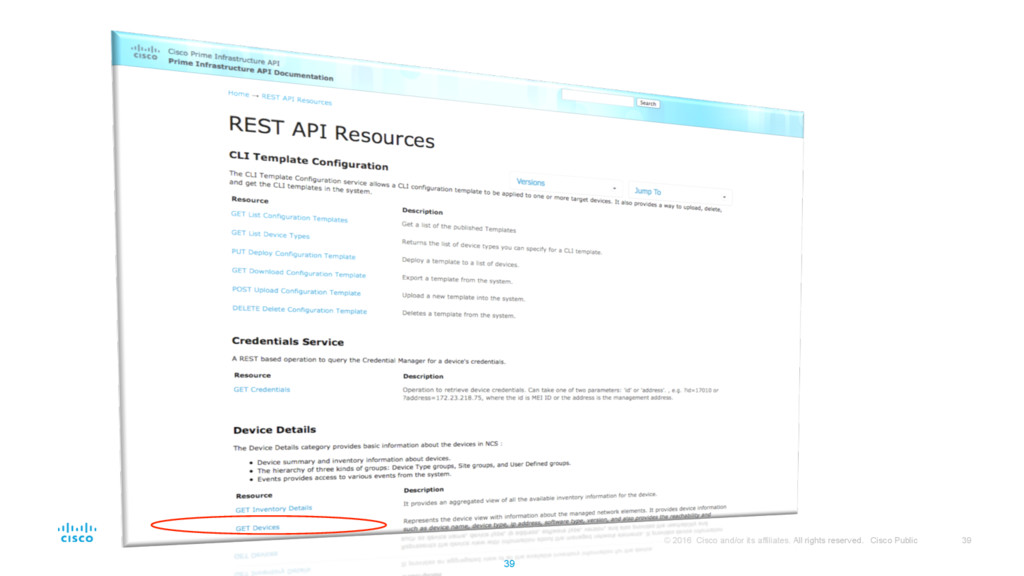

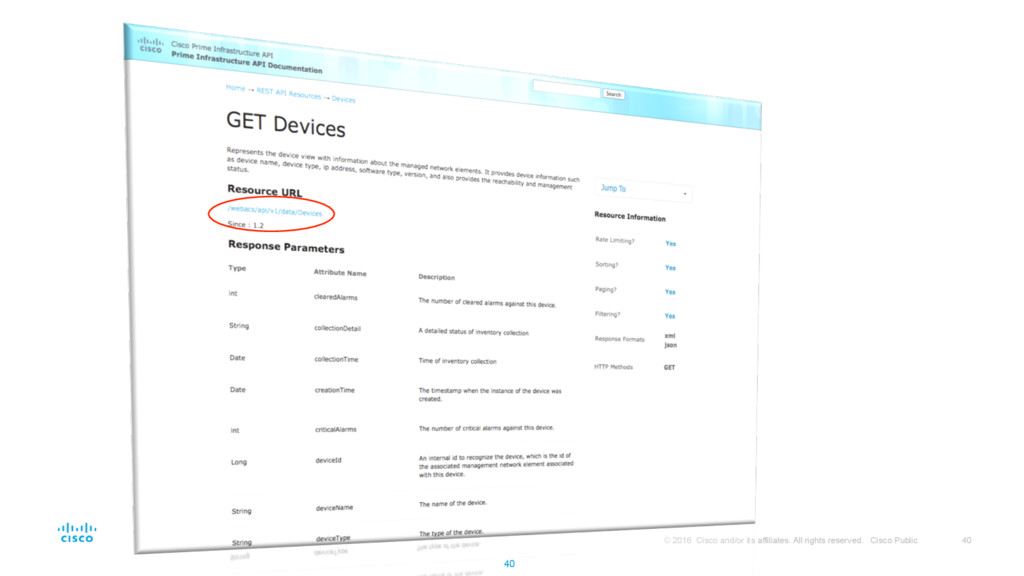

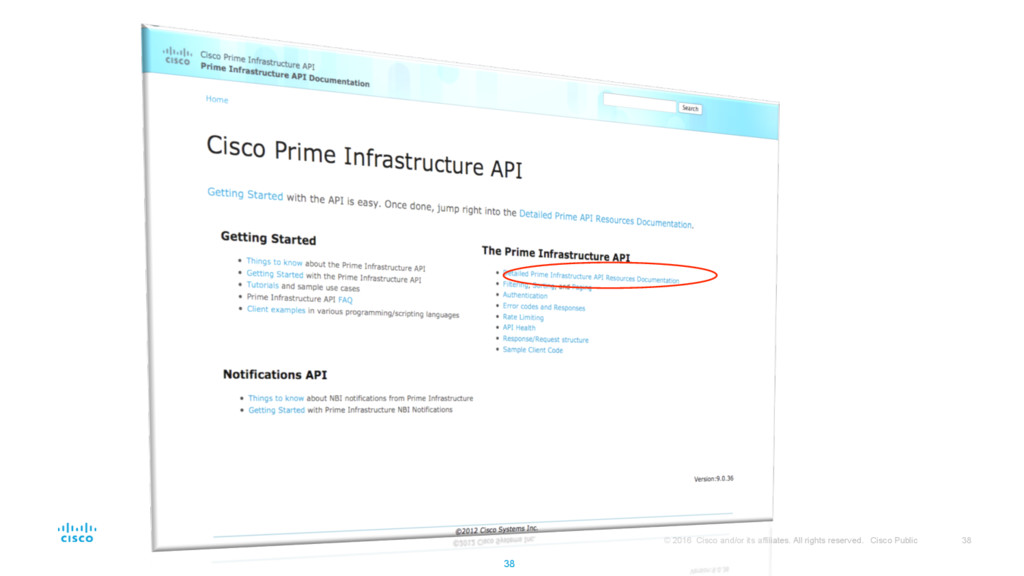

    Cisco Public API Documentation https://<pi>/webacs/api/v1/ 37

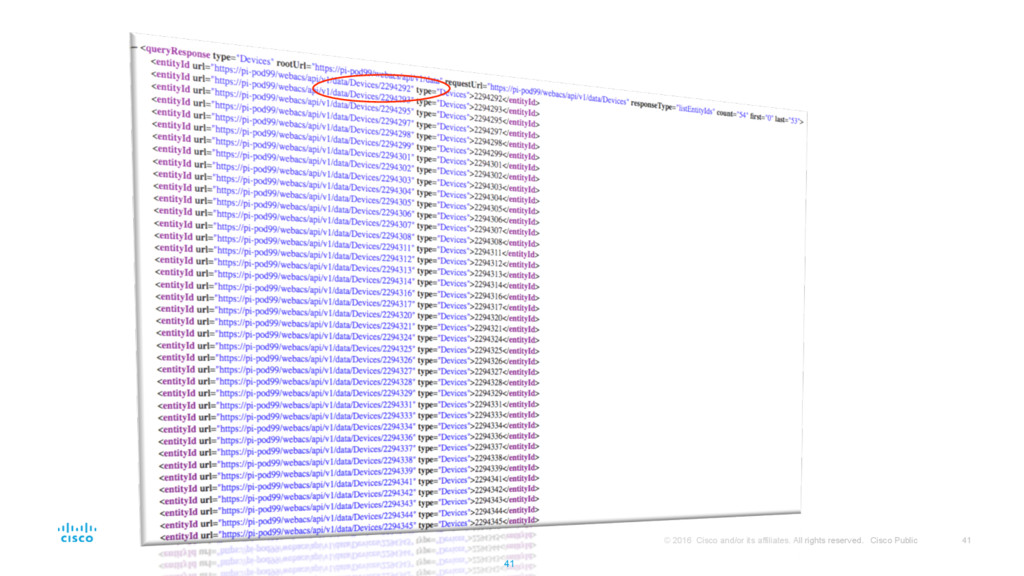

  36. 43 © 2016 Cisco and/or its affiliates. All rights reserved.

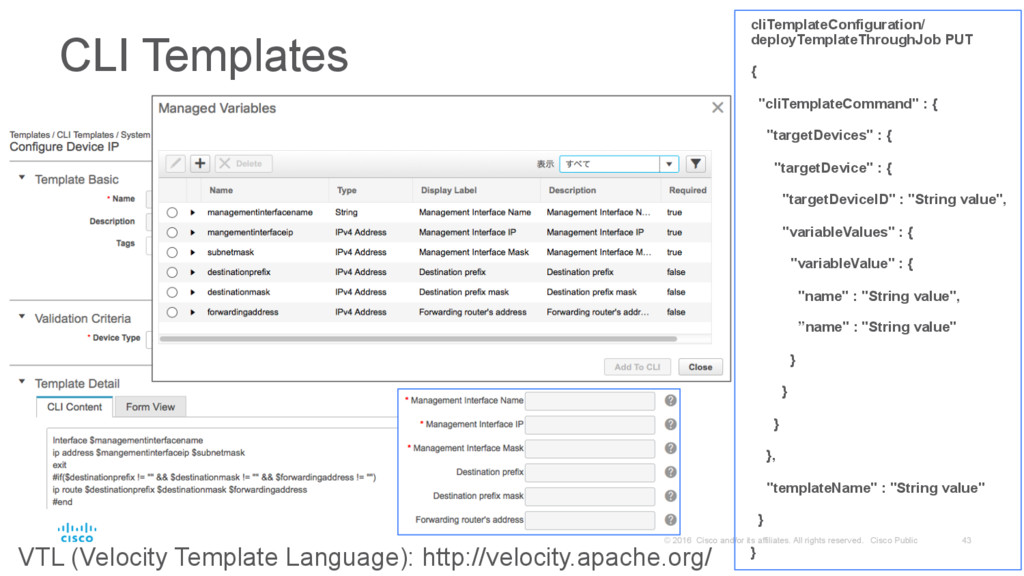

    Cisco Public VTL (Velocity Template Language): http://velocity.apache.org/ cliTemplateConfiguration/ deployTemplateThroughJob PUT { "cliTemplateCommand" : { "targetDevices" : { "targetDevice" : { "targetDeviceID" : "String value", "variableValues" : { "variableValue" : { "name" : "String value", ”name" : "String value" } } } }, "templateName" : "String value" } } CLI Templates
  37. 44 © 2016 Cisco and/or its affiliates. All rights reserved.

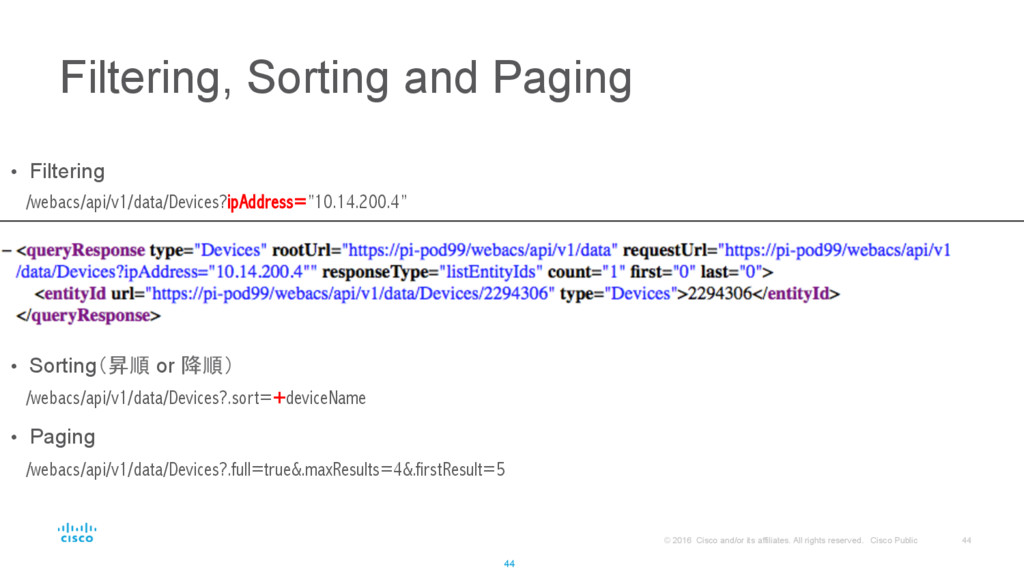

    Cisco Public Filtering, Sorting and Paging •  Filtering /webacs/api/v1/data/Devices?ipAddress=”10.14.200.4” •  Sorting(昇順 or 降順) /webacs/api/v1/data/Devices?.sort=+deviceName •  Paging /webacs/api/v1/data/Devices?.full=true&.maxResults=4&.firstResult=5 44
  38. 45 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public For More Information Cisco Prime Infrastructure http://www.cisco.com/go/primeinfrastructure Cisco Prime Infrastructure Product Training Cisco DevNet Prime Infrastructure Site https://developer.cisco.com/site/prime-infrastructure/ Cisco DevNet Community Prime Infrastructure https://communities.cisco.com/community/developer/networking/cloud-and-systems-management/prime-infrastructure http://http://www.cisco.com/c/m/en_us/training-events/product-training/prime-training-infrastructure.html https://learninglabs.cisco.com/labs/tags/Prime%20Infrastructure Cisco DevNet Learning Labs Prime Infrastructure
  39. 46 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Connected Mobile Experiences API
  40. 47 © 2016 Cisco and/or its affiliates. All rights reserved.

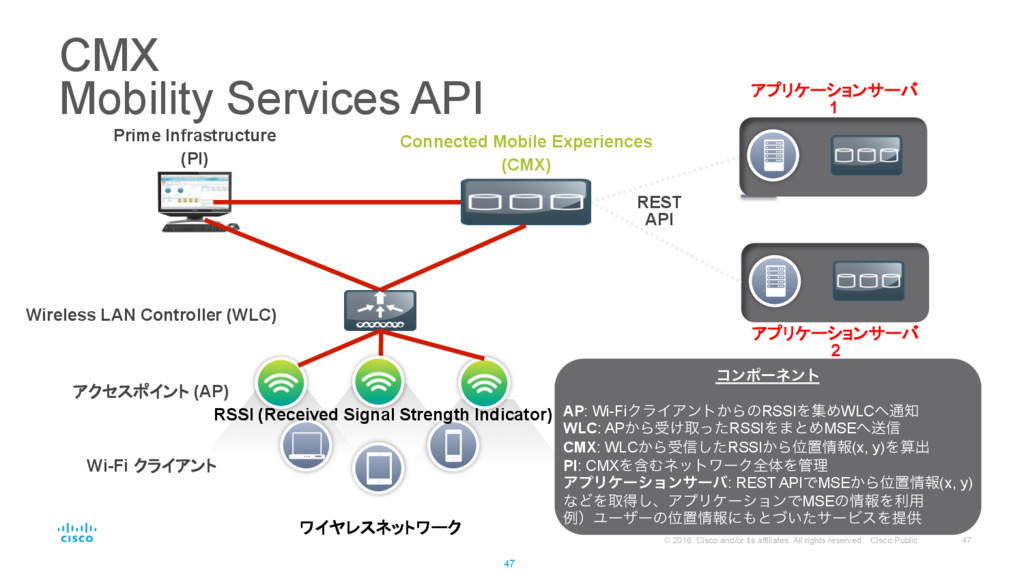

    Cisco Public Connected Mobile Experiences (CMX) Prime Infrastructure (PI) CMX Mobility Services API ワイヤレスネットワーク Wireless LAN Controller (WLC) ίϯϙʔωϯτ AP: Wi-FiΫϥΠΞϯτ͔ΒͷRSSIΛूΊWLC΁௨஌ WLC: AP͔Βड͚औͬͨRSSIΛ·ͱΊMSE΁ૹ৴ CMX: WLC͔Βड৴ͨ͠RSSI͔ΒҐஔ৘ใ(x, y)Λࢉग़ PI: CMXΛؚΉωοτϫʔΫશମΛ؅ཧ ΞϓϦέʔγϣϯαʔό: REST APIͰMSE͔ΒҐஔ৘ใ(x, y) ͳͲΛऔಘ͠ɺΞϓϦέʔγϣϯͰMSEͷ৘ใΛར༻ ྫʣϢʔβʔͷҐஔ৘ใʹ΋ͱ͍ͮͨαʔϏεΛఏڙ アクセスポイント (AP) アプリケーションサーバ 2 アプリケーションサーバ 1 Wi-Fi クライアント 47 REST API RSSI (Received Signal Strength Indicator)
  41. 48 © 2016 Cisco and/or its affiliates. All rights reserved.

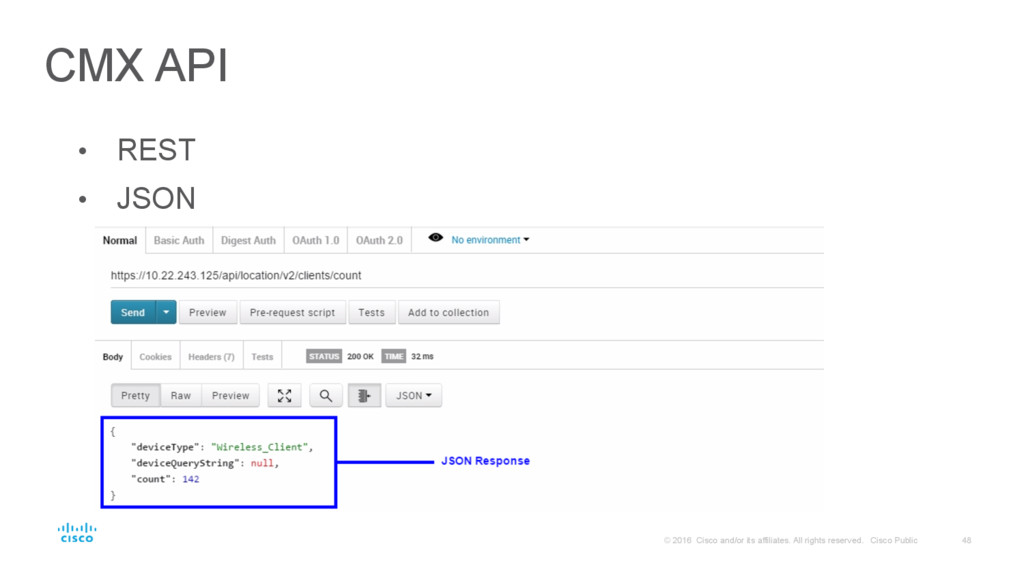

    Cisco Public CMX API •  REST •  JSON
  42. 49 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public Major Areas in the API Maps resources (Configuration) Active Clients (Location) Clients History (Location) Notification subscription (Configuration)
  43. 50 © 2016 Cisco and/or its affiliates. All rights reserved.

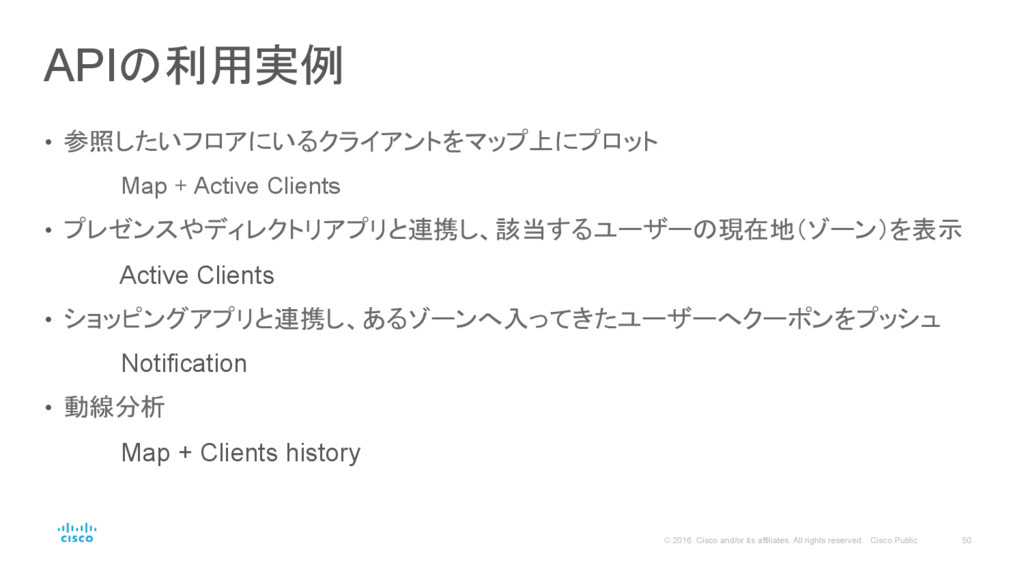

    Cisco Public APIの利用実例 •  参照したいフロアにいるクライアントをマップ上にプロット Map + Active Clients •  プレゼンスやディレクトリアプリと連携し、該当するユーザーの現在地(ゾーン)を表示 Active Clients •  ショッピングアプリと連携し、あるゾーンへ入ってきたユーザーへクーポンをプッシュ Notification •  動線分析 Map + Clients history
  44. 51 © 2016 Cisco and/or its affiliates. All rights reserved.

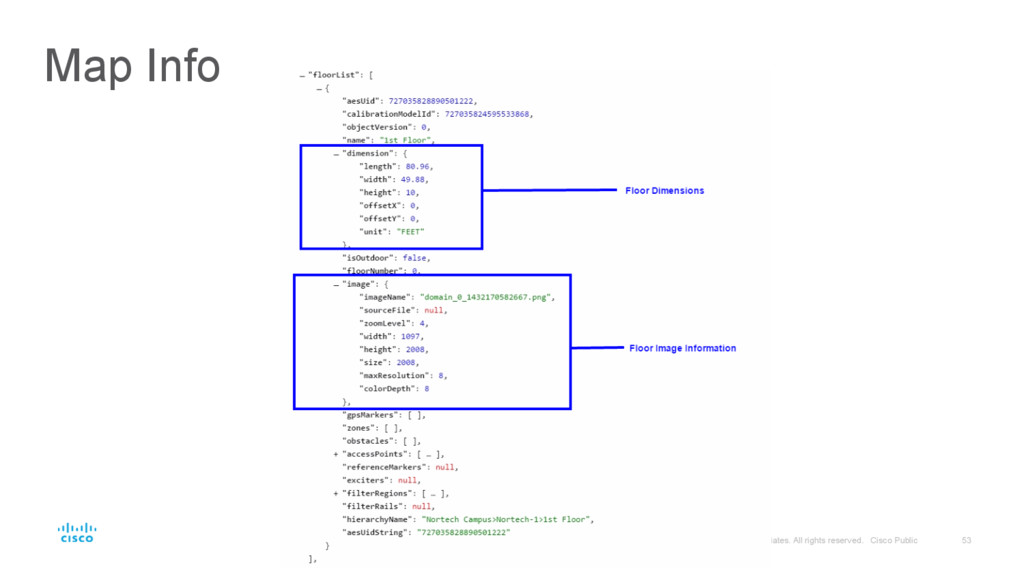

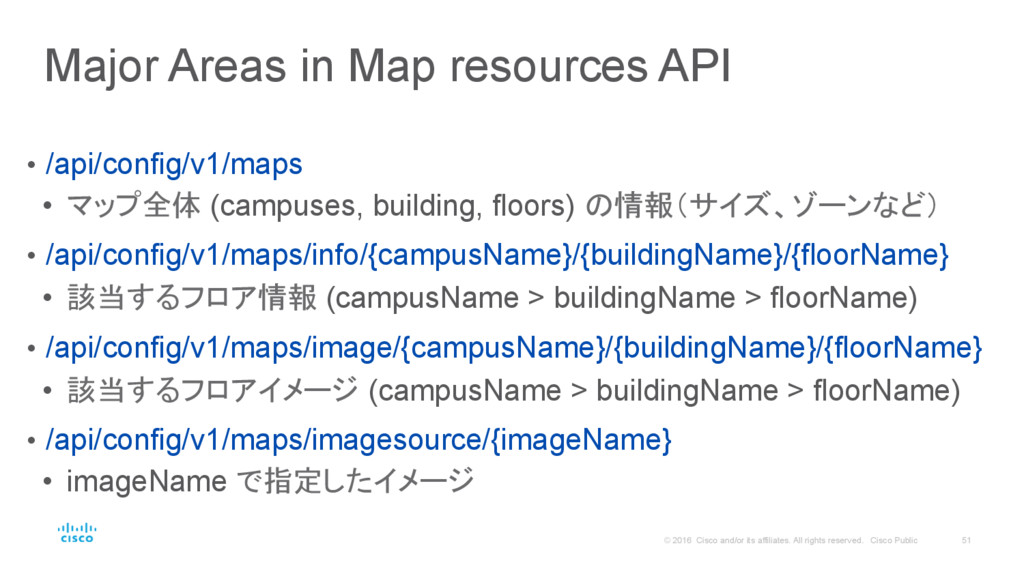

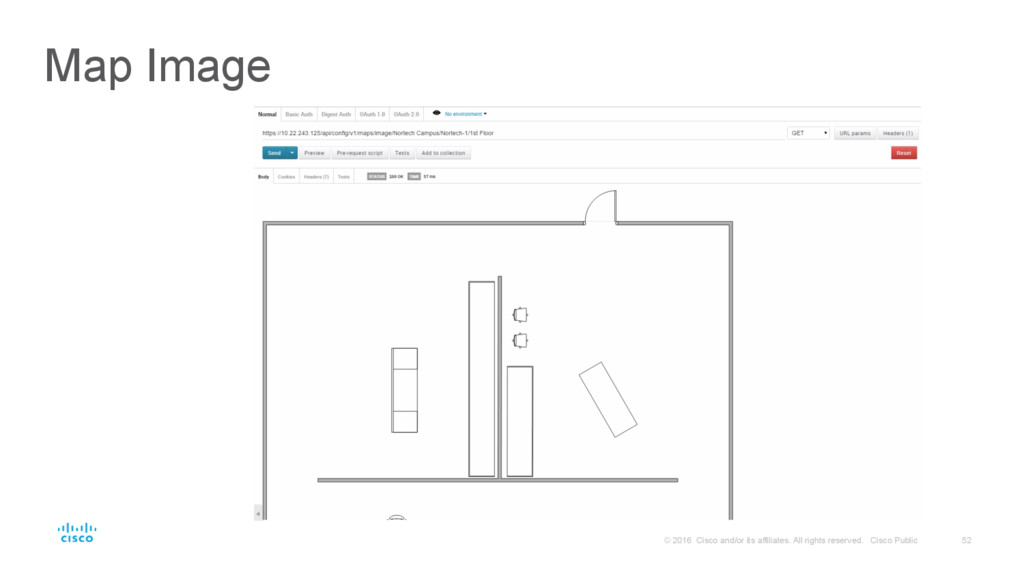

    Cisco Public Major Areas in Map resources API •  /api/config/v1/maps •  マップ全体 (campuses, building, floors) の情報(サイズ、ゾーンなど) •  /api/config/v1/maps/info/{campusName}/{buildingName}/{floorName} •  該当するフロア情報 (campusName > buildingName > floorName) •  /api/config/v1/maps/image/{campusName}/{buildingName}/{floorName} •  該当するフロアイメージ (campusName > buildingName > floorName) •  /api/config/v1/maps/imagesource/{imageName} •  imageName で指定したイメージ
  45. 54 © 2016 Cisco and/or its affiliates. All rights reserved.

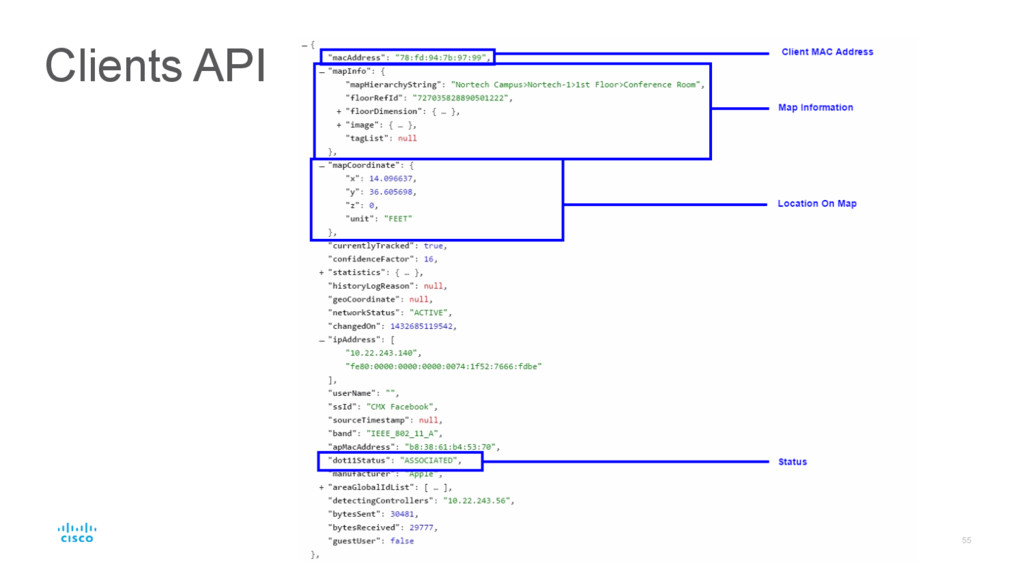

    Cisco Public Major Areas in Active clients API •  /api/location/v2/clients すべてのクライアントリスト •  /api/location/v2/clients{?[ipaddress|macAddress|username]} IDで指定したクライアント (MAC address, IP address, username) •  MAC: /api/location/v2/clients?macAddress=30:f7:c5:cc:3e:xx •  IP: /api/location/v2/clients?ipAddress=10.10.10.10 •  Username: /api/location/v2/clients?username=someUsername •  /api/location/v2/clients/count クライアント数
  46. 56 © 2016 Cisco and/or its affiliates. All rights reserved.

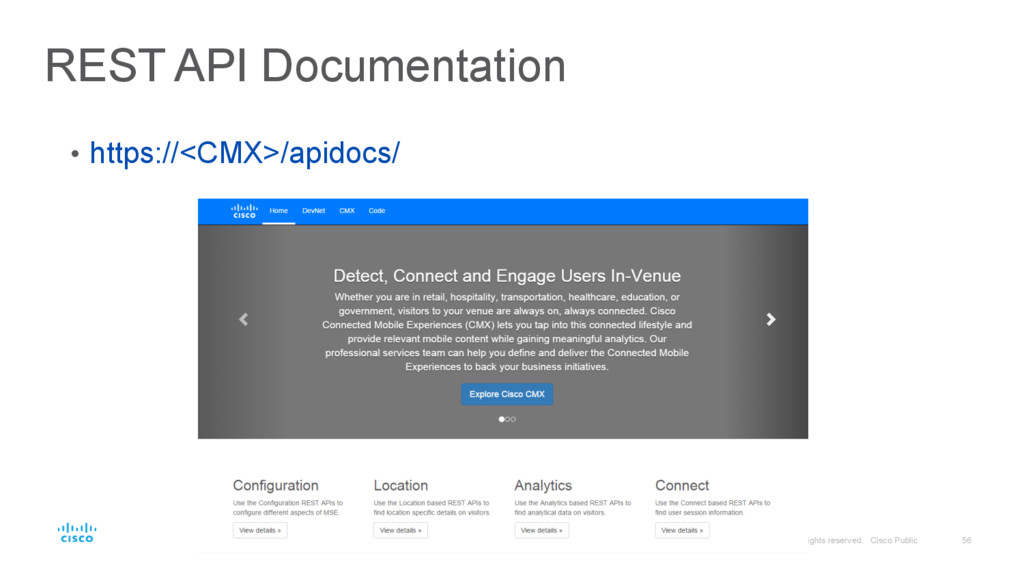

    Cisco Public REST API Documentation •  https://<CMX>/apidocs/
  47. 57 © 2016 Cisco and/or its affiliates. All rights reserved.

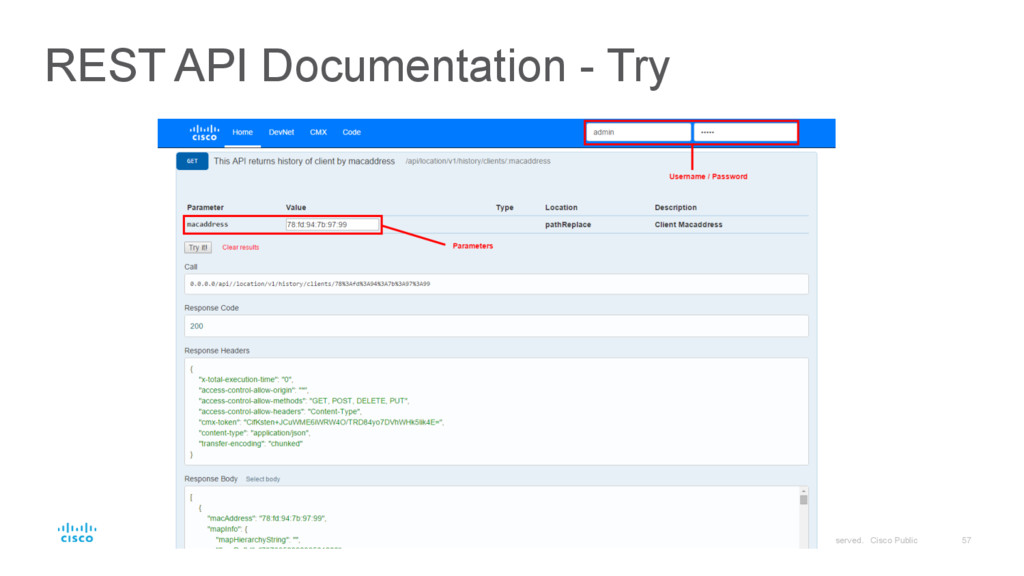

    Cisco Public REST API Documentation - Try
  48. 58 © 2016 Cisco and/or its affiliates. All rights reserved.

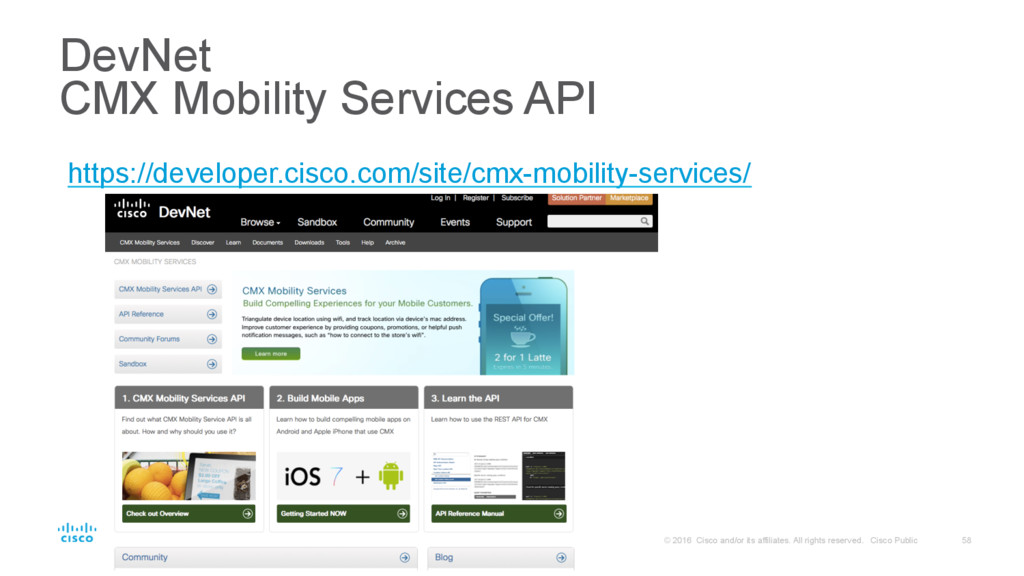

    Cisco Public https://developer.cisco.com/site/cmx-mobility-services/ DevNet CMX Mobility Services API
  49. 59 © 2016 Cisco and/or its affiliates. All rights reserved.

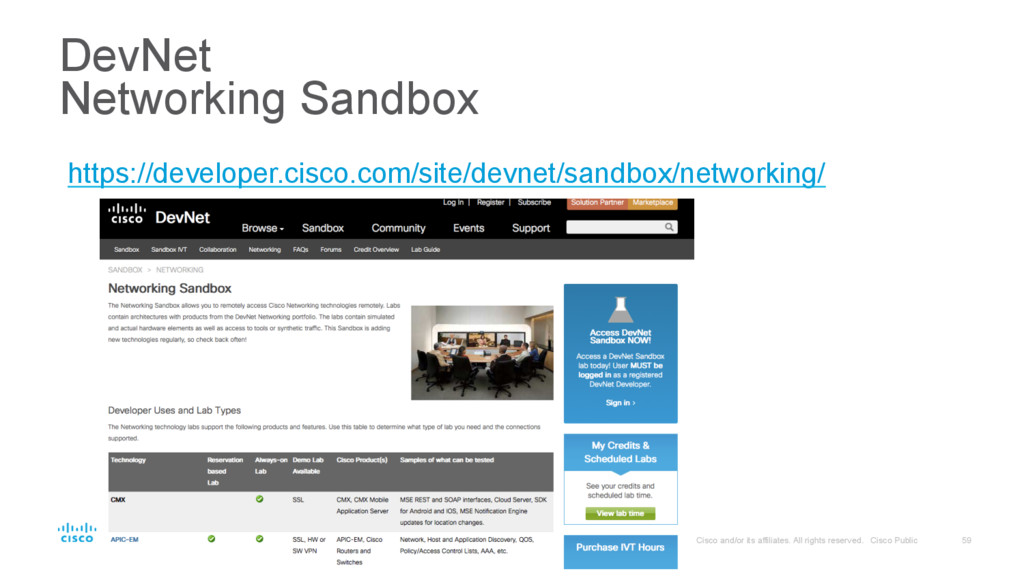

    Cisco Public https://developer.cisco.com/site/devnet/sandbox/networking/ DevNet Networking Sandbox
  50. 60 © 2016 Cisco and/or its affiliates. All rights reserved.

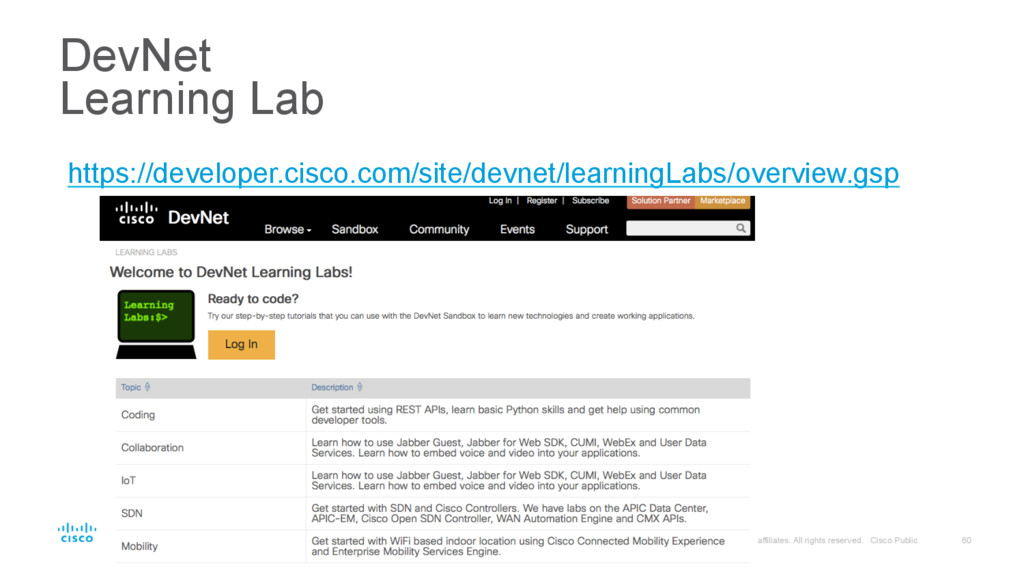

    Cisco Public https://developer.cisco.com/site/devnet/learningLabs/overview.gsp DevNet Learning Lab
  51. 61 © 2016 Cisco and/or its affiliates. All rights reserved.

    Cisco Public http://gblogs.cisco.com/jp/author/atsushiyamazaki/ Cisco Japan Blog
