Ethcon Korea 2023 "ZK Email: On-chain verification of emails using ZKP"

These are slides about ZK Email at Ethcon Korea 2023. ZK Email is a technique that uses ZKP to prove emails on-chain, scaling trust in emails. It allows smart contracts to read the contents of existing emails as Oracle data without help from custodians or data providers. In addition, users can make any kind of Ethereum transaction simply by sending emails. In the transaction sent via emails, the users and smart contracts can designate individuals/organizations by email addresses instead of Ethereum addresses.

Transcript

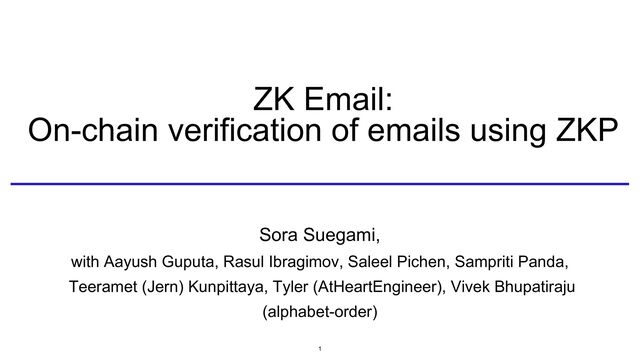

1. ZK Email: On-chain verification of emails using ZKP Sora Suegami, with Aayush Guputa, Rasul Ibragimov, Saleel Pichen, Sampriti Panda, Teeramet (Jern) Kunpittaya, Tyler (AtHeartEngineer), Vivek Bhupatiraju (alphabet-order) 1
2. 2 Problem: To interact with Ethereum, everyone needs to create an ethereum account. • To receive crypto assets, a recipient needs to create an ethereum account. • Smart contracts cannot import data published by trusted persons or companies without additional trust assumptions if they don’t support Ethereum. (e.g., API3 and Chainlink) Problem: everyone needs an ethereum account now
3. 3 Problem: To interact with Ethereum, everyone needs to create an ethereum account. Problem: everyone needs an ethereum account now Solution: Make every email address an Ethereum account by verifying emails on-chain. • All the recipient needs is an email address. • Smart contracts can directly read the contents of the emails as oracle data without the help of custodians or data providers. • To receive crypto assets, a recipient needs to create an ethereum account. • Smart contracts cannot import data published by trusted persons or companies without additional trust assumptions if they don’t support Ethereum. (e.g., API3 and Chainlink)
4. Outline 4 1. Basic Idea 2. Circuit Implementation 3. Applications
5. Outline 5 1. Basic Idea 2. Circuit Implementation 3. Applications
6. ZK Email: Verifying emails with ZKP on-chain [1,2] 6 Email Email Proof Ethereum Blockchain Proved Verified An email address in the from field is abc@gmail.com.
7. How ZK Email works [1,2] 7 Email domain servers supporting the DKIM protocol such as Gmail attach RSA digital signatures to claim that the sender and contents of the email are not forged. Email RSA digital signature Email Domain Server SHA256(from:~@x.com, subject:~,…) RSA Private Key
8. Email RSA digital signature User Email Domain Server Attached ZKP Email Proof Ethereum Blockchain Broadcast How ZK Email works [1,2] 8
9. Outline 9 1. Basic Idea 2. Circuit Implementation 3. Applications
10. 10 Design of the Email Verification circuit RSA digital signature Email Header RSA Verification Chip Regex Verification Chip Dynamic-length SHA256 Chip Substrings (e.g., email address in the from field) Assert the output is valid RSA public key for the domain * The email body is also verified with the regex verification chip, and its base64-encoded SHA256 hash is compared to the bodyhash in the email header.
11. 11 How to build your regex verification chip [1] 1.Convert a regex definition into an equivalent deterministic finite automaton (DFA). 2.Specify state transitions corresponding to substrings to be exposed. 3.Generate a circuit specific to the DFA and the substring state transitions. zkregex.com/min_dfa
12. 12 I want to expose a substring matching with “(0|1|2)+” in the regex “hello(0|1|2)+world”. Specify 6->7 and 7->7 as the substring state transitions. How to build your regex verification chip [1]
13. 13 1. Move states according to the input string. (ex.) hello21world How your regex verification chip works [1]
14. 14 (ex.) hello21world How your regex verification chip works [1] 1. Move states according to the input string.
15. 15 (ex.) hello21world How your regex verification chip works [1] 1. Move states according to the input string.
16. 16 (ex.) hello21world How your regex verification chip works [1] 1. Move states according to the input string.
17. 17 (ex.) hello21world How your regex verification chip works [1] 1. Move states according to the input string.
18. 18 2. Assert that final state is the accepted state. (ex.) hello21world How your regex verification chip works [1]
19. 19 (ex.) hello21world 3. Output the characters whose state transitions are specified as substrings. How your regex verification chip works [1]
20. Regex in Practice: Visualizing a DFA of your Regex '(¥r¥n|¥x80)(to|from):([A-Za-z0-9 _."@-]+<)?[a-zA-Z0-9_.-]+@[a-zA-Z0-9_.]+>?¥r¥n'; Regex -> DFA -> AND/OR Gates -> Autogenerated Circom Code https://zkregex.com/min_dfa 20
21. Regex in Practice: Decomposed Regex Definition Regex: ”Transfer ([0-9]|.)+ [A-Z]+” (e.g., “Transfer 1.2 ETH”) 21
22. Regex in Practice: Decomposed Regex Definition Regex: ”Transfer ([0-9]|.)+ [A-Z]+” (e.g., “Transfer 1.2 ETH”) Substring 1 (e.g., “1.2”) Substring 2 (e.g., “ETH”) 22
23. Outline 1. Basic Idea 2. Circuit Implementation 3. Applications 23
24. 24 Application Class 1: Anonymous Proof of Identity [1,5] Prove that you received an email from Twitter to reset a password of the twitter account. Proof of the twitter account ownership
25. Other Proof of Identity Applications [1,5] Try our demos! https://prove.email/ 25
26. Try our demos! https://prove.email/ 26 Other Proof of Identity Applications [1,5]
27. Try our demos! https://prove.email/ 27 Other Proof of Identity Applications [1,5]
28. Application 2: Contract Wallet using Emails (Email Wallet) [3] Interpreting an email as an Ethereum transaction allows users to send crypto assets by simply sending emails. 28
29. Application 2: Contract Wallet using Emails (Email Wallet) [3] Live Goerli demo at https://sendeth.org 29
30. Application 2: Contract Wallet using Emails (Email Wallet) [3] Live Goerli demo at https://sendeth.org 30
31. Application 2: Contract Wallet using Emails (Email Wallet) [3] 31
32. Application 2: Contract Wallet using Emails (Email Wallet) [3] 32
33. Application 2: Contract Wallet using Emails (Email Wallet) [3] Live Goerli demo at https://sendeth.org 33
34. 34 A wallet contract stores each user’s email address and balance per currency unit. A user can transfer the user’s crypto assets deposited to the contract wallet by sending an email with the message “Send X ETH to yyy@domain.com”, without any actions from the recipient. A user can exchange the user’s ETH for DAI via Uniswap by sending an email with the message “Swap X ETH to DAI”. Example 1 Example 2 xxx@domain.com xxx@domain.com yyy@domain.com xxx@domain.com xxx@domain.com Application 2: Contract Wallet using Emails (Email Wallet) [3] Send 0.1 ETH to … Swap 0.2 ETH to DAI
35. 35 System Architecture of Email Wallet [3] A relayer does additional work in Email Wallet, i.e., proof generation and interaction with contracts. Relayer Domain Server User Contract Send an email to the relayer’s email address. Attach a digital signature. (DKIM) Generate a proof and submit it to the wallet contract. • Users do not need to install new software unlike existing wallet applications. • Existing domain servers that adopt the DKIM protocol can be used without modification.
36. 36 Application 3: Public Goods Funding for Non-Crypto People Email Research Paper ZK Email Researcher Send the funding to the researcher’s email address through Email Wallet Evaluate a contribution of the paper PGF Contract Public goods funding (PGF) for individuals/organizations who have never used Ethereum. e.g., PGF for researchers in non-crypto fields! It can automatically give % of money to paper citations. The email address is included in the paper.
37. 37 Other Applications • ZKP2P: Fiat to Crypto On-Ramp From Venmo [4 - Sachin, Alex S, Brian W, Richard] By verifying proof of payment made on Venmo/Revolut, a popular P2P payment service, you can convert USD on Venmo to USDC on Ethereum, and USDC -> Venmo, KYC-free. https://zkp2p.xyz • ZK Glassdoor [5] You prove you work at a particular company and so can provide firsthand information on what it’s like to work there. Done – we mentored a team to build atop our code and they [Sehyun, Emma, Kaylee] deployed at https://nozee.xyz! • On-chain DocuSign [5] Base-64 decode the attachments on a confirmation email from DocuSign to prove you signed a legal document with certain properties: a tax return for a given amount, or a proof of residence in a given city, or a term sheet from a VC. You can use these proofs to add credibility to your anonymous speech. • Email as Multisig Signer 2FA on chain for transactions • Edward Snowden-style Whistleblowing • Oracle style signed price feeds
38. 38 Conclusion: ZK Email is Trust Scaling Technology ZK Email scales trust in emails. Smart contracts on Ethereum can read existing emails as oracle data.
39. 39 Conclusion: ZK Email is Trust Scaling Technology Users can make Ethereum transactions by simply sending emails. ZK Email scales trust in emails.
40. 40 Conclusion: ZK Email is Trust Scaling Technology Users and smart contracts can designate individuals/organizations by email addresses instead of ethereum addresses. ZK Email scales trust in emails. Email address: xxx@domain.com
41. 41 Our ZK Email Libraries 1. zk-email-verify: circom circuit https://github.com/zkemail/zk-email-verify 2. halo2-zk-email: halo2 circuit https://github.com/zkemail/halo2-zk-email Github organization page: https://github.com/zkemail Our ZK Email org is continuing to mentor projects using our libraries, reach out if you have an idea! :)
42. 42 Our ZK Email Libraries zk-email-verify: circom circuit 😄 Faster prover with rapidsnark. 😄 Cheaper on-chain verification cost with Groth16. 😢 Large memory cost. 😢 New trusted setup is necessary with Groth16. => Server-side proof generation halo2-zk-email: halo2 circuit 😄 Adjustable parameters to balance proving and verifying costs. 😄 It will support webassembly prover on browser in September. 😢 Slower prover. 😢 More expensive on-chain verification cost. => Client-side proof generation
43. References 43 1. A. Gupta, “An ecdsa nullifier scheme and a proof of identity application,” Master’s thesis, Massachusetts Institute of Technology, September 2022. 2. S. Suegami, “Rsa verification circuit in halo2 and its applications - privacy and scaling explorations,” 2022. [Online]. Available: https://mirror.xyz/privacy-scaling- explorations.eth/mmkG4uB2PR_peGucULAa7zHag-jz1Y5biZH8W6K2LYM (Accessed 13 August 2023). 3. S. Suegami and K. Shibano, "Contract Wallet Using Emails," 2023 IEEE International Conference on Blockchain and Cryptocurrency (ICBC), Dubai, United Arab Emirates, 2023, pp. 1-2, doi: 10.1109/ICBC56567.2023.10174932. (Slides: https://speakerdeck.com/sorasuegami/icbc2023-contract-wallet-using-emails) 4. ZKP2P, “ZKP2P, Fiat to Crypto On-Ramp From Venmo,” n.d. [Online]. Available: https://zkp2p.xyz/ (Accessed 13 August 2023). 5. A. Gupta, “ZK Email,” Dec, 2022. [Online]. Available: https://blog.aayushg.com/posts/zkemail/ (Accessed 13 August 2023).
