DEVNATION LAB: From Zero to Hero: Securing your functions and services in the cloud

In this workshop, get hands on and learn how to secure a simple Java Script/HTML application using Single-Sign On (SSO). Build and deploy a microservice and secure it. And further connect it with social logins like Github. You will also have a chance to create your own authentication flows and play with OTP tokens etc. No IDE or installations required, only a working browser will do. Join to become and expert in securing your applications, functions and services with Red Hat SSO.

Transcript

1. 1 Securing your functions and services in the cloud (Hands-On)
2. dn.dev/kubemaster2 Technical Hands-On Lab sshaaf@redhat • Java developer, advocate, architect, engineer… • Open source enthusiast, contributor • Technical evangelist, developer advocate, marketing • InfoQ Java Technical Editor • Volunteer, coach, trainer.. • Ask me about #Java, backends, architecture, containers.. fosstodon.org/@shaaf @syshaaf sshaaf https://www.linkedin.com/in/shaaf/ shaaf.dev
3. dn.dev/kubemaster2 Technical Hands-On Lab masales@redhat • Java is my base platform: developer, Certified Architect, evangelist… • But also: Net core, Golang, Python, C • Open source enthusiast and contributor • Master in cloud native applications and distributed systems • Focused on solution architecture • Always attentive to the topic of security in applications • Ask me about #Java, backends, cloud native, architecture, containers, application security.. @marcelodssales marcelomrwin marcelo-daniel-sales
4. dn.dev/kubemaster2 Agenda: - Introduction - Technical Overview - Hands-on Labs (Openshift/Keycloak/SSO) - Config - Securing apps - OpenID - Users and Groups - Identity providers and OAUTH - Advanced config (Themes, customization, OTP, encryption..) - Closing and next steps
5. dn.dev/kubemaster2 High-Level Architecture & Features RH-SSO Component Details: • Based on upstream Keycloak project • Open source access & identity manager • Identity Brokering • User Federation with LDAP-based directory services • Client libraries for Java EE, MicroProfile, Quarkus, Spring, Node.js, & more • Event auditing
6. dn.dev/kubemaster2 Running Keycloak an on Kubernetes API Apps SSO Cloud Mobile phone Tablet

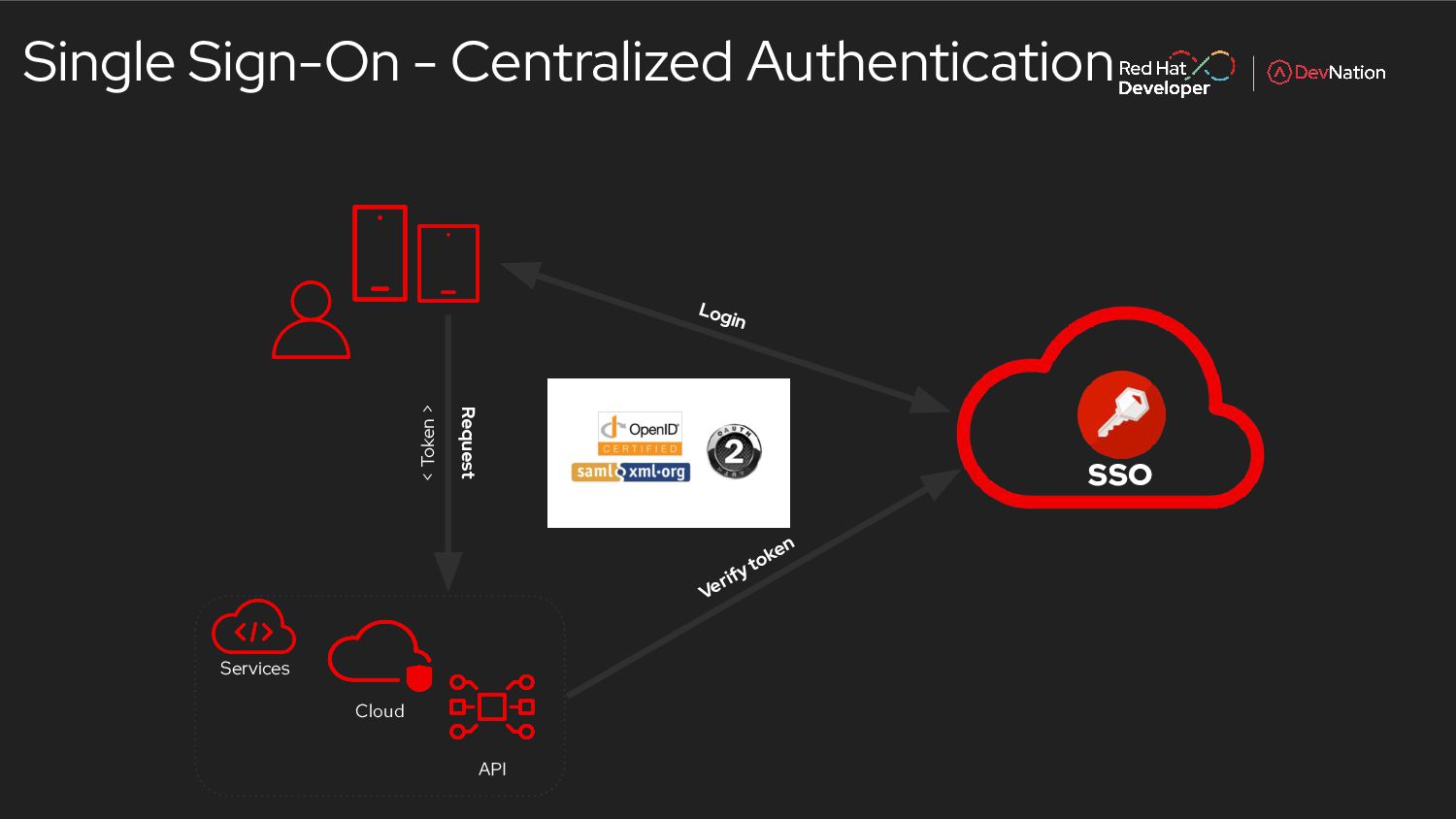

7. dn.dev/kubemaster2 Single Sign-On - Centralized Authentication SSO Login Request Verify token < Token > API Cloud Services
8. dn.dev/kubemaster2 User Federation with SSO SSO Identity Brokering OpenID Connect SAML v2 Kerberos LDAP [RHDS, IDM, freeIPA, OpenLDAP etc.. ] Active Directory User Store User Federation Social
9. dn.dev/kubemaster2 Single Sign-On - Centralized Authorization SSO Authorization Services < Token > User Managed Access API Cloud Services Entitlements API OpenID Connect
10. dn.dev/kubemaster2 Authorization - Explained • Attribute based (ABAC) • Role-based (RBAC) • User-based (UBAC) • Context-based (CBAC) • Time-based • Rule-based ◦ JavaScript or Drools • Custom access control mechanisms (ACMs) via Policy Service Provider SPI
11. dn.dev/kubemaster2 Hybrid and Distributed topologies Cloud-native apps AI/ML, Functions SSO for all your apps | Hybrid and Distributed Traditional apps Physical Virtual Private cloud Public cloud Azure AWS GCP SSO SSO SSO SSO
12. dn.dev/kubemaster2 Securing your applications • SSO facilitates easy software developer access to secure apps • Covers modern apps with ◦ Mobile native ◦ HTML5 ◦ Client side / Stateless ◦ Microservices ◦ REST Services ◦ Managed APIs ◦ Containerized/Orchestrated API Apps Cloud Developer Mobile phone Tablet
13. dn.dev/kubemaster2 13 Social Login Providers Integration Integration , traditional and new LDAP Custom User Storage RDBMS Active Directory SAML 2 Identity Provider Kerberos Public cloud SSO Apps Apps Apps Home Grown Solution XYZ Audit, Monitoring & Logging
14. dn.dev/kubemaster2 Customizable
15. dn.dev/kubemaster2 Consoles built with REST APIs
16. dn.dev/kubemaster2 Identity Brokering / User Federation
17. dn.dev/kubemaster2 User Storage Federation 17 • RH-SSO can federate multiple external user databases ◦ LDAP/Active Directory most common • RH-SSO maintains its own caches & relational identity database ◦ Always imports users from external providers into local storage ▪ How much data depends on the underlying federation plugin ◦ Additional fields/features can be added to external user stores • RH-SSO provides API for creating custom plugins for user federation
18. dn.dev/kubemaster2 Authentication Interfaces • SSH / SUDO ◦ Using SSSD daemon installed on server • OAuth / SAML ◦ Using RH-SSO as IdP • LDAP ◦ Using LDAP/LDAPS listener of IdM servers • Kerberos ◦ Using the Kerberos listener of IdM server (kerberos bridge) AUTHENTICATION SUITE Service Listeners SSSD SAML OPENID LDAP SSH Clients SUDO APPS WITH SSO APPS WITHOUT SSO KERBEROS
19. dn.dev/kubemaster2 https://bit.ly/devnation2023-securing-apps
20. dn.dev/kubemaster2 Concepts Arch. and concepts
21. dn.dev/kubemaster2 SSO Concepts 21 • Users ◦ Entities that are able to log into your system ◦ Can have attributes associated ▪ email, username, phone number, etc • Groups ◦ Users can be grouped together ◦ Users in a group inherit the attributes & roles of the group ◦ Typically used to manage users
22. dn.dev/kubemaster2 SSO Concepts 22 • Credentials ◦ Pieces of data that RH-SSO uses to verify the identity of a user ▪ Passwords, one-time passcodes, digital certificates, etc • Roles ◦ Type of category of a user ◦ Applications can assign permissions to roles rather than specific user ◦ Roles can be composed to contain other roles ◦ Typically used to manage applications & services
23. dn.dev/kubemaster2 SSO Concepts 23 • Authentication ◦ Identifying & validating a user • Authorization ◦ Granting access to a resource to a user • Clients ◦ Entities that can request authentication for a user ▪ Often is an application acting on behalf of a user but still needs to authenticate itself to a downstream service • Session ◦ Created upon login ◦ Contains information about the user ▪ When logged in, which applications participated in the authentication, etc ◦ Admins & users can view session information
24. dn.dev/kubemaster2 SSO Concepts 24 • Identity Manager (IdM) / Identity Access Manager (IAM) ◦ Controls information about users and services ◦ RH-SSO is an IAM, can be an IdM • Identity Provider (IdP) ◦ Service that can authenticate a user ◦ RH-SSO is an IdP • Service Provider (SP) ◦ System that receives & accepts authentications (SAML assertions, OIDC tokens, etc)
25. dn.dev/kubemaster2 SSO Concepts 25 • Identity Provider Federation / Identity Brokering ◦ Mechanism to delegate authentication to one of more IdPs ▪ Social login via Facebook, Google, GitHub, etc ◦ RH-SSO can delegate authentication to any other OpenID Connect or SAML 2.0 IdP • Identity Provider Mapper ◦ Ability to map incoming tokens/assertions to user & session attributes for propagating identity information
26. dn.dev/kubemaster2 Keycloak / RH-SSO Concepts 26 [1] RH-SSO Supported Configurations: https://access.redhat.com/articles/2342861 • Realm ◦ Manages a set of users, credentials, roles, & groups ◦ Users belong to realms ◦ Realms are isolated from each other ◦ Realms can only manage & authenticate users they control • Client Adapters ◦ Plugins installed to be able to communicate & be secured by RH-SSO [1] ▪ Java, JavaEE, Spring, Node.js, Javascript, etc • User Federation Provider ◦ Store & manage users ◦ Validate credentials from external stores & pull in identity information ▪ LDAP, Active Directory, Kerberos, custom, etc
27. dn.dev/kubemaster2 Keycloak / RH-SSO Concepts 27 • Authentication Flows ◦ Workflows a user must perform when interacting with certain aspects of a system ▪ Registration flows, login flows, credential reset flows, etc • Registration Flow ◦ Workflow a user must perform when a realm allows self-registration ◦ Can define what profile information a user must enter ◦ Can require additional identity validation steps ▪ OTP, OOB, reCAPTCHA, etc • Login Flow ◦ Defines what types of credentials are required to perform a login ▪ Username/password, MFA, etc • Required Actions ◦ Actions a user must perform during the authentication process ▪ Interval-based and/or scheduled password reset, etc
28. dn.dev/kubemaster2 Labs Securing apps..
29. dn.dev/kubemaster2 • https://www.keycloak.org/ • https://www.keycloak.org/documentation
30. dn.dev/kubemaster2 End Securing apps..
