Streaming from Apache Iceberg - QCon NY 2023

Apache Flink is a very popular stream processing engine featuring sophisticated state management, even-time semantics, exactly-once state consistency. For low latency processing, Flink jobs typically consume data from streaming sources like Apache Kafka. Apache Iceberg is a widely adopted data lake technology supporting numerous features like snapshot isolation, transactional commit, fast scan planning. While Iceberg was originally designed for batch, it can also be used as a streaming source in Flink. This not only lowers the processing delays from hours or days to just minutes, but also significantly reduces the infrastructure cost and operational burden.

In this talk, we will explain the design of the Flink Iceberg source that we contributed to Apache Iceberg open source project. We will compare the Kafka and Iceberg sources for streaming read and present performance evaluation results of the Iceberg streaming read. We will discuss how the Iceberg streaming source can power many common stream processing use cases (like ETL, feature engineering). It enables users to build low-latency streaming pipelines chained by Iceberg that are cost effective and easy to operate.

Transcript

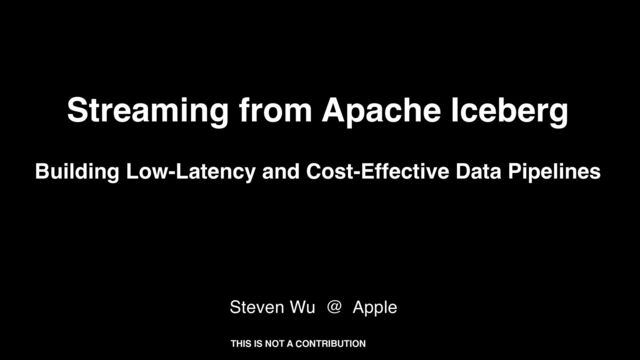

1. Streaming from Apache Iceberg Building Low-Latency and Cost-Effective Data Pipelines Steven Wu @ Apple THIS IS NOT A CONTRIBUTION
2. Agenda Introduction to Iceberg and Flink Motivation Streaming from Iceberg Watermark alignment Evaluation results
3. Agenda Introduction to Iceberg and Flink Motivation Streaming from Iceberg Watermark alignment Evaluation results
4. Apache Iceberg is an open table format for huge analytic datasets https://iceberg.apache.org/
5. What is a table format File format (like Parquet) organize records in a fi le Table format (like Iceberg) organize fi les in a table
6. Iceberg offers numerous features • Serializable isolation • Fast scan planning with advanced fi ltering • Schema and partition layout evolution • Time travel • Branching and tagging
7. Where does Iceberg fi t in the ecosystem Table Format (Metadata) Iceberg Delta Lake Hudi Compute Engine Flink Storage (Data) Cloud Storage Orc HDFS Parquet
8. Apache Flink is a distributed framework for stateful computations over data streams https://flink.apache.org/
9. Flink is a popular stream processing engine • Highly scalable • Exactly once processing semantics • Event time semantics and watermark support • Layered APIs (DataStream, Table API/SQL)
10. Agenda Introduction to Iceberg and Flink Motivation Streaming from Iceberg Watermark alignment Evaluation results
11. Traditional data pipelines are largely chained by batch jobs reading from data lake Hours/Days Feature Engineering Batch Jobs Data Lake (Feature store) Hours/Days Model Store Offline Model Training Batch Jobs Minutes Streaming Ingestion Data Lake (Raw data) Hours/Days Batch Jobs ETL Data Lake (Cleaned and enriched data) Device Seconds API Edge Message Queue
12. Overall latency is hours to days Hours/Days Hours/Days Model Store Offline Model Training Batch Jobs Minutes Streaming Ingestion Data Lake (Raw data) Hours/Days Batch Jobs ETL Data Lake (Cleaned and enriched data) Device Seconds API Edge Message Queue Feature Engineering Data Lake (Feature store) Batch Jobs
13. Sink Flink Streaming Job Flink streaming from Kafka is very popular
14. Switch everything to Flink streaming from Kafka Feature Engineering Feature store Model Store Online Model Training Streaming Ingestion Raw data ETL Cleaned and enriched data Device Seconds API Edge Message Queue Seconds Seconds Seconds Seconds
15. Kafka can achieve sub-second read latency
16. But there are tradeoffs . . .
17. Operation is not easy • Upgrading stateful system is painful • Capacity planning • Bursty workload • Isolation
18. Tiered storage is widely adopted because it is expensive to store long-term data in Kafka Present Recent Past Distant Past Kafka Iceberg
19. Cross-AZ network cost can be 10x more than broker cost (compute and storage combined) AZ-1 AZ-2 AZ-3 broker-2 broker-1 broker-3 consumer-1 consumer-2 consumer-3 producer-1 producer-2 producer-3
20. Rack aware partition assignment can avoid cross- AZ traf fi c from broker to consumer AZ-1 AZ-2 AZ-3 broker-2 broker-1 broker-3 consumer-1 consumer-2 consumer-3 producer-1 producer-2 producer-3
21. Kafka source doesn’t support fi ltering or projection at broker side Job-1 Job-2 Job-3 Filter Filter Projection
22. Set up routing jobs just to fi lter or project data Job-1 Job-2 Job-3 Routing Job Filter Filter Projection
23. Kafka source statically assigns partitions during startup Worker-1 Worker-2 Worker-3 Partition-1 Partition-2 Partition-3 Lead to a few limitations
24. Other workers can’t pick up the slack from outlier Worker-1 Worker-2 Worker-3 Partition-1 Partition-2 Partition-3 Outlier
25. Source parallelism is limited by the number of partitions Worker-1 Worker-2 Worker-3 Partition-1 Partition-2 Partition-3 Worker-4 Idle
26. May not get balanced partition assignment during autoscaling Worker-1 Worker-2 Worker-3 Partition-1 Partition-3 Partition-5 Partition-2 Partition-4 Partition-6
27. Worker-1 Worker-2 Worker-3 Partition-1 Partition-3 Partition-5 Worker-4 Partition-2 Partition-4 Partition-6 May not get balanced partition assignment during autoscaling
28. Alternative streaming source?
29. Agenda Introduction to Iceberg and Flink Motivation Streaming from Iceberg Watermark alignment Evaluation results
30. Flink Iceberg sink commits fi les after every successful checkpoint Upstream Streaming Job f1, f2, f3 1-10 minutes are pretty common
31. Sink Can Flink stream data from Iceberg as they are committed by the upstream job Upstream Streaming Job Iceberg Streaming Source Job
32. Sink Iceberg Streaming Source Job Iceberg supports scan of incremental changes between snapshots Upstream Streaming Job Sn f1, f2, f3 Sn+1 f1, f2, f3 TableScan appendsBetween( long fromSnapshotId, long toSnapshotId); This cycle continues forever
33. Sink Iceberg Streaming Job Kafka Streaming Job KafkaSource<RowData> source = KafkaSource.builder() .setBootstrapServers(“…”) .setTopics(“…”) .setStartingOffsets( OffsetsInitializer.latest()) .setDeserializer(…) .build() IcebergSource<RowData> source = IcebergSource.forRowData() .tableLoader(tableLoader) .streamingStartingStrategy( INCREMENTAL_FROM_LATEST_SNAPSHOT) .monitorInterval( Duration.ofSeconds(30L)) .build() Also available in Flink SQL
34. Many streaming use cases are good with minute-level latency
35. Build low-latency data pipelines chained by Flink jobs streaming from Iceberg Feature Engineering Data Lake (Feature store) Model Store Nearline Model Training Minutes Streaming Ingestion Data Lake (Raw data) ETL Data Lake (Cleaned and enriched data) Device Seconds API Edge Message Queue Minutes Minutes Minutes
36. Where does stream processing fi t in the spectrum of data processing applications Stephan Ewen & Xiaowei Jiang & Robert Metzger. From Stream Processing to Uni fi ed Data Processing System. Flink Forward. April 1-2, 2019. San Francisco more real time more lag time Transactional Processing Event-driven Applications Streaming Analytics Data Pipelines Continuous Processing Batch Processing
37. Flink Iceberg streaming source fi ts well for data pipelines and continuous processing more real time more lag time Transactional Processing Event-driven Applications Streaming Analytics Data Pipelines Batch Processing minutes Stephan Ewen & Xiaowei Jiang & Robert Metzger. From Stream Processing to Uni fi ed Data Processing System. Flink Forward. April 1-2, 2019. San Francisco Continuous Processing
38. What about incremental batch processing • Schedule batch runs every a few minutes • Each run processes the new fi les added since last run • The line becomes blurry as scheduling intervals are shortened
39. Limitations of incremental batch processing • May be more expensive to tear down and start the batch runs when scheduling intervals are small • Operational burden can be too high • Intermediate results for stateful processing are lost after each batch run and recomputed in the next run
40. FLIP-27 source interface separates work discovery with reading JobManager TaskManager-1 TaskManager-n … Enumerator Reader-1 Reader-k …
41. A unit of work is de fi ned as a split • In Kafka source, a split is a partition • In Iceberg source, a split is a fi le, a slice of a large fi le, or a group of small fi les • A split can be unbounded (Kafka) or bounded (Iceberg)
42. JobManager TaskManager-1 TaskManager-n … Enumerator Reader-1 Reader-k … Iceberg source dynamically assign splits to readers with pull based model 1. Split discovery 2. Discovered splits Pending splits 3. Request split upon start or done with current split 4. Assigned split Reader requests one split a time Iceberg
43. JobManager TaskManager-1 TaskManager-n … Enumerator Reader-1 Reader-k … FLIP-27 uni fi es batch and streaming sources Only difference is whether split discovery is one- time or periodical 1. Split discovery 2. Discovered splits Iceberg Pending splits
44. Bene fi ts of Iceberg streaming source?
45. Leverage managed cloud storage • Of fl oad operational burden • Scalable • Cost effective
46. Simplify the architecture with uni fi ed storage Present Recent Past Distant Past Iceberg
47. Unify the live and back fi ll sources to Iceberg Sink Backfill Job Live Job Sink
48. Most cloud blob storages don’t charge network cost within a region AZ-1 AZ-2 AZ-3 consumer-1 consumer-2 consumer-3 Iceberg (on cloud storage)
49. Support advanced data pruning • File pruning (predicate pushdown) • Column projection IcebergSource<RowData> source = IcebergSource.forRowData() .tableLoader(tableLoader) .streamingStartingStrategy( INCREMENTAL_FROM_LATEST_SNAPSHOT) .monitorInterval( Duration.ofSeconds(30L)) .filters(Expressions.equal("dt", “2020-03-20")) .project(schema.select("dt", “id”, “name”) .build()
50. Dynamic pull-based split assignment allows other worker to pick up the slack Outlier Other workers can pick up the slack and process more fi les JobManager TaskManager-1 TaskManager-n … Enumerator Reader-1 Reader-k … Pending splits Iceberg
51. It is more operationally friendly with a lot more fi le segments than Kafka partitions • Can support higher parallelism • Is more autoscaling friendly
52. FLIP-27 Flink Iceberg source is merged in Apache Iceberg project https://github.com/apache/iceberg/projects/23 CDC (updates/deletes) read not supported yet
53. Agenda Introduction to Iceberg and Flink Motivation Streaming from Iceberg Watermark alignment Evaluation results
54. Watermark controls tradeoff btw latency and completeness • Records can come out of order • Asserts all data before the watermark have arrived
55. Stateful join with 6 hour join window Why is watermark alignment needed Impression Click Everything works well in steady state with live traf fi c
56. During replay, the two sources can proceed at diff paces due to diff data volumes Impression (4x) Click
57. Flink watermark is calculated as the minimal of all inputs Impression (4x) Click Src-1 Src-2 Co- process Sink keyBy Flink job Now - 18h Now - 18h Now
58. Slow watermark advancement can lead to excessive buffering Impression (4x) Click Src-1 Src-2 Sink keyBy Flink job Buffered 24 hour of click data vs 6 hours during steady state Now - 18h Now - 18h Now Co- process
59. Now - 18h Watermark alignment ensures both sources progress at similar paces and avoids excessive buffering Impression (4x) Click Now - 18h Src-1 Src-2 Sink keyBy Throttled Flink job Now - 17h buffer 7 hours of click data close to steady state Co- process
60. How Flink watermark alignment works Enumerator Reader-0 Reader-1 P0 Reader-2 P1 P2 FLIP-182 and FLIP-217
61. Kafka readers extract and track watermark from timestamp fi eld in records consumed from Kafka 10:45 10:23 10:10 Reader-0 Reader-1 P0 Reader-2 P1 P2 Enumerator
62. Kafka readers periodically send local watermarks to enumerator for aggregation Reader-0 Reader-1 P0 Reader-2 P1 P2 10:45 10:23 10:10 Enumerator
63. Enumerator calculates the global watermark using min value Reader-0 Reader-1 P0 Reader-2 P1 P2 10:45 10:23 10:10 10:45 10:23 10:10 Enumerator
64. Enumerator broadcasts the global watermark to readers Reader-0 Reader-1 P0 Reader-2 P1 P2 10:45 10:23 10:10 10:10 Enumerator 10:10
65. Readers check the difference btw local watermarks and the global watermark to decide if throttling needed maxAllowedWatermarkDrift = 30 mins throttled Reader-0 Reader-1 P0 Reader-2 P1 P2 10:46 10:23 10:10 10:10 Enumerator
66. Kafka Iceberg Splits are unbounded Splits are bounded Static split assignment Dynamic pull-based split assignment Records are ordered within a Kafka partition Records may not be sorted by the timestamp fi eld within a data fi le Only readers can extract the watermark info from records Enumerator can extract min-max values from column-level statistics in metadata fi les
67. Enumerator assign splits ordered by time
68. Assign fi les to readers ordered by minimal timestamp value F2 (9:04-9:10) F3 (9:05-9:09) F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19) F1 (9:00-9:03) Reader-0 Reader-1 Reader-2 Enumerator Global Watermark = Local Watermark
69. Readers extract watermark using min value from timestamp column stats Global Watermark = 9:00 Enumerator Reader-0 Reader-1 Reader-2 9:00 9:04 9:05 Local Watermark F2 (9:04-9:10) F3 (9:05-9:09) F1 (9:00-9:03) F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19)
70. Enumerator Reader-0 Reader-1 Reader-2 9:00 9:04 9:05 Local Watermark Global Watermark = 9:00 F2 (9:04-9:10) F3 (9:05-9:09) F1 (9:00-9:03) F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19) Readers check the difference btw local watermarks and the global watermark to decide if throttling needed Max Allowed Drift = 10 mins
71. Reader-2 fi nished F3 and requested a new fi le Req fi le Reader-0 Reader-1 Reader-2 Enumerator 9:00 9:04 9:05 Local Watermark Global Watermark = 9:00 F2 (9:04-9:10) F1 (9:00-9:03) F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19) Max Allowed Drift = 10 mins
72. Enumerator assigned F4 to reader-2 who advanced its local watermark to 9:13 Reader-0 Reader-1 Reader-2 Enumerator Global Watermark = 9:00 Local Watermark 9:00 9:04 9:13 F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19) F2 (9:04-9:10) F1 (9:00-9:03) Max Allowed Drift = 10 mins
73. Reader-2 paused reading as its local watermark was too far ahead Reader-0 Reader-1 Reader-2 Enumerator Global Watermark = 9:00 Local Watermark 9:00 9:04 9:13 F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19) F2 (9:04-9:10) F1 (9:00-9:03)
 9:13-9:00 > 10 mins Max Allowed Drift = 10 mins
74. Reader-0 advanced its watermark to 9:16 after receiving the new fi le F5 Reader-0 Reader-1 Reader-2 Enumerator Global Watermark = 9:00 Local Watermark 9:16 9:04 9:13 F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19) F2 (9:04-9:10)
 9:13-9:00 > 10 mins Max Allowed Drift = 10 mins
 9:16-9:00 > 10 mins
75. After propagation delay, global watermark advanced to 9:04 and reader-2 resumed reading Reader-0 Reader-1 Reader-2 Enumerator Global Watermark = 9:04 Local Watermark 9:16 9:04 9:13 F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19) F2 (9:04-9:12)
 9:13-9:04 <= 10 mins Max Allowed Drift = 10 mins
76. Max out-of-orderliness = max allowed watermark drift + max timestamp range in data fi les Enumerator Max Allowed Drift = 10 mins F2 (9:04-9:10) F3 (9:05-9:09) F5 (9:16-9:21) F6 (9:17-9:25) F7 (9:21-9:26) F8 (9:23-9:25) F9 (9:25-9:32) F4 (9:13-9:19) F1 (9:00-9:03) Max out-of-orderliness is 18 minutes 8 mins
77. Now - 18h Keeping max out-of-orderliness small avoids excessive buffering in Flink state Impression (4x) Click Now - 18h Src-1 Src-2 Sink keyBy Throttled Flink job Now - 19h buffer 7 hours of click data close to steady state Co- process
78. Upstream contribution is in progress Credit: Peter Vary
79. Agenda Introduction to Iceberg and Flink Motivation Streaming from Iceberg Watermark alignment Evaluation results
80. Iceberg source job Kafka Source job Test pipeline setup
81. Traf fi c volume • Throughput: ~3.9K msgs/sec • Message size: ~1 KB
82. Container resource dimensions • JobManager: 1 CPU, 4 GB memory • TaskManager: 1 CPU, 4 GB memory
83. What are we evaluating • Processing delay • How upstream commit interval affects the bursty consumption • CPU util comparison btw Kafka and Iceberg source
84. Measure the latency from Kafka to Iceberg source processing time - event timestamp Iceberg source job Kafka source job
85. sub-second Commit interval Poll interval Latency is mostly decided by commit and poll interval Iceberg source job Kafka source job
