Today there are lots of case studies for Spatial Computing (Augmented Reality, Virtual Reality, Mixed Reality etc) in education and entertainment. Unfortunately, the newly released ARCore features like Augmented Images still lack tutorials and practical examples.

In this interactive session, Noble Ackerson, a seasoned Technical Product Lead and GDE, shares insights with examples through a fun "choose your own adventure" technical talk (Bandersnatch-style), on how to build marker-based AR with Augmented Images to create experiences to transform data from the world into practical utility for your users.

This audience chose to focus on practical use-cases of Marker Based AR

Noble Ackerson

February 02, 2019
Tweet

More Decks by Noble Ackerson

Other Decks in Technology

Transcript

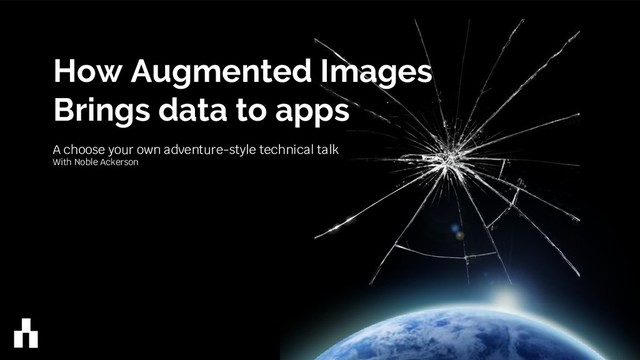

  1. How Augmented Images
    Brings data to apps
    A choose your own adventure-style technical talk
    With Noble Ackerson

    View Slide

  2. Hi, I’m Noble
    Product Strategist, Independent Dev
    /c/nobleackerson @nobleackerson www.nobles.page

    View Slide

  3. View Slide

  4. Spatial Computing
    Augmented
    1
    Mixed
    2
    Virtual
    3
    Reality
    /c/nobleackerson @nobleackerson

    View Slide

  5. The mixture of the real world
    and virtual worlds so that one
    understands the other.
    This creates experiences that cannot
    possibly happen anywhere else.
    AR/MR

    View Slide

  6. The R is for Data
    Image Credit: https://dribbble.com/AndrewCoyleDesign
    Spatial computing works
    best when computers
    interpret the environment
    and return responses that
    engage our senses.

    View Slide

  7. AR: Common business use-cases
    Data capture & markup Entertainment Commerce & Marketing Maintenance and repair
    /c/nobleackerson @nobleackerson

    View Slide

  8. Use-case #1: Data
    capture & markup

    View Slide

  9. View Slide

  10. Use-case #2: Entertainment

    View Slide

  11. Magic Leap

    View Slide

  12. Use case #3: Commerce
    and Marketing

    View Slide

  13. View Slide

  14. Use case #4: Aided Maintenance
    and Repair

    View Slide

  15. View Slide

  16. Data Visualization

    View Slide

  17. Credit: AR Experiments

    View Slide

  18. LynxFit

    View Slide

  19. So what is ARCore?
    /c/nobleackerson @nobleackerson

    View Slide

  20. ARCore
    Environmental
    Understanding
    Motion
    Tracking
    Light
    Estimation

    View Slide

  21. Augmented Images
    Marker-based AR where the digital world is
    anchored to the real world
    /c/nobleackerson @nobleackerson

    View Slide

  22. Development Environment for ARCore
    Unity 2017.4.15f1 +
    2018.3.1f1
    ARCore SDK 1.6.0 +
    A compatible phone
    developers.google.com/ar/discover/supported-devices

    View Slide

  23. How do augmented images work?
    Precompile up to 1000
    images via DB
    1
    Add Images to DB
    2
    Detect Images
    3
    Render Assets
    (video, 3D prefabs, etc.)

    View Slide

  24. Create database file

    View Slide

  25. Detect Images

    View Slide

  26. Pro-tips
    ● Supports PNG, JPEG and JPG formats
    ● Detection is based on points of high contrast
    ● Image’s resolution must be at least 300 X 300 pixels
    ● Images with repetitive features suck
    ● Don’t try to track moving objects.

    View Slide

  27. Editor time

    View Slide

  28. Demos

    View Slide

  29. Some Design Principles for Augmented Reality
    Be mindful of the user's safety
    and privacy
    Avoid separate onscreen
    controls.
    Use the entire display to
    engage people.

    View Slide

  30. Safety, Comfort, Happiness, Engagement, Utility
    Image Credit: Luden.io
    Testing & Validation

    View Slide

  31. What About Audio?
    /c/nobleackerson @nobleackerson

    View Slide

  32. Audio enhances
    AR experiences.
    Provide confirmation that a
    virtual object has come into
    contact with a physical surface
    or other virtual object
    Use sound to aid with getting
    interactions with precision for
    your users.

    View Slide

  33. In summary
    ● AR has practical usecases
    ● Reality in Augmented Reality is Data
    ● Make sure your editor/devices are supported
    ● Build for your device (mobile vs head-worn)
    ● Augmented Images have privacy implications
    ● Be mindful of the user's safety
    ● Favor functional experiences that matter
    /c/nobleackerson @nobleackerson

    View Slide

  34. Thank you!
    @nobleackerson www.nobles.page

    View Slide

  35. Resources
    AR Concepts:
    https://developers.google.com/ar/di
    scover/concepts
    Google Developers ARCore
    https://developers.google.com/ar/
    Github projects for ARCore:
    https://github.com/google-ar
    AR experiments for inspiration and
    to see what could be possible:
    https://experiments.withgoogle.com/ar

    View Slide
