Achieving wise architecture with Symfony2 @ SPUG#5

Transcript

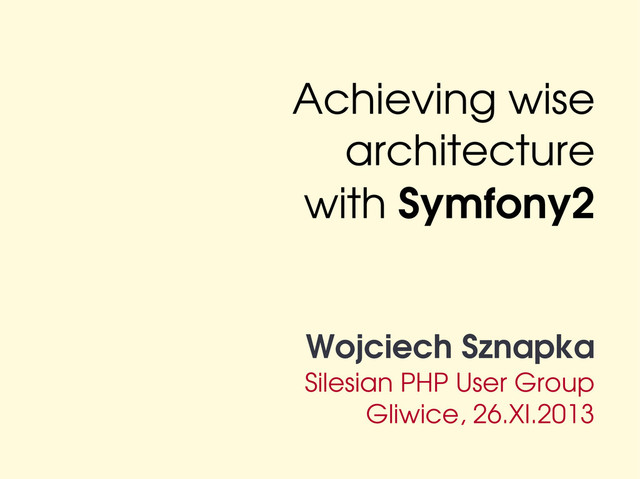

1. Achieving wise
   architecture
   with Symfony2
   Wojciech Sznapka
   Silesian PHP User Group
   Gliwice, 26.XI.2013


   View Slide

2. Cześć!


   View Slide

3. Wojciech Sznapka
   Technical Manager @ XSolve
   Zend Certified Engineer since 2010
   Symfony user since 2008
   Coding since 2004
   Besides: ice hockey, windsurfing, skiing, crime stories


   View Slide

4. What is
   architecture?


   View Slide

5. High level structure
   off the system


   View Slide

6. Components
   abstractions
   connectors


   View Slide

7. Understanding a
   system in its
   environment


   View Slide

8. How can
   architecture
   be bad?


   View Slide

9. Mixed
   responsibilities


   View Slide

10. Poor separations of
    concerns


    View Slide

11. Overloading servers
    due to an inefficient
    solutions


    View Slide

12. Inability to
    scale


    View Slide

13. Changes
    costs fortune


    View Slide

14. Make it
    wisely
    with Symfony2


    View Slide

15. Most popular
    framework in the
    PHP ecosystem


    View Slide

16. Source: GitHub symfony/symfony, 26.XI.2013


    View Slide

17. Built on top of
    best design patterns


    View Slide

18. Universal rules
    to get system's
    design better


    View Slide

19. Rule #1:
    SOLID


    View Slide

20. ingle responsibility principle
    S
    O
    L
    I
    D
    pen/closed principle
    iskov substitution principle
    nterface segregation principle
    ependency inversion principle


    View Slide

21. Each service should have
    exactly one
    purpose


    View Slide

22. Side responsibilities
    should be
    placed in services
    and
    injected as
    dependencies


    View Slide

23. class MailingManager implements MailingManagerInterface
    {
    protected $templateManager;
    public function __construct(TemplateManagerInterface $templateManager)
    {
    $this->templateManager = $templateManager;
    }
    public function createMailing($data, Mailing $mailing)
    {
    $body = $this->templateManager->applyTemplate(
    $mailing->getBody(), $mailing->getTitle());
    $mailing->setBody($body);
    $mailing->setSubject($data['subject']);
    return $mailing;
    }
    }


    View Slide

24. class TemplateManager implements TemplateManagerInterface
    {
    protected $templateContentTag = '{{ content }}';
    protected $templateTitleTag = '{{ title }}';
    public function applyTemplate($body, $title)
    {
    return str_replace(
    array($this->templateContentTag, $this->templateTitleTag),
    array($body, $title),
    $this->getActiveTemplateBody()
    );
    }
    }


    View Slide

25. Services should be
    closed for modification
    but opened for extension


    View Slide

26. Extending system
    should not affect
    current behavior


    View Slide

27. Idea 1.
    inheritance


    View Slide

28. class ComplicatedBusinessLogic
    {
    public function __construct(DependencyOne $depOne,
    DependencyTwo $depTwo, DependencyThree $depThree,
    DependencyFour $depFour)
    {
    $this->depOne = $depOne;
    $this->depTwo = $depTwo;
    $this->depThree = $depThree;
    $this->depFour = $depFour;
    }
    public function performLogic($param1, $param2)
    {
    $partialResult = $this->getPartialResult($param1, $param2);
    // [...] do some really complicated logic
    return $finalResult;
    }
    protected function getPartialResult($param1, $param2)
    {
    // [...] produce partial result
    return $partialResult;
    }
    }


    View Slide

29. class SpecyficBusinessLogic extends ComplicatedBusinessLogic
    {
    protected function getPartialResult($param1, $param2)
    {
    // produce partial result in a specific way
    // to change whole class behavior
    return $partialResultAltered;
    }
    }


    View Slide

30. parameters:
    complicated_business_logic.class: ComplicatedBusinessLogic
    specyfic_business_logic.class: SpecyficBusinessLogic
    services:
    complicated_business_logic:
    class: %complicated_business_logic.class%
    arguments:
    - @dependency.one
    - @dependency.two
    - @dependency.three
    - @dependency.four
    specyfic_business_logic:
    class: %specyfic_business_logic.class%
    parent: complicated_business_logic


    View Slide

31. Idea 2.
    Dependency Injection
    Container
    tags


    View Slide

32. class Calculator
    {
    protected $evaluators;
    public function __construct()
    {
    $this->evaluators = array();
    }
    public function registerEvaluator(EvaluatorInterface $evaluator)
    {
    $this->evaluator[] = $evaluator;
    }
    public function calculate($expression)
    {
    for ($this->evaluators as $evaluator) {
    if ($evaluator->accepts($expression)) {
    return $expression->calculate($expression);
    }
    }
    throw new \RuntimeException('No suitable evaluator here');
    }
    }


    View Slide

33. interface EvaluatorInterface
    {
    public function accepts($expression);
    public function calculate($expression);
    }


    View Slide

34. class PlusEvaluator implements EvaluatorInterface
    {
    public function accepts($expression)
    {
    return strpos($expression, '+') !== false;
    }
    public function calculate($expression)
    {
    // do some calculations
    return $result;
    }
    }


    View Slide

35. class MinusEvaluator implements EvaluatorInterface
    {
    public function accepts($expression)
    {
    return strpos($expression, '-') !== false;
    }
    public function calculate($expression)
    {
    // do some calculations
    return $result;
    }
    }


    View Slide

36. parameters:
    plus_evaluator.class: PlusEvaluator
    minus_evaluator.class: MinusEvaluator
    calculator.class: Calculator
    services:
    calculator:
    class: %calculator.class%
    plus_evaluator:
    class: %plus_evaluator.class%
    tags:
    - {name: calculator.evaluator}
    minus_evaluator:
    class: %minus_evaluator.class%
    tags:
    - {name: calculator.evaluator}


    View Slide

37. use Symfony\Component\DependencyInjection\ContainerBuilder;
    use Symfony\Component\DependencyInjection\Compiler\CompilerPassInterface;
    use Symfony\Component\DependencyInjection\Reference;
    class EvaluatorCompilerPass implements CompilerPassInterface
    {
    public function process(ContainerBuilder $container)
    {
    $definition = $container->getDefinition('calculator');
    $svcs = $container->findTaggedServiceIds('calculator.evaluator');
    foreach ($svcs as $id => $attributes) {
    $definition->addMethodCall(
    'registerEvaluator',
    array(new Reference($id))
    );
    }
    }
    }


    View Slide

38. It should be possible to
    replace class with other
    implementation


    View Slide

39. The derived class
    should not change
    parent interface


    View Slide

40. ##############
    # services.yml
    ##############
    parameters:
    webservice_consumer.class: Wowo\Webservice\Consumer
    webservice_api_client.class: Wowo\Webservice\ApiClient
    services:
    webservice_consumer:
    class: %webservice_consumer.class%
    arguments:
    - @webservice_api_client
    webservice_api_client:
    class: %webservice_api_client.class%
    ################
    # config_dev.yml
    ################
    parameters:
    webservice_api_client: Wowo\Mocks\FakeDataMockProvider


    View Slide

41. Interfaces should be
    fine grained


    View Slide

42. Many specific interfaces
    are better than one
    general­purpose


    View Slide

43. interface PlaceholderProcessorInterface
    {
    public function process($object, $body);
    }
    interface TemplateManagerInterface
    {
    public function setAvailableTemplates(array $templates);
    public function getAvailableTemplates();
    public function applyTemplate($body, $title);
    }
    interface MediaManagerInterface
    {
    public function embed($body, \Swift_Message $message);
    public function getRegex($name);
    }
    interface BuilderInterface
    {
    public function buildMessage($mailingId, $contactId, $contactClass);
    }
    interface SenderInterface
    {
    public function send($mailingId, $contactId, $contactClass);
    }


    View Slide

44. Application should be
    decoupled into modules
    which depend upon
    abstractions


    View Slide

45. Do not depend
    upon concretions


    View Slide

46. Type­hint methods
    with interfaces and
    abstract classes


    View Slide

47. Rule #2:
    Testability


    View Slide

48. Automated testing
    is a must have!


    View Slide

49. Unit testing is
    quite easy
    if architecture is SOLID


    View Slide

50. Only testing in
    isolation
    makes sens!


    View Slide

51. class WebserviceConsumer
    {
    protected $client;
    protected $logger
    public function __construct(WebserviceApiClient $client, Logger $logger)
    {
    $this->client = $client;
    $this->logger = $logger;
    }
    public function getUser($name)
    {
    try {
    $this->logger->info(sprintf('Attempting get user %s', $name));
    $user = $this->client->callGetUserDataFunction($name);
    // do something with data
    // wrap into suitable class
    // or transform it somehow
    $this->logger->info(sprintf('Got user data for %s', $name),
    array('user' => $user));
    return $user;
    } catch (\Exception $e) {
    $this->logger->error(sprintf('%s occured while getting user: %s',
    get_class($e), $e->getMessage), array('exception' => $e));
    throw new WebserviceException('GetUser error' , 0, $e);
    }
    }
    }


    View Slide

52. class WebserviceTest extends \PHPUnit_Framework_TestCase
    {
    public function tearDown()
    {
    \Mockery::close();
    }
    public function testSuccessfulGetUser()
    {
    $testData = array('name' => 'Wojciech', 'company' => 'Xsolve');
    $clientMock = \Mockery::mock('WebserviceApiClient');
    $clientMock
    ->shouldReceive('callGetUserDataFunction')
    ->times(1)
    ->andReturn($testData);
    $loggerMock = \Mockery::mock('\Monolog\Logger')
    ->shouldReceive('info')
    ->times(2);
    $consumer = new WebserviceApiClient($clientMock, $loggerMock);
    $this->assertEquals($testData, $consumer->getUser('Wojciech'));
    }
    }


    View Slide

53. class WebserviceTest extends \PHPUnit_Framework_TestCase
    {
    public function tearDown()
    {
    \Mockery::close();
    }
    /** @expectedException WebserviceException */
    public function testFailuerWhileGettingUser()
    {
    $clientMock = \Mockery::mock('WebserviceApiClient');
    $clientMock
    ->shouldReceive('callGetUserDataFunction')
    ->times(1)
    ->andThrow('\RuntimeException');
    $loggerMock = \Mockery::mock('\Monolog\Logger')
    ->shouldReceive('info')
    ->times(1);
    $loggerMock
    ->shouldReceive('error')
    ->times(1);
    $consumer = new WebserviceApiClient($clientMock, $loggerMock);
    }
    }


    View Slide

54. Rule #3:
    Scalability


    View Slide

55. Forget about
    local disk!


    View Slide

56. Keep sessions in
    global storage
    (memcached?)


    View Slide

57. Store users' files
    global storage
    (S3/CDN?)


    View Slide

58. Write logs to
    central logger
    like syslogd ...


    View Slide

59. … or logstash
    using GELF protocol
    supported by Monolog


    View Slide

60. Scale your DB with
    master/slave connections
    supported by Doctrine


    View Slide

61. Wise
    architecture
    Ingredients
    (summary)


    View Slide

62. Design based on
    SOLID principles


    View Slide

63. Code covered with
    automatic tests


    View Slide

64. Testable and
    verbose (logging)
    application


    View Slide

65. Ready to
    scale horizontally


    View Slide

66. Dziękuję!


    View Slide

67. We are hiring!


    View Slide

68. Wojciech Sznapka
    wojciech@sznapka.pl
    blog.sznapka.pl
    @sznapka
    @wowo


    View Slide
