  1. © 2015 MapR Technologies ‹#›
    © 2016 MapR Technologies
    Tugdual Grall
    Technical Evangelist
    @tgrall

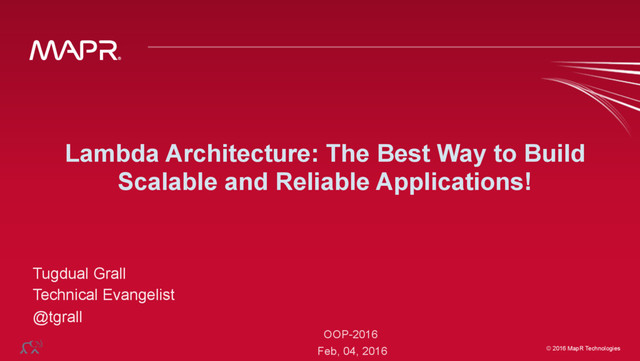

    Lambda Architecture: The Best Way to Build
    Scalable and Reliable Applications!
    OOP-2016
    Feb, 04, 2016

    View Slide

  2. © 2016 MapR Technologies ‹#›
    @tgrall
    {“about” : “me”}
    Tugdual “Tug” Grall
    • MapR
    • Technical Evangelist
    • MongoDB
    • Technical Evangelist
    • Couchbase
    • Technical Evangelist
    • eXo
    • CTO
    • Oracle
    • Developer/Product Manager
    • Mainly Java/SOA
    • Developer in consulting firms
    • Web
    • @tgrall
    • http://tgrall.github.io
    • tgrall

    • NantesJUG co-founder

    • Pet Project :
    • http://www.resultri.com
    [email protected]
    [email protected]

    View Slide

  3. © 2016 MapR Technologies
    @tgrall 3
    Big Data & Hadoop
    In Production

    View Slide

  4. © 2016 MapR Technologies 4
    Data Warehouse Optimization

    View Slide

  5. © 2016 MapR Technologies 5
    Data Hub
    Choose the best “connector”:
    • File
    • Sqoop
    • ETL
    • …
    Use the aggregated data
    • In your applications
    • To update other systems
    • as an Open Data API
    • …
    Customer DB
    Customer DB
    Logs

    Hadoop
    NoSQL

    View Slide

  6. © 2016 MapR Technologies 6
    Financial Services
    Fraud detection Personalized
    offers
    Fraud
    investigation tool
    Fraud investigator
    Fraud model
    Recommendations
    table
    Clickstream
    analysis
    Online
    transactions
    MapR Distribution for Hadoop
    Analytics
    Real-time Operational Applications
    Interactive marketer

    View Slide

  7. © 2016 MapR Technologies
    @tgrall 7
    Fault Tolerance

    View Slide

  8. © 2016 MapR Technologies 8
    Fault Tolerance
    hardware
    software
    developer
    ?

    View Slide

  9. © 2016 MapR Technologies 9
    Human fault tolerance

    View Slide

  10. © 2014 MapR Technologies 10

    View Slide

  11. © 2014 MapR Technologies 11

    View Slide

  12. © 2014 MapR Technologies 12

    View Slide

  13. © 2016 MapR Technologies
    @tgrall 13
    Lambda Architecture
    To the rescue
    λ

    View Slide

  14. © 2016 MapR Technologies 14
    A little bit of history….
    • Defined by Nathan Marz
    • ex BackType, Twitter
    • in a new Startup
    • Creator of …
    – Storm
    – Cascalog
    – ElephantDB

    View Slide

  15. © 2016 MapR Technologies 15
    Lambda Architecture Requirements
    • Fault-tolerant against both hardware failures & human errors
    • Support variety of use cases that include low latency querying
    as well as updates
    • Linear scale-out capabilities
    • Extensible, so that the system is manageable and can
    accommodate newer features easily

    View Slide

  16. © 2016 MapR Technologies 16

    View Slide

  17. © 2016 MapR Technologies 17
    Lambda Architecture
    NEW DATA

    STREAM QUERY
    BATCH VIEWS

    View 1 View 2 View N
    REAL-TIME VIEWS
    BATCH LAYER
    SERVINGLAYER
    SPEED LAYER
    MERGE
    IMMUTABLE
    MASTER DATA
    PRECOMPUTE
    VIEWS
    BATCH
    RECOMPUTE
    PROCESS
    STREAM
    INCREMENT
    VIEWS
    View 1 View 2 View N

    View Slide

  18. © 2016 MapR Technologies 18
    Data Ingestion
    All data entering the system are dispatched to both
    • the batch layer
    • the speed layer
    NEW DATA

    STREAM
    BATCH LAYER
    SPEED LAYER

    View Slide

  19. © 2016 MapR Technologies
    Batch Layer
    • managing the master dataset, an immutable, append-only set of raw data
    • pre-computing arbitrary query functions, called batch views.
    BATCH VIEWS
    BATCH LAYER
    IMMUTABLE
    MASTER DATA
    PRECOMPUTE
    VIEWS
    BATCH
    RECOMPUTE
    View 1 View 2 View N

    View Slide

  20. © 2016 MapR Technologies 20
    Speed Layer

    View 1 View 2 View N
    REAL-TIME VIEWS
    SPEED LAYER
    PROCESS
    STREAM
    INCREMENT
    VIEWS
    • Speed layer accommodates low latency requests that are subject to
    low latency requirements.
    • Using fast and incremental algorithms, deals with recent data
    only

    View Slide

  21. © 2016 MapR Technologies 21
    Serving Layer
    QUERY
    BATCH VIEWS

    View 1 View 2 View N
    REAL-TIME VIEWS
    SERVINGLAYER
    MERGE
    View 1 View 2 View N
    • Serving layer indexes batch views so that they can be
    queried in ad hoc with low latency

    View Slide

  22. © 2014 MapR Technologies 22
    Lambda Architecture—Compensate Batch
    time
    not absorbed
    now

    View Slide

  23. © 2016 MapR Technologies 23
    Lambda Architecture—Immutable Data + Views
    http://openflights.org

    View Slide

  24. © 2016 MapR Technologies 24
    Lambda Architecture—Immutable Data + Views
    timestamp airport flight action
    2016-02-04T10:00:00 MUC EY123 take-off
    2016-02-04T10:05:00 BRU SAS45 take-off
    2016-02-04T10:07:00 AMS BA99 take-off
    2016-02-04T10:09:00 LHR LH17 landing
    2016-02-04T10:10:00 CDG AF03 landing
    2016-02-04T10:10:00 FCO AZ501 take-off
    immutable master dataset

    View Slide

  25. © 2016 MapR Technologies 25
    Lambda Architecture—Immutable Data + Views
    timestamp airport flight action
    2016-02-04T10:00:00 MUC EY123 take-off
    2016-02-04T10:05:00 BRU SAS45 take-off
    2016-02-04T10:07:00 AMS BA99 take-off
    2016-02-04T10:09:00 LHR LH17 landing
    2016-02-04T10:10:00 CDG AF03 landing
    2016-02-04T10:10:00 FCO AZ501 take-off
    air-borne: 2307
    airline planes
    AF 59
    AZ 23
    BA 167
    EY 19
    LH 201
    SAS 28
    air-borne per airline:
    airport planes
    AMS 69
    CDG 44
    BRU 31
    FCO 10
    HEL 17
    LHR 101
    airport load:

    View Slide

  26. © 2016 MapR Technologies
    @tgrall 26
    Implementation

    View Slide

  27. © 2016 MapR Technologies 27
    Lambda Architecture
    NEW DATA

    STREAM QUERY
    BATCH VIEWS

    View 1 View 2 View N
    REAL-TIME VIEWS
    BATCH LAYER
    SERVINGLAYER
    SPEED LAYER
    MERGE
    IMMUTABLE
    MASTER DATA
    PRECOMPUTE
    VIEWS
    BATCH
    RECOMPUTE
    PROCESS
    STREAM
    INCREMENT
    VIEWS
    View 1 View 2 View N

    View Slide

  28. © 2016 MapR Technologies 28
    Batch Layer: View Generation
    Master Data
    View 1
    View 2
    Master Data
    Master Data
    Master Data
    Events “Raw” Storage Processing Aggregated Data

    View Slide

  29. © 2016 MapR Technologies 29

    View Slide

  30. © 2016 MapR Technologies 30
    • Cluster Computing Platform
    • Extends “MapReduce” with
    extensions
    – Streaming
    – Interactive Analytics
    • Run in Memory

    View Slide

  31. © 2015 MapR Technologies ‹#›
    @tgrall
    Spark components
    Spark SQL
    Spark Streaming
    (Streaming)
    MLlib
    (Machine Learning)
    Spark Core (General execution engine)
    GraphX
    (Graph Computation)
    Mesos
    Distributed File System (HDFS, MapR-FS, S3, …)
    Hadoop YARN

    View Slide

  32. © 2016 MapR Technologies 32
    Spark Jobs
    Driver Program
    (application)
    sc=new SparkContext
    rDD=sc.textfile(“hdfs://
    …”)
    rDD.map
    Cluster Manager
    Worker
    Executor
    Task Task
    Worker
    Executor
    Task Task

    View Slide

  33. © 2016 MapR Technologies 33
    Spark Resilient Distributed Datasets “RDD”
    Sensor RDD
    W
    Executor
    P4
    W
    Executor
    P1 P3
    W
    Executor
    P2
    sc.textFile P1
    8213034705,
    95, 2.927373,
    jake7870, 0……
    P2
    8213034705,
    115, 2.943484,
    Davidbresler2,
    1….
    P3
    8213034705,
    100, 2.951285,
    gladimacowgirl,
    58…
    P4
    8213034705,
    117, 2.998947,
    daysrus, 95….

    View Slide

  34. © 2016 MapR Technologies 34
    Spark Resilient Distributed Datasets
    Transformation
    Filter()
    Action
    Count()
    RDD
    newRDD
    Value

    View Slide

  35. © 2015 MapR Technologies
    @tgrall
    Transformations
    • Process an RDD, returns an RDD
    • Examples :
    • map() : one value => another value
    • mapToPair() : one value => a tuple
    • filter() : filters values/tuples on a given condition
    • groupByKey() : groups values by key
    • reduceByKey() : aggregates values by key
    • join(), cogroup(), … : joins RDDs

    View Slide

  36. © 2015 MapR Technologies
    @tgrall
    Actions
    • Process an RDD, returns a value
    • Examples :
    • count() : counts number of items in dataset
    • first() : returns first entry
    • take(n) : returns array of the n first elements
    • foreach() : applies a function on each element
    • collect() : returns all elements
    • saveAsTextFile() : saves in files each element

    View Slide

  37. © 2016 MapR Technologies 37
    Speed Layer
    Real Time View1
    Real Time View 2
    Events Processing
    NoSQL

    View Slide

  38. © 2016 MapR Technologies 38
    Serving Layer: Aggregated Data
    • Views are stored in a Read/Write database
    • Apache HBase
    • MapR DB Binary & JSON
    • Cassandra
    • MongoDB
    • Elasticsearch
    • …

    View Slide

  39. © 2016 MapR Technologies 39
    Serving Layer
    Real Time View
    Events Processing Aggregated
    Batch View
    Query - SQL
    Dataviz
    Query/Visualisation
    SQL

    View Slide

  40. © 2016 MapR Technologies
    // Join MapR-DB Table, Parquet and MongoDB collection
    > SELECT u.name, b.category, count(1) nb_review
    FROM mongo.yelp.`user` u , dfs.yelp.`review.parquet` r, (select
    business_id, flatten(categories) category from maprdb.`business` ) b
    WHERE u.user_id = r.user_id
    AND b.business_id = r.business_id
    GROUP BY u.user_id, u.name, b.category
    ORDER BY nb_review DESC
    LIMIT 10;
    +-----------+--------------+------------+
    | name | category | nb_review |
    +-----------+--------------+------------+
    | Rand | Restaurants | 1086 |
    | J | Restaurants | 661 |
    | Aileen | Restaurants | 499 |
    | Michael | Restaurants | 496 |
    +-----------+--------------+------------+
    40

    View Slide

  41. © 2016 MapR Technologies
    @tgrall 41
    Events Capture?

    View Slide

  42. © 2016 MapR Technologies 42
    Events Capture
    Customer DB
    API
    Logs

    Streaming
    Streams
    Files

    View Slide

  43. © 2016 MapR Technologies 43
    What is Spark Streaming?
    • Enables scalable, high-throughput, fault-tolerant stream
    processing of live data
    • Extension of the core Spark
    Data Sources Data Sinks

    View Slide

  44. © 2016 MapR Technologies 44
    Spark Streaming Architecture
    • Divide data stream into batches of X seconds (micro batching)
    • Called DStream = sequence of RDDs
    Spark
    Streaming
    input data
    stream
    DStream RDD batches
    Batch
    interval
    data from
    time 0 to 1
    data from
    time 1 to 2
    RDD @ time 2
    data from
    time 2 to 3
    RDD @ time 3
    RDD @ time 1

    View Slide

  45. © 2016 MapR Technologies 45
    What are Apache Kafka & MapR Streams?
    • Publish Subscribe Messaging
    • Fast
    • Scalable
    • Durable
    • Distributed

    View Slide

  46. © 2016 MapR Technologies
    @tgrall 46
    Summary

    View Slide

  47. © 2016 MapR Technologies 47
    Lambda Architecture
    NEW DATA

    STREAM QUERY
    BATCH VIEWS

    View 1 View 2 View N
    REAL-TIME VIEWS
    BATCH LAYER
    SERVINGLAYER
    SPEED LAYER
    MERGE
    IMMUTABLE
    MASTER DATA
    PRECOMPUTE
    VIEWS
    BATCH
    RECOMPUTE
    PROCESS
    STREAM
    INCREMENT
    VIEWS
    View 1 View 2 View N
    NoSQL
    Distributed
    File System
    NoSQL
    Streams

    View Slide

  48. © 2016 MapR Technologies 48
    Lambda Architecture in Action
    Batch processing

    (MapReduce)
    Tax reduction
    reporting
    Shortest path graph
    algorithm

    (Titan on MapR-DB)
    Route
    optimization
    .
    .
    .
    Geolocation
    Geolocation
    Geolocation
    Geolocation
    Online alerts
    Real-time stream

    View Slide

  49. © 2016 MapR Technologies 49
    Lambda Architecture
    • Fault-tolerant
    • Use batch layer to pre compute complex/large data set queries
    • Use speed layer to deal with “near real time” use cases
    • Linear scale-out capabilities
    • Error Prone:
    • Recompute data from master data set when needed

    View Slide

  50. © 2016 MapR Technologies 50

    View Slide

  51. © 2016 MapR Technologies 51
    Q & A
    @tgrall maprtech
    [email protected]
    Engage with us!
    MapR
    maprtech
    mapr-technologies

    View Slide
