Designing & Building RESTful JSON APIs

This is a talk I gave at Ruby Tuesday (Ottawa's Ruby meetup) on August 26 2014.

To see a recording please go to: http://youtu.be/36M2BSA2LYk
For the code go to: https://github.com/aomra015/api-presentation

Transcript

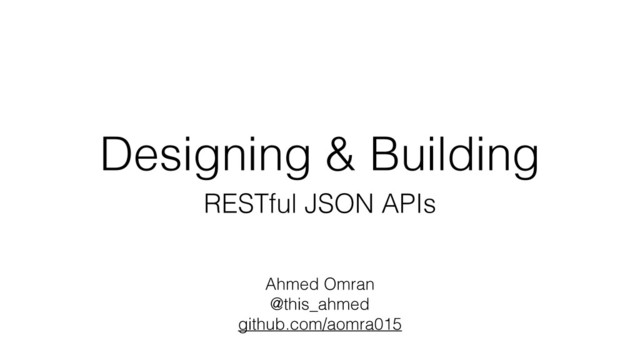

1. Designing & Building
   RESTful JSON APIs
   Ahmed Omran
   @this_ahmed
   github.com/aomra015


   View Slide

2. 1.What is an API and why build one?
   2.How to design & build an API
   3.Misc things to consider


   View Slide

3. User Interface


   View Slide

4. Application Programming Interface


   View Slide

5. API
   “Outside” “Inside”


   View Slide

6. API
   “Outside”
   Server,!
   Device,!
   Software
   library, etc.
   “Inside”


   View Slide

7. API
   “Outside”
   Server
   “Inside”
   Web APIs
   HTTP
   Client


   View Slide

8. Outside
   Client


   View Slide

9. Multiple Clients


   View Slide

10. Multiple Clients


    View Slide

11. Multiple Clients


    View Slide

12. Multiple Clients


    View Slide

13. Multiple Clients


    View Slide

14. Programmer == Customer


    View Slide

15. Goal: happy & productive
    programmer


    View Slide

16. API Happiness
    • Shared Solution (REST)
    • Flexible


    View Slide

17. Shared Solution


    View Slide

18. Shared Solution Uniform


    View Slide

19. Shared Solution Uniform Consistent


    View Slide

20. Shared Solution Uniform Consistent
    Predictable


    View Slide

21. Representational State Transfer
    Shared Solution Uniform Consistent
    Predictable


    View Slide

22. Server
    Client
    Request
    Response


    View Slide

23. Resources
    Client
    API
    Representations
    Server


    View Slide

24. !
    Contact data
    in database
    Client
    !
    !
    API
    Contact Data !
    JSON over HTTP
    for our example…


    View Slide

25. How does client find resource?


    View Slide

26. URL = HTTP, hostname, URI
    e.g. http://www.easycontacts.com/contacts


    View Slide

27. URL = HTTP, hostname, URI
    e.g. http://www.easycontacts.com/contacts
    Uniform
    Resource
    Identifier


    View Slide

28. URL = HTTP, hostname, URI
    e.g. http://www.easycontacts.com/contacts
    Nouns
    identify
    resources


    View Slide

29. collection: /contacts!
    item: /contacts/:id
    Two URIs per resource


    View Slide

30. Building the API
    $ gem install rails-api
    $ rails-api new easycontacts
    It’s rails without the stuff you don’t need…


    View Slide

31. Respond to
    • What: Uniform Resource Identifier (URI)
    • How: HTTP Verb to specify action


    View Slide

32. Rails.application.routes.draw do
    get "/contacts"
    end


    View Slide

33. Rails.application.routes.draw do
    get "/contacts"
    end
    URIs
    HTTP
    Verb


    View Slide

34. Rails.application.routes.draw do
    get "/contacts"
    get "/contacts/:id"
    end
    Read
    Read


    View Slide

35. Rails.application.routes.draw do
    get "/contacts"
    post "/contacts"
    get "/contacts/:id"
    end
    Read
    Read
    Create


    View Slide

36. Rails.application.routes.draw do
    get "/contacts"
    post "/contacts"
    get "/contacts/:id"
    put "/contacts/:id"
    end
    Read
    Read
    Create
    Update


    View Slide

37. Rails.application.routes.draw do
    get "/contacts"
    post "/contacts"
    get "/contacts/:id"
    put "/contacts/:id"
    delete "/contacts/:id"
    end
    Read
    Read
    Create
    Update
    Delete


    View Slide

38. Response =
    Status Code + JSON


    View Slide

39. JSON


    View Slide

40. Rails.application.routes.draw do
    namespace :api, :defaults => {:format => :json} do
    get "/contacts"
    post "/contacts"
    get "/contacts/:id"
    put "/contacts/:id"
    delete "/contacts/:id"
    end
    end


    View Slide

41. Rails.application.routes.draw do
    namespace :api, :defaults => {:format => :json} do
    get "/contacts"
    post "/contacts"
    get "/contacts/:id"
    put "/contacts/:id"
    delete "/contacts/:id"
    end
    end
    /api/URI


    View Slide

42. Rails.application.routes.draw do
    namespace :api, :defaults => {:format => :json} do
    get "/contacts", to: "contacts#index"
    post "/contacts", to: "contacts#create"
    get "/contacts/:id", to: "contacts#show"
    put "/contacts/:id", to: "contacts#update"
    delete "/contacts/:id", to: "contacts#destroy"
    end
    end


    View Slide

43. JSON Response Formatting
    gem “active_model_serializers”
    !
    Implementation of JSON-API.org standard


    View Slide

44. Response =
    Status Code + JSON


    View Slide

45. Status Codes
    • 200, Ok => Successful GET
    • 204, No Content => Successful DELETE or PUT
    • 201, Created => Successful POST
    • 422, Unprocessable Entity => Well formed request but there’s a
    semantic error. i.e. problem creating or updating a resource.
    • 401, Unauthorized => Authentication credentials missing or
    incorrect


    View Slide

46. Respond with JSON & Status Code
    class ContactsController < ApplicationController
    def index
    @contacts = Contact.all
    render json: @contacts, status: :ok
    end
    end
    200


    View Slide

47. class ContactsController < ApplicationController
    def show
    render json: @contact
    end
    end
    200


    View Slide

48. class ContactsController < ApplicationController
    def destroy
    @contact.destroy
    !
    head :no_content
    end
    end
    204


    View Slide

49. class ContactsController < ApplicationController
    def update
    if @contact.update(contact_params)
    head :no_content
    else
    render json: @contact.errors, status: :unprocessable_entity
    end
    end
    end
    204
    422


    View Slide

50. def create
    @contact = Contact.new(params[:contact])
    !
    if @contact.save
    render json: @contact, status: :created
    else
    render json: @contact.errors, status: :unprocessable_entity
    end
    end
    201
    422


    View Slide

51. def create
    @contact = Contact.new(params[:contact])
    !
    if @contact.save
    render json: @contact, status: :created
    else
    render json: @contact.errors, status: :unprocessable_entity
    end
    end
    Verbose errors
    Tell
    client
    what
    went wrong


    View Slide

52. Verbose Errors


    View Slide

53. Consume APIs w/ REST Clients
    • Front-end: ngResource, Ember Data
    • Gems: ActiveResource, Rest-Client


    View Slide

54. Flexible
    sweep complexity in the query string


    View Slide

55. Flexible
    /contacts?key1=value1&key2=value2


    View Slide

56. Filtering
    /contacts?relationship=friend


    View Slide

57. Sorting
    /contacts?order=created_at:desc


    View Slide

58. Search
    /contacts?q=ahmed


    View Slide

59. Pagination
    /contacts?limit=25&offset=50
    gem 'kaminari'


    View Slide

60. Side-load Associated
    Resources
    /contacts/25?include=notes


    View Slide

61. Misc.


    View Slide

62. Non-resource responses
    • /calculate, /translate, /convert ??
    • use verbs & make it clear in API docs
    • or POST /calculations, /translations, /conversions


    View Slide

63. Use HTTPS.
    # config/environments/production.rb
    MyApp::Application.configure do
    config.force_ssl = true
    end


    View Slide

64. Versioning
    Rails.application.routes.draw do
    namespace :api, :defaults => {:format => :json} do
    namespace :v1 do
    … routes …
    end
    end
    end


    View Slide

65. Caching
    Set etag and last_modified response Headers


    View Slide

66. Caching
    Set etag and last_modified response Headers
    When
    was the
    resource
    Last-
    Modified?


    View Slide

67. Caching
    Set etag and last_modified response Headers
    Identifies
    a specific
    version of a
    resource


    View Slide

68. Caching
    If both haven’t changed — 304 Not Modified


    View Slide

69. class ContactsController < ApplicationController
    def show
    render json: @contact if stale?(@contact)
    end
    end


    View Slide

70. gzip compression
    class Application < Rails::Application
    config.middleware.use Rack::Deflater
    end


    View Slide

71. CORS
    Same-Origin Policy Problem
    gem 'rack-cors'


    View Slide

72. Authentication
    • Basic (username & password)
    • Token (Api Key)
    • OAuth (like Valet key)


    View Slide

73. Documentation
    gem ‘rspec_api_documentation’
    gem 'apipie-rails'


    View Slide

74. Test your APIs …
    • Command line: cURL or httpie
    • Browser: Postman, JSON-formatter
    • RSpec: Request Specs
    • Rails Minitest: Integration tests


    View Slide

75. Thank you!
    Ahmed Omran
    @this_ahmed
    https://github.com/aomra015/api-presentation


    View Slide
