Sharding Weather - Practical examples with big data and ElasticSearch

The key challenge of processing weather data are “simply” the big numbers: Multiple numeric weather models with about 250GB of data at least twice a day. A year of world wide observation data. Satellite and radar images every 5 minutes. How to store the data efficiently? And how to query and lighting fast process the weather parameters? This talk gives you insights on one of the “oldest” big data domains in the industry.

You will learn how they worked around these problems in the old days and how new solutions based on sharding and NoSQL offer. We will present practical results from our in-depth PoC’s. You get to know the borders of Elastic Search, options on sharding and how to measure the different setups.

Transcript

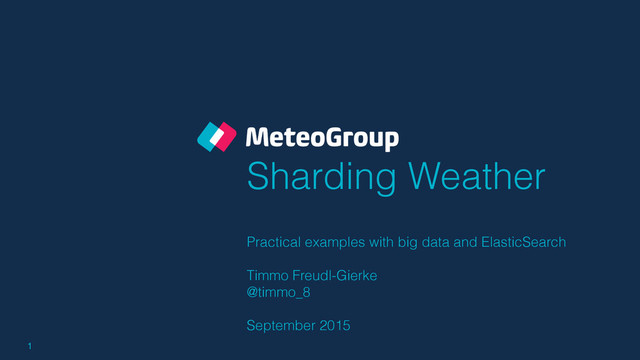

1. 1 Sharding Weather
 Practical examples with big data and ElasticSearch Timmo Freudl-Gierke
 @timmo_8 September 2015
2. Agenda • Value Chains of a private Weather Company • Weather in numbers • How to forecast weather • Sharding Weather • Elastic Search PoC Measurements • Lessons Learned • Wrap Up & Prospect 2
3. Value Chain of a private Weather Company 3
4. Empowering the world to master the weather 4
5. 5 WeatherPro, AlertsPro, RainToday, MeteoEarth
8. Storm Chaser 8
13. Skyview (Live Demo) 13
14. Sky View 14
15. Weather in numbers 15
16. John von Neumann One of the designers of the electronic computer and a participant in the production of the first numerical weather prediction (forecast). 16
17. European Centre for Medium- Range Weather Forecasts 17
18. Numeric Weather Prediction Models 18
19. ECMWF Model 19 Issues per Day 2 Forecast Periods 57 Resolution (horizontal) N640 => 0.25° x 0.25° => ~16 km Resolution (Grid Points) 2140702 Elevation Levels 10 Attributes 124 Volumen per day (GB) 1127,31
20. 5 models from different providers 20
21. Observations • WMO Weather Stations • 10k surface • 1k upper-air • 7k ships • 1k drifting buoys • 3k aircrafts • MeteoGroup Measurement Network • 1.5k Stations • Radar • Satellite 21
22. Opened last week 22
23. How to forecast weather 23
24. Today 24
25. Gridded Forecast Model 25 Horizontal Grid (Latitude / Longitude) Vertical Grid (Height or Pressure)
26. 26 Forecast Periods
27. 27 + => High Quality Weather Station Forecast Statistical Correction of Numeric Forecast
28. Challenges with Mobile Clients 28
29. Sunglasses or Umbrella? 29
30. 30 Weather Station Smart Phone User
31. 31 Tomorrow
32. Demand • High resolution • Hyper Local • On Demand 32
33. Why not just doing it? • New Meteorological “Magic” necessary • “Modern” Technologies required • Turning everything upside down 33
34. A little bit of Meteorological Magic 34
35. Compute on 50+ Grid Points 35
36. 36 Topography
37. 37 Land Usage Affects http://overpass-turbo.eu
38. Technology Magic: On the fly calculation! 38
39. 39 Model Station Observations Magic Station Forecast Forecast
 User Pre-Processing Model Magic Forecast
 User On-the-Fly
40. Sharding Weather 40
41. Sharding 41 Sharding is the equivalent of "horizontal partitioning".
 When you shard a database, you create replica's of the schema, and then divide what data is stored in each shard based on a shard key. https://www.quora.com/Whats-the-difference-between-sharding-and-partition
42. Linear Scalability 42 “Serve N times more requests just by
 adding N times more nodes.”
43. Weather Dimensions 43
44. Weather Dimensions 44 Weather Param Location Time
45. 45 Location
46. 46 Sharding Node
47. 47 Sharding Key = geohash
48. 48 Time
49. 49 Sharding Key = Forecast Period
50. 50 Weather Param
51. 51 Sharding Node Sharding Node Sharding Node Sharding Node Sharding Node temperature duepoint windspeed probability of rain … Sharding Key = weather parameter (name/id)
52. Elastic Search PoC Measurements 52
53. Elastic Search • NoSQL Database • search and analytics engine • designed for horizontal scalability • developer-friendly query language • structured, unstructured, and time-series data 53
54. Measurement Use Cases 54
55. 55 Use Case 1:
 Request Weather Forecast
56. 56 Use Case 2: Ingest Weather Forecast Model
57. PoC Architecture Physical Deployment View Elastic Search Node JMeter JMeter 57 Computation Service Elastic Search Node Computation Service Elastic Search Node Elastic Search Node Elastic Search Node JMeter Load Balancer Computation Service 13x 3x 3x
58. Cluster Setup • JMeter • 1 master: c4.4xlarge • 2 worker: c4.4xlarge • Docker • Elastic Load Balancer • Computation Service • 3 nodes t2.micro • Spring Boot • Docker • ElasticSearch cluster: • 3 master nodes: m4.xlarge • 10 data nodes: c4.4xlarge • Monthly cost: ~4,000 USD 58
59. Iterative Optimisation 59 Measure Analyse Results Find & Remove Bottleneck Redeploy
60. Default Sharding 60 # Documents Doc Size (B) AVG latency
 (ms) Throughput
 (req/s) CPU 1.000.000.000 470 298 263 350% • shard on artificial ID • Document contains • lat / lon • one forecast period • one elevation levels • one weather parameter
61. Default Sharding 61 Computation Service lat/lon+time get n surrounding
 grid points • documents are equally distributed • n nodes must deliver data
62. Shard on Weather Parameter • Sharding Key = weather parameter (name/id) • 120 different parameter • Dependencies between parameter • Multiple parameter necessary to compute the “present weather” • Number of parameter required for computation
 equals number of shards to deliver data 62
63. Sharding on Geo Location 63 • Sharding Key = Geohash • 470B Documents • 34 Shards • One node touched # Documents Requests/s AVG latency
 (ms) Throughput
 (req/s) 48.629.840 2000 26 619 48.629.840 8000 67 1114 Elastic Search does not support sharding on geo location. Custom hash function necessary.
64. Sharding on Forecast Period 64 • Sharding Key =
 Forecast Period • 470B Documents • 100 Shards • One to 3 nodes touched # Documents Marvel Requests/s AVG latency
 (ms) Throughput
 (req/s) 48.629.840 ON 8000 28 2610 1.055.126.000 ON 8000 111 683 1.055.126.000 OFF 8000 80 960
65. How long does the ingestion process take? 65
66. Ingestion Numbers • 1:15 hours to download all chunks • Max need today: 71k documents / second • Shard Key =
 Forecast Period 66 # Documents # Params # Elev. AVG
 (documents/sec) 211.025.200 10 2 ~400k/s 1.055.126.000 50 10 ~67k/s
67. Lessons Learned 67
68. Know your domain. This is key for sharding. 68
69. Elastic Search will do the Job • transport client -> node client • dedicated master node • custom geo-hash function 69
70. AWS & Infrastructure • Infrastructure as code! • Enables faster re-configuration & re-deployments • 124 scripts at the end • Embedded (Senior) Operator / DBA is key • Fast deployment pipeline is key
 for fast evolution of PoC 70
71. Meteorological Research together with Technology • Sandbox vs production ready code • Development Approach
 (e.g. TDD, Pair Programming) • DevOps => MetDev 71
72. Team Vibes 72 Measure Analyse Results Remove Bottleneck Redeploy
73. Wrap Up & Prospect • Insights of a domain which affects everyone • Forecast in 200 ms for arbitrary global position • Future • Derived Values • Market specific forecasts • IoT (cars, mobiles, …) • Crowd sourcing 73
