Finite Automata and Regular Languages

Transcript

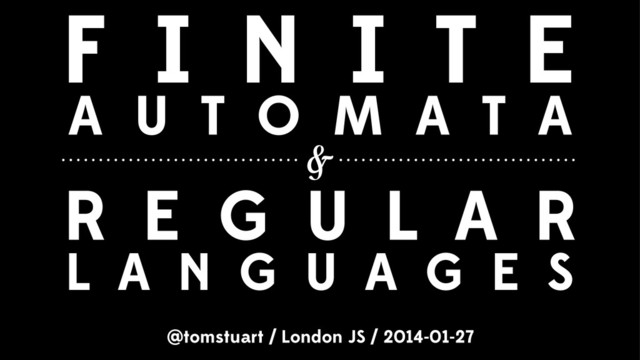

1. F I N I T E
   &
   R E G U L A R
   A U T O M A T A
   L A N G U A G E S
   @tomstuart / London JS / 2014-01-27


   View Slide

2. deterministic finite automata
   nondeterministic finite automata
   regular languages
   regular expressions


   View Slide

3. DETERMINISTIC
   FINITE AUTOMATA


   View Slide

4. a little imaginary machine
   with several possible states


   View Slide

5. 1 2 3


   View Slide

6. always has a current state


   View Slide

7. 1 2 3
   1


   View Slide

8. changes state when it reads input


   View Slide

9. ,
   1 2 3
   1 a b
   b a a b


   View Slide

10. 1 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    1


    View Slide

11. 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    2
    1


    View Slide

12. 1 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    2


    View Slide

13. 1 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3
    2


    View Slide

14. 1 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3


    View Slide

15. 1 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3


    View Slide

16. 1 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3
    2


    View Slide

17. some states are "accept states"


    View Slide

18. ,
    1 2 3
    1 a b
    b a a b


    View Slide

19. 1 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    1


    View Slide

20. 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    2
    1


    View Slide

21. 1 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    2


    View Slide

22. 1 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3
    2


    View Slide

23. 1 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3


    View Slide

24. 1 2 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3


    View Slide

25. 1 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3
    2


    View Slide

26. "accepts" or "rejects" a string


    View Slide

27. 1 3
    a b
    b ,
    a a b
    a
    b bb
    aa
    3
    2
    ✔


    View Slide

28. ,
    1 2 3
    1 a b
    b a a b


    View Slide

29. a
    a
    1 2 3
    a b
    b ,
    a a b
    b b
    bb
    1


    View Slide

30. a
    a
    1 2 3
    1 a b
    ,
    a a b
    b b
    bb
    b


    View Slide

31. a
    a
    1 2 3
    1 a b
    ,
    a a b
    b b
    bb
    b


    View Slide

32. a
    a
    1 2 3
    1 a b
    ,
    a a b
    b b
    bb
    b


    View Slide

33. a
    a
    1 2 3
    a b
    b ,
    a a b
    b b
    bb
    2


    View Slide

34. a
    a
    1 2 3
    a b
    b ,
    a a b
    b b
    bb
    2


    View Slide

35. a
    a
    1 2 3
    a b
    b ,
    a a b
    b b
    bb
    2


    View Slide

36. a
    a
    1 2 3
    a b
    b ,
    a a b
    b b
    bb ✘
    2


    View Slide

37. bbbbaa
    baabba ✔ ✘
    ab
    baba
    aaaab
    a
    baaaa
    b
    bbbbbb
    abbbb
    bbbbab bba
    ✔
    ✔
    ✔
    ✔
    ✔
    ✘
    ✘
    ✘
    ✘
    ✘


    View Slide

38. 1 2 3
    a b
    b ,
    a a b
    1


    View Slide

39. 1 2 3
    a b
    b ,
    a a b
    2


    View Slide

40. 1 2 3
    a b
    b ,
    a a b
    3


    View Slide

41. 1 2 3
    a b
    b ,
    a a b
    accepts strings containing "ab"


    View Slide

42. NONDETERMINISTIC
    FINITE AUTOMATA


    View Slide

43. accept strings whose third character is "b"


    View Slide

44. 1 3
    4
    5
    2
    a,b a,b
    a
    b
    a,b
    a,b


    View Slide

45. accept strings whose third-from-last
    character is "b"


    View Slide

46. 1 3 4
    2
    b a,b a,b
    a,b


    View Slide

47. accept strings whose length is
    a multiple of two or three


    View Slide

48. 1 2
    a
    a


    View Slide

49. 1 2
    a
    a
    3
    a


    View Slide

50. 1
    2
    a
    a
    4
    3
    a
    a
    a


    View Slide

51. 4
    5
    6
    a
    a
    a
    1
    2 3
    a
    a


    View Slide

52. nondeterministic finite automata
    can choose between different rules
    and change state without reading input


    View Slide

53. but there's an algorithm to convert
    any nondeterministic finite automaton
    into a deterministic one


    View Slide

54. 1 3 4
    2
    b a,b a,b
    a,b


    View Slide

55. 1
    1,2,4
    1,3,4
    1,3
    b a
    a
    1,2
    1,4
    1,2,3,4
    1,2,3
    b
    a
    b
    a b
    b
    a
    b
    a
    b
    a
    b
    a


    View Slide

56. REGULAR
    LANGUAGES


    View Slide

57. 1 2 3
    a b
    b ,
    a a b


    View Slide

58. bbbbaa
    baabba ✔ ✘
    ab
    baba
    aaaab
    a
    baaaa
    b
    bbbbbb
    abbbb
    bbbbab bba
    ✔
    ✔
    ✔
    ✔
    ✔
    ✘
    ✘
    ✘
    ✘
    ✘


    View Slide

59. baabba
    ab
    baba
    aaaab
    abbbb
    bbbbab
    this is part of the
    language that the
    machine recognises


    View Slide

60. some languages are finite,
    others are infinite


    View Slide

61. these machines
    can only recognise
    regular languages


    View Slide

62. some regular languages:
    • the strings "one", "two" and "three"
    • all strings that contain "ab"
    • all strings whose third character is "b"
    • all strings whose third-from-last character is "b"
    • all strings that start and end with "a"


    View Slide

63. some non-regular languages:
    • all strings that are palindromes
    • all strings that contain equal numbers of "a" and "b"
    characters
    • all strings of brackets that are balanced
    • all strings that are valid JSON
    • all strings that contain equal numbers of "a", "b" and
    "c" characters
    • all strings whose length is prime
    • all strings that contain a halting JavaScript program


    View Slide

64. (
    () ✔ ✘
    (())
    (()(()))
    ()()()()()
    ((
    (()
    )
    (((()))))
    ((((()))))
    (()((()))) (()))()
    ✔
    ✔
    ✔
    ✔
    ✔
    ✘
    ✘
    ✘
    ✘
    ✘


    View Slide

65. 0 2 3
    1
    (
    )
    (
    )
    (
    )


    View Slide

66. REGULAR
    EXPRESSIONS


    View Slide

67. /dog/
    /cat/
    /dogs?/
    /dog|cat/
    /do*g/


    View Slide

68. /a/


    View Slide

69. a


    View Slide

70. /ab/


    View Slide

71. a
    b
    followed by


    View Slide

72. a
    b


    View Slide

73. a b


    View Slide

74. a b
    b
    a


    View Slide

75. a b
    b
    a


    View Slide

76. a b
    b
    a


    View Slide

77. a b
    b
    a


    View Slide

78. a b
    b
    a


    View Slide

79. a b
    b
    a ✔


    View Slide

80. followed by


    View Slide

81. View Slide

82. View Slide

83. /abc/


    View Slide

84. c
    followed by
    a b


    View Slide

85. c
    a b


    View Slide

86. a b c


    View Slide

87. /a|b/


    View Slide

88. a
    b
    or


    View Slide

89. a
    b


    View Slide

90. a
    b
    a


    View Slide

91. a
    b
    a


    View Slide

92. a
    b
    a


    View Slide

93. a
    b
    a


    View Slide

94. a
    b
    a ✔


    View Slide

95. a
    b


    View Slide

96. a
    b
    b


    View Slide

97. a
    b
    b


    View Slide

98. a
    b
    b


    View Slide

99. a
    b
    b


    View Slide

100. a
     b
     b ✔


     View Slide

101. or


     View Slide

102. View Slide

103. /a*/


     View Slide

104. a
     zero or more times


     View Slide

105. a


     View Slide

106. zero or more times


     View Slide

107. View Slide

108. /(a(b|c))*/


     View Slide

109. /(a(b|c))*/


     View Slide

110. b
     c
     or


     View Slide

111. b
     c


     View Slide

112. /(a(b|c))*/


     View Slide

113. a
     followed by
     c
     b


     View Slide

114. a
     c
     b


     View Slide

115. /(a(b|c))*/


     View Slide

116. zero or more times
     a
     c
     b


     View Slide

117. a
     c
     b


     View Slide

118. b
     a
     c
     b
     a a ac
     b


     View Slide

119. b
     a
     c
     b
     a a ac
     b


     View Slide

120. b
     a
     c
     b
     a a ac
     b


     View Slide

121. b
     a
     c
     b
     a a ac
     b


     View Slide

122. b
     a
     c
     b
     a a ac
     b


     View Slide

123. b
     a
     c
     b
     a a ac
     b


     View Slide

124. b
     a
     c
     b
     a a ac
     b


     View Slide

125. b
     a
     c
     b
     a a ac
     b


     View Slide

126. b
     a
     c
     b
     a a ac
     b


     View Slide

127. b
     a
     c
     b
     a a ac
     b


     View Slide

128. b
     a
     c
     b
     a a ac
     b


     View Slide

129. b
     a
     c
     b
     a a ac
     b


     View Slide

130. b
     a
     c
     b
     a a ac
     b


     View Slide

131. b
     a
     c
     b
     a a ac
     b


     View Slide

132. b
     a
     c
     b
     a a ac
     b


     View Slide

133. b
     a
     c
     b
     a a ac
     b


     View Slide

134. b
     a
     c
     b
     a a ac
     b


     View Slide

135. b
     a
     c
     b
     a a ac
     b ✔


     View Slide

136. /a+/ = /aa*/
     /a?/ = /a|/


     View Slide

137. every regular expression can be turned
     into an nondeterministic finite automaton


     View Slide

138. every nondeterministic finite automaton
     can be turned into a regular expression


     View Slide

139. regular expressions are a compact notation
     for nondeterministic finite automata


     View Slide

140. so regular expressions can only
     recognise regular languages


     View Slide

141. View Slide

142. View Slide

143. balanced =
     /
     \A
     (?
     \(
     \g*
     \)
     )
     *
     \z
     /x


     View Slide

144. thank !
     @tomstuart / tom@codon.com / computationbook.com
