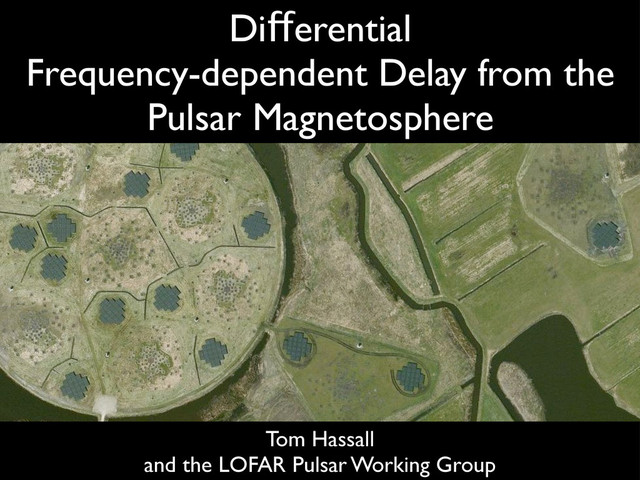

  1. Tom Hassall
    and the LOFAR Pulsar Working Group
    Differential
    Frequency-dependent Delay from the
    Pulsar Magnetosphere

    View Slide

  2. Pulsars
    • Neutron star
    • ...with a very strong
    magnetic field
    • ...which rips particles
    from the surface of the
    star and accelerates them
    • The accelerated charges
    produce a beam of radio
    emission
    • As the star rotates the
    beam sweeps around the
    sky like a lighthouse
    Magnetic Axis
    Open Magnetic
    Field Lines
    Closed Magnetic
    Field Lines
    Radio Beam
    Rotation Axis
    Magneto-
    sphere
    Light Cylinder
    1 1.5 2 2.5 3
    Time (s)
    4e+07
    0
    1e+07
    2e+07
    3e+07
    4e+07
    0 0.5 1 1.5 2 2.5 3
    Relative Amplitude
    Time (s)
    Time

    View Slide

  3. Not to scale!
    Magnetosphere
    Rotation
    axis
    Magnetic
    axis
    Pulsar
    Radio Frequency
    Image credit: Hessels
    Radius-to-Frequency
    Mapping

    View Slide

  4. PSR B0809+74
    Starts
    broad
    Gets
    narrower
    Broadens
    again
    But this
    happens in a
    very smooth
    way
    Looks like one
    component is
    moving and one
    is fixed
    Hassall et al 2012

    View Slide

  5. • Profile evolution cannot be explained by simple RFM
    • What is the pulse profile? Why does it change with
    frequency?
    • Best theory: Birefringence
    • Different propagation modes through the
    magnetosphere
    • Emission all comes from a narrow height range and
    propagation effects cause the profile to change shape
    (Beskin & Philippov 2011)
    • One component is refracted, and one is not
    What is going on?

    View Slide

  6. PSR B0809+74
    • Bright
    • Slow (P ~1.29s)
    • Nearby
    • Lots of interesting features including
    “drifting subpulses”

    View Slide

  7. Drifting Subpulses
    1.5 2 2.5 3
    ime (s)
    1.5 2 2.5 3
    ime (s)
    2 2.5 3
    s)
    2 2.5 3
    s)
    0.5 1 1.5 2 2.5 3
    Time (s)
    0.5 1 1.5 2 2.5 3
    Time (s)
    1 1.5 2 2.5 3
    Time (s)
    1 1.5 2 2.5 3
    Time (s)
    0
    +07
    +07
    +07
    +07
    0 0.5 1 1.5 2 2.5 3
    Time (s)
    0
    +07
    +07
    +07
    +07
    0 0.5 1 1.5 2 2.5 3
    Time (s)
    0.5 1 1.5 2 2.5 3
    Time (s)
    0.5 1 1.5 2 2.5 3
    Time (s)
    P3
    P2

    View Slide

  8. Carousel
    Pulsar
    Spark
    Carousel
    Line-of-sight

    View Slide

  9. Pulsar
    Surface Oscillations
    Line-of-sight

    View Slide

  10. Subpulse Phase Tracks

    View Slide

  11. Phase-step
    Edwards & Stappers 2003
    • This can be explained by the surface
    oscillation model by the presence of a
    “nodal line” (Clemens & Rosen 2004,
    2008; Rosen & Demorest 2011)
    • Area on the NS surface which does
    not move
    • But if this is the case, we expect a
    sudden frequency onset of the phase-
    step
    • It is either in the line-of-sight or it
    isn’t

    View Slide

  12. Different
    Frequencies
    • Gradual onset of the phase-step
    • Surface oscillation model
    predicts a discrete step
    • NOT a nodal line
    • What is it?

    View Slide

  13. Folded
    Pulse Stacks
    • At the lowest frequencies
    there are 2 separate sets
    of driftbands
    • One stays in the same
    position
    • The other moves relative
    to it
    • At ~300MHz they overlap

    View Slide

  14. Interesting
    Consequences...
    • Centroid of the moving
    driftband suffers a
    ~30-pulse delay
    • Overlapping region is
    where supulse phase
    step occurs
    • This could be linked
    narrow-band pulses
    (see Vlad’s talk)

    View Slide

  15. Conclusions
    • Subpulse phase-step and asymmetric profile
    evolution can be explained by two
    driftbands which suffer differential
    frequency-dependent delay
    • BUT what causes this?
    • Is B0809+74 a special case?

    View Slide

  16. Cycle 0 Proposal
    • Observe 14 pulsars which exhibit similar features
    • Study their single pulse properties
    • Polarisation data
    - New information
    • New 8-bit mode
    - Double the bandwidth
    • Coherent sum of the 40 core stations
    - 3x sensitivity

    View Slide



  17. Is this slide still necessary Rene?

    View Slide
