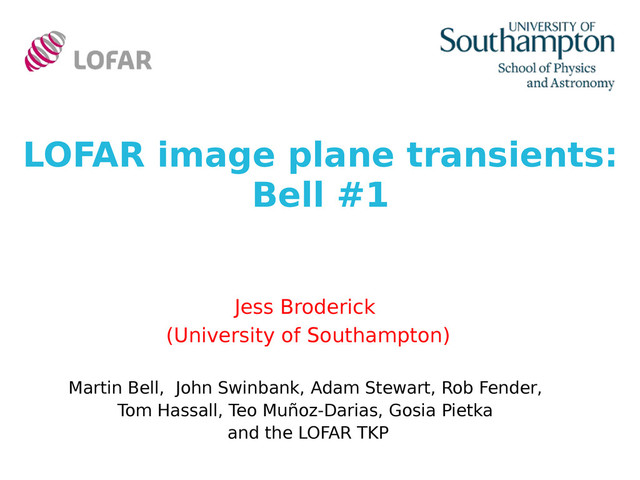

1. LOFAR image plane transients:
   Bell #1
   Jess Broderick
   (University of Southampton)
   Martin Bell, John Swinbank, Adam Stewart, Rob Fender,
   Tom Hassall, Teo Muñoz-Darias, Gosia Pietka
   and the LOFAR TKP


   View Slide

2. We have repeatedly
   observed a field
   centred on PSR
   B0329+54:
   ~20 deg2 in HBA.
   Bright (~200 mJy)
   source varying by
   factor ≥ 10
   Not present in
   previous radio
   surveys (nor in
   some other radio
   observations we've
   made)
   Broderick et al.
   Zenith field transient: ILT J0320.3+5512
   casapy averaged image, σ ~3 mJy/beam, resolution ~ a few arcmin


   View Slide

3. Observations and data reduction
   * 22 observations from 2010 April to 2012 May
   * HBA_ZERO or HBA_DUAL (avg. frequency ~140-160 MHz)
   * Compress in time and frequency
   * Remove baselines > 6 km
   * Make 24 'band' measurement sets (10 sub-bands at a time)
   * Calibrate using a VLSS/WENSS/NVSS sky model (gsm.py)
   * Combine the band measurement sets into 3 larger ones
   (i.e. 8 bands at a time)
   * Image the 3 bands with AWimager using baselines < 4 km
   * Average images after convolving to a common (worst) resolution
   (~80-150 arcsec)


   View Slide

4. Stewart
   2010
   rms ~25-40 mJy/beam
   2012
   rms ~4 mJy/beam


   View Slide

5. Bell #1 light curve


   View Slide

6. What is this object?
   Large network of multiwavelength (radio, IR, optical, X-ray,
   γ-ray, GW) partner facilities.
   Multiple optical observations made, also X-ray upper limits
   from RXTE ASM and MAXI
   No optical counterpart to (stacked) m ~23.5. No bright X-ray
   counterpart.
   These limits rule out: accreting binary
   (CV, X-ray binary), AGN
   What is left? Some flavour of neutron star?
   Most extreme combination of coherent
   emission and lack of strong thermal emission
   How many? Rate naively implies 1000s
   such objects around the sky that should be
   easily detected by LOFAR


   View Slide

7. What is this object?
   Large network of multiwavelength (radio, IR, optical, X-ray,
   γ-ray, GW) partner facilities.
   Multiple optical observations made, also X-ray upper limits
   from RXTE ASM and MAXI
   No optical counterpart to (stacked) m ~22.5. No bright X-ray
   counterpart.
   These limits rule out: accreting binary
   (CV, X-ray binary), AGN
   What is left? Some flavour of neutron star?
   Most extreme combination of coherent
   emission and lack of strong thermal emission
   How many? Rate naively implies 1000s
   such objects around the sky that should be
   easily detected by LOFAR
   Liverpool Telescope r'-band


   View Slide

8. What is this object?
   Large network of multiwavelength (radio, IR, optical, X-ray,
   γ-ray, GW) partner facilities.
   Multiple optical observations made, also X-ray upper limits
   from RXTE ASM and MAXI
   No optical counterpart to (stacked) m ~22.5. No bright X-ray
   counterpart.
   These limits rule out: accreting binary
   (CV, X-ray binary), AGN
   What is left? Some flavour of neutron star?
   Most extreme combination of coherent
   emission and lack of strong thermal emission
   (checking beamformed data ASAP)
   How many? Rate naively implies 1000s
   such objects around the sky that should be
   easily detected by LOFAR
   Muñoz-Darias & Stewart, also see talk by Pietka tomorrow


   View Slide

9. Beamformed data
   Hassall, Pietka
   Limits from
   the LOFAR
   beamformed
   observations


   View Slide

10. Hassall, Pietka
    Limits from
    the Lovell
    beamformed
    observations


    View Slide

11. August 2010 – March 2011 June 2011 – April 2012
    Averaged images


    View Slide

12. August 2010 – March 2011 June 2011 – April 2012


    View Slide

13. View Slide

14. View Slide

15. View Slide

16. 1.96 deg separation 3C 86 (z not known)
    exactly at the midpoint!


    View Slide

17. N
    S
    S (WENSS) = 51 mJy, S (NVSS) = 11.4 mJy, S (LOFAR predicted) ~ 120 mJy


    View Slide

18. Bell #1 light curve


    View Slide

19. J0321+5512 light curve (8.5 arcmin E of Bell #1)
    Calibration problem?


    View Slide

20. Light curves of some sources near Bell #1
    55200 55300 55400 55500 55600 55700 55800 55900 56000 56100 56200
    0
    500
    1000
    1500
    2000
    2500
    3000
    MJD
    Flux (mJy)
    PSR 0329+54


    View Slide

21. ●
    Imaging the data with the AWimager
    * 3 x 80 sub-band strategy works well (originally was 6 x 40)
    * New, much faster version available!
    ●
    Refining the radio position
    * Some very limited success so far when longer baselines (> 4 km)
    are included in the reduction.
    * No optical counterpart at the position of the higher-resolution
    radio peak.
    ●
    Calculating a spectral index
    * S/N not good enough; average ~ 0.9 +/- 3.5
    ●
    Intra-run variability
    * No evidence for this, but S/N issues.


    View Slide

22. Peeling 3C 86 seems to also remove Bell #1 (but
    possibly not its 'friend'; more analysis to be done).


    View Slide

23. rms ~ 3-4 mJy/beam


    View Slide

24. rms ~ 4 mJy/beam
    * All VLSS sources detected


    View Slide

25. New sources!
    Bell #1 'off' avg. map, May 2012, NVSS
    * No detections in VLSS, WENSS and NVSS
    * S (LOFAR) ~40 mJy
    * ~15 sources like this with S (LOFAR) ~40-60 mJy
    (steep spectrum sources? transients?)


    View Slide

26. Non-detections
    * No detection with LOFAR
    * S (WENSS) 35 mJy, S (NVSS) 77.1 mJy
    * ~25 sources like this (variability? spectral turnover at low
    frequency?)


    View Slide

27. * MSSS HBA mosaic, 9 fields, 2 snapshots (400 s / snapshot), 8 bands
    * Resolution ~140 arcsec, rms ~10-15 mJy/beam
    * ~120 deg2
    MSSS HBA
    Stewart, Broderick


    View Slide

28. Summary and future work
    * Is Bell #1 actually real after all?
    * Bell #1 paper in preparation (Broderick et al.)
    * Use new, faster AWimager
    * Investigate peeling further
    * Run the TraP on the images
    * Will get more observations of this field in Cycle 0


    View Slide

29. View Slide
