SmartSheffield #18 - Martha Hart: "Leeds District Heating Network, How waste and data can help us decarbonise our heating"

Martha is an Associate Energy Consultant at Arup in Sheffield, and has been instrumental in the development of the new district heating network in Leeds. Here she reviews her experience of designing the new facility and explains how waste and data need to work together to optimise waste and energy recovery systems to help decarbonise cities.

For more information, please get in touch with Arup’s Sheffield Office

These slides were presented at SmartSheffield#18 on May 17th 2021 - please see the Event Website for a full video of the talk.

Transcript

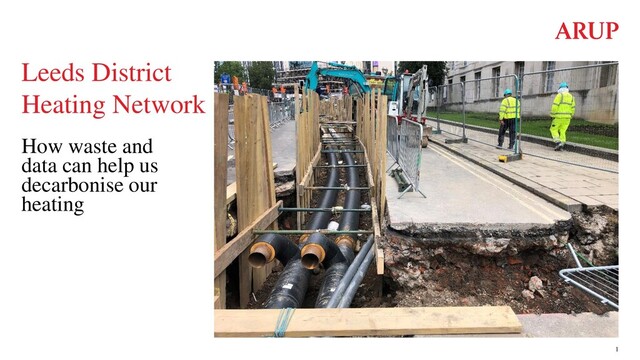

1. 1 Edit Slide Master text Leeds District Heating Network How waste and data can help us decarbonise our heating
2. 2 Edit Slide Master text Leeds Recycling and Energy Recovery Facility 165,000 tonnes of waste processed per year 20% removed for recycling 11.6 MW electricity exported to the grid Equivalent of 62,600 tonnes of CO2 saved Emissions limits set by the Industrial Emissions Directive Designed with heat capture in mind © Veolia UK
3. Leeds District Heating Network £43m investment by Leeds City Council Key drivers • Reduce carbon • Reduce energy costs • Local economic benefit
4. 4 Edit Slide Master text 4 Leeds District Heating Network 1,800 social housing flats connected Major city centre civic buildings to be connected Potential connections to LGI new hospital building and Leeds Beckett University Potential Phase 3 East connection to redevelopment site Potential Phase 3 West connection to Holbeck Saxton Gardens Energy Centre – 4 no. 11MW backup gas boilers Cross Green Energy Centre – 20MW heat exchangers and 2 no. 120m3 thermal stores Connections to Quarry House and Leeds Playhouse Leeds Station Planned connections to Beckett Wing and Arcadia School 10.5km district heating pipe network Waste heat from Leeds Recycling and Energy Recovery Facility
5. 5 Edit Slide Master text Feasibility & Business Case Concept design Procurement Design Development Construction Operation & Maintenance Data in the lifecycle of the project Project specific data Published standards Operating data Consultant led design Contractor led design
6. 6 Edit Slide Master text Better information can inform more efficient design © Vital Energi
7. 7 Edit Slide Master text The challenge of decarbonising heat Source: Wilson et al., 2013 The gas network carries three times more energy than the electricity network
8. 8 Edit Slide Master text Not all homes are created equally And not all users behave the same Not all users follow the same pattern Our designs need to reflect different socio-economic situations How can data inform future design? © Vital Energi © Octopus Energy
9. 9 Edit Slide Master text Feasibility & Business Case Concept design Procurement Design Development Construction Operation & Maintenance How can data inform future design? Project specific data Published standards Operating data Open data
10. 10 Edit Slide Master text Open data standards needed Core data • Heat demand • Frequency • Duration • Weather-corrected Rich data • Age of building • Building construction type • EPC rating • Use of building e.g. commercial, industrial, domestic • Location e.g. urban/rural, UK region • Demographics How data can inform future design
