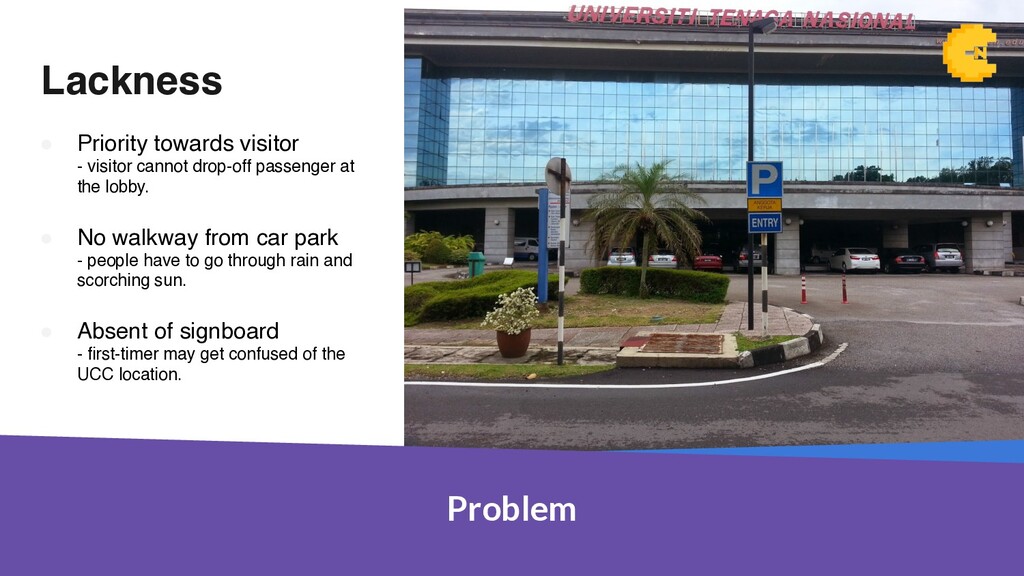

  1. Problem Lackness ! Priority towards visitor
 - visitor cannot drop-off

    passenger at the lobby. ! No walkway from car park
 - people have to go through rain and scorching sun. ! Absent of signboard
 - first-timer may get confused of the UCC location.

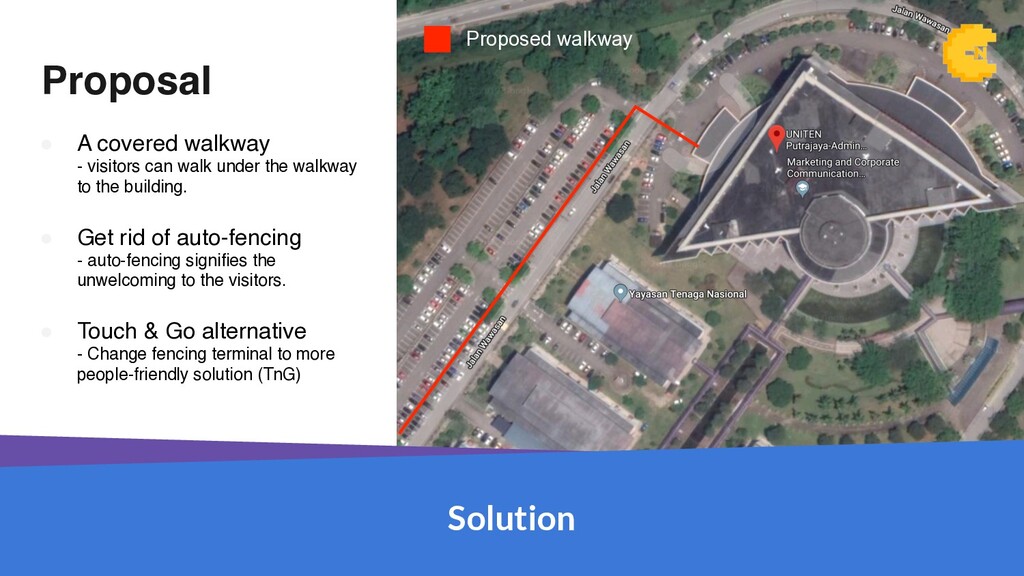

  2. Solution Proposed walkway Proposal ! A covered walkway
 - visitors

    can walk under the walkway to the building. ! Get rid of auto-fencing
 - auto-fencing signifies the unwelcoming to the visitors. ! Touch & Go alternative
 - Change fencing terminal to more people-friendly solution (TnG)

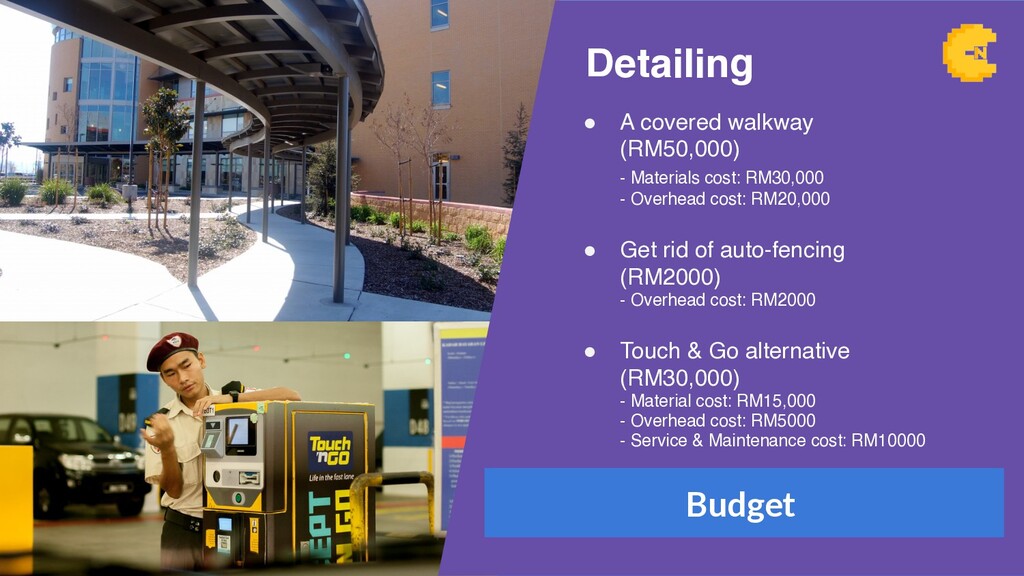

  3. Detailing ! A covered walkway (RM50,000) - Materials cost: RM30,000


    - Overhead cost: RM20,000 ! Get rid of auto-fencing (RM2000)
 - Overhead cost: RM2000 ! Touch & Go alternative (RM30,000)
 - Material cost: RM15,000 - Overhead cost: RM5000 - Service & Maintenance cost: RM10000 Budget
