Towards Encoding Time in Text-Based Entity Embeddings

Paper: https://link.springer.com/chapter/10.1007/978-3-030-00671-6_4
Video: http://videolectures.net/iswc2018_bianchi_towards_encoding_time/
Speaker: https://federicobianchi.io

Knowledge Graphs (KG) are widely used for knowledge representation. Recently, approaches aimed to represent the KG structure in an embedded space have become increasingly popular for their ability to capture high-level similarities between entities and relations. However, these embedded representations commonly give low consideration to the time aspect. Real-world entities exist and act in a defined temporal interval, consequently time is a valuable element of information in their description. In this work, we study the influence of time on the embedded representations of entities that are generated from text. The preliminary evaluation shows that generating a specific representation for temporal entities (e.g., years) can result in a more informative entity representation space. Then, we propose a new time-aware similarity metric that can be used to evaluate the similarity between entities by either flattening their time distance or boosting it.

Transcript

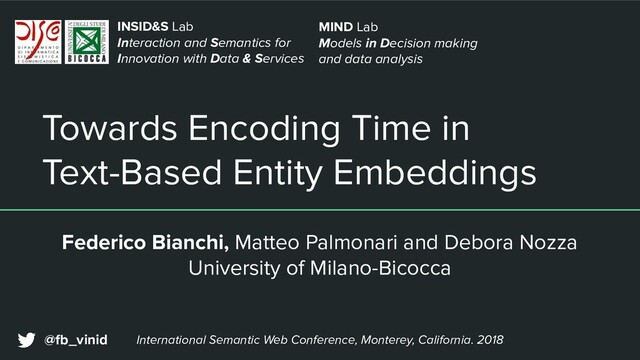

1. Towards Encoding Time in Text-Based Entity Embeddings Federico Bianchi, Matteo Palmonari and Debora Nozza University of Milano-Bicocca INSID&S Lab Interaction and Semantics for Innovation with Data & Services International Semantic Web Conference, Monterey, California. 2018 MIND Lab Models in Decision making and data analysis @fb_vinid
2. Knowledge Graphs Large knowledge bases Entities classified using types Types organized in sub-types graphs Binary relationships between entities Semantics and inference via rules/axioms Semantic similarity with lexical, topological and other feature-based approaches A.S. Roma Kostas Manolas team Soccer Player Soccer Club Athlete Thing Person Sports Club Garry Kasparov Chess Player Real Madrid Organis.
3. Knowledge Graphs Embeddings Generate vector representations of entities and relationships A.S. Roma Kostas Manolas team 2 5 6 2 6 4 2 12 5 2 Kostas Manolas A.S. Roma 4 2 12 5 2 team Given in input a KG Generate vector representations Embedding Algorithm Why should we embed? • Latent components (e.g., → link prediction) • Features generation (e.g., → entity linking) • Fast and intuitive way to compute similarity
4. From Word Embeddings to Text-based Entity Embeddings - Word embeddings (e.g., [Mikolov+, 2013]) - Text-based Entity Embeddings - Text as main source vs. Graph as main source [Bordes+,2013][Trouillon+,2016] - Typed Entity Embeddings (TEE): use word embeddings algorithms on documents where entities and types replace words (next slide :) ) - Pros: good for similarity evaluation - Cons: no embedding of relations, just entity corpus cat black eats dog similar words corresponds to similar vectors C W The big black cat eats its food. My little black cat sleeps all day. Sometimes my cat eats too much!
5. TEE: Typed Entity Embeddings from Text “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” [Bianchi+,2017b] [Bianchi+, 2018a] Wikipedia’s abstracts
6. TEE: Typed Entity Embeddings from Text “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” “dbr:Rome dbr:Italy dbr:Rome dbr:Lazio …” “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” Link to DBpedia entities via named entity linking tools [Bianchi+,2017b] [Bianchi+, 2018a] Wikipedia’s abstracts
7. TEE: Typed Entity Embeddings from Text “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” “dbr:Rome dbr:Italy dbr:Rome dbr:Lazio …” “dbo:City dbo:Country City dbo:Administrative_Region …” “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” Link to DBpedia entities via named entity linking tools Replace entities with their most specific types [Bianchi+,2017b] [Bianchi+, 2018a] Wikipedia’s abstracts
8. TEE: Typed Entity Embeddings from Text “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” “dbr:Rome dbr:Italy dbr:Rome dbr:Lazio …” “dbo:City dbo:Country City dbo:Administrative_Region …” Generate Type Vectors From Text Generate Entity Vectors From Text “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” Link to DBpedia entities via named entity linking tools Replace entities with their most specific types [Bianchi+,2017b] [Bianchi+, 2018a] Wikipedia’s abstracts
9. TEE: Typed Entity Embeddings from Text “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” “dbr:Rome dbr:Italy dbr:Rome dbr:Lazio …” “dbo:City dbo:Country City dbo:Administrative_Region …” Generate Type Vectors From Text Generate Entity Vectors From Text Concatenate “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” Link to DBpedia entities via named entity linking tools Replace entities with their most specific types [Bianchi+,2017b] [Bianchi+, 2018a] Wikipedia’s abstracts
10. TEE: Typed Entity Embeddings from Text “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” “dbr:Rome dbr:Italy dbr:Rome dbr:Lazio …” “dbo:City dbo:Country City dbo:Administrative_Region …” Generate Type Vectors From Text Generate Entity Vectors From Text Concatenate “Rome is the capital of Italy and a special comune (named Comune di Roma Capitale). Rome also serves as the capital of the Lazio region.” Link to DBpedia entities via named entity linking tools Replace entities with their most specific types [Bianchi+,2017b] [Bianchi+, 2018a] 1 3 6 3 1 9 5 6 v(Rome) v(City) Wikipedia’s abstracts
11. Why Time? • To the best of our knowledge this is the first approach to explicitly encode time periods into entity embeddings • We expect that when we evaluate similarity between entities time is important: ◦ Entities are similar when they co-occur frequently, entities that share a time period co-occur Most similar entities to “Winston Churchill” are his contemporary politicians • In this paper we try to provide an approach to explicitly encode time in such a way that we can use those representation to control the similarity with respect to time Winston Churchill Harold Macmillan
12. Textual Descriptions of Time Periods via Events
13. Textual Descriptions of Time Periods via Events “The succession of events is an inherent property of our time perception. Memory is necessary, and the order of these events is fundamental” Snaider&al. 2012, Cognitive Systems Research
14. Embedding Years from Event Descriptions A year is represented by the set of entities taking part in the year’s events The year vector is the average of the entities’ vectors found inside the description
15. Embedding Years from Event Descriptions A year is represented by the set of entities taking part in the year’s events The year vector is the average of the entities’ vectors found inside the description
16. Embedding Years from Event Descriptions A year is represented by the set of entities taking part in the year’s events The year vector is the average of the entities’ vectors found inside the description Adolf Hitler Nazi Germany World War II 4 3 6 2 3 5 1 2 9 2 1 2 8 4 1
17. Embedding Years from Event Descriptions A year is represented by the set of entities taking part in the year’s events The year vector is the average of the entities’ vectors found inside the description Adolf Hitler 4 3 6 2 3 Nazi Germany 5 1 2 9 2 World War II 1 2 8 4 1 1941 9 2 3 5 5 AVG
18. Towards Time Aware Similarity Time flattened similarity: to reduce the impact of time in the similarity. E.g., make US presidents similar independently from their temporal context. Time boosted similarity: to boost the impact of time in the similarity. E.g., make politicians that share temporal contexts more similar
19. Time Flattened Similarity What’s the time flattened similarity between Barack Obama and Bill Clinton?
20. Time Flattened Similarity Extract the embeddings for the two entities What’s the time flattened similarity between Barack Obama and Bill Clinton?
21. Time Flattened Similarity 1999 2003 Find the closest year vectors to the two entity embeddings (e.g., the entity vector of Barack Obama is close to the vector of the year 2003). What’s the time flattened similarity between Barack Obama and Bill Clinton?
22. Time Flattened Similarity 1999 2003 ( , ) What’s the time flattened similarity between Barack Obama and Bill Clinton?
23. Time Flattened Similarity 1999 2003 ( , ) = η( , ) Cosine similarity What’s the time flattened similarity between Barack Obama and Bill Clinton?
24. Time Flattened Similarity 1999 2003 ( , ) = η( , ) - η n ( , ) 1990 2003 Normalized cosine similarity What’s the time flattened similarity between Barack Obama and Bill Clinton?
25. Time Flattened Similarity 1999 2003 ( , ) = ⍺η( , ) - (1 - ⍺) η n ( , ) 1999 2003 ⍺ to control the weight of the time factor What’s the time flattened similarity between Barack Obama and Bill Clinton?
26. Experiments: Research Questions 1. Quality: properties of the year embeddings 2. Similarity and Time: a. Time Bias in TEE and EE: Effect of time in entity embeddings from text i. Adherence to Natural Time Order ii. Clustering WWI and WWII Battles iii. Relative Ordering of Entities b. Controlling Time Bias: handling the effect of time
27. Embedded Representations vs. Natural Time Flow 191X years 201X years PCA in 1D vs. natural order of years: Kendall τ = 0.80 and Spearman Rank correlation coefficient = 0.94 Good resemblance of natural time flow! 2D projection (PCA) 1D projection (PCA)
28. Time Bias: Adherence to Natural Time Order Task: count number of entities shared by sequences of 2-3 contiguous years vs number of entities shared in non contiguous years (randomly sampled): • (e.g, 1991-1992 vs 1934-1992) Dataset: two and three contiguous years and non contiguous years (1931-1991). Results: contiguous years share an higher amount of entities than non contiguous years.
29. Time Bias: Clustering Battles with EE Task: classify battles as belonging to WWI or WWII. Dataset: 152 resource identifier of WWI (63) and WWII (89) battles from Wikipedia. Method: K-means clustering (K=2) on the vector representation in the entity embedding space. Results: 95% accuracy. Centroids of the two groups are close to WWI years and WWII years respectively.
30. Controlling Time Bias: Flattened Similarity Task: find similar entities to a given input entity but that are far in time Barack Obama
31. Controlling Time Bias: Flattened Similarity Task: find similar entities to a given input entity but that are far in time. E.g., find past president given one Ford Coolidge Hoover T. Kennedy Truman Barack Obama
32. Controlling Time Bias: Flattened Similarity Task: find similar entities to a given input entity but that are far in time. E.g., find past president given one Ford Coolidge Hoover T. Kennedy Truman Barack Obama Correct Correct Correct Correct Wrong
33. Controlling Time Bias: Flattened Similarity Dataset: US presidents entities and British Prime ministers entities (19 and 19) Method: start with the 6 most recent presidents for each group. For each entity compute the number of older presidents that are in the ranked list created by the similarity measures. Time flattened reorders top-100 results from cosine similarity Algorithms: • Time-aware Similarity TEE (TATEE), with time-flattened similarity; • Similarity TEE (STEE) (standard neighborhood with cosine); • Time-Aware Similarity EE (TAEE), with time-flattened similarity; • Similarity EE (SEE) (standard neighborhood with cosine); • Time-flattened similarity Wiki2Vec (Baseline).
34. Controlling Time Bias: Flattened Similarity Results: time-flattened similarity on TATEE seems able to get the best results. This is also due to the fact that TATEE considers type representations and thus it can easily retrieve entities sharing types.
35. Controlling Time Bias: Qualitative Analysis Clinton Reagan G. Bush Carter Al Gore Nixon J. Kerry D. Cheney McCain Biden The most similar entities to Barack Obama using cosine similarity in TEE
36. Controlling Time Bias: Qualitative Analysis Clinton Reagan G. Bush Carter Al Gore Nixon J. Kerry D. Cheney McCain Biden The most similar entities to Barack Obama using cosine similarity in TEE Clinton Reagan G. Bush Carter Al Gore Nixon Ford Coolidge T. Kennedy Hoover Time flattened similarity to reorder the top-100 most similar alpha = 0.7 New New New New
37. Controlling Time Bias: Qualitative Analysis Clinton Reagan G. Bush Carter Al Gore Nixon J. Kerry D. Cheney McCain Biden The most similar entities to Barack Obama using cosine similarity in TEE Time flattened similarity to reorder the top-100 most similar alpha = 0.1 New New New New Ford Coolidge Hoover Truman Roosevelt Wilson E. Roosevelt Harding Cleveland Eisenhower New New New New New New
38. Conclusions and Future Work Conclusions • Time can be represented in the vector space using events descriptions • Time sneaks into entity similarity (time bias) • Time bias can be controlled by considering explicit representations of time periods Future Work • Study compositionality of time periods representations • Comparison with Doc2Vec • Improve time-aware similarity measure • Comparison with other KG embeddings models
39. References Snaider, J., McCall, R., & Franklin, S. (2012). Time production and representation in a conceptual and computational cognitive model. Cognitive Systems Research, 13(1), 59-71. Bordes, A., Usunier, N., Garcia-Duran, A., Weston, J., & Yakhnenko, O. (2013). Translating embeddings for modeling multi-relational data. In Advances in neural information processing systems (pp. 2787-2795). Trouillon, T., Welbl, J., Riedel, S., Gaussier, É., & Bouchard, G. (2016, June). Complex embeddings for simple link prediction. In International Conference on Machine Learning (pp. 2071-2080). Tran, N. K., Tran, T., & Niederée, C. (2017, May). Beyond time: Dynamic context-aware entity recommendation. In European Semantic Web Conference (pp. 353-368). Springer, Cham. Bianchi, F., Soto, M., Palmonari, M., & Cutrona, V. (2018). Type vector representations from text: An empirical analysis. In Deep Learning for Knowledge Graphs and Semantic Technologies Workshop, co-located with the Extended Semantic Web Conference, Crete. Bianchi, F., Palmonari, M., & Nozza, D. (2018), “Towards Encoding Time in Text-Based Entity Embeddings” in International Semantic Web Conference (to appear), Monterey, California.

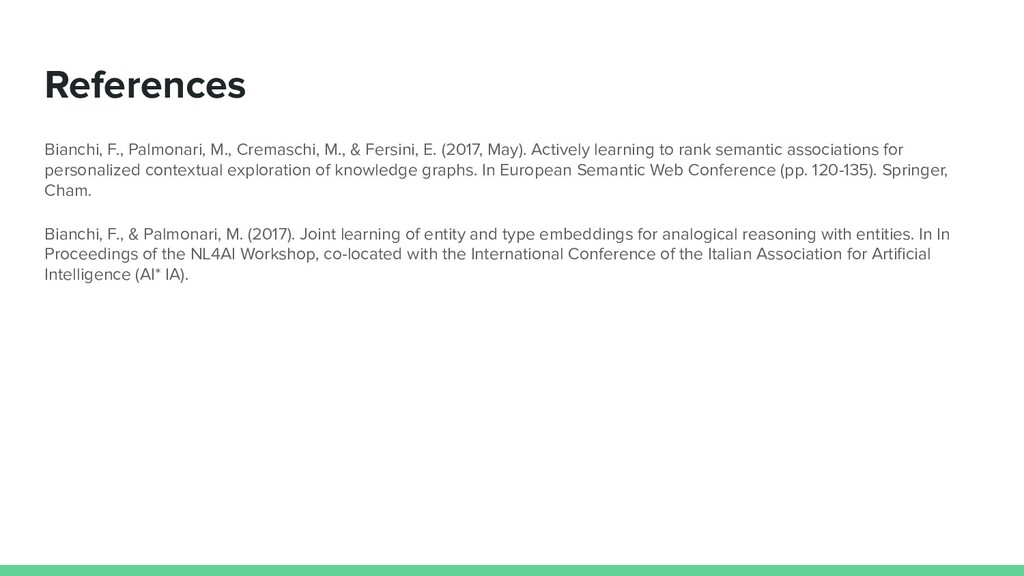

40. References Bianchi, F., Palmonari, M., Cremaschi, M., & Fersini, E. (2017, May). Actively learning to rank semantic associations for personalized contextual exploration of knowledge graphs. In European Semantic Web Conference (pp. 120-135). Springer, Cham. Bianchi, F., & Palmonari, M. (2017). Joint learning of entity and type embeddings for analogical reasoning with entities. In In Proceedings of the NL4AI Workshop, co-located with the International Conference of the Italian Association for Artificial Intelligence (AI* IA).
41. Thank you!
42. Qualitative Evaluation of Time Flattened Similarity Winston Churchill Harold Macmillan Tony Blair Gordon Brown Most similar 49th in the list of most similars 41st in the list of most similars Method: Cosine similarity Input: Winston Churchill
43. Qualitative Evaluation of Time Flattened Similarity Winston Churchill Margaret Thatcher Tony Blair Gordon Brown Most similar 16th in the list of most similars 14th in the list of most similars Method: Time-flattened Similarity Input: Winston Churchill
