SunnyTech 2022 - SRP - Le protocole d'authentification Zero-Knowledge, sous la forme d'un conte.

Préambule : ce talk est une tentative de vulgarisation visant à expliquer un protocole simple à développer et à utiliser, mais qui repose sur des méthodes cryptographiques méconnues et qui pourraient rebuter certains développeurs. Sa démocratisation peut avoir un impact positif majeur sur la sécurité des internautes et sur la protection de leur vie privée.

Il était une fois des valeureux administrateurs et développeurs, qui devaient contrôler l'accès à des services de grande valeur, par une authentification à base de mot de passe. Les vénérés utilisateurs étaient riches d'un trésor de données personnelles et sensibles, et leurs mots de passe en étaient la clef. Leur vie aurait été merveilleuse, sans les terribles pirates à chapeau noir équipés de leurs redoutables tables en arc-en-ciel et les gigantesques grufalos, capables d'espionner et de cloner les mots de passe des utilisateurs pour leur voler, ou exploiter, leur trésor. Les valeureux développeurs et administrateurs luttaient contre les pirates grâce à des recettes à base de hash et de sels qu’ils se transmettaient de génération en génération. Mais sachez, braves et valeureux amis, qu'une ancienne recette indienne (d’Amérique) à l’efficacité redoutable a été déterrée, puis utilisée dans les terres helvétiques de ProtonMail : le protocole Secure Remote Password (aka SRP). En effet, cette recette "mathémagique" permet aux utilisateurs de s'authentifier simplement avec leur mot de passe, sans jamais exposer ces précieux sur le chaotique Internet. Les vilains pirates et les grufalos affamés ne peuvent donc plus espionner et voler les clefs du trésor, et la recette mathémagique simplifie grandement le travail des valeureux développeurs et administrateurs. Si à travers cette modeste histoire nous faisons connaitre SRP et participons à son adoption, alors c'est la fin du game pour les pirates à chapeau noir et les gigantesques grufalos (ou presque).

Secure Remote Protocol est un protocole d'authentification par mot de passe reposant sur une preuve à divulgation nulle de connaissance (Zero-Knowledge Proof). Il a été publié en 1998 par Tom Wu, de l'université de Stanford, puis standardisé en 2000 dans la RFC 2945. Il est notamment utilisé au quotidien par les millions d'utilisateurs de ProtonMail.

Transcript

1. Sunnytech 2022 srp-sunnytech Willy Malvault
2. Sunnytech 2022 L'histoire de SRP, le protocole d'authentification Zero-Knowledge, contre les pirates à chapeau noir, leurs tables arc-en-ciel, et les grufalos Willy Malvault
3. Sunnytech 2022 https://speakerdeck.com/vlamy/srp-sunnytech Willy Malvault - Cloud Native principal @Sogilis @wmalvault
4. Sunnytech 2022 Intro " Once upon a time… an Internet story "
5. Sunnytech 2022 Alice and her friends were dreaming about a lot of useful services.
6. Sunnytech 2022 But they only have access to a chaotic and untrusted Internet to reach these services
7. Sunnytech 2022 Untrusted federative administration with no centralized control (and no police) Internet Chaotic unpredictable path and performance
8. Sunnytech 2022 On a cloudy day, Alice wanted to book a covid test via an online service
9. Sunnytech 2022 On a cloudy day, Alice wanted to book a covid test via an online service The only path to reach the service and get an appointment is via Internet !
10. Sunnytech 2022 Alice 10/02/22 17:15 Bob 10/02/22 17:15 … … … Valiant Devops On a cloudy day, Alice wanted to book a covid test via an online service Manage The only path to reach the service and get an appointment is via Internet !
11. Sunnytech 2022 " How do we authenticate Alice on an untrusted and unpredictable network ? "
12. Sunnytech 2022 " How do we authenticate Alice on an untrusted and unpredictable network ? " " Let's use password authentication ! I've seen that on a spy movie. "
13. Sunnytech 2022 Chapter 1 Password based authentication
14. Sunnytech 2022 Alice 10/02/22 17:15 "123456" Bob 10/02/22 17:15 "azerty" … … … Let add a password attribute for users in our DB !
15. Sunnytech 2022 Alice 10/02/22 17:15 "123456" Bob 10/02/22 17:15 "azerty" … … … Let add a password attribute for users in our DB ! 123456
16. Sunnytech 2022 Alice 10/02/22 17:15 "123456" Bob 10/02/22 17:15 "azerty" … … … Let add a password attribute for users in our DB ! Brilliant ! 123456
17. Sunnytech 2022 " Hey ! It's Alice ! " Password based authentication
18. Sunnytech 2022 " Hey ! It's Alice ! " " Prove it with your password " Password based authentication
19. Sunnytech 2022 " Hey ! It's Alice ! " " Prove it with your password " " Hey ! It's Alice ! " , "123456 " Alice "123456" Bob "azerty" … … Password based authentication
20. Sunnytech 2022 " Hey ! It's Alice ! " " Prove it with your password " " Hey ! It's Alice ! " , "123456 " Alice "123456" Bob "azerty" … … " authentication successful Alice ! " OK Password based authentication
21. Sunnytech 2022 Password based authentication Easy to code 👍 Few computations 👍 Human memory compatible 👍 Needs a subscription step 🤷
22. Sunnytech 2022 But…
23. Sunnytech 2022 But… Black hats Clever guys that build tools to break into databases and eavesdrop communications
24. Sunnytech 2022 But… Black hats Clever guys that build tools to break into databases and eavesdrop communications Grufalos Giant monsters that can see and register anything that passes via Internet
25. Sunnytech 2022 " Damned ! They will try to steal Alice's password ! I know she reuse them a lot (😭) ! And how can we trust Alice's authentication with that ? "
26. Sunnytech 2022 " Damned ! They will try to steal Alice's password ! I know she reuse them a lot (😭) ! And how can we trust Alice's authentication with that ? " " Don't worry, we will add counter measures on time ! And we'll teach Alice not to reuse her passwords (💪) !"
27. Sunnytech 2022 Chapter 2 Password attacks
28. Sunnytech 2022 Man In The Middle attack (MITM)
29. Sunnytech 2022 WoMan In The Middle attack (WITM) "Alice" , "123456 " "Alice" , "123456 "
30. Sunnytech 2022 "OK Alice !" WoMan In The Middle attack (WITM) "Alice" , "123456 " "Alice" , "123456 " "OK Alice !" Alice "123456" Bob "azerty" … … OK
31. Sunnytech 2022 Alice "123456" Bob "azerty" … … "OK Alice !" OK WoMan In The Middle attack (WITM) "Alice" , "123456 " "Alice" , "123456 " "OK Alice !" "Alice" , "123456 " Later
32. Sunnytech 2022 Alice "123456" Bob "azerty" … … "OK Alice !" OK Monsters In The Middle attack (WITM) "Alice" , "123456 " "Alice" , "123456 " "OK Alice !" "Alice" , "123456 " Later
33. Sunnytech 2022 " How do we counter Man In The Middle ? "
34. Sunnytech 2022 " How do we counter Man In The Middle ? " " I think it's time to make TLS mandatory ! HTTPS for everyone ! everywhere ! "
35. Sunnytech 2022 … and they used TLS everywhere, which greatly mitigated MITM attacks ! 😊 👍
36. Sunnytech 2022 … and they used TLS everywhere, which greatly mitigated MITM attacks ! Still, beware of the grufalos !!! They're capable to register everything and make cold analysis. Someday, they might retrieve your passwords. ⚠
37. Sunnytech 2022 Compromised database attack " Hey ! I'm the new janitor, It's time for me to clean the server room. " " Sure ! We were waiting for you. "
38. Sunnytech 2022 Compromised database attack " Hahaha ! Actually I'm a disguised pirate, and I'm here to spy the password database. " Alice "123456" Bob "azerty" … … Privilege escalation Copy database
39. Sunnytech 2022 " The pirates are full of tricks ! They succeeded to read our database ! The passwords are not safe anymore ! " " OK ! Let use hash functions so that we do not store password in our database anymore ! "
40. Sunnytech 2022 Using one way hash function Alice "123456" Bob "azerty" … … • H is a one way hash function, P the password and h the print such that H(P) = h • It is easy to compute H(P), so we can do it for each authentication • It is mathematically difficult to found P if you only know h and H Alice "0xe41256" Bob "0xa97b12" … … H("123456") = 0xe41256 H("azerty") = 0xa97b12
41. Sunnytech 2022 Using one way hash function Alice "0xe41256" Bob "0xa97b12" … … H("123456") = 0xe41256 "Alice" , "123456 " OK "OK Alice !"
42. Sunnytech 2022 " Damned ! It' consumes too much time to retrieve passwords with these hash functions ! " " Hahaha ! I'll share my rainbow table with you dude ! "
43. Sunnytech 2022 Rainbow table attack "123456" "azerty" … "0xe41256" "123456" "0xa97b12" "azerty" … … H("123456") = 0xe41256 H("azerty") = 0xa97b12 • Each time a pirate compromised a database, we use robots to find out passwords that generates these hashes • The rainbow table is a dictionary where the key is the hash and the value is the password (a bit more complicated, but you get the idea)
44. Sunnytech 2022 Rainbow table attack "123456" "azerty" … "0xe41256" "123456" "0xa97b12" "azerty" … … H("123456") = 0xe41256 H("azerty") = 0xa97b12 • Each time a pirate compromised a database, we use robots to find out passwords that generates these hashes • The rainbow table is a dictionary where the key is the hash and the value is the password (a bit more complicated, but you get the idea) • This works well, as users reuse their passwords a lot 👿 • This works well, as everyone use public hash functions to implement H
45. Sunnytech 2022 " I'm almost crying … These pirates never abandon. They have rainbow tables now ! " " Be brave ! We can use salts to mitigate the efficiency of their rainbow tables ! "
46. Sunnytech 2022 Using salt to harden rainbow table attacks Alice "123456" Bob "azerty" … … • s is a randomly chosen salt, that is appended to passwords hashes Alice "0x8F8F8F" Bob "0xA986A" … … H("123456" + s) = 0x8F8F8F H("azerty" + s) = 0xA986A
47. Sunnytech 2022 Using salt to harden rainbow table attacks Alice "123456" Bob "azerty" … … • s is a randomly chosen salt, that is appended to passwords before hashing • If each service uses its own randomly chosen secret salt: ◦ → all databases will have different values for the same password (even if they use the same H function) ◦ →pirates can no longer simply consolidate data from services Alice "0x8F8F8F" Bob "0xA986A" … … H("123456", s) = 0x8F8F8F H("azerty", s) = 0xA986A
48. Sunnytech 2022 Combining hash function and salt Alice "0x8F8F8F" Bob "0xA986A" … … H("123456", s) = 0x8F8F8F "Alice" , "123456 " OK "OK Alice !"
49. Sunnytech 2022 … and pirates makes better rainbow tables, while devops build better hash functions and salts, fighting each other endlessly.
50. Sunnytech 2022 … and pirates makes better rainbow tables, while devops build better hash functions and salts, fighting each other endlessly. Still, the grufalos are there ! They're capable to register everything and make cold analysis. Someday, they might retrieve your passwords. ⚠
51. Sunnytech 2022 Trust problem " This is too complicated for me ! I don't know if it's secure to provide my passwords to services via Internet ! "
52. Sunnytech 2022 " How do we deal with the trust problem ? "
53. Sunnytech 2022 " How do we deal with the trust problem ? " " Well… I don't know… We used hash function and salt for decades ! " " 😭" " 😭"
54. Sunnytech 2022 " 😭 😭 😭"
55. Sunnytech 2022 " 😭 😭 😭" " Why are you crying ? Little kitties ! "
56. Sunnytech 2022 " 😭 😭 😭" " Why are you crying ? Little kitties ! " " Our password authentication is untrusted ! We're untrusted 😭 ! "
57. Sunnytech 2022 " 😭 😭 😭" " Why are you crying ? Little kitties ! " " Our password authentication is untrusted ! We're untrusted 😭 ! " " Ho !? Dry your tears ! I have a mathemagical solution for you. Let leverage Zero-knowledge authentication with SRP ! "
58. Sunnytech 2022 Chapter 3 Secure Remote Password aka SRP
59. Sunnytech 2022 Let's make a deal ! When you see *, it's mathematical !

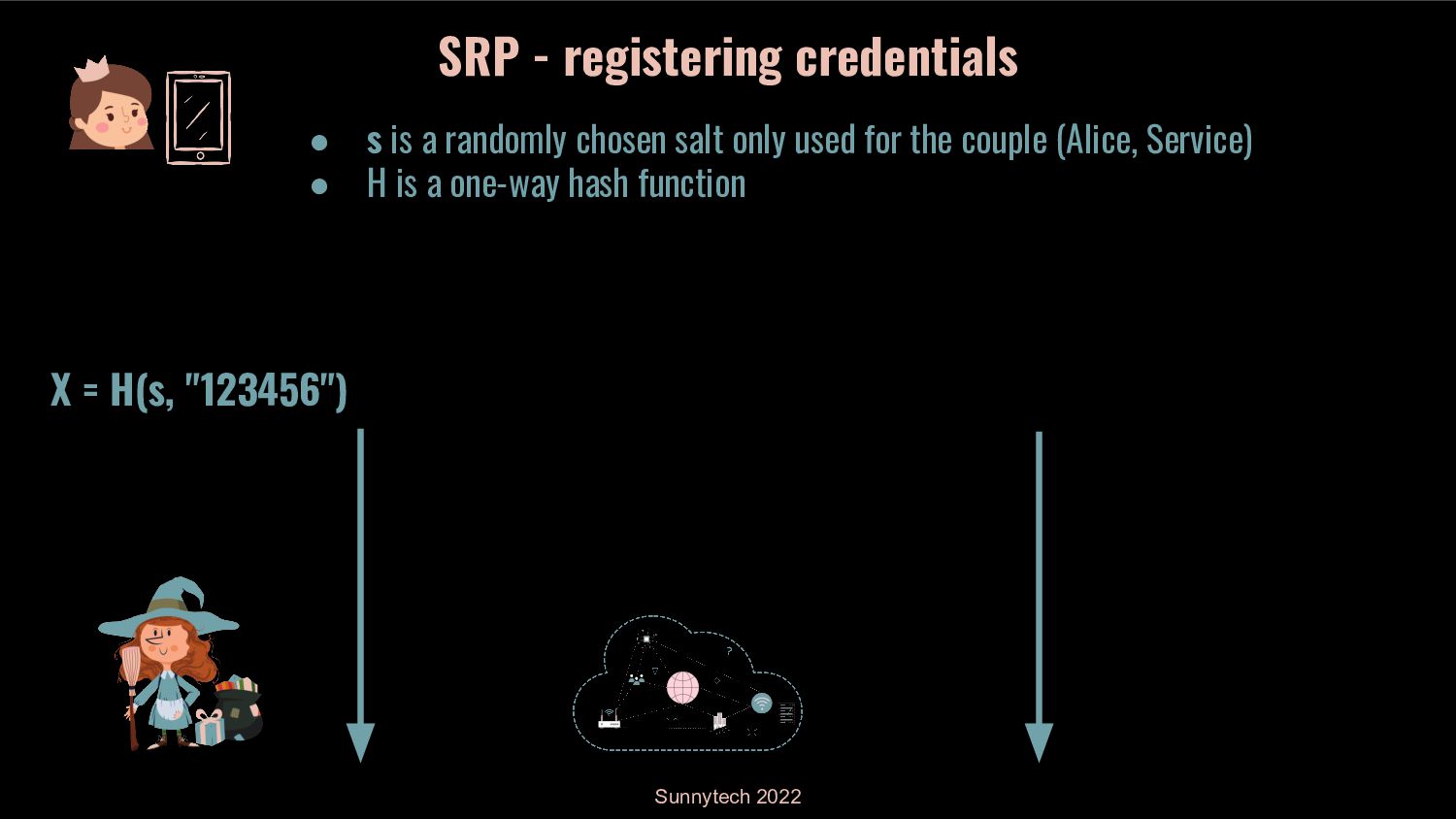

60. Sunnytech 2022 X = H(s, "123456") SRP - registering credentials • s is a randomly chosen salt only used for the couple (Alice, Service) • H is a one-way hash function
61. Sunnytech 2022 X = H(s, "123456") v = gˆx SRP - registering credentials "Alice" , "s", "v" • s is a randomly chosen salt only used for the couple (Alice, Service) • H is a one-way hash function • g is a public safe prime modulo generator (i.e. a constant number being part of the protocol, known by both peers.) * • v is called the "password verifier"
62. Sunnytech 2022 X = H(s, "123456") v = gˆx SRP - registering credentials Alice "s" "v" Bob "s2" "v2" … … "Alice" , "s", "v" "Registration OK" , "Alice" • s is a randomly chosen salt only used for the couple (Alice, Service) • H is a one-way hash function • g is a public safe prime modulo generator (i.e. a constant number being part of the protocol, known by both peers.) * • v is called the "password verifier"
63. Sunnytech 2022 Let's authenticate !
64. Sunnytech 2022 A = g^a SRP - authentication - scrambling parameter Alice "s" "v" Bob "s2" "v2" … … "Alice" , "A" "B" B = v + g^b • a, b are private ephemeral random values * • A, B are public ephemeral values from a,b *
65. Sunnytech 2022 A = g^a SRP - authentication - scrambling parameter Alice "s" "v" Bob "s2" "v2" … … "Alice" , "A" "B" B = v + g^b u = H(A, B) u = H(A, B) • a, b are private ephemeral random values * • A, B are public ephemeral values from a,b * • u is a common random scrambling parameter *
66. Sunnytech 2022 SRP - authentication - session key Alice "s" "v" Bob "s2" "v2" … … x = H(s, P) "s"
67. Sunnytech 2022 SRP - authentication - session key Alice "s" "v" Bob "s2" "v2" … … x = H(s, P) S = (Av^u) ^ b S = (B - g^x) ^ (a + ux) Mathemagical part ! *** "s"
68. Sunnytech 2022 SRP - authentication - session key Alice "s" "v" Bob "s2" "v2" … … x = H(s, P) S = (Av^u) ^ b K = H(S) * S = (B - g^x) ^ (a + ux) K = H(S) * Mathemagical part ! *** "s"
69. Sunnytech 2022 " Now Alice and the server share a private session key K. They use this key to encrypt messages, and have confidential communications. "
70. Sunnytech 2022 " Now Alice and the server share a private session key K. They use this key to encrypt messages, and have confidential communications. " " OK ! But Alice is still not authenticated ! "
71. Sunnytech 2022 " Now Alice and the server share a private session key K. They use this key to encrypt messages, and have confidential communications. " " OK ! But Alice is still not authenticated ! " " Yes Boy ! You are right ! "
72. Sunnytech 2022 SRP - Key matching M = H(H(N) xor H(g), H("Alice"), s, A, B, K) * H(A, M, K) * " Yeah ! That rocks 🎉👏"
73. Sunnytech 2022 " We have a zero-knowledge authentication protocol, immune to dictionary attacks, over an untrusted network ! "
74. Sunnytech 2022 " We have a zero-knowledge authentication protocol, immune to dictionary attacks, over an untrusted network ! " " We did resolve the Trust problem Alice ! "
75. Sunnytech 2022 " We have a zero-knowledge authentication protocol, immune to dictionary attacks, over an untrusted network ! " " OK ! We are losing this battle ! But the war is not over ! " " We did resolve the Trust problem Alice ! "
76. Sunnytech 2022 Conclusions
77. Sunnytech 2022 Password safety during authentication Traditional password hashing Secure Remote Password exposed 😈 Dictionary attack Imune🛡 exposed 😈 Man In the Middle attack Imune🛡 exposed 😈 Untrusted Service Imune🛡
78. Sunnytech 2022 Usage of Secure Remote Password Blog article Blog article Official documentation
79. Sunnytech 2022 SRP Limitations • Registration step is sensitive and could be eavesdropped • New generation is OPAQUE ◦ Hashing functions 1970 ◦ SRP 1998 ◦ OPAQUE 2019
80. Sunnytech 2022 Resources • How bad we are with our passwords habits ◦ https://connect.ed-diamond.com/MISC/misc-094/psychologie-comportementa le-que-faire-du-mot-de-passe ◦ https://www.lastpass.com/fr/resources/ebook/psychology-of-passwords-2020 ◦ https://linc.cnil.fr/fr/de-azerty-paword-une-revue-des-pratiques-de-gestion-des -mots-de-passe ◦ https://github.com/tarraschk/richelieu • Miscellaneous ◦ https://www.password-hashing.net/ ◦ https://fr.wikipedia.org/wiki/Attaque_de_l%27homme_du_milieu ◦ https://pages.nist.gov/800-63-3/sp800-63b.html
81. Sunnytech 2022 Resources • Secure Remote Password (paper, blog and RFCs) ◦ http://srp.stanford.edu/ (papers and RFCs) ◦ https://support.1password.com/secure-remote-password/ ◦ https://www.cryptologie.net/article/503/user-authentication-with-passwor ds-whats-srp/ ◦ https://protonmail.com/blog/encrypted_email_authentication/ • Secure Remote Password (Code) ◦ https://en.wikipedia.org/wiki/Secure_Remote_Password_protocol#Imple mentations ◦ https://github.com/ProtonMail/WebClients • OPAQUE ◦ https://cfrg.github.io/draft-irtf-cfrg-opaque/draft-irtf-cfrg-opaque.html ◦ https://blog.cloudflare.com/opaque-oblivious-passwords/
82. Sunnytech 2022 https://speakerdeck.com/vlamy/srp-sunnytech @wmalvault
