Debugging XOOPS 2.5.x with FirePHP/FireBug

FirePHP is a Mozilla Firefox plugin/extension that merges with Firebug and enables you to log to your Firebug Console using a simple PHP method call. All data is sent via response headers and will not interfere with the content on your page, therefore it is ideally suited for AJAX development where clean JSON and XML responses are required.

In this tutorial we'll show you how to use FirePHP/FireBug to debug XOOPS.

Transcript

1. Xoops Documentation Series www.xoops.org © 2012 XOOPS Project Debugging XOOPS With FirePHP/Firebug

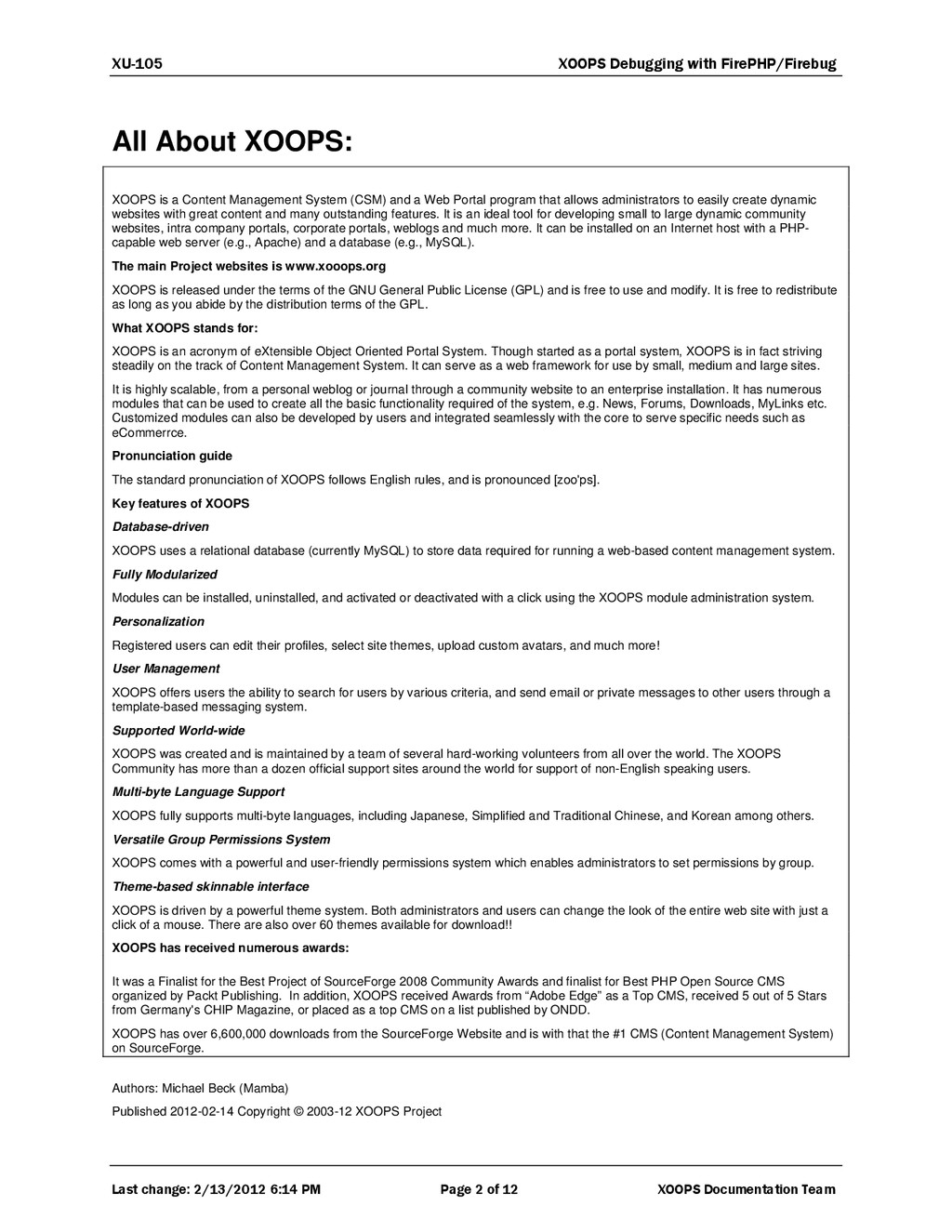

2. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 2 of 12 XOOPS Documentation Team All About XOOPS: XOOPS is a Content Management System (CSM) and a Web Portal program that allows administrators to easily create dynamic websites with great content and many outstanding features. It is an ideal tool for developing small to large dynamic community websites, intra company portals, corporate portals, weblogs and much more. It can be installed on an Internet host with a PHP- capable web server (e.g., Apache) and a database (e.g., MySQL). The main Project websites is www.xooops.org XOOPS is released under the terms of the GNU General Public License (GPL) and is free to use and modify. It is free to redistribute as long as you abide by the distribution terms of the GPL. What XOOPS stands for: XOOPS is an acronym of eXtensible Object Oriented Portal System. Though started as a portal system, XOOPS is in fact striving steadily on the track of Content Management System. It can serve as a web framework for use by small, medium and large sites. It is highly scalable, from a personal weblog or journal through a community website to an enterprise installation. It has numerous modules that can be used to create all the basic functionality required of the system, e.g. News, Forums, Downloads, MyLinks etc. Customized modules can also be developed by users and integrated seamlessly with the core to serve specific needs such as eCommerrce. Pronunciation guide The standard pronunciation of XOOPS follows English rules, and is pronounced [zoo'ps]. Key features of XOOPS Database-driven XOOPS uses a relational database (currently MySQL) to store data required for running a web-based content management system. Fully Modularized Modules can be installed, uninstalled, and activated or deactivated with a click using the XOOPS module administration system. Personalization Registered users can edit their profiles, select site themes, upload custom avatars, and much more! User Management XOOPS offers users the ability to search for users by various criteria, and send email or private messages to other users through a template-based messaging system. Supported World-wide XOOPS was created and is maintained by a team of several hard-working volunteers from all over the world. The XOOPS Community has more than a dozen official support sites around the world for support of non-English speaking users. Multi-byte Language Support XOOPS fully supports multi-byte languages, including Japanese, Simplified and Traditional Chinese, and Korean among others. Versatile Group Permissions System XOOPS comes with a powerful and user-friendly permissions system which enables administrators to set permissions by group. Theme-based skinnable interface XOOPS is driven by a powerful theme system. Both administrators and users can change the look of the entire web site with just a click of a mouse. There are also over 60 themes available for download!! XOOPS has received numerous awards: It was a Finalist for the Best Project of SourceForge 2008 Community Awards and finalist for Best PHP Open Source CMS organized by Packt Publishing. In addition, XOOPS received Awards from “Adobe Edge” as a Top CMS, received 5 out of 5 Stars from Germany's CHIP Magazine, or placed as a top CMS on a list published by ONDD. XOOPS has over 6,600,000 downloads from the SourceForge Website and is with that the #1 CMS (Content Management System) on SourceForge. Authors: Michael Beck (Mamba) Published 2012-02-14 Copyright © 2003-12 XOOPS Project

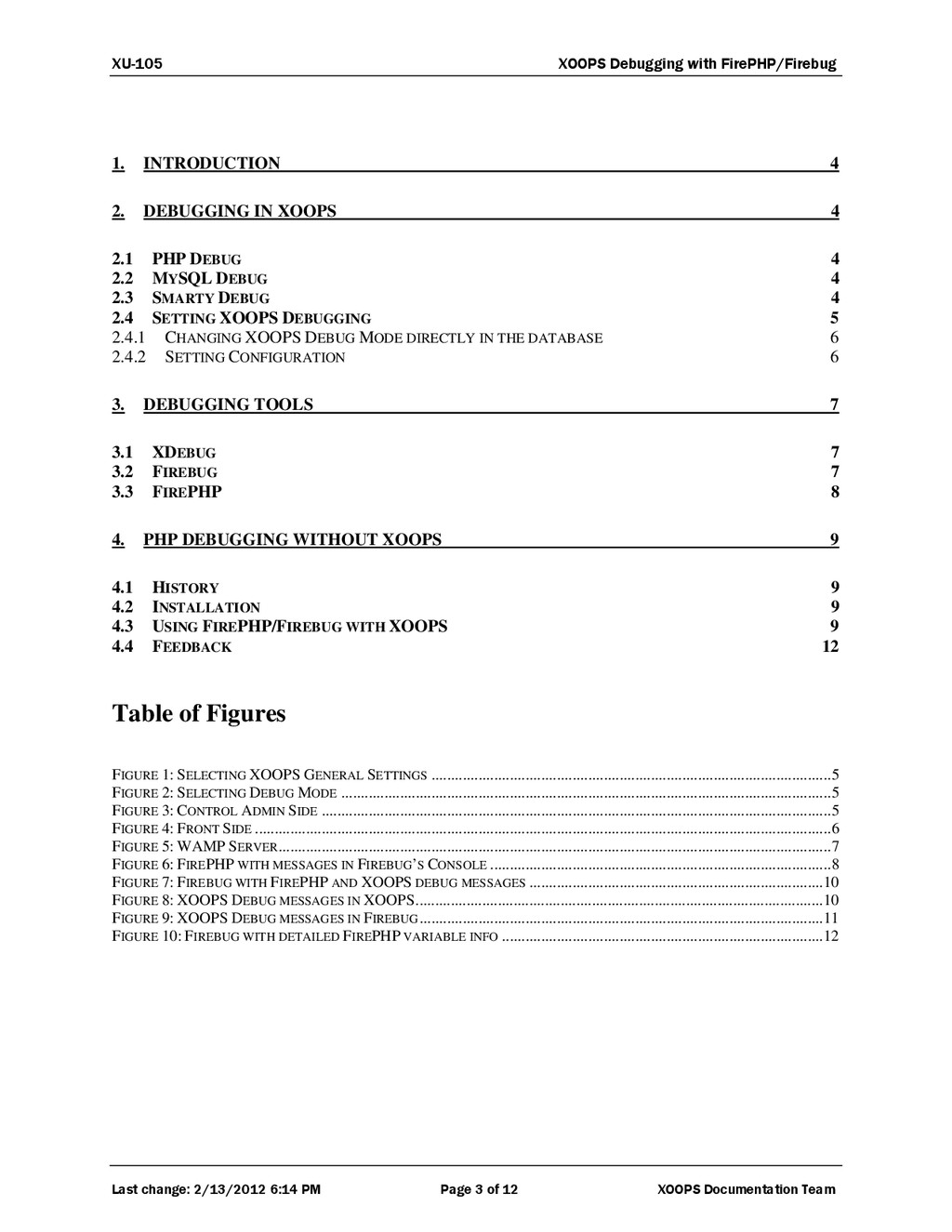

3. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 3 of 12 XOOPS Documentation Team 1. INTRODUCTION 4 2. DEBUGGING IN XOOPS 4 2.1 PHP DEBUG 4 2.2 MYSQL DEBUG 4 2.3 SMARTY DEBUG 4 2.4 SETTING XOOPS DEBUGGING 5 2.4.1 CHANGING XOOPS DEBUG MODE DIRECTLY IN THE DATABASE 6 2.4.2 SETTING CONFIGURATION 6 3. DEBUGGING TOOLS 7 3.1 XDEBUG 7 3.2 FIREBUG 7 3.3 FIREPHP 8 4. PHP DEBUGGING WITHOUT XOOPS 9 4.1 HISTORY 9 4.2 INSTALLATION 9 4.3 USING FIREPHP/FIREBUG WITH XOOPS 9 4.4 FEEDBACK 12 Table of Figures FIGURE 1: SELECTING XOOPS GENERAL SETTINGS ......................................................................................................5 FIGURE 2: SELECTING DEBUG MODE .............................................................................................................................5 FIGURE 3: CONTROL ADMIN SIDE ..................................................................................................................................5 FIGURE 4: FRONT SIDE ...................................................................................................................................................6 FIGURE 5: WAMP SERVER.............................................................................................................................................7 FIGURE 6: FIREPHP WITH MESSAGES IN FIREBUG’S CONSOLE .......................................................................................8 FIGURE 7: FIREBUG WITH FIREPHP AND XOOPS DEBUG MESSAGES ...........................................................................10 FIGURE 8: XOOPS DEBUG MESSAGES IN XOOPS........................................................................................................10 FIGURE 9: XOOPS DEBUG MESSAGES IN FIREBUG.......................................................................................................11 FIGURE 10: FIREBUG WITH DETAILED FIREPHP VARIABLE INFO ..................................................................................12

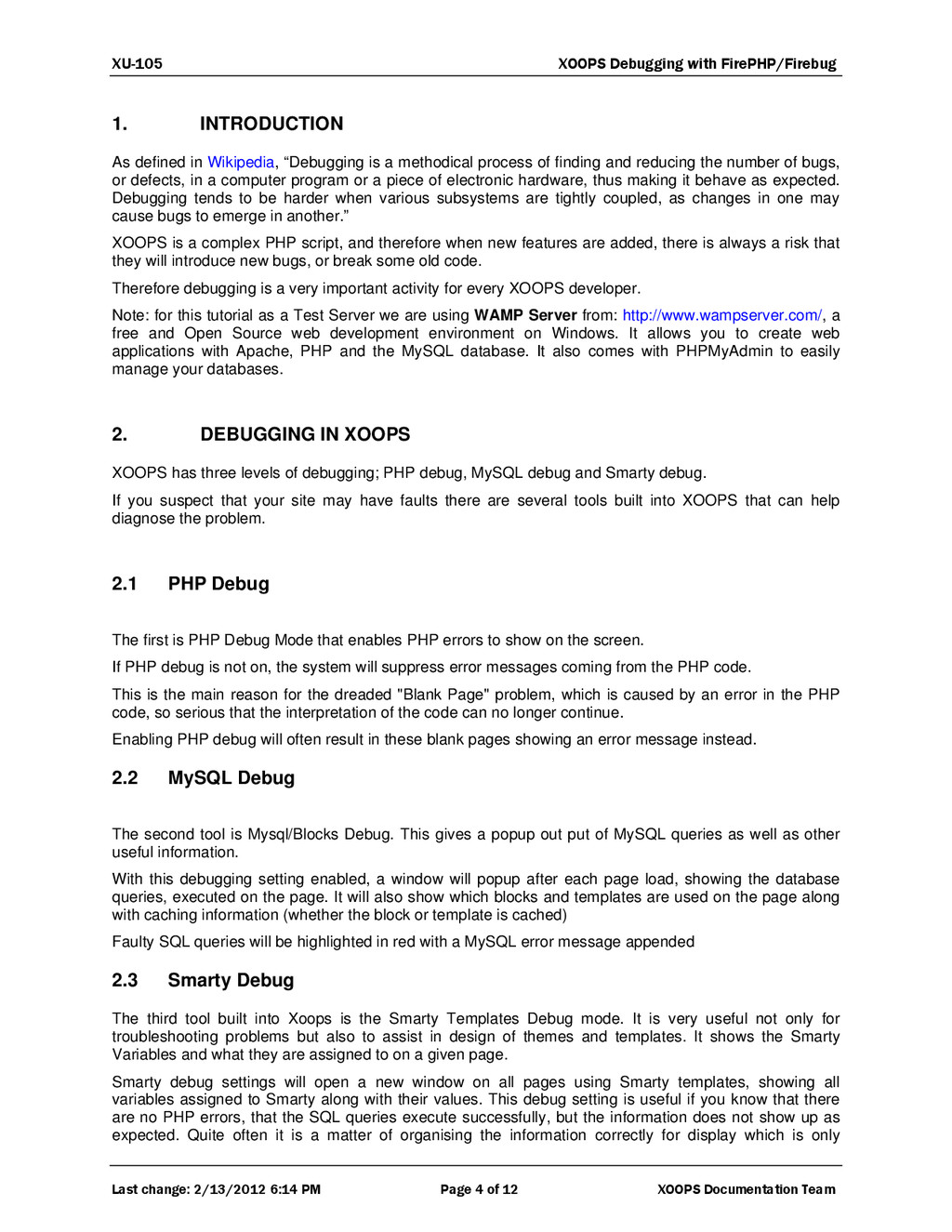

4. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 4 of 12 XOOPS Documentation Team 1. INTRODUCTION As defined in Wikipedia, “Debugging is a methodical process of finding and reducing the number of bugs, or defects, in a computer program or a piece of electronic hardware, thus making it behave as expected. Debugging tends to be harder when various subsystems are tightly coupled, as changes in one may cause bugs to emerge in another.” XOOPS is a complex PHP script, and therefore when new features are added, there is always a risk that they will introduce new bugs, or break some old code. Therefore debugging is a very important activity for every XOOPS developer. Note: for this tutorial as a Test Server we are using WAMP Server from: http://www.wampserver.com/, a free and Open Source web development environment on Windows. It allows you to create web applications with Apache, PHP and the MySQL database. It also comes with PHPMyAdmin to easily manage your databases. 2. DEBUGGING IN XOOPS XOOPS has three levels of debugging; PHP debug, MySQL debug and Smarty debug. If you suspect that your site may have faults there are several tools built into XOOPS that can help diagnose the problem. 2.1 PHP Debug The first is PHP Debug Mode that enables PHP errors to show on the screen. If PHP debug is not on, the system will suppress error messages coming from the PHP code. This is the main reason for the dreaded "Blank Page" problem, which is caused by an error in the PHP code, so serious that the interpretation of the code can no longer continue. Enabling PHP debug will often result in these blank pages showing an error message instead. 2.2 MySQL Debug The second tool is Mysql/Blocks Debug. This gives a popup out put of MySQL queries as well as other useful information. With this debugging setting enabled, a window will popup after each page load, showing the database queries, executed on the page. It will also show which blocks and templates are used on the page along with caching information (whether the block or template is cached) Faulty SQL queries will be highlighted in red with a MySQL error message appended 2.3 Smarty Debug The third tool built into Xoops is the Smarty Templates Debug mode. It is very useful not only for troubleshooting problems but also to assist in design of themes and templates. It shows the Smarty Variables and what they are assigned to on a given page. Smarty debug settings will open a new window on all pages using Smarty templates, showing all variables assigned to Smarty along with their values. This debug setting is useful if you know that there are no PHP errors, that the SQL queries execute successfully, but the information does not show up as expected. Quite often it is a matter of organising the information correctly for display which is only

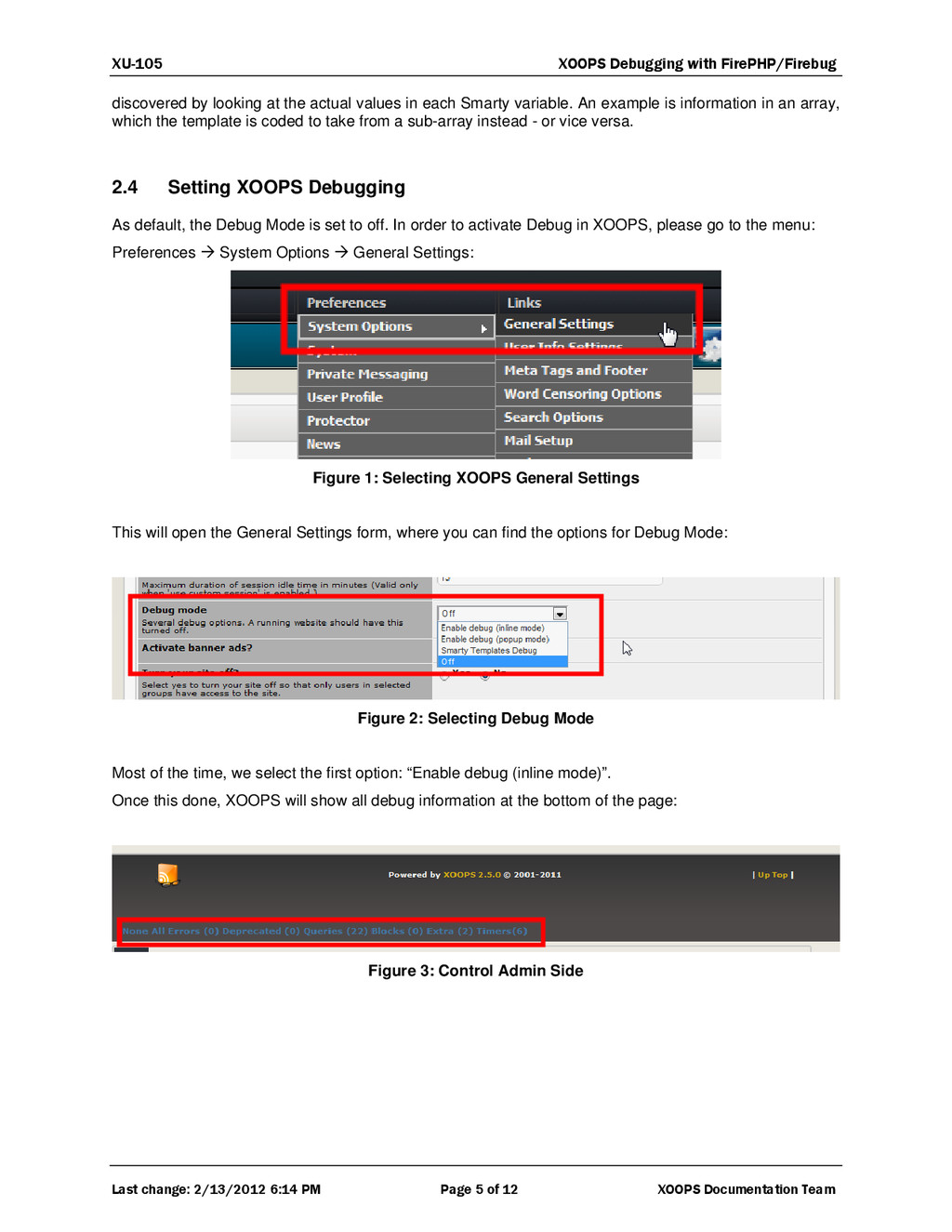

5. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 5 of 12 XOOPS Documentation Team discovered by looking at the actual values in each Smarty variable. An example is information in an array, which the template is coded to take from a sub-array instead - or vice versa. 2.4 Setting XOOPS Debugging As default, the Debug Mode is set to off. In order to activate Debug in XOOPS, please go to the menu: Preferences  System Options  General Settings: Figure 1: Selecting XOOPS General Settings This will open the General Settings form, where you can find the options for Debug Mode: Figure 2: Selecting Debug Mode Most of the time, we select the first option: “Enable debug (inline mode)”. Once this done, XOOPS will show all debug information at the bottom of the page: Figure 3: Control Admin Side

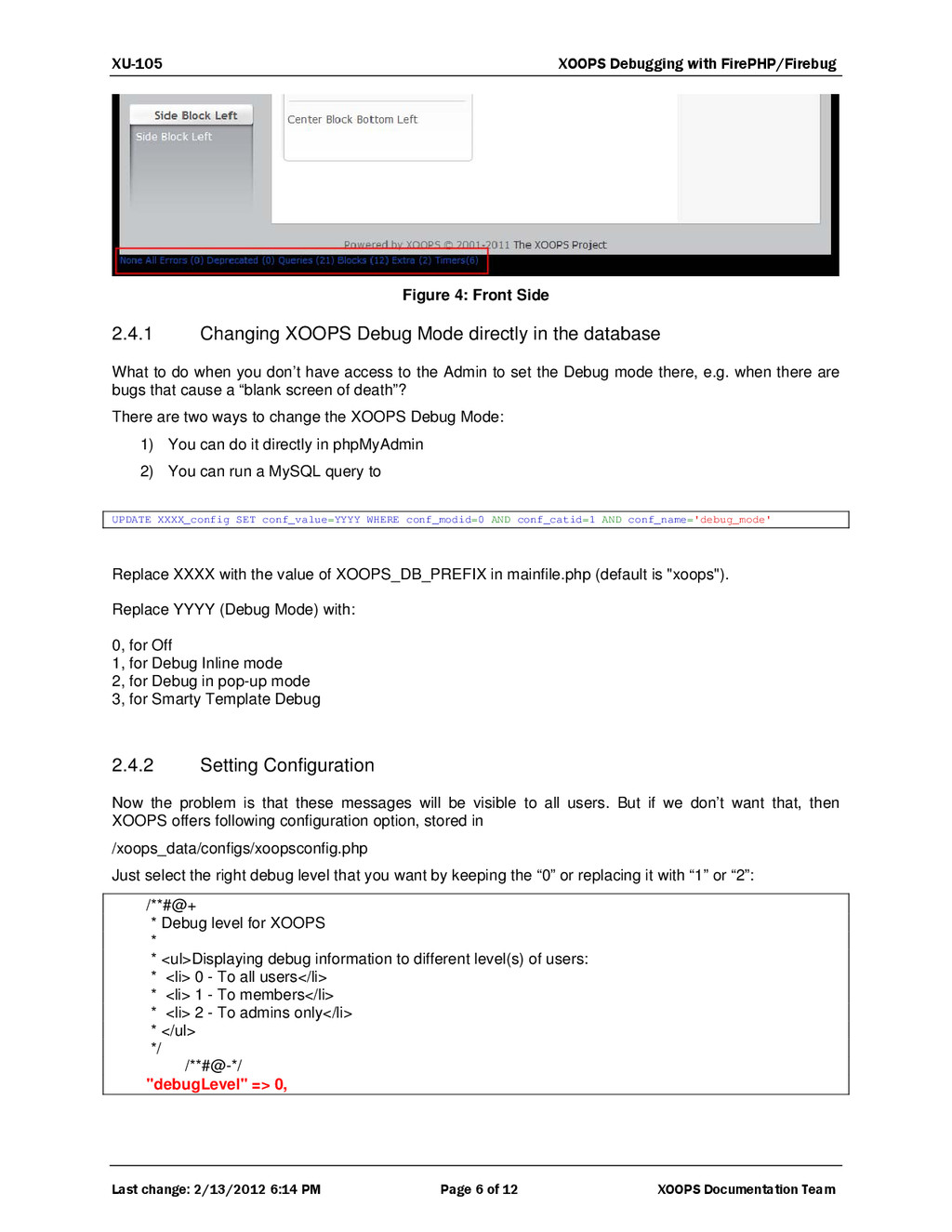

6. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 6 of 12 XOOPS Documentation Team Figure 4: Front Side 2.4.1 Changing XOOPS Debug Mode directly in the database What to do when you don’t have access to the Admin to set the Debug mode there, e.g. when there are bugs that cause a “blank screen of death”? There are two ways to change the XOOPS Debug Mode: 1) You can do it directly in phpMyAdmin 2) You can run a MySQL query to UPDATE XXXX_config SET conf_value=YYYY WHERE conf_modid=0 AND conf_catid=1 AND conf_name='debug_mode' Replace XXXX with the value of XOOPS_DB_PREFIX in mainfile.php (default is "xoops"). Replace YYYY (Debug Mode) with: 0, for Off 1, for Debug Inline mode 2, for Debug in pop-up mode 3, for Smarty Template Debug 2.4.2 Setting Configuration Now the problem is that these messages will be visible to all users. But if we don’t want that, then XOOPS offers following configuration option, stored in /xoops_data/configs/xoopsconfig.php Just select the right debug level that you want by keeping the “0” or replacing it with “1” or “2”: /**#@+ * Debug level for XOOPS * * <ul>Displaying debug information to different level(s) of users: * <li> 0 - To all users</li> * <li> 1 - To members</li> * <li> 2 - To admins only</li> * </ul> */ /**#@-*/ "debugLevel" => 0,

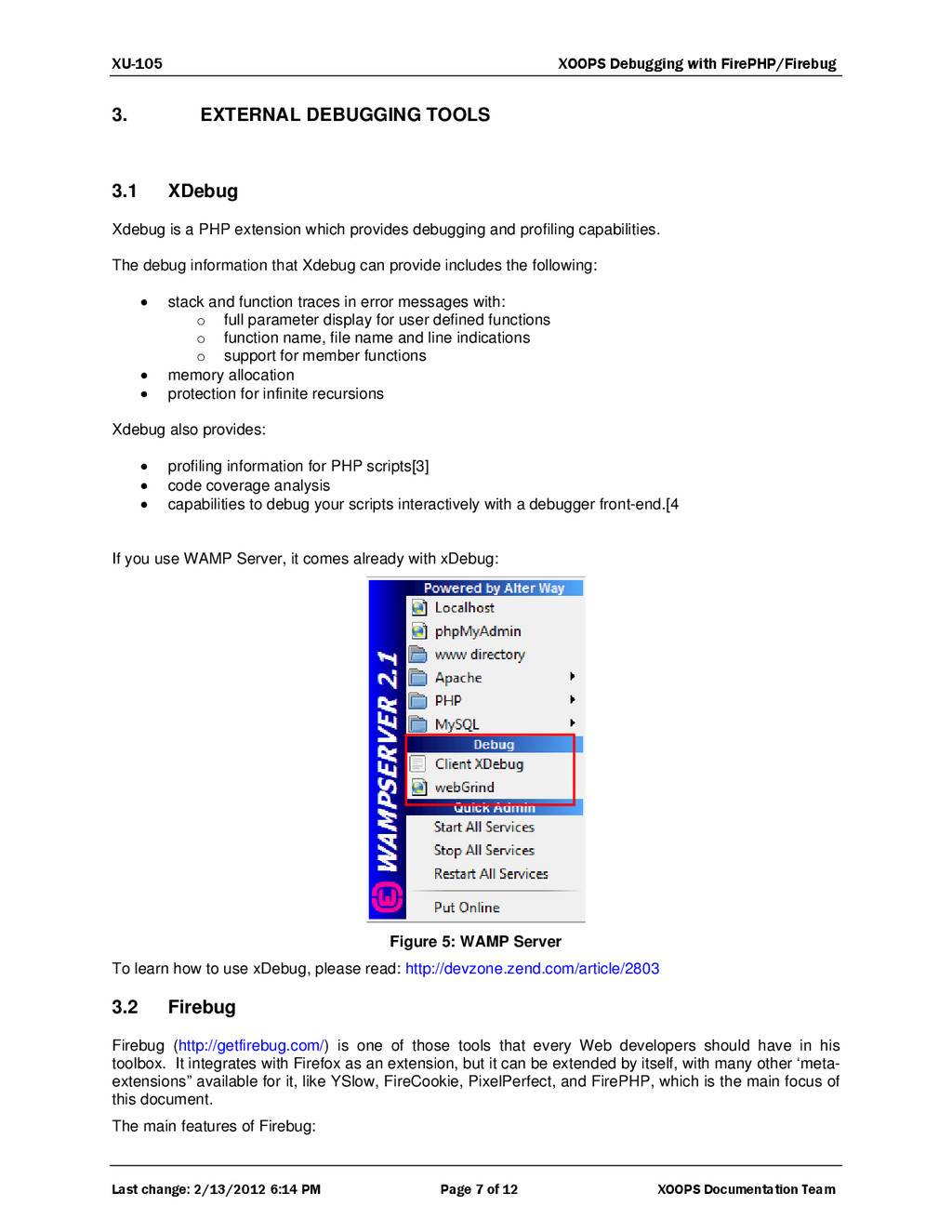

7. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 7 of 12 XOOPS Documentation Team 3. EXTERNAL DEBUGGING TOOLS 3.1 XDebug Xdebug is a PHP extension which provides debugging and profiling capabilities. The debug information that Xdebug can provide includes the following:  stack and function traces in error messages with: o full parameter display for user defined functions o function name, file name and line indications o support for member functions  memory allocation  protection for infinite recursions Xdebug also provides:  profiling information for PHP scripts[3]  code coverage analysis  capabilities to debug your scripts interactively with a debugger front-end.[4 If you use WAMP Server, it comes already with xDebug: Figure 5: WAMP Server To learn how to use xDebug, please read: http://devzone.zend.com/article/2803 3.2 Firebug Firebug (http://getfirebug.com/) is one of those tools that every Web developers should have in his toolbox. It integrates with Firefox as an extension, but it can be extended by itself, with many other ‘meta- extensions” available for it, like YSlow, FireCookie, PixelPerfect, and FirePHP, which is the main focus of this document. The main features of Firebug:

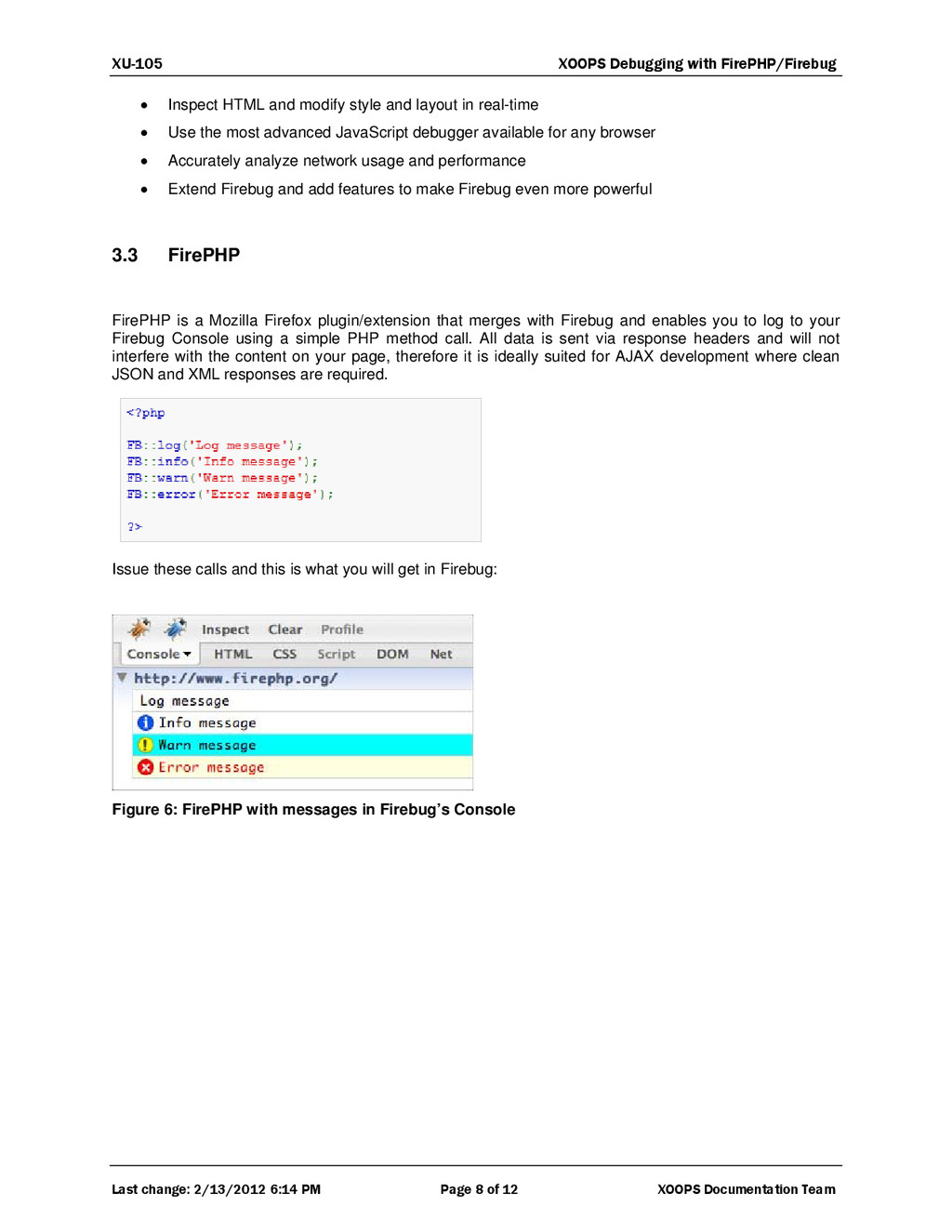

8. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 8 of 12 XOOPS Documentation Team  Inspect HTML and modify style and layout in real-time  Use the most advanced JavaScript debugger available for any browser  Accurately analyze network usage and performance  Extend Firebug and add features to make Firebug even more powerful 3.3 FirePHP FirePHP is a Mozilla Firefox plugin/extension that merges with Firebug and enables you to log to your Firebug Console using a simple PHP method call. All data is sent via response headers and will not interfere with the content on your page, therefore it is ideally suited for AJAX development where clean JSON and XML responses are required. Issue these calls and this is what you will get in Firebug: Figure 6: FirePHP with messages in Firebug’s Console

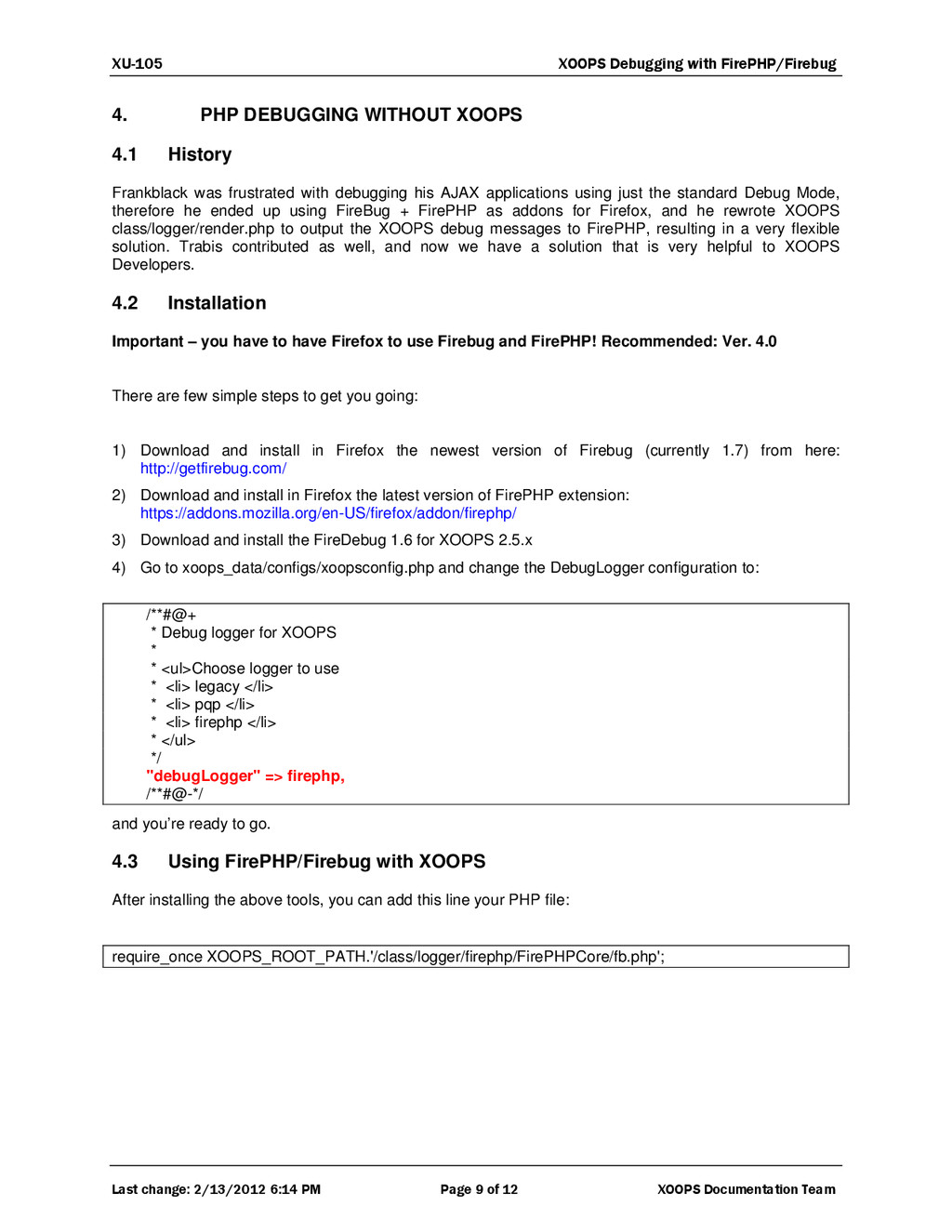

9. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 9 of 12 XOOPS Documentation Team 4. PHP DEBUGGING WITHOUT XOOPS 4.1 History Frankblack was frustrated with debugging his AJAX applications using just the standard Debug Mode, therefore he ended up using FireBug + FirePHP as addons for Firefox, and he rewrote XOOPS class/logger/render.php to output the XOOPS debug messages to FirePHP, resulting in a very flexible solution. Trabis contributed as well, and now we have a solution that is very helpful to XOOPS Developers. 4.2 Installation Important – you have to have Firefox to use Firebug and FirePHP! Recommended: Ver. 4.0 There are few simple steps to get you going: 1) Download and install in Firefox the newest version of Firebug (currently 1.7) from here: http://getfirebug.com/ 2) Download and install in Firefox the latest version of FirePHP extension: https://addons.mozilla.org/en-US/firefox/addon/firephp/ 3) Download and install the FireDebug 1.6 for XOOPS 2.5.x 4) Go to xoops_data/configs/xoopsconfig.php and change the DebugLogger configuration to: /**#@+ * Debug logger for XOOPS * * <ul>Choose logger to use * <li> legacy </li> * <li> pqp </li> * <li> firephp </li> * </ul> */ "debugLogger" => firephp, /**#@-*/ and you’re ready to go. 4.3 Using FirePHP/Firebug with XOOPS After installing the above tools, you can add this line your PHP file: require_once XOOPS_ROOT_PATH.'/class/logger/firephp/FirePHPCore/fb.php';

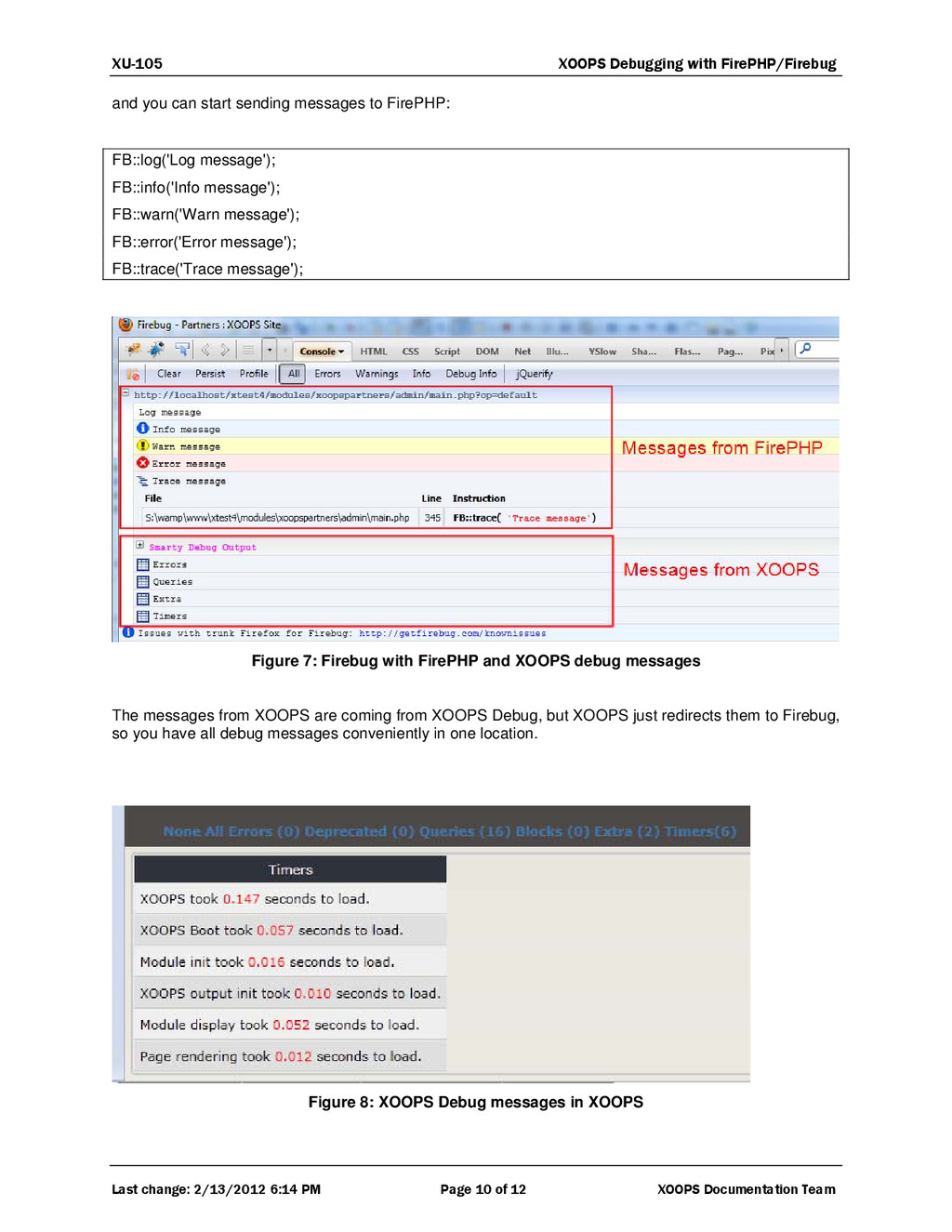

10. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 10 of 12 XOOPS Documentation Team and you can start sending messages to FirePHP: FB::log('Log message'); FB::info('Info message'); FB::warn('Warn message'); FB::error('Error message'); FB::trace('Trace message'); Figure 7: Firebug with FirePHP and XOOPS debug messages The messages from XOOPS are coming from XOOPS Debug, but XOOPS just redirects them to Firebug, so you have all debug messages conveniently in one location. Figure 8: XOOPS Debug messages in XOOPS

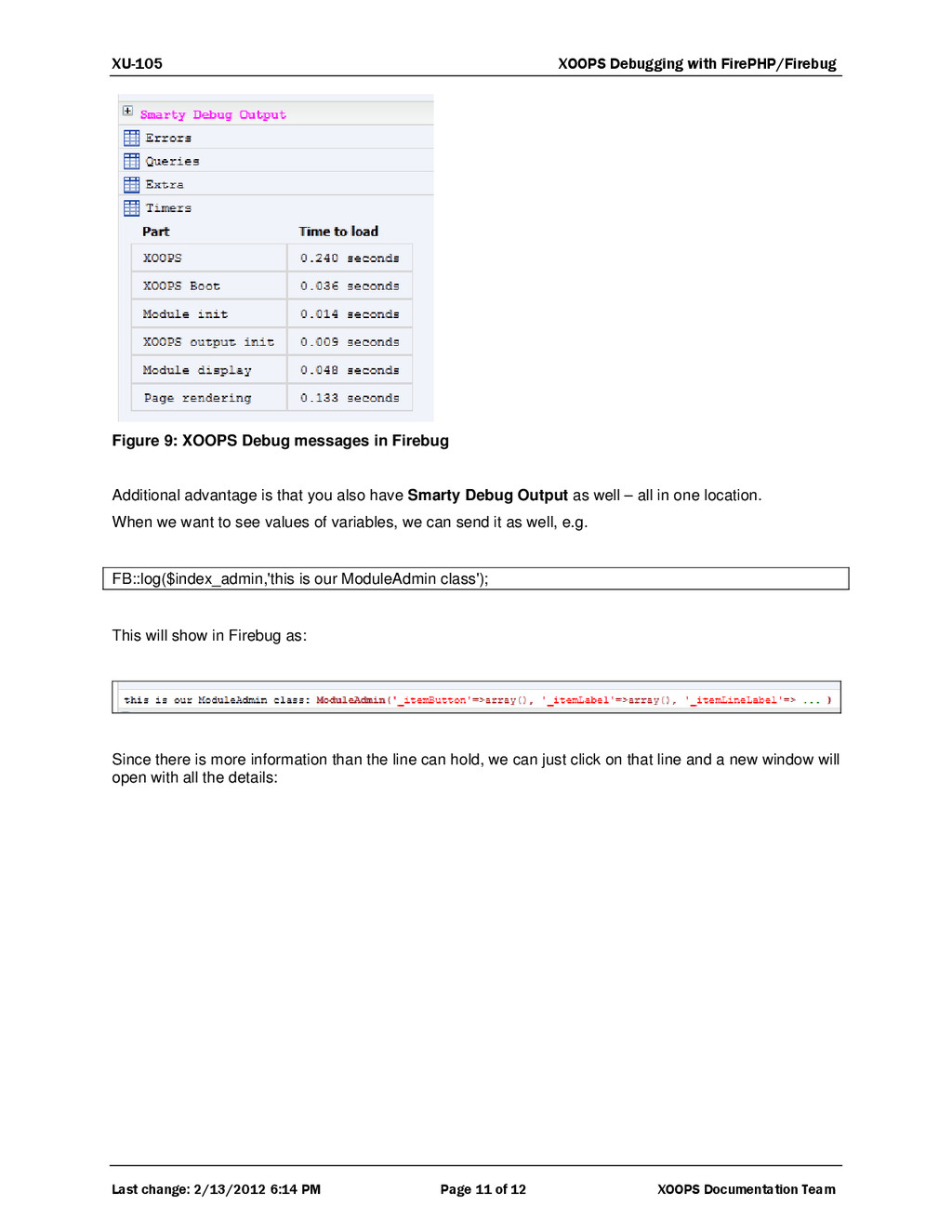

11. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 11 of 12 XOOPS Documentation Team Figure 9: XOOPS Debug messages in Firebug Additional advantage is that you also have Smarty Debug Output as well – all in one location. When we want to see values of variables, we can send it as well, e.g. FB::log($index_admin,'this is our ModuleAdmin class'); This will show in Firebug as: Since there is more information than the line can hold, we can just click on that line and a new window will open with all the details:

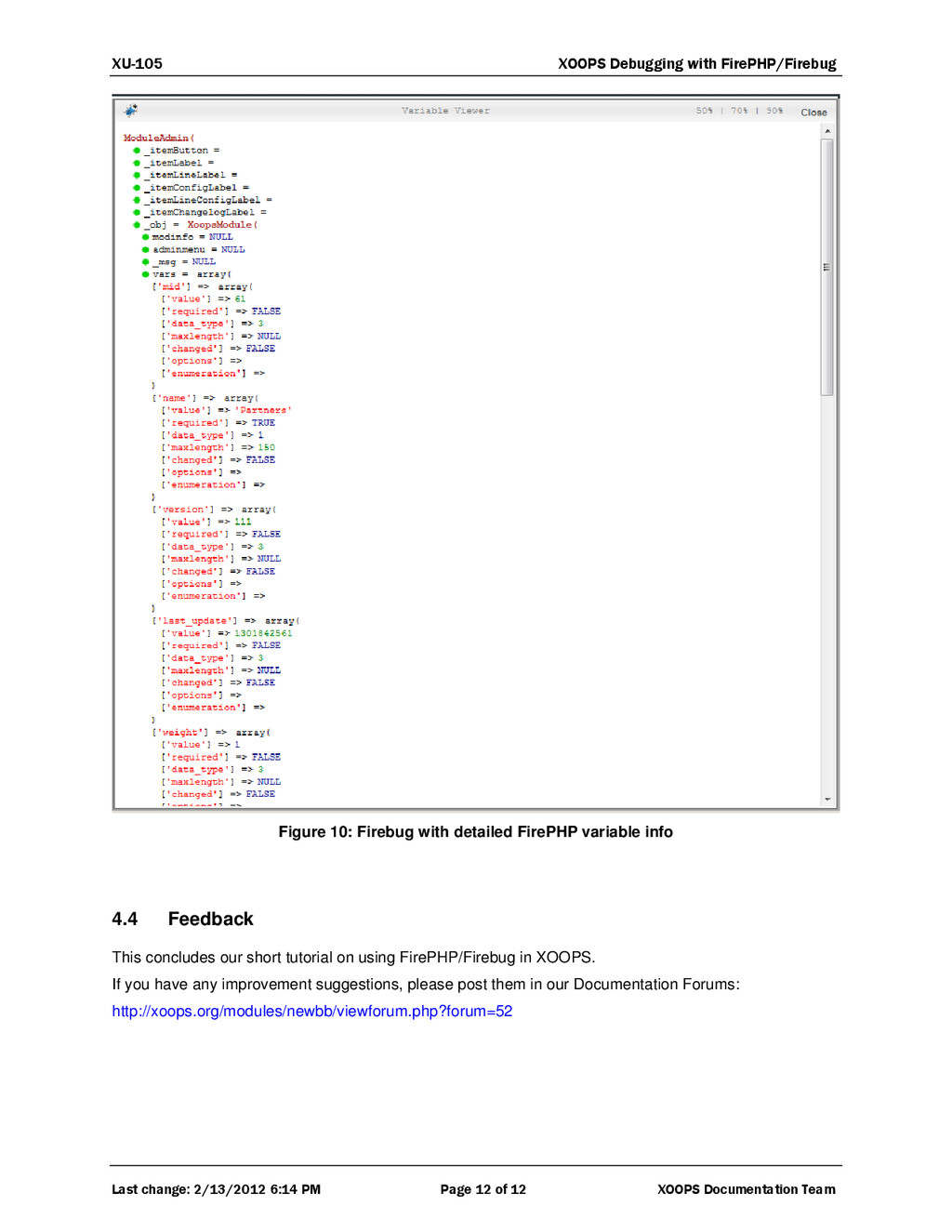

12. XU-105 XOOPS Debugging with FirePHP/Firebug Last change: 2/13/2012 6:14 PM Page 12 of 12 XOOPS Documentation Team Figure 10: Firebug with detailed FirePHP variable info 4.4 Feedback This concludes our short tutorial on using FirePHP/Firebug in XOOPS. If you have any improvement suggestions, please post them in our Documentation Forums: http://xoops.org/modules/newbb/viewforum.php?forum=52
