Transcript

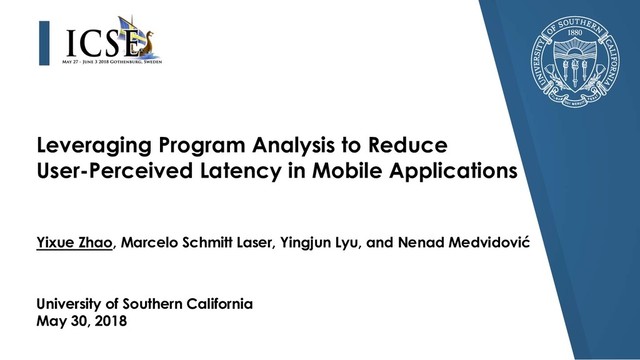

1. Leveraging Program Analysis to Reduce
   User-Perceived Latency in Mobile Applications
   Yixue Zhao, Marcelo Schmitt Laser, Yingjun Lyu, and Nenad Medvidović
   University of Southern California
   May 30, 2018


   View Slide

2. Motivating Example


   View Slide

3. Motivating Example


   View Slide

4. Motivating Example


   View Slide

5. Motivating Example
   Latency!


   View Slide

6. Motivating Example


   View Slide

7. Motivating Example


   View Slide

8. Outline
   • Existing prefetching techniques
   • Novel prefetching technique: PALOMA
   • Give me an example
   • How well does PALOMA do?
   • Summary & takeaways


   View Slide

9. Existing Prefetching Techniques
   Existing approaches:
   • Server-based
   • Human-based
   • History-based
   • Domain-based


   View Slide

10. Existing Prefetching Techniques
    Existing approaches:
    • Server-based à not accessible
    • Human-based
    • History-based
    • Domain-based


    View Slide

11. Existing Prefetching Techniques
    Existing approaches:
    • Server-based à not accessible
    • Human-based à manual & error-prone
    • History-based
    • Domain-based


    View Slide

12. Existing Prefetching Techniques
    Existing approaches:
    • Server-based à not accessible
    • Human-based à manual & error-prone
    • History-based à time-consuming
    • Domain-based


    View Slide

13. Existing Prefetching Techniques
    Existing approaches:
    • Server-based à not accessible
    • Human-based à manual & error-prone
    • History-based à time-consuming
    • Domain-based à not general


    View Slide

14. Novel Prefetching Technique: PALOMA
    • Server-based
    • Human-based
    • History-based
    • Domain-based
    Client-only
    Automatic
    No historical data
    Domain-independent


    View Slide

15. Meet PALOMA J
    Program Analysis for Latency Optimization of Mobile Apps
    • Client-only
    • Automatic
    • No historical data
    • Domain-independent


    View Slide

16. Key Insights
    • App code has useful information
    • “User think time” provides opportunities


    View Slide

17. PALOMA in a Nutshell
    Code
    Analysis
    App
    Instrumentation
    Optimized
    App


    View Slide

18. Original App Workflow
    Origin
    Server
    Latency!
    Original
    App
    • App interacts with server
    • Network latency


    View Slide

19. PALOMA Workflow
    Static Analysis App
    Instrumentation Optimized App
    String
    Analysis
    Callback
    Analysis
    Original
    App
    Proxy
    Runtime
    Prefetching
    Origin
    Server
    offline online


    View Slide

20. PALOMA Workflow
    Static Analysis App
    Instrumentation Optimized App
    String
    Analysis
    Callback
    Analysis
    Original
    App
    Proxy
    Runtime
    Prefetching
    Origin
    Server
    offline online
    “what”


    View Slide

21. PALOMA Workflow
    Static Analysis App
    Instrumentation Optimized App
    String
    Analysis
    Callback
    Analysis
    Original
    App
    Proxy
    Runtime
    Prefetching
    Origin
    Server
    offline online
    “when”


    View Slide

22. PALOMA Workflow
    Static Analysis App
    Instrumentation Optimized App
    String
    Analysis
    Callback
    Analysis
    Original
    App
    Proxy
    Runtime
    Prefetching
    Origin
    Server
    offline online


    View Slide

23. PALOMA Workflow
    Static Analysis App
    Instrumentation Optimized App
    String
    Analysis
    Callback
    Analysis
    Original
    App
    Proxy
    Runtime
    Prefetching
    Origin
    Server
    offline online


    View Slide

24. Outline
    • Existing prefetching techniques
    • Novel prefetching technique: PALOMA
    Ø Give me an example
    • How well does PALOMA do?
    • Summary & takeaways


    View Slide

25. Illustrating Example
    • Event app:
    1. choose city name


    View Slide

26. Illustrating Example
    • Event app:
    1. choose city name
    2. click submit to get event
    information


    View Slide

27. Illustrating Example
    • Event app:
    1. choose city name
    2. click submit to get event
    information


    View Slide

28. Illustrating Example
    • Event app:
    1. choose city name
    2. click submit to get event
    information
    FINALE
    The original aesthetic and
    unconventional Do-it-Yourself
    attitude of the show creates a raw
    energy that simmers through a haze
    of confetti, smoke and pulsing lights.


    View Slide

29. Illustrating Example
    • Event app:
    1. choose city name
    2. click submit to get event
    information
    • Objective:
    send event query before
    clicking submit button


    View Slide

30. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    18 }
    19 }


    View Slide

31. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    18 }
    19 }


    View Slide

32. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    18 }
    19 }


    View Slide

33. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    18 }
    19 }


    View Slide

34. Static Analysis App
    Instrumentation Optimized App
    String
    Analysis
    Callback
    Analysis
    PALOMA Workflow
    Original
    App
    Proxy
    Runtime
    Prefetching
    Origin
    Server
    offline online


    View Slide

35. String Analysis Callback Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    Answer “what” to prefetch
    * Yellow = terms defined in the paper


    View Slide

36. String Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    Answer “what” to prefetch
    • Identify URL Spot
    * Yellow = terms defined in the paper
    Callback Analysis


    View Slide

37. String Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    Answer “what” to prefetch
    • Identify URL Spot
    • Static URL string value analysis
    Interpret concrete values
    * Yellow = terms defined in the paper
    Callback Analysis


    View Slide

38. String Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    Answer “what” to prefetch
    • Identify URL Spot
    • Static URL string value analysis
    Interpret concrete values
    • Dynamic URL string value analysis
    Identify Definition Spots
    * Yellow = terms defined in the paper
    Callback Analysis


    View Slide

39. String Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    Answer “what” to prefetch
    • Identify URL Spot
    • Static URL string value analysis
    Interpret concrete values
    • Dynamic URL string value analysis
    Identify Definition Spots
    • Output à URL Map
    { url1: [ “http://event?&cityName=”, Line7] }
    * Yellow = terms defined in the paper
    Callback Analysis


    View Slide

40. String Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    • Identify Target Callback
    * Yellow = terms defined in the paper
    Answer “what” to prefetch
    • Identify URL Spot
    • Static URL string value analysis
    Interpret concrete values
    • Dynamic URL string value analysis
    Identify Definition Spots
    • Output à URL Map
    { url1: [ “http://event?&cityName=”, Line7] }
    Callback Analysis


    View Slide

41. String Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    • Identify Target Callback
    • Extract Callback Control Flow Graph
    (CCFG)
    * Yellow = terms defined in the paper
    { url1: [ “http://event?&cityName=”, Line7] }
    Answer “what” to prefetch
    • Identify URL Spot
    • Static URL string value analysis
    Interpret concrete values
    • Dynamic URL string value analysis
    Identify Definition Spots
    • Output à URL Map
    Callback Analysis


    View Slide

42. String Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    • Identify Target Callback
    • Extract Callback Control Flow Graph
    (CCFG)
    • Identify Trigger Callback
    * Yellow = terms defined in the paper
    Answer “what” to prefetch
    • Identify URL Spot
    • Static URL string value analysis
    Interpret concrete values
    • Dynamic URL string value analysis
    Identify Definition Spots
    • Output à URL Map
    { url1: [ “http://event?&cityName=”, Line7] }
    Callback Analysis


    View Slide

43. String Analysis
    Static Analysis Phase
    Answer “when” to prefetch
    • Identify Target Callback
    • Extract Callback Control Flow Graph
    (CCFG)
    • Identify Trigger Callback
    • Output à Trigger Map
    { [ onCreate ]: [ url1 ] }
    { [ onItemSelected ]: [ url1 ] }
    * Yellow = terms defined in the paper
    Answer “what” to prefetch
    • Identify URL Spot
    • Static URL string value analysis
    Interpret concrete values
    • Dynamic URL string value analysis
    Identify Definition Spots
    • Output à URL Map
    { url1: [ “http://event?&cityName=”, Line7] }
    Callback Analysis


    View Slide

44. Static Analysis Phase
    Push to Proxy
    Legend Optimized
    App
    Original
    App


    View Slide

45. Static Analysis App
    Instrumentation Optimized App
    String
    Analysis
    Callback
    Analysis
    PALOMA Workflow
    Original
    App
    Proxy
    Runtime
    Prefetching
    Origin
    Server
    offline online


    View Slide

46. Automatically enable prefetching
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests
    • Output à Optimized App
    App Instrumentation Phase
    { [ onCreate ]: [ url1 ] } { [ onItemSelected ]: [ url1 ] }
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

47. App Instrumentation Phase
    Automatically enable prefetching
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests
    • Output à Optimized App
    { [ onCreate ]: [ url1 ] } { [ onItemSelected ]: [ url1 ] }
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

48. { url1: [ “http://event?&cityName=”, Line7] }
    App Instrumentation
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    18 }
    19 } 1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests
    Definition
    Spot


    View Slide

49. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    18 }
    19 }
    App Instrumentation
    { url1: [ “http://event?&cityName=”, Line7] }
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests


    View Slide

50. App Instrumentation
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests
    { [ onCreate ]: [ url1 ] } { [ onItemSelected ]: [ url1 ] }


    View Slide

51. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    18 }
    19 }
    App Instrumentation
    { [ onCreate ]: [ url1 ] } { [ onItemSelected ]: [ url1 ] }
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests
    Trigger
    Callback


    View Slide

52. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    App Instrumentation
    { [ onCreate ]: [ url1 ] } { [ onItemSelected ]: [ url1 ] }
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests


    View Slide

53. { [ onCreate ]: [ url1 ] } { [ onItemSelected ]: [ url1 ] }
    App Instrumentation
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests


    View Slide

54. App Instrumentation
    { [ onCreate ]: [ url1 ] } { [ onItemSelected ]: [ url1 ] }
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests


    View Slide

55. App Instrumentation
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests


    View Slide

56. App Instrumentation
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse(connection.getInputStream());
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests


    View Slide

57. App Instrumentation
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    1. Update URL Map
    2. Trigger prefetching
    3. Redirect Requests


    View Slide

58. Static Analysis App
    Instrumentation Optimized App
    String
    Analysis
    Callback
    Analysis
    PALOMA Workflow
    Original
    App
    Proxy
    Runtime
    Prefetching
    Origin
    Server
    offline online


    View Slide

59. Proxy
    Runtime
    Prefetching
    Origin
    Server
    Optimized App
    PALOMA
    at runtime


    View Slide

60. Runtime Prefetching Phase
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

61. Runtime Prefetching Phase
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

62. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    Runtime Prefetching Phase
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

63. Runtime Prefetching Phase
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

64. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    Unknown
    Runtime Prefetching Phase
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

65. Runtime Prefetching Phase
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

66. Runtime Prefetching Phase
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

67. 1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    Runtime Prefetching Phase
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

68. Runtime Prefetching Phase
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    empty
    cache
    { url1: [ “http://event?&cityName=”, Line7] }


    View Slide

69. Runtime Prefetching Phase
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    empty
    cache
    { url1: [ “http://event?&cityName=”, “Berlin”] }


    View Slide

70. Runtime Prefetching Phase
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    empty
    cache
    { url1: [ “http://event?&cityName=”, “Berlin”] }


    View Slide

71. Runtime Prefetching Phase
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }
    empty
    cache
    { url1: [ “http://event?&cityName=Berlin”] }


    View Slide

72. url1’s
    response
    Runtime Prefetching Phase
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }


    View Slide

73. Runtime Prefetching Phase
    url1’s
    response


    View Slide

74. Runtime Prefetching Phase
    url1’s
    response
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }


    View Slide

75. Runtime Prefetching Phase
    url1’s
    response
    1 class MainActivity{
    2 String cityName;
    3 protected void onCreate(){
    4 //register onItemSelected event
    5 cityNameSpinner.setOnItemSelectedListener(new View.OnItemSelectedListener(){
    6 public void onItemSelected() {
    7 cityName = cityNameSpinner.getSelectedItem().toString();
    sendDefinition(cityName, url1, 2);
    triggerPrefetch(url1);
    8 }});
    9 //register onClick event
    10 submitBtn.setOnClickListener(new View.OnClickListener(){
    11 public void onClick(){
    12 //initialize URL
    13 URL url1 = new URL("http://event?&cityName="+cityName);
    14 //send HTTP request
    15 URLConnection connection = url1.openConnection();
    16 Parse( fetchFromProxy(connection) );
    17 }});
    triggerPrefetch(url1);
    18 }
    19 }


    View Slide

76. FINALE
    The original aesthetic and
    unconventional Do-it-Yourself
    attitude of the show creates a raw
    energy that simmers through a haze
    of confetti, smoke and pulsing lights.
    Runtime Prefetching Phase
    url1’s
    response


    View Slide

77. Outline
    • Existing prefetching techniques
    • Novel prefetching technique: PALOMA
    • Give me an example
    Ø How well does PALOMA do?
    • Summary & takeaways


    View Slide

78. Evaluation
    Objectives:
    • Accuracy
    Microbenchmark
    • Effectiveness
    Microbenchmark
    32 Market Apps


    View Slide

79. Evaluation – Microbenchmark
    DS1,1
    1 - H
    DS1,1
    2 - NP
    DS1,2
    DS1,1
    DS1,1
    4 - NH
    DS1,2
    DS1,2
    5 - NP
    DS1,1
    DS2,1
    8 - NP
    DS1,1
    DS1,1
    6 - H
    DS2,1
    DS1,1
    7 - NP
    DS2,1 DS2,1
    DS1,1
    11 - NP
    DS2,2
    DS1,1
    15 - NP
    DS2,2
    DS2,1
    DS1,1
    DS2,1
    12 - NH
    DS2,2
    DS1,1
    13 - NP
    DS2,2
    DS2,1
    DS2,2
    DS1,1
    14 - NP
    DS2,1
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    19 - NP
    DS2,1
    DS1,2
    DS1,1
    17 - NP
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS1,1
    18 - NP
    DS2,2
    DS2,1
    DS1,2
    DS2,1
    22 - NP
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    DS2,1
    DS1,2
    DS1,1
    DS1,1
    24 - NH
    DS2,2
    DS2,1
    DS1,2
    DS1,2
    DS1,1
    DS2,1
    DS2,2
    DS1,1
    21 - NH
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    10 - H
    DS2,2
    DS2,1
    DS1,1
    DS2,2
    9 - NP
    3 - H
    16 - H
    20 - NP 23 - NH
    • 25 Test Cases
    # of dynamic values ≤ 2
    # of Definition Spots (DS) ≤ 2


    View Slide

80. Evaluation – Microbenchmark
    DS1,1
    1 - H
    DS1,1
    2 - NP
    DS1,2
    DS1,1
    DS1,1
    4 - NH
    DS1,2
    DS1,2
    5 - NP
    DS1,1
    DS2,1
    8 - NP
    DS1,1
    DS1,1
    6 - H
    DS2,1
    DS1,1
    7 - NP
    DS2,1 DS2,1
    DS1,1
    11 - NP
    DS2,2
    DS1,1
    15 - NP
    DS2,2
    DS2,1
    DS1,1
    DS2,1
    12 - NH
    DS2,2
    DS1,1
    13 - NP
    DS2,2
    DS2,1
    DS2,2
    DS1,1
    14 - NP
    DS2,1
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    19 - NP
    DS2,1
    DS1,2
    DS1,1
    17 - NP
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS1,1
    18 - NP
    DS2,2
    DS2,1
    DS1,2
    DS2,1
    22 - NP
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    DS2,1
    DS1,2
    DS1,1
    DS1,1
    24 - NH
    DS2,2
    DS2,1
    DS1,2
    DS1,2
    DS1,1
    DS2,1
    DS2,2
    DS1,1
    21 - NH
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    10 - H
    DS2,2
    DS2,1
    DS1,1
    DS2,2
    9 - NP
    3 - H
    16 - H
    20 - NP 23 - NH
    • 25 Test Cases
    # of dynamic values ≤ 2
    # of Definition Spots (DS) ≤ 2
    • The location of DS
    Prefetchable
    Non Prefetchable (NP)
    Hit (H)
    Non Hit (NH)
    Trigger
    Point


    View Slide

81. • 25 Test Cases
    # of dynamic values ≤ 2
    # of Definition Spots (DS) ≤ 2
    • The location of DS
    Evaluation – Microbenchmark
    DS1,1
    1 - H
    DS1,1
    2 - NP
    DS1,2
    DS1,1
    DS1,1
    4 - NH
    DS1,2
    DS1,2
    5 - NP
    DS1,1
    DS2,1
    8 - NP
    DS1,1
    DS1,1
    6 - H
    DS2,1
    DS1,1
    7 - NP
    DS2,1 DS2,1
    DS1,1
    11 - NP
    DS2,2
    DS1,1
    15 - NP
    DS2,2
    DS2,1
    DS1,1
    DS2,1
    12 - NH
    DS2,2
    DS1,1
    13 - NP
    DS2,2
    DS2,1
    DS2,2
    DS1,1
    14 - NP
    DS2,1
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    19 - NP
    DS2,1
    DS1,2
    DS1,1
    17 - NP
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS1,1
    18 - NP
    DS2,2
    DS2,1
    DS1,2
    DS2,1
    22 - NP
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    DS2,1
    DS1,2
    DS1,1
    DS1,1
    24 - NH
    DS2,2
    DS2,1
    DS1,2
    DS1,2
    DS1,1
    DS2,1
    DS2,2
    DS1,1
    21 - NH
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    10 - H
    DS2,2
    DS2,1
    DS1,1
    DS2,2
    9 - NP
    3 - H
    16 - H
    20 - NP 23 - NH
    Trigger
    Point
    Prefetchable
    Non Prefetchable (NP)
    Hit (H)
    Non Hit (NH)


    View Slide

82. Evaluation – Microbenchmark
    DS1,1
    1 - H
    DS1,1
    2 - NP
    DS1,2
    DS1,1
    DS1,1
    4 - NH
    DS1,2
    DS1,2
    5 - NP
    DS1,1
    DS2,1
    8 - NP
    DS1,1
    DS1,1
    6 - H
    DS2,1
    DS1,1
    7 - NP
    DS2,1 DS2,1
    DS1,1
    11 - NP
    DS2,2
    DS1,1
    15 - NP
    DS2,2
    DS2,1
    DS1,1
    DS2,1
    12 - NH
    DS2,2
    DS1,1
    13 - NP
    DS2,2
    DS2,1
    DS2,2
    DS1,1
    14 - NP
    DS2,1
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    19 - NP
    DS2,1
    DS1,2
    DS1,1
    17 - NP
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS1,1
    18 - NP
    DS2,2
    DS2,1
    DS1,2
    DS2,1
    22 - NP
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    DS2,1
    DS1,2
    DS1,1
    DS1,1
    24 - NH
    DS2,2
    DS2,1
    DS1,2
    DS1,2
    DS1,1
    DS2,1
    DS2,2
    DS1,1
    21 - NH
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    10 - H
    DS2,2
    DS2,1
    DS1,1
    DS2,2
    9 - NP
    3 - H
    16 - H
    20 - NP 23 - NH
    Prefetchable
    Non Prefetchable (NP)
    Hit (H)
    Non Hit (NH)
    • 25 Test Cases
    # of dynamic values ≤ 2
    # of Definition Spots (DS) ≤ 2
    • The location of DS
    Trigger
    Point


    View Slide

83. Evaluation – Microbenchmark
    DS1,1
    1 - H
    DS1,1
    2 - NP
    DS1,2
    DS1,1
    DS1,1
    4 - NH
    DS1,2
    DS1,2
    5 - NP
    DS1,1
    DS2,1
    8 - NP
    DS1,1
    DS1,1
    6 - H
    DS2,1
    DS1,1
    7 - NP
    DS2,1 DS2,1
    DS1,1
    11 - NP
    DS2,2
    DS1,1
    15 - NP
    DS2,2
    DS2,1
    DS1,1
    DS2,1
    12 - NH
    DS2,2
    DS1,1
    13 - NP
    DS2,2
    DS2,1
    DS2,2
    DS1,1
    14 - NP
    DS2,1
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    19 - NP
    DS2,1
    DS1,2
    DS1,1
    17 - NP
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    DS1,1
    18 - NP
    DS2,2
    DS2,1
    DS1,2
    DS2,1
    22 - NP
    DS2,2
    DS1,2
    DS1,1
    DS2,2
    DS2,1
    DS1,2
    DS1,1
    DS1,1
    24 - NH
    DS2,2
    DS2,1
    DS1,2
    DS1,2
    DS1,1
    DS2,1
    DS2,2
    DS1,1
    21 - NH
    DS2,1
    DS2,2
    DS1,2
    DS1,1
    10 - H
    DS2,2
    DS2,1
    DS1,1
    DS2,2
    9 - NP
    3 - H
    16 - H
    20 - NP 23 - NH
    • 25 Test Cases
    # of dynamic values ≤ 2
    # of Definition Spots (DS) ≤ 2
    • The location of DS
    Prefetchable
    Non Prefetchable (NP)
    Hit (H)
    Non Hit (NH)
    Trigger
    Point


    View Slide

84. Evaluation – Microbenchmark
    Check out our paper!


    View Slide

85. Evaluation – Microbenchmark
    • Accuracy
    Precision: 100% (All prefetched requests are prefetchable)
    Recall: 100% (All prefetchable requests are prefetched)


    View Slide

86. Evaluation – Microbenchmark
    • Accuracy
    Precision: 100% (All prefetched requests are prefetchable)
    Recall: 100% (All prefetchable requests are prefetched)
    • Effectiveness
    Average latency reduction: 99.47% (across all Hit cases)
    Average overhead: 6.44ms (across all 25 cases)


    View Slide

87. Evaluation – Market Apps
    • 32 subject apps from Google Play
    • 11 app categories
    • App size from 312 KB to 17.8 MB
    • 2 Android users exposed to all app options
    • 4G network setting


    View Slide

88. Evaluation – Market Apps
    • Results across the 32 subject apps
    Min. Max. Avg. Std. Dev.
    Runtime
    Requests
    1 64 13.28 14.41
    Hit Rate 7.7% 100% 47.76% 28.81%
    Latency
    Reduction
    87.41% 99.97% 98.82% 2.3%


    View Slide

89. Summary


    View Slide

90. Summary
    Latency!


    View Slide

91. Summary
    Latency!
    Latency! (Systems)


    View Slide

92. Latency! (Systems)
    Summary
    Prefetching (Program Analysis)
    Latency!


    View Slide

93. Takeaways
    Program Analysis for Latency Optimization in Mobile Apps:
    • Client-only
    • Automatic
    • Domain-independent
    • No historical data required


    View Slide

94. Takeaways
    Program Analysis for Latency Optimization in Mobile Apps:
    • Significant latency reduction
    • Negligible overhead


    View Slide

95. Takeaways
    Program Analysis for Latency Optimization in Mobile Apps:
    • Foundation
    • Rigorous formulation of prefetching scenarios
    • Comprehensive & reusable microbenchmark


    View Slide

96. Behind the Scene: co-authors
    Marcelo Schmitt Laser Yingjun Lyu advisor: Nenad Medvidović


    View Slide

97. Behind the Scene: co-authors + acknowledgement
    William G.J. Halfond Atanas (Nasko) Rountev Yuhao Zhu


    View Slide

98. Contact: yixue.zhao@usc.edu
    PALOMA Website: softarch.usc.edu/PALOMA


    View Slide
