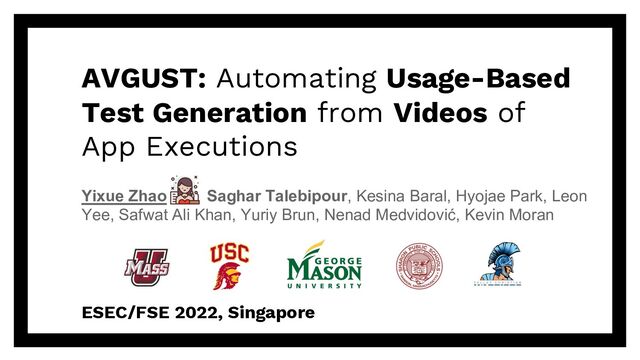

  1. AVGUST: Automating Usage-Based
    Test Generation from Videos of
    App Executions
    ESEC/FSE 2022, Singapore
    Yixue Zhao Saghar Talebipour, Kesina Baral, Hyojae Park, Leon
    Yee, Safwat Ali Khan, Yuriy Brun, Nenad Medvidović, Kevin Moran

    View full-size slide

  2. ▪ 6.64 billion smartphone
    users worldwide (80%+)
    ▪ 230 billion downloads in
    2021 worldwide
    ▪ Avg American spends over
    5h/day on mobile devices
    ▪ Avg American checks
    phone 96 times/day, or
    once every 10min
    2
    Source: Statista, ZIPPIA

    View full-size slide

  3. 3
    App Developer
    Oh man, I need
    to write a sign-in
    test again…
    Behold!
    Do NOT fear!
    Have you tried
    AVGUST?

    View full-size slide

  4. 4
    App Developer
    AVGUST, I want a
    sign-in test for my
    app! Oh, and also
    search, add cart,

    View full-size slide

  5. 5
    App Developer Tests!
    AVGUST
    There you go!
    AVGUST, I want a
    sign-in test for my
    app! Oh, and also
    search, add cart,

    View full-size slide

  6. 6
    App Developer
    Yay thank you
    AVGUST!!!! What
    about deposit
    money for my
    banking app?

    View full-size slide

  7. 7
    App Developer
    Yay thank you
    AVGUST!!!! What
    about deposit
    money for my
    banking app?
    AVGUST
    Just give me
    similar videos
    and you shall
    receive! J

    View full-size slide

  8. 9
    Existing Work
    ▪ Random Testing, e.g., Monkey
    ▪ Model-based Testing (MBT), e.g., Stoat
    ▪ ……

    View full-size slide

  9. 10
    Existing Work
    ▪ Random Testing, e.g., Monkey
    ▪ Model-based Testing (MBT), e.g., Stoat
    ▪ ……
    Goal
    Maximize code coverage

    View full-size slide

  10. 11
    Usage-based Test
    ▪ Test usage scenarios of an app (e.g., sign in, add item
    to the shopping cart)
    ▪ Highly preferred by developers
    ▪ Mimics realistic user behaviors

    View full-size slide

  11. 12
    Usage-based Test, How?
    ▪ Test Transfer
    □ GTM ISSTA 2018
    □ ATM ASE 2019
    □ CraftDroid ASE 2019
    □ FrUITeR ESEC/FSE 2020 (our work J)
    □ MAPIT ASE 2021 (our work J)
    □ …

    View full-size slide

  12. 13
    Usage-based Test, How?
    ▪ Test Transfer
    □ GTM ISSTA 2018
    □ ATM ASE 2019
    □ CraftDroid ASE 2019
    □ FrUITeR ESEC/FSE 2020 (our work J)
    □ MAPIT ASE 2021 (our work J)
    □ …
    Limitation
    Rely on existing tests
    □ Unavailable
    □ Low quality
    □ Too different

    View full-size slide

  13. 14
    AVGUST
    ▪ Developer-in-the-loop tool
    ▪ AVGUST = App-video-based generation of usage tests
    ▪ Only relies on videos
    □ Easy to get (e.g., public, crowdsourcing)
    □ Vison-only (pixel-based)
    □ Cross platform (any apps!)

    View full-size slide

  14. 15
    AVGUST Overview
    Videos Tests!
    Developer
    Assistance
    Models
    (per usage)

    View full-size slide

  15. 16
    Video Analysis
    Event Frames
    § Video processing
    § Action identification
    § Keyboard detection

    View full-size slide

  16. 17
    Model Generation
    (app-specific)
    Event Frames
    (app-independent)
    Model

    View full-size slide

  17. 18
    Model Generation
    (app-specific)
    Event Frames
    (app-independent)
    Model
    Classification!

    View full-size slide

  18. 19
    Model Generation

    View full-size slide

  19. 20
    Model Generation

    View full-size slide

  20. 21
    Model Generation

    View full-size slide

  21. 22
    Model Generation

    View full-size slide

  22. ▪ Widget Classifier
    23
    Model Generation
    ▪ Screen Classifier
    “home”
    “about”
    “account”
    “cart”
    “search”
    ……
    “menu”
    “password”
    “add cart”
    “bookmark”
    “buy”
    ……
    37 74

    View full-size slide

  23. 24
    Screen Features
    Screen Image
    Visual
    Textual
    Abstract GUI Screen
    OCR Text

    View full-size slide

  24. 25
    Widget Features
    Visual
    Features
    Textual
    Features
    OCR + BERT
    Widget
    Location:
    Top-Left
    Type:
    ImageButton
    Context
    “Home” Screen
    ResNet

    View full-size slide

  25. 26
    Model Generation

    View full-size slide

  26. 27
    Model Generation
    ……
    App1 AppN

    View full-size slide

  27. 28
    Test Generation
    Videos Tests!
    Developer
    Assistance
    IR Models

    View full-size slide

  28. 29
    Current State
    of Target App
    Top-K
    actions
    Test(s)! J
    Model
    (e.g., sign in)
    Image Features
    Textual Features
    IR Classifiers
    Developer

    View full-size slide

  29. 30
    AVGUST Evaluation
    ▪ 374 videos, 18 usages, 18 apps
    ▪ 51 generated tests for unseen apps
    □ 69% successful!
    □ 80% state precision (avg.)
    □ 70% state recall (avg.)
    Saves efforts!

    View full-size slide

  30. 31
    AVGUST Evaluation
    Screen IR Classifier’s Accuracy

    View full-size slide

  31. 32
    AVGUST Contributions
    ▪ First usage-based test generation based on videos
    ▪ Effective image classification (videos à formal models)
    ▪ Ready-to-use trained models

    View full-size slide

  32. 33
    AVGUST Contributions
    ▪ First usage-based test generation based on videos
    ▪ Effective image classification (videos à formal models)
    ▪ Ready-to-use trained models
    Crowd
    Workers
    Community
    Database
    Usage-based
    Tests, and more!

    View full-size slide

  33. Thank You
    Saghar Kesina Hyojae Leon
    Safwat Yuriy Neno Kevin

    View full-size slide

  34. Questions?
    Let’s connect! J
    ▪ Email: [email protected]
    ▪ Twitter: @yixue_zhao
    ▪ LinkedIn: www.linkedin.com/in/yixue-zhao/
    35
