The Hand
This presentation describes the anatomy of the Hand
Dr.Sherif Fahmy
August 01, 2019
Transcript
57 slides

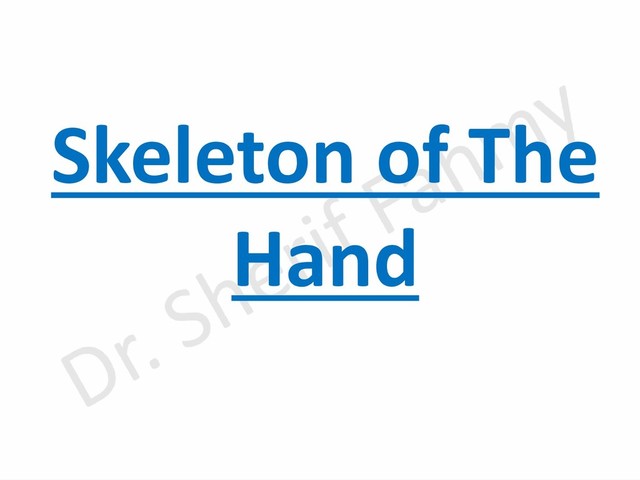

Skeleton of The Hand
Trapezium Trapezoid Capitate Hamate Scaphoid Lunate Triquetral Pisiform
Tubercle of scaphoid Crest of trapezium Hook of Hamate Pisiform
Palmaris brevis
Palmaris Brevis Palmaris brevis Palmar aponeurosis
Deep Fascia of Palm 1- Flexor retinaculum. 2- Palmar aponeurosis.
Flexor Retinaculum (Page 98)
None
Crest of trapezium Tubercle of scaphoid Pisiform bone Hook of
hamate Medial lip of trapezium Dr. Sherif Fahmy
Lat. Med. Hook of hamate Pisiform bone Crest of trapezium
Tubercle of scaphoid Attachments
Trapezium Flexor retinaculum Special compartment for tendon of flexor carpi
radialis Med. Lat.
Structures passing superficial to flexor retinaculum Lat. Med. Palmar cutaneous
branch of median n. Tendon of palmaris longus Palmar cutaneous branch of ulnar nerve Ulnar artery Ulnar nerve
tendons of flexor digitorum muscles with synovial sheath (ulnar bursa)
Structures passing deep Tendon of flexor pollicis longus with its synovial sheath (radial bursa) Median nerve
Carpal Tunnel (Page 97)
Boundaries of carpal tunnle Carpal bones Flexor retinaculum Carpal tunnle
Contents of carpal tunnle Tendons of flexor digitorum superficialis Tendons
of flexor digitorum profundus Tendon of flexor pollicis longus Median n. Dr. Sherif Fahmy
Common synovial sheath (ulnar bursa) Synovial sheath around flexor pollicis
longus tendon (radial bursa)
Common synovial sheath around tendons of flexor digitorum muscles Contents
of carpal tunnle Tendon of flexor pollicis longus with its synovial sheath (radial bursa) Median nerve
Palmar Aponeurosis
Palmar aponeurosis
Tendon of palmaris longus Palmar aponeurosis Thenar muscles Hypothenar muscles
Fibrous flexor sheaths 4 slips
Extensions of Palmar Aponeurosis
Lat. Med. Palmar aponeurosis Fascia covering hypothenar muscles Deep fascia
covering thenar muscles
Lat. Med. Palmar aponeurosis Medial palmar septum Lateral palmar septum
Intermediate palmar septum 1st metacarpal bone 3rd metacarpal bone 5th metacarpal bone
Palmar Spaces (Boundaries & Contents)
Palmar Compartments 1- lateral compartment (Thenar). 2- Medial compartment (Hypothenar).
3- Intermediate compartment: A- Mid-palmar space. B- Thenar space.
Lateral compartment Medial Compartment Adductor pollicis m. A line that
divides middle compartment into mid-palmar (Medial) & thenar and adductor (Lateral)
Palmar (Hand) Spaces & their Contents
Lat. Med. Palmar aponeurosis Medial intermuscular septum Lateral intermuscular septum
Intermediate intermuscular septum Adductor space containing adductor pollicis muscle Thenar space Mid-palmar space
Contents of Palmar Spaces
Lat. Med. Superficial palmar arch & Branches of median and
ulnar nerves Flexor digitorum tendons to medial 3 fingers & synovial sheath Adductor pollicis muscle Flexor digit tendons to index with blood & nerve supply to thumb and lateral side of index Deep palmar arch
Muscles of The Hand
Lateral Muscles of Palm 1- Thenar eminence muscles. a- Abductor
pollicis brevis. b- Flexor pollicis brevis. c- Opponens pollicis. 2- Adductor Pollicis muscle.
Abductor pollicis brevis Flexor pollicis brevis Adductor pollicis m.
Abductor pollicis longus (cut) Adductor pollicis Opponens pollicis Flexor pollicis
brevis (cut) Abductor digiti minimi Flexor digiti minimi Opponens digiti minimi
Adductor pollicis m.
Medial Muscles of the Palm (Hypothenar Muscles) 1- Abductor digiti
minimi. 2- Flexor digiti minimi. 3- Opponens digiti minimi.
Abductor digiti minimi m. Flexor digiti minimi m. Flexor retinaculum
Abductor digiti minimi Opponens digiti mini
Intermediate Muscles Of the Palm 1- Lumbricals. 2- Palmar interossii.
3- Dorsal interossii.
Lumbricals Tendons of flexor digitorum profundus
Palmar interossei ms
Dorsal interossei ms
Fibrous Flexor Sheaths (page 127)
Fibrous flexor sheathes
Distal Pulp Space
None
Bulb space
Synovial Sheaths (page 129)
None
Dr. Sherif Fahmy
None
None
None
Vincula
None
Dr. Sherif Fahmy
