THE HAND
This presentation describes anatomy of the hand
Dr.Sherif Fahmy
August 02, 2019
Tweet
Share
More Decks by Dr.Sherif Fahmy
See All by Dr.Sherif Fahmy
Deep_Muscles_of_Flexor_Compartment_of_Forearm.pdf
1sherif
0
43
Abdomen 4
1sherif
0
160
Abdomen 1
1sherif
0
63
Abdomen 2
1sherif
1
320
Abdomen 3
1sherif
0
37
Anatomy of the Neck
1sherif
0
80
The Head
1sherif
1
30
Special Embryology 1
1sherif
0
280
Special Embryology 2
1sherif
0
32
Other Decks in Science
See All in Science
ほたるのひかり/RayTracingCamp10
kugimasa
1
540
学術講演会中央大学学員会大分支部
tagtag
0
120
20分で分かる Human-in-the-Loop 機械学習におけるアノテーションとヒューマンコンピューターインタラクションの真髄
hurutoriya
5
2.8k
01_篠原弘道_SIPガバニングボード座長_ポスコロSIPへの期待.pdf
sip3ristex
0
190
Design of three-dimensional binary manipulators for pick-and-place task avoiding obstacles (IECON2024)
konakalab
0
130
テンソル分解を用いた教師なし学習による変数選択法のシングルセルマルチオミックスデータ解析への応用
tagtag
1
120
Reconciling Accuracy, Cost, and Latency of Inference Serving Systems
pjamshidi
0
120
局所保存性・相似変換対称性を満たす機械学習モデルによる数値流体力学
yellowshippo
1
180
The thin line between reconstruction, classification, and hallucination in brain decoding
ykamit
1
1.2k
解説!データ基盤の進化を後押しする手順とタイミング
shomaekawa
1
400
[第62回 CV勉強会@関東] Long-CLIP: Unlocking the Long-Text Capability of CLIP / kantoCV 62th ECCV 2024
lychee1223
1
860
07_浮世満理子_アイディア高等学院学院長_一般社団法人全国心理業連合会代表理事_紹介資料.pdf
sip3ristex
0
170
Featured
See All Featured
Refactoring Trust on Your Teams (GOTO; Chicago 2020)
rmw
33
2.8k
Visualization
eitanlees
146
15k
Agile that works and the tools we love
rasmusluckow
328
21k
Speed Design
sergeychernyshev
27
820
Distributed Sagas: A Protocol for Coordinating Microservices
caitiem20
330
21k
[Rails World 2023 - Day 1 Closing Keynote] - The Magic of Rails
eileencodes
33
2.1k
Designing Dashboards & Data Visualisations in Web Apps
destraynor
231
53k
10 Git Anti Patterns You Should be Aware of
lemiorhan
PRO
656
59k
Into the Great Unknown - MozCon
thekraken
35
1.6k
[RailsConf 2023] Rails as a piece of cake
palkan
53
5.3k
Templates, Plugins, & Blocks: Oh My! Creating the theme that thinks of everything
marktimemedia
30
2.3k
The Power of CSS Pseudo Elements
geoffreycrofte
75
5.5k
Transcript

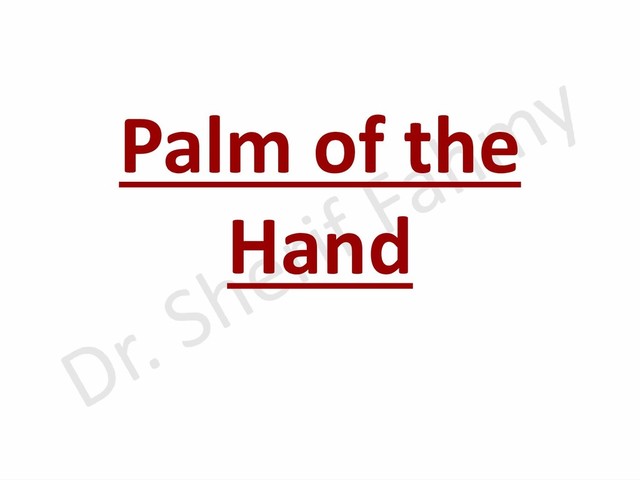

Palm of the Hand
