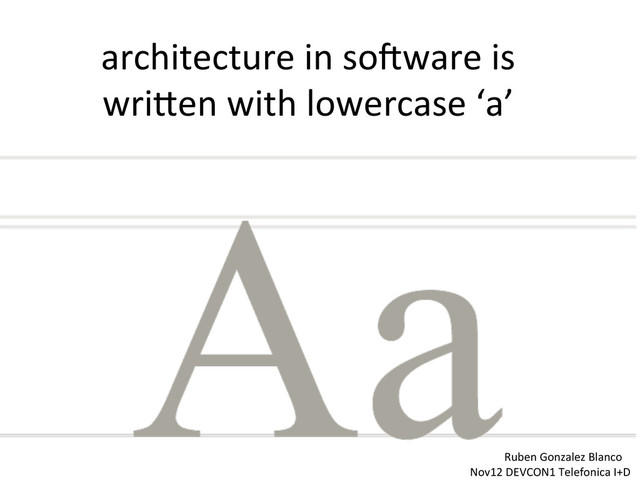

  1. architecture  in  so-ware  is
    wri/en  with  lowercase  ‘a’
    Ruben  Gonzalez  Blanco
    Nov12  DEVCON1  Telefonica  I+D

    View Slide

  2. Wrong  Job  Title?
    So-ware  Architect
    So-ware  Engineer

    View Slide

  3. Why  not  So-ware  Doctor?

    View Slide

  4. What  is  So-ware  Development?
    A  personal  understanding

    View Slide

  5. So-ware  Development  is  a  process  of
    conOnuous  Knowledge  TransformaOon
    Problem   SoluOon
    Knowledge  about

    View Slide

  6. So-ware  Development  occurs  through
    ConOnuous    Human  CreaOve  Cycles
    IntenOon   RealizaOon
    Feedback
    Synthesis

    View Slide

  7. Till  the  Desired  Working  So2ware  Emerges
    Inten%on' Realiza%on'
    Feedback'
    Synthesis'
    Inten%on' Realiza%on'
    Feedback'
    Synthesis'
    Inten%on' Realiza%on'
    Feedback'
    Synthesis'
    Inten%on' Realiza%on'
    Feedback'
    Synthesis'
    Inten%on' Realiza%on'
    Feedback'
    Synthesis'
    Compile  Failed
    Run  Failed
    Test  Failed
    Test  Passed
    Enhance  Idea/Design
    Test  Failed
    Inten%on' Realiza%on'
    Feedback'
    Synthesis'
    Test  Passed
    WORKING  SOFTWARE
    IntenFonal
    Emergent
    Emergence  is  the  key  characterisOc  of  complex  systems.

    View Slide

  8. In  some  sense  is  a  kind  of  Art  or  Cra-
    Problem  &
    Programming  Idea
    Code,  Run  &  Test
    Review
    Outcome
    Programmer
    Scene  &
    PainOng  Idea
    Paint
    Review
    Outcome
    Painter
    Digital  Experience  Creators   Visual  Experience  Creators

    View Slide

  9. So-ware  Programming  is  not  like  pure
    Engineering

    View Slide

  10. So-ware  Programing  is  not  like
    Building  ConstrucOon

    View Slide

  11. So-ware  Programmers  are  not  like
    ConstrucOon  Workers

    View Slide

  12. Does  So-ware  Architecture  and
    So-ware  Architects  make  sense?

    View Slide

  13. In  fact,  there  is  not  a  single  definiOon
    of  So-ware  Architecture  and  the  role
    of  So-ware  Architect

    View Slide

  14. Looking  at  so-ware  from  a  different
    perspecOve  trying  to  re-­‐understand
    what  “So-ware  a-­‐rchitecture”  is

    View Slide

  15. Perhaps  So-ware  is  like  Music

    View Slide

  16. Computer  vs  Music  Player

    View Slide

  17. Program  vs  Pentagram

    View Slide

  18. Programming  vs  Composing

    View Slide

  19. Running  a  Program  vs  Playing  Music
    compiled
    interpreted

    View Slide

  20. So-ware  Programming,  like  music,
    requires  deliberate  pracOce

    View Slide

  21. Harmony  and  Melody
    The  HARMONY  provides  the  base    for  the  MELODY
    Harmony  is  transversal  to  the  music  Melodies

    View Slide

  22. Perhaps  Programming  So-ware  is  like  Jazz
    Original  Dixieland  Jass  Band
    Melodies  are  improvised/created
    on  top  of  a  shared  Harmony
    created  by  a  composer
    Everybody  is  a  Composer
    The  Harmony  provides  consistency

    View Slide

  23. So-ware  Architect    =  So-ware  Harmonist
     =  So-ware  Harmony  Composer
    See  the  lower  case  ‘a’
    So-ware  Programmers  =
    So-ware  Melody  Composers
    JAZZWARE
    So-ware  Architecture  =  So-ware  Harmony
    See  the  lower  case  ‘a’

    View Slide

  24. So-ware  Harmony  is  about
    Conceptual  Integrity
    Anywhere  you  look  in  your  system,  you  can  tell  that  the  design  is  part  of  the  same  overall  design
    style,  theme,  mood  …is  about  Design  and  Style  Consistency  in  all  dimensions  of  the  system
    Fed  Brooks:
     “It  is  be>er  to  have  a  system...reflect  one  set  of  design  ideas,  than  to  have  one
    that  contains  many  good  but  independent  and  uncoordinated  ideas”
    User  interface,  technologies,  coding  styles,  naming  convenFons,  directory  structures,
    classes,  components,  interfaces,  internal  and  external  behavior,  deployment…
    Conceptual  Integrity  tries  to  limit  the  system  complexity
    Conceptual  Integrity  simplifies  collaboraOon  when  creaOng  so-ware
    The  Mythical  Man-­‐Month

    View Slide

  25. Conceptual  Integrity  examples
    •  Unix
    •  based  on  the  noOon  of  a  "file”  (e.g.  directories,  devices,
    filesystems,  named  pipes  and  sockets  are  all  sort-­‐of  files)
    •  Smalltalk
    •  "everything  is  an  object",  and  the  small  set  of  other
    accompanying  principles
    •  SQL
    •  "all  data  is  in  tables",  with  keys  and  constraints
    •  Lisp
    •  "everything  is  a  list”
    h>p://c2.com/cgi/wiki?ConceptualIntegrity

    View Slide

  26. Not  having    Conceptual  Integrity  leads
    to  chaoOc  systems
    MulOple  minds  working  in  complex  system  without  unity  and  conceptual  integrity

    View Slide

  27. 7  Dimensions
    Process
    Dimension
    Deployment
    Dimension
    Logical
     Dimension
    External Dimension
    Implementation
    Dimension
    Solu%on  Vision
    Classes,  Modules,  Design
    Components,  Interfaces,
    Interac%ons
    Use  Cases  /  User  Stories
    UX  Guidelines
    Run%me  Processes,  Threads
    Protocols,    Inter-­‐process
    Communica%on,  Integra%ons
    Implementa%on  Structure
    and  Components
    Frameworks,  Libraries
    Base  Technologies,
    Programming  Languages
    Infrastructure,  Hardware  and
    Network  Topology
    Data
    Dimension
    Environment
    Dimension
    Environments
    Tools
    Development  Process,
    Methods  and  Prac%ces
    Data  En%%es
    Data  Messages
    Logical
    Physical

    View Slide

  28. Achieving  Conceptual  Integrity
    FredBrooks:
    "Conceptual  integrity  in  turn  dictates  that  the  design  must  proceed  from  one  mind,
    or  from  a  very  small  number  of  agreeing  resonant  minds"
    Aristocracy  vs  Democracy?

    View Slide

  29. “TradiOonal”  So-ware  Architect
    architect  derives  from  the  LaOn  architectus,  which  derives  from  the  Greek
    arkhitekton  (arkhi-­‐,  chief  +  tekton,  builder),  i.e.,  chief  builder

    View Slide

  30. Bad  So-ware  Architect  ConcepOon

    View Slide

  31. Be/er  So-ware  Architect  ConcepOon
    SOll  can  be  improved

    View Slide

  32. So-ware  Harmonist  =  Technical  Leader
    Services
    Modules
    Packages
    Classes
    Code
    Breadth  &  Depth
    Process
    Dimension
    Deployment (
    Dimension
    Logical(
    (Dimension
    External Dimension
    Implementation
    Dimension
    Classes,'Modules,'Design''
    Components,'Interfaces
    Use'Cases'/'User'Stories'
    UX'Guidelines'
    Run=me'Processes,'Threads''
    Protocols,''InterAprocess'
    Communica=on'
    Implementa=on'Structure'
    and'Components'
    Frameworks,'Libraries'
    Base'Technologies,'
    Programming'Languages
    Infrastructure,'Hardware'and'
    Network'Topology'
    Data
    Dimension
    Environment
    Dimension
    Environments'
    Tools'
    Development'Process,'
    Methods'and'Prac=ces'
    Data'En==es'
    Data'Messages'
    7  Dimensions

    View Slide

  33. So-ware  Harmonist  =  Technical  Leader
    or  Development  Leader
    •  Is  able  to  compose  and  play  So-ware
    •  is  hands  on

    •  Guides,  Coaches  and  Leads  other  So-ware  Composers
    •  is  a  reference


    View Slide

  34. So-ware  Harmonist  =  Technical
    Leader  or  Development  Leader
    •  Keeps  Conceptual  Integrity  and  Unity  across  the  system
    and  teams,  while  limiOng  complexity

    •  Retains  the  final  say  in  technical  disputes  or  arguments  within
    the  team(s)
    Small  teams  with  resonant  minds  could  not  need  an
    specific  tech  leader

    View Slide

  35. ElaboraOng  So-ware  Harmony

    View Slide

  36. From  IntenOonal  to  Emerging
    Initial team
    Agile Project Kickoff
    Management team
    Architecture team
    time
    Initial project
    team
    Prototyping team
    I1 I2 I3
    Initial team
    Agile Project Kickoff
    Management team
    Architecture team
    time
    Initial project
    team
    Prototyping team
    I1 I2 I3
    Feature 1 Team
    Feature2 Team
    Infraestructure Team
    I4 I5
    Prototyping team
    •  IntenOonal  harmony  (architecture)    is  explicitly  idenOfied  and  then  implemented

    •  Accidental  harmony  (architecture)  emerges  from  the  mulOtude  of  individual  design
    decisions  that  occur  during  development,  only  a-er  which  can  we  name  that
    architecture
    Process
    Dimension
    Deployment (
    Dimension
    Logical(
    (Dimension
    External Dimension
    Implementation
    Dimension
    Classes,'Modules,'Design''
    Components,'Interfaces
    Use'Cases'/'User'Stories'
    UX'Guidelines'
    Run=me'Processes,'Threads''
    Protocols,''InterAprocess'
    Communica=on'
    Implementa=on'Structure'
    and'Components'
    Frameworks,'Libraries'
    Base'Technologies,'
    Programming'Languages
    Infrastructure,'Hardware'and'
    Network'Topology'
    Data
    Dimension
    Environment
    Dimension
    Environments'
    Tools'
    Development'Process,'
    Methods'and'Prac=ces'
    Data'En==es'
    Data'Messages'
    INTENTIONAL
    EMERGENT
    GROWING

    View Slide

  37. So-ware  Harmony(architecture)  is
    Elaborated,  Built,  Used  and  Executed
    Architecture=Harmony  is    created  as  set  of  subopOmal  design
    decisions  that  can  be  re-­‐factor  later  on
    SP1 SP2 SP3 SP4 SP5 SP6 SP7 SP8
    Sprint0 SP9
    Building  the  Harmony   Using   Building   …..
    Using
    IntenOonal
    Emergent
    IntenOonal
    Emergent

    View Slide

  38. The  Dilemma
    Solu%on  :  Assuring  Conceptual  Integrity    via  Capacity  Alloca%on  to  architecture  =  Harmony
    Source:    Dean  Leffinweel  ,  h>p://scaledagileframework.com/guidance/assuring-­‐architectural-­‐integrity-­‐via-­‐capacity-­‐
    allocaFon/

    View Slide

  39. Desired  A/ributes  of  a  So-ware  Work
    High  Cohesion
     each  part/element  is  narrowed  focused  in  its  primary  task

    Low  Coupling
     each  part  is  self-­‐contained/orthogonal  achieved  thru
    separaOon  of  concerns  and  encapsulaOon

    Conceptual  Integrity
     there  is  a  consistent  design*  and  style  across  all  so-ware
    dimensions
    (*)  programming  is  design
    Source:  “The  Art  in  Computer  Programming”,  By  Andrew  Hunt  and  David  Thomas

    View Slide

  40. There  is  no  silver  bullet
    There  is  no  single  correct  architecture  and  no  single  “right  answer”.
    JAZZWARE

    View Slide
