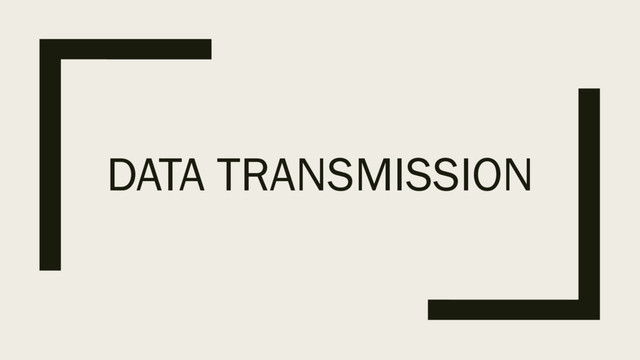

Data Transmission

Avatar for AllenHeard AllenHeard
September 27, 2016

Data Transmission

Year 12 Lesson

Avatar for AllenHeard

AllenHeard

September 27, 2016
Tweet

More Decks by AllenHeard

Other Decks in Education

Transcript

  1. Speed ▪ Bandwidth – Amount of data that can be

    transmitted across a communications channel. Represented by frequencies – range of frequencies. ▪ Bitrate – The speed at which a communication is taking place, bit rate is limited by the bandwidth available Bitrate measured in bits per second ▪ Baudrate – Another term to describe the speed at which data can be transmitted. One baud = one electronic state change per second
  2. Multiplexing ▪ Also known as muxing - a means of

    combining signals and sending them at the same time across the same wire ▪ Telecommunications (where it originated) used it to send several phone calls across one wire
  3. Switches and Packet Switching ▪ A switch connects segments of

    a network together. ▪ Packets of data received by the switch from one network are transmitted to the other connecting network ▪ In a packet switching system messages are split into packets of a fixed size, a packet contains: – Data being sent – Address of source and destination – Checksum for purposes of checking data has not been corrupted – Data that enables the data to be re-assembled
  4. Switches and Packet Switching ▪ Each packet is re-directed along

    the network by each computer until it arrives at its destination ▪ Data packets may not necessarily take the same route to the destination ▪ Internet is an example of a packet switching network ▪ Advantages : – Not affected by a failed link, many routes packets can take – Good level of security, difficult to intercept a transmission
  5. Error checking ▪ Echoing back: – Data is transmitted to

    destination and sent back to source, the two are compared to check they are the same – If two sets of data are not the same, it is sent again – Process repeats until the echo matches the original
  6. Checksum ▪ Data being sent is made up of binary

    numbers - Numbers can be added together ▪ The original bytes are added together, any carries over a byte are ignored so the answer is itself a byte ▪ Answer is sent with the data ▪ When data arrives at its destination, bytes are added together and their ’checksum’ is worked out ▪ If checksum is the same, it is assumed the data has not being corrupted ▪ If it is different, the data needs to be re-sent
  7. Parity Check ▪ Data is sent in fixed byte sizes

    (normally 8 bits) ▪ Data being sent would be in the first 7 bits of the byte, eighth bit being reserved as the parity bit ▪ Imagine data being sent is 0110110 – there is one bit left over which is used to check ▪ Parity check works by making the number of 1’s in a byte either always odd or always even, this has to be sorted out during the first contact between devices to agree odd/even ▪ The final bit (farthest right) is the parity bit
  8. Network collisions ▪ Protocol called Carrier Sense Multiple Access with

    Collision Avoidance (CSMA/CA) was developed to enable devices to transmit data at high speeds without interfering with each other ▪ When data is sent, it’s sent in frames, with all frames being re-assembled zt the receiving end ▪ Any device on a wireless network can attempt to send frames ▪ Frames of data can be picked up by any devices in range ▪ Before data is sent, the device uses protocol to see if transmission medium is idle, if so the data is sent
  9. Network collisions ▪ If it is busy, the device waits

    and tries again later (waiting a random amount of time) ▪ This is known as back-off mechanism and is random to reduce the chances of both devices trying to send simultaneously again ▪ On receipt of the data an acknowledgement is sent to confirm that data has been received and not corrupted ▪ If no confirmation is received, a random amount of time is waited and the data is re- sent ▪ Request to Send/Clear to Send (RTS/CTS)
