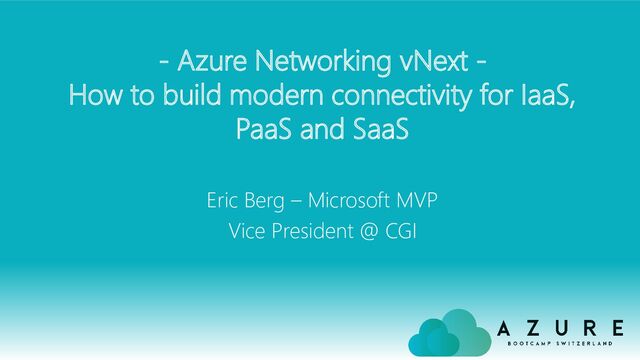

1. - Azure Networking vNext -
   How to build modern connectivity for IaaS,
   PaaS and SaaS
   Eric Berg – Microsoft MVP
   Vice President @ CGI


   View Slide

2. Eric Berg
   Vice President Expert @ CGI
   Cloud, Datacenter and Management
   Azure, AWS, GCP
   info@ericberg.de
   @ericberg_de | @GeekZeugs
   www.ericberg.de | www.geekzeugs.de


   View Slide

3. Agenda
   Networking Overview
   Networking Recap
   Connectivity
   Integration
   DNS
   Build it
   Q&A


   View Slide

4. Networking Overview


   View Slide

5. Azure Datacenter Infrastructure
   Azure
   Backup
   Site
   Recovery
   Azure
   Monitor
   Azure
   Policy
   Azure
   Blueprints
   Log
   Analytics
   Azure
   Migrate
   Databox
   Family
   Compute Storage Networking
   Linux
   Virtual
   Machine
   Compute/Containers Web/Mobile DevOps/Developer
   Container
   Instance
   Functions
   Service Fabric
   Integration IoT Data Services
   Service Bus Event Grid
   Logic Apps
   API
   Management
   Management Platform as a Services (PaaS) Security
   Infrastructure as a Services (IaaS)
   Disk
   Storage
   Managed
   Disks
   Virtual
   Machine
   Scale Sets
   Express
   Route
   Load
   Balancer
   Azure
   Firewall
   Virtual
   WAN
   Network
   Watcher
   Virtual
   Network
   VPN
   Gateway
   Media Services
   Content Delivery
   Network
   Media/CDN
   Cognitive
   Services
   IoT Hub
   Stream
   Analytics
   Role- based
   access control
   Azure
   Digital Twins
   Time Series
   Insights
   IoT Central
   IoT Edge
   Bot
   Services
   SQL Data
   Warehouse
   Azure
   Databricks
   Apache
   Spark
   AI
   Machine
   Learning Studio
   Machine
   Learning Service
   Azure
   Search
   Analytics
   Data Lake
   Storage Gen2
   Mobile Apps
   Web Apps Logic Apps API Apps
   Notification
   Hubs
   SignalR
   Service
   Application
   Insights
   Lab
   Services
   Azure DevOps
   SDK
   SQL
   Database
   Data Factory
   Database for
   MySQL Cosmos DB
   Database for
   PostgreSQL
   Database for
   MariaDB
   Database
   Migration Service
   Azure Cache
   for Redis
   Azure AD
   Key Vault
   Security
   Center
   DDoS
   Protection
   Multi-Factor
   Authentication
   Azure ATP
   Azure AD for
   Domain Services
   Azure AD
   B2C
   Cost
   Management
   Video Indexer
   Content
   Protection
   Kubernetes
   Service
   SQL Data
   Warehouse
   Table
   Storage


   View Slide

6. 60+Azure
   regions
   165k+ miles of fiber +
   subsea cables
   185+edge
   sites
   500+network
   partners
   20k+peering
   connections
   Region
   Edge
   Network


   View Slide

7. Connecting Azure regions to the global network
   Edge
   ExpressRoute
   Internet peers
   Enterprise peering
   P R I V A T E
   Internet peering
   P U B L I C
   Microsoft Wide Area Network
   Regional Gateways
   Availability Zone
   D C
   D C D C
   Availability Zone
   D C
   D C D C
   Availability Zone
   D C
   D C D C
   Azure Region


   View Slide

8. Microsoft Global Network (WAN)
   The Azure Network Edge
   Traffic to and between DCs
   WAN
   core routers
   Azure
   ExpressRoute
   Azure Front Door,
   CDN, WAF
   Azure Network Edge
   Internet and private network


   View Slide

9. Networking Recap


   View Slide

10. Virtual Network
    Isolated, logical network that provides
    connectivity for Azure Resources
    User-defined address space (can be
    one or more IP ranges, not necessarily
    RFC1918)
    • Connectivity for VMs in the same
    VNET
    • Connectivity to external
    networks/on-prem DC’s
    • Internet connectivity
    Name: VNet1
    Address space: 10.57.0.0/16,
    10.66.0.0/24
    Internet


    View Slide

11. Subnet
    Provides full layer-3
    semantics and partial layer-
    2 semantics (DHCP
    , ARP
    , no
    broadcast / multicast)
    Subnets can span only one
    range of contigous IP
    addresses
    VMs can be deployed only
    to subnets (not VNETs)
    Name: VNet1
    Address space: 10.57.0.0/16,
    10.66.0.0/24
    Subnet1
    10.57.1.0/24
    Subnet2
    10.66.0.0/24


    View Slide

12. Network Interface
    Virtual NIC that connects a VM to
    a Subnet
    One private IP address (private
    == included in the subnet’s IP
    range, not necessarily RFC1918)
    Private IP address always
    assigned via Azure DHCP
    Virtual machine
    IpConfiguration


    View Slide

13. Switching/Routing in Azure VNETs
    A VNET provides a switching/routing functionality that allows VMs to talk
    to each other
    Name: VNet2
    Address space: 10.57.0.0/16
    Subnet1
    10.57.1.0/24
    Subnet2
    10.57.2.0/25
    Switch/Routing
    (Azure SDN stack)
    Please note that, in an Azure VNet, packets
    can flow between two different subnets
    without explicitly traversing any layer-3 device.
    Azure’s network virtualization stack effectively
    works as a layer-3 switch


    View Slide

14. Connectivity


    View Slide

15. Connecting to Azure
    Cloud Customer Characteristics
    Site-to-site
    VPN connectivity
    • High throughput, secure cross-
    premises connectivity
    • BGP, active-active for high
    availability & transit routing
    Remote access point-
    to-site connectivity
    • Remote Access to VNet/On-prem
    • Connect from anywhere
    • Mac, Linux, Windows
    • Radius/AD authentication
    ExpressRoute private
    connectivity
    • Private connectivity to Microsoft
    services
    • Mission critical workloads
    Internet Connectivity
    • Internet facing with public IP
    addresses in Azure
    • VPN connectivity with virtual
    appliances (Marketplace)
    Site-to-site
    VPN connectivity
    • High throughput, secure cross-
    premises connectivity
    • BGP, active-active for high
    availability & transit routing
    Site-to-site
    VPN connectivity
    • High throughput, secure cross-
    premises connectivity
    • BGP, active-active for high
    availability & transit routing


    View Slide

16. Connecting in Azure
    16
    Cloud Cloud Characteristics
    VNet-to-VNet via
    Gateways
    • Transitive routing via BGP and VPN
    gateways
    • Secure connectivity via IPsec/IKE
    across Azure WAN links
    VNet Peering
    • Same-/cross-region direct, private
    VM-to-VM connectivity
    • NSG & UDR across VNets
    • GatewayTransit for hub-and-spoke
    VNet-to-VNet via
    ExpressRoute circuit
    • Traverse (“hairpin”) through
    ExpressRoute circuit & gateways
    • Traffic is not encrypted


    View Slide

17. Cross premises connectivity overview
    17
    S2S tunnels
    P2S tunnels
    ExpressRoute
    Virtual Network
    Internet
    Private
    WAN
    Frontend
    Mid-tier
    Backend
    Microsoft


    View Slide

18. Azure Virtual WAN


    View Slide

19. NextGen Cloud Networking


    View Slide

20. Azure Portal
    Remote
    Protocol
    (RDP, SSH)
    TLS
    443,
    Internet
    AzureBastionSubnet
    Port: 3389/22
    “AzureBastionSubnet”
    Target VM Subnet(s)
    Private IP
    Azure VM
    Azure VM
    Azure VM
    Customer’s Virtual Network
    TLS
    Azure Bastion
    Azure Bastion
    Secure and seamless RDP and SSH access
    to your virtual machines
    RDP/SSH to your workload using HTML5
    standards-based web-browser, directly in
    Azure Portal
    Resources can be accessed without public
    IP addresses
    Supported Azure resources include VMs,
    VM Scale Sets, Dev-Test Labs


    View Slide
