On the Security of the iCloud Keychain

iCloud Keychain, one of the latest additions to the family of iCloud services that was pitched by Apple. It is no doubt great for usability, but what about security? What kind of access does Apple have to your passwords stored in the iCloud? It haven’t received much research attention to the date and this talk aims to fill the gap.

Transcript

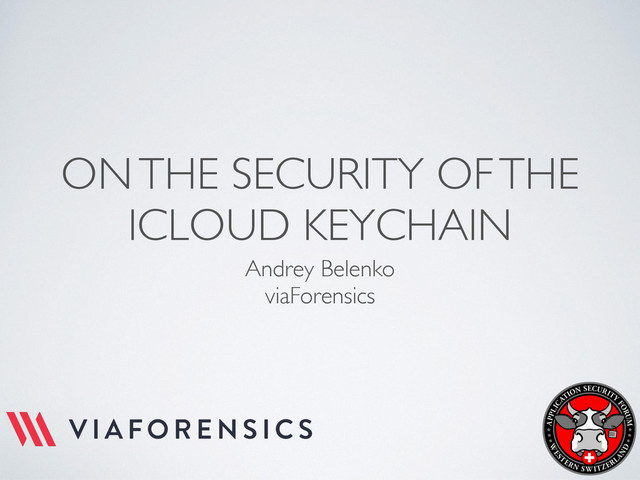

1. ON THE SECURITY OF THE
   ICLOUD KEYCHAIN
   Andrey Belenko
   viaForensics


   View Slide

2. ICLOUD
   • Introduced in 2011
   • iOS 5 and OS X 10.7
   • 320M accounts (July 2013)


   View Slide

3. ICLOUD


   View Slide

4. ICLOUD STORAGE


   View Slide

5. ICLOUD KEYCHAIN


   View Slide

6. MOTIVATION
   http://support.apple.com/kb/HT4865


   View Slide

7. ICLOUD KEYCHAIN
   • Introduced in 2013
   • iOS 7.0.3 and OS X 10.9
   • Two different services:
   • iCloud Keychain Sync
   • iCloud Keychain (Escrow and) Recovery


   View Slide

8. INTERCEPTING COMMS
   iCloud.com certificate
   is not pinned


   View Slide

9. FIRST STEPS


   View Slide

10. FIRST STEPS
    GET /authenticate
    AppleID, password


    View Slide

11. FIRST STEPS
    DsID, mmeAuthToken, fmipAuthToken
    GET /authenticate
    AppleID, password


    View Slide

12. FIRST STEPS
    DsID, mmeAuthToken, fmipAuthToken
    GET /authenticate
    AppleID, password
    GET /get_account_settings
    AppleID, password


    View Slide

13. FIRST STEPS
    DsID, mmeAuthToken, fmipAuthToken
    GET /authenticate
    AppleID, password
    Account information
    Account settings
    GET /get_account_settings
    AppleID, password


    View Slide

14. ACCOUNT SETTINGS


    View Slide

15. ACCOUNT SETTINGS


    View Slide

16. ACCOUNT SETTINGS


    View Slide

17. SETUP


    View Slide

18. THE BIG PICTURE
    escrowproxy.icloud.com
    keyvalueservice.icloud.com


    View Slide

19. THE BIG PICTURE
    Keychain
    (encrypted)
    Keybag
    (encrypted)
    escrowproxy.icloud.com
    keyvalueservice.icloud.com


    View Slide

20. THE BIG PICTURE
    Keychain
    (encrypted)
    Keybag
    (encrypted)
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    Keychain
    sync


    View Slide

21. THE BIG PICTURE
    Keychain
    (encrypted)
    Keybag
    (encrypted)
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    Master
    Secret
    Keychain
    sync


    View Slide

22. KEY-VALUE STORE
    • Not new
    • Many apps use it to keep in sync across devices
    • iCloud Keychain uses two stores:
    • com.apple.security.cloudkeychainproxy3
    • Syncing between devices
    • com.apple.sbd3 (securebackupd3)
    • Restore if no other devices


    View Slide

23. ICLOUD KEYCHAIN SYNC
    com.apple.security.cloudkeychainproxy3
    Sign(usrPwd, Bpub)
    Sign(Bpriv, (Apub, Bpub))
    Sign(Apriv, Apub)
    Sign(userPwd, Apub)
    Sign(Apriv, (Apub, Bpub))
    Sign(userPwd, (Apub, Bpub))


    View Slide

24. KEY-VALUE STORE
    com.apple.sbd3
    Key Description
    com.apple.securebackup.enabled Is Keychain data saved in KVS?
    com.apple.securebackup.record Keychain records, encrypted
    SecureBackupMetadata iCSC complexity, timestamp, country
    BackupKeybag Keybag protecting Keychain records
    BackupUsesEscrow Is keybag password escrowed?
    BackupVersion Version, currently @“1”
    BackupUUID UUID of the backup


    View Slide

25. ESCROW PROXY
    • New, designed to store precious secrets
    • MFA to recover escrowed data
    • Must be signed into iCloud
    • Must provide 6-digit code sent via SMS
    • Must prove knowledge of iCSC via SRP
    • Data destroyed after ~10 failed attempts
    • User-Agent: com.apple.lakitu (iOS/OS X)


    View Slide

26. DATA ESCROW
    escrowproxy.icloud.com
    keyvalueservice.icloud.com


    View Slide

27. DATA ESCROW
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234


    View Slide

28. DATA ESCROW
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234


    View Slide

29. DATA ESCROW
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    AES-GCM
    256 bit
    Encrypted Keychain


    View Slide

30. DATA ESCROW
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    AES-GCM
    256 bit
    Encrypted Keychain


    View Slide

31. DATA ESCROW
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    AES-GCM
    256 bit
    Encrypted Keychain
    AES-Wrap Keys
    RFC 3394
    Encrypted Keybag


    View Slide

32. DATA ESCROW
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    AES-GCM
    256 bit
    Encrypted Keychain
    AES-Wrap Keys
    RFC 3394
    Encrypted Keybag


    View Slide

33. DATA ESCROW
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    AES-GCM
    256 bit
    Encrypted Keychain
    AES-Wrap Keys
    RFC 3394
    Encrypted Keybag


    View Slide

34. DATA RECOVERY
    escrowproxy.icloud.com
    keyvalueservice.icloud.com


    View Slide

35. DATA RECOVERY
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234


    View Slide

36. DATA RECOVERY
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234


    View Slide

37. DATA RECOVERY
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234


    View Slide

38. DATA RECOVERY
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234


    View Slide

39. DATA RECOVERY
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    AES-Wrap Keys
    RFC 3394
    Encrypted Keybag


    View Slide

40. DATA RECOVERY
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    AES-Wrap Keys
    RFC 3394
    Encrypted Keybag


    View Slide

41. DATA RECOVERY
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    AES-GCM
    256 bit
    Encrypted Keychain
    AES-Wrap Keys
    RFC 3394
    Encrypted Keybag


    View Slide

42. DATA RECOVERY
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    Backup Keybag
    Key 1
    Key 2
    Key 3
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    iCloud Security Code
    1234
    AES-GCM
    256 bit
    Encrypted Keychain
    AES-Wrap Keys
    RFC 3394
    Encrypted Keybag


    View Slide

43. DATA RECOVERY
    escrowproxy.icloud.com


    View Slide

44. DATA RECOVERY
    /get_records
    List of escrowed records
    escrowproxy.icloud.com


    View Slide

45. DATA RECOVERY
    /get_records
    List of escrowed records
    /get_sms_targets
    List of phone numbers
    escrowproxy.icloud.com


    View Slide

46. DATA RECOVERY
    /get_records
    List of escrowed records
    /get_sms_targets
    List of phone numbers
    /generate_sms_challenge
    OK
    escrowproxy.icloud.com


    View Slide

47. DATA RECOVERY
    /get_records
    List of escrowed records
    /get_sms_targets
    List of phone numbers
    /generate_sms_challenge
    OK
    /srp_init [DsID, A, SMS CODE]
    [UUID, DsID, SALT, B]
    escrowproxy.icloud.com


    View Slide

48. DATA RECOVERY
    /get_records
    List of escrowed records
    /get_sms_targets
    List of phone numbers
    /generate_sms_challenge
    OK
    /srp_init [DsID, A, SMS CODE]
    [UUID, DsID, SALT, B]
    /recover [UUID, DsID, M, SMS CODE]
    [IV, AES-CBC(KSRP
    , Escrowed Record)]
    escrowproxy.icloud.com


    View Slide

49. SECURE REMOTE PASSWORD
    • Zero-knowledge password proof scheme
    • Combats sniffing/MITM
    • One password guess per connection attempt
    • Password verifier is not sufficient for impersonation
    • Escrow Proxy uses SRP-6a


    View Slide

50. Key Negotiation
    a ← random
    A ← g^a
    b ← random
    B ← kv + g^b
    u ← H(A, B) u ← H(A, B)
    x ← H(SALT, Password)
    S ← (B - kg^x) ^ (a + ux)
    K ← H(S)
    S ← (Av^u) ^ b
    K ← H(S)
    Key Verification
    M ← H(H(N) ⊕ H(g), H(ID), SALT, A, B, K)
    (Aborts if M is invalid)
    ID, A
    SALT, B
    M
    H(A, M, K)
    Password verifier:
    SALT ← random
    x ← H(SALT,Password)
    v ← g^x (mod N)
    Agreed-upon parameters:
    H – one-way hash function
    N, g – group parameters
    k ← H(N, g)


    View Slide

51. Key Negotiation
    a ← random
    A ← g^a
    b ← random
    B ← kv + g^b
    u ← H(A, B) u ← H(A, B)
    x ← H(SALT, Password)
    S ← (B - kg^x) ^ (a + ux)
    K ← H(S)
    S ← (Av^u) ^ b
    K ← H(S)
    Key Verification
    M ← H(H(N) ⊕ H(g), H(ID), SALT, A, B, K)
    (Aborts if M is invalid)
    ID, A, SMS CODE
    SALT, B
    M, SMS CODE
    H(A, M, K)
    Password verifier:
    SALT ← random
    x ← H(SALT,Password)
    v ← g^x (mod N)
    Agreed-upon parameters:
    H – SHA-256
    N, g – RFC 5054 w. 2048-bit group
    k ← H(N, g)


    View Slide

52. ESCROW PROXY
    COMMANDS
    Endpoint Description
    get_club_cert Obtains some certificate for a user
    enroll Escrows a record and returns phoneToken
    get_records Lists escrowed records
    get_sms_targets Lists phone numbers used for verification
    generate_sms_challenge Sends SMS challenge
    srp_init First step of SRP protocol
    recover Second step of SRP protocol
    alter_sms_target
    Given a phoneToken, changes phone number
    used for verification


    View Slide

53. ALTER_SMS_TARGET
    • Changes phone number used for verification
    • Stricter authentication: requires AppleID password
    • Authentication token won’t work
    • Requires phoneToken returned at escrow time
    • iOS 8 finally exposes this in the UI


    View Slide

54. ESCROW RECORD
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    iCloud Security Code
    1234
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    Backup Keybag
    Key 1
    Key 2
    Key 3
    AES-GCM
    256 bit
    AES-Wrap Keys
    RFC 3394
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    Encrypted Keychain
    Encrypted Keybag


    View Slide

55. ESCROW RECORD
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    iCloud Security Code
    1234
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    escrowproxy.icloud.com


    View Slide

56. ESCROW RECORD
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    iCloud Security Code
    1234
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    escrowproxy.icloud.com
    EscrowRecord ← AES-CBC(Key, RandomPassword)
    Key ← PBKDF2-SHA256(iCSC, 10’000)


    View Slide

57. ESCROW RECORD
    EscrowRecord ← AES-CBC(Key, RandomPassword)
    Key ← PBKDF2-SHA256(iCSC, 10’000)
    This is stored by Apple
    This is 4 digits by default
    For default settings access is totally feasible!


    View Slide

58. ESCROW RECORD
    • Offline iCSC guessing is possible
    • Almost instant recovery [for default settings]
    • iCSC decrypts keybag password
    • Keybag password unlocks keybag keys
    • Keybag keys decrypt Keychain items


    View Slide

59. Apple, or other adversary with access
    to stored data, can near-instantly
    decrypt “master” password and
    consequently decrypt backed up
    iCloud Keychain records
    (for default settings)


    View Slide

60. BUT CAN APPLE ACCESS
    STORED DATA?


    View Slide

61. HARDWARE SECURITY MODULE
    • Apple claims it uses HSMs for storing
    escrowed data
    • Impossible to verify from outside


    View Slide

62. SETUP


    View Slide

63. DATA ESCROW
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    iCloud Security Code
    correct horse battery staple
    PBKDF2
    SHA-256 x 10’000
    AES-CBC
    256 bit
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    Backup Keybag
    Key 1
    Key 2
    Key 3
    AES-GCM
    256 bit
    AES-Wrap Keys
    RFC 3394
    escrowproxy.icloud.com
    keyvalueservice.icloud.com
    Encrypted Keychain
    Encrypted Keybag


    View Slide

64. COMPLEX ICSC
    • Mechanics are the same as with simple iCSC
    • Offline password recovery attack is still possible,
    although pointless if password is complex enough


    View Slide

65. SETUP


    View Slide

66. DATA ESCROW
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    Backup Keybag
    Key 1
    Key 2
    Key 3
    AES-GCM
    256 bit
    AES-Wrap Keys
    RFC 3394
    keyvalueservice.icloud.com
    Encrypted Keychain
    Encrypted Keybag
    AES-CBC
    256 bit
    iCloud Security Code
    correct horse battery staple
    PBKDF2
    SHA-256 x 10’000
    escrowproxy.icloud.com


    View Slide

67. DATA ESCROW
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    Backup Keybag
    Key 1
    Key 2
    Key 3
    AES-GCM
    256 bit
    AES-Wrap Keys
    RFC 3394
    keyvalueservice.icloud.com
    Encrypted Keychain
    Encrypted Keybag


    View Slide

68. RANDOM ICSC
    Escrow Proxy is not used


    View Slide

69. SETUP


    View Slide

70. DATA ESCROW
    keyvalueservice.icloud.com
    escrowproxy.icloud.com
    Random Password
    BL7Z-EBTJ-UBKD-X7NM-4W6D-J2N4
    Keychain Passwords
    yMa9ohCJ
    tzzcVhE7
    sDVoCnb
    Backup Keybag
    Key 1
    Key 2
    Key 3
    AES-GCM
    256 bit
    AES-Wrap Keys
    RFC 3394
    Encrypted Keychain
    Encrypted Keybag
    AES-CBC
    256 bit
    iCloud Security Code
    correct horse battery staple
    PBKDF2
    SHA-256 x 10’000


    View Slide

71. DATA ESCROW
    keyvalueservice.icloud.com
    escrowproxy.icloud.com


    View Slide

72. NO ICSC
    Escrow Proxy is not used
    Keychain is not backed up


    View Slide

73. ATTACK SURFACE
    iCloud Keychain Services
    Master Password Escrow iCloud Keychain Backup iCloud Keychain Sync
    No iCloud Security Code
    Random iCloud Security Code
    Complex iCloud Security Code
    Simple iCloud Security Code (default)


    View Slide

74. CONCLUSIONS


    View Slide

75. CONCLUSIONS
    • Trust your vendor but verify his claims
    • Never use simple iCloud Security Code
    • Overall, iCloud Keychain is reasonably well
    engineered


    View Slide

76. Q & A


    View Slide

77. THANK YOU!
    abelenko@viaforensics.com
    @abelenko


    View Slide
