Intro to Binary Analysis

Reversing techniques for Portable Executables

This talk is meant for an audience familiar with the Linux command line and Windows internals

Transcript

1. Executable Surgery Benjamin Scott tinyurl.com/coolbinarybro
2. Why Learn This ? • Learn how computers work at low level • Understand closed-source code • Forensically examine malicious software
3. Roadmap binary_intro |- architecture |- compilation |- interesting data in binaries
4. Basic Terms • Executable = file with instructions ◦ Specified in operating-system specific format ▪ i.e. ELF for Linux, PE for Windows • Assembly = binary instructions ◦ Generated for a particular CPU architecture ◦ Common mnemonics ▪ MV, ADD, MUL, STO, LD • Storage locations ◦ Random access memory = large but slow ▪ Addressed using pointers ◦ CPU Registers = small but fast ▪ 32-bit processors use 8 general purpose
5. Windows Portable Executable (PE) .exe - Executable file .dll - Dynamic Link Library .sys - System driver .ocx - ActiveX control .scr - Screensaver • All begin with the PE header ◦ Denotes target architecture and compiler ◦ Instructions and data needed to run the program
6. Executable Sections • Logical groupings for different types of data ◦ Viewable with tools like PEiD .text = Code that will load into memory .data = Data that is writable (global variables) .rdata = Data that is read-only (static strings) .bss = Data that is statically allocated (zero'd out initially)

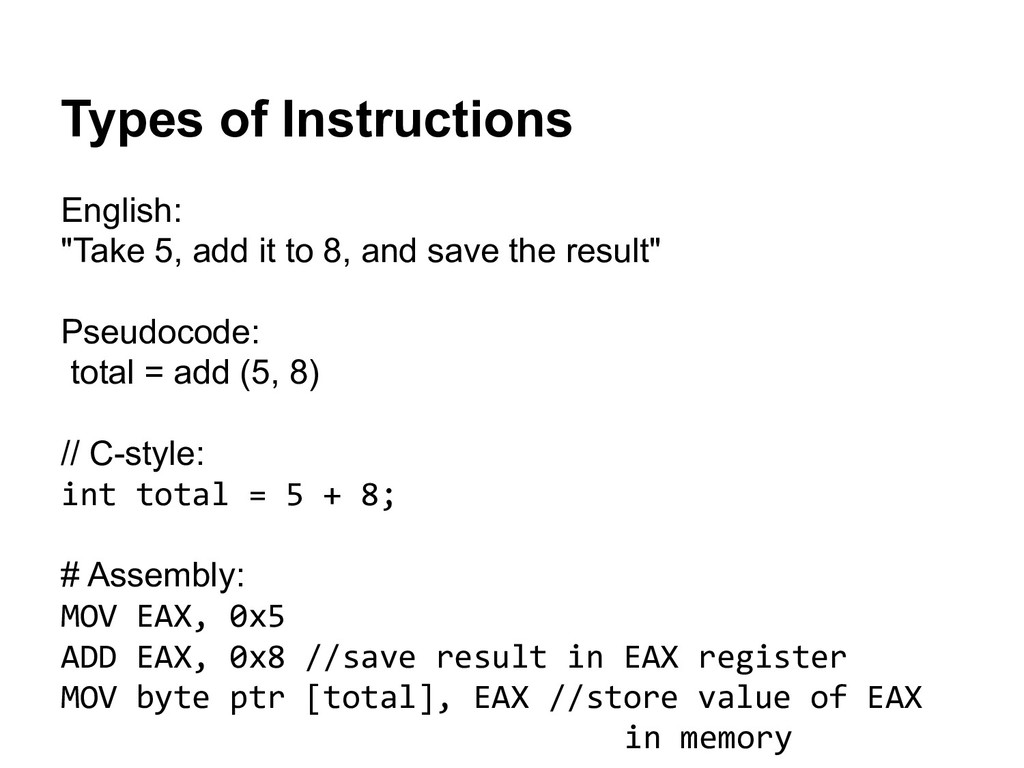

7. Types of Instructions English: "Take 5, add it to 8, and save the result" Pseudocode: total = add (5, 8) // C-style: int total = 5 + 8; # Assembly: MOV EAX, 0x5 ADD EAX, 0x8 //save result in EAX register MOV byte ptr [total], EAX //store value of EAX in memory
8. Basics of the Stack • Data structure that stores data and pointers • Values are handled on "Last-In, First-Out" basis ◦ Pushed onto the stack ◦ Popped off the stack • Think of a Pez Dispenser Top
9. About Compilation • Compiler transforms source code into machine code ◦ Result is built for target processor architecture ◦ Output can be optimized for various performance needs Source Code Machine Code Compiler (simplified representation) Executable Linker
10. Common Assembly constructs Calling a function: // C-style: function1(int first, 5); # Assembly: PUSH 5 PUSH [first] CALL _function1 ADD esp, 8 IF statement // C-style: if (variable == 9) { //inside_block } # Assembly: MV EDX, DWORD PTR [variable] CMP EDX, 9 JEQ <inside_block>
11. Common Assembly constructs While loop: // C-style: while (boolean != false) { inside_loop} # Assembly: CMP DWORD PTR [boolean] , 0 JNE <inside_loop> Switch statement // C-style: switch (option): case 7: count++; case 13: count--; # Assembly: MV EAX, DWORD PTR [option] CMP EAX, 7 JEQ <increment_count> CMP EAX, 13 JEQ <decrement_count>
12. Compilation Example $ echo "int main() {int c = 37; return c;}" > prog.c $ gcc prog.c -o myprogram $ file myprogram ELF 64-bit LSB executable, x86-64, dynamically linked, for GNU/Linux 2.6.24, not stripped • Break it down ◦ ELF = executable and linker format for Linux ◦ x86-64 = built for 64-bit CPU on Intel x86 family ◦ dynamically linked = libraries are included at runtime ◦ for Linux 2.6.24 = using the C library for this kernel ◦ not stripped = debug symbols are present
13. Embedded Data • Executables contain metadata about the author and compilation suite • static strings ◦ .data section • compile time ◦ TimeDateStamp • filepaths ◦ Project Path In Stuxnet: Debug path: \myrtus\src\objfre_w2k_x86\i386\guava.pdb string: www.mypremierfutbol.com Compile time: Wed Apr 14 10:56:22 2010 https://www.symantec.com/content/en/us/ enterprise/media/security_response/white papers/w32_stuxnet_dossier.pdf
14. • Displays information about the binary ◦ Entrypoint, sections, section sizes, compiler, packer • Custom signatures ◦ https://code.google.com/p/reverse-engineering-scripts/downloads/deta Tool: PEiD Results from Aurora malware (HydraQ) Sections: .text, .rdata, .data Compiler: Visual C++ 6.0 contagiodump.blogspot.com
15. Tool: Strings • Locate ASCII and Unicode data in binary ◦ Included on *nix systems by default ◦ SysInternals program on Windows ▪ http://technet.microsoft.com/en-us/sysinternals/bb897439 Results from Aurora malware (HydraQ) Imports: SetKeyboardFilter (keylog) Project Path: 'AuroraVNC\..\VedioDriver.pdb' contagiodump.blogspot.com
16. Tool: CFF Explorer • Edit and view executable file internals ◦ Modify PE Header ◦ Dissemble instructions ◦ www.ntcore.com/exsuite.php Results from Aurora malware (HydraQ) TimeDateStamp: Thu, 16 Nov 2006 02:11:33 GMT Machine Type: 386 (Intel x86 architecture) contagiodump.blogspot.com
17. Other talks Intro to Malware Analysis tinyurl.com/coolmalwarebro Reversing Tetris tinyurl.com/eviltetris Life of Binaries http://opensecuritytraining.info/LifeOfBinaries.html
18. Executable Examination: CFF Explorer http://www.ntcore.com/exsuite.php PEiD http://www.softpedia.com/get/Programming/Packers-Crypters-Protectors/P EiD-updated.shtml Dissemblers: IDA Pro Free Edition (5.0) [GUI] http://www.hex-rays.com/products/ida/support/download_freeware.shtml Process Debugging: OllyDBG http://www.ollydbg.de/odbg110.zip Immunity Debugger http://www.immunitysec.com/products-immdbg.shtml Executable modification: Hex Editor Neo http://www.hhdsoftware.com/free-hex-editor 010 Editor
19. Referenced Tools Introduction to malware analysis from Lenny Zeltser http://zeltser.com/reverse-malware/malware-analysis-webcast.html http://zeltser.com/reverse-malware/reverse-malware-cheat-sheet.html Highly technical open-source classes http://www.opensecuritytraining.info/Training.html Crimeware and targeted malware samples http://contagiodump.blogspot.com/2010/11/links-and-resources-for-malware-sam ples.html Challenges http://www.phreedom.org/blog/2010/csaw-reversing-challenge/ http://old.honeynet.org/scans/scan22/ http://www.woodmann.com/fravia/what_new.htm https://csawctf.poly.edu/writeups/
