Beneath the Radar: covert traffic on the web

Methods to conceal network traffic that you might not want to be recognized over the wire.

Useful for software updates, remote control, or license checks.

Transcript

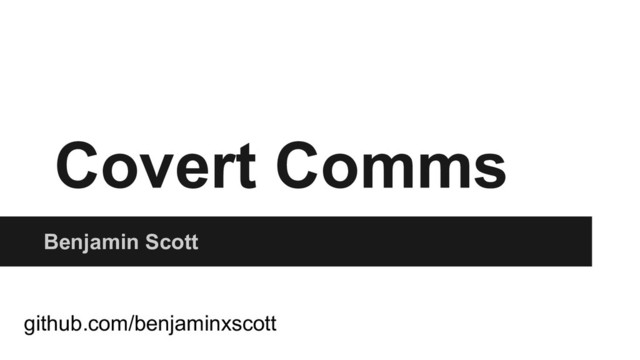

1. Covert Comms Benjamin Scott github.com/benjaminxscott

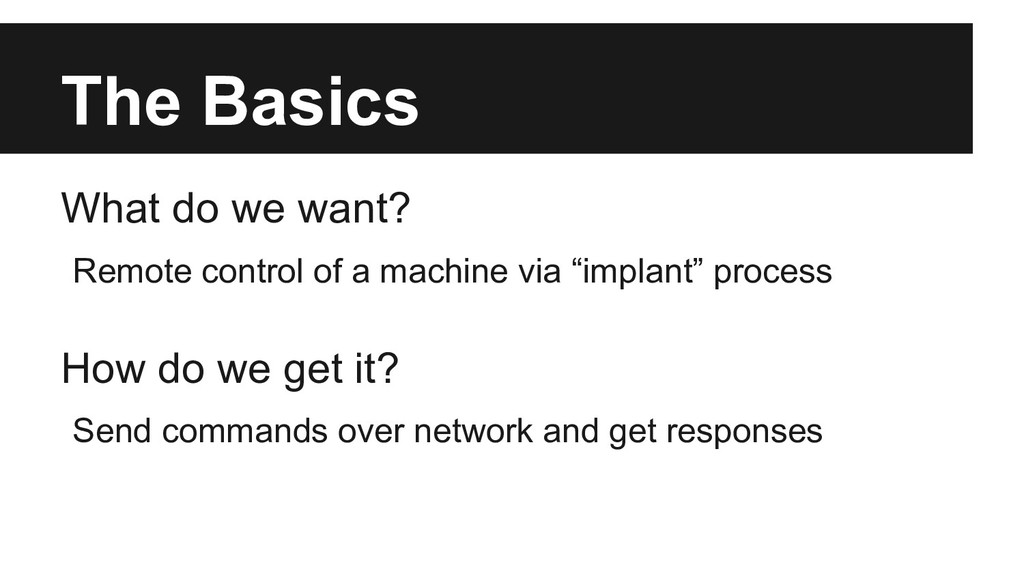

2. The Basics What do we want? Remote control of a machine via “implant” process How do we get it? Send commands over network and get responses
3. Enter the Arena DNS & Routing IP + Port = Socket Destination Source Gateway & Firewall Local Processes - Implant - Antivirus Socket
4. Types of Secrecy Encryption = I see data but cannot make sense of it Covert Channel = I have no idea what to look for Observer (man in the middle)
5. Talking Back • Direct = Connect to control server ◦ Negotiation-based, low latency ◦ Good for live interaction ◦ i.e. TCP, SSH, RDP • Indirect = Connect to intermediate server ◦ Stealthy, high latency ◦ Good for asynchronous commands / responses ◦ i.e. P2P, social media posts, HTML comments
6. What are we sending? • Implant ◦ Info about host ◦ Unique ID • Server ◦ Commands ◦ Configuration details Jimbob Jones | 655321 | Admin | WinXP | 10.1.0.1
7. Common Commands Heartbeat = Are you still there? Get_Summary = Give me your information Start_Interaction = I want a command session Transfer_File = Send a particular file Execute_Command = Run and send the results
8. Filtering Methods • Source: ◦ Antivirus = prevent connections from process ◦ Firewall = IP + port access lists • Gateway, Routing: ◦ DNS sinkhole = blacklist suspicious domains ◦ IDS = drop connections with scary data ◦ Protocol filtering = inspect packets
9. UserAgent (direct) Implant generates UA with command codes Server parses and replies curl $server -A “AppleWebKit/531.($command)” Detection: Look for uncommon UserAgents Blocking: Use a web proxy to standardize outgoing UAs (i.e. fake_user_agent in squid)
10. DNS TXT records (indirect) Server populates command to nameserver TXT record Implant parses DNS TXT record for domain dig $domain txt Detect: Log DNS queries and investigate odd ones Blocking: Run your own DNS, never ask for authoritative records, only cache from trusted sources
11. HTML comments (indirect) Server encodes commands in comments Implant parses from between markers <!-->marker $command marker<--> Detection: very difficult Blocking: Use a web proxy to filter incoming comments (i.e. ProxyHTMLStripComments On in squid)
12. Implant Development Choose platform / language to support Cache data locally Use dynamic reconfiguration Have a strict build process to strip debug info
13. Server Maintenance • Taking Action ◦ alerting on interesting events ◦ parsing collected data • Storage and backup ◦ common interface and DB backend ◦ log rolling & archival • Scaling ◦ patching ◦ rolling infrastructure
14. OPSEC Considerations • Technical Protection ◦ Public key crypto and disk encryption ◦ Proxies / Tor relays • Stay under the radar ◦ Keep people from spidering your server ◦ Abuse free hosting and open-source implants
15. Questions? tiny.cc/covertcomms
