1. AWS Security Jason Chan chan@netflix.com : @chanjbs SAINTCON 2014
2. Quick Survey AWS Experience 1-4

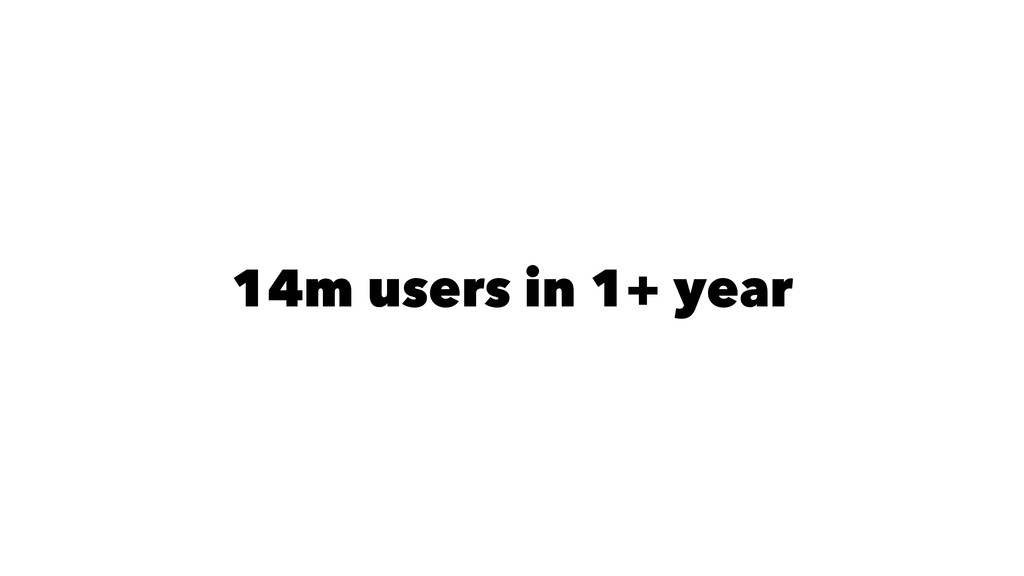

4. 14m users in 1+ year
5. 14m users in 1+ year 150m photos
6. 14m users in 1+ year 150m photos 3 engineers

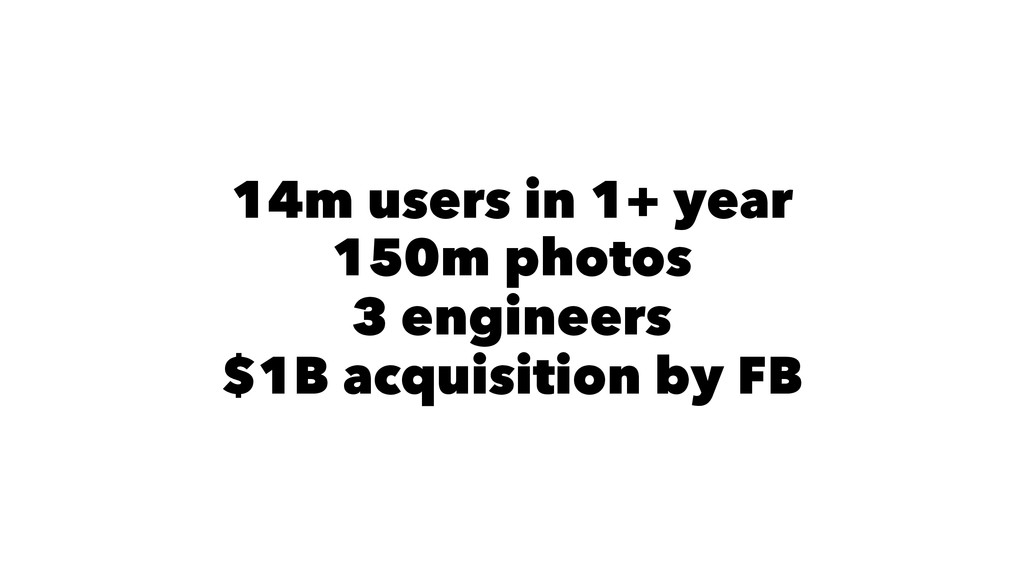

7. 14m users in 1+ year 150m photos 3 engineers $1B acquisition by FB
9. So . . .

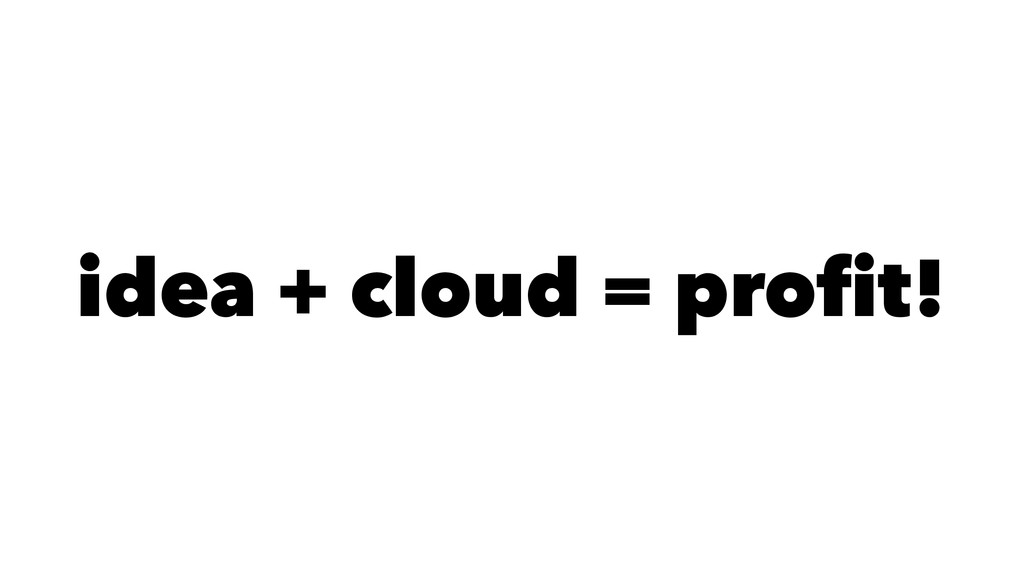

10. idea + cloud = profit!
13. So . . .
15. Goal: AWS benefits, securely
16. AWS Intro Typical Setup Thinking about AWS Security Tips and Traps Other Resources
17. Me Now: Security @ Netflix Before: Security @ VMware Before: @stake, iSEC
19. AWS
20. IaaS Undifferentiated heavy lifting

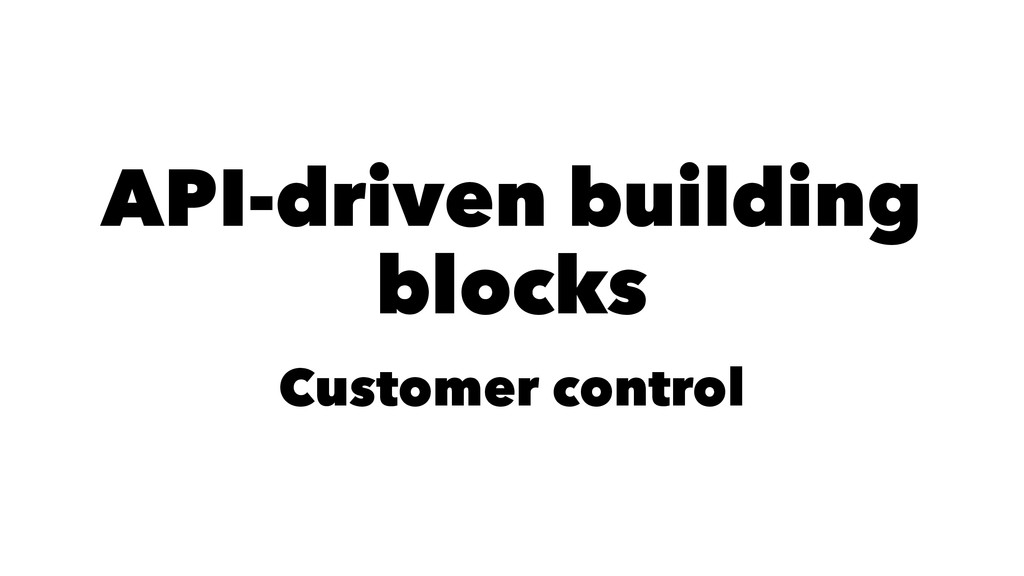

21. API-driven building blocks Customer control

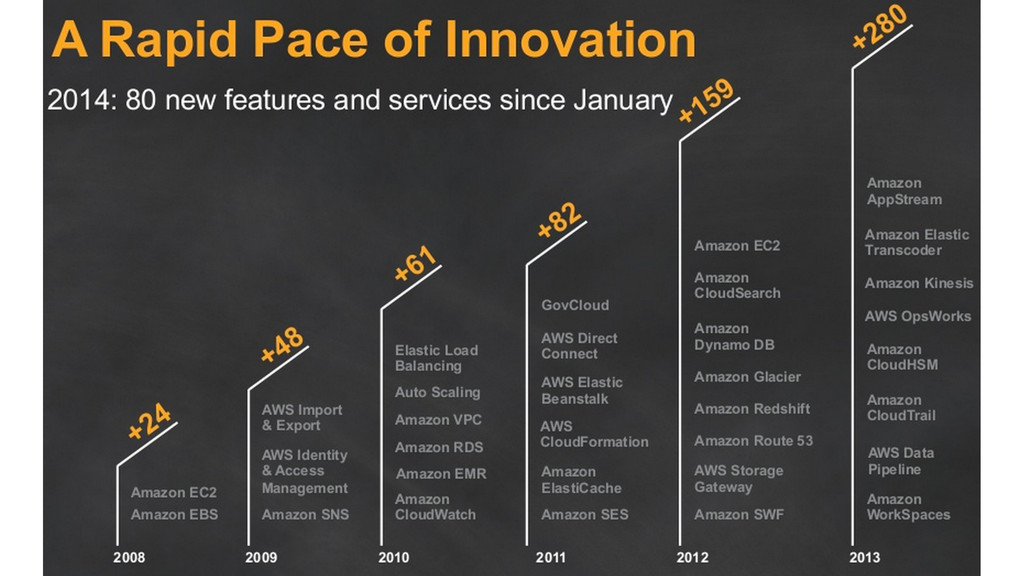

22. Evolving quickly

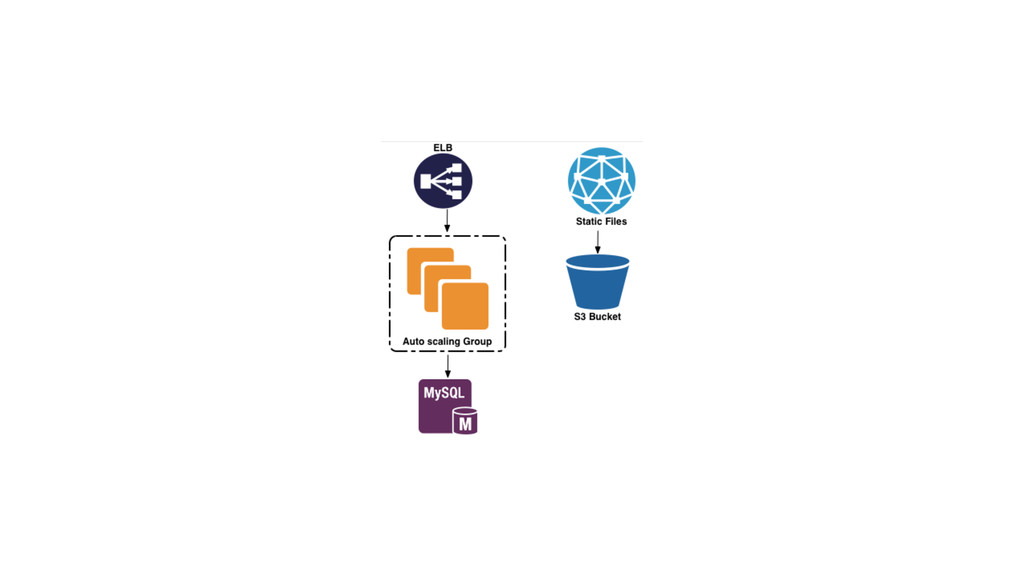

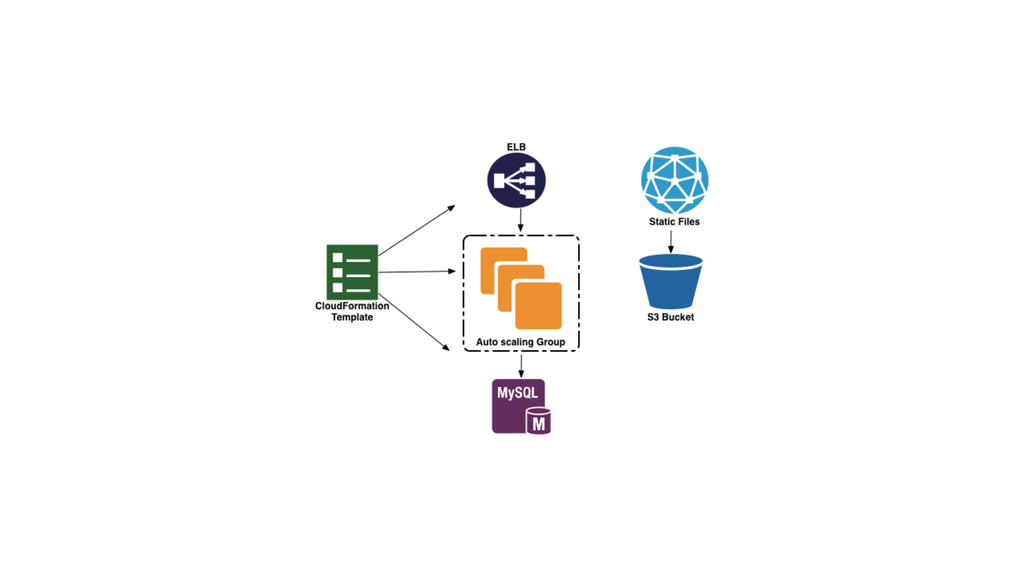

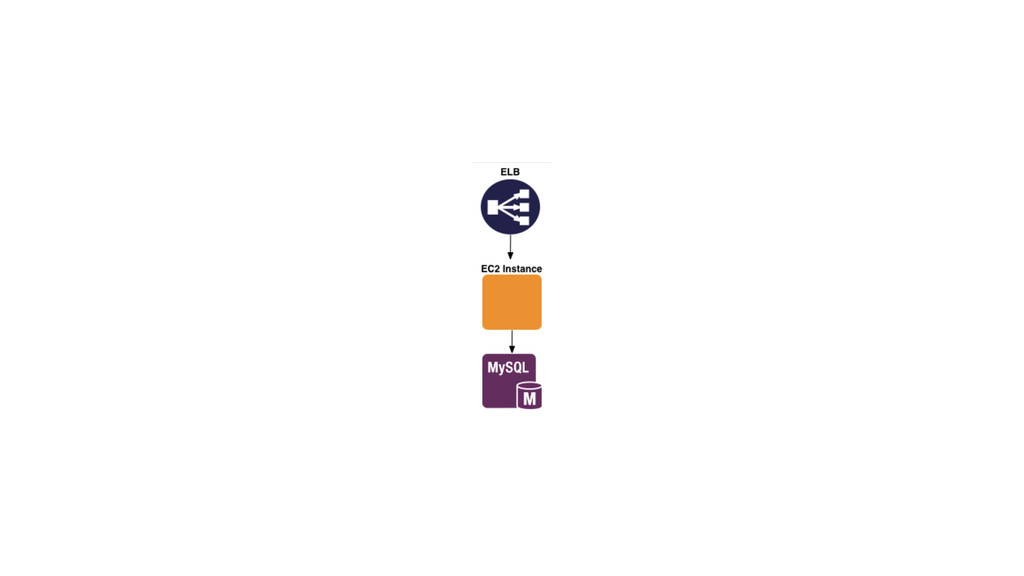

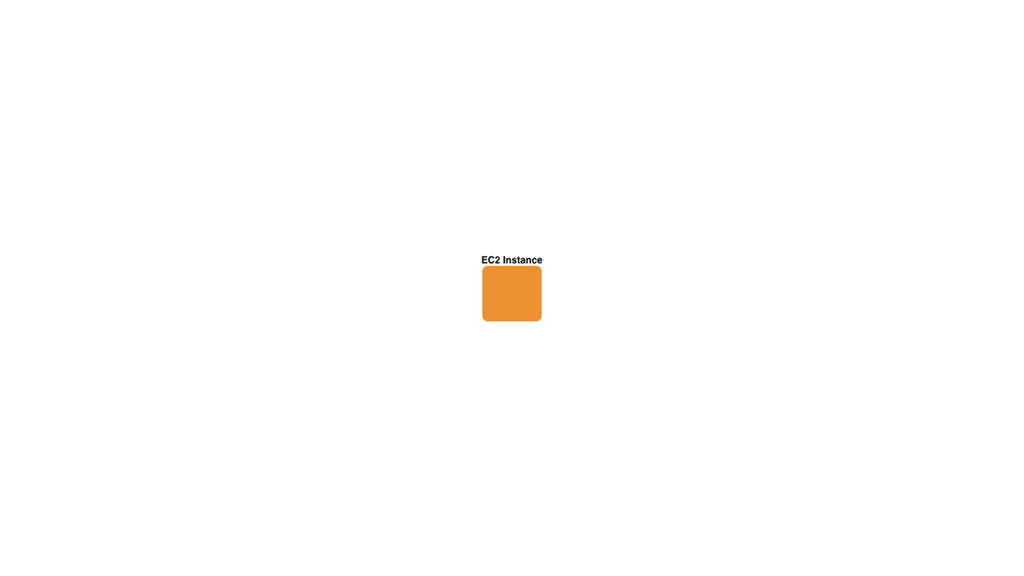

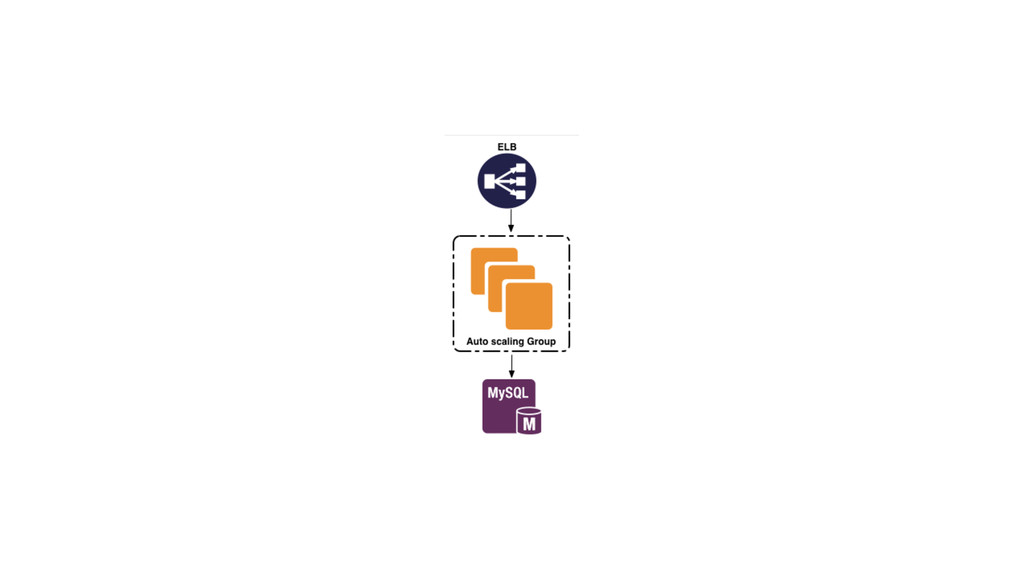

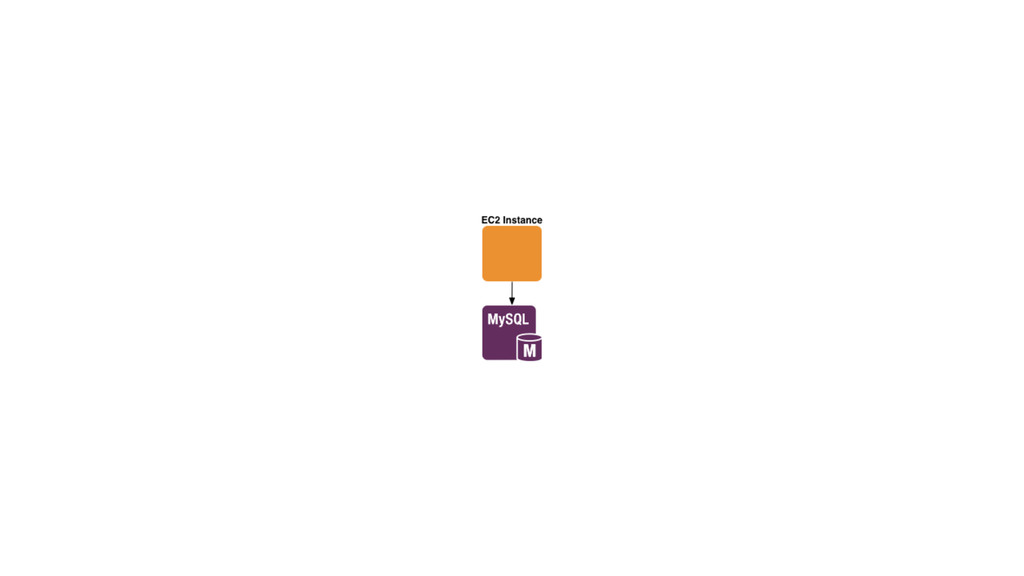

24. Typical AWS Setup
32. Thinking About AWS Security

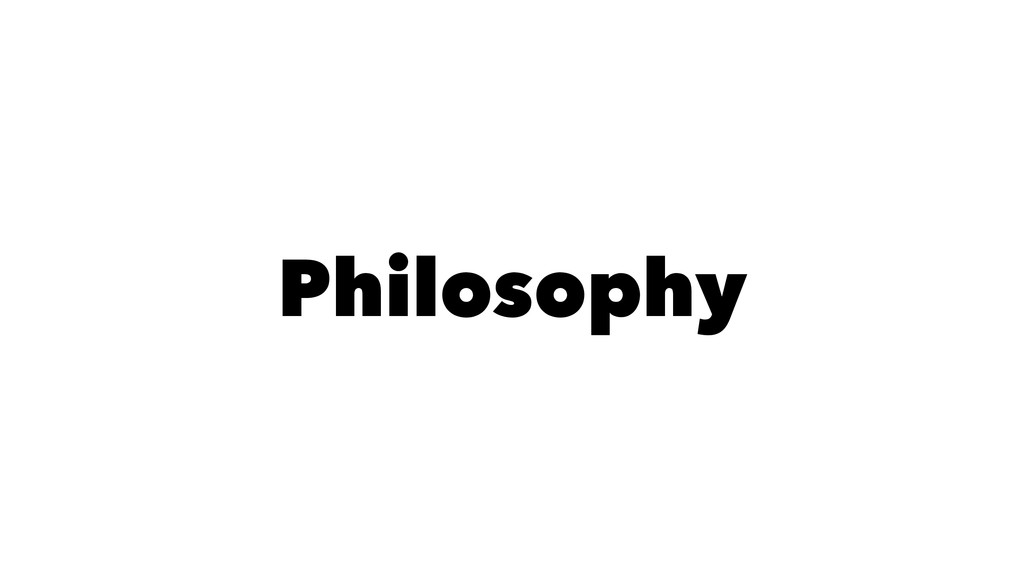

33. Philosophy
36. A note on security automation
39. Typically, how do you:

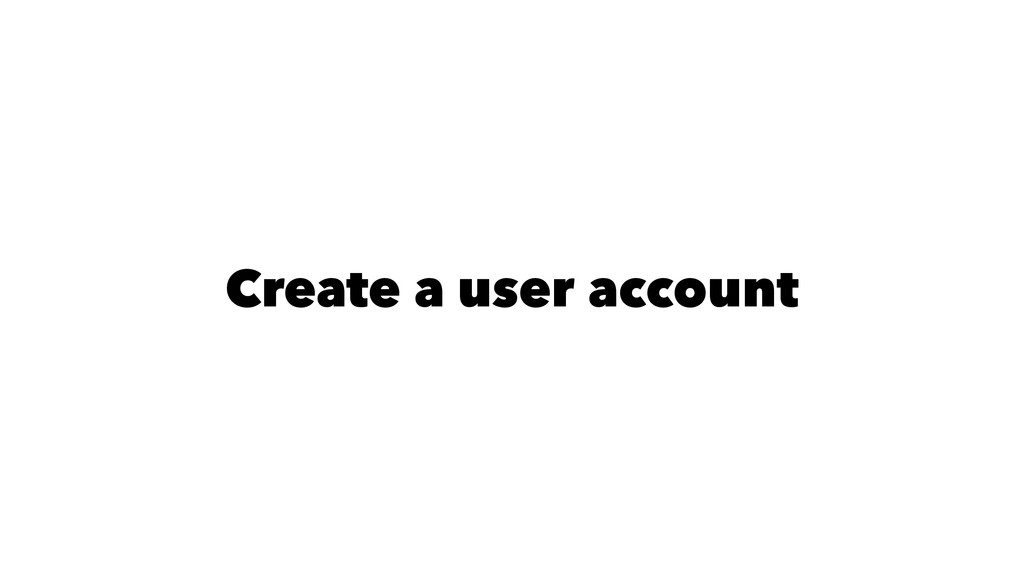

40. Create a user account
41. Create a user account Inventory your systems
42. Create a user account Inventory your systems Update a firewall config

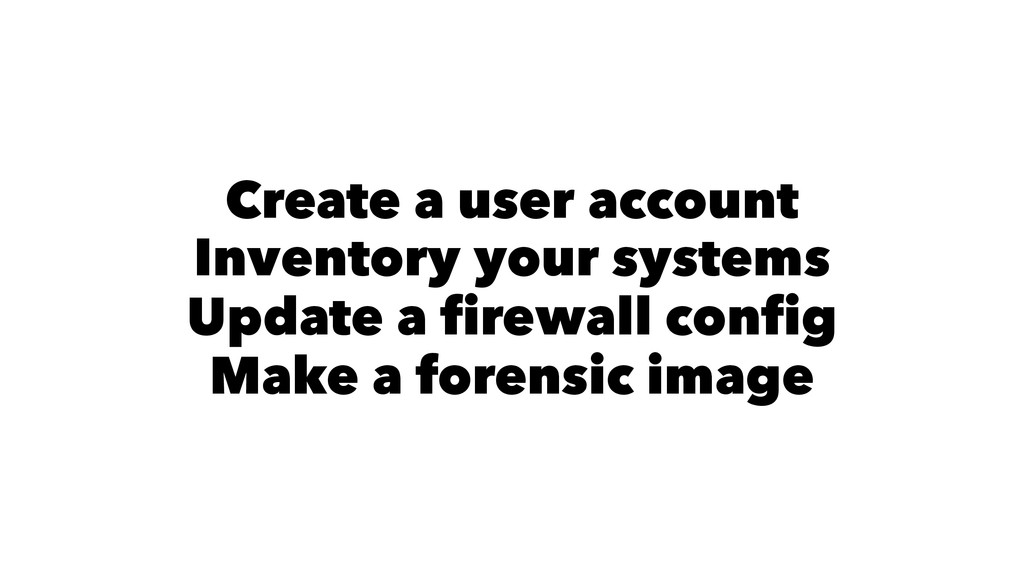

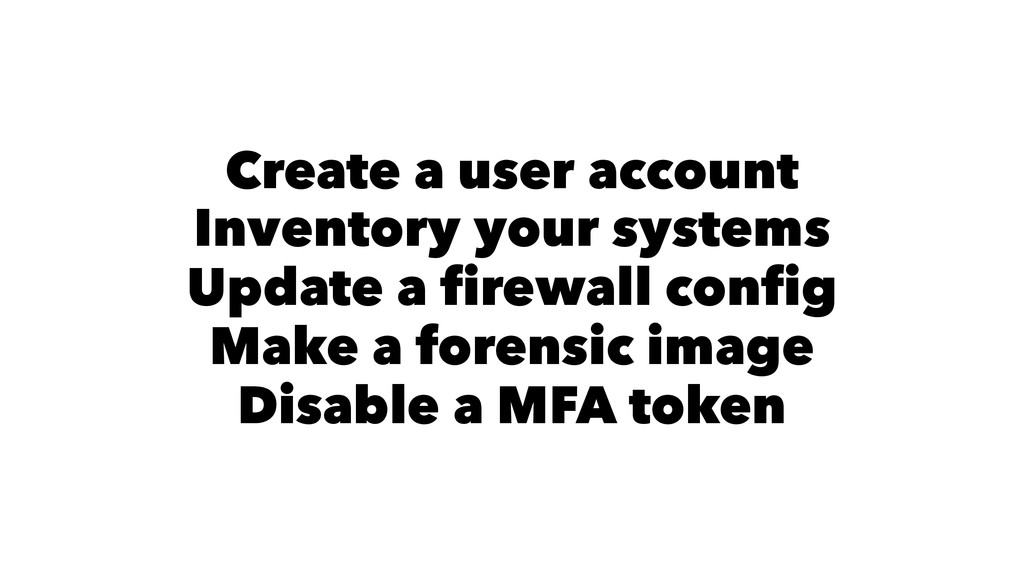

43. Create a user account Inventory your systems Update a firewall config Make a forensic image
44. Create a user account Inventory your systems Update a firewall config Make a forensic image Disable a MFA token

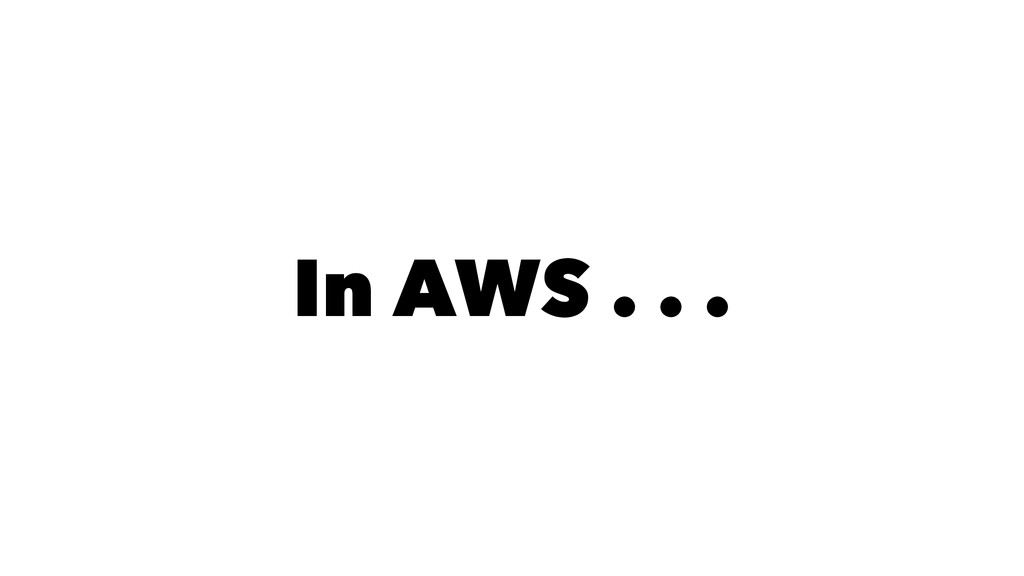

45. In AWS . . .
46. CreateUser() DescribeInstances() AuthorizeSecurityGroupIngress() CreateSnapshot() DeactivateMFADevice()
48. Three Areas of Focus

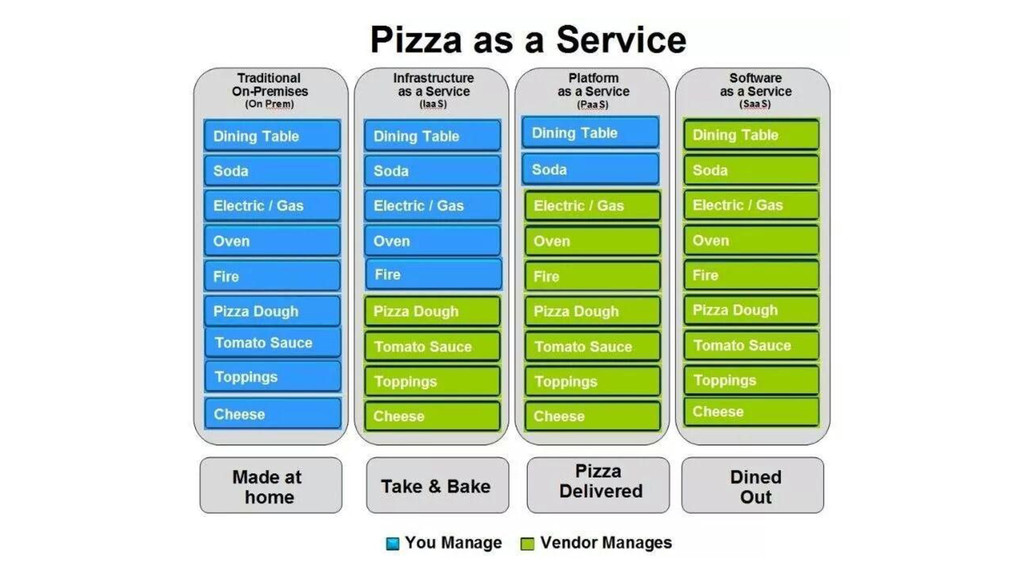

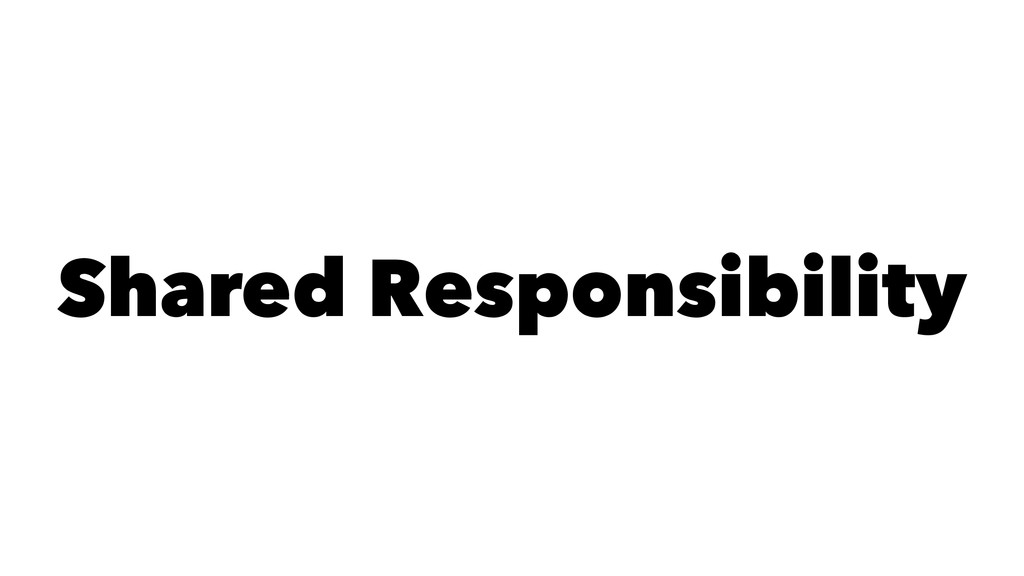

52. Shared Responsibility

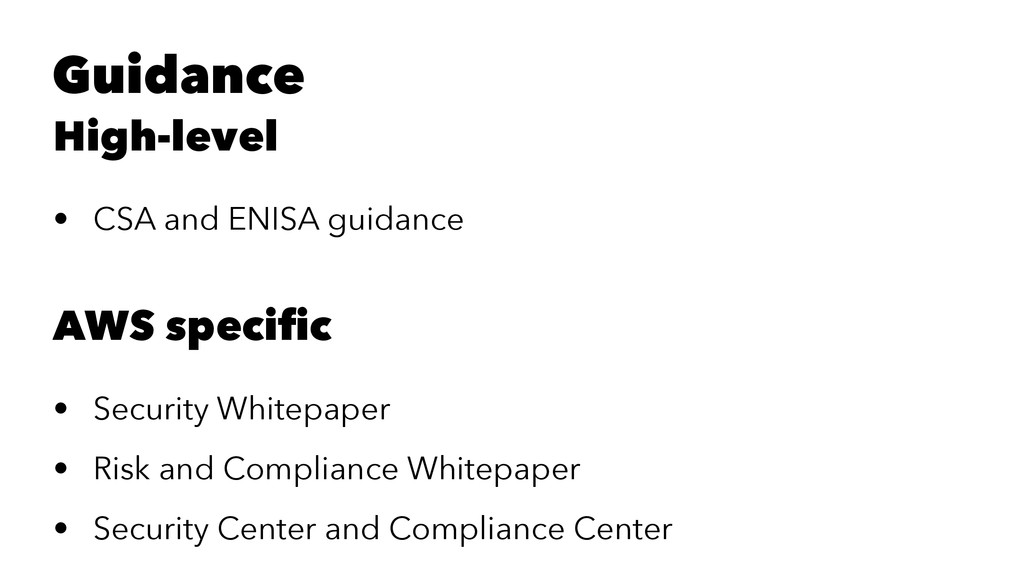

54. Guidance High-level • CSA and ENISA guidance AWS specific • Security Whitepaper • Risk and Compliance Whitepaper • Security Center and Compliance Center

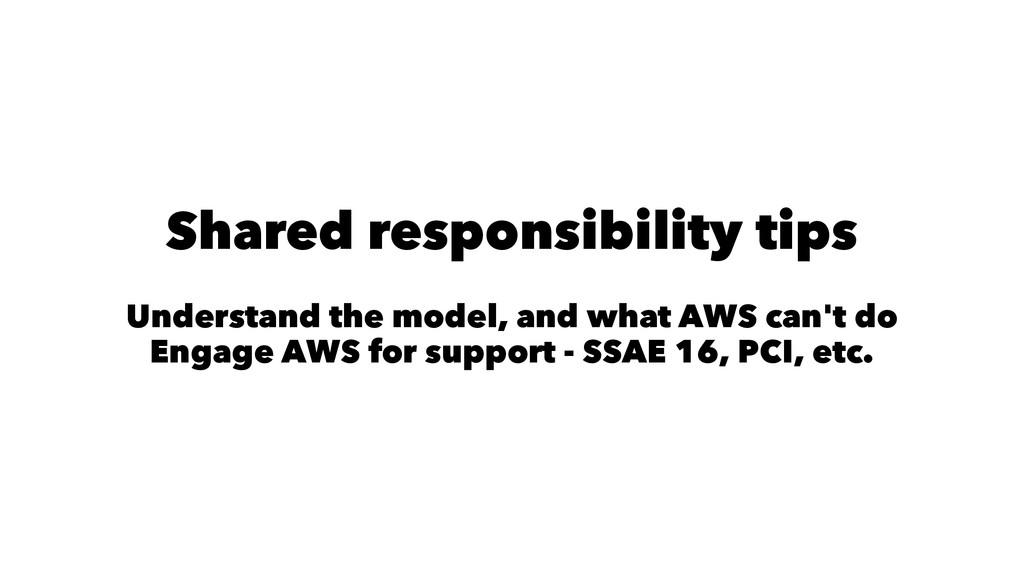

55. Shared responsibility tips Understand the model, and what AWS can't do Engage AWS for support - SSAE 16, PCI, etc.
56. Shared responsibility traps AWS can help, but you're ultimately responsible Contract, Ts & Cs are not a firewall

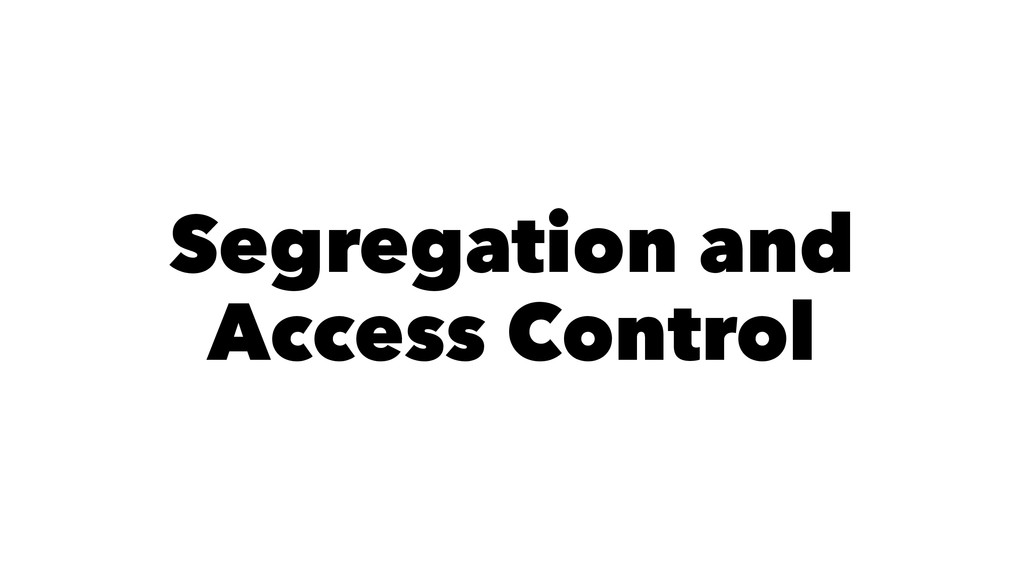

57. Segregation and Access Control

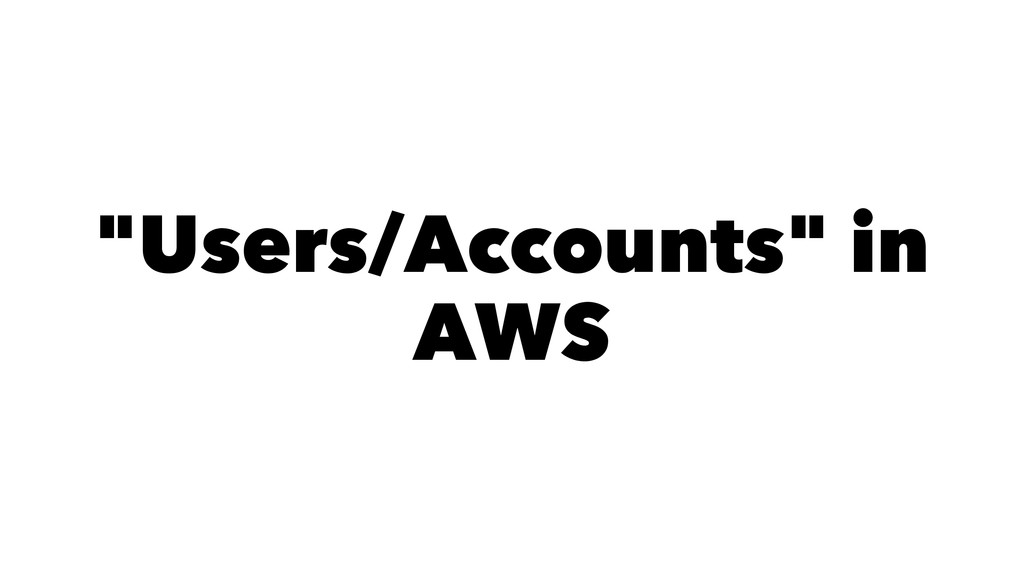

58. "Users/Accounts" in AWS

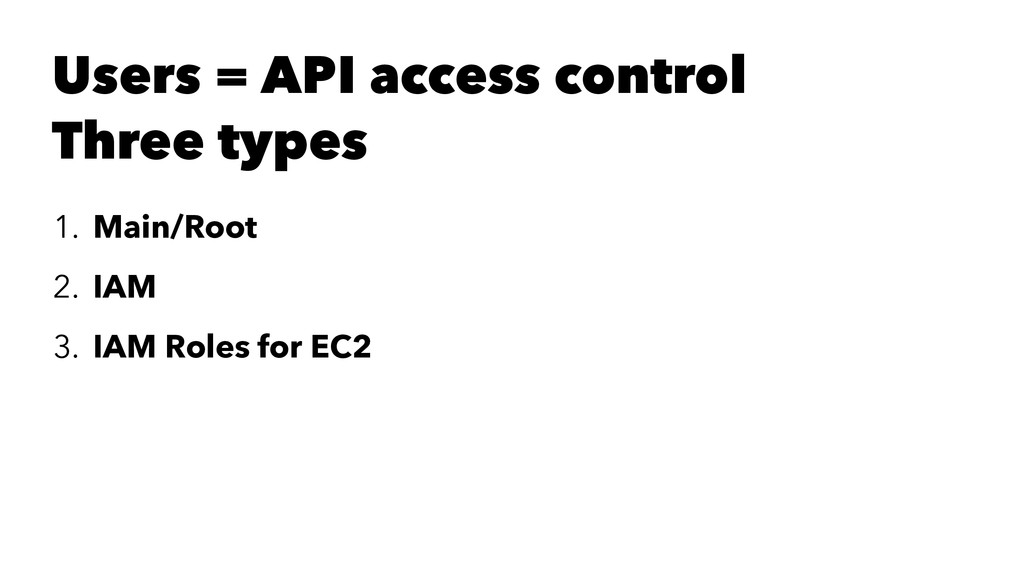

59. Users = API access control Three types 1. Main/Root 2. IAM 3. IAM Roles for EC2
61. IAM user (accounts for humans)

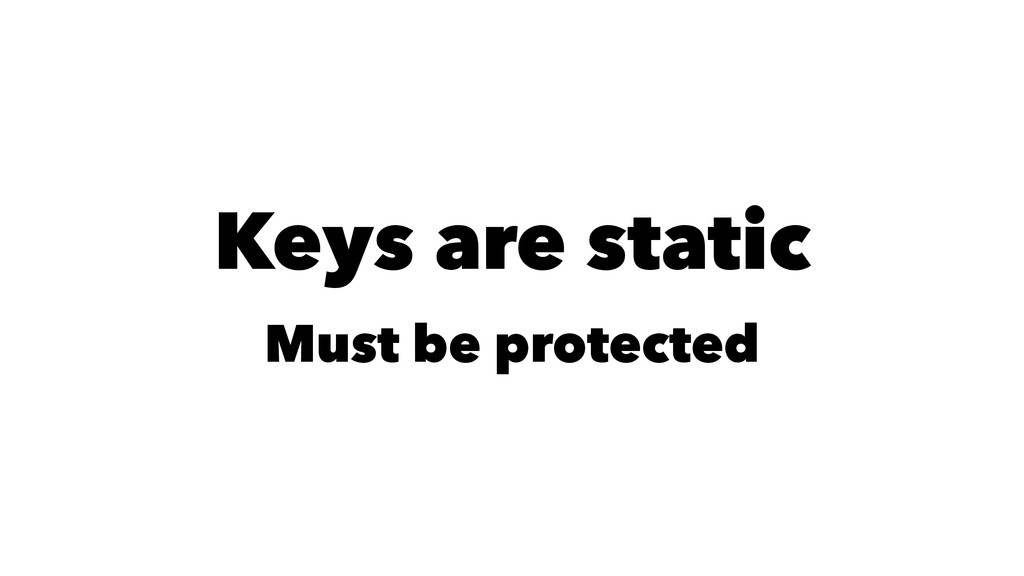

62. Keys are static Must be protected

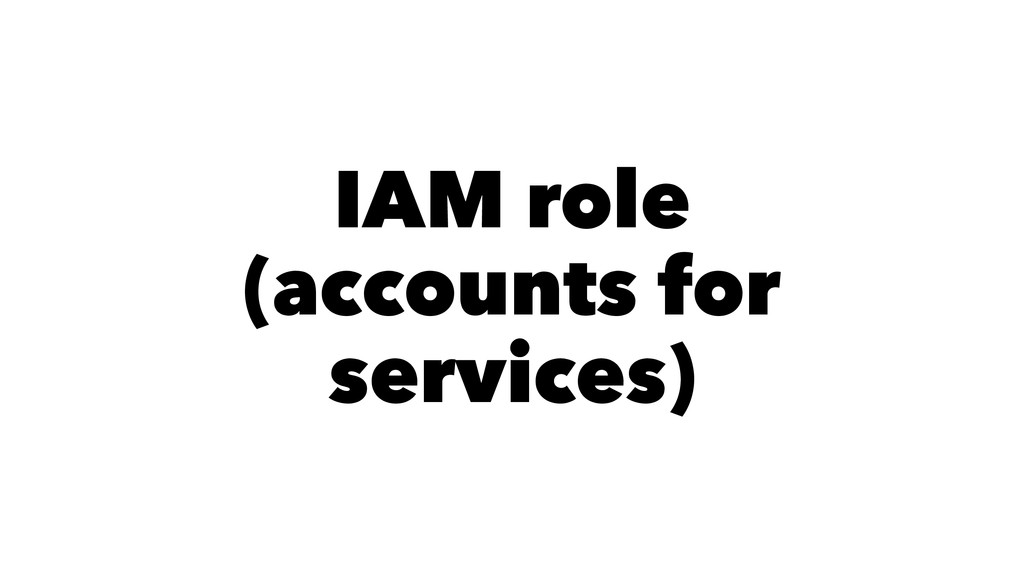

64. IAM role (accounts for services)
65. Keys are short-lived Difficult to protect

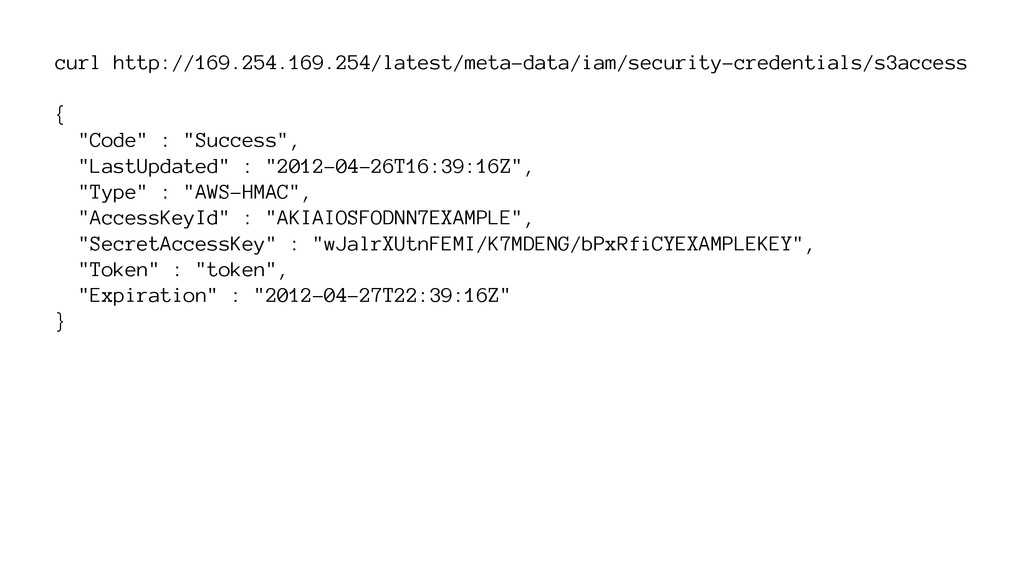

66. curl http://169.254.169.254/latest/meta-data/iam/security-credentials/s3access { "Code" : "Success", "LastUpdated" : "2012-04-26T16:39:16Z", "Type" : "AWS-HMAC", "AccessKeyId" : "AKIAIOSFODNN7EXAMPLE", "SecretAccessKey" : "wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY", "Token" : "token", "Expiration" : "2012-04-27T22:39:16Z" }

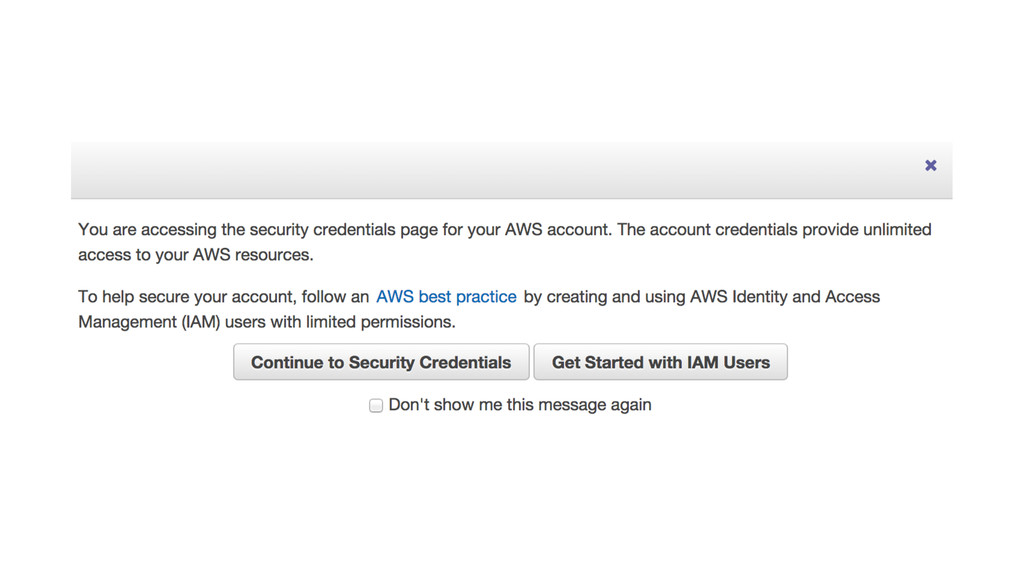

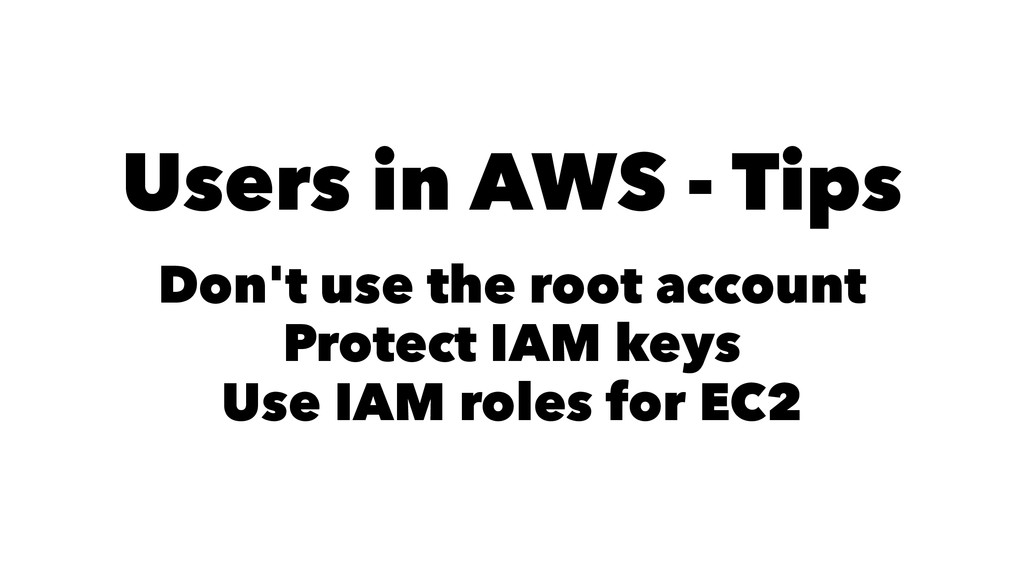

68. Users in AWS - Tips Don't use the root account Protect IAM keys Use IAM roles for EC2

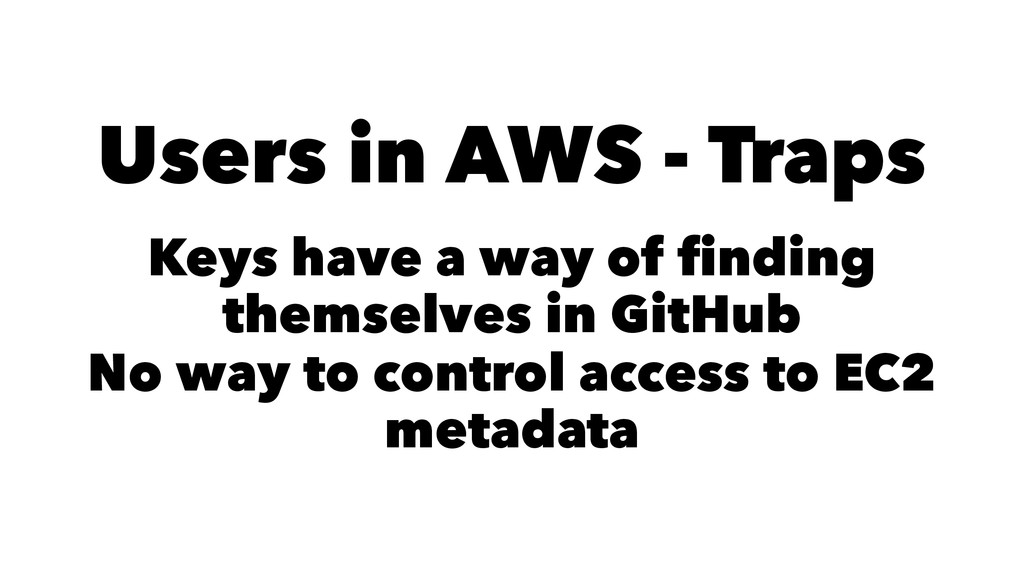

69. Users in AWS - Traps Keys have a way of finding themselves in GitHub No way to control access to EC2 metadata

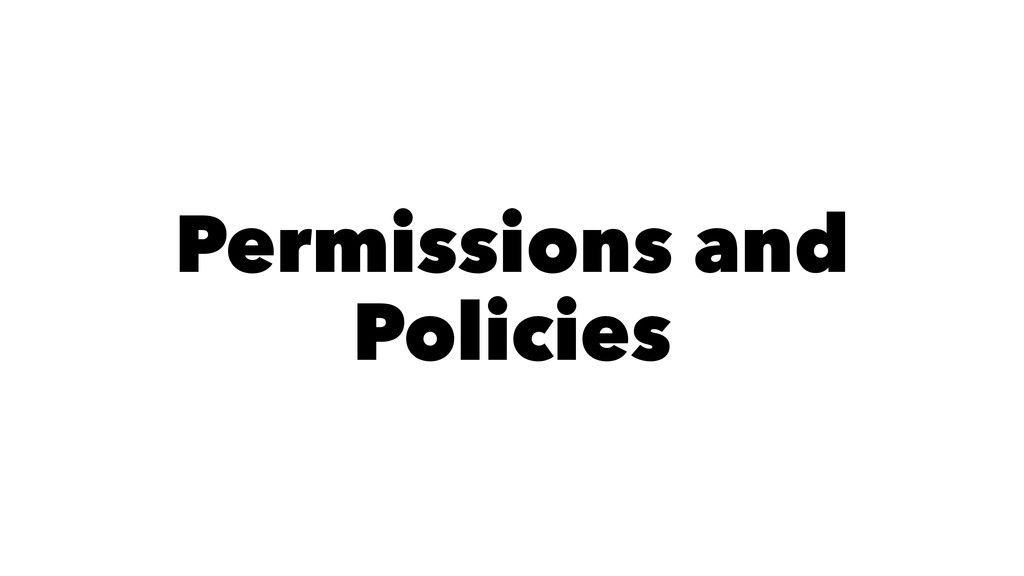

70. Permissions and Policies

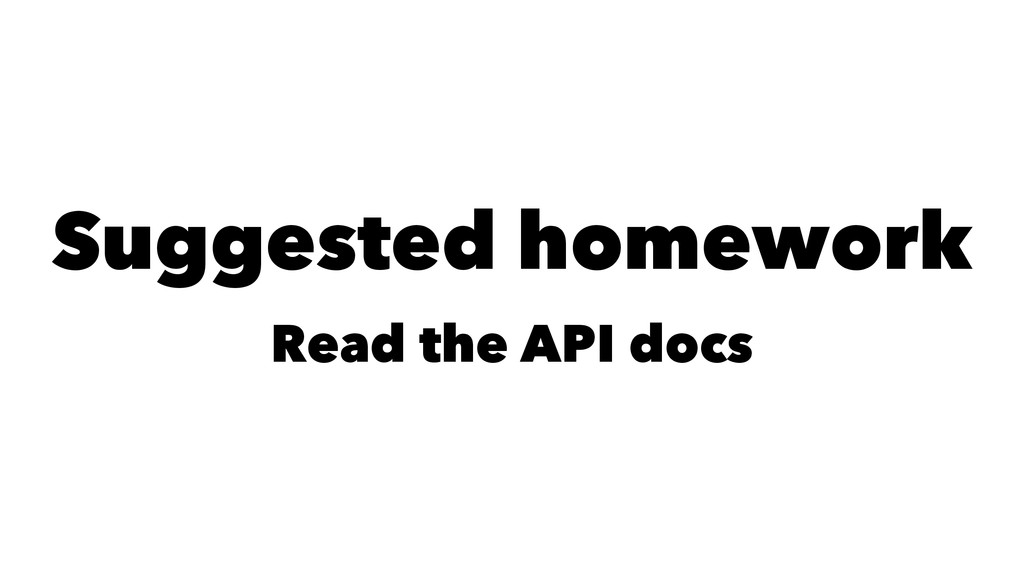

71. Suggested homework Read the API docs

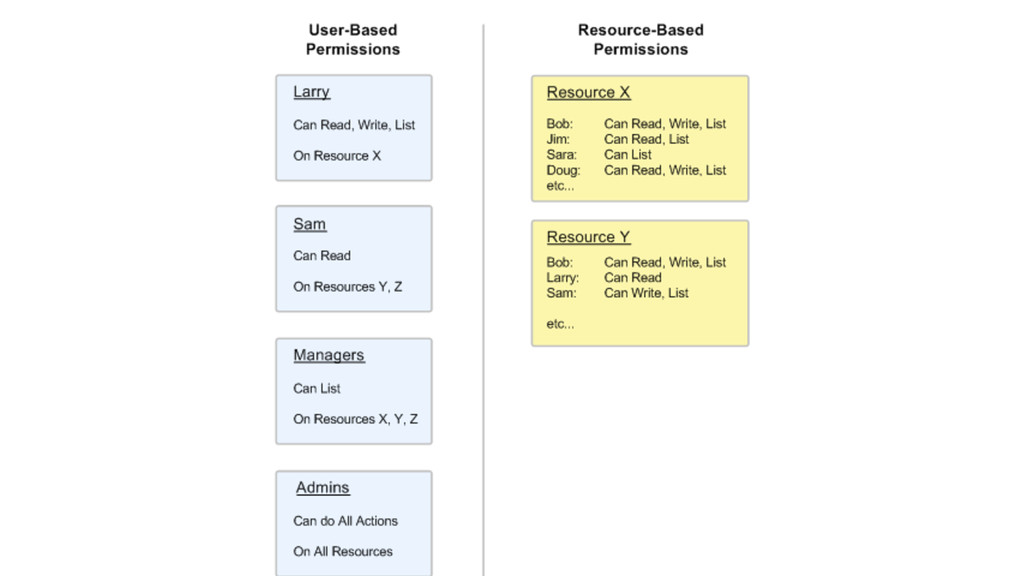

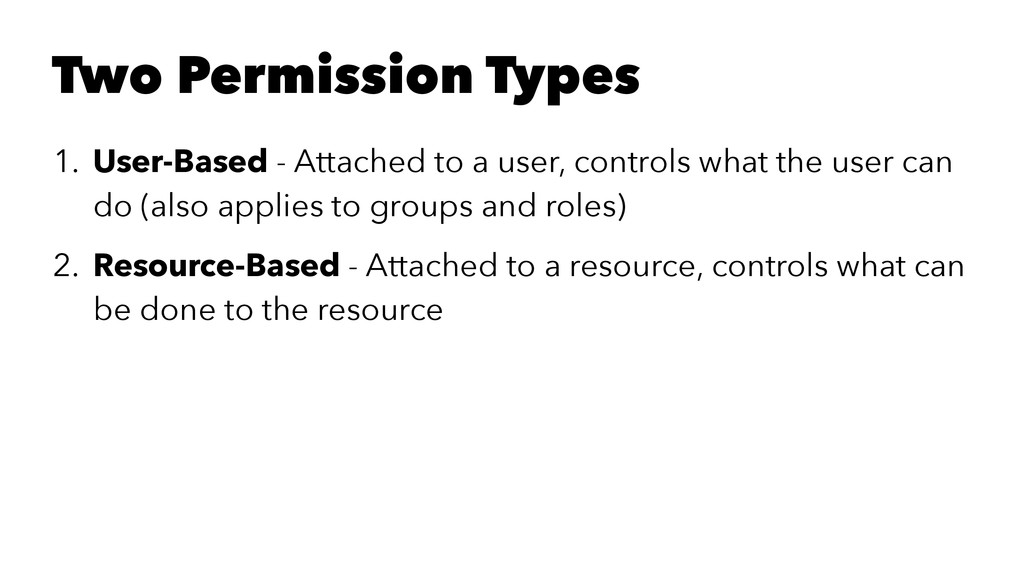

72. Two Permission Types 1. User-Based - Attached to a user, controls what the user can do (also applies to groups and roles) 2. Resource-Based - Attached to a resource, controls what can be done to the resource

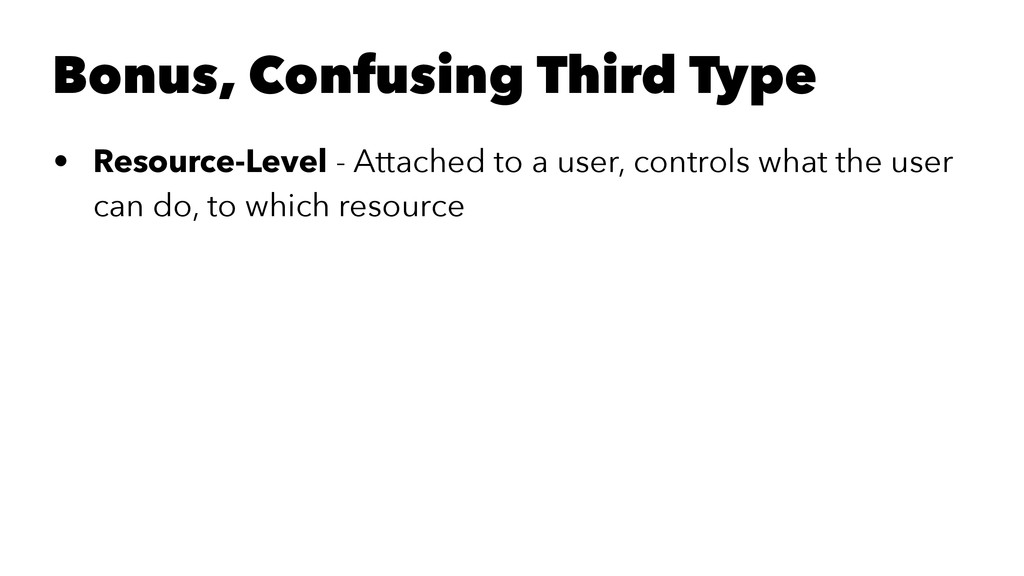

73. Bonus, Confusing Third Type • Resource-Level - Attached to a user, controls what the user can do, to which resource

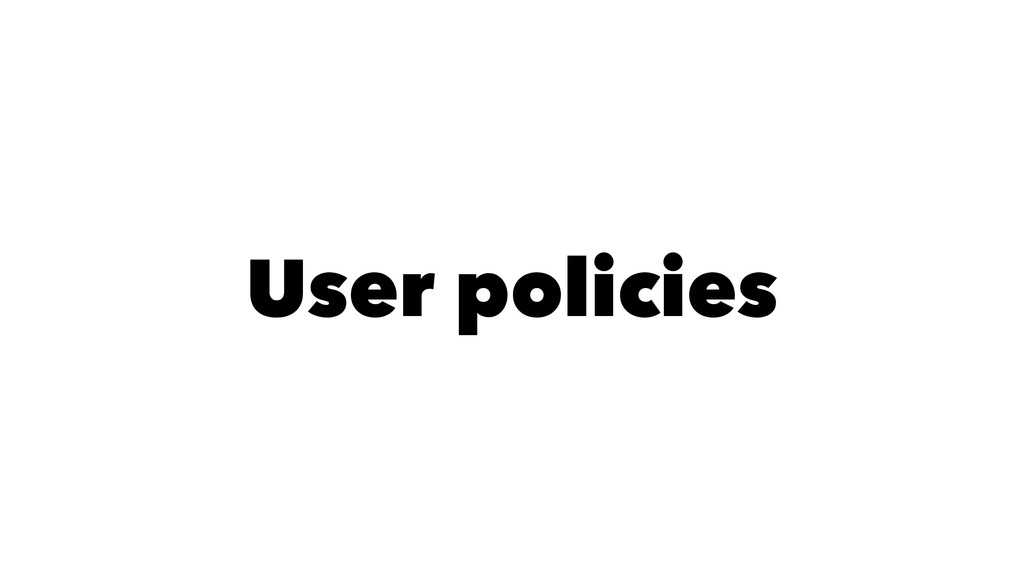

76. User policies

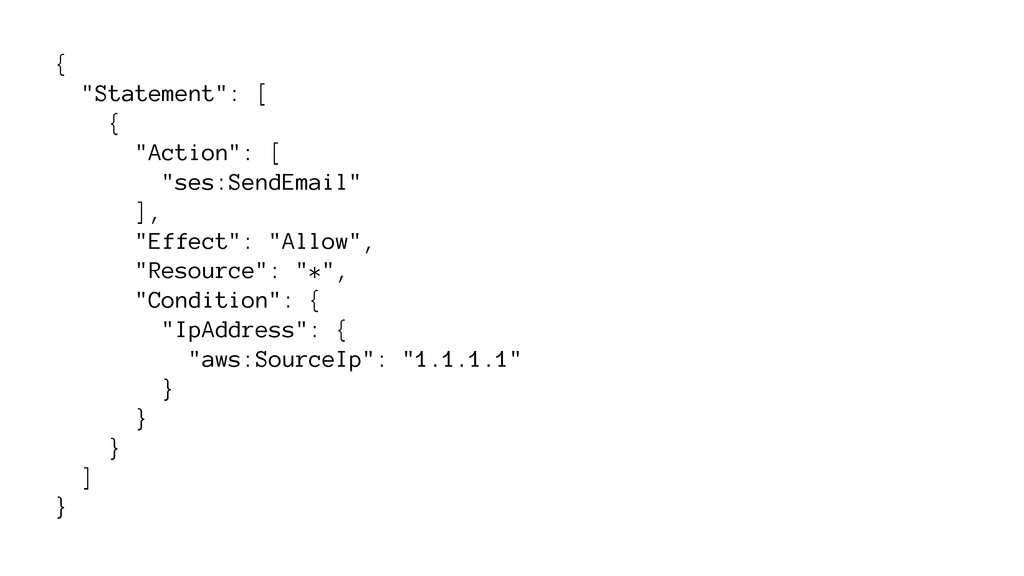

77. { "Statement": [ { "Action": [ "ses:SendEmail" ], "Effect": "Allow", "Resource": "*", "Condition": { "IpAddress": { "aws:SourceIp": "1.1.1.1" } } } ] }
78. Common approach - blacklisting

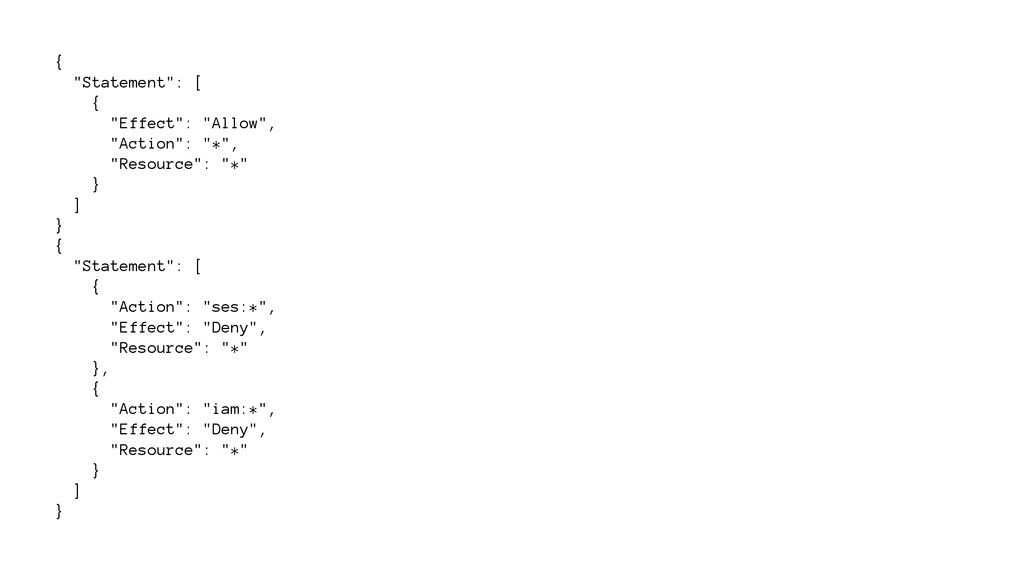

79. { "Statement": [ { "Effect": "Allow", "Action": "*", "Resource": "*" } ] } { "Statement": [ { "Action": "ses:*", "Effect": "Deny", "Resource": "*" }, { "Action": "iam:*", "Effect": "Deny", "Resource": "*" } ] }

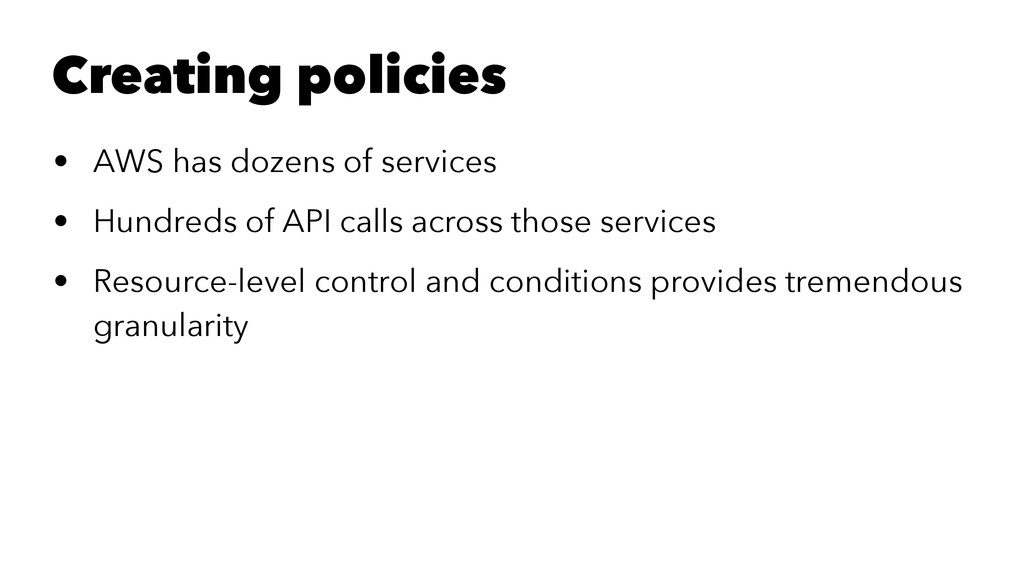

81. Creating policies • AWS has dozens of services • Hundreds of API calls across those services • Resource-level control and conditions provides tremendous granularity
82. Sounds great! Sign me up!

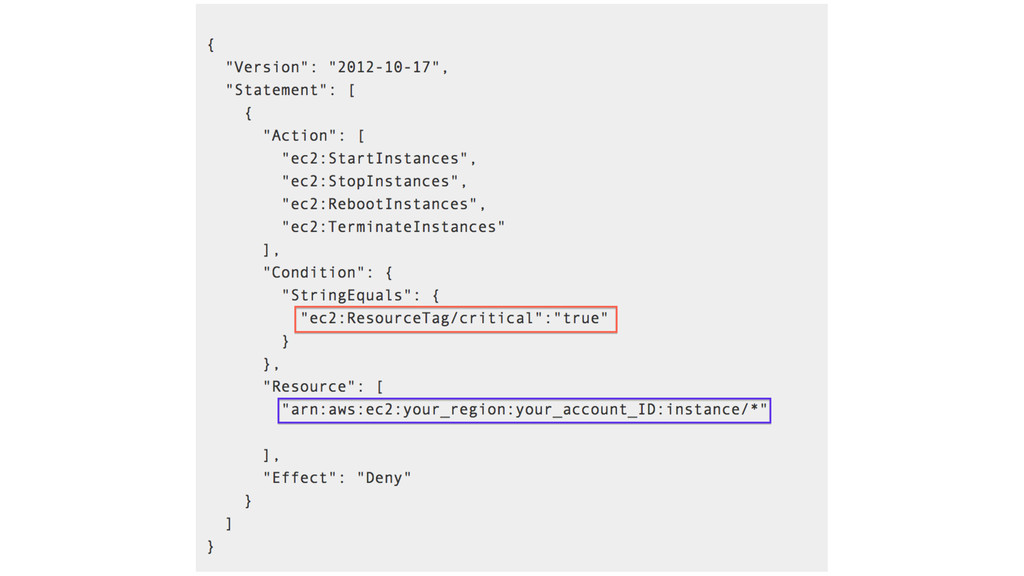

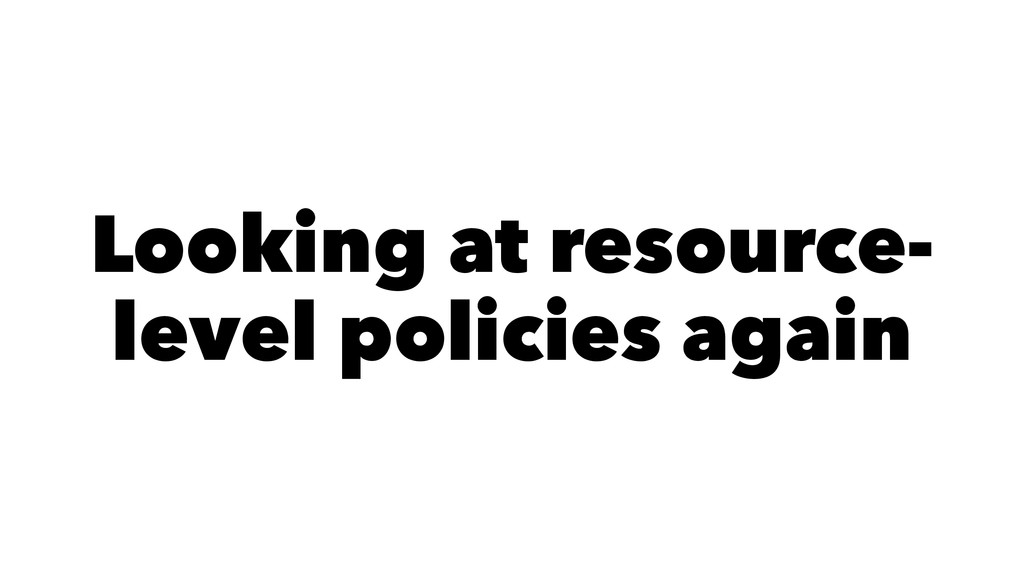

84. Looking at resource- level policies again
86. Who (or what) can apply (or delete) tags?

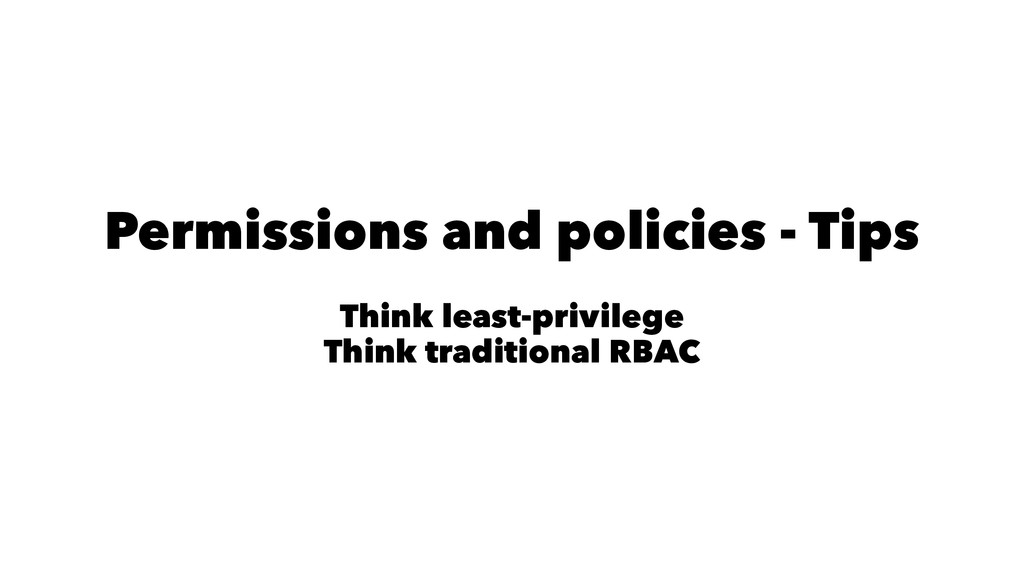

87. Permissions and policies - Tips Think least-privilege Think traditional RBAC

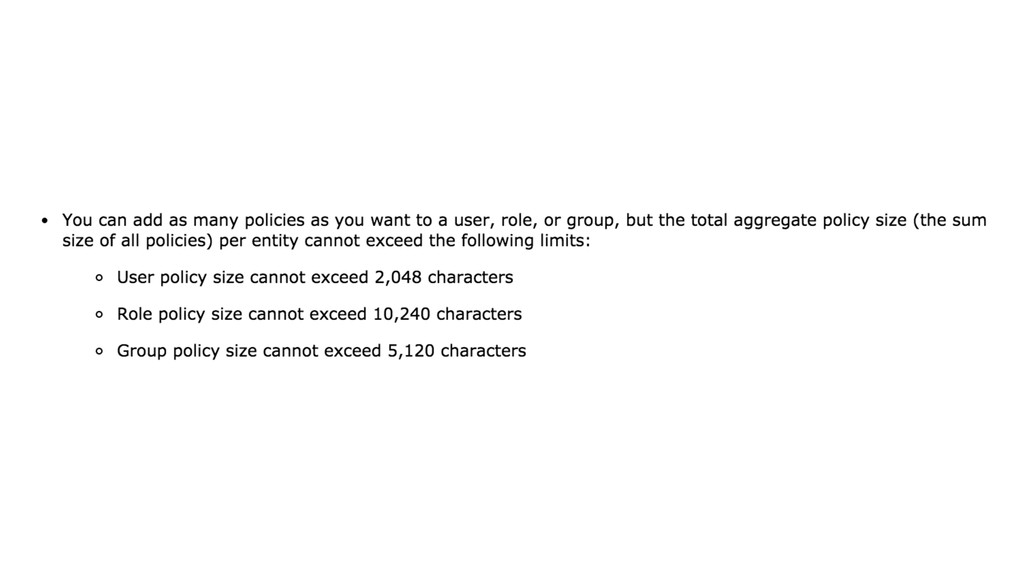

88. Permissions and policies - Traps Be careful with tag-based security Be careful with policy size limitations Be careful with non-specific policies

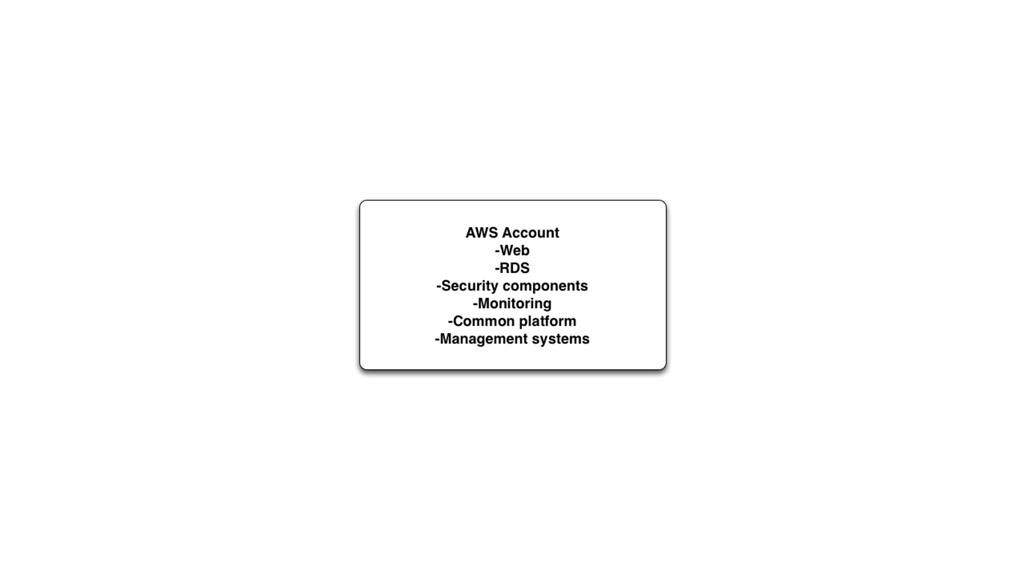

89. Account-Level Strongest separation

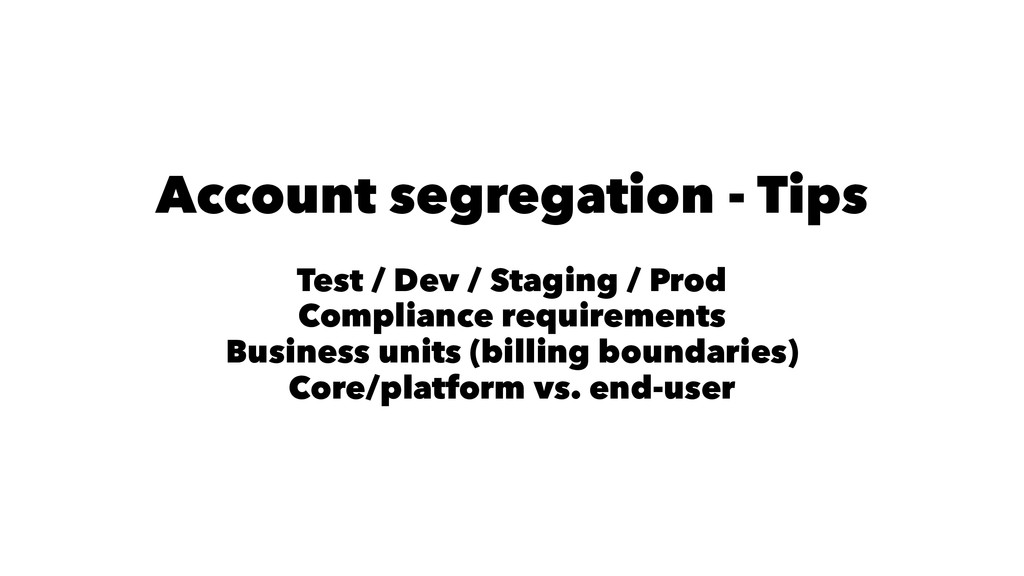

92. Account segregation - Tips Test / Dev / Staging / Prod Compliance requirements Business units (billing boundaries) Core/platform vs. end-user

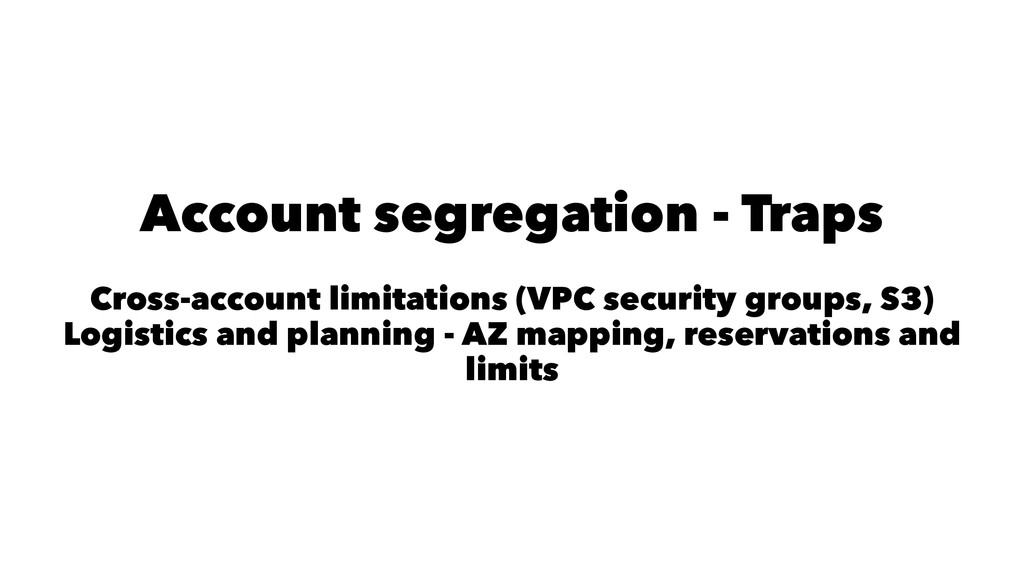

93. Account segregation - Traps Cross-account limitations (VPC security groups, S3) Logistics and planning - AZ mapping, reservations and limits

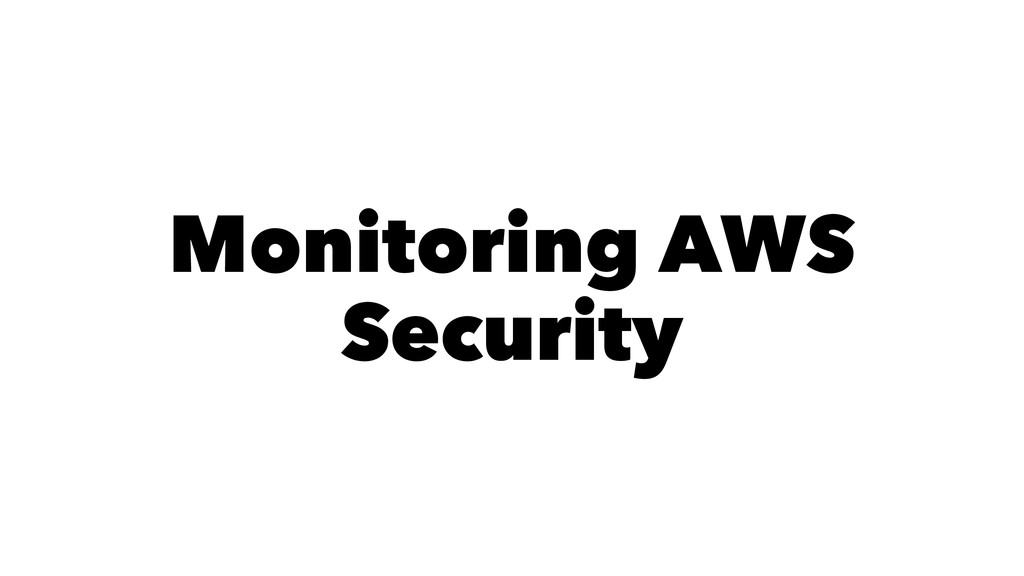

94. Monitoring AWS Security

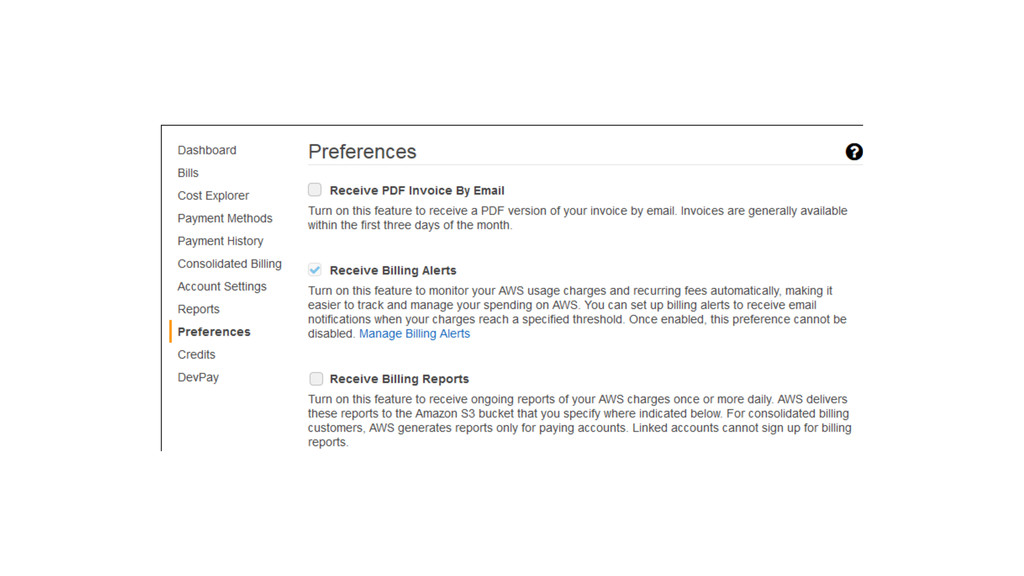

95. Bill as IDS AWS Billing Alerts

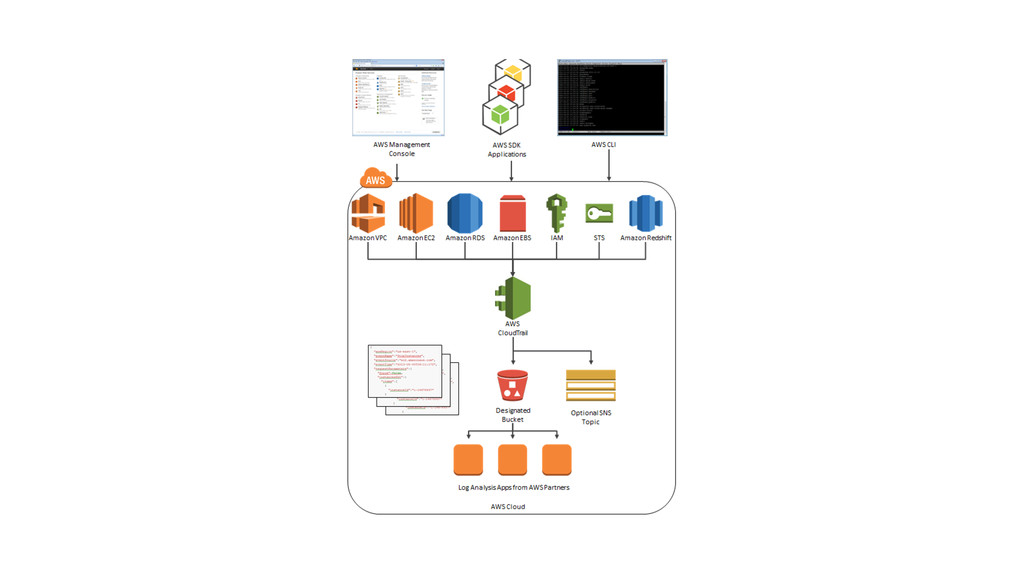

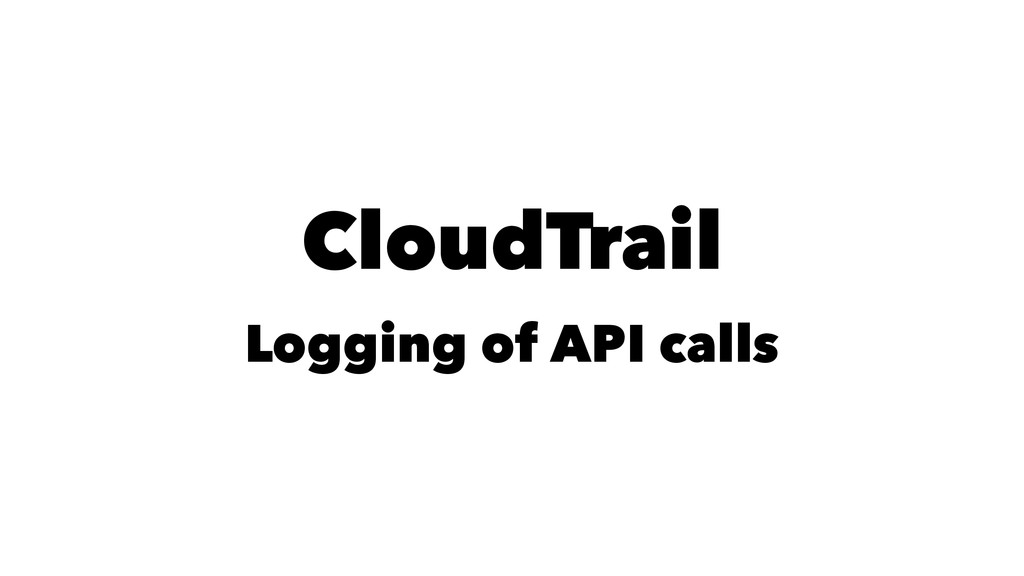

97. CloudTrail Logging of API calls

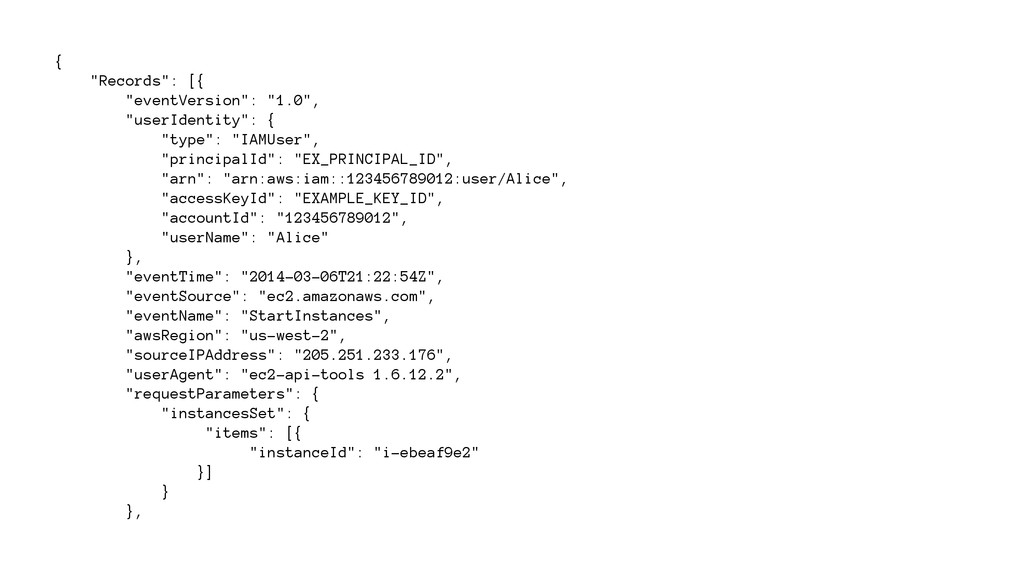

99. { "Records": [{ "eventVersion": "1.0", "userIdentity": { "type": "IAMUser", "principalId": "EX_PRINCIPAL_ID", "arn": "arn:aws:iam::123456789012:user/Alice", "accessKeyId": "EXAMPLE_KEY_ID", "accountId": "123456789012", "userName": "Alice" }, "eventTime": "2014-03-06T21:22:54Z", "eventSource": "ec2.amazonaws.com", "eventName": "StartInstances", "awsRegion": "us-west-2", "sourceIPAddress": "205.251.233.176", "userAgent": "ec2-api-tools 1.6.12.2", "requestParameters": { "instancesSet": { "items": [{ "instanceId": "i-ebeaf9e2" }] } },

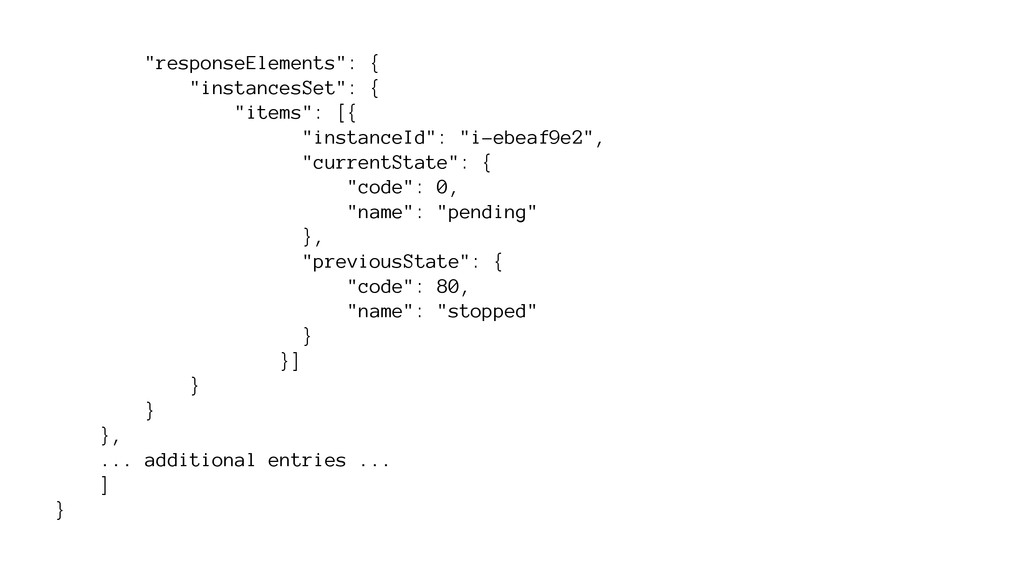

100. "responseElements": { "instancesSet": { "items": [{ "instanceId": "i-ebeaf9e2", "currentState": { "code": 0, "name": "pending" }, "previousState": { "code": 80, "name": "stopped" } }] } } }, ... additional entries ... ] }

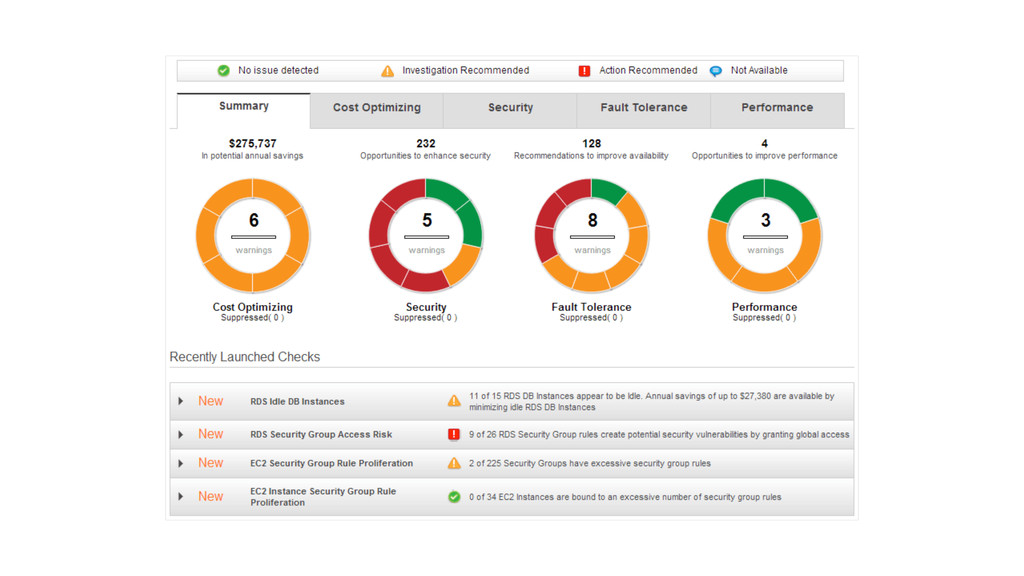

101. Trusted Advisor Checks config vs. best practices

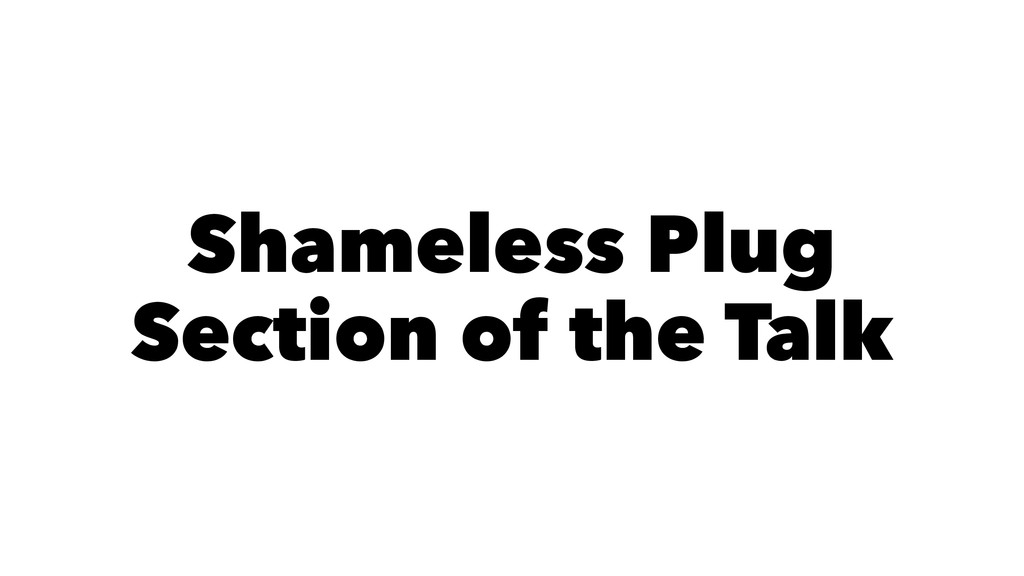

104. Shameless Plug Section of the Talk
105. Edda AWS config history

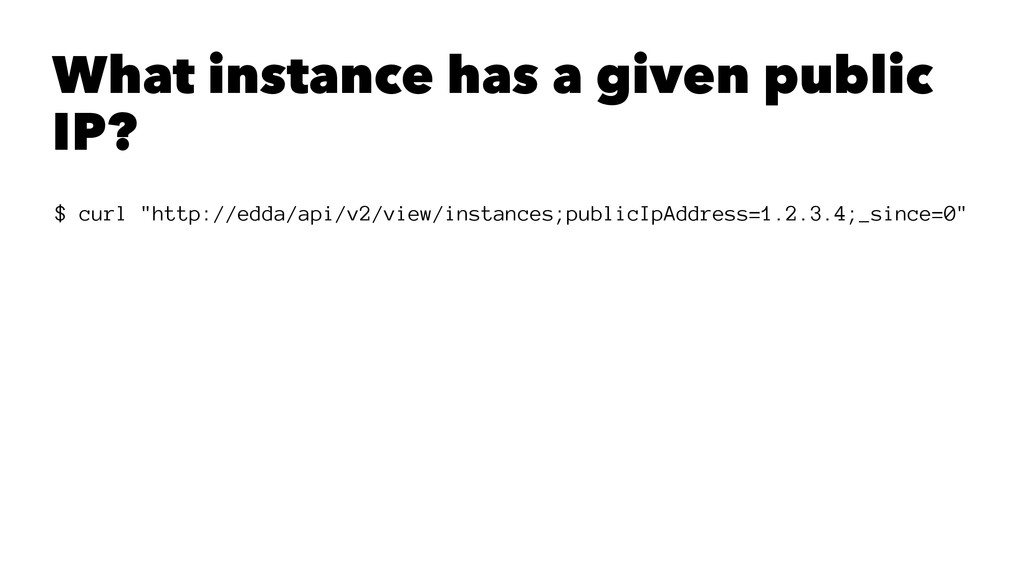

106. What instance has a given public IP? $ curl "http://edda/api/v2/view/instances;publicIpAddress=1.2.3.4;_since=0"

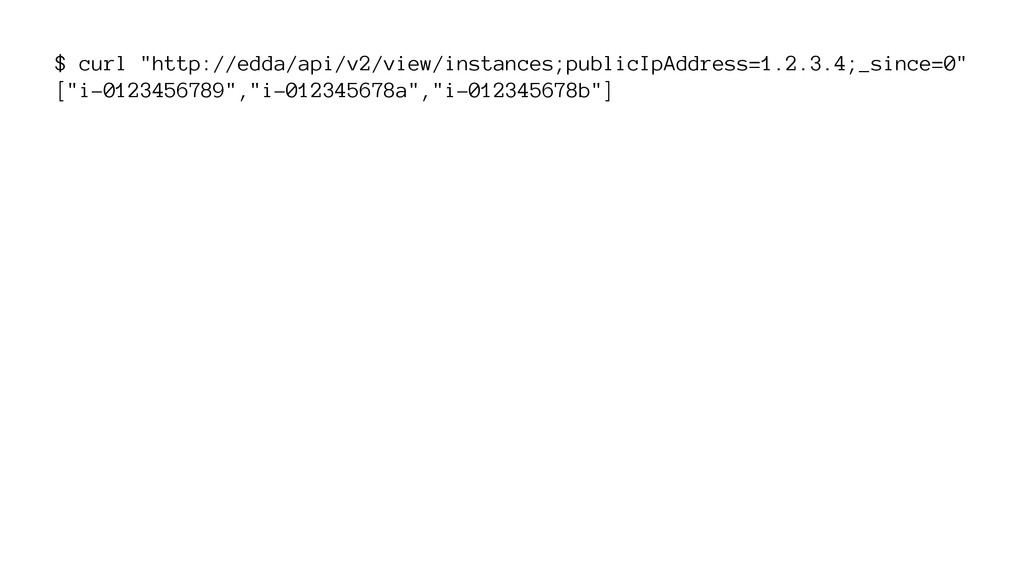

107. $ curl "http://edda/api/v2/view/instances;publicIpAddress=1.2.3.4;_since=0" ["i-0123456789","i-012345678a","i-012345678b"]

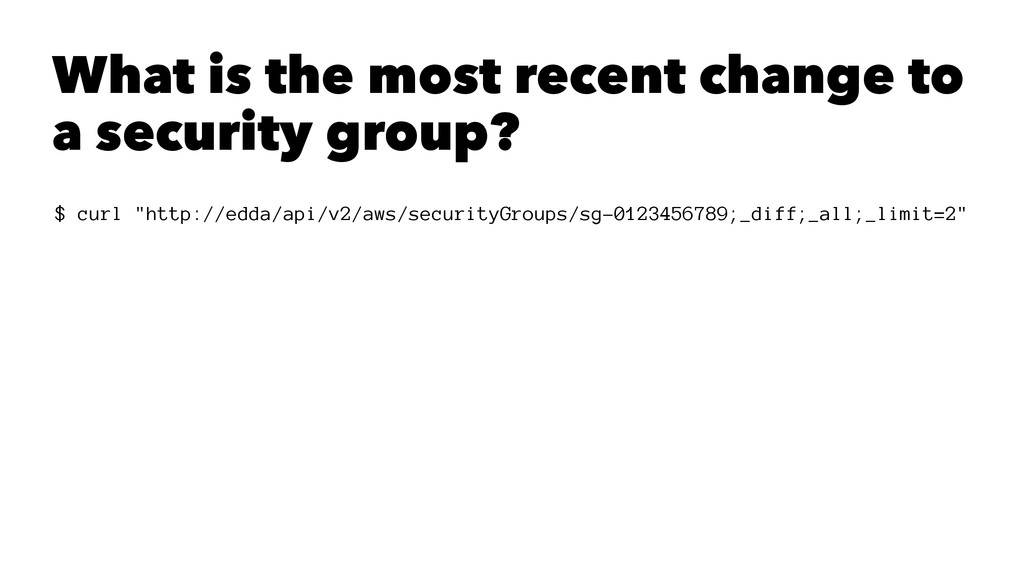

108. What is the most recent change to a security group? $ curl "http://edda/api/v2/aws/securityGroups/sg-0123456789;_diff;_all;_limit=2"

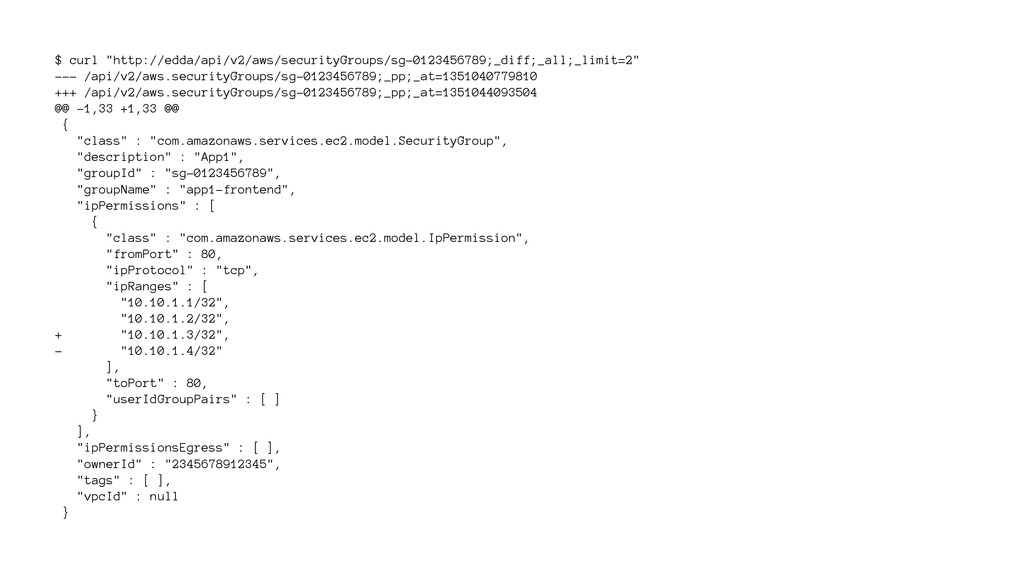

109. $ curl "http://edda/api/v2/aws/securityGroups/sg-0123456789;_diff;_all;_limit=2" --- /api/v2/aws.securityGroups/sg-0123456789;_pp;_at=1351040779810 +++ /api/v2/aws.securityGroups/sg-0123456789;_pp;_at=1351044093504 @@ -1,33 +1,33 @@ { "class" : "com.amazonaws.services.ec2.model.SecurityGroup", "description" : "App1", "groupId" : "sg-0123456789", "groupName" : "app1-frontend", "ipPermissions" : [ { "class" : "com.amazonaws.services.ec2.model.IpPermission", "fromPort" : 80, "ipProtocol" : "tcp", "ipRanges" : [ "10.10.1.1/32", "10.10.1.2/32", + "10.10.1.3/32", - "10.10.1.4/32" ], "toPort" : 80, "userIdGroupPairs" : [ ] } ], "ipPermissionsEgress" : [ ], "ownerId" : "2345678912345", "tags" : [ ], "vpcId" : null }

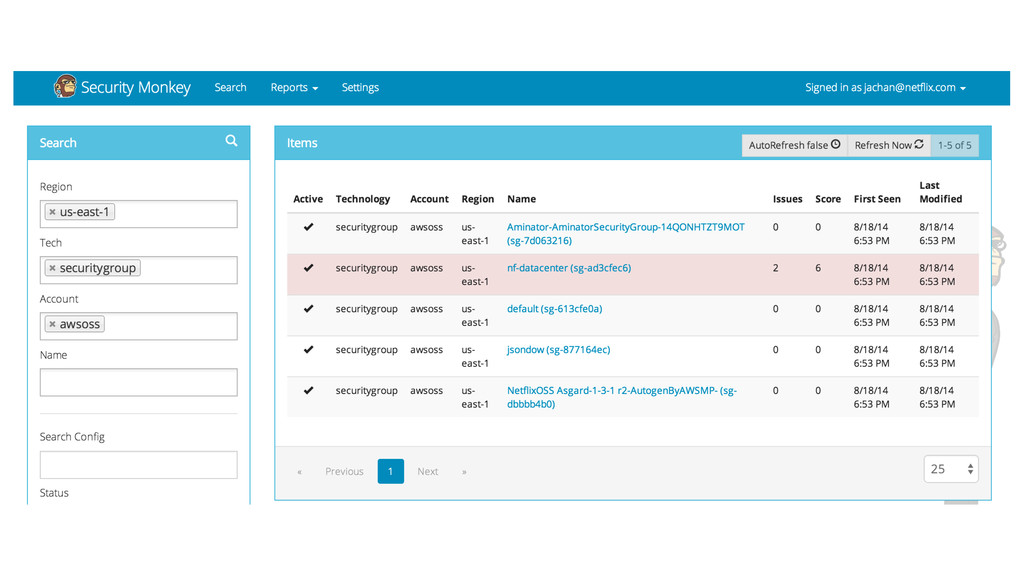

110. Security Monkey

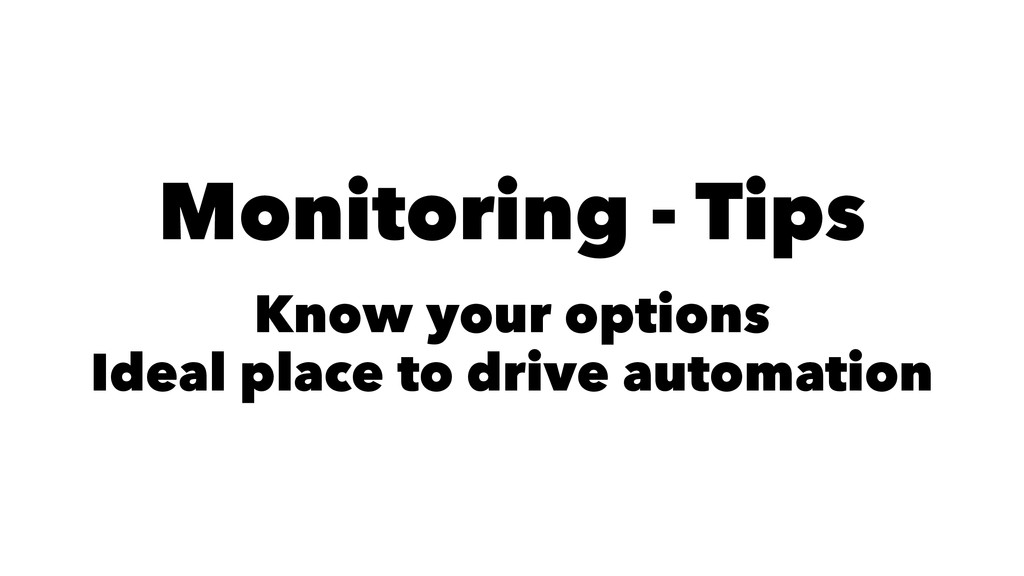

112. Monitoring - Tips Know your options Ideal place to drive automation
113. Monitoring - Traps There is no configuration history CloudTrail logs are complex
114. AWS Security Resources http://tiny.cc/awssecurity
115. Thank you! chan@netflix.com : @chanjbs
