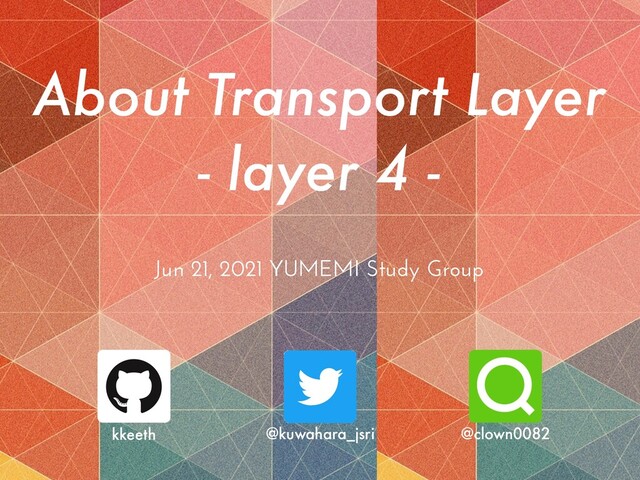

1. About Transport Layer


   - layer 4 -
   Jun 21, 2021 YUMEMI Study Group
   kkeeth @kuwahara_jsri @clown0082


   View Slide

2. About me


   View Slide

3. const my_info = {


   Name: ‘܂ݪ੟ਔ’,


   Position: ‘Tech Lead of FET’,


   Skills: ‘PHP, Node.js, TS, Ruby’,


   PokemonGO: ‘TL 40’,


   }
   About me


   View Slide

4. 🙇 Sorry1 … 🙇


   1. This slide is made in English.


   2. I’m really bad at infrastructure


   and networking.


   Plz feedback for me called
   “Masakari” about my talk !!


   View Slide

5. 🙇 Sorry2 … 🙇


   NAT, NAPT, Window Control
   will be omitted due to lack of time.


   View Slide

6. 📣 Precondition 📣


   Physical Layer -> Layer 1


   Data-Link Layer -> Layer 2


   Network Layer -> Layer 3


   Transport Layer -> Layer 4


   View Slide

7. The Role of
   Layer 4


   View Slide

8. Layer 1:


   Transmission of information to the destination where the


   cable is connected


   Layer 2:


   How data is exchanged within a segment


   → a state in which signals can be exchanged


   Layer 3:


   How data is exchanged between segments(networks)


   → IP address, Routing
   Previously


   View Slide

9. In other words,


   The role of actually transferring
   data from computer to computer.


   View Slide

10. The difference between


    Layers 1-3 and 4-7 💁


    View Slide

11. Layer 4-7
    Differences
    Layer 1-3


    View Slide

12. Layer 4
    Differences
    Layer 1-3
    Data transfer
    (execution unit)


    View Slide

13. Layer 4
    Differences
    Layer 1-3
    Not interested


    in these


    ɾData corruption


    ɾDestination does


    not exist


    ɾError occurs


    View Slide

14. Layer 1-3
    Differences
    All I know is that the packets
    reach the destination
    Layer 4-7


    View Slide

15. Layer 1-3
    Differences
    Layer 4
    Perform necessary
    processing for transfer
    or received data
    Layer 4-7


    View Slide

16. About the role of Layer 4 💁


    View Slide

17. The role of layer 4
    Flow Control
    Error Recovery
    (acknowledgement)
    Identifying
    Applications


    (with Port Number)
    Sequence Number


    View Slide

18. Error Recovery


    (Acknowledge)


    View Slide

19. Acknowledgement
    A B
    data
    acknowledgement


    View Slide

20. Error Recovery
    A B
    data
    ×
    data
    acknowledgement
    re-send


    View Slide

21. Flow Control


    View Slide

22. Flow Control
    A B
    send lots of data
    now processing…


    View Slide

23. Flow Control
    A B
    send lots of data
    I can't keep up
    with the processing,
    over
    fl
    ow💦


    View Slide

24. Flow Control
    A B
    acknowledgement


    free space: 2


    View Slide

25. Flow Control
    A B
    acknowledgement


    free space: 0
    ×


    View Slide

26. Identity Applications


    (with Port Number)


    View Slide

27. Identifying Applications
    A B
    data
    NIC
    What data is this ?🤔


    View Slide

28. Identifying Applications
    A B
    data
    NIC
    2000 3000 4000


    View Slide

29. Identifying Applications
    A B
    data
    NIC
    2000 3000 4000
    Communication between applications


    This is called “end-to-end”


    View Slide

30. about “Sequence Number”
    later 💁


    View Slide

31. The role of layer 4
    Flow Control
    Error Recovery
    (acknowledgement)
    Identifying
    Applications


    (with Port Number)
    Segment


    (with Sequence Number)
    Reliable transmission 🤝


    To achieve this, we need …


    View Slide

32. Two Protocols for Control
    TCP UDP


    View Slide

33. TCP


    View Slide

34. Connection, Segment


    View Slide

35. Connection
    The road of data that is exchanged
    between applications is called a connection.


    The communication path created by TCP


    is called a virtual communication path.


    View Slide

36. What's the point?🤔


    View Slide

37. Connection
    To communicate reliably and ef
    fi
    ciently


    To exchange con
    fi
    rmations in advance


    To make sure that others will con
    fi
    rm


    View Slide

38. Connection
    To communicate reliably and ef
    fi
    ciently


    To exchange con
    fi
    rmations in advance


    To make sure that others will con
    fi
    rm
    This is called


    “Establishing a connection”


    View Slide

39. A kind of “hello ὸ🤙" protocol
    we often use 😆


    View Slide

40. TCP Header


    View Slide

41. TCP Header
    4PVSDFQPSUOVNCFS
    %FTUJOBUJPOQPSUOVNCFS

    4FRVFODFOVNCFS

    "DLOPXMFEHFNFOUOVNCFS

    %BUBP
    ff
    TFU
    3FTFSWF
    $POUSPMCJUT
    XJOEPX

    $IFDLTVN
    &NFSHFODZQPJOUFS

    0QUJPOT
    ※ numbers are bits


    View Slide

42. TCP Header
    4PVSDFQPSUOVNCFS
    %FTUJOBUJPOQPSUOVNCFS

    4FRVFODFOVNCFS

    "DLOPXMFEHFNFOUOVNCFS

    %BUBP
    ff
    TFU
    3FTFSWF
    $POUSPMCJUT
    XJOEPX

    $IFDLTVN
    &NFSHFODZQPJOUFS

    0QUJPOT
    ※ numbers are bits
    We can remember it as 20 octets 👍


    View Slide

43. TCP Header
    4PVSDFQPSUOVNCFS
    %FTUJOBUJPOQPSUOVNCFS

    4FRVFODFOVNCFS

    "DLOPXMFEHFNFOUOVNCFS

    %BUBP
    ff
    TFU
    3FTFSWF
    $POUSPMCJUT
    XJOEPX

    $IFDLTVN
    &NFSHFODZQPJOUFS

    0QUJPOT
    ※ numbers are bits


    View Slide

44. Control bits
    U


    R


    G
    A


    C


    K
    P


    S


    H
    R


    S


    T
    S


    Y


    N
    F


    I


    N


    View Slide

45. 3 Way Handshake


    View Slide

46. 3 Way Handshake
    A B
    SYN
    ACK
    SYN + ACK


    View Slide

47. A kind of “hello ὸ🤙" protocol
    we often use 😆


    View Slide

48. Connection close
    A B
    FIN + ACK
    ACK
    ACK
    FIN + ACK


    View Slide

49. MSS


    View Slide

50. MSS, MTU
    MSS(Max Segment Size)


    MTU(Max Transmission Unit)
    Ethernet
    Header


    (14)
    IP Header


    (20)
    TCP
    Header


    (20)
    Payload


    (TCP Segment)


    (0ʙ1460)
    F


    C


    S


    (4)
    ※ numbers are octets
    MSS
    MTU


    View Slide

51. Sequence Number


    View Slide

52. Sequence Number
    MSS(Max Segment Size)


    MTU(Max Transmission Unit)
    Ethernet
    Header


    (14)
    IP Header


    (20)
    TCP
    Header


    (20)
    Payload


    (TCP Segment)


    (0~1460)
    F


    C


    S


    (4)
    ※ numbers are octets
    MSS
    MTU
    If the data is long,


    split it up and send it.


    View Slide

53. Sequence Number
    MSS(Max Segment Size)


    MTU(Max Transmission Unit)
    Ethernet
    Header


    (14)
    IP Header


    (20)
    TCP
    Header


    (20)
    Payload


    (TCP Segment)


    (0ʙ1460)
    F


    C


    S


    (4)
    ※ numbers are octets
    MSS
    MTU
    The order of the data is important,
    so assign a number to it.


    This number is called Sequence Number.


    View Slide

54. 3 Way Handshake
    A B
    SYN
    ACK
    SYN + ACK
    MSS


    desicion


    View Slide

55. Well Known Port


    View Slide

56. Well Known Port
    A B
    data
    NIC
    2000 3000 4000
    Numbers 1 to 1023 are called
    well known ports.


    * These numbers cannot be
    used.


    View Slide

57. Well Known Port number
    1PSU
    /VNCFS
    "QQMJDBUJPO
    '51EBUB
    '51DPOUSPM
    5&-/&5
    4.51
    %/4
    %)$1TFSWFS
    %)$1DMJFOU
    1PSU
    /VNCFS
    "QQMJDBUJPO
    5'51
    )551
    101
    4/.1SFRVFTU
    4/.1USBQ
    )5514
    3*1


    View Slide

58. UDP


    View Slide

59. TCP
    A B
    SYN
    ACK
    SYN + ACK


    View Slide

60. UDP
    A B


    View Slide

61. broadcast(TCP)
    A N
    N
    N
    3 Way Handshake


    View Slide

62. broadcast(TCP)
    A N
    N
    N
    segment for each destination,


    acknowledgement


    View Slide

63. broadcast(TCP)
    A N
    N
    N
    segment for each destination,


    acknowledgement
    TCP can't send without knowing the destination,


    so it can't broadcast 😫


    View Slide

64. broadcast(UDP)
    A N
    N
    N
    Just send a single piece


    of data 👍


    View Slide

65. broadcast(UDP)
    A N
    N
    N
    Since there is no con
    fi
    rmation,


    it is assumed that high-speed


    View Slide

66. broadcast(UDP)
    A N
    N
    N
    Real-Time communication, Video distribution,
    Broadcasting application, etc.


    View Slide

67. UDP
    A B
    Real-Time communication, Video distribution,
    Broadcasting application, etc.


    View Slide

68. UDP Header


    View Slide

69. UDP Header
    4PVSDFQPSUOVNCFS
    %FTUJOBUJPOQPSUOVNCFS

    -FOHUI
    $IFDLTVN

    ※ numbers are bits


    View Slide

70. There are many more, so
    check them out 💁


    View Slide
