1. PostgreSQL Workshop Why Postgres?

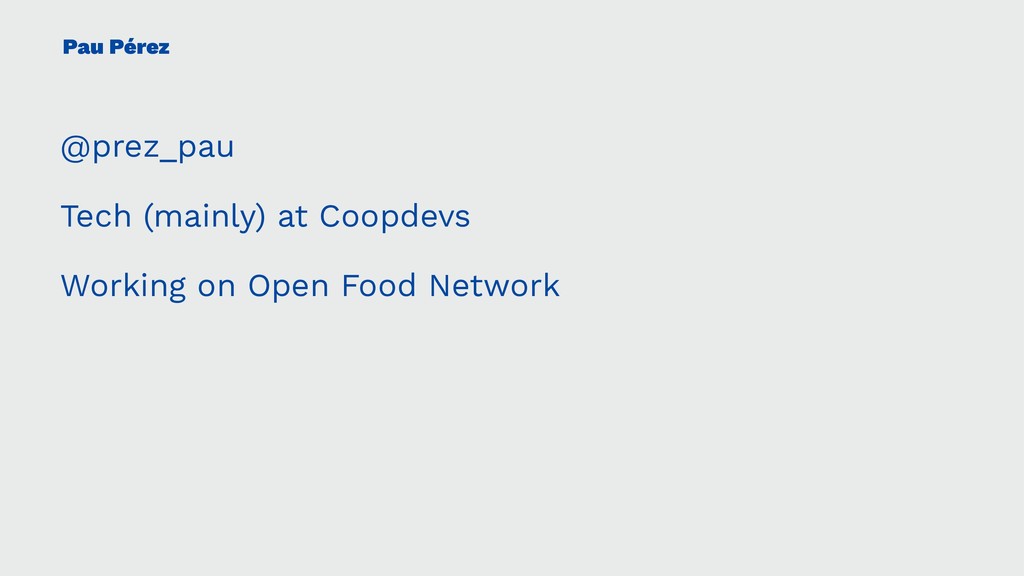

2. Pau Pérez @prez_pau Tech (mainly) at Coopdevs Working on Open Food Network
3. Coopdevs Software lliure per a l'economia social https://github.com/coopdevs https://gitlab.com/coopdevs https://community.coopdevs.org

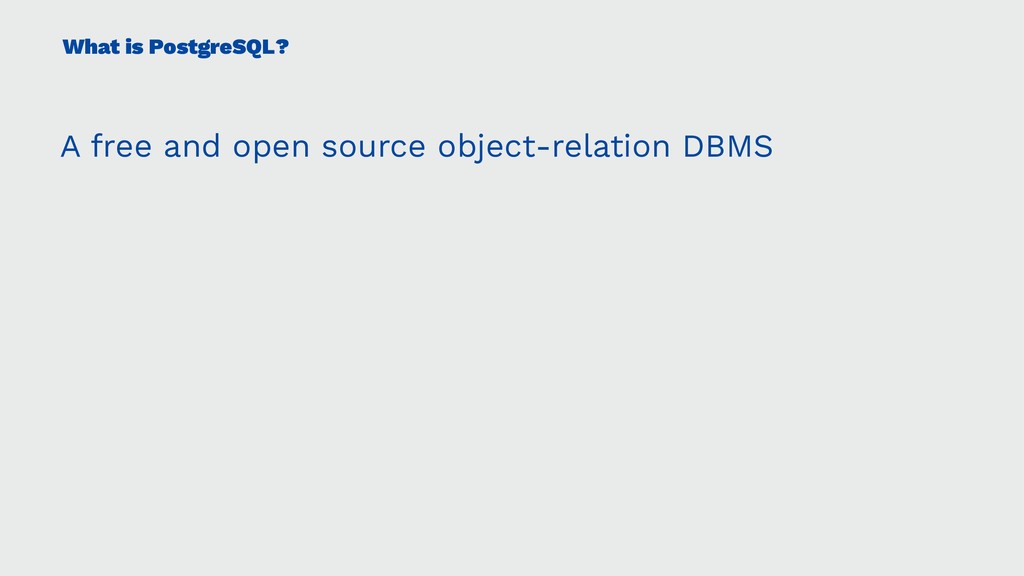

5. What is PostgreSQL? A free and open source object-relation DBMS

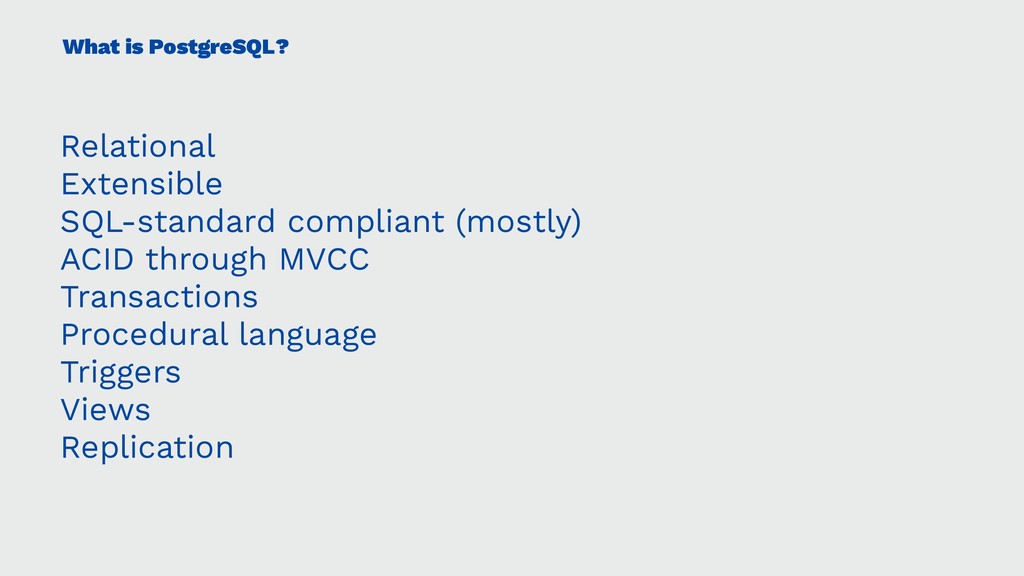

6. What is PostgreSQL? Relational Extensible SQL-standard compliant (mostly) ACID through MVCC Transactions Procedural language Triggers Views Replication

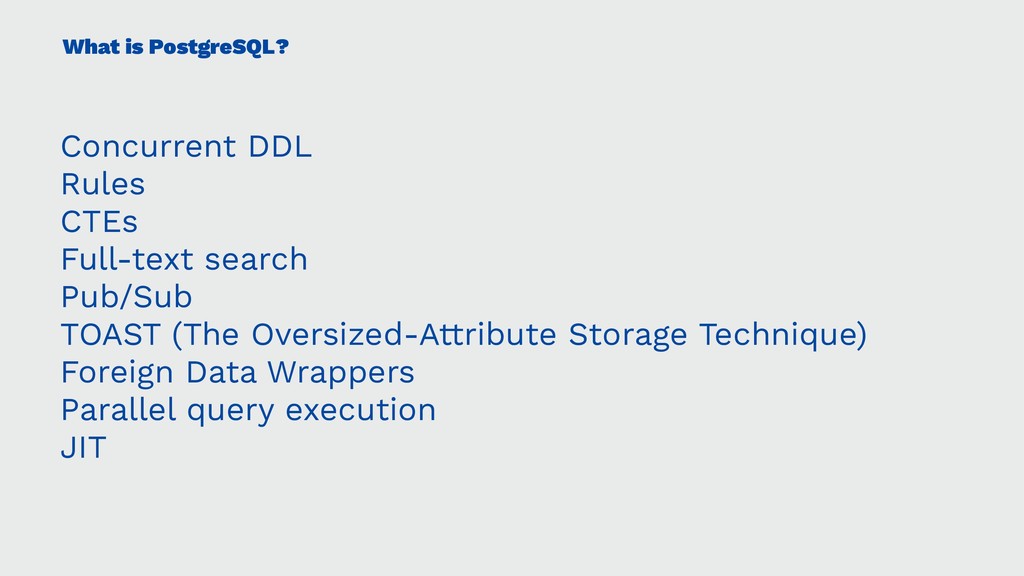

7. What is PostgreSQL? Concurrent DDL Rules CTEs Full-text search Pub/Sub TOAST (The Oversized-Attribute Storage Technique) Foreign Data Wrappers Parallel query execution JIT

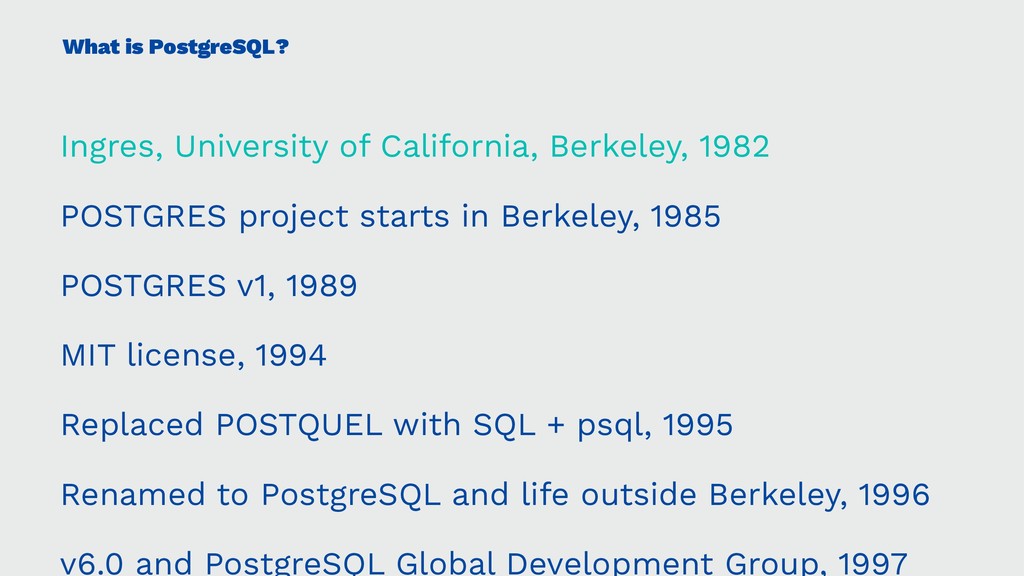

8. What is PostgreSQL? Ingres, University of California, Berkeley, 1982 POSTGRES project starts in Berkeley, 1985 POSTGRES v1, 1989 MIT license, 1994 Replaced POSTQUEL with SQL + psql, 1995 Renamed to PostgreSQL and life outside Berkeley, 1996 v6.0 and PostgreSQL Global Development Group, 1997

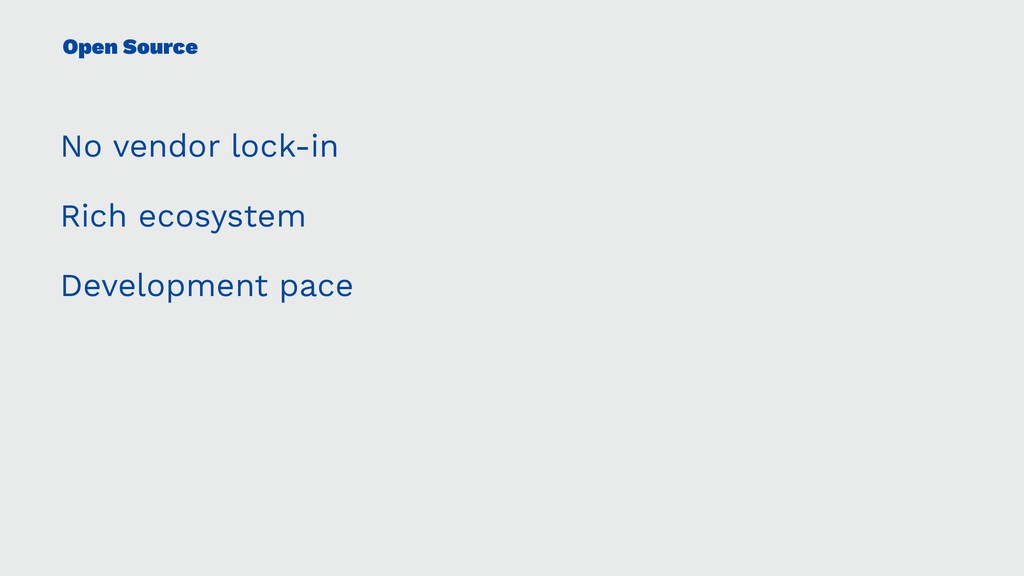

9. Open Source No vendor lock-in Rich ecosystem Development pace

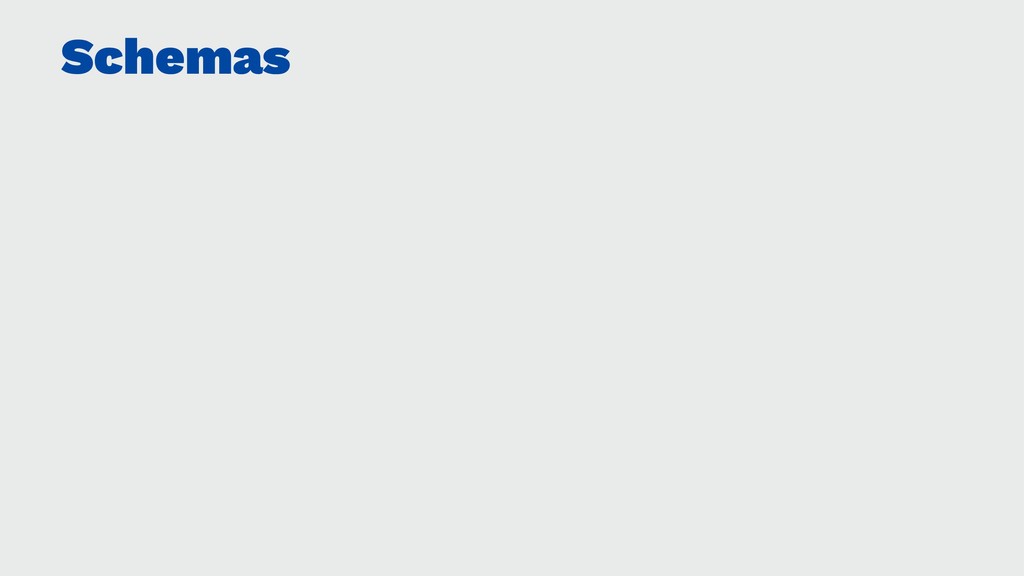

11. Schemas

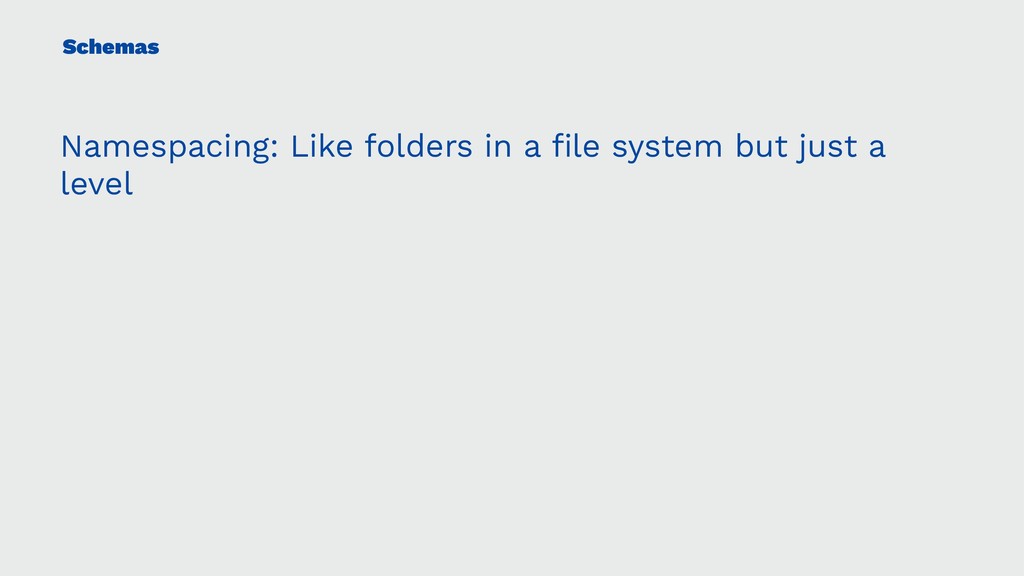

12. Schemas Namespacing: Like folders in a file system but just a level

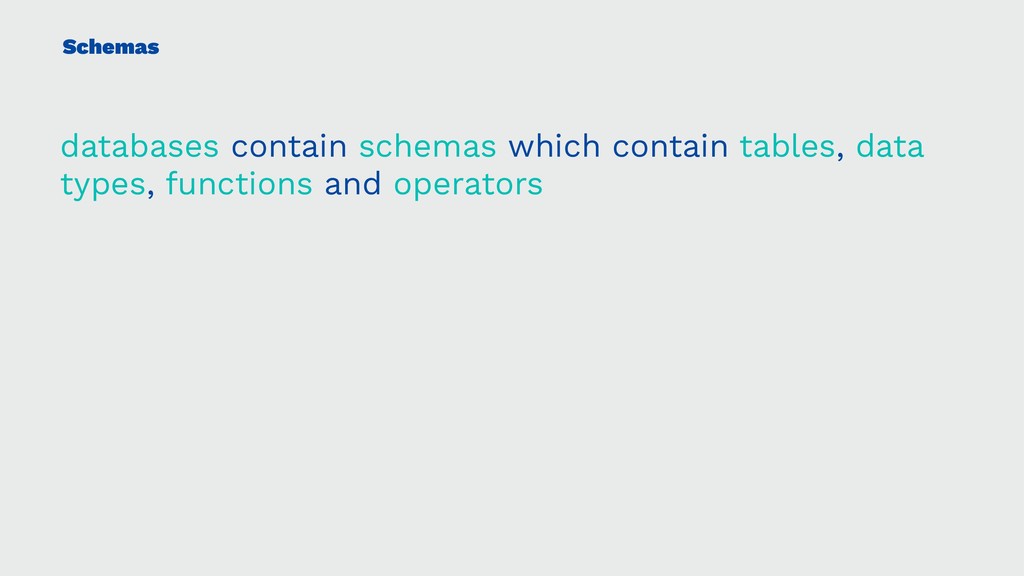

13. Schemas databases contain schemas which contain tables, data types, functions and operators

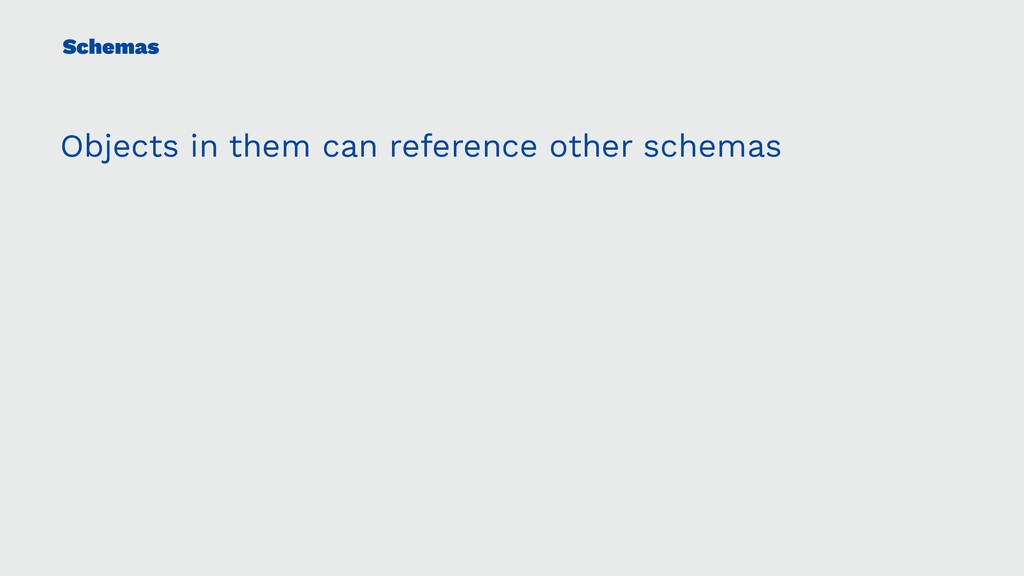

14. Schemas Objects in them can reference other schemas

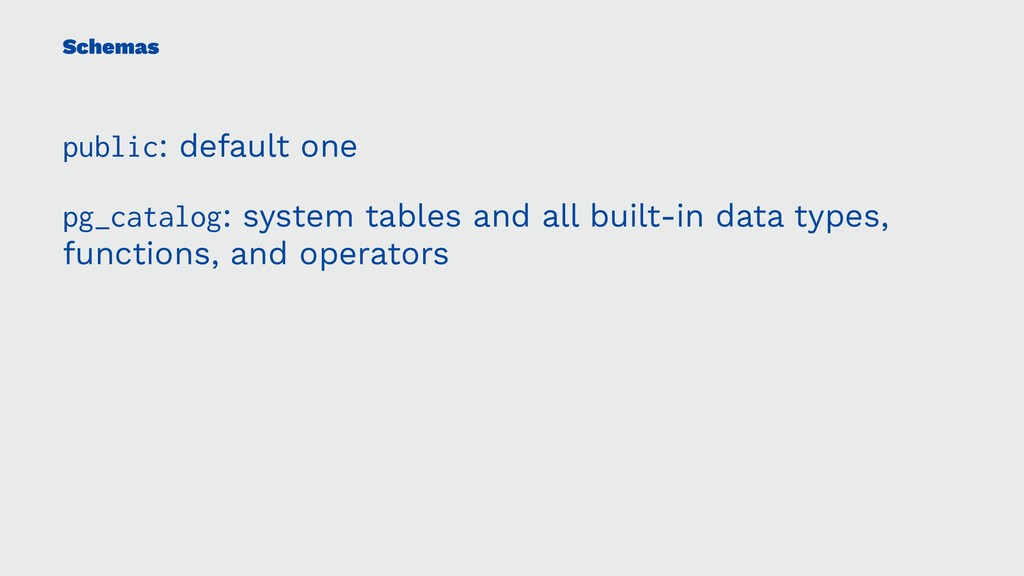

15. Schemas public: default one pg_catalog: system tables and all built-in data types, functions, and operators

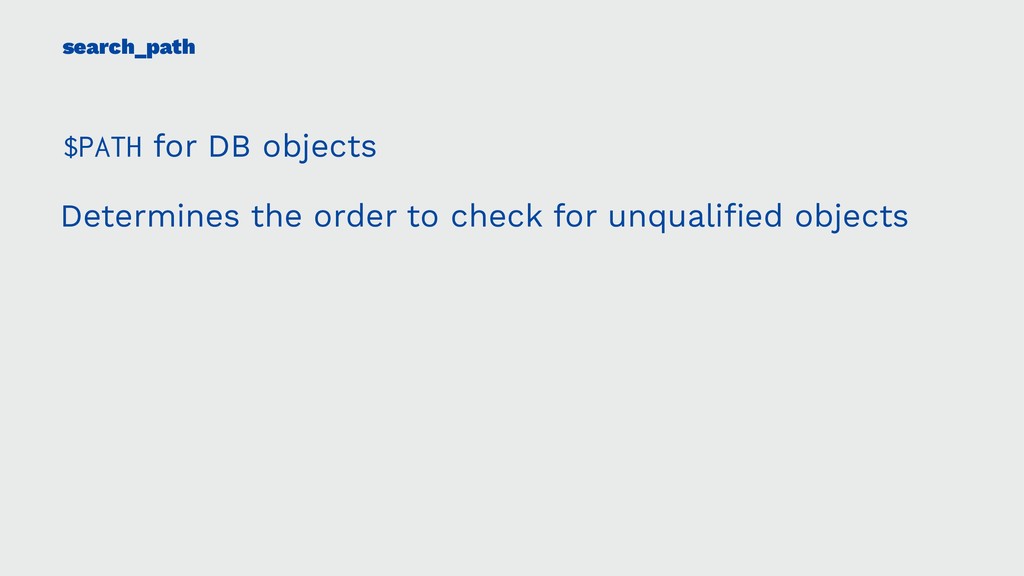

16. search_path $PATH for DB objects Determines the order to check for unqualified objects

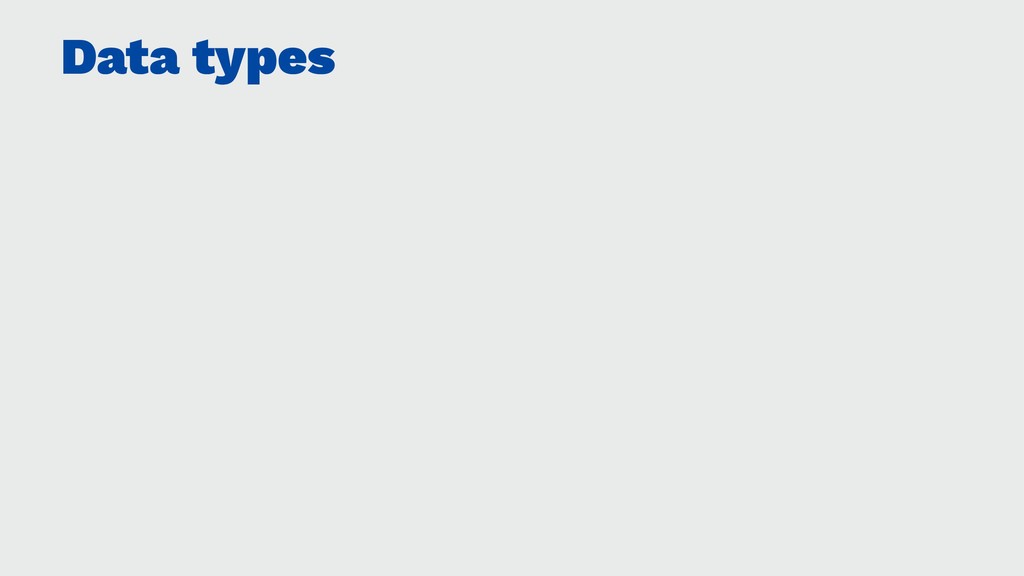

17. Data types

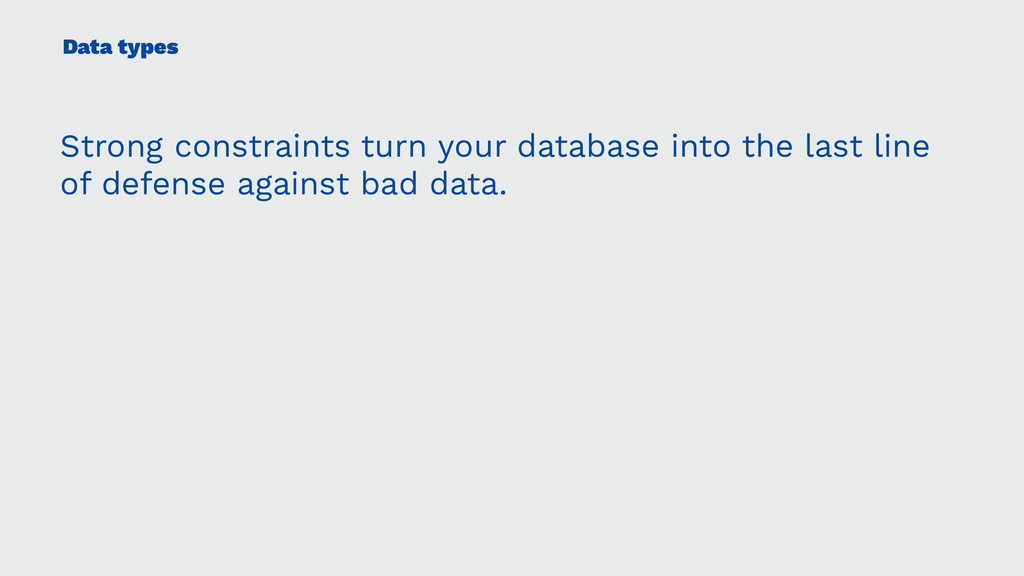

18. Data types Strong constraints turn your database into the last line of defense against bad data.

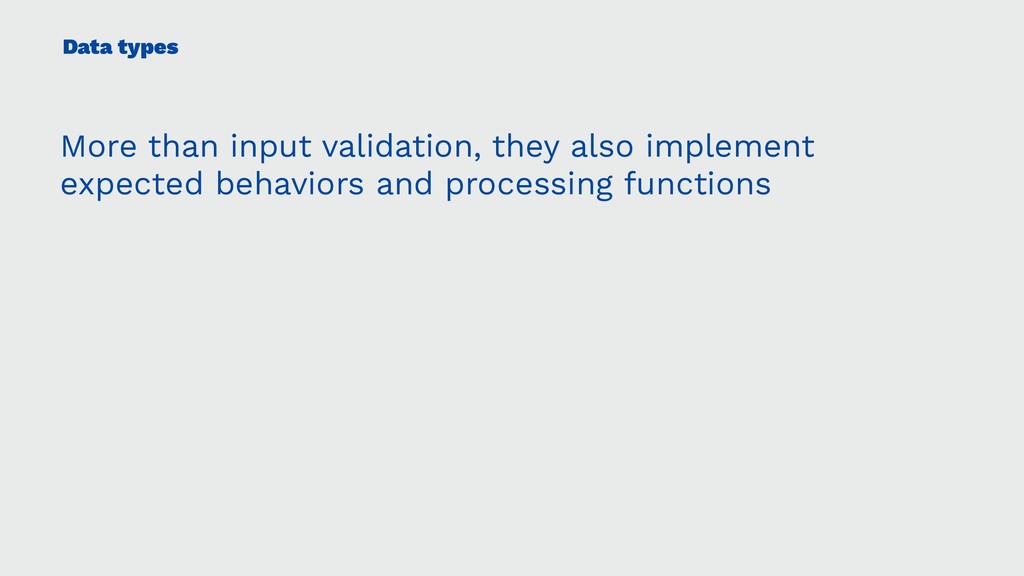

19. Data types More than input validation, they also implement expected behaviors and processing functions

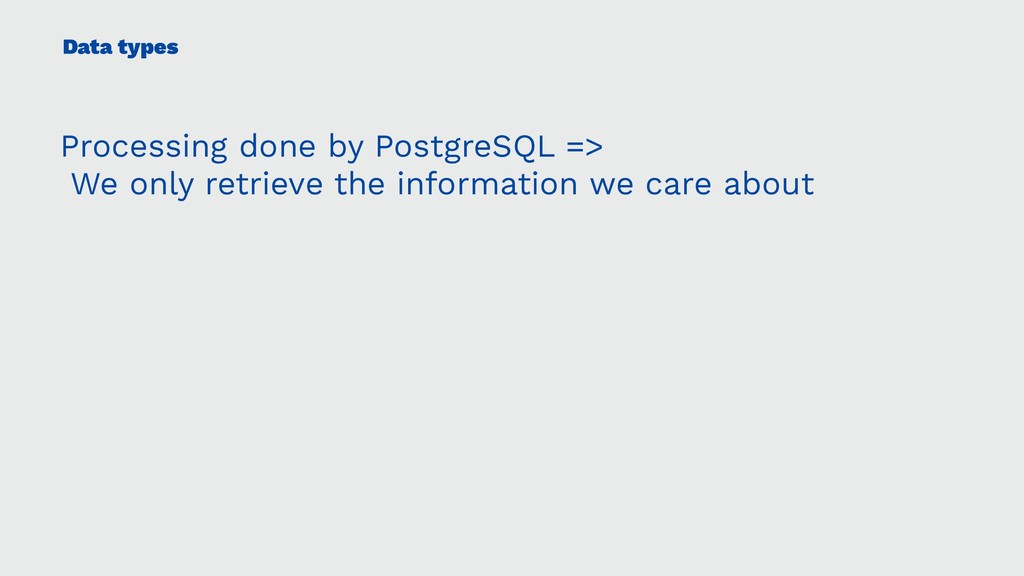

20. Data types Processing done by PostgreSQL => We only retrieve the information we care about

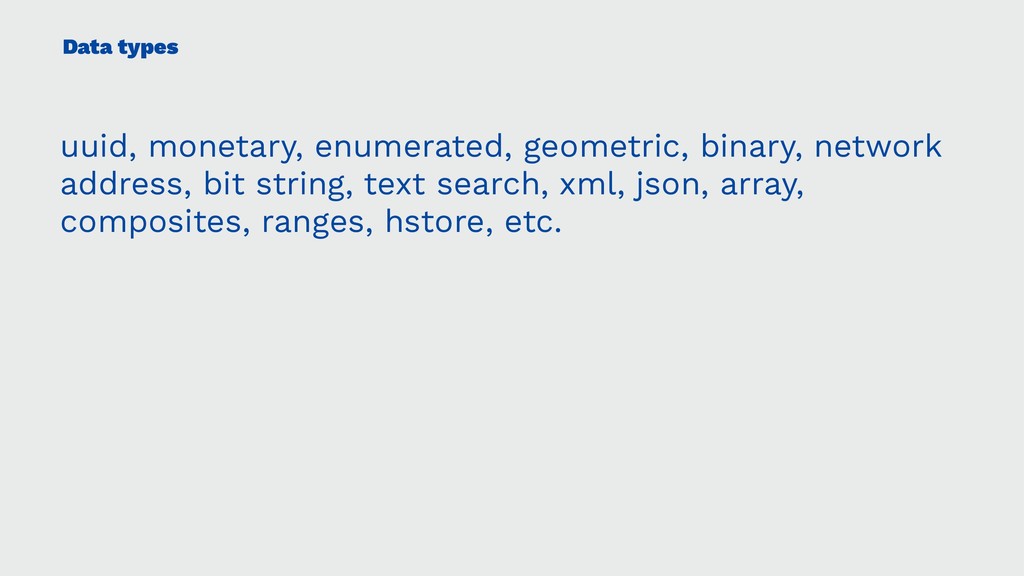

21. Data types uuid, monetary, enumerated, geometric, binary, network address, bit string, text search, xml, json, array, composites, ranges, hstore, etc.

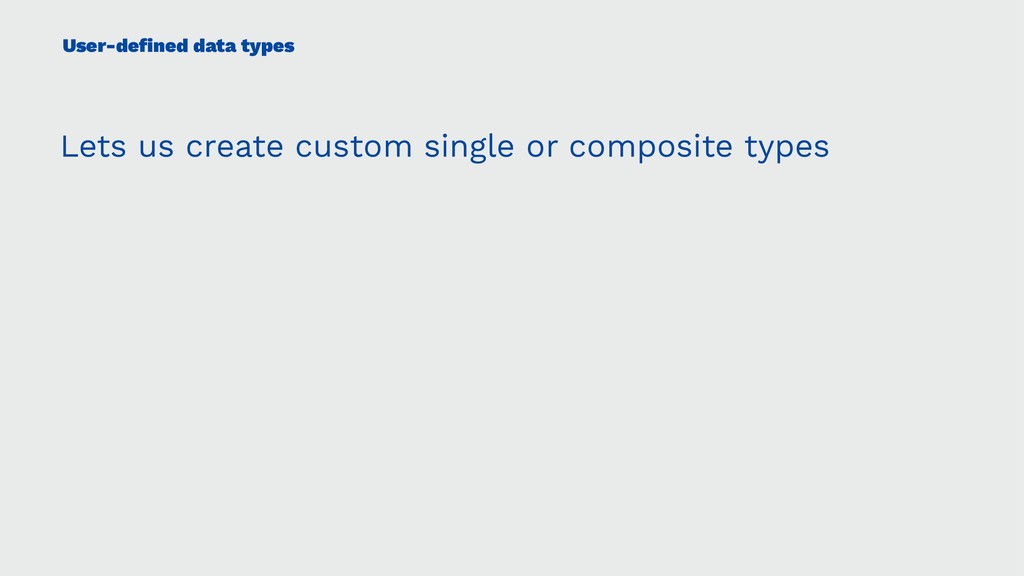

22. User-defined data types Lets us create custom single or composite types

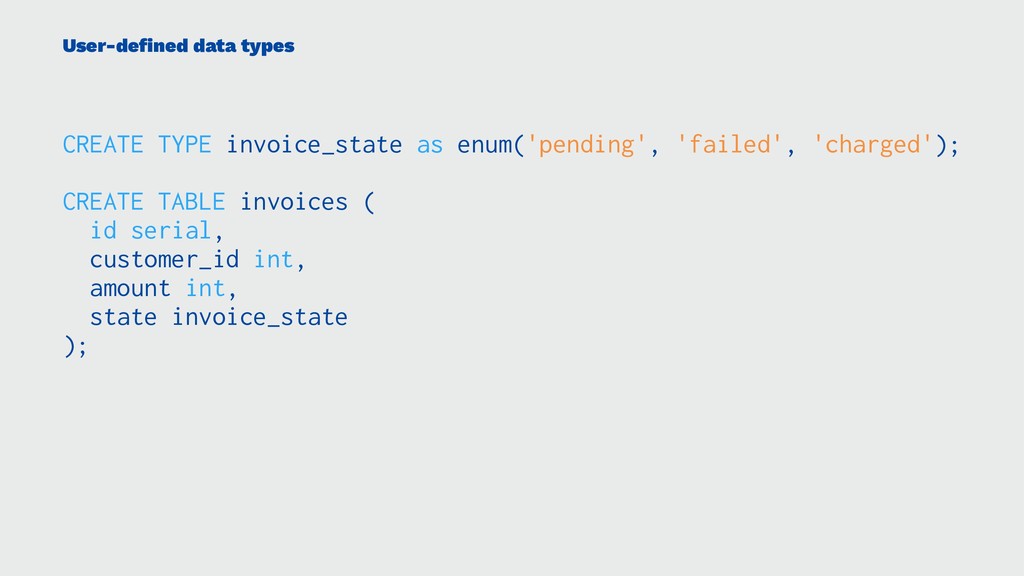

23. User-defined data types CREATE TYPE invoice_state as enum('pending', 'failed', 'charged'); CREATE TABLE invoices ( id serial, customer_id int, amount int, state invoice_state );

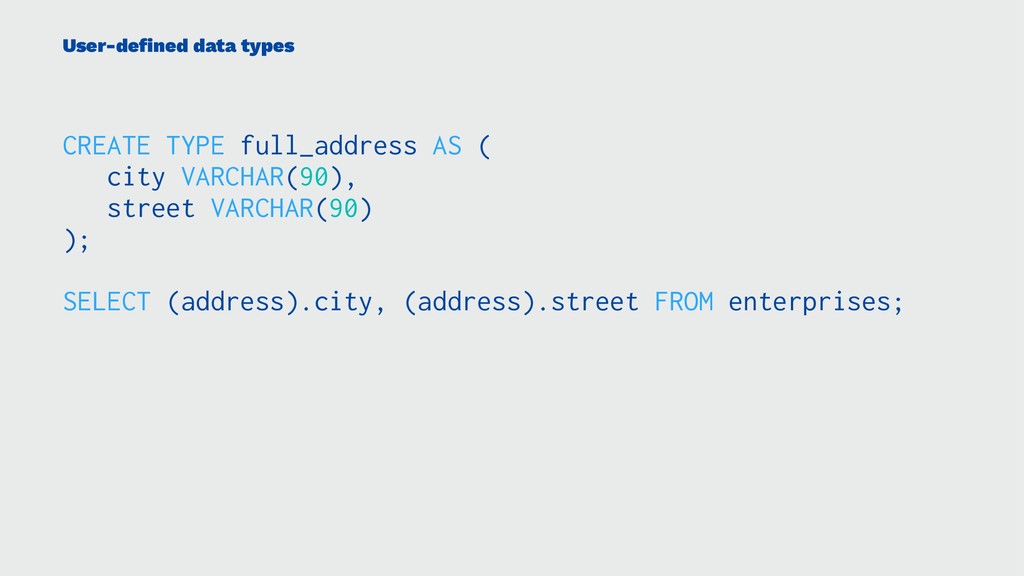

24. User-defined data types CREATE TYPE full_address AS ( city VARCHAR(90), street VARCHAR(90) ); SELECT (address).city, (address).street FROM enterprises;

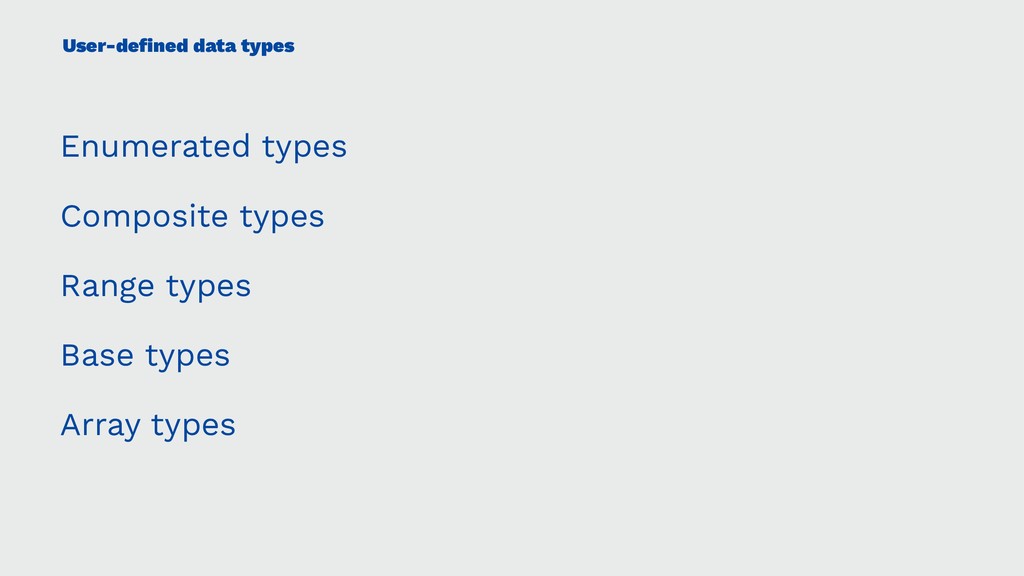

25. User-defined data types Enumerated types Composite types Range types Base types Array types

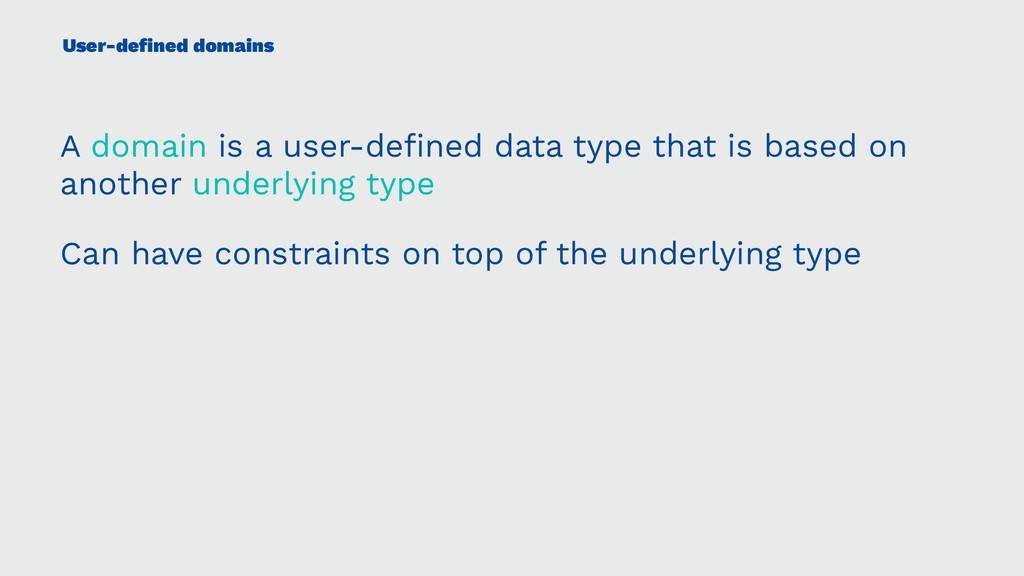

26. User-defined domains A domain is a user-defined data type that is based on another underlying type Can have constraints on top of the underlying type

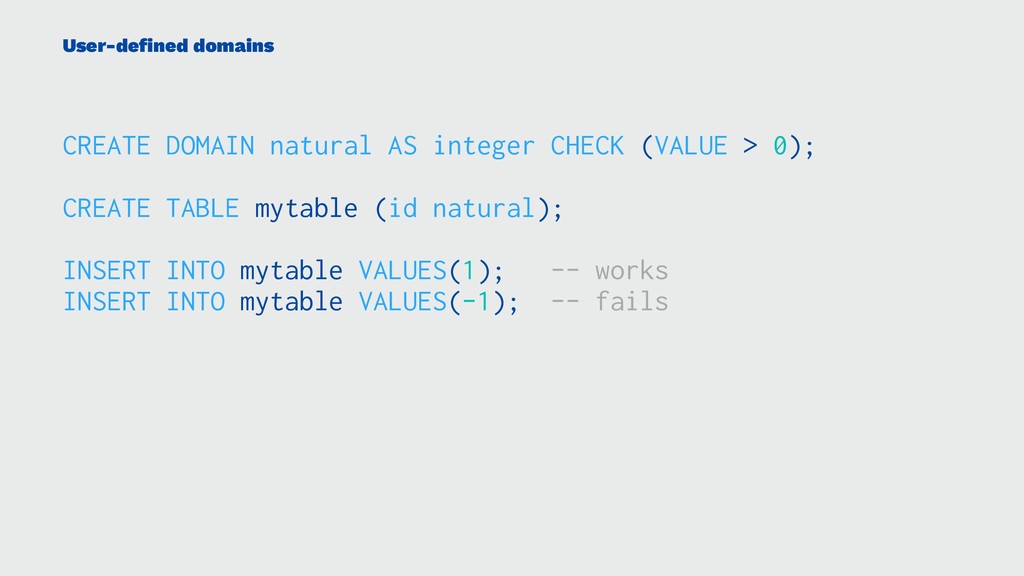

27. User-defined domains CREATE DOMAIN natural AS integer CHECK (VALUE > 0); CREATE TABLE mytable (id natural); INSERT INTO mytable VALUES(1); -- works INSERT INTO mytable VALUES(-1); -- fails

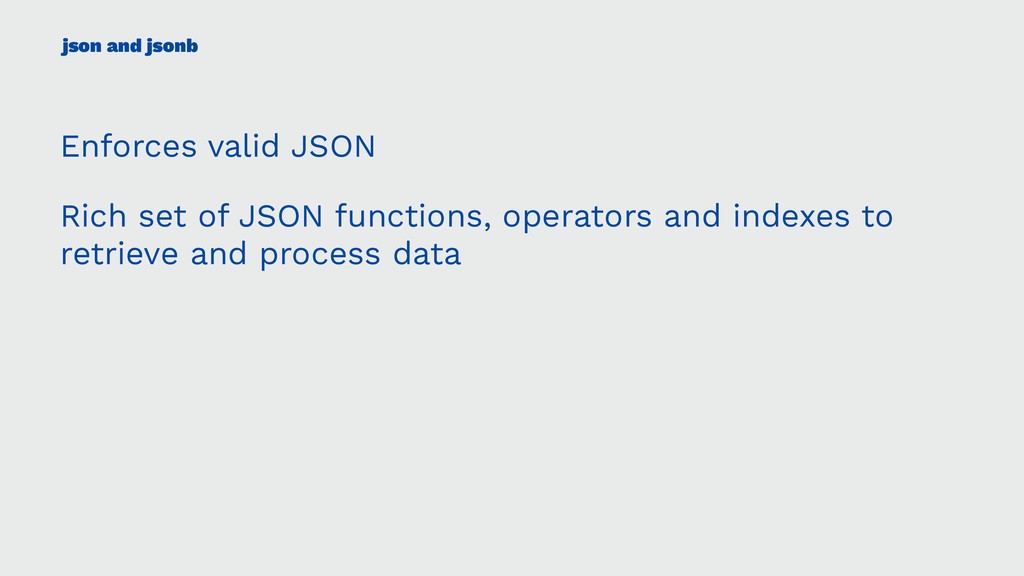

28. json and jsonb Enforces valid JSON Rich set of JSON functions, operators and indexes to retrieve and process data

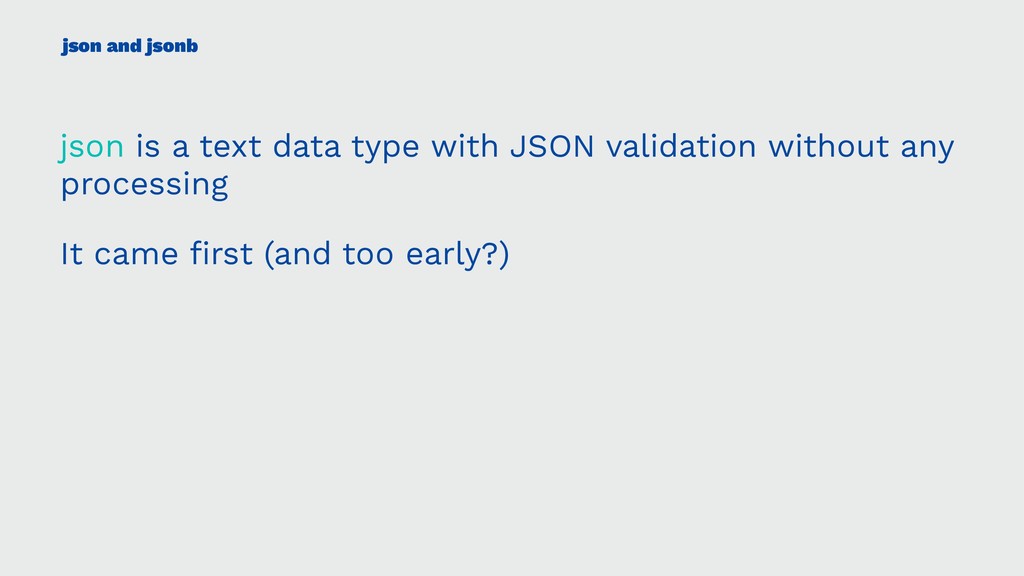

29. json and jsonb json is a text data type with JSON validation without any processing It came first (and too early?)

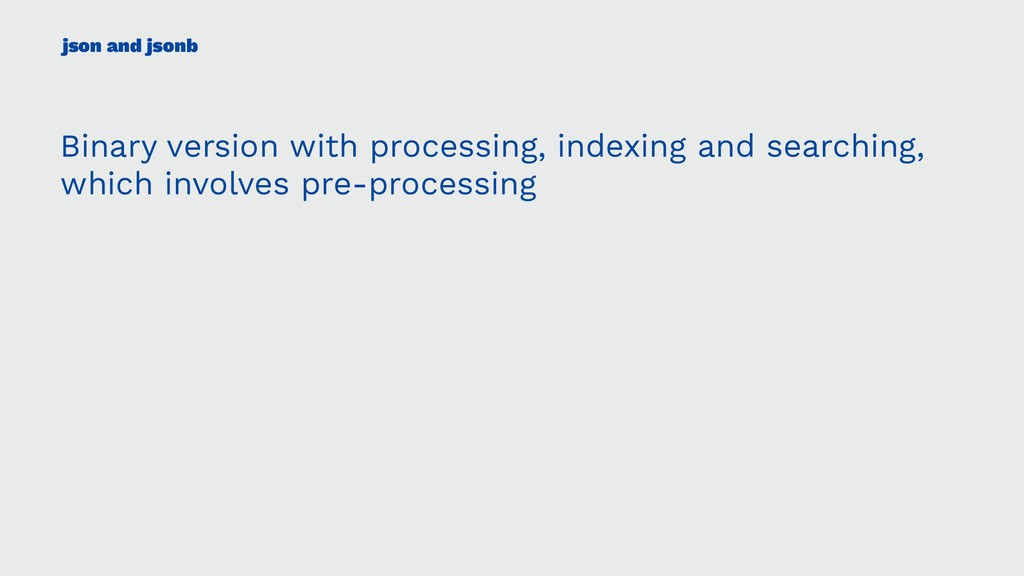

30. json and jsonb Binary version with processing, indexing and searching, which involves pre-processing

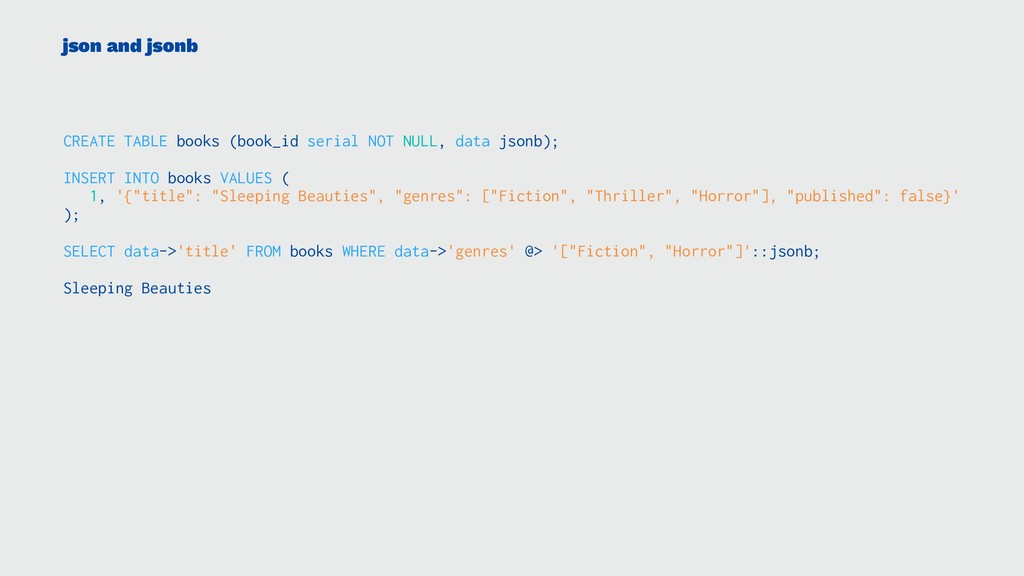

31. json and jsonb CREATE TABLE books (book_id serial NOT NULL, data jsonb); INSERT INTO books VALUES ( 1, '{"title": "Sleeping Beauties", "genres": ["Fiction", "Thriller", "Horror"], "published": false}' ); SELECT data->'title' FROM books WHERE data->'genres' @> '["Fiction", "Horror"]'::jsonb; Sleeping Beauties

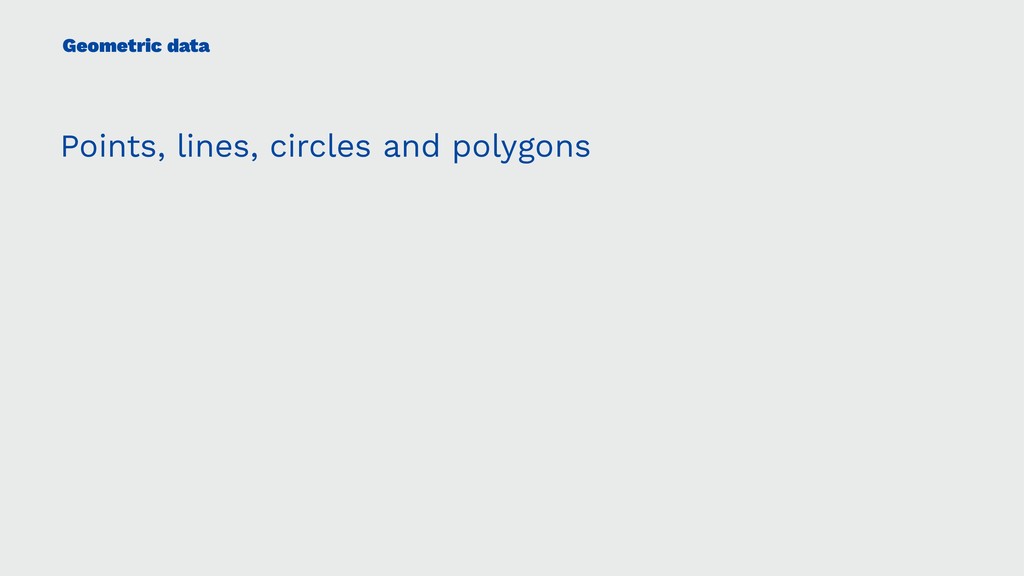

32. Geometric data Points, lines, circles and polygons

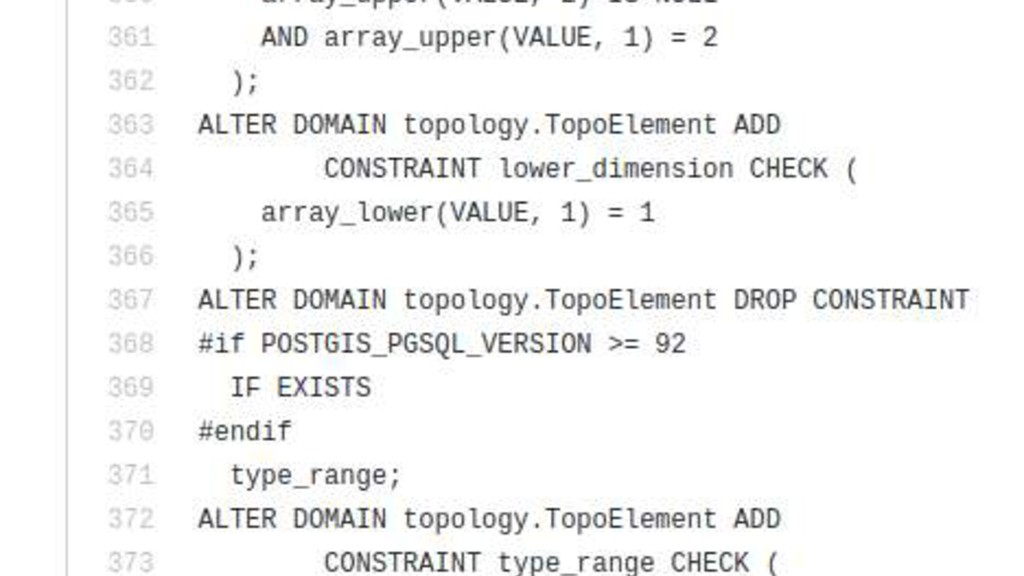

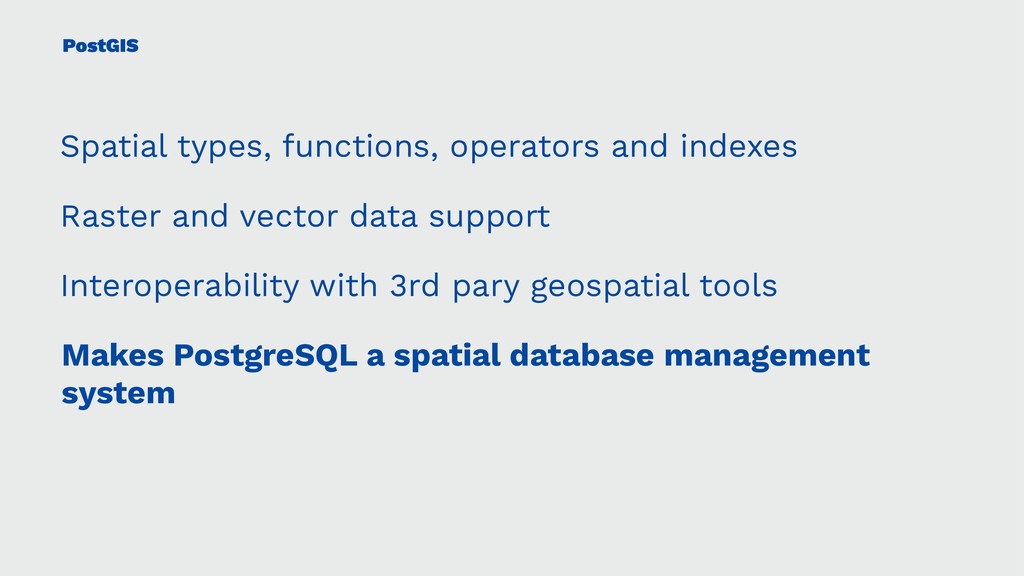

33. PostGIS Spatial types, functions, operators and indexes Raster and vector data support Interoperability with 3rd pary geospatial tools Makes PostgreSQL a spatial database management system

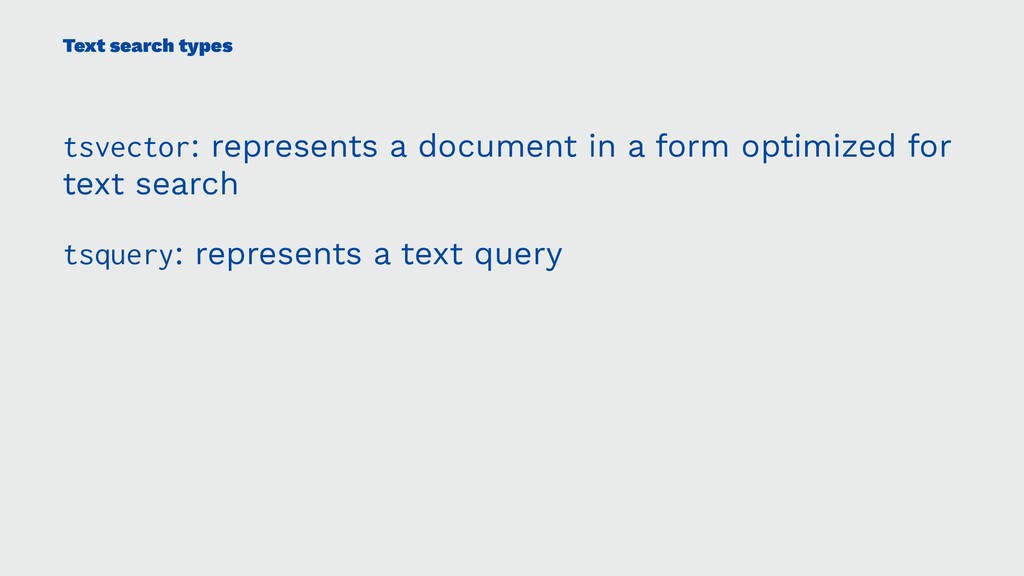

35. Text search types tsvector: represents a document in a form optimized for text search tsquery: represents a text query

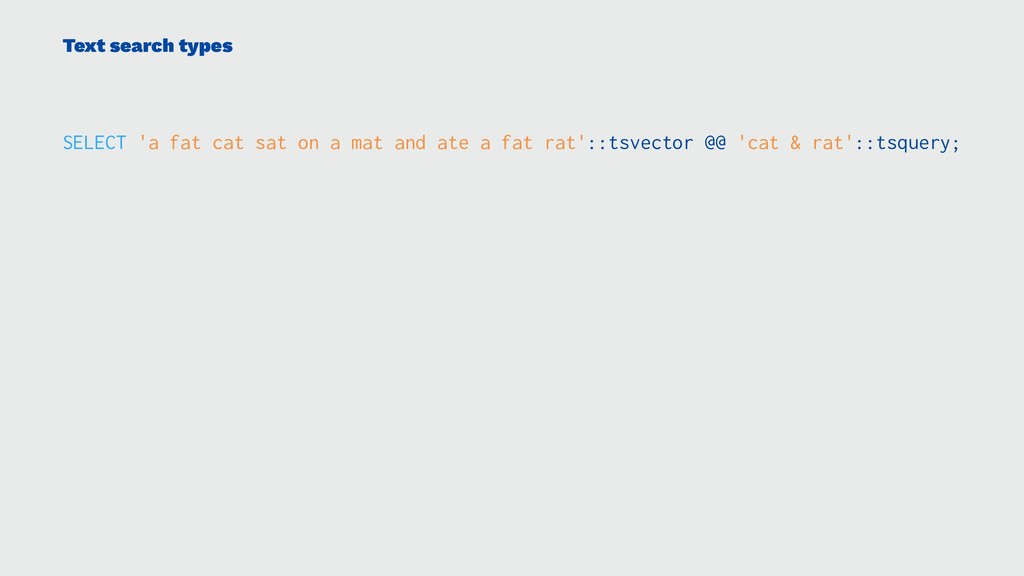

36. Text search types SELECT 'a fat cat sat on a mat and ate a fat rat'::tsvector @@ 'cat & rat'::tsquery;

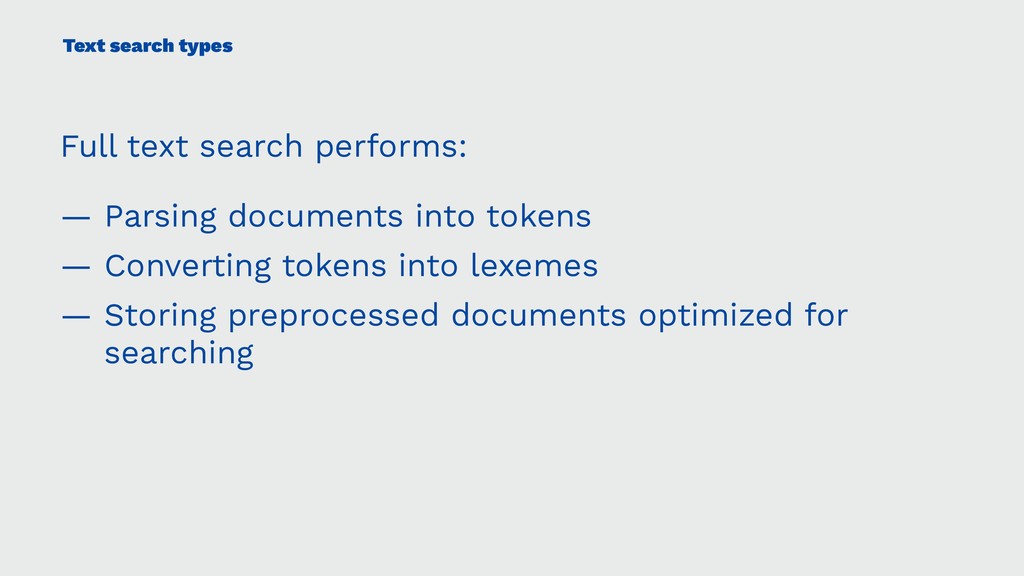

37. Text search types Full text search performs: — Parsing documents into tokens — Converting tokens into lexemes — Storing preprocessed documents optimized for searching

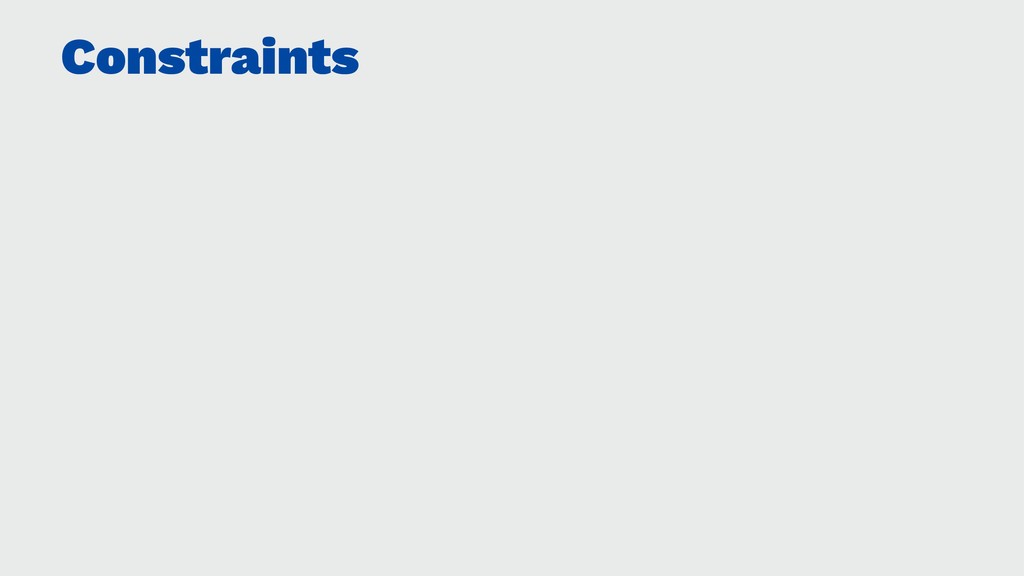

39. Constraints

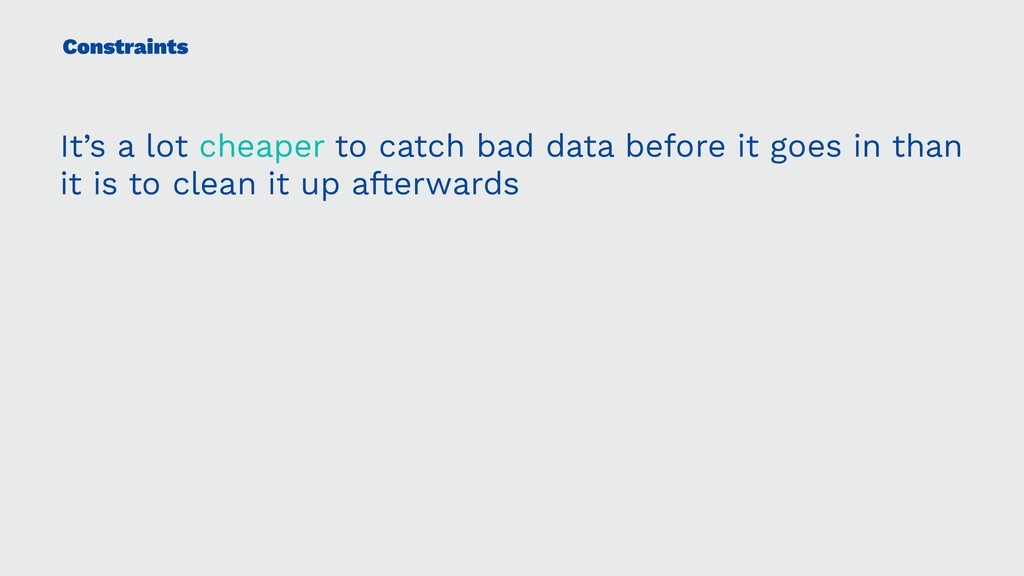

40. Constraints It’s a lot cheaper to catch bad data before it goes in than it is to clean it up afterwards

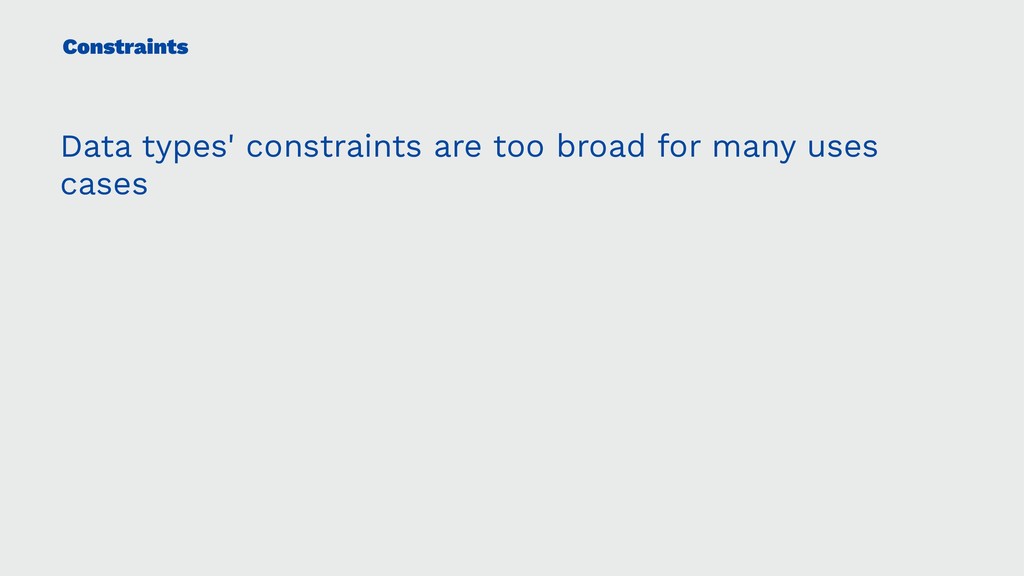

41. Constraints Data types' constraints are too broad for many uses cases

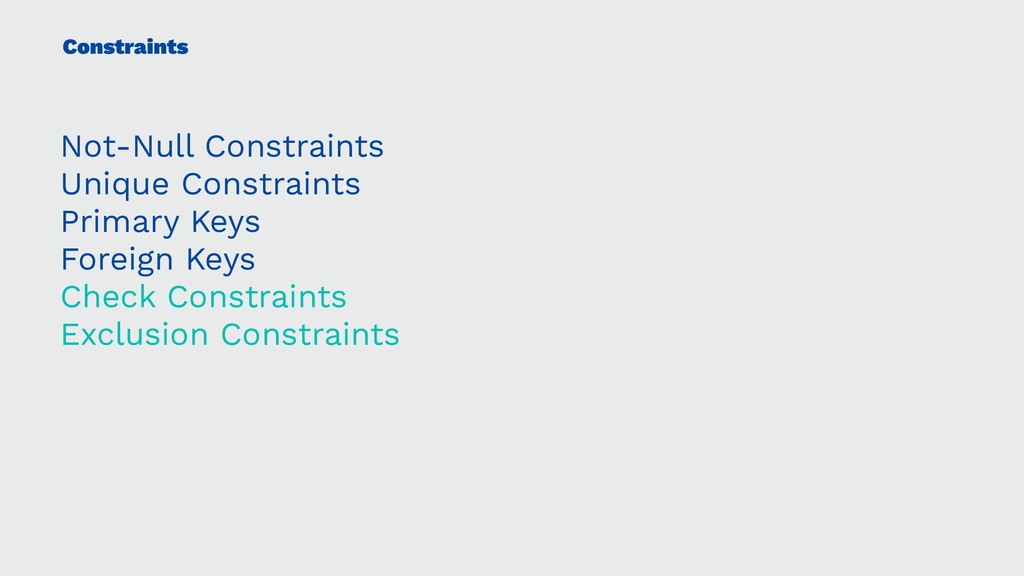

42. Constraints Not-Null Constraints Unique Constraints Primary Keys Foreign Keys Check Constraints Exclusion Constraints

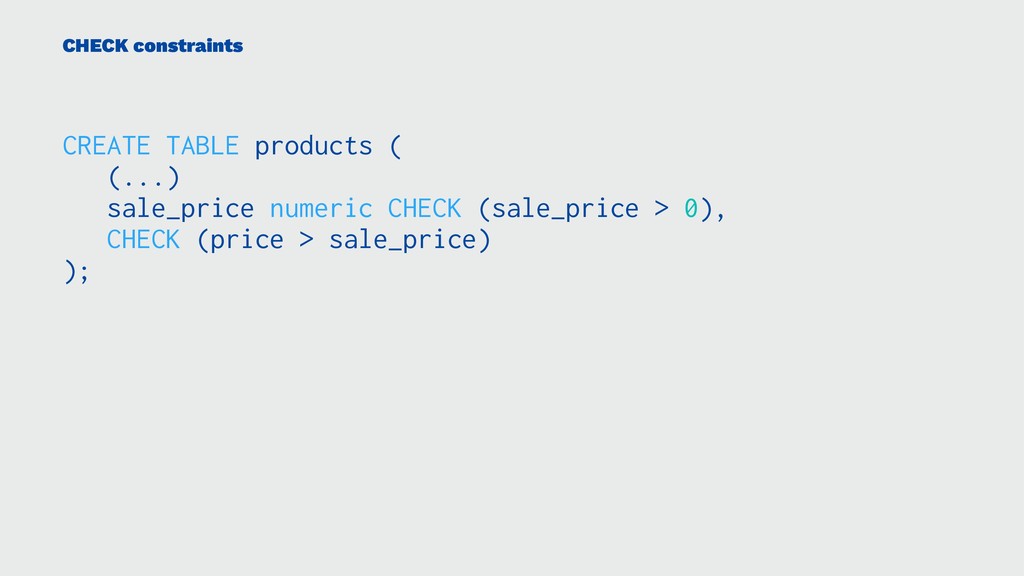

43. CHECK constraints CREATE TABLE products ( (...) sale_price numeric CHECK (sale_price > 0), CHECK (price > sale_price) );

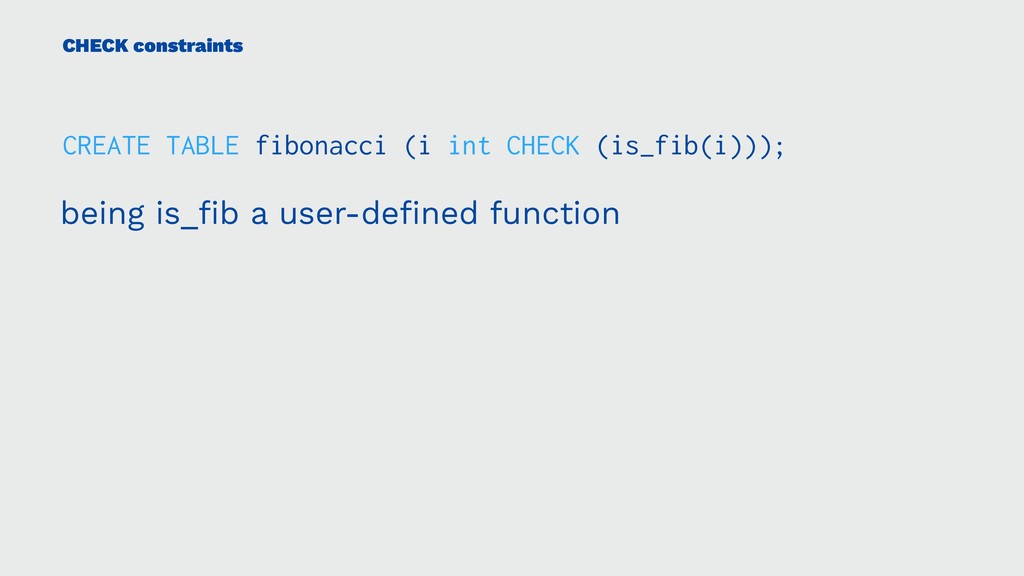

44. CHECK constraints CREATE TABLE fibonacci (i int CHECK (is_fib(i))); being is_fib a user-defined function

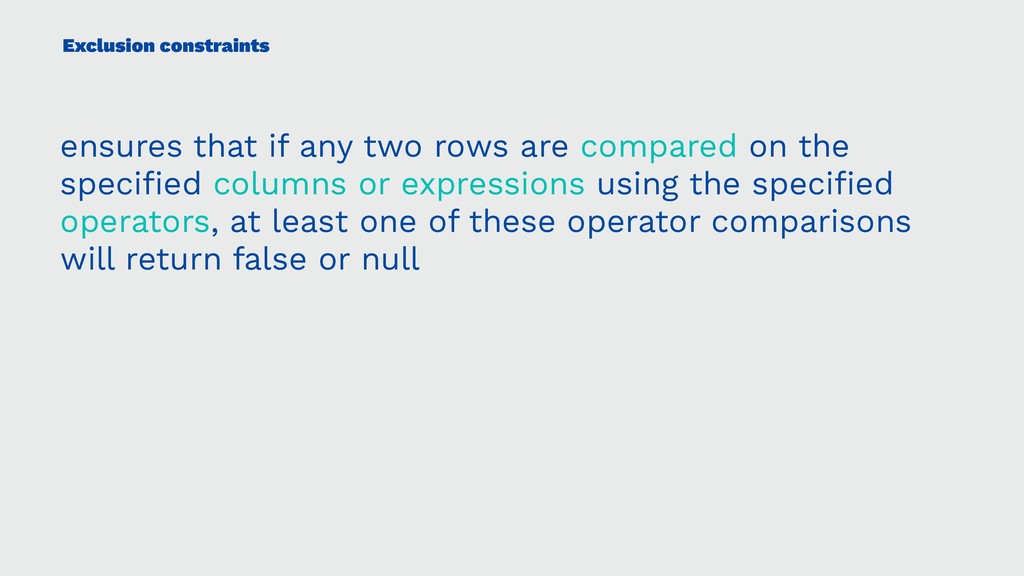

45. Exclusion constraints ensures that if any two rows are compared on the specified columns or expressions using the specified operators, at least one of these operator comparisons will return false or null

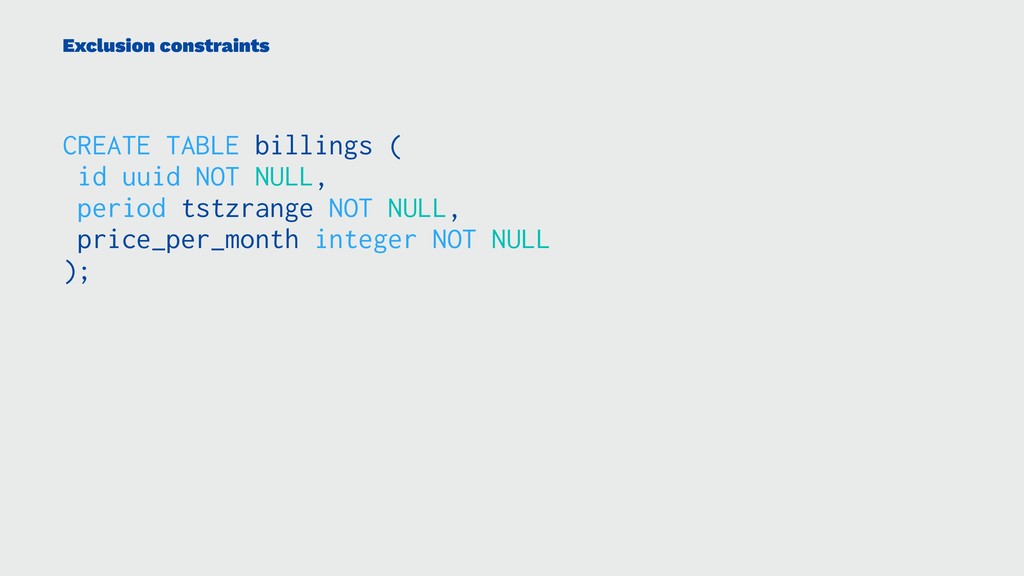

46. Exclusion constraints CREATE TABLE billings ( id uuid NOT NULL, period tstzrange NOT NULL, price_per_month integer NOT NULL );

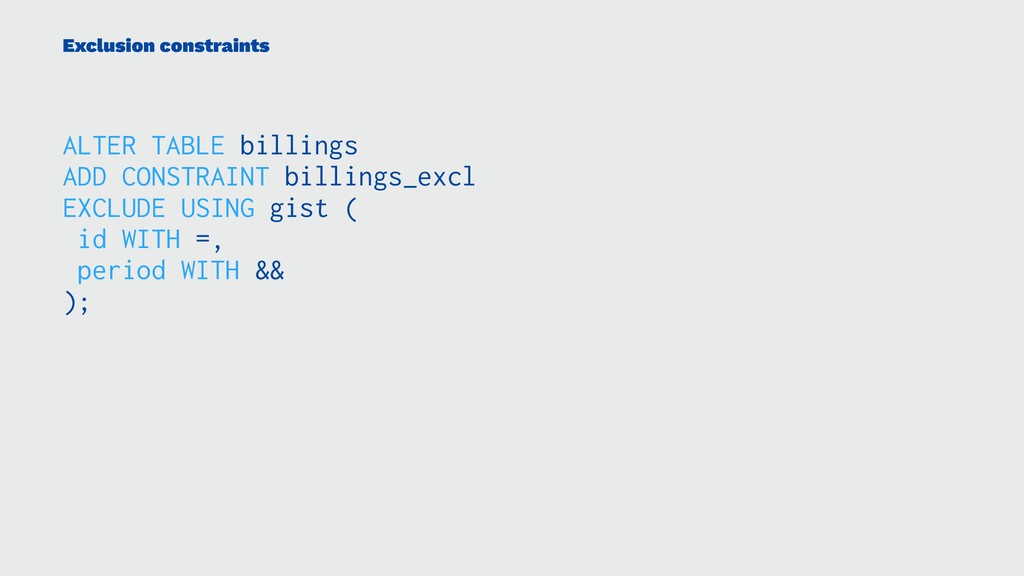

47. Exclusion constraints ALTER TABLE billings ADD CONSTRAINT billings_excl EXCLUDE USING gist ( id WITH =, period WITH && );

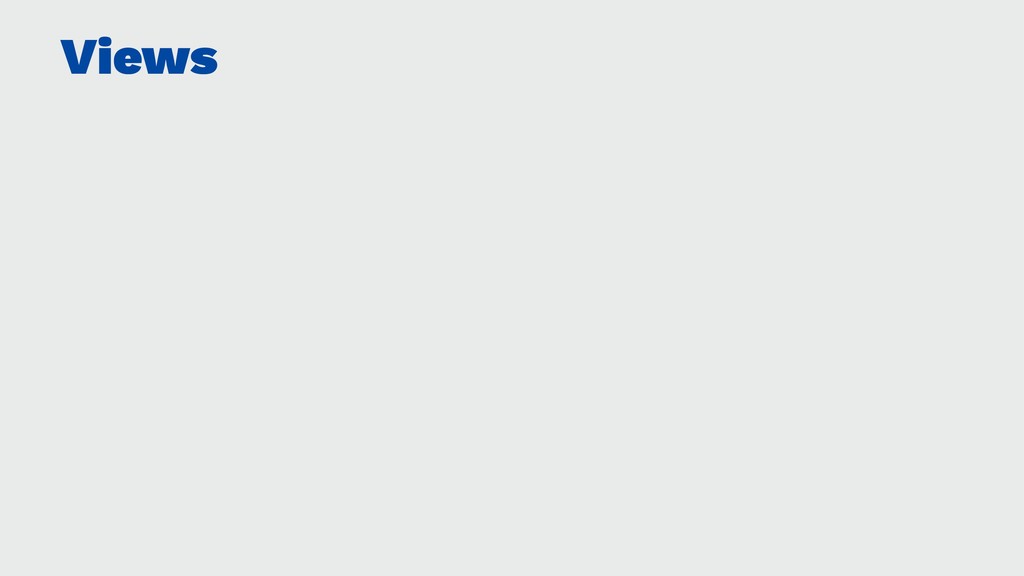

48. Views

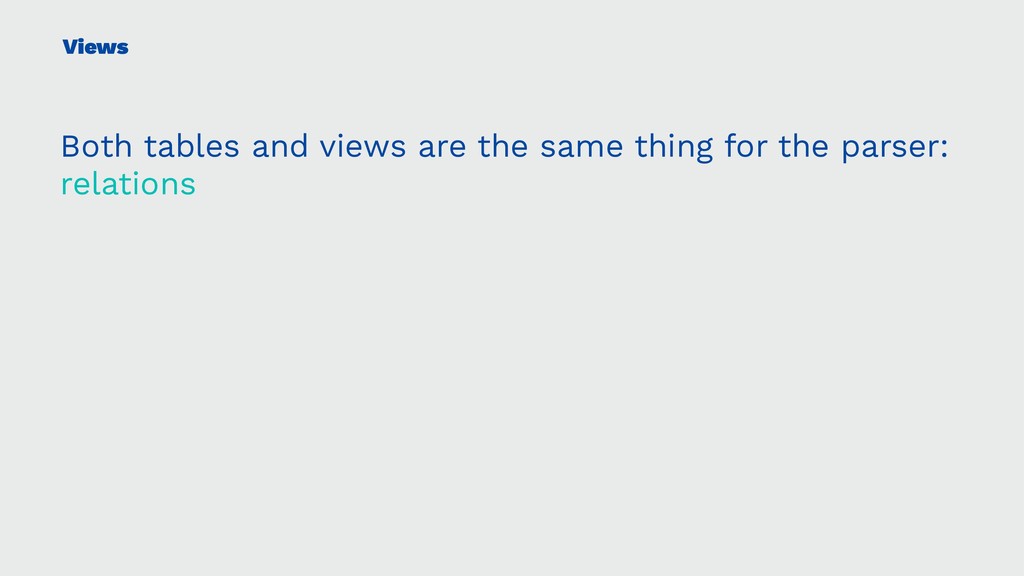

49. Views Both tables and views are the same thing for the parser: relations

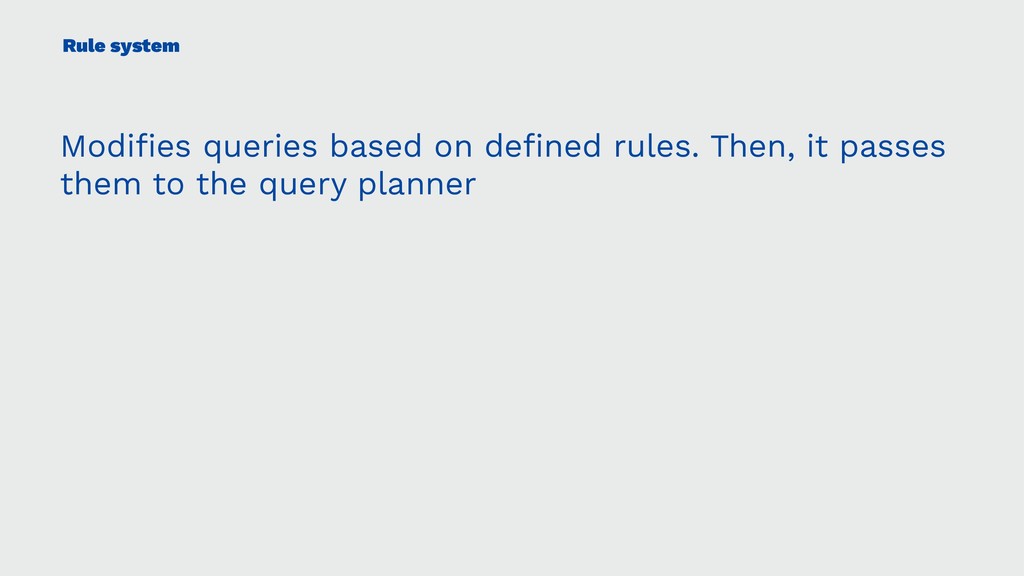

50. Rule system Modifies queries based on defined rules. Then, it passes them to the query planner

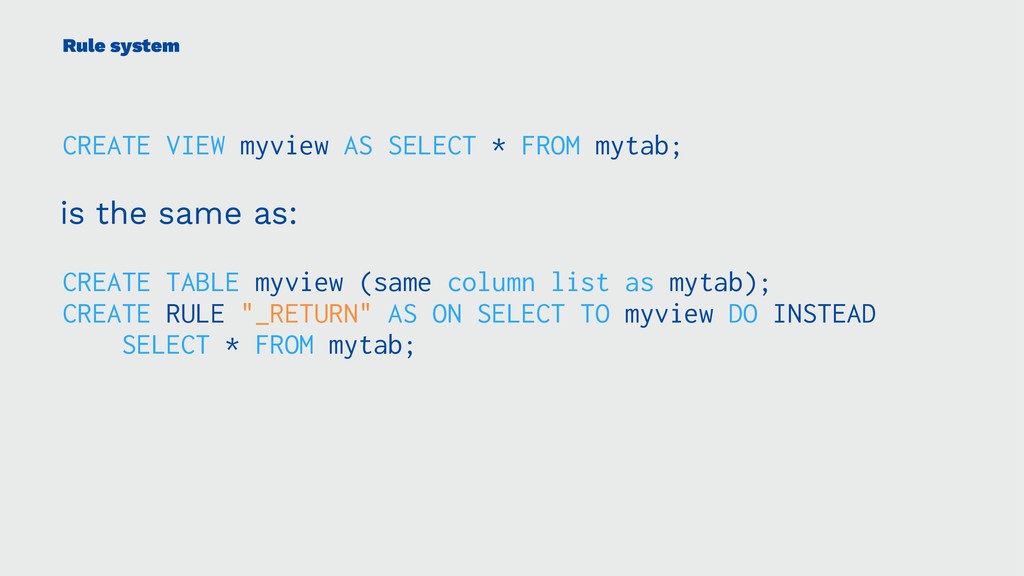

51. Rule system CREATE VIEW myview AS SELECT * FROM mytab; is the same as: CREATE TABLE myview (same column list as mytab); CREATE RULE "_RETURN" AS ON SELECT TO myview DO INSTEAD SELECT * FROM mytab;

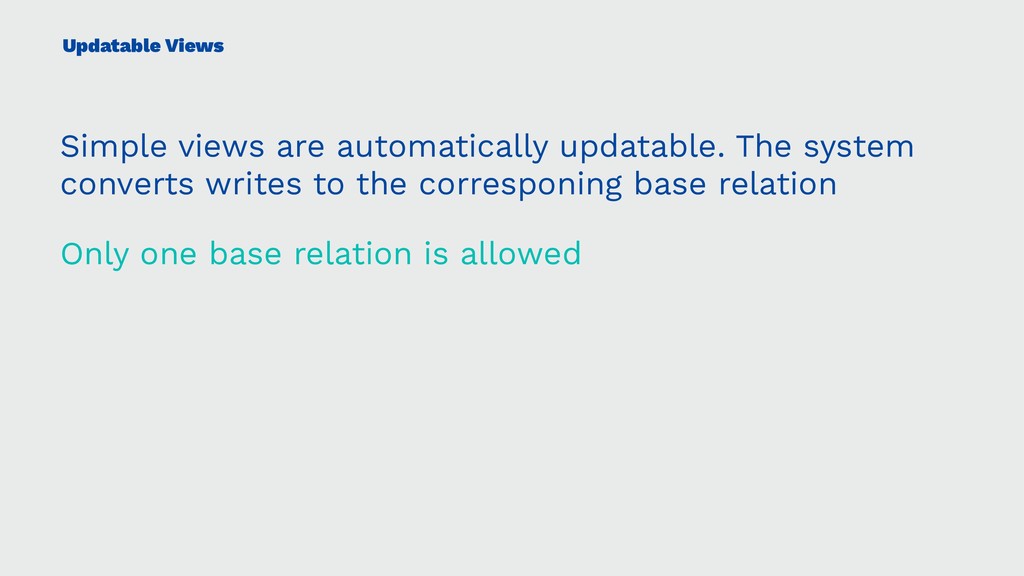

52. Updatable Views Simple views are automatically updatable. The system converts writes to the corresponing base relation Only one base relation is allowed

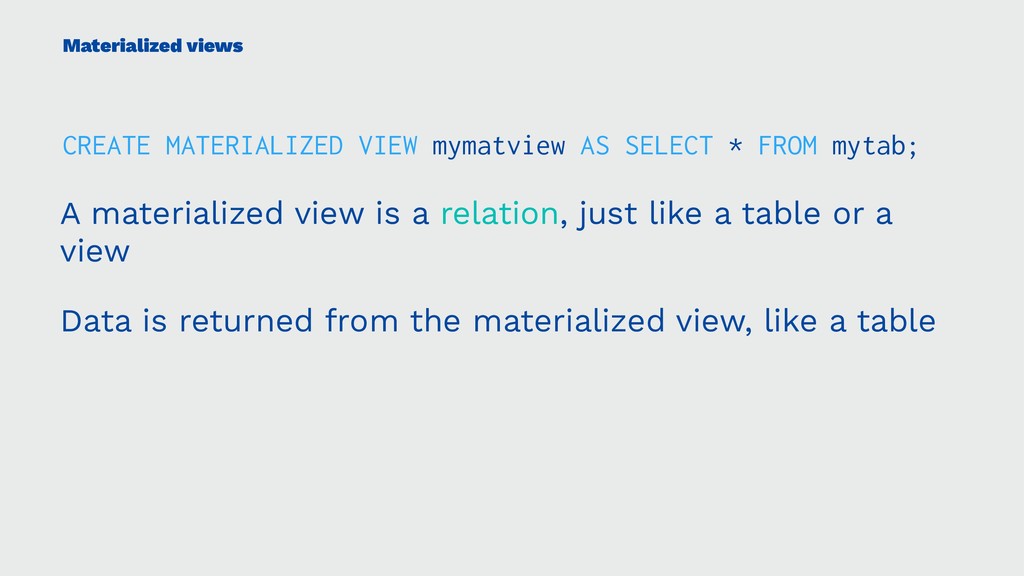

53. Materialized views CREATE MATERIALIZED VIEW mymatview AS SELECT * FROM mytab; A materialized view is a relation, just like a table or a view Data is returned from the materialized view, like a table

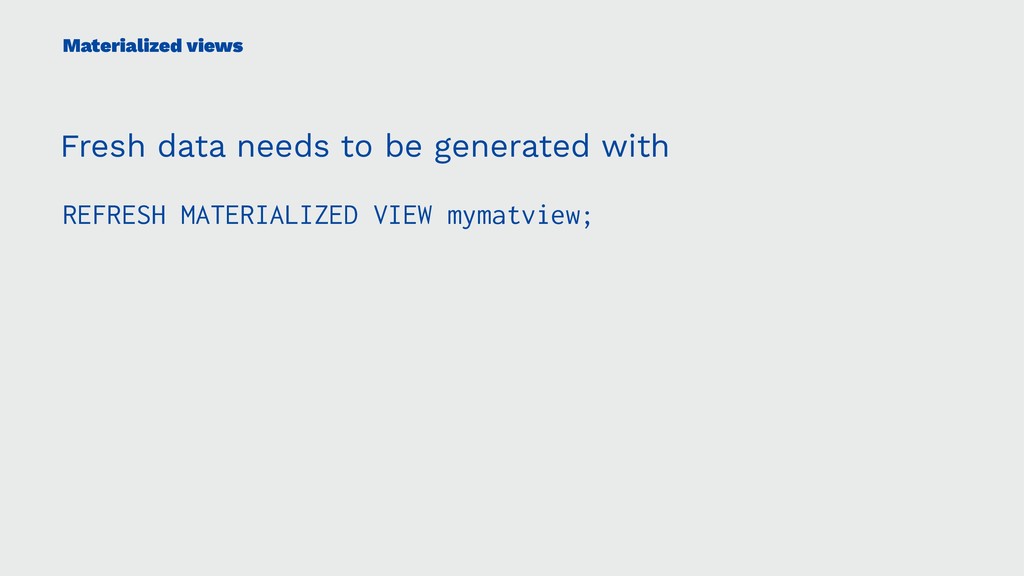

54. Materialized views Fresh data needs to be generated with REFRESH MATERIALIZED VIEW mymatview;

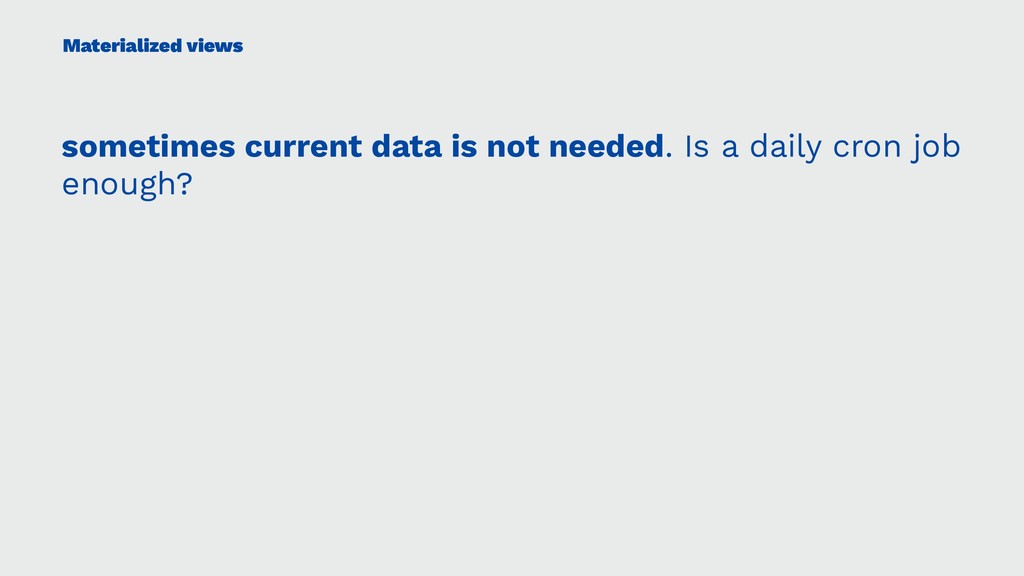

55. Materialized views sometimes current data is not needed. Is a daily cron job enough?
56. Indexes

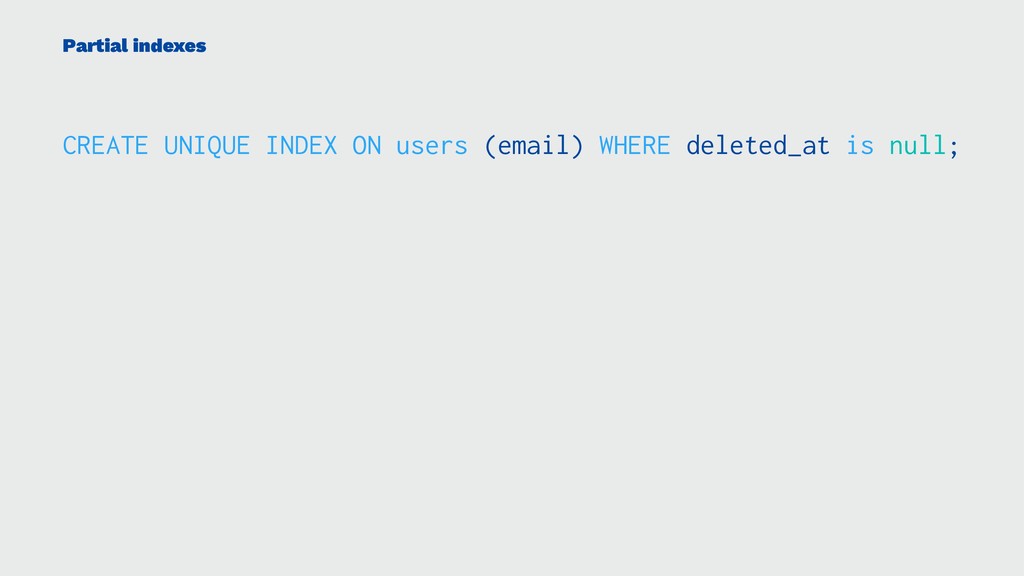

57. Partial indexes CREATE UNIQUE INDEX ON users (email) WHERE deleted_at is null;

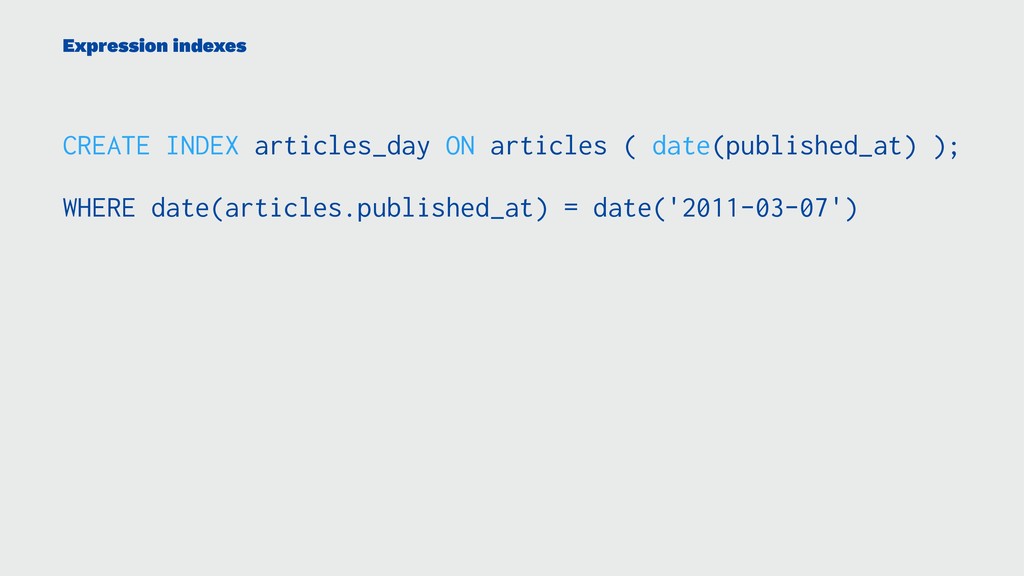

58. Expression indexes CREATE INDEX articles_day ON articles ( date(published_at) ); WHERE date(articles.published_at) = date('2011-03-07')

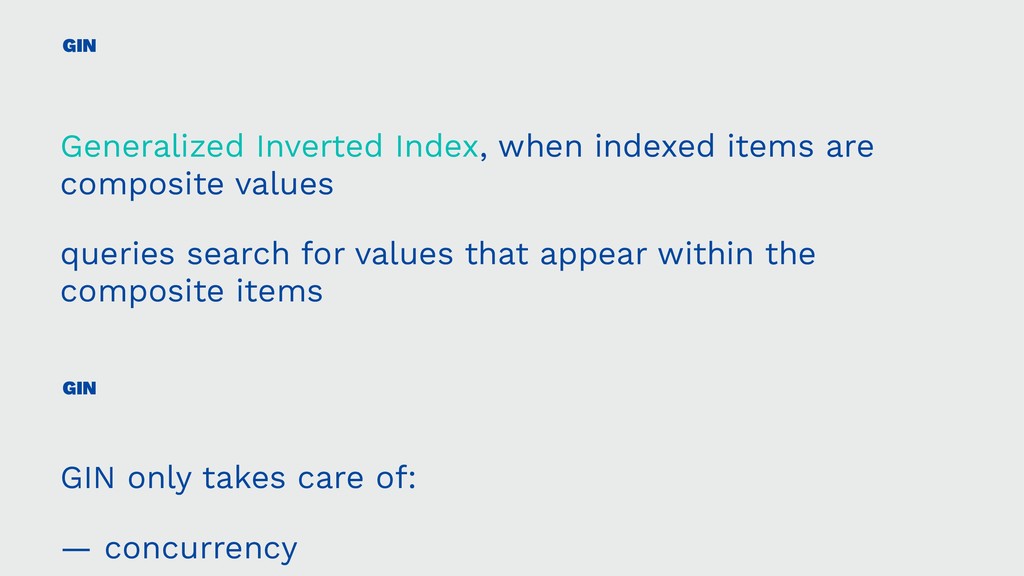

59. GIN Generalized Inverted Index, when indexed items are composite values queries search for values that appear within the composite items GIN GIN only takes care of: — concurrency

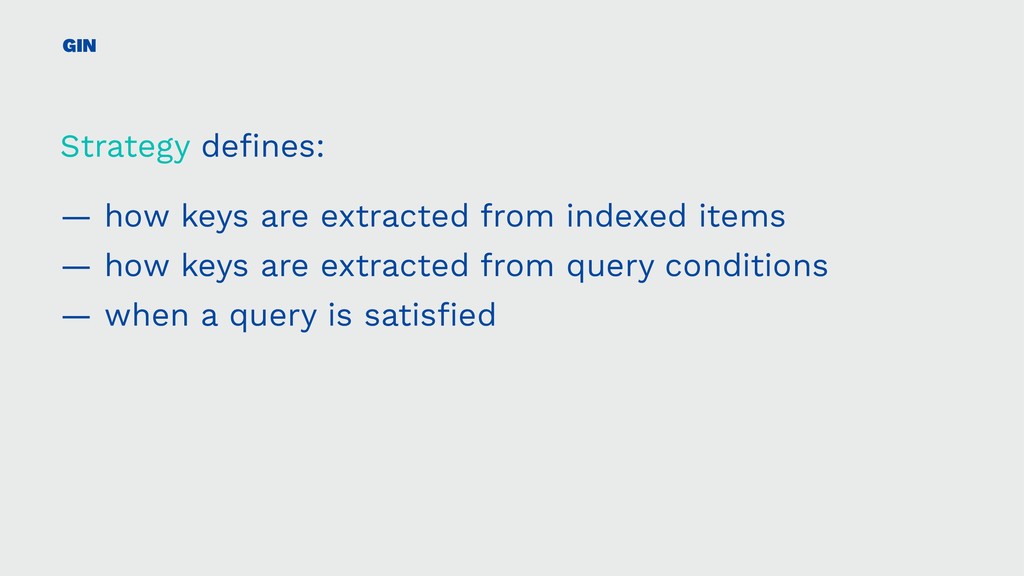

60. GIN Strategy defines: — how keys are extracted from indexed items — how keys are extracted from query conditions — when a query is satisfied

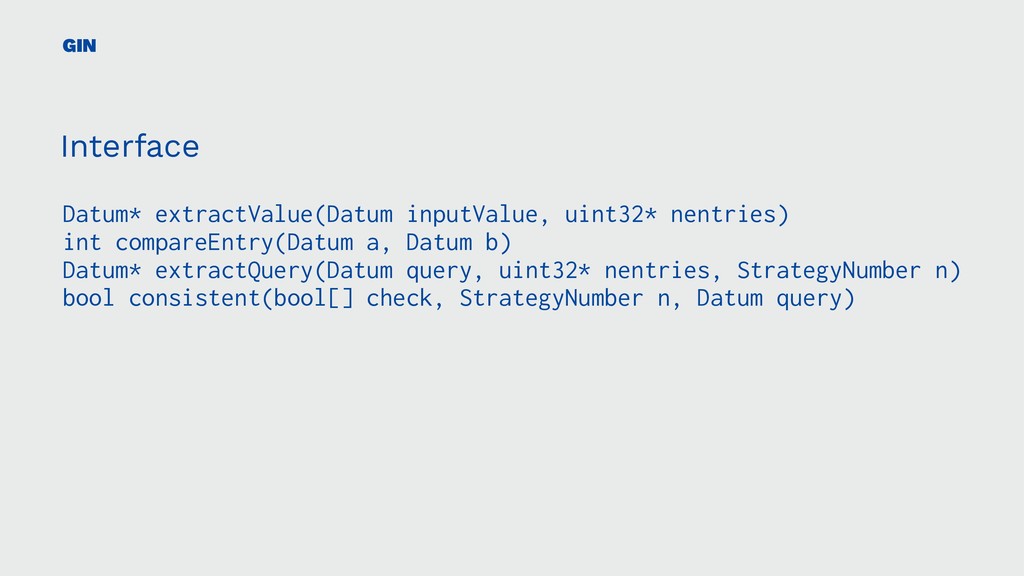

61. GIN Interface Datum* extractValue(Datum inputValue, uint32* nentries) int compareEntry(Datum a, Datum b) Datum* extractQuery(Datum query, uint32* nentries, StrategyNumber n) bool consistent(bool[] check, StrategyNumber n, Datum query)
62. built-in GIN operator classes Name Indexable operators array_ops tsvector_ops jsonb_ops indexable operators: ? ?& ? jsonb_path_ops indexable operators: @>* Fewer operators => better performance

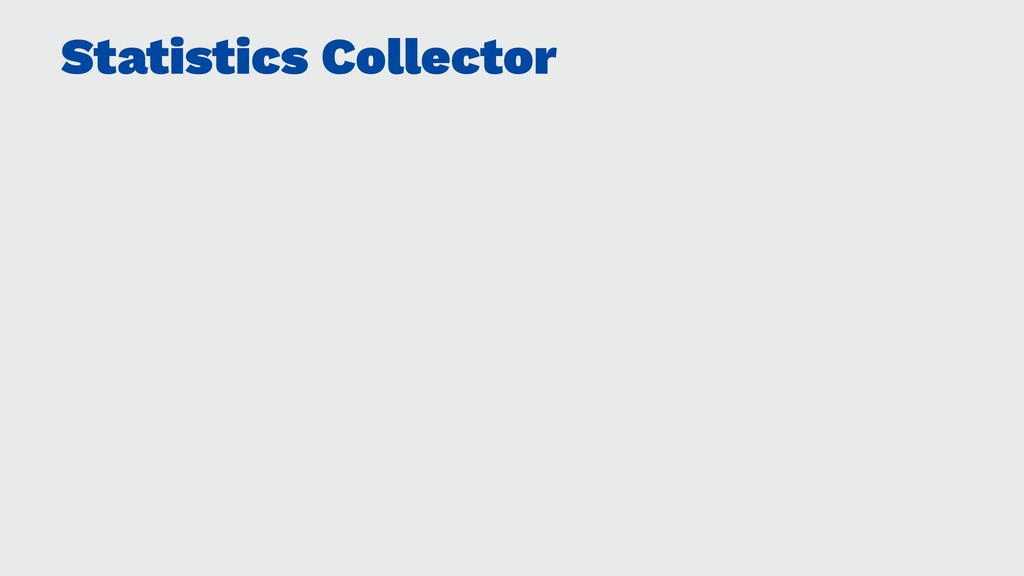

63. Statistics Collector

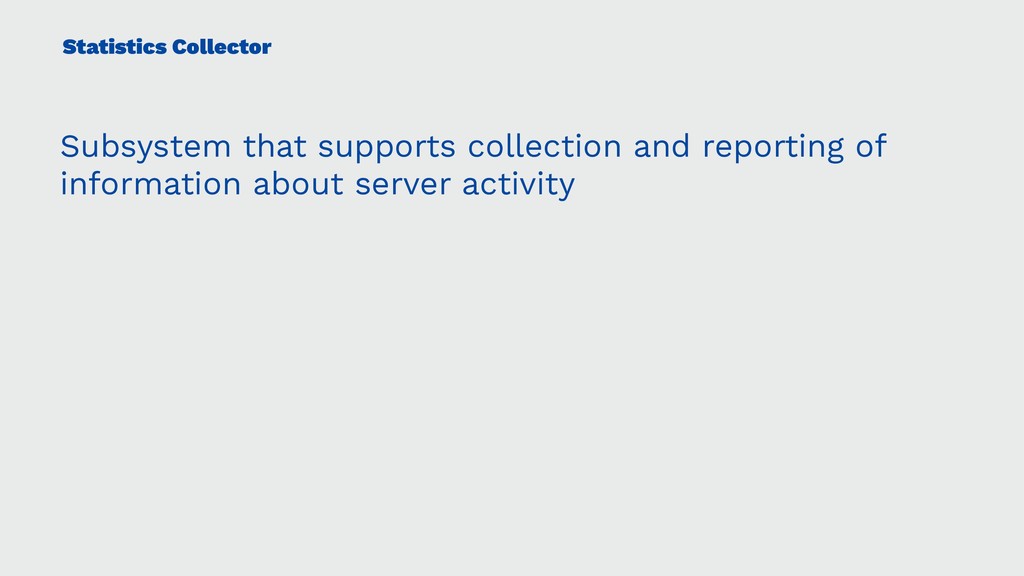

64. Statistics Collector Subsystem that supports collection and reporting of information about server activity

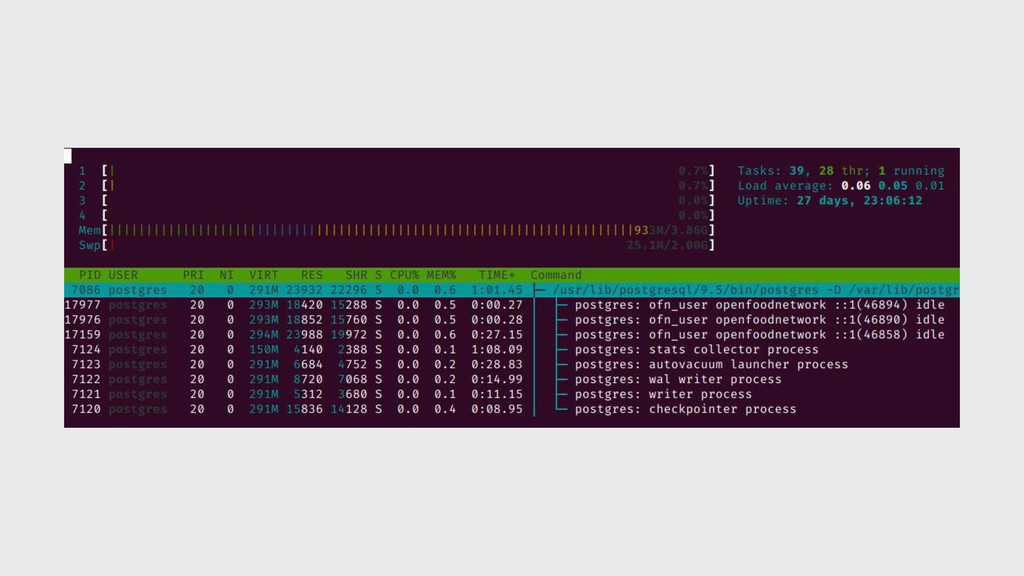

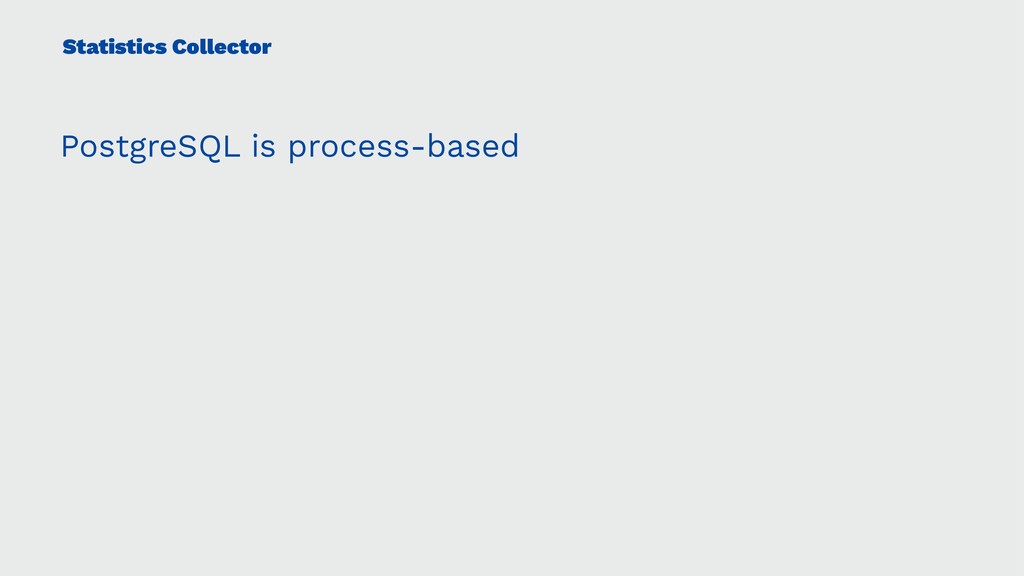

65. Statistics Collector PostgreSQL is process-based

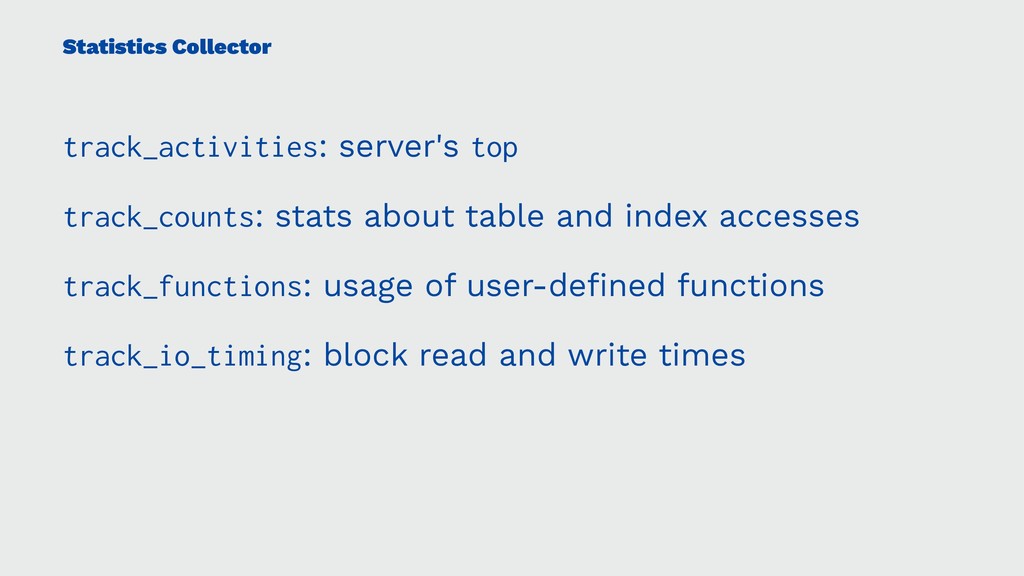

67. Statistics Collector track_activities: server's top track_counts: stats about table and index accesses track_functions: usage of user-defined functions track_io_timing: block read and write times

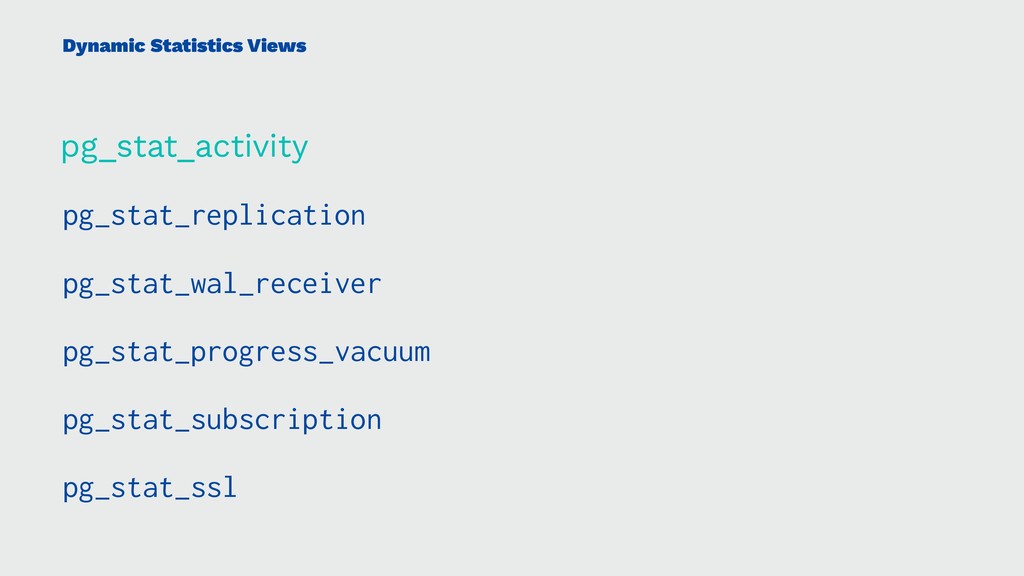

68. Dynamic Statistics Views pg_stat_activity pg_stat_replication pg_stat_wal_receiver pg_stat_progress_vacuum pg_stat_subscription pg_stat_ssl

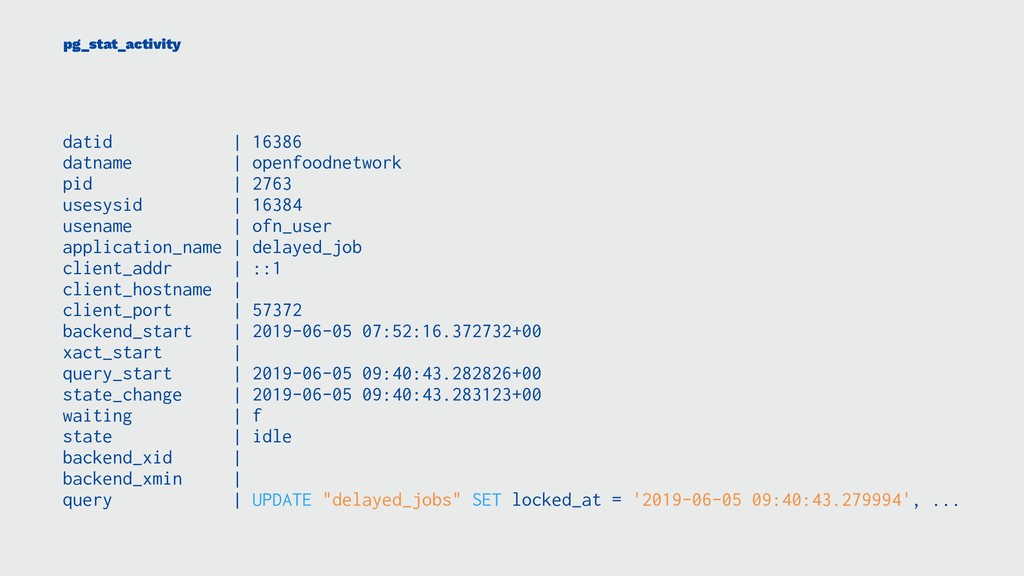

69. pg_stat_activity datid | 16386 datname | openfoodnetwork pid | 2763 usesysid | 16384 usename | ofn_user application_name | delayed_job client_addr | ::1 client_hostname | client_port | 57372 backend_start | 2019-06-05 07:52:16.372732+00 xact_start | query_start | 2019-06-05 09:40:43.282826+00 state_change | 2019-06-05 09:40:43.283123+00 waiting | f state | idle backend_xid | backend_xmin | query | UPDATE "delayed_jobs" SET locked_at = '2019-06-05 09:40:43.279994', ...
70. Collected Statistics Views pg_stat_archiver: WAL archiver process' activity pg_stat_bgwriter: Background writer process's activity pg_stat_database: Database-wide stats pg_stat_all_tables: Stats about accesses to each table pg_stat_sys_tables: System tables only pg_stat_user_tables: User tables only (...) pg_stat_xact_all_tables: Stats about current transaction wich are not yet in pg_stat_all_tables (...) pg_stat_user_indexes: Indexes accesses on user tables

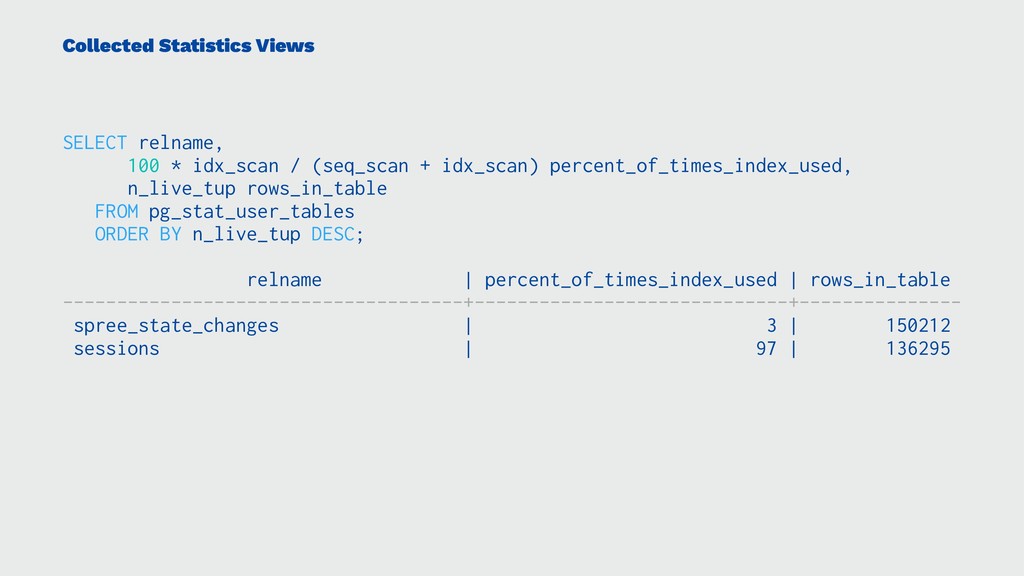

71. Collected Statistics Views SELECT relname, 100 * idx_scan / (seq_scan + idx_scan) percent_of_times_index_used, n_live_tup rows_in_table FROM pg_stat_user_tables ORDER BY n_live_tup DESC; relname | percent_of_times_index_used | rows_in_table -------------------------------------+-----------------------------+--------------- spree_state_changes | 3 | 150212 sessions | 97 | 136295

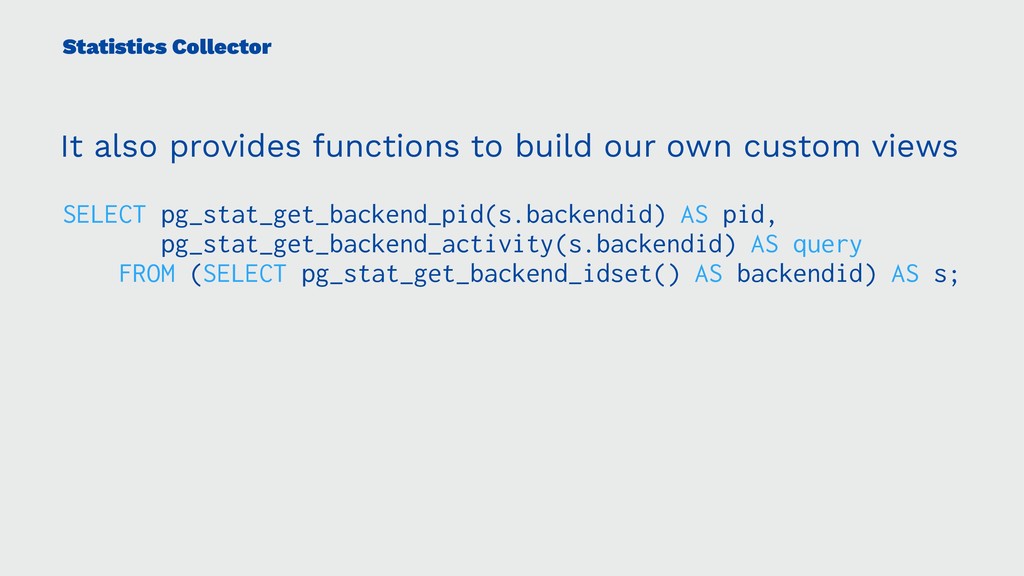

72. Statistics Collector It also provides functions to build our own custom views SELECT pg_stat_get_backend_pid(s.backendid) AS pid, pg_stat_get_backend_activity(s.backendid) AS query FROM (SELECT pg_stat_get_backend_idset() AS backendid) AS s;

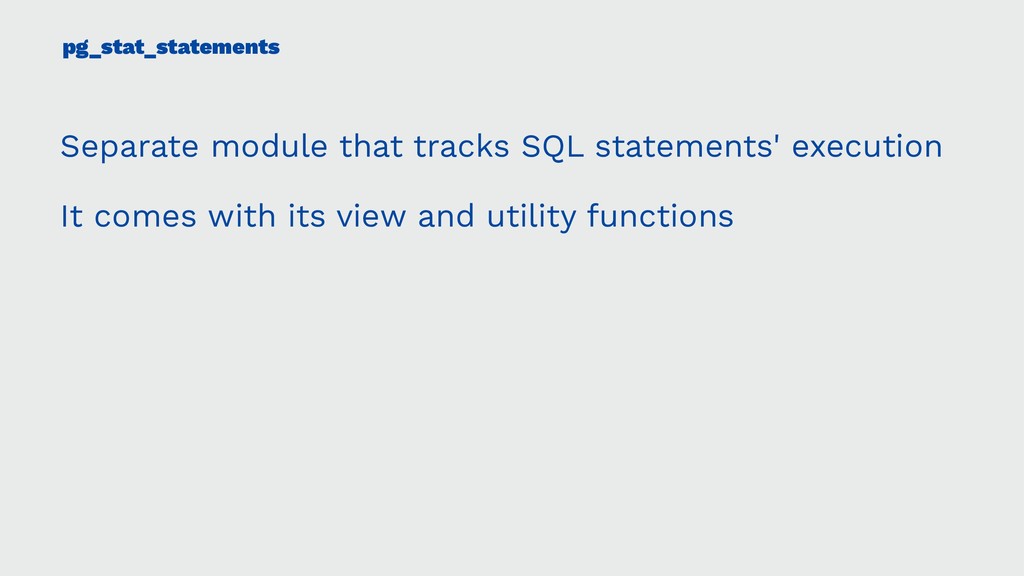

73. pg_stat_statements Separate module that tracks SQL statements' execution It comes with its view and utility functions

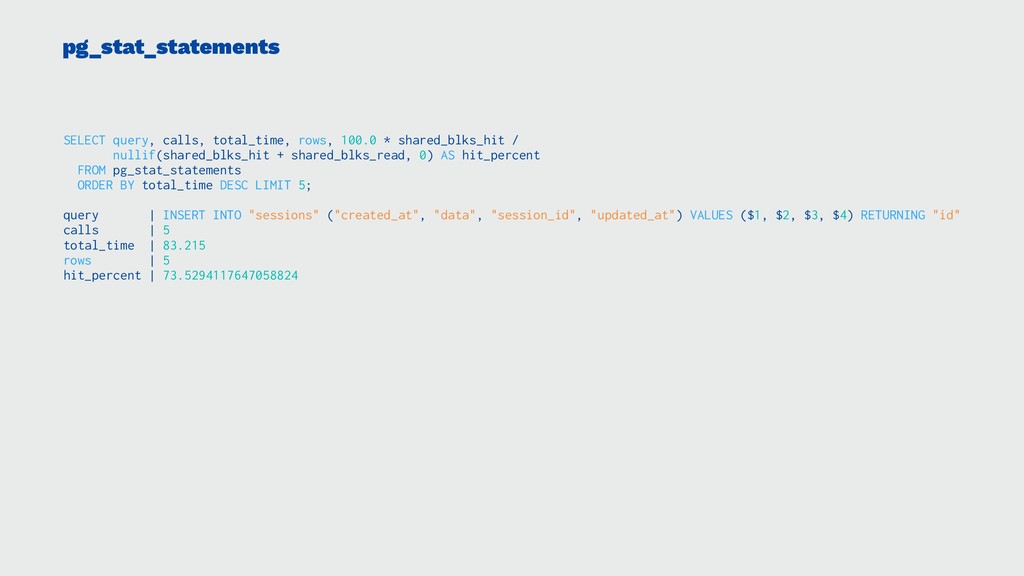

74. pg_stat_statements SELECT query, calls, total_time, rows, 100.0 * shared_blks_hit / nullif(shared_blks_hit + shared_blks_read, 0) AS hit_percent FROM pg_stat_statements ORDER BY total_time DESC LIMIT 5; query | INSERT INTO "sessions" ("created_at", "data", "session_id", "updated_at") VALUES ($1, $2, $3, $4) RETURNING "id" calls | 5 total_time | 83.215 rows | 5 hit_percent | 73.5294117647058824

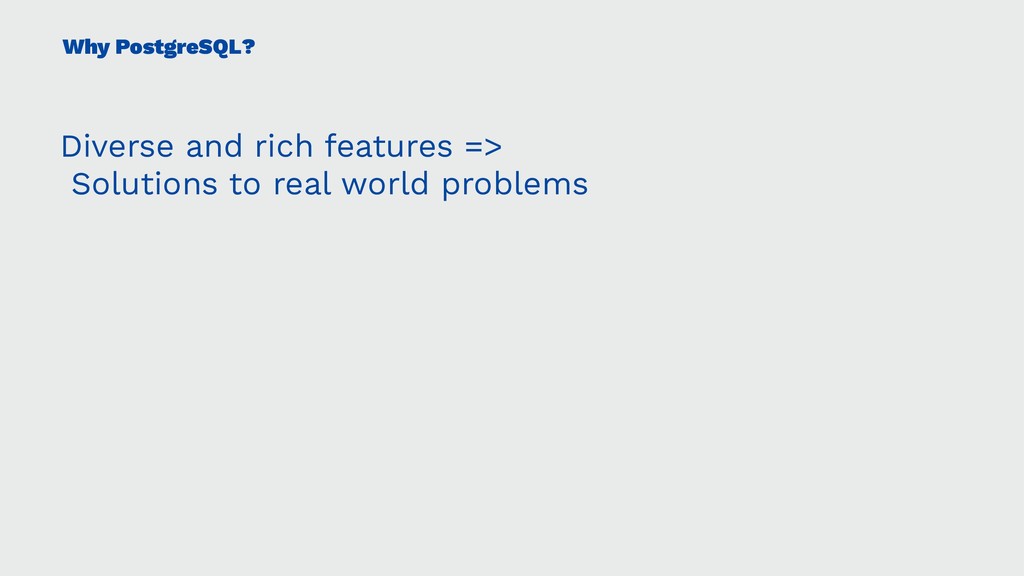

75. Why PostgreSQL? Diverse and rich features => Solutions to real world problems
76. Open Food Network
77. Brief introduction A distributed marketplace for food enterprises

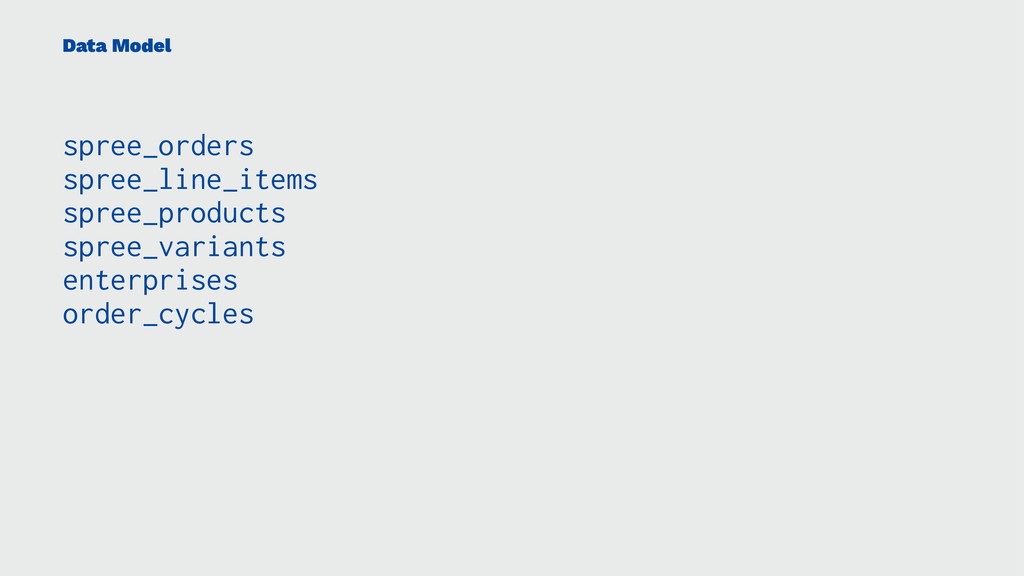

78. Data Model spree_orders spree_line_items spree_products spree_variants enterprises order_cycles

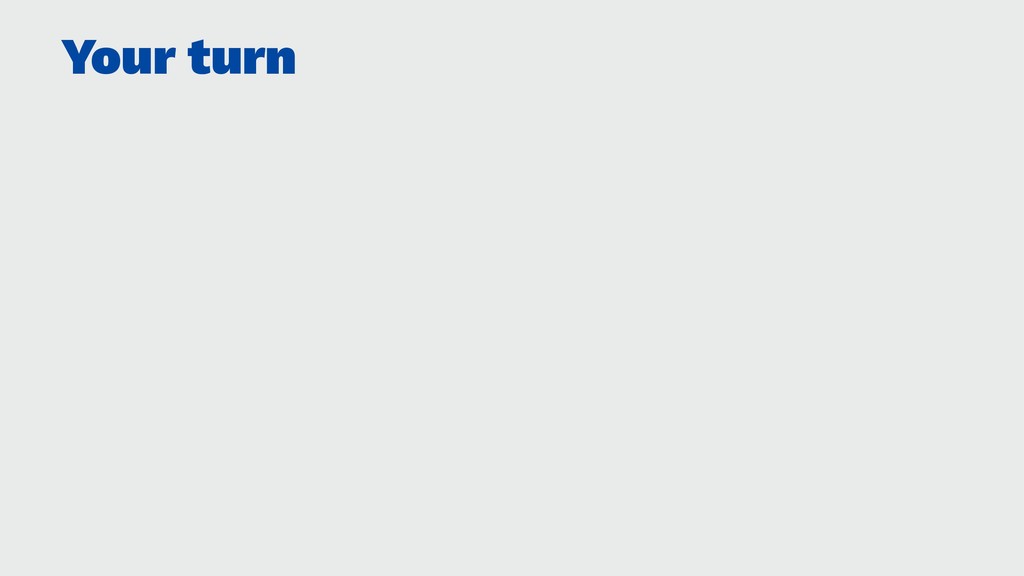

79. Your turn

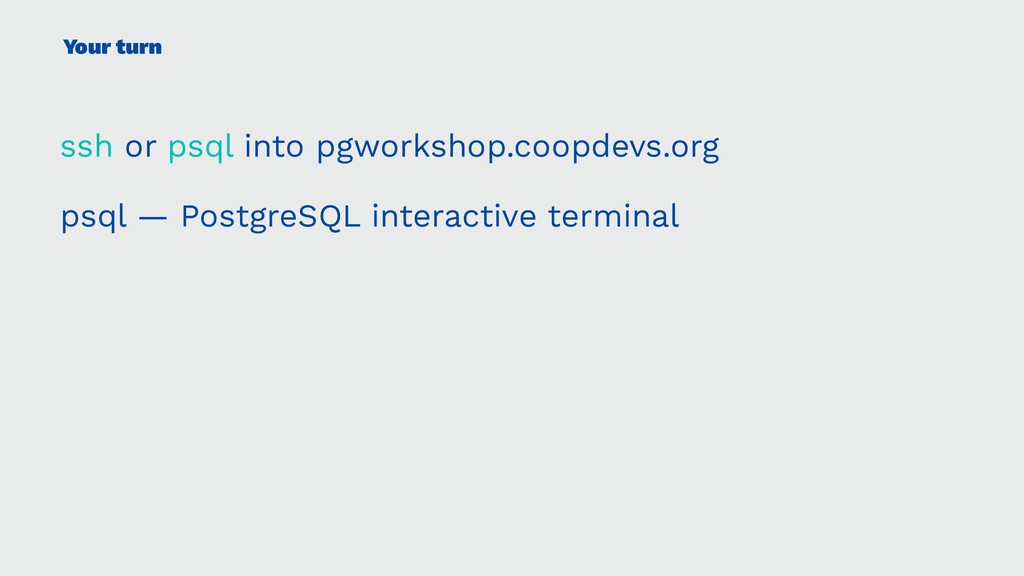

80. Your turn ssh or psql into pgworkshop.coopdevs.org psql — PostgreSQL interactive terminal

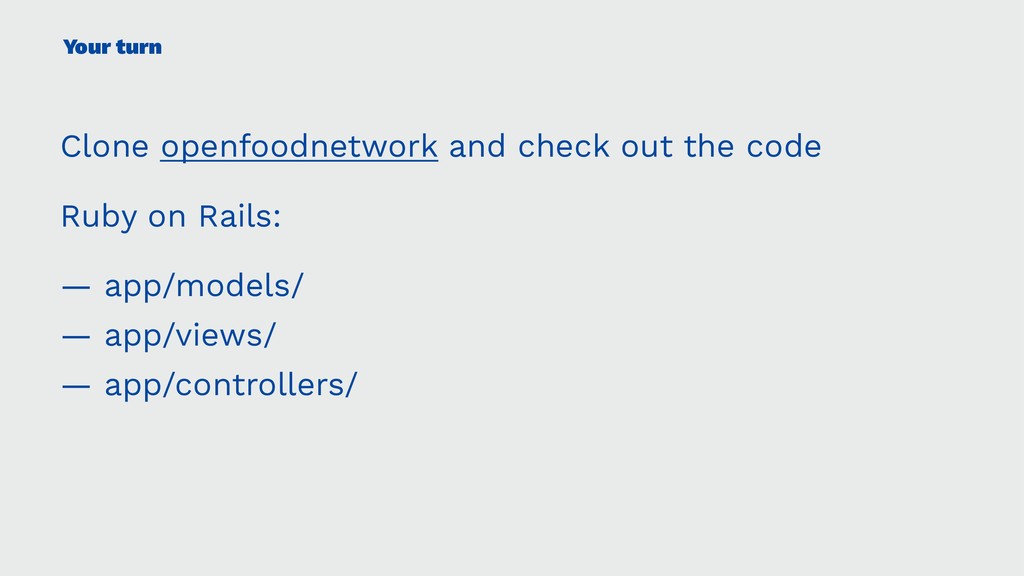

81. Your turn Clone openfoodnetwork and check out the code Ruby on Rails: — app/models/ — app/views/ — app/controllers/

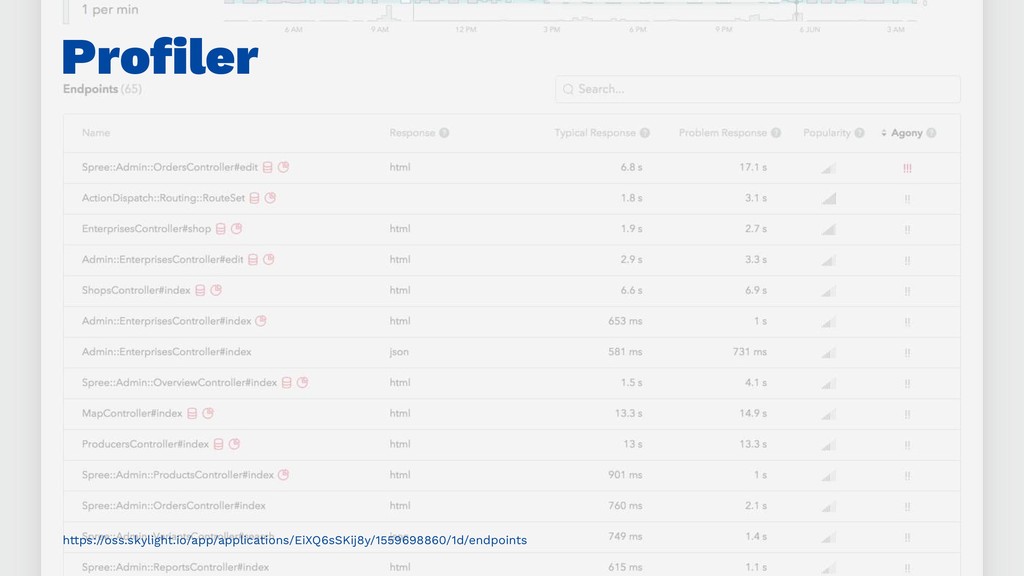

82. Profiler https://oss.skylight.io/app/applications/EiXQ6sSKij8y/1559698860/1d/endpoints
83. Postgres Monitoring

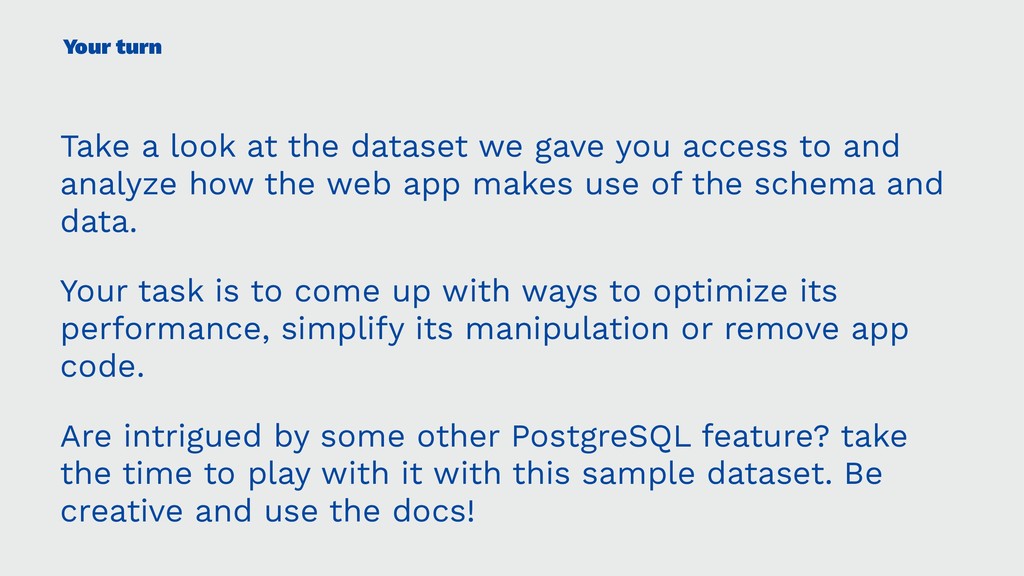

84. Your turn Take a look at the dataset we gave you access to and analyze how the web app makes use of the schema and data. Your task is to come up with ways to optimize its performance, simplify its manipulation or remove app code. Are intrigued by some other PostgreSQL feature? take the time to play with it with this sample dataset. Be creative and use the docs!

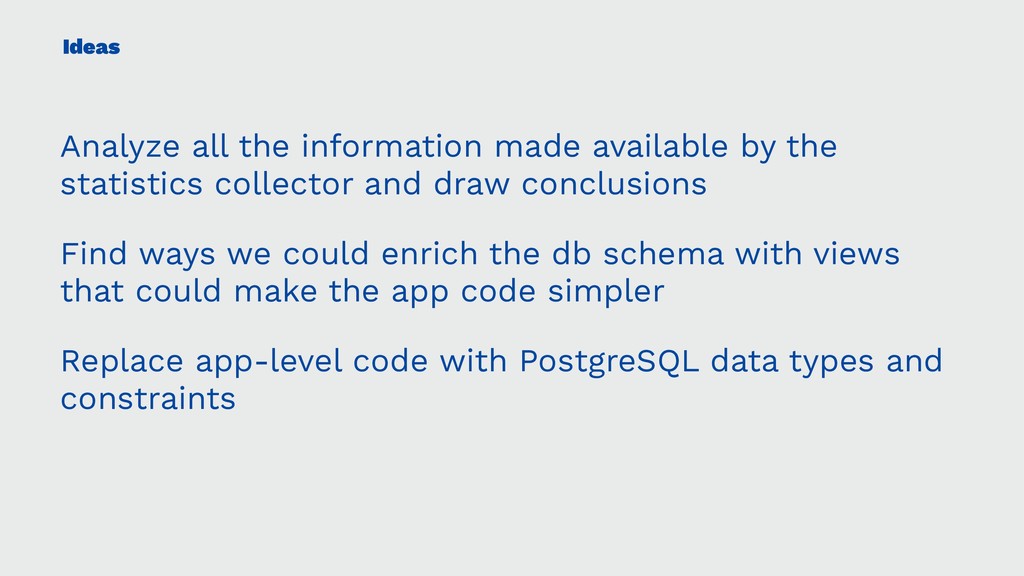

85. Ideas Analyze all the information made available by the statistics collector and draw conclusions Find ways we could enrich the db schema with views that could make the app code simpler Replace app-level code with PostgreSQL data types and constraints

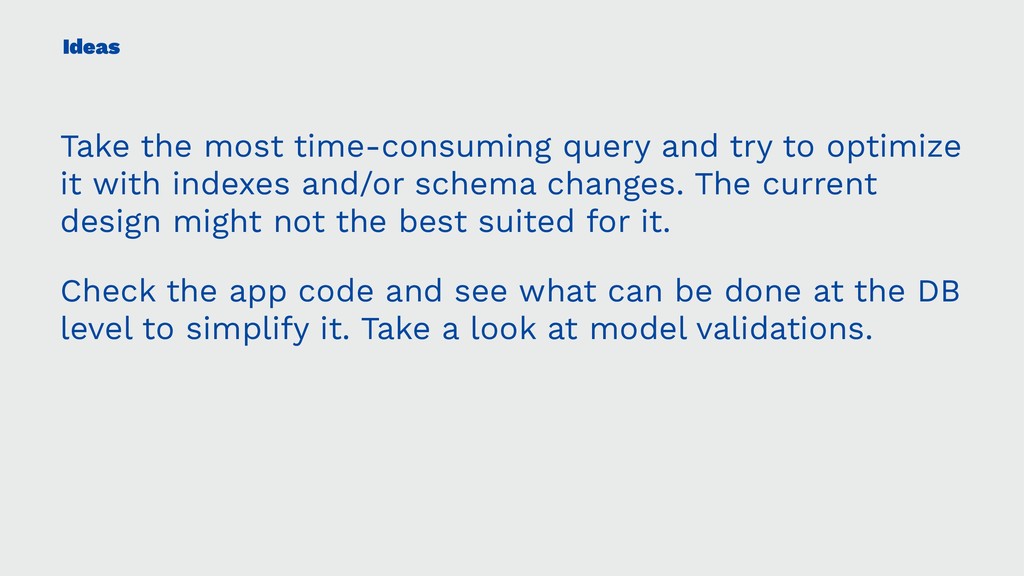

86. Ideas Take the most time-consuming query and try to optimize it with indexes and/or schema changes. The current design might not the best suited for it. Check the app code and see what can be done at the DB level to simplify it. Take a look at model validations.

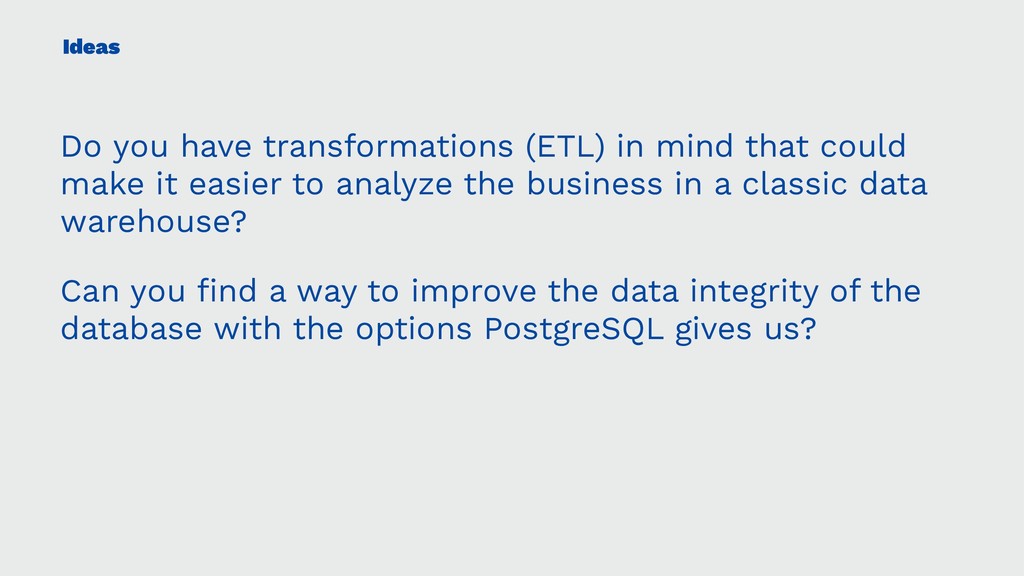

87. Ideas Do you have transformations (ETL) in mind that could make it easier to analyze the business in a classic data warehouse? Can you find a way to improve the data integrity of the database with the options PostgreSQL gives us?
88. Q&A

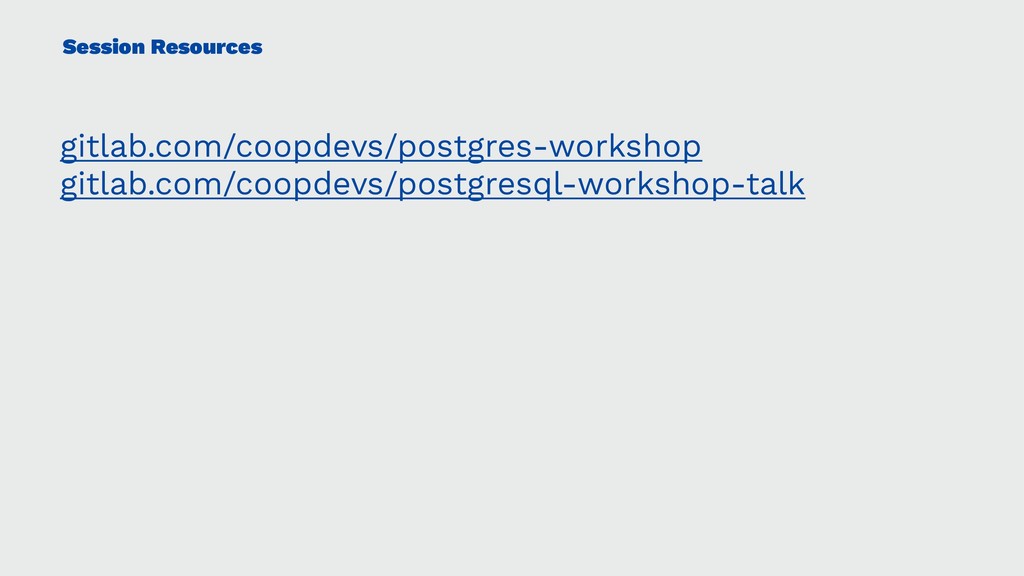

89. Session Resources gitlab.com/coopdevs/postgres-workshop gitlab.com/coopdevs/postgresql-workshop-talk
