Transcript
Introduction to Core Animation Nathan Corvino March 27, 2015

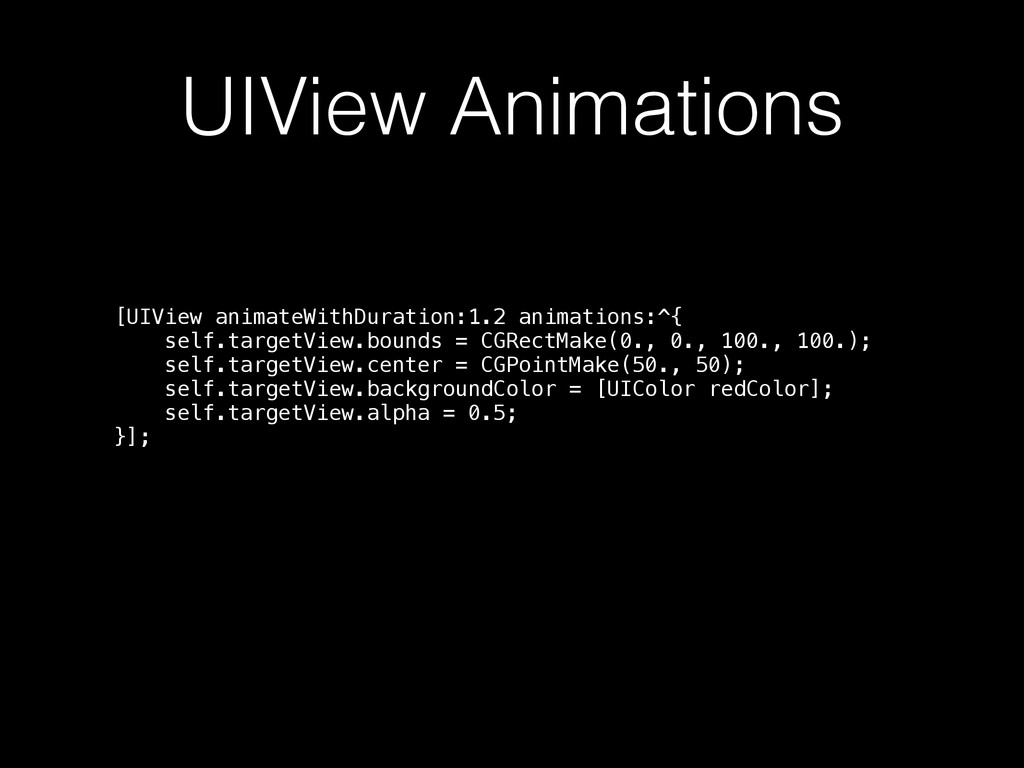

UIView Animations [UIView animateWithDuration:1.2 animations:^{ self.targetView.bounds = CGRectMake(0., 0., 100.,
100.); self.targetView.center = CGPointMake(50., 50); self.targetView.backgroundColor = [UIColor redColor]; self.targetView.alpha = 0.5; }];
None

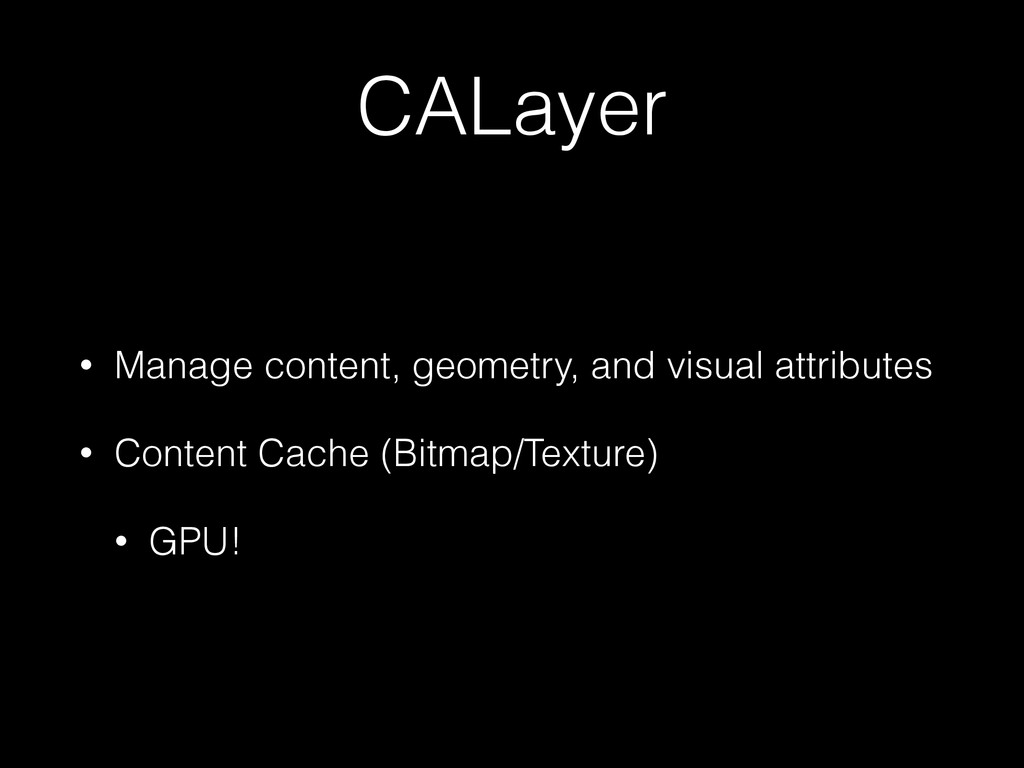

CALayer • Manage content, geometry, and visual attributes • Content
Cache (Bitmap/Texture) • GPU!

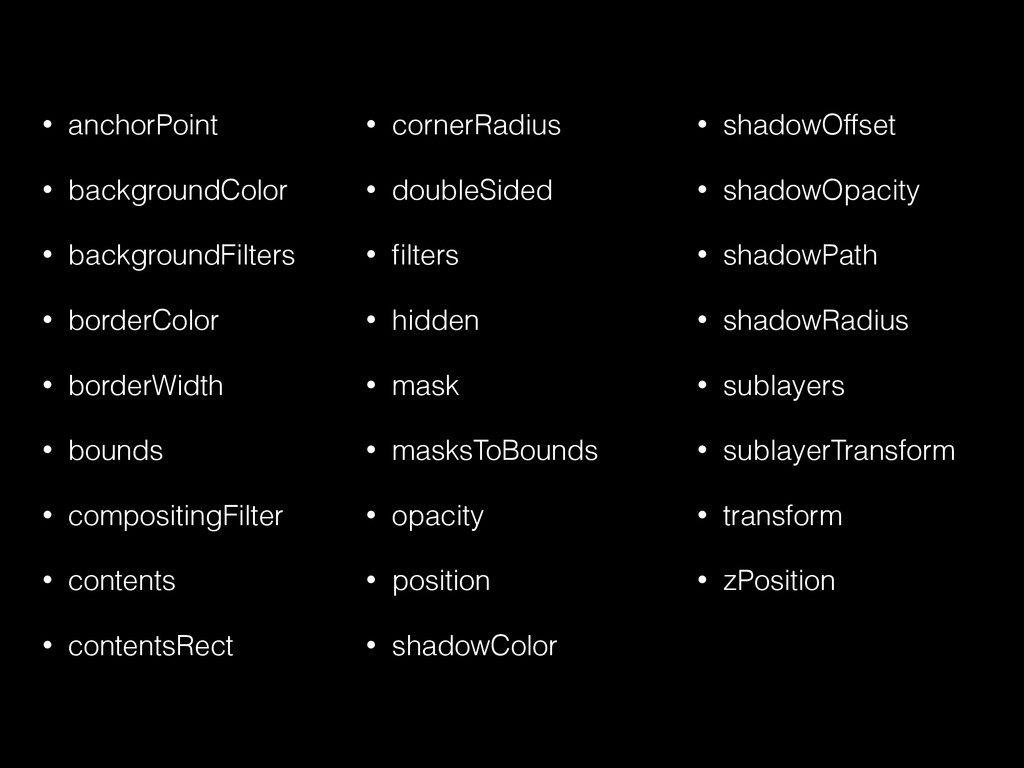

• anchorPoint • backgroundColor • backgroundFilters • borderColor • borderWidth
• bounds • compositingFilter • contents • contentsRect • cornerRadius • doubleSided • filters • hidden • mask • masksToBounds • opacity • position • shadowColor • shadowOffset • shadowOpacity • shadowPath • shadowRadius • sublayers • sublayerTransform • transform • zPosition

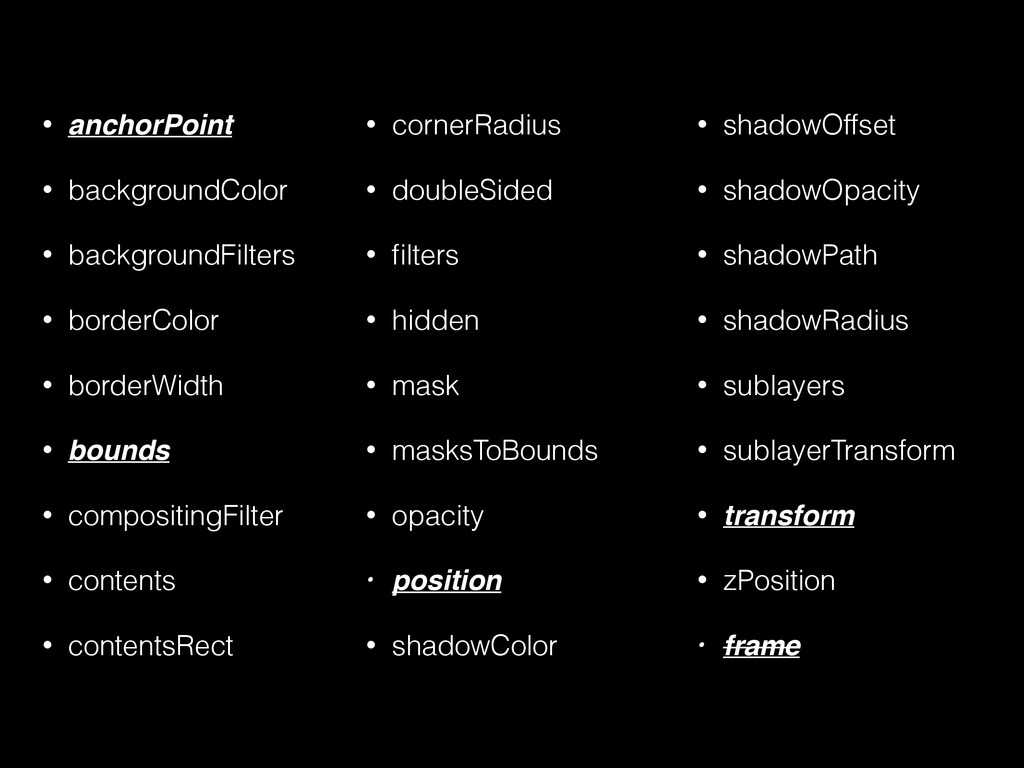

• anchorPoint • backgroundColor • backgroundFilters • borderColor • borderWidth
• bounds • compositingFilter • contents • contentsRect • cornerRadius • doubleSided • filters • hidden • mask • masksToBounds • opacity • position • shadowColor • shadowOffset • shadowOpacity • shadowPath • shadowRadius • sublayers • sublayerTransform • transform • zPosition • frame
Demo

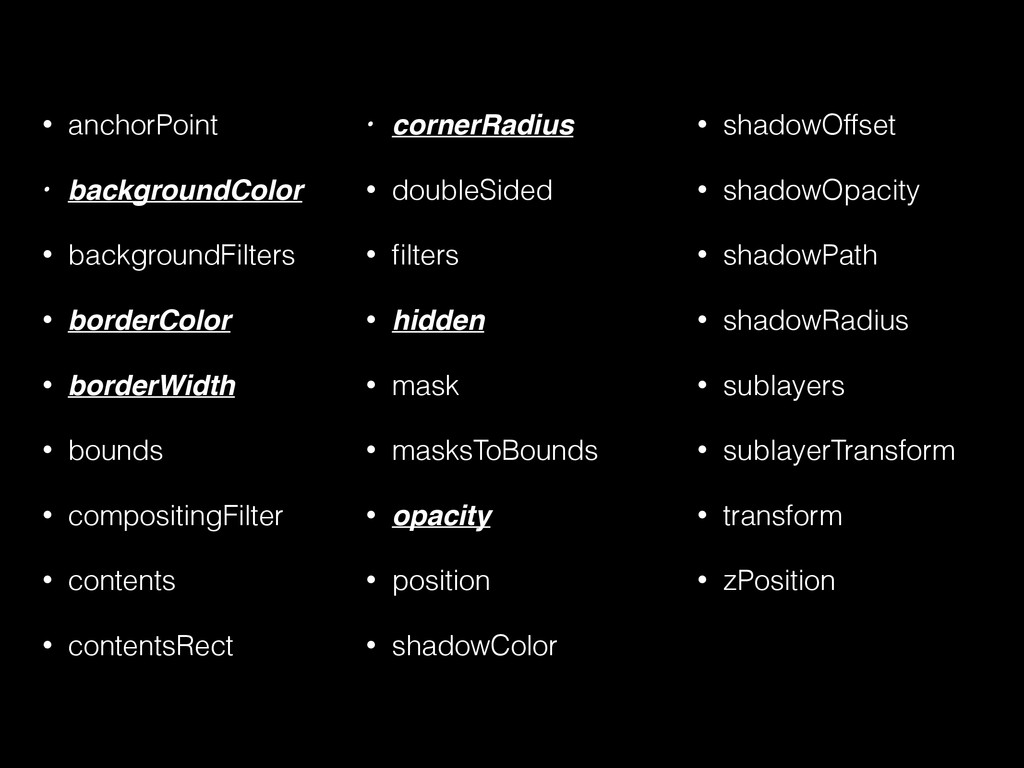

• anchorPoint • backgroundColor • backgroundFilters • borderColor • borderWidth
• bounds • compositingFilter • contents • contentsRect • cornerRadius • doubleSided • filters • hidden • mask • masksToBounds • opacity • position • shadowColor • shadowOffset • shadowOpacity • shadowPath • shadowRadius • sublayers • sublayerTransform • transform • zPosition
• anchorPoint • backgroundColor • backgroundFilters • borderColor • borderWidth
• bounds • compositingFilter • contents • contentsRect • cornerRadius • doubleSided • filters • hidden • mask • masksToBounds • opacity • position • shadowColor • shadowOffset • shadowOpacity • shadowPath • shadowRadius • sublayers • sublayerTransform • transform • zPosition

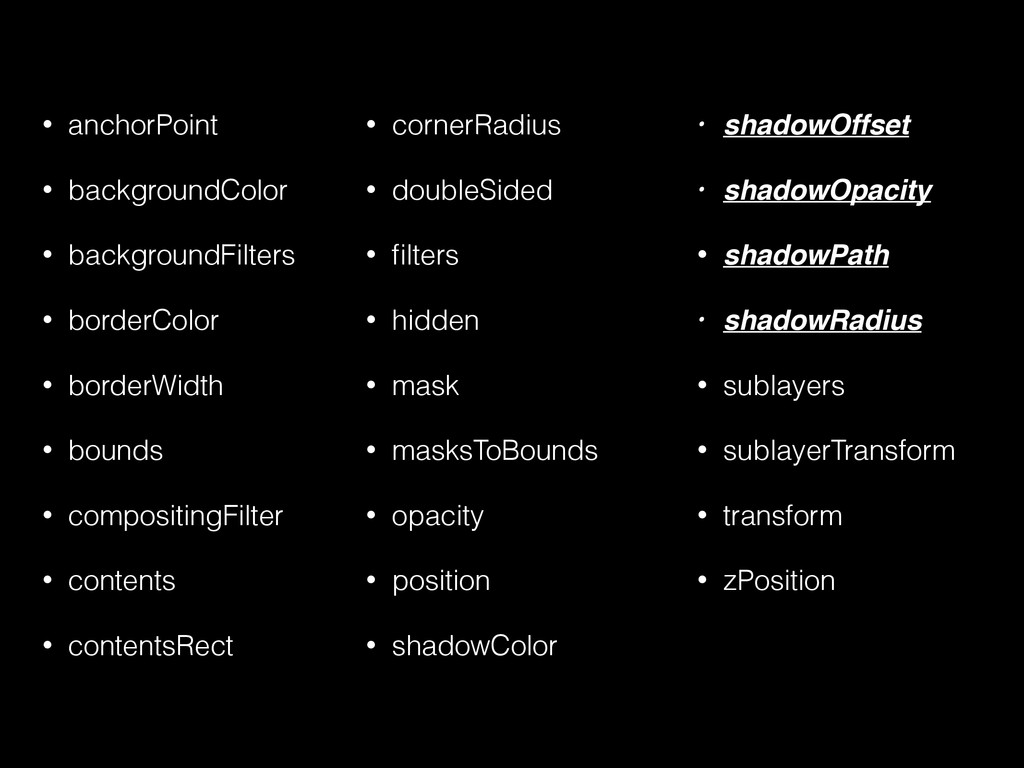

• anchorPoint • backgroundColor • backgroundFilters • borderColor • borderWidth
• bounds • compositingFilter • contents • contentsRect • cornerRadius • doubleSided • filters • hidden • mask • masksToBounds • opacity • position • shadowColor • shadowOffset • shadowOpacity • shadowPath • shadowRadius • sublayers • sublayerTransform • transform • zPosition

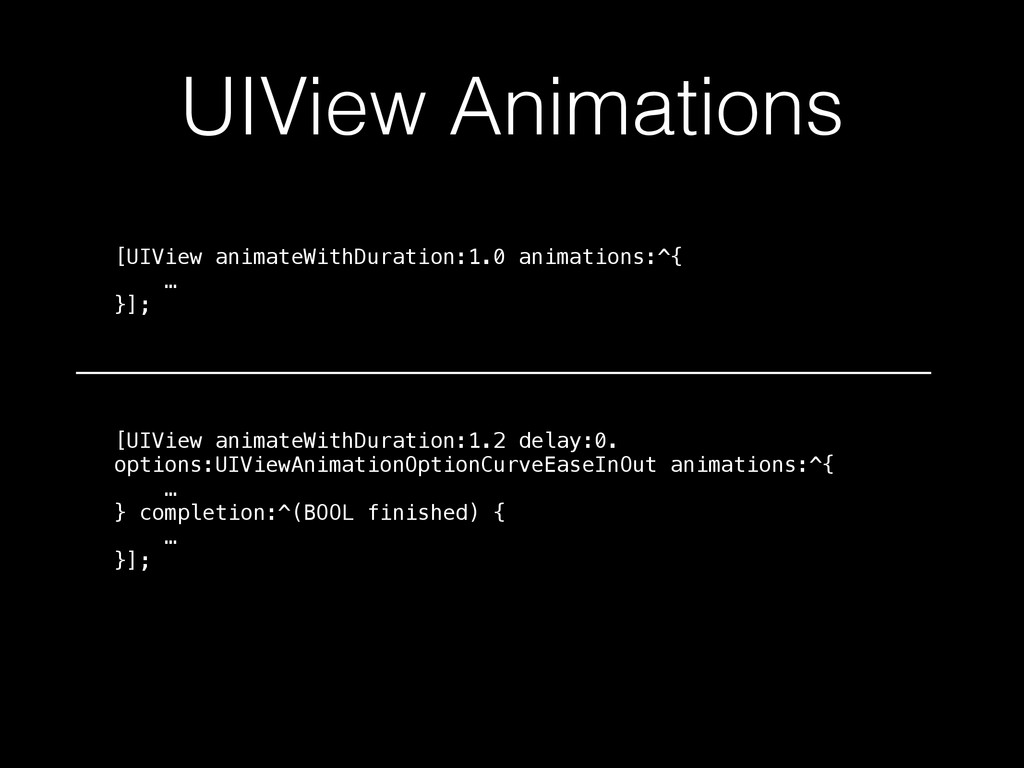

UIView Animations [UIView animateWithDuration:1.0 animations:^{ … }]; [UIView animateWithDuration:1.2 delay:0.
options:UIViewAnimationOptionCurveEaseInOut animations:^{ … } completion:^(BOOL finished) { … }];

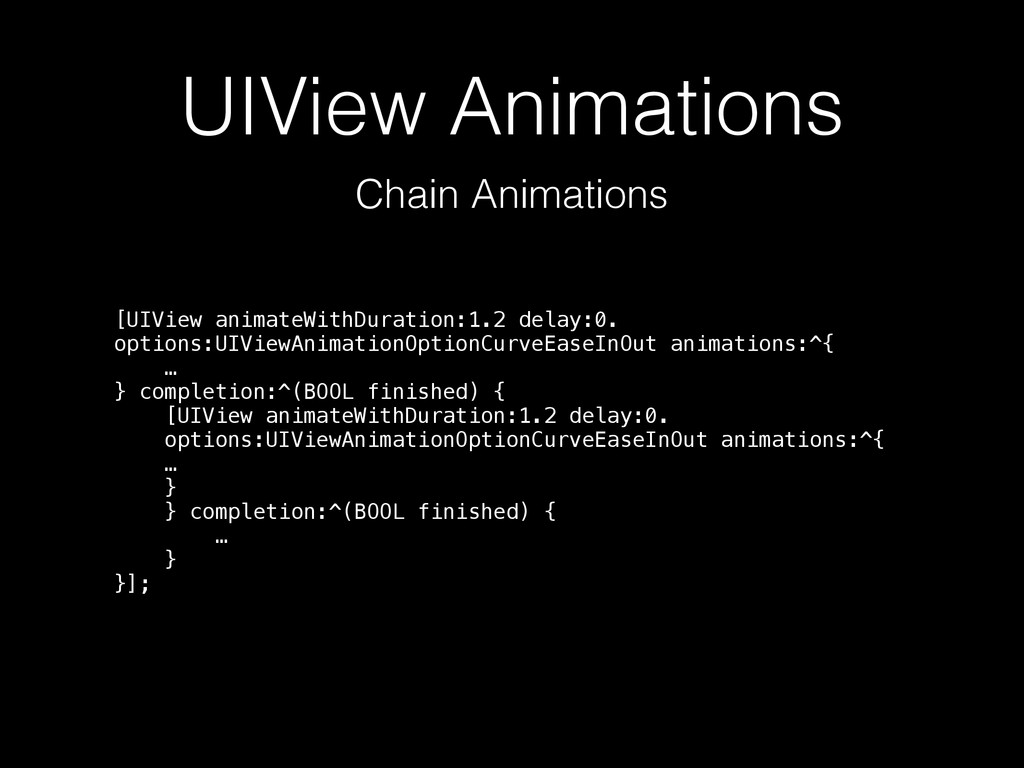

UIView Animations [UIView animateWithDuration:1.2 delay:0. options:UIViewAnimationOptionCurveEaseInOut animations:^{ … } completion:^(BOOL
finished) { [UIView animateWithDuration:1.2 delay:0. options:UIViewAnimationOptionCurveEaseInOut animations:^{ … } } completion:^(BOOL finished) { … } }]; Chain Animations

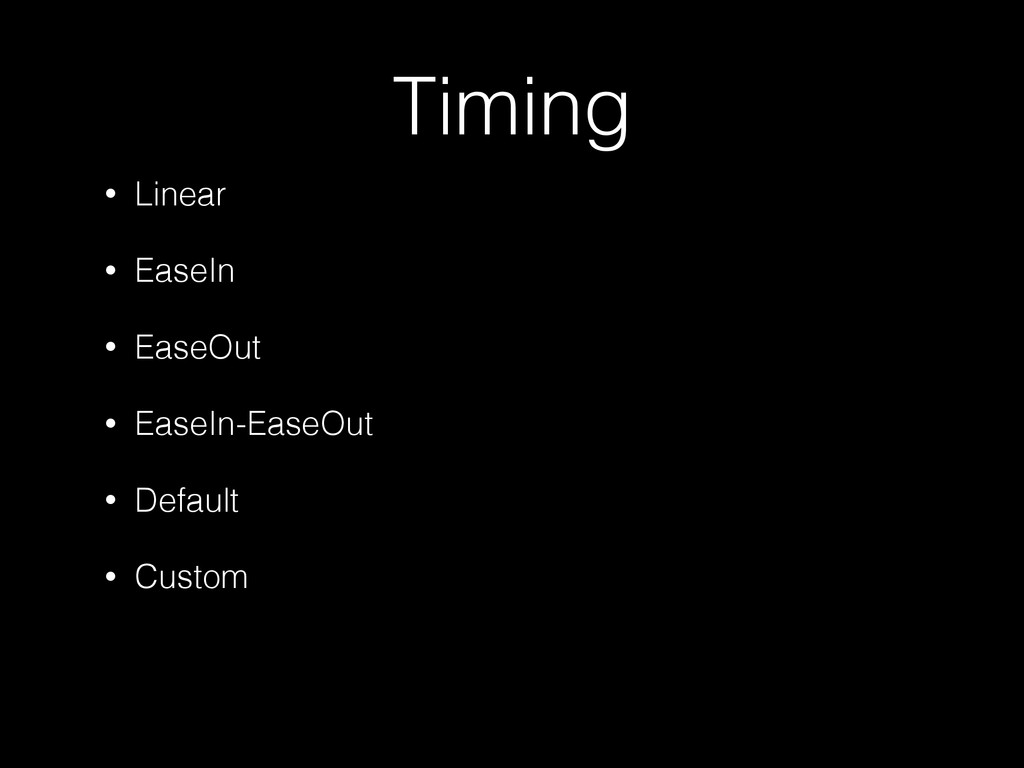

Timing • Linear • EaseIn • EaseOut • EaseIn-EaseOut •
Default • Custom

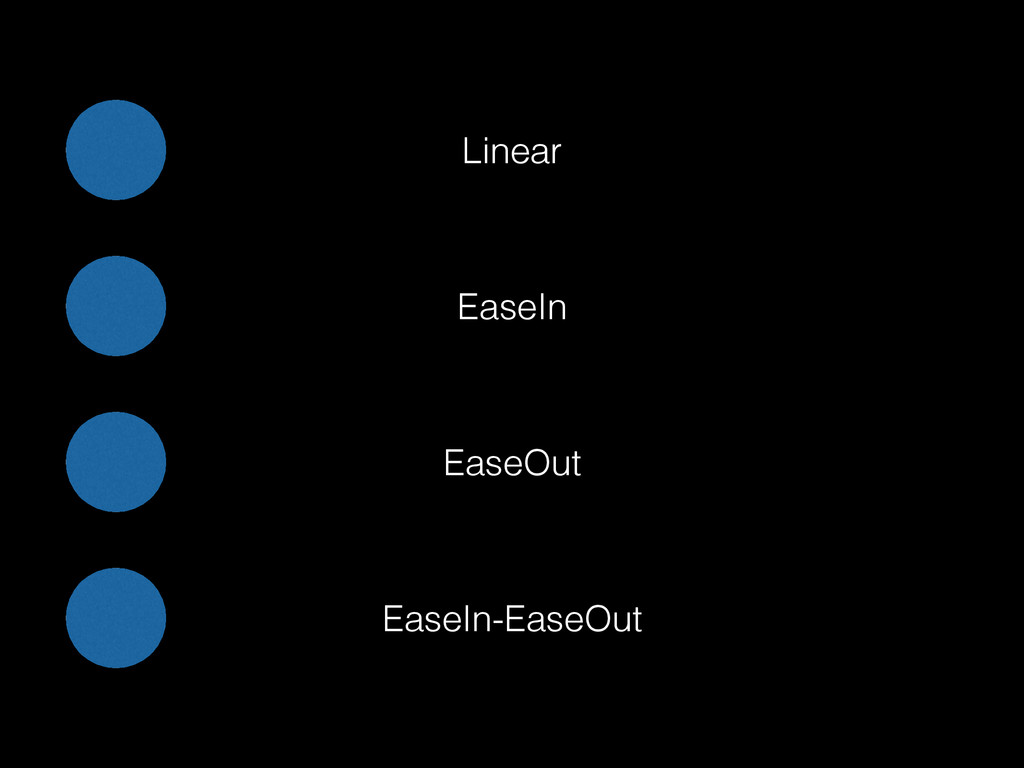

Linear EaseIn EaseOut EaseIn-EaseOut

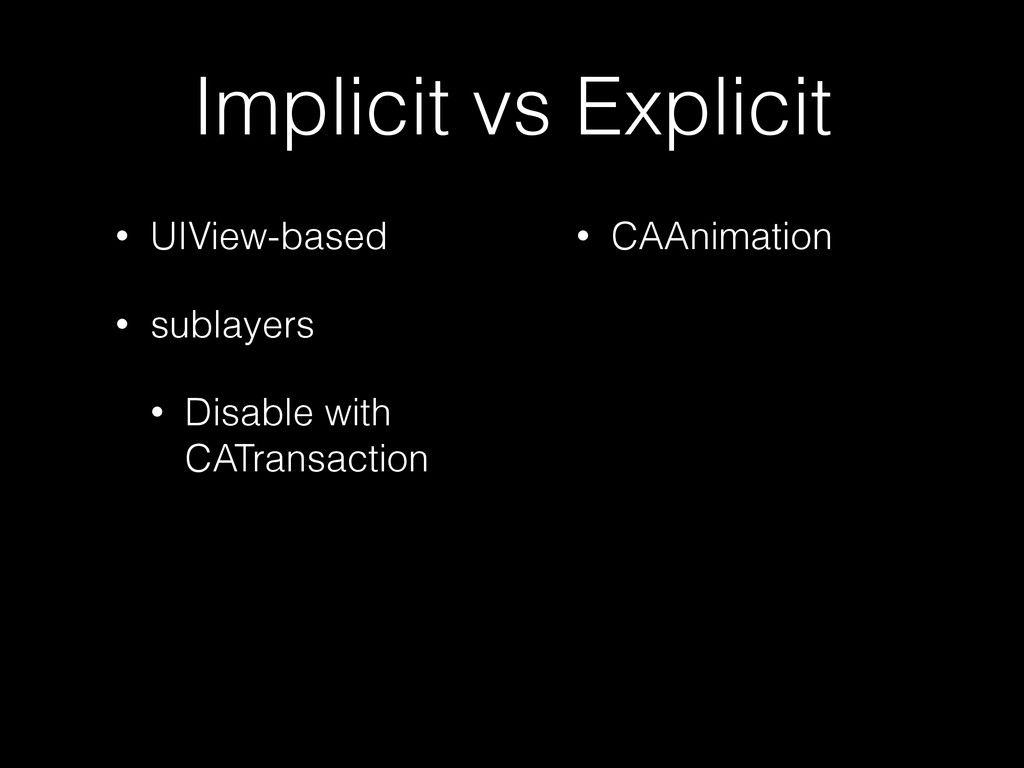

Implicit vs Explicit • UIView-based • sublayers • Disable with
CATransaction • CAAnimation

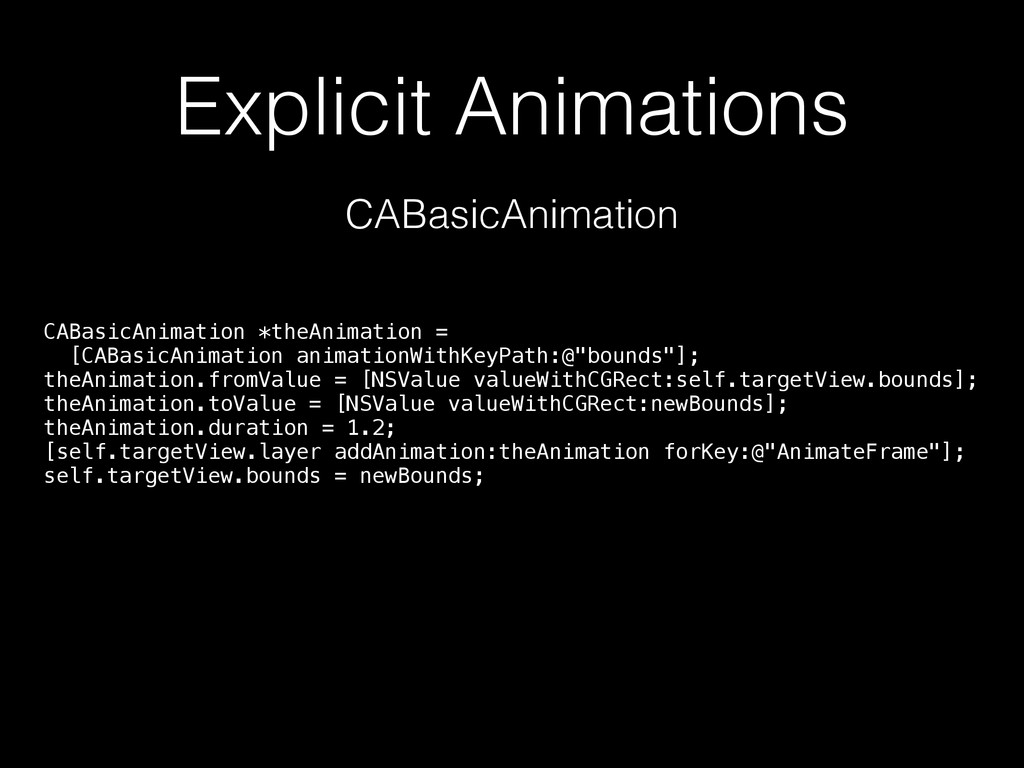

Explicit Animations CABasicAnimation *theAnimation = [CABasicAnimation animationWithKeyPath:@"bounds"]; theAnimation.fromValue = [NSValue
valueWithCGRect:self.targetView.bounds]; theAnimation.toValue = [NSValue valueWithCGRect:newBounds]; theAnimation.duration = 1.2; [self.targetView.layer addAnimation:theAnimation forKey:@"AnimateFrame"]; self.targetView.bounds = newBounds; CABasicAnimation

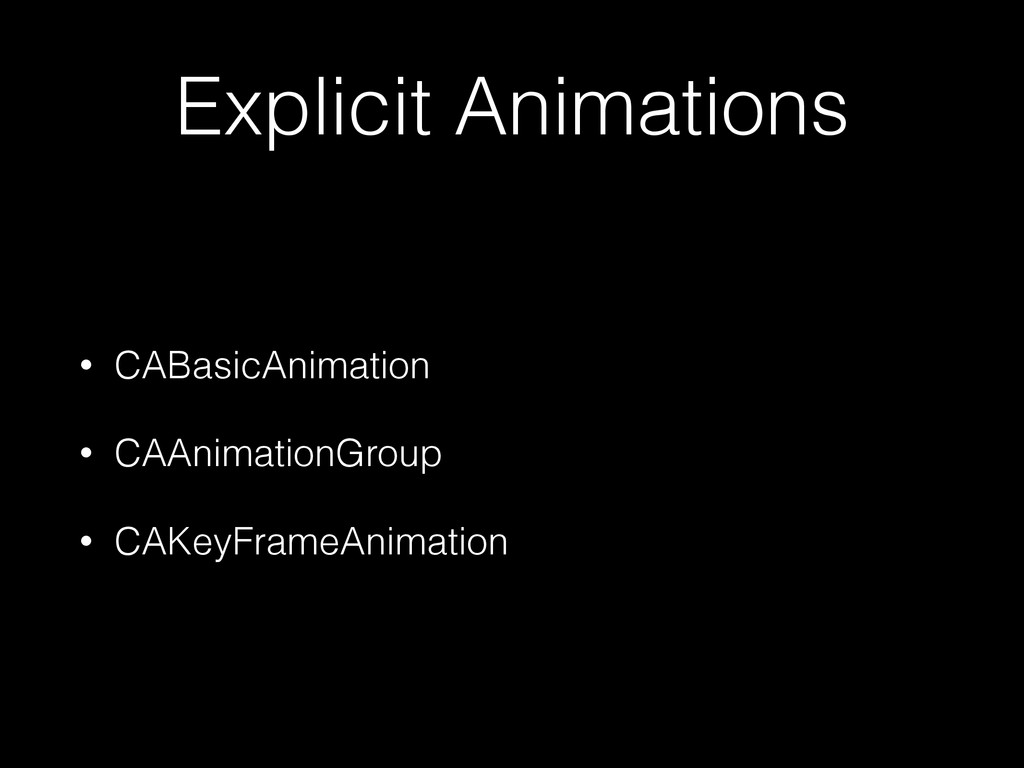

Explicit Animations • CABasicAnimation • CAAnimationGroup • CAKeyFrameAnimation

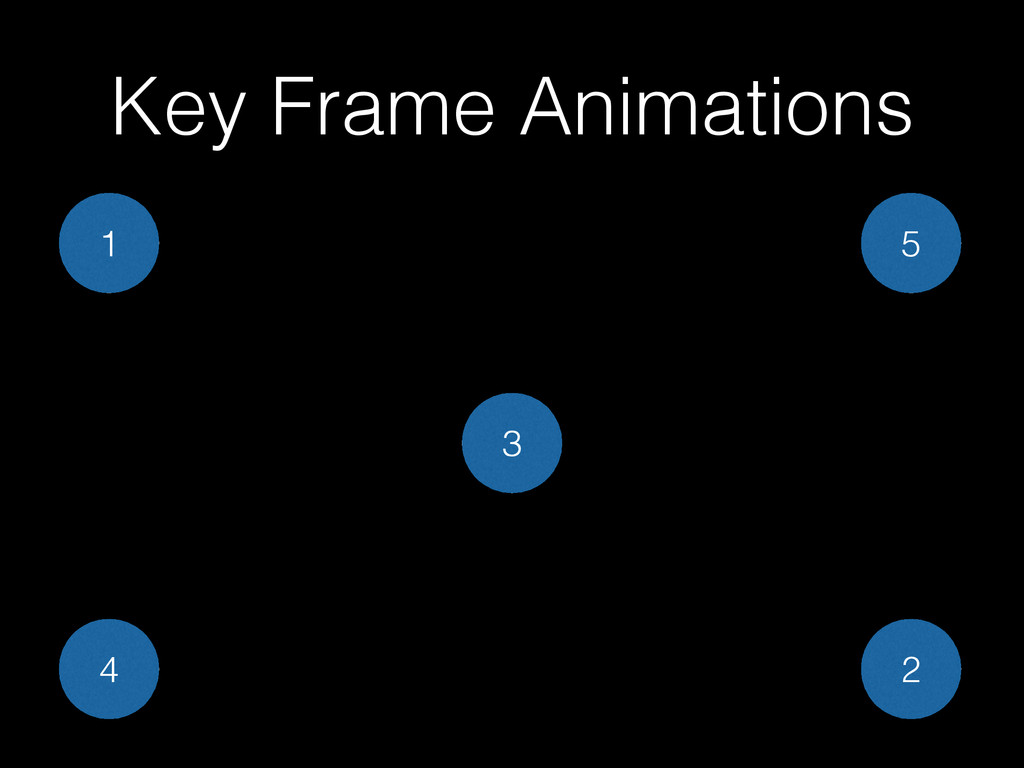

Key Frame Animations 1 2 3 4 5

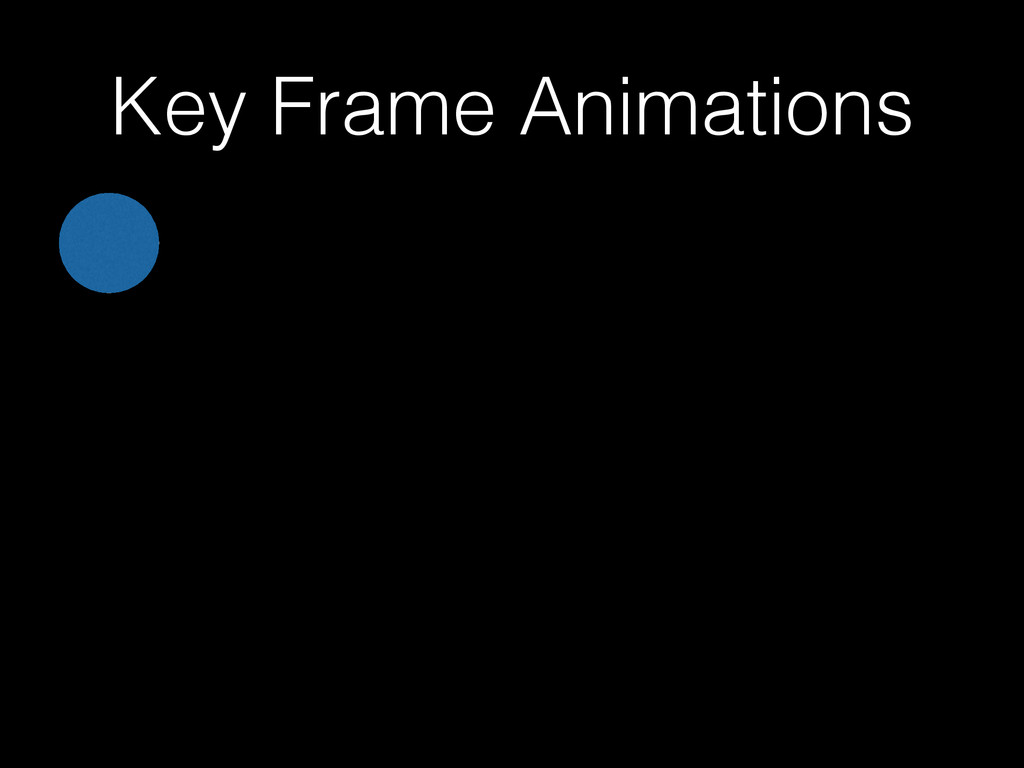

Key Frame Animations

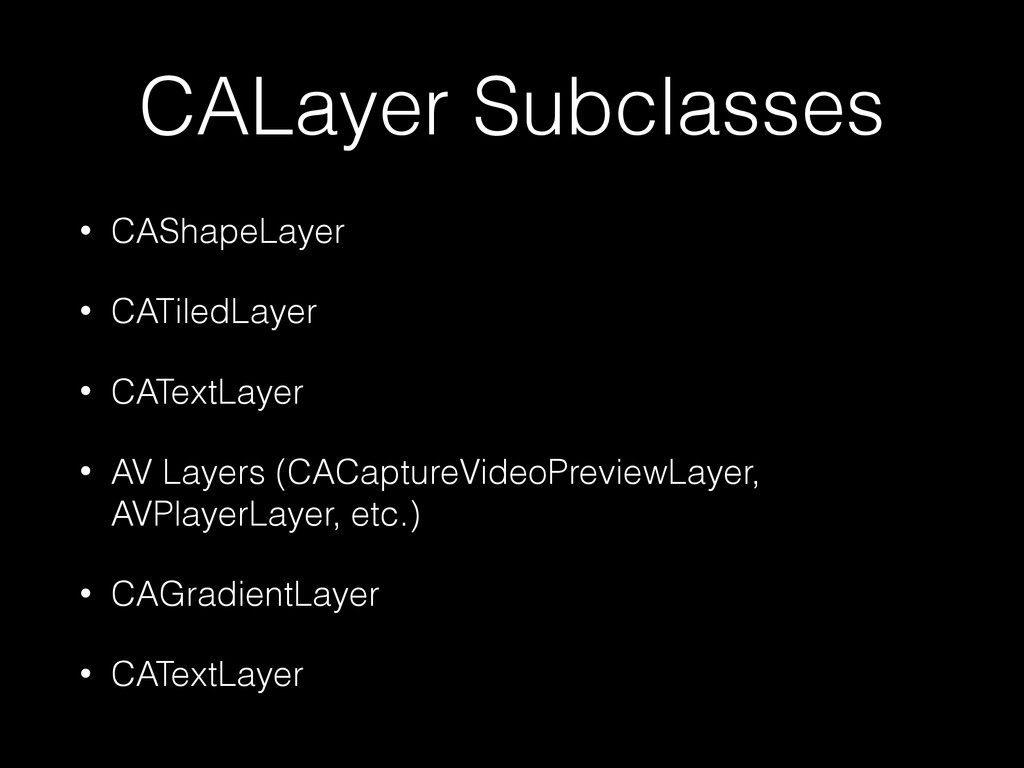

CALayer Subclasses • CAShapeLayer • CATiledLayer • CATextLayer • AV
Layers (CACaptureVideoPreviewLayer, AVPlayerLayer, etc.) • CAGradientLayer • CATextLayer

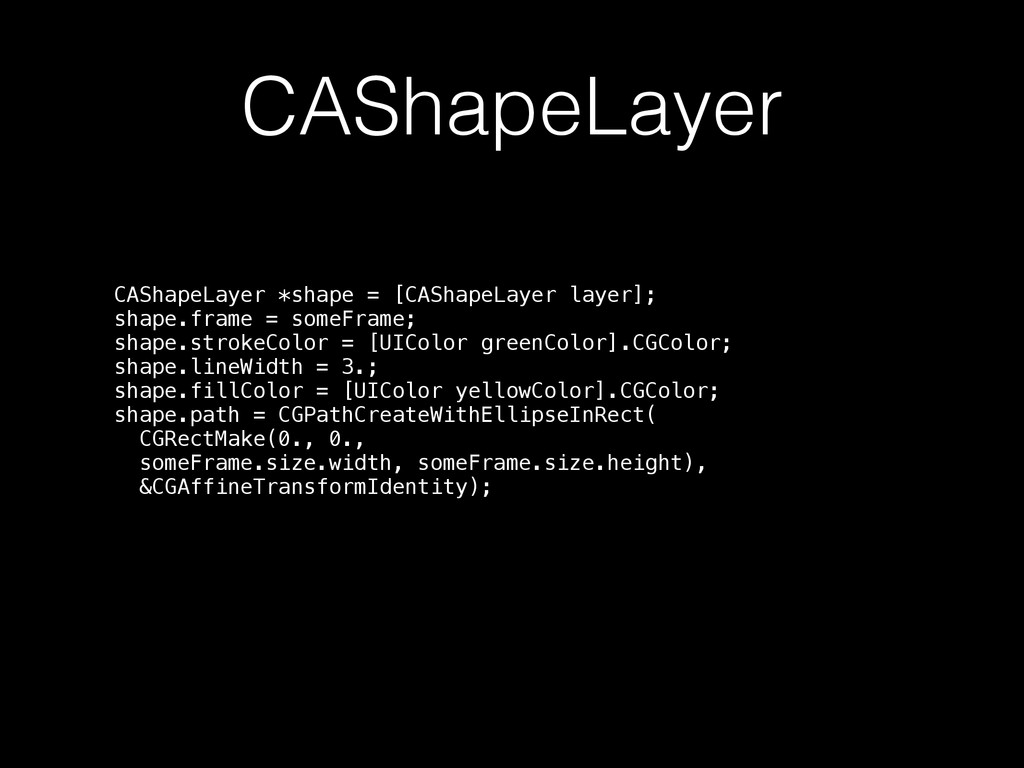

CAShapeLayer CAShapeLayer *shape = [CAShapeLayer layer]; shape.frame = someFrame; shape.strokeColor
= [UIColor greenColor].CGColor; shape.lineWidth = 3.; shape.fillColor = [UIColor yellowColor].CGColor; shape.path = CGPathCreateWithEllipseInRect( CGRectMake(0., 0., someFrame.size.width, someFrame.size.height), &CGAffineTransformIdentity);

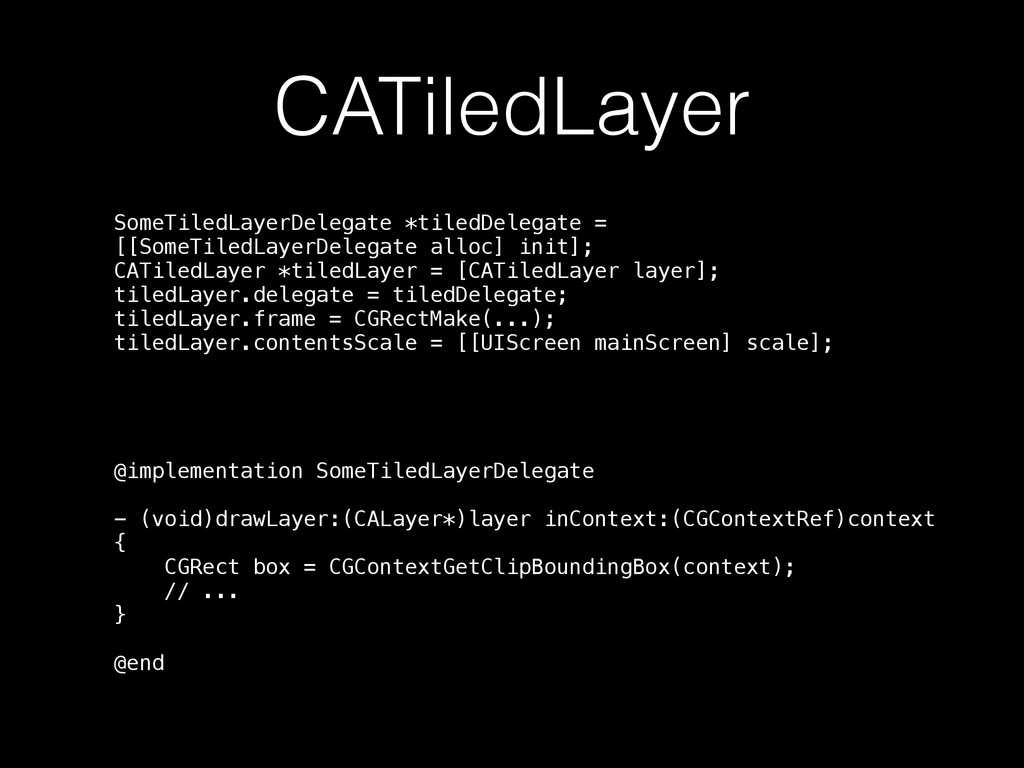

CATiledLayer SomeTiledLayerDelegate *tiledDelegate = [[SomeTiledLayerDelegate alloc] init]; CATiledLayer *tiledLayer =
[CATiledLayer layer]; tiledLayer.delegate = tiledDelegate; tiledLayer.frame = CGRectMake(...); tiledLayer.contentsScale = [[UIScreen mainScreen] scale]; @implementation SomeTiledLayerDelegate - (void)drawLayer:(CALayer*)layer inContext:(CGContextRef)context { CGRect box = CGContextGetClipBoundingBox(context); // ... } @end

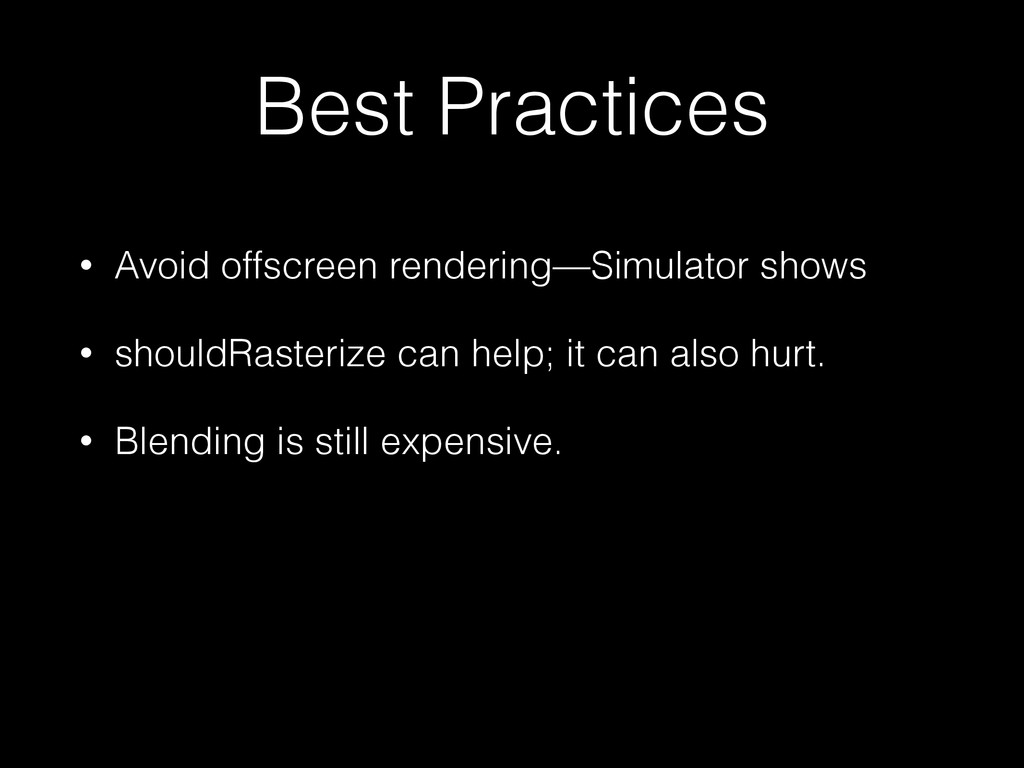

Best Practices • Avoid offscreen rendering—Simulator shows • shouldRasterize can
help; it can also hurt. • Blending is still expensive.
Thanks! • @corvino •
[email protected]
• github.com/corvino/LayerExplorer
