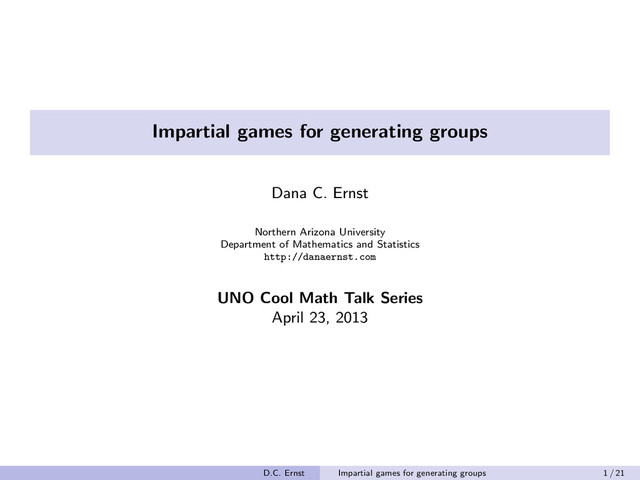

  1. Impartial games for generating groups
    Dana C. Ernst
    Northern Arizona University
    Department of Mathematics and Statistics
    http://danaernst.com
    UNO Cool Math Talk Series
    April 23, 2013
    D.C. Ernst Impartial games for generating groups 1 / 21

    View Slide

  2. Combinatorial Game Theory
    Intuitive Definition
    Combinatorial Game Theory (CGT) is the study of two-person games satisfying:
    • Two players alternate making moves.
    • No hidden information.
    • No random moves.
    • The game sequence is finite and there are no ties.
    • Normal Play: The last play to move wins.
    • Mis`
    ere Play: The last player to move loses.
    Example
    Combinatorial games:
    • Chess
    • Connect Four
    • Nim
    • X-Only Tic-Tac-Toe
    Non-combinatorial games:
    • Battleship (hidden information)
    • Rock-Paper-Scissors (non-alternating and random)
    • Poker (hidden information and random)
    • Tic-Tac-Toe (ties are possible)
    D.C. Ernst Impartial games for generating groups 2 / 21

    View Slide

  3. Impartial vs Partizan
    Definition
    A combinatorial game is called impartial if the move options are the same for both
    players. Otherwise, the game is called partizan.
    Example
    Partizan:
    • Chess
    • Connect Four
    Impartial:
    • Nim
    • X-Only Tic-Tac-Toe
    Note
    • We will explore a few impartial games.
    • When analyzing games, we will assume that both players make optimal moves.
    • The player that moves first is called α and the second player is called β.
    D.C. Ernst Impartial games for generating groups 3 / 21

    View Slide

  4. Nim
    Single-pile Nim
    Start with a pile of n stones. Each player chooses at least
    one stone from the pile. The player that takes the last
    stone wins.
    .
    .
    .
    .
    .
    .
    n
    Question
    Is there an optimal strategy for either player?
    Answer
    This game is sort of boring as α always wins; just take the whole pile.
    Let’s crank it up a notch.
    Multi-pile Nim
    Start with k piles of stones consisting of n1, n2, . . . , nk
    stones, respectively. Each
    player chooses at least one stone from a single pile. The player that takes the last
    stone wins.
    D.C. Ernst Impartial games for generating groups 4 / 21

    View Slide

  5. Nim (continued)
    Example
    Let’s start with 3 piles consisting of 1, 2, and 3 stones. Here’s a possible sequence.
    .
    . (1, 2, 3)
    α

    .
    . (1, 2, 2)
    β

    .
    . (0, 2, 2)
    α

    .
    . (0, 1, 2)
    β

    .
    . (0, 1, 1)
    α

    .
    . (0, 1, 0)
    β

    .
    .
    Yay!
    . (0, 0, 0)
    In this case, β wins.
    Question
    Is there an optimal strategy for either player?
    Answer
    The short answer is yes. The big picture is to whittle down to an even number of
    piles with a single stone. If the players make optimal moves, this is only possible for
    one of the players. The long answer involves nimbers.
    D.C. Ernst Impartial games for generating groups 5 / 21

    View Slide

  6. Mis`
    ere Nim
    Mis`
    ere Version of Nim
    In this alternate version of Nim, the player that takes the last stone loses.
    Example
    Let’s start with (1, 2, 3) again.
    .
    . (1, 2, 3)
    α

    .
    . (1, 2, 2)
    β

    .
    . (0, 2, 2)
    α

    .
    . (0, 1, 2)
    β

    .
    . (0, 1, 0)
    α

    .
    .
    Doh!
    . (0, 0, 0)
    β wins again.
    Optimal Play
    • If there is a single pile, then α wins by taking all but one stone.
    • If there is more than one pile, then the general strategy is to whittle down to an
    odd number of piles with a single stone.
    • As with normal-play Nim, a more detailed analysis involves nimbers.
    D.C. Ernst Impartial games for generating groups 6 / 21

    View Slide

  7. X-Only Tic-Tac-Toe
    Single Board X-Only Tic-Tac-Toe
    Start with a single ordinary Tic-Tac-Toe board. Place a single X in any empty
    square. The first player to get 3 in a row wins.
    Example
    Let’s take a look at an example.
    α

    X
    β

    X
    X
    α

    X
    X
    X
    β

    X
    X
    X X
    α

    X X
    X
    X X
    Boom, α wins.
    Optimal Play
    It’s pretty easy to see that α can always wins. In fact, if α plays in the middle square,
    the game is over quickly.
    D.C. Ernst Impartial games for generating groups 7 / 21

    View Slide

  8. Mis`
    ere X-Only Tic-Tac-Toe
    Single-board Notakto
    In the mis`
    ere version of X-Only Tic-Tac-Toe (also called Notakto), the player that
    gets three in a row loses.
    Question
    Is there are clear winner?
    Optimal Play
    If α’s first move is in the center square, then α wins.
    X
    Question
    What happens if we increase the number of boards that we can play on?
    D.C. Ernst Impartial games for generating groups 8 / 21

    View Slide

  9. Multi-Board X-Only Tic-Tac-Toe
    Multi-Board X-Only Tic-Tac-Toe
    Suppose there are k boards.
    • Normal Play: Players place an X in any open square on a single board. Once a
    board has 3 in row, that board is removed from play. The player that gets 3 in a
    row on the last remaining board wins.
    • Notakto: In the mis`
    ere version, the player to get three in a row on the last
    remaining board loses.
    Optimal Play
    For Notakto, a complete analysis involves an 18 element commutative monoid.
    Note
    • If you want to know more, check out “The Secrets of Notakto: Winning at
    X-only Tic-Tac-Toe” (http://arxiv.org/abs/1301.1672).
    • Also, check out the free iPad app called Notakto.
    D.C. Ernst Impartial games for generating groups 9 / 21

    View Slide

  10. Groups
    Before discussing the next game, we need to introduce groups.
    Groups are fundamental objects in mathematics. Loosely speaking, start with a
    collection of objects, throw in a method for combining two objects together so that it
    satisfies some reasonable requirements and you’ve got yourself a group.
    Intuitive Definition
    Slightly more rigorously, a group is a set with an associative binary operation
    satisfying:
    • Closure: “Product” of any two elements from the set is an element of the set.
    • Identity: There exists a “do nothing” element.
    • Inverses: For every element in the set, there exists another element in the set
    that “undoes” the original.
    D.C. Ernst Impartial games for generating groups 10 / 21

    View Slide

  11. Examples of Groups
    Example
    • Z is a group under addition. Identity is 0 and inverse of n is −n.
    • Z under multiplication is not a group. Why? If n ̸= ±1, then the inverse of n is
    not an integer.
    • R \ {0} is a group under multiplication. Identity is 1 and inverse of each
    non-zero real number is its reciprocal.
    • The set Zn
    = {0, 1, 2, . . . , n − 1} is a group under addition modulo n. Identity is
    0 and inverse of k is n − k.
    • The set Dn
    of symmetries (rotations and reflections) of a regular n-gon is a
    group under composition. Identity is the rotation by 0◦, inverse of a rotation is
    the rotation in the opposite direction, and inverse of a reflection is the same
    reflection. Dn
    is non-commutative (i.e., order of composition matters) and
    consists of 2n elements.
    • The set Sn
    of permutations of n objects under composition is a
    non-commutative group with n! elements. Identity is the element that does not
    scramble anything and the inverse of a permutation is the permutation that
    reverses the scrambling.
    D.C. Ernst Impartial games for generating groups 11 / 21

    View Slide

  12. Group Tables
    One way of representing a finite group is with a group table.
    Example
    The following table depicts Z6
    (written multiplicatively).
    The product of x times y is the entry
    in the row labelled x and column
    labelled y.
    D.C. Ernst Impartial games for generating groups 12 / 21

    View Slide

  13. Group Tables (continued)
    Example
    The following table depicts D4
    (symmetries of a square). In this case, r is rotation by
    90◦ clockwise, f is reflection across one of the diagonals, and e is the identity.
    Observations
    • Order matters, but not always
    (e.g., rf ̸= fr, fr2 = r2f ).
    • Every element has been written
    in terms of r and f .
    • e, r, r2, r3 are rotations.
    • f , rf , fr, r2f are reflections.
    • Composition of two reflections is
    a rotation (by twice the angle
    between them).
    D.C. Ernst Impartial games for generating groups 13 / 21

    View Slide

  14. Generators
    Definition
    Let G be a finite group. The set generated by g1, g2, . . . , gn ∈ G is the subset of
    elements in G that we can construct using only g1, g2, . . . , gn
    . We denote this set via
    ⟨g1, g2, . . . , gn⟩.
    Example
    Consider Z6
    . Then
    • ⟨0⟩ = {0}
    • ⟨2⟩ = {2, 4, 0}
    • ⟨2, 4⟩ = {2, 4, 0}
    • ⟨3⟩ = {3, 0}
    • ⟨2, 3⟩ = {2, 4, 0, 3, 5, 1} = Z6
    • ⟨1⟩ = {1, 2, 3, 4, 5, 0} = Z6
    Consider D4
    . Then
    • ⟨e⟩ = {e}
    • ⟨f ⟩ = {f , e}
    • ⟨r⟩ = {r, r2, r3, e}
    • ⟨r2⟩ = {r2, e}
    • ⟨r, f ⟩ = {r, r2, r3, e, f , fr, rf , r2f } = D4
    • ⟨f , fr⟩ = {f , e, fr, r, r2, r3, rf , r2f } = D4
    D.C. Ernst Impartial games for generating groups 14 / 21

    View Slide

  15. Generators (continued)
    Fact 1
    If G is a finite group, then there is always a finite set of elements that generates all
    of G.
    Fact 2
    We always have ⟨g1, g2, . . . , gk
    ⟩ ⊆ ⟨g1, g2, . . . , gk
    , gk+1
    ⟩ (and may have equality).
    Fact 3
    Zn
    = ⟨k⟩ if and only if n and k are relatively prime (i.e., have no prime factors in
    common).
    Fact 4
    Dn
    = ⟨rk , f ⟩ = ⟨f , f ′⟩, where r is a single-click rotation, k is relatively prime to n, and
    f and f ′ are any adjacent reflections. No single element generates Dn
    (for n ≥ 3).
    Careful!
    There may be larger sets that generate these groups having the property that no
    strictly smaller subset generates the whole group (e.g., ⟨2, 3⟩ = Z6
    ).
    D.C. Ernst Impartial games for generating groups 15 / 21

    View Slide

  16. GENERATE Game
    The following game was introduced by F. Harary in 1987.
    GENERATE Game
    Let G be a finite group with more than one element. On the first move, α chooses
    some g1 ∈ G. On the kth move, a player chooses gk
    ∈ G \ {g1, g2, . . . gk−1
    }. The
    winner is the player that generates all of G with their choice together with previous
    choices.
    Choice Set Generated
    g1 ⟨g1⟩
    g2 ⟨g1, g2⟩
    g3 ⟨g1, g2, g3⟩
    .
    .
    .
    .
    .
    .
    gk−1
    ⟨g1, g2, g3, . . . gk−1
    ⟩ ̸= G
    gk
    ⟨g1, g2, g3, . . . gk−1
    , gk
    ⟩ = G
    The player that chooses gk
    wins.
    D.C. Ernst Impartial games for generating groups 16 / 21

    View Slide

  17. GENERATE for Zn
    Example
    GENERATE is pretty boring with Zn
    .
    Let’s look at Z6
    (with non-optimal play).
    Choice Set Generated
    a4 ⟨a4⟩ = {a4, a2, e}
    a3 ⟨a4, a3⟩ = {a4, a2, e, a3, a, a5}
    In this case, β wins. However, α could
    have won immediately by choosing a or a5.
    Optimal play for Zn
    For Zn
    , α can always win GENERATE in one move by choosing any ak , where n and
    k are relatively prime.
    D.C. Ernst Impartial games for generating groups 17 / 21

    View Slide

  18. GENERATE for Dn
    Example
    Dn
    is more interesting. Let’s look at D4
    .
    Choice Set Generated
    r2 ⟨r2⟩ = {r2, e}
    e ⟨r2, e⟩ = {r2, e}
    f ⟨r2, e, f ⟩ = {r2, e, f , r2f }
    r ⟨r2, e, f , r⟩ = D4
    β wins again. In fact, we have the
    following fact.
    Optimal play for Dn
    with n a multiple of 4
    In this case, β is guaranteed to win (F.W. Barnes, 1988). General strategy: If α
    chooses rk with n and k relatively prime or any reflection, then β wins on next move.
    To win, β stalls by picking available rm with n and m not relatively prime.
    D.C. Ernst Impartial games for generating groups 18 / 21

    View Slide

  19. GENERATE for Dn (continued)
    Example
    What if n is not a multiple of 4? Let’s
    look at D5
    .
    Choice Set Generated
    e ⟨e⟩ = {e}
    r2 ⟨r2⟩ = {r2, frf = r4, r, r3, e}
    f D5
    This time α wins. And when n is not a
    multiple of 4, α can always win.
    Optimal play for Dn
    with n not a multiple of 4
    In this case, α is guaranteed to win (F.W. Barnes, 1988).
    D.C. Ernst Impartial games for generating groups 19 / 21

    View Slide

  20. DO NOT GENERATE Game
    As with the other games, there is a mis`
    ere version of GENERATE.
    DO NOT GENERATE Game
    Let G be a finite group. On the first move, α chooses some g1 ∈ G. On the kth
    move, a player chooses gk
    ∈ G \ {g1, g2, . . . gk−1
    }. The loser is the player that
    generates all of G with their choice together with previous choices.
    Choice Set Generated
    g1 ⟨g1⟩
    g2 ⟨g1, g2⟩
    g3 ⟨g1, g2, g3⟩
    .
    .
    .
    .
    .
    .
    gk−1
    ⟨g1, g2, g3, . . . gk−1
    ⟩ ̸= G
    gk
    ⟨g1, g2, g3, . . . gk−1
    , gk
    ⟩ = G
    The player that chooses gk
    loses.
    D.C. Ernst Impartial games for generating groups 20 / 21

    View Slide

  21. DO NOT GENERATE Game for Arbitrary Groups
    Theorem (F.W. Barnes, 1988)
    Let G be any finite group with more than one element. Then α wins DO NOT
    GENERATE if and only if there is a g ∈ G such that
    • ⟨g⟩ has an odd number of elements;
    • ⟨g⟩ ̸= G;
    • ⟨g, h⟩ = G for all non-identity elements h ∈ G such that h2 = 1.
    Otherwise, β wins.
    Corollary
    • The player α wins DO NOT GENERATE on Zn
    if and only if n is odd or not a
    multiple of 4. Otherwise, β wins.
    • The player α wins DO NOT GENERATE on Dn
    if and only if n odd. Otherwise,
    β wins.
    D.C. Ernst Impartial games for generating groups 21 / 21

    View Slide
