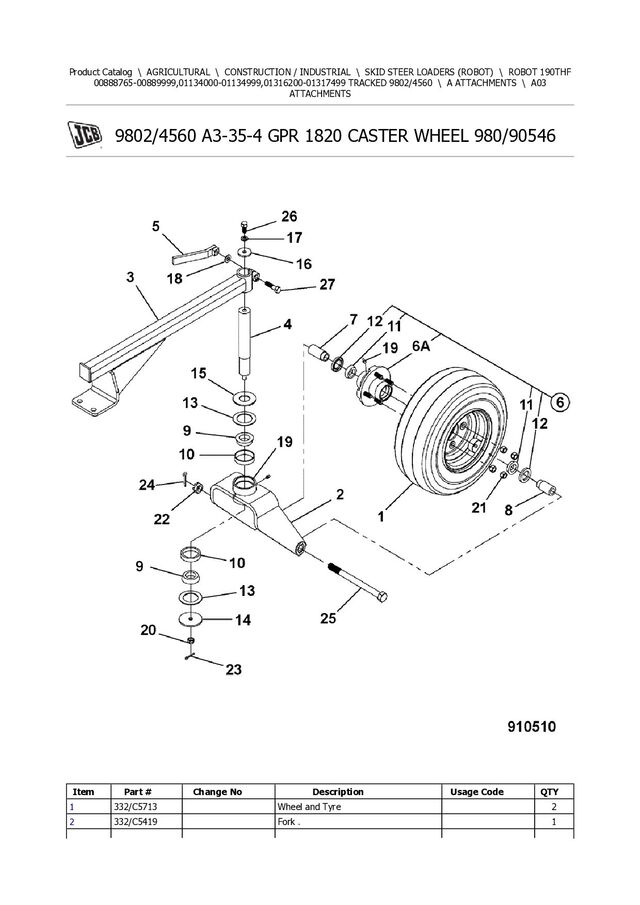

1. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ A ATTACHMENTS \ A03 ATTACHMENTS 9802/4560 A3-35-4 GPR 1820 CASTER WHEEL 980/90546 Item Part # Change No Description Usage Code QTY 1 332/C5713 Wheel and Tyre 2 2 332/C5419 Fork . 1
2. 3 332/C5385 Arm . 1 4 332/C5372 Shaft . 1 5 332/C5681 Handle . 1 6 332/C5711 Kit Hub, Bearing, Seal Includes 6A, 11, 12 1 6A :332/C5712 Hub with Studs 2 7 332/C5381 Spacer long 1 8 332/C5383 Spacer short 1 9 332/C5567 Bearing cone 1 10 332/C5568 Bearing cup 2 11 332/C5569 Bearing cone 2 12 332/C5565 Grease shell 2 13 332/C5576 Washer felt 2 14 332/C5392 Washer . 1 15 332/C5571 Washer . 1 16 332/C5389 Washer . 1 17 332/C5574 Washer . 1 18 332/C5578 Washer . 1 19 332/C5714 Grease Nipple 2 20 332/C5550 Nut castellated 1 21 332/C5566 Nut . 4 22 332/C5549 Nut castellated 1 23 332/C5525 Cotter . 1 24 332/C5526 Cotter pin 1 25 332/C5369 Bolt . 1 26 332/C5499 Bolt . 1 27 332/C5521 Bolt . 1
3. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-1-1 ENGINE COVER Item Part # Change No Description Usage Code QTY 1 331/39337 Cover engine Standard m/c build 1
4. 1 335/07624 Cover engine air conditioning See Note 1 1 2 123/08087 Handle locking 1 3 826/10412 Bar latch 1 4 826/10646 Hinge R.H. 1 5 826/10647 Hinge L.H. 1 6 1370/0203Z Nut Nut M8 8 7 1420/0007Z Washer (M8) 16 9A 331/24023 Stop bump, nylon nylon 2 9B 1391/3309D Capscrew M8 X 35 2 9C 123/03832 Stop rubber 2 11 2410/1003 Grommet 2 12 162/03905 Strut Gas 1 13 1370/0203Z Nut Nut M8 2 14 140/00758 Key 1 21 335/06406 Bracket seal if fitted 1 22 1315/0303Z Setscrew M8 x 16 if fitted 1 23 1370/0202Z Nut Thin (M8) if fitted 1 24 1315/0305Z Setscrew M8 x 20 if fitted 1 25 926/07800 Seal Rubber, Window/Door approx 905mm if fitted 0 Note 1: Replaces 331/39337 when air conditioning is fitted on Robot 190 machine
5. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-2-1 COUNTERWEIGHT STD. 190
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. Item Part # Change No Description Usage Code QTY 2 1391/3708Z Bolt 4 3 823/00603 Washer hardened M16 4 5 331/22545 Cover R.H. rubber 1 6 331/22546 Cover L.H. rubber 1
8. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-2-20 COUNTERWEIGHT (1000KG) 190
9. Item Part # Change No Description Usage Code QTY 1 589/10074 Counterweight L.H. 1 2 589/10075 Counterweight R.H. 1 3 1391/3716Z Capscrew 4 4 1411/0007Z Washer 5/8 4 6 **** 'See Remark' not used on this build 1
10. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-3-1 TANK, HYDRAULIC Item Part # Change No Description Usage Code QTY A 243/20377 Tank hydraulic assembly 1 1 **** None serviced part 1
11. 2 :331/40357 Plate hydraulic cover 1 3 :242/00178 Gasket 1 4 :32/912500 Strainer suction 1 5 :826/01828 Nut rivet Rivet nut 8 6 :1315/0307D Setscrew M8 x 25 mm 8 7 :1420/0007D Washer (M8) 8 8 816/00294 Plug Blanking 1 9 1315/0405Z Setscrew M10 x 20 mm 4 10 331/20768 Bracket clamp 2 11 816/00197 Plug 1 15 331/32566 Cap filler hydraulic 1 16 123/08053 Gauge Sight 50mm Complete with O ring seal 1 16A :25/700013 O Ring 1 18 123/00295 <M889032 Breather See TI 12/045 1 18 32/925643 Breather Relief 1 18 1406/0015 Washer Bonded 3/8" Use with breather 32/925643 only 1 18A :1406/0015 Washer Bonded 3/8" 1 19 1315/0308Z Setscrew M8 x 30 3 20 1411/0002Z Washer (5/16" Medium) 2 20A 823/00322 Washer (8.5mm x 24mm x 2mm) Used for rear Hyd. tank mount. 1 21 4101/0250 Fluid locking For item 18 0 22 816/90274 Cap blanking 3/4"BSP Female 1
12. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-4-1 FENDER, RIGHT SIDE
13. Item Part # Change No Description Usage Code QTY 1 331/22001 Fender right side 1 2 331/21384 Bracket wheeled, right side wheeled machines only 1 2A 331/21385 Bracket tracked, right side tracked machines only 1 3 1315/0307Z Setscrew M8 X 25 2 4 1420/0007Z Washer (M8) 2 5 1315/0407Z Setscrew M10 x 25 mm 4 6 1315/0410Z Setscrew Screw 1 7 1370/0303Z Nut lock M10 5 8 1420/0008Z Washer (M10) 10 9 926/02300 Strip Rubber, Sealing approx 100mm 0
14. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-5-1 FENDER, LEFT SIDE Item Part # Change No Description Usage Code QTY 1 331/24932 Fender Fender WA190 1 1 926/06600 Strip Edging 1
15. 120mm long 1A 331/25131 Fender tracked left side 1 1A 926/12604 Seal waist line 121 long 1 1A 2410/1315 Grommet Blind tracked machines only 1 1B 331/24489 Fender over tyre tracks left hand over tyre tracked machines only 1 2 1315/0409Z Setscrew M10 x 35 5 required with item 1B 4 3 1370/0303Z Nut lock M10 required with item 1 only 4 4 1420/0008Z Washer (M10) 5 required with item 1B 8 5 2410/1303 Grommet Blind, 9.5 x 5 mm for chassis 2 6 331/23093 Pad non-slip 1
16. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-6-1 REAR GRILLE Item Part # Change No Description Usage Code QTY 1 331/37833 Grille rear 1 2 331/39301 Bracket latch 1
17. 3 1315/0308Z Setscrew M8 x 30 2 4 1420/0007Z Washer (M8) 4 6 1370/0203Z Nut Nut M8 2 7 331/24024 Stop cup, bump stop cup 2 8 823/00322 Washer (8.5mm x 24mm x 2mm) 2 9 1315/0303Z Setscrew M8 x 16 2 10 926/16500 Seal approx 500mm 0
18. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-10-1 CHASSIS FITTINGS Item Part # Change No Description Usage Code QTY 1 242/00090 Plate heater blanking 1 2 1315/0207Z Screw M6x25 5
19. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
20. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
21. M6 X 25 3 1370/0103Z Nut Self Lock M6 5 4 1411/0001Z Washer (1/4" Medium) 10 5 1745/0003 Plug Blanking 3/4 UNF 1 5 :2401/0506 O Ring 1 5A 816/80047 Plug 1"BSP 42.42mm A/F 1 BSP (magnetic) wheeled machines 2 5A G8/7 Plug 1 BSP tracked machines 2 6 1406/0018 Washer Bonded (1/2" BSP) 1 6A 1406/0026 Washer Seal for item 5A 2 7 926/44200 Strip edging black 0 8 242/00290 Tie Panel Fixing Cable 15 10 335/06146 Chassis Robot wheeled 1 10 335/06147 Chassis Robot Tracked Robot 1110 tracked 1 11 331/16846 Pad stop 2 12 247/00365 Spacer 2mm thick 0 13 247/00366 Spacer 4mm thick 0 14 247/00367 Spacer 6mm thick 0 15 1316/0410Z Screw M10 x 40 High Tensile 4 16 1420/0008Z Washer (M10) 4 18 453/11701 Cap breather, 2mm hole press fit 2 20 826/10346 Nut rivet M8 18 21 331/18797 Filler fuel filler moulding 1 22 813/10021 Gasket fuel filler 1 23 826/10657 Fastener M8 Hex Bollhoff 8 24 826/11155 Screw Button Head 8 25 331/11403 Cap filler, vented diesel Lockable (EXCLUDES Keys) 1 25A 701/45501 Key Door/Ignition 1 26 331/18811 Plate clamp plate 1 31 335/01850 Bracket self centre 1 32 1321/0710Z Screw Set M16 x 40 lg 2 33 823/00603 Washer hardened M16 4 34 1370/0603Z Nut lock M16 2 35 835/00144 Plug 1 36 331/23295 Plate drain cover 2 37 331/23296 Plate drain cover 1 38 1315/0407Z Setscrew M10 x 25 mm 6 39 1420/0008Z Washer (M10) 6 40 835/10083 Cover end tip 13
22. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ ROBOT 190THF 00888765-00889999,01134000-01134999,01316200-01317499 TRACKED 9802/4560 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/4560 B1-11-1 COVER PLATES REAR Item Part # Change No Description Usage Code QTY 1 335/01846 Plate rear floor pan 1 2 335/01872 Bracket hinge 2
23. 3 1315/0509Z Setscrew M12 x 35mm 9 4 1411/0005Z Washer (1/2" Medium) 9
