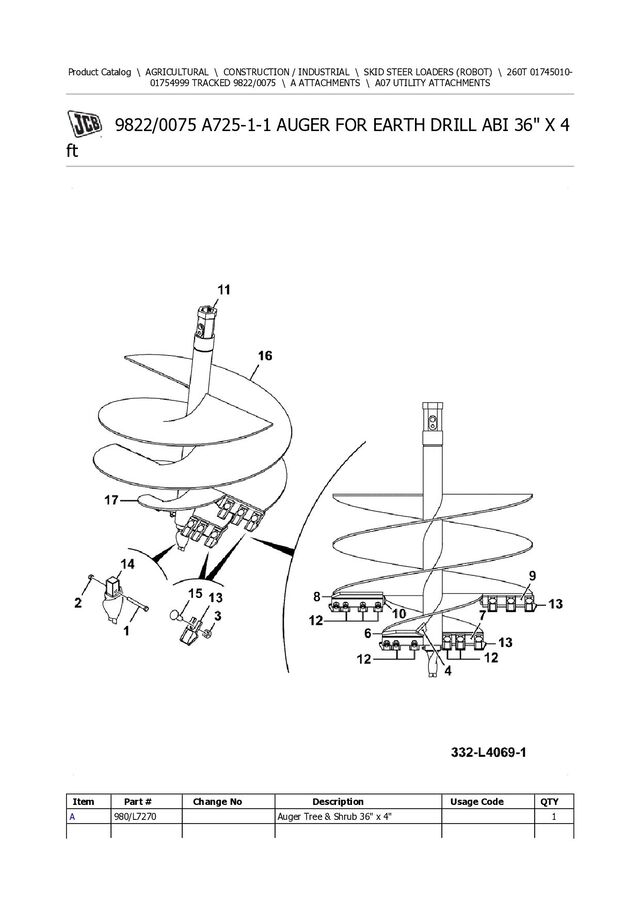

1. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A07 UTILITY ATTACHMENTS 9822/0075 A725-1-1 AUGER FOR EARTH DRILL ABI 36" X 4 ft Item Part # Change No Description Usage Code QTY A 980/L7270 Auger Tree & Shrub 36" x 4" 1
2. 1 :333/C1298 Bolt . 1 2 :335/14236 Nut locking 1 3 :335/14237 Nut Locking 13 4 :332/L6937 Plate Filler 2 5 :332/L6938 Bar Stop 13 12 :332/A2056 Tooth Standard Inner Wisdom 9 13 :332/A2055 Tooth Standard Outer Guage 4 14 :332/A2059 Bit Pilot Standard 1 15 :332/F4425 Bolt . 13
3. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A07 UTILITY ATTACHMENTS 9822/0075 A790-1-1 GEARBOX 332/L6968 Item Part # Change No Description Usage Code QTY A 332/L6968 Gear Planetary 1 1 332/H7756 Nut . 8 2 332/H7757 Pin Spring 2
4. 3 **** None serviced part 1 4 332/H7759 Plug . 2 5 332/H7761 O Ring . 2 6 332/H7762 Washer . 1 7 332/H7763 Gear Sun 1 8 332/H7765 Gear Assembly 1 9 332/H7767 Gear Ring 1 10 332/H7768 Nut Locking 1 11 332/H7770 Washer . 1 12 332/H7771 Bearing . 2 13 **** None serviced part 1 14 332/H7774 Bolt . 8 15 332/H7776 Seal . 1 16 332/H7780 Drive Shaft 2 Hex 1
5. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A07 UTILITY ATTACHMENTS 9822/0075 A790-2-1 GEARBOX 332/L7022 Item Part # Change No Description Usage Code QTY 1 332/H7797 Shaft Output 1 2 332/H7799 Seal . 1 3 332/H7800 Bearing Cone 1
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. 4 332/H7801 Bearing Cup 1 5 332/H7802 Plug . 1 6 **** None serviced part 1 7 332/H7804 Bearing Cup 1 8 332/H7805 Bearing Cone 1 9 332/H7806 Washer . 1 10 332/H7807 Washer . 1 11 332/H7808 Nut . 1 12 332/H7809 Gear Ring 1 13 332/H7810 Gear Assy. 1 15 332/H7812 Gear Sun 1 16 332/H7813 Washer . 1 17 **** None serviced part 1 18 332/H7814 Bolt . 12 19 332/H7815 Washer . 12 20 332/H7816 Plug Magnetic 1 21 332/H7817 Plug . 1
8. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A09 MISCELLANEOUS 9822/0075 A990-1-1 OTHER MISCELLANEOUS ITEMS KIT TRAVEL LOCK,VERTICAL LIFT Item Part # Change No Description Usage Code QTY 1 **** Lock Travel, Assembly 1
9. 2 **** Strut Travel, Assembly,VL 1
10. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A09 MISCELLANEOUS 9822/0075 A990-10-1 OTHER MISCELLANEOUS ITEMS TRAVEL LOCK,ASSEMBLY Item Part # Change No Description Usage Code QTY 1 332/X6058 Lock travel 1
11. 2 826/11496 Pin linch 9mm x 63mm 2 3 332/X6089 Plate Doubler, travel lock 1
12. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A09 MISCELLANEOUS 9822/0075 A990-15-1 OTHER MISCELLANEOUS ITEMS TRAVEL STRUT,VERTICAL LIFT Item Part # Change No Description Usage Code QTY 1 333/L2642 Strut Safety, Vertical lift 1
13. 2 333/L3388 Spacer 1 3 123/04734 Fastener antiluce 1 4 1370/0301Z Nut Plain, M10 1 5 247/00495 Insert rubber 1 6 826/01616 Screw M10 x 25mm 1 7 333/L3396 Strap ABI, Buckled 1 8 1414/0011Z Washer (2BA) 2 9 826/01345 Rivet Pop 2
14. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ B BODYWORK \ B01 BODYWORK/FRAME 9822/0075 B110-30-1 CHASSIS FITTINGS & MOUNTINGS VERTICAL LIFT Item Part # Change No Description Usage Code QTY 1 **** Front Cover, Fittings Assembly 1
15. 3 **** Pad Stop, Assembly 1 5 332/L3550 Bush Bi-Metallic 1 6 332/L3540 Bush Bi-Metallic 2 7 **** Electrics Mainframe 1 8 **** Bracket Door Latch 1 9 **** Cover Right Side Fittings 1 10 453/11701 Cap breather, 2mm hole press fit 2 12 1745/0003 Plug Blanking 1 13 826/01176 Nut M8 rivet 2 16 332/L3651 Spacer 62.5x60x10 1 17 332/X4582 Plate Latch Mount 1 18 1420/0009Z Washer (M12) 2 19 1315/0505Z Bolt M12x20 2 20 835/10108 Buffer M8x35 2 21 1370/0202Z Nut Thin (M8) 2 22 1420/0007Z Washer (M8) 2 23 826/00600 Pin linch 1 24 826/11070 Fastener M8 Hex open ended Bollhoff 11 25 826/01254 Nut Rivet 2 28 334/L7531 Strip edging,45.7mm 4
16. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ B BODYWORK \ B01 BODYWORK/FRAME 9822/0075 B110-30-5 CHASSIS FITTINGS & MOUNTINGS VERTICAL LIFT Item Part # Change No Description Usage Code QTY 1 **** Front Cover, Fittings Assembly 1
17. 3 **** Pad Stop, Assembly 1 5 332/L3550 Bush Bi-Metallic 1 6 332/L3540 Bush Bi-Metallic 2 7 **** Electrics Mainframe 1 9 **** Cover Right Side Fittings 1 10 335/B1629 Breather 2 12 333/X2647 Plug Blanking 1 13 826/01176 Nut M8 rivet 2 16 332/L3651 Spacer 62.5x60x10 1 17 332/X8328 Plate Latch mount 1 18 1420/0009Z Washer (M12) 7 19 1315/0505Z Bolt M12x20 2 20 835/10108 Buffer M8x35 2 21 1370/0202Z Nut Thin (M8) 2 22 1420/0007Z Washer (M8) 2 23 826/00600 Pin linch 1 24 826/11070 Fastener M8 Hex open ended Bollhoff 11 25 826/01254 Nut Rivet 2 28 334/L7531 Strip edging,45.7mm 4 29 826/01554 Bolt 2 30 1370/0201Z Nut Standard M8 2 31 823/00322 Washer (8.5mm x 24mm x 2mm) 2 32 1340/1801Z Nut 1 33 1412/0005Z Washer Plain 1/2" 20 34 1315/0409Z Setscrew M10 x 35 10 35 1370/0303Z Nut lock M10 10 36 926/04813 Strip edging 1 37 826/11619 Screw button head 5 38 1316/0507Z Screw 5 39 **** Guide Boom, Assembly 1
18. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ B BODYWORK \ B01 BODYWORK/FRAME 9822/0075 B110-30-10 CHASSIS FITTINGS & MOUNTINGS VERTICAL LIFT Item Part # Change No Description Usage Code QTY 1 **** Front Cover, Fittings Assembly 1
19. 3 **** Pad Stop Assembly,T4 1 5 332/L3550 Bush Bi-Metallic 1 6 332/L3540 Bush Bi-Metallic 2 7 **** Electrics Mainframe 1 9 **** Cover Right Side Fittings 1 10 335/B1629 Breather 2 12 333/X2647 Plug Blanking 1 13 826/01176 Nut M8 rivet 2 16 332/L3651 Spacer 62.5x60x10 1 17 332/X8328 Plate Latch mount 1 18 1420/0009Z Washer (M12) 7 19 1315/0505Z Bolt M12x20 2 20 835/10108 Buffer M8x35 2 21 1370/0202Z Nut Thin (M8) 2 22 1420/0007Z Washer (M8) 2 23 826/00600 Pin linch 1 24 826/11070 Fastener M8 Hex open ended Bollhoff 6 25 826/01254 Nut Rivet 6 28 334/L7531 Strip edging,45.7mm 5 29 826/01554 Bolt 2 30 1370/0201Z Nut Standard M8 2 31 823/00322 Washer (8.5mm x 24mm x 2mm) 2 32 1340/1801Z Nut 1 33 1412/0005Z Washer Plain 1/2" 20 34 1315/0409Z Setscrew M10 x 35 10 35 1370/0303Z Nut lock M10 10 36 926/04813 Strip edging 1 37 826/11619 Screw button head 5 38 1316/0507Z Screw 5
20. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ B BODYWORK \ B01 BODYWORK/FRAME 9822/0075 B110-40-1 CHASSIS FASTENERS COVER PLATE,LEFT SIDE Item Part # Change No Description Usage Code QTY 1 1315/0408Z Setscrew M10 x 30 6
21. 2 1420/0008Z Washer (M10) 6 3 1370/0303Z Nut lock M10 2
22. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
23. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
24. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ B BODYWORK \ B01 BODYWORK/FRAME 9822/0075 B110-45-1 CHASSIS FASTENERS COVER PLATE,REAR Item Part # Change No Description Usage Code QTY 2 1315/0307Z Setscrew M8 X 25 4
25. 3 1420/0007Z Washer (M8) 4
26. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 260T 01745010- 01754999 TRACKED 9822/0075 \ B BODYWORK \ B01 BODYWORK/FRAME 9822/0075 B110-50-1 CHASSIS FASTENERS COVER PLATE,FRONT Item Part # Change No Description Usage Code QTY 2 1315/0307Z Setscrew M8 X 25 4
