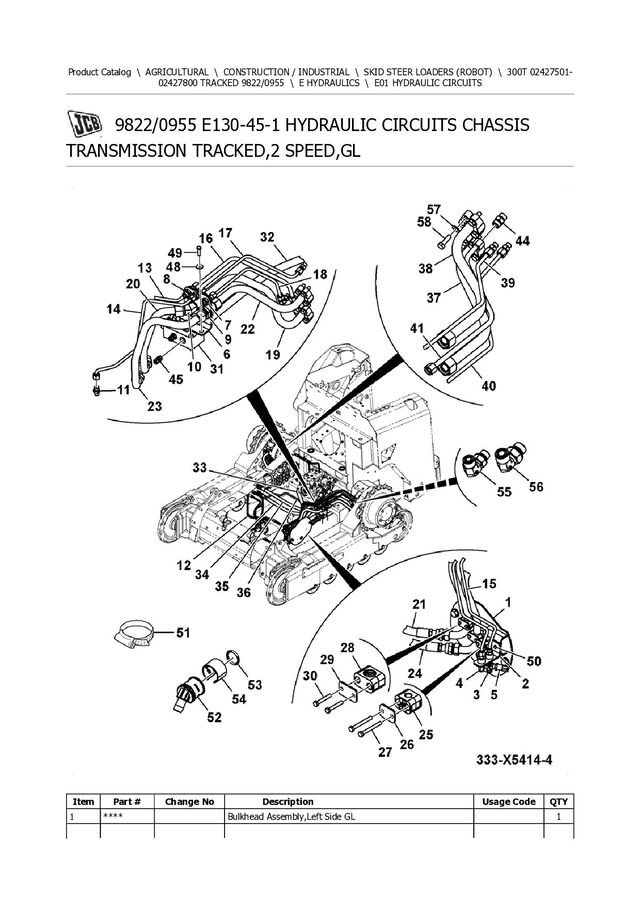

1. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E130-45-1 HYDRAULIC CIRCUITS CHASSIS TRANSMISSION TRACKED,2 SPEED,GL Item Part # Change No Description Usage Code QTY 1 **** Bulkhead Assembly,Left Side GL 1
2. 2 332/X7899 Bulkhead 1 3 332/X8122 Adaptor SAE ORB -6/-6 XD 1 4 332/X1572 Adaptor SAE ORB -6/XDT 2 5 332/F1707 Transducer Lift 1 6 332/X3769 Bracket pipe Bulkhead 1 7 1705/0606 Adaptor ORFS M -06/M -06 2 8 1705/0808 Adaptor Orifice Bulkhead 1 9 1705/1616 Adaptor ORFS M -16/M -16 1 10 1708/1616 Adaptor ORFS Bluckhead 45 DEG -1 1 11 1751/0606 Adaptor ORFS M -06 /SAE ORB -06 6 12 **** Circuit Pilot control, Assembly 1 13 332/X7845 Tube Drain, Leftside 1 14 332/X7902 Tube 2-Speed, Leftside 1 15 332/X7903 Tube Brake, Leftside 1 16 332/X3774 Tube Drain LH 2-Speed 1 17 332/X3778 Tube 2 Speed LH 1 18 332/X3776 Tube Brake LH 2-SP 1 19 332/X3770 Tube A-PORT LH 2-Speed 1 20 332/X3771 Tube A-Port Left Side 2 Speed 1 21 332/X3821 Hose 12 ORFS UHP 53 1 22 332/X3772 Tube Brake Port LH 2 Speed 1 23 332/X3773 Tube B-Port Left Side 2 Speed 1 24 332/X3822 Hose 12 ORFS UHP 57 1 25 332/X3763 Clamp 212.7PP 2 26 332/X3831 Plate Clamp Top 1 27 1315/3213Z Bolt M6x55 2 28 332/X3517 Clamp Single - 16 4 29 332/G1765 Plate clamp 2 30 1315/0210Z Bolt M6 x 40mm long 4 31 **** Valve Manifold,Return, Assembly 1 32 333/X5498 Hose 12 OPEN LP 840mm 1 33 332/X7930 Hose -Case drain 1 34 332/X3818 Hose 12 ORFS UHP 92 1 35 332/X3819 Hose 12 ORFS UHP 86 1 36 332/X7863 Tube -Case drain, Rightside 1 37 332/X3746 Tube A-Port Right Side 1 38 332/X3747 Tube Brake Port RH 2-Speed 1 39 332/X7896 Tube Brake port, Rightside 1 40 332/X7897 Tube 2-Speed 1 41 332/X3749 Tube Drain Case RH 2 Speed 1 44 1751/0808 Adaptor ORFS M /SAE 1 45 332/X2754 Adaptor SAE ORB -6/LPXDT 1 48 823/00322 Washer (8.5mm x 24mm x 2mm) 2 49 1318/0308Z Bolt locking M8X30 2 50 1315/3208Z Bolt M6x35 1 51 2201/0006 Clip Jubilee, 17/32mm 4 52 333/X2584 Connector Tank 45-37P-19.1D 1 53 333/X2589 O Ring For Tank Connector 1 54 333/X2588 Connector Lock 1 55 1754/0606 Adaptor ORFS M/O-RIN 1 56 332/L4263 Adaptor ELBOW - 125 1
3. 57 1420/0008Z Washer (M10) 16 58 1315/0409Z Setscrew M10 x 35 16
4. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-1-1 OTHER HYDRAULIC CIRCUITS BULKHEAD PLATE LEFT SIDE,GL Item Part # Change No Description Usage Code QTY 1 333/X5604 Plate Bulkhead WA,Left Side Tracked 1
5. 2 1315/0707Z Bolt 2 3 1420/0011Z Washer (M16) 2
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-5-1 OTHER HYDRAULIC CIRCUITS FLOAT ASSEMBLY Item Part # Change No Description Usage Code QTY 1 **** Software Installation, Float 1
8. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-10-1 OTHER HYDRAULIC CIRCUITS PILOT CONTROL LINE TRACKED,TWIN SPEED Item Part # Change No Description Usage Code QTY 1 332/X7729 Tube Harness, Twin speed 1
9. 2 332/X8018 Tube Harness, Twin speed 1 3 **** Valve Assembly, 2-Speed 1 4 826/01347 Tie Cable 160mm 8
10. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-20-1 OTHER HYDRAULIC CIRCUITS PILOT CONTROL LINE TRACKED,SINGLE SPEED Item Part # Change No Description Usage Code QTY 1 332/X7999 Tube Harness, Single speed 1
11. 2 826/01347 Tie Cable 160mm 6
12. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-40-1 OTHER HYDRAULIC CIRCUITS SMOOTH RIDE SYSTEM,GL Item Part # Change No Description Usage Code QTY 1 **** Valve SRS 1
13. 2 332/X9186 Hose 08 ORFS LP 900 1 3 332/X9175 Hose 08 ORFS HP 440 1 4 **** Accumulator SRS assembly 1 5 332/X9088 Pipe SRS P1 1 6 332/X9089 Pipe SRS P2 1 7 332/X4517 Clamp pipe twin 1 8 721/X1808 Harness SRS valve 1 9 332/X7524 Transducer pressure 1 10 333/S3296 Clip P M10 x 19mm 1 11 1317/3407Z Bolt M10 x 25 Flange Reduced Hex 1 12 1420/0008Z Washer (M10) 2 13 1370/0301Z Nut Plain, M10 1 14 821/10220 Clip 'P' d=25 1
14. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-45-1 OTHER HYDRAULIC CIRCUITS FLOAT GL Item Part # Change No Description Usage Code QTY 1 332/X7524 Transducer pressure 1
15. 2 332/X5887 Adaptor ORFS F-08/SAE F-04 1 3 1721/0800 Plug Female, ORFS 1 4 721/X1810 Harness float 1 5 1315/0305Z Setscrew M8 x 20 2 6 1420/0007Z Washer (M8) 2 7 4101/1100 Loctite 243 A/R 0
16. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-50-1 OTHER HYDRAULIC CIRCUITS TUBE HARNESS TWIN SPEED SHIFT Item Part # Change No Description Usage Code QTY 1 332/X7969 Tube 2 Speed Suppliy 1
17. 2 332/X7949 Tube 2 Speed Right Side 1 3 332/X8022 Tube 2 Speed Drain Tracked 1 4 332/X7950 Tube 2 Speed Left Side 1
18. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-55-1 OTHER HYDRAULIC CIRCUITS TUBE HARNESS SINGLE SPEED TRACKED Item Part # Change No Description Usage Code QTY 1 332/X7945 Tube Parking Brake Left Side 1
19. 2 332/X8026 Tube Parking Brake Left Side 1 3 332/X7948 Tube Valve Block Drain 1 4 332/X7947 Tube Valve Block Suppliy 1
20. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E01 HYDRAULIC CIRCUITS 9822/0955 E190-65-1 OTHER HYDRAULIC CIRCUITS TUBE HARNESS TWIN SPEED TRACKED Item Part # Change No Description Usage Code QTY 1 332/X7946 Tube Parking Brake Right Side 1
21. 2 332/X7945 Tube Parking Brake Left Side 1 3 332/X8024 Tube Parking Brake Right Side 1 4 332/X7948 Tube Valve Block Drain 1 5 332/X7947 Tube Valve Block Suppliy 1 6 332/X6598 Adaptor tee 1
22. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E02 PUMP / MOTOR & PUMP DRIVE 9822/0955 E200-5-1 PUMP/MOTOR INSTALLATION ASSEMBLIES TRANSMISSION BLUE 46CC Item Part # Change No Description Usage Code QTY 1 332/X6660 Pump Transmission, 46cc 1
23. 1A :332/G6095 Solenoid Coil Drive 1 2 1751/1212 Adaptor ORFS M /SAE 2 3 1754/1212 Adaptor ORFS M/O-RIN 2 4 332/X4656 Adaptor -12 ORB/-12 BARB Elbow 1 5 332/X4043 Adaptor SAE M -6/SAE F - 6 Tee 1 6 332/X1572 Adaptor SAE ORB -6/XDT 2 7 332/X3039 Adaptor SAE M -6/SAE F -4 1 8 1751/0808 Adaptor ORFS M /SAE 1 9 332/F1707 Transducer Lift 1 10 332/L8316 Bolt M12 X 35 2 11 4101/0200 Fluid Locking AS REQUIRED 0
24. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E02 PUMP / MOTOR & PUMP DRIVE 9822/0955 E200-25-1 PUMP/MOTOR INSTALLATION ASSEMBLIES TRANSMISSION PUMP 46CC,BLUE,TIER4 Item Part # Change No Description Usage Code QTY A 332/X6660 Pump Transmission, 46cc 1
25. 1 :333/G3912 Seal Kit 1 2 :334/E3814 Solenoid Pressure Overide 1 2-1 ::20/952134 Coil solenoid Pressure Overide 1 3 :334/E3815 Solenoid Control Module 2 3-1 ::332/G6095 Solenoid Coil Drive Control Module 2 3-2 ::334/E3816 Kit Seal Solenoid Control Module 2
26. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E02 PUMP / MOTOR & PUMP DRIVE 9822/0955 E200-30-1 PUMP/MOTOR INSTALLATION ASSEMBLIES HYDRAULIC PUMP,HI FLOW,GL Item Part # Change No Description Usage Code QTY 1 333/X0744 Pump Gear 38/14/17CC 1
27. 2 1754/1212 Adaptor ORFS M/O-RIN 1 3 1754/1008 Adaptor ORFS M-08/SAE 1 4 333/X0782 Valve Check, Inline 0 bar 1 5 333/X0747 Hose Hose -08 ORFS HP 300mm C 1 6 1754/0808 Orifice Adaptor 1 7 294/00636 Clip 2 8 332/L8316 Bolt M12 X 35 2 9 333/X0986 Hose Formed Suction GL 1 10 2201/0009 Clip Jubilee 4 11 333/X2576 Connector Tank,STR,65P 1 12 333/X2578 Connector Tank,Lock,65P 1 13 333/X2579 O Ring Tank Connector 1 14 333/X2590 Cap Tank connector 1 15 333/X2588 Connector Lock 1 16 333/X2589 O Ring For Tank Connector 1 17 4102/2700 Loctite A/R 0
28. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E02 PUMP / MOTOR & PUMP DRIVE 9822/0955 E200-35-1 PUMP/MOTOR INSTALLATION ASSEMBLIES HYDRAULIC PUMP,STANDARD FLOW,GL Item Part # Change No Description Usage Code QTY 1 333/X0745 Pump Gear 38/14CC 1
29. 2 1754/1212 Adaptor ORFS M/O-RIN 1 3 1754/1008 Adaptor ORFS M-08/SAE 1 4 294/00636 Clip 2 5 332/L8316 Bolt M12 X 35 2 6 2201/0009 Clip Jubilee 4 7 333/X0986 Hose Formed Suction GL 1 8 333/X2576 Connector Tank,STR,65P 1 9 333/X2578 Connector Tank,Lock,65P 1 10 333/X2579 O Ring Tank Connector 1 11 333/X2590 Cap Tank connector 1 12 333/X2588 Connector Lock 1 13 333/X2589 O Ring For Tank Connector 1 14 4102/2700 Loctite A/R 0
30. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
31. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
32. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 02427501- 02427800 TRACKED 9822/0955 \ E HYDRAULICS \ E02 PUMP / MOTOR & PUMP DRIVE 9822/0955 E275-10-1 MOTOR HYDRAULIC DRIVE ASSEMBLIES W/SPD SENSOR 1070CC/670CC Item Part # Change No Description Usage Code QTY A 332/X7692 Motor Drive,1070/670cc 1
