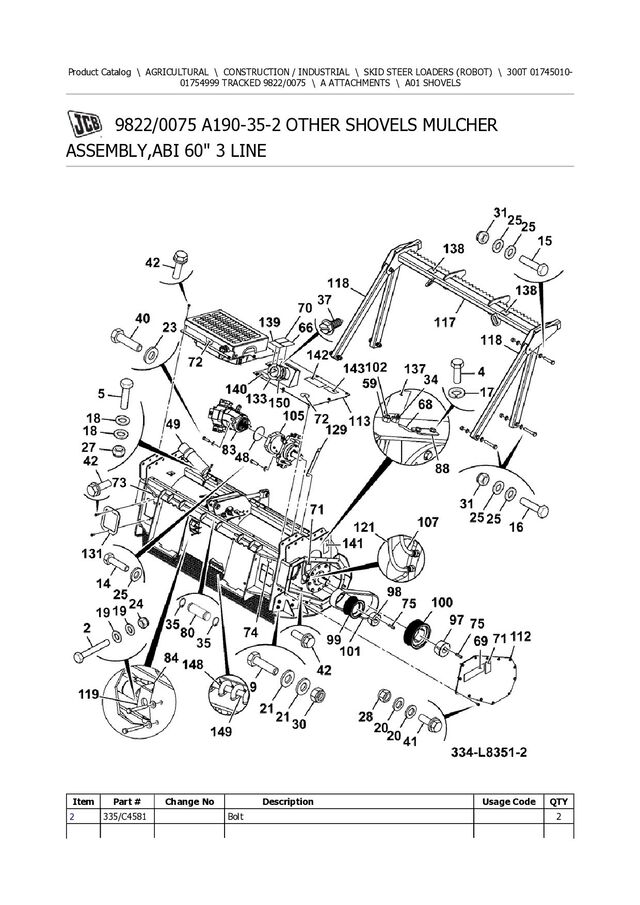

1. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A01 SHOVELS 9822/0075 A190-35-2 OTHER SHOVELS MULCHER ASSEMBLY,ABI 60" 3 LINE Item Part # Change No Description Usage Code QTY 2 335/C4581 Bolt 2
2. 4 332/H7602 Capscrew . 2 5 332/L5977 Setscrew .31-18 UNC X 1.25 2 9 332/H7964 Bolt . 18 14 332/H9185 Capscrew . 4 15 332/H9500 Capscrew . 2 16 332/H7882 Bolt . 4 17 335/14224 Washer Locking 2 18 335/14228 Washer 6 19 333/C2692 Washer . 24 20 332/H7273 Washer . 16 21 333/C7648 Washer . 36 23 335/14232 Washer 2 24 333/C2166 Nut 12 25 332/L6577 Washer Flat 16 27 333/C2282 Nut 3 28 335/14236 Nut locking 14 30 335/14238 Nut locking 18 31 332/L6584 Nut Lock 8 34 333/C7664 Grease Nipple 90deg. 1 35 332/H9201 Circlip . 4 37 333/C7671 Screw . 3 40 333/C7674 Bolt . 2 41 332/H7602 Capscrew . 13 42 332/H7602 Capscrew . 21 48 333/C7682 O Ring . 1 49 335/14262 Tube manual 1 59 **** T.B.A 2 66 332/H9417 Decal Read Manual 1 68 335/C4616 Decal 2 69 332/L6288 Decal JCB Logo 2 70 333/C2136 Decal Flying Debris 1 71 332/H7930 Decal GUARDS 2 72 332/H7931 Decal NO STEP 2 73 332/H9423 Decal Read Manual 2 74 335/C4622 Decal 1 75 333/C7718 Key . 2 80 333/C2308 Circlip . 1 83 333/C7724 Motor Hydraulic 1 84 333/C7725 Solenoid Valve Non-Serviceable 1 88 333/C7736 Plate Belt Tension Access 1 97 333/C7753 Bush Taper Lock 1 98 333/C7754 Bush Taper Lock 1 99 333/C7752 Sprocket 35 Teeth 1 100 333/C7755 Sprocket 50 Teeth 1 101 333/C7764 Belt Drive 1 102 333/C7765 Vent Grease Relief 1 105 335/C4635 Adapter 1 107 335/C4638 Hose 1 112 335/C4648 Cover 1 113 335/C4649 Cover 1 117 335/C4645 Bar 1
3. 118 335/C4642 Bar 2 119 335/C4639 Plate 1 121 335/C4633 Hose 1 129 335/C4611 Plate 1 131 335/C4597 Screen 2 133 333/C7769 Gauge Pressure 1 137 333/C2158 Decal Tie Down 2 138 332/H9837 Label Lift Point 2 139 332/H9420 Decal read manual 1 140 332/L6589 Label ISO high pressure fluid 1 141 332/H9415 Decal Pinch Point 2 142 332/H9421 Decal Flying Debris 2 143 333/C1183 Label Entanglement Hazard 2 148 333/C7804 Chain Segment 62 149 333/C7847 Bar Chain Holder 1 150 333/C7807 Gasket . 1
4. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A01 SHOVELS 9822/0075 A190-35-3 OTHER SHOVELS MULCHER ASSEMBLY,ABI 60" 3 LINE Item Part # Change No Description Usage Code QTY 7 335/14217 Screw 1
5. 12 333/C7645 Bolt . 1 13 335/C4586 Bolt 2 20 332/H7273 Washer . 16 28 335/14236 Nut locking 14 29 335/14237 Nut Locking 1 31 332/L6584 Nut Lock 8 33 333/C7653 Hose Clamp 2 39 333/C7673 Bolt . 8 45 333/C7677 Switch Assembly 1 51 903/05206 Valve check assembly 1 53 **** T.B.A 2 54 333/C7811 Adapter Straight 2 55 333/C7686 Adapter Bulkhead 2 56 333/C7688 Adapter Straight 1 57 333/C7689 Adapter Straight 2 58 333/C7701 Adapter 90 deg. 1 60 333/C7707 Hose 40 1 61 335/C4603 Hose 1 62 335/C4605 Hose 2 63 335/C4608 Hose 1 64 335/C4610 Hose 1 65 335/C4613 Hose 2 76 335/C4623 Clamp 1 81 333/C7721 Coupling Male QRC 1 82 333/C7722 Coupling Female QRC 1 83 333/C7724 Motor Hydraulic 1 84 333/C7725 Solenoid Valve Non-Serviceable 1 85 333/C7734 Manifold Block Non-Serviceable 1 120 335/C4637 Ram 1 123 335/C4630 Cooler 1 133 333/C7769 Gauge Pressure 1 134 333/C7776 Adapter 90 deg. 2 135 333/C7777 Adapter 90 deg. 1
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-1-1 LOADER QUICK HITCH MANUAL LP Item Part # Change No Description Usage Code QTY 1 332/X4337 Quickhitch JCB Black 1 2 **** Quickhitch Fittings Assembly 1 3 **** Circuit Quickhitch Manual 1
8. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-1-5 LOADER QUICK HITCH MANUAL LP Item Part # Change No Description Usage Code QTY 1 332/X4337 Quickhitch JCB Black 1 2 **** Quickhitch Fittings Assembly 1
9. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-1-10 LOADER QUICK HITCH MANUAL LP Item Part # Change No Description Usage Code QTY 1 335/E7303 Quickhitch JCB Black 1 2 **** Quickhitch Fittings Assembly 1
10. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-5-1 LOADER QUICK HITCH HYDRAULIC LP Item Part # Change No Description Usage Code QTY 1 332/X4337 Quickhitch JCB Black 1 2 **** Link Quickhitch Assembly 1 3 **** Quickhitch Fittings,Hydraulic Assembly 1
11. 4 332/X4829 Label quick hitch 1
12. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-15-1 LOADER QUICK HITCH FITTINGS & MOUNTINGS MANUAL Item Part # Change No Description Usage Code QTY 1 **** Lever Quickhitch, Assmebly 1
13. 2 332/L4019 Bush 2 3 904/15400 Seal 4 4 819/00034 Shim 12 5 1450/0001 Nipple Grease, Straight 1/8 BSP 4 9 1370/0303Z Nut lock M10 3 10 1315/3418Z Bolt (M10 x 80) 3
14. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-20-1 LOADER QUICK HITCH FITTINGS & MOUNTINGS HYDRAULIC Item Part # Change No Description Usage Code QTY 1 332/L4019 Bush 2
15. 2 819/00034 Shim 12 3 904/15400 Seal 4 4 1450/0001 Nipple Grease, Straight 1/8 BSP 4 6 1370/0303Z Nut lock M10 3 7 1315/3418Z Bolt (M10 x 80) 3
16. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-30-1 LOADER QUICK HITCH LINKAGE ASSEMBLY Item Part # Change No Description Usage Code QTY 1 332/L2002 Ram quickhitch 1
17. 2 332/X4756 Lever Hitch, Right Side 1 3 332/X4754 Lever Hitch, Left Side 1 4 2101/0609 Pin Clevis, 5/8" x 1 1/2" 2 5 1370/0603Z Nut lock M16 4 6 1315/0709Z Bolt M16 x 35mm 2 7 1420/0011Z Washer (M16) 6 8 332/X4757 Link Plate 2 9 814/00351 Spring 2 10 332/X4760 Plunger 2 11 331/53856 Pin release 2 13 2103/0710 Pin split 1/8 x 1.1/4 2
18. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-35-1 LOADER QUICK HITCH LINKAGE ASSEMBLY,ELECTRIC QUICKHITCH Item Part # Change No Description Usage Code QTY 1 332/X7912 Cylinder Electric Quickhitch 1
19. 2 332/X8439 Lever Hitch, Rightside 1 3 332/X8437 Lever Hitch, Leftside 1 4 2101/0609 Pin Clevis, 5/8" x 1 1/2" 2 5 332/X8435 Plate Link 2 6 331/53856 Pin release 2 7 814/00351 Spring 2 8 332/X8441 Plunger 2 9 332/X8926 Pressing Quickhitch 2 10 1420/0011Z Washer (M16) 6 11 1315/0709Z Bolt M16 x 35mm 2 12 1370/0603Z Nut lock M16 4 13 2103/0710 Pin split 1/8 x 1.1/4 2
20. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-40-1 LOADER QUICK HITCH LEVER ASSY Item Part # Change No Description Usage Code QTY 1 332/X4768 Lever Quickhitch, Left Side 1 2 332/X4771 Lever Quickhitch Right Side 1 3 331/38151 Plate link 2
21. 4 290/41900 Plunger 2 5 814/00351 Spring 2 6 331/53856 Pin release 2 7 1370/0603Z Nut lock M16 4 8 1411/0007Z Washer 5/8 2 9 1315/0709Z Bolt M16 x 35mm 2
22. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-45-1 LOADER QUICK HITCH PIVOT PIN LOCATION ASSEMBLY,STANDARD Item Part # Change No Description Usage Code QTY 1 811/90143 Pin pivot,Grooved 1
23. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
24. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
25. 2 811/90218 Pin pivot 40dia X 192 1 3 332/X4761 Pin Pivot 40dia x 205 1
26. Product Catalog \ AGRICULTURAL \ CONSTRUCTION / INDUSTRIAL \ SKID STEER LOADERS (ROBOT) \ 300T 01745010- 01754999 TRACKED 9822/0075 \ A ATTACHMENTS \ A03 HITCHES 9822/0075 A340-50-1 LOADER QUICK HITCH PIVOT PIN LOCATION ASSEMBLY,HARDITE Item Part # Change No Description Usage Code QTY 1 811/90319 Pin pivot-Hardide 1
27. 2 332/X1745 Pin Pivot- 40dia x192 1 3 332/X4762 Pin Pivot 40dia x 205 1
