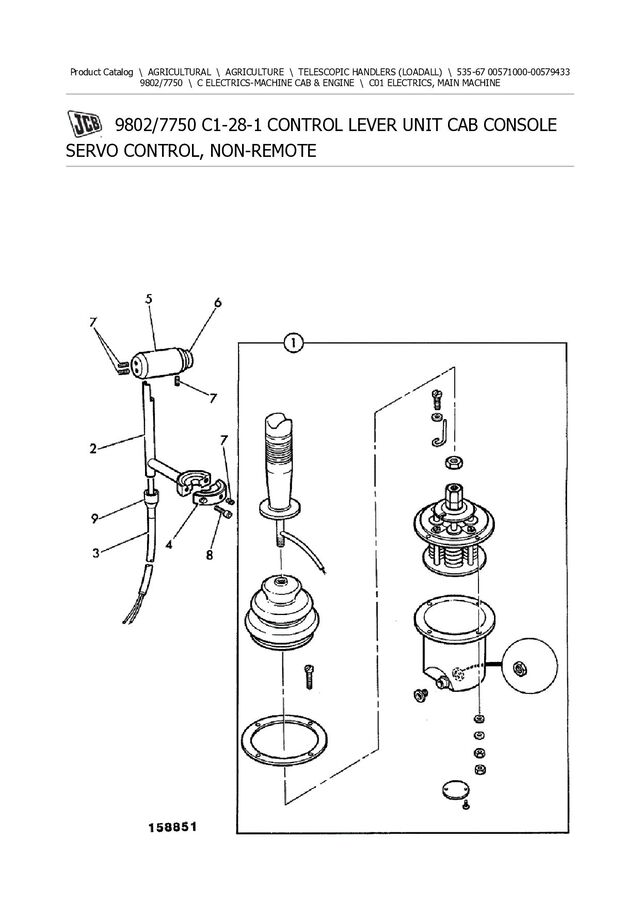

1. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C01 ELECTRICS, MAIN MACHINE 9802/7750 C1-28-1 CONTROL LEVER UNIT CAB CONSOLE SERVO CONTROL, NON-REMOTE
2. Item Part # Change No Description Usage Code QTY 1 701/19000 Valve control For parts see Frame C1-29-1 1 2 157/93800 Switch bracket 1 3 719/34200 Harness auxiliary stalk 1 4 157/87704 Clamp stalk bottom 1 5 157/93802 Switch holder 1 6 123/31800 Switch micro 1 7 1390/0103 Screw grub M5 x 10 long 4 8 826/01266 Screw 2 9 717/06201 Sleeve heat shrink 1
3. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C01 ELECTRICS, MAIN MACHINE 9802/7750 C1-29-1 CONTROL LEVER UNIT CAB CONSOLE SERVO CONTROL Item Part # Change No Description Usage Code QTY 1 701/19000 Valve control SEE TI 5/222 1
4. 1A :701/19001 Lever 1 2 :701/19002 Gaiter 1 3 :701/19003 Plate ring 1 4 :701/19004 Screw 4 5 **** None serviced part Signal unit 1 6 701/19005 Screw 1 7 701/19006 Washer 1 8 :701/19007 Pin guide 1 9 :701/19008 Nut 1 10 :701/19009 Cover 1 11 701/19010 Nut 1 11A 721/10899 Harness Harness Fly Lead FOR LATER STYLE 1 12 :701/19011 Connector 1 13 :701/19013 Nut 4 14 :701/19012 Washer 4
5. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C02 ELECTRICS, ENGINE 9802/7750 C2-1-1 ELECTRICAL EQUIPMENT Item Part # Change No Description Usage Code QTY 1 714/14300 Motor Starter 1 2 714/20400 Alternator 65Amp shielded P/Ex 1 3 17/105201 Solenoid E.S.O.S 1
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. 4 717/00100 Thermostart 1 5 701/37400 Switch temperature 1 6 716/12800 Sender temperature 1 7 701/41500 Switch oil pressure 1 8 701/36500 Switch Vacuum Sensor 1 9 718/49700 Harness alternator power 1 10 718/49800 Harness alternator signal 1
8. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C02 ELECTRICS, ENGINE 9802/7750 C2-3-1 ALTERNATOR Item Part # Change No Description Usage Code QTY 1 714/20400 Alternator 65Amp shielded P/Ex 1 2 :714/10801 Capacitor Suppression 1 3 :714/20403 Regulator & brush box assembly 1
9. 4 :714/20401 Bracket slip ring end 1 5 :714/10804 Bearing slip ring end 1 6 :714/10805 Rectifier 1 7 :714/10806 Rotor 1 8 :714/10807 Stator 1 9 :714/10808 Bracket Drive end 1 9A :714/20402 Bearing drive end 1 10 :714/10809 Kit-through bolt 1 11 :714/10811 Kit-terminal 1 12 714/20404 Kit-plug 1 13 715/05500 Connector spade, straight 1
10. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C02 ELECTRICS, ENGINE 9802/7750 C2-3-2 ALTERNATOR, SEALED A127M-55AMP 12.VOLT OPTIONAL
11. Item Part # Change No Description Usage Code QTY 1 714/16700 Alternator 12Volt-55Amp sealed P/Ex 1 2 :714/16701 Capacitor suppression-positive 1 3 :714/16702 Capacitor suppression-negative 1 4 :714/16703 Regulator & brush box assembly 1 5 :714/16704 Bracket slip ring end 1
12. 6 :714/10804 Bearing slip ring end 1 7 :714/16705 Rectifier 1 8 :714/16706 Rotor assembly 1 9 :714/16707 Stator assembly 1 10 :714/16708 Bracket drive end 1 11 :714/16709 Kit-through bolt 1 12 :714/16710 Kit-terminal 1 13 715/05500 Connector spade, straight 1 14 714/20404 Kit-plug 1
13. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C02 ELECTRICS, ENGINE 9802/7750 C2-4-1 ALTERNATOR MOUNTINGS
14. Item Part # Change No Description Usage Code QTY 1 02/200322 Bracket support 1 2 02/200211 Bracket alternator mounting 1 3 02/291026 Bolt 2 4 826/00869 Screw flange head 2 5 826/00900 Screw 1 6 02/291018 Bolt 1 7 02/291020 Bolt 1 8 02/291100 Nut 1 9 02/200323 Bracket adjusting lever 1 10 02/200324 Lever alternator adjusting 1 11 02/291030 Bolt 1 12 02/291021 Bolt 1 13 02/291037 Bolt 1 14 02/291101 Washer 1 15 02/291097 Nut 1 16 826/00869 Screw flange head 1 17 02/100292 Washer 1 18 718/31900 Lead earth Sealed alternator only 1 19 706/09100 Tape self-amalgamating Sealed alternator only 0
15. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C02 ELECTRICS, ENGINE 9802/7750 C2-5-1 MOTOR, STARTER M127 12.VOLT
16. Item Part # Change No Description Usage Code QTY 1 714/14300 Motor Starter 1 2 :714/09104 Solenoid 1 3 ::N.S.P. None serviced part Solenoid link 1 4 :714/14301 Bracket Commutator end 1 5 :N.S.P. None serviced part Through bolt kit 1 6 :714/00506 Kit-brush mounting 1 7 :709/02817 Spring brush 1 8 :714/03005 Kit-brush 1 9 :709/02805 Kit-bush 1 10 :709/02806 Kit-brake 1 11 :714/09107 Coil field Assembly 1 12 :714/09103 Armature 1 13 :714/09106 Bracket Intermediate 1 14 :714/09102 Kit-drive end 1 15 ::714/09101 Kit-retention 1 16 :N.S.P. None serviced part Drive end bracket 1 17 :714/09105 Kit-engaging lever 1 18 :709/02819 Kit-sundry parts 1 19 :709/02807 Kit-seal 1 20 120/29506 Cover Solenoid 1 21 02/291002 Stud 3 22 1416/0006Z Washer spring 3 23 02/291059 Nut 3
17. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB 9802/7750 C3-1-1 MOTOR, WIPER HINGED WINDSCREEN
18. Item Part # Change No Description Usage Code QTY 1 714/18500 Superseded Motor wiper 1 1 714/28200 Wiper motor (front) 1 2 157/15703 Cover 1 3 1430/0102 Screw 2 4 714/07000 Arm wiper 1 5 714/14900 Blade wiper 1 6 255/27003 Jet Screen washer 1 7 717/06300 Bottle washer/pump assembly 1 7A :717/06301 Cap washer bottle 1 8 826/00646 Screw 2 9 1412/0001Z Washer 1/4" Large 2 10 1340/0003Z Nut 2 11 647/02000 Tube PVC, 4x6.4mm Roll 2.5 metres long 0 12 813/00361 Gasket Foam 1 13 2410/0108 Grommet Std, 19 mm x 3.5 mm 2 14 2410/1105 Grommet Blind, 6.35 x 3.5 mm 1 15 719/38000 Harness wiper 1 16 817/01816 Cover self adhesive black decal Decal 1 17 826/01162 Tie Cable 150 mm 3 18 534/09703 Valve non-return 1
19. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB 9802/7750 C3-2-1 MOTOR, WIPER FIXED WINDSCREEN
20. Item Part # Change No Description Usage Code QTY 1 714/09300 Motor wiper 1 2 157/15801 Cover 1 3 1430/0102 Screw 2 4 714/04700 Arm wiper 1 5 714/14900 Blade wiper 1 6 255/27003 Jet Screen washer 1 7 717/06300 Bottle washer/pump assembly 1 7A :717/06301 Cap washer bottle 1 8 826/00646 Screw 2 9 1412/0001Z Washer 1/4" Large 2 10 1340/0003Z Nut 2 11 647/02000 Tube PVC, 4x6.4mm Roll 1.75m long 0 12 813/00361 Gasket 1 13 2410/0108 Grommet Std, 19 mm x 3.5 mm 2 14 2410/1108 Grommet Blind, 19 mm x 3.5 mm 2 15 719/38000 Harness wiper 1 16 821/00256 Clip cable 2
21. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB 9802/7750 C3-3-1 MOTOR, WIPER REAR WINDOW,FIXED
22. Item Part # Change No Description Usage Code QTY 1 714/20000 Superseded Wiper motor 1 1 714/27900 Wiper motor,90 DEG switched 1 2 714/07000 Arm wiper 1 3 714/04800 Blade wiper 500mm long 1 4 157/16301 Cover wiper motor 1 7 255/27003 Jet Screen washer 1 8 647/02000 Tube PVC, 4x6.4mm Roll 1 9 152/30800 Connector 'T' piece 1 10 1430/0102 Screw 2 11 2410/0305 Grommet 12.7 panel hole x 9. 5x 5 thkness 1 12 716/05706 Fuse 15 amp 1 13 719/46900 Harness rear wiper extension 1 14 817/01816 Cover self adhesive black decal 1
23. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
24. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
25. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB 9802/7750 C3-3-2 MOTOR,WIPER,REAR WIN DOW,HINGED
26. Item Part # Change No Description Usage Code QTY 1 714/22700 Superseded Wiper motor 1 1 714/28100 Wiper motor (rear) 1 2 714/23000 Arm wiper Roof P38 1 3 714/23100 Blade wiper 330mm long 1 4 157/16301 Cover wiper motor 1 5 255/27003 Jet Screen washer 1 6 647/02000 Tube PVC, 4x6.4mm Roll 4 metres 0 7 152/30800 Connector 'T' piece 1 8 1430/0102 Screw 1 9 158/30484 Channel PVC,rear wiper harne ss 1 10 718/51000 Harness rear wiper 1 11 817/01816 Cover self adhesive black decal 1
27. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 535-67 00571000-00579433 9802/7750 \ C ELECTRICS-MACHINE CAB & ENGINE \ C03 ELECTRICS, CAB 9802/7750 C3-4-1 MOTOR, WIPER ROOF WINDOW
