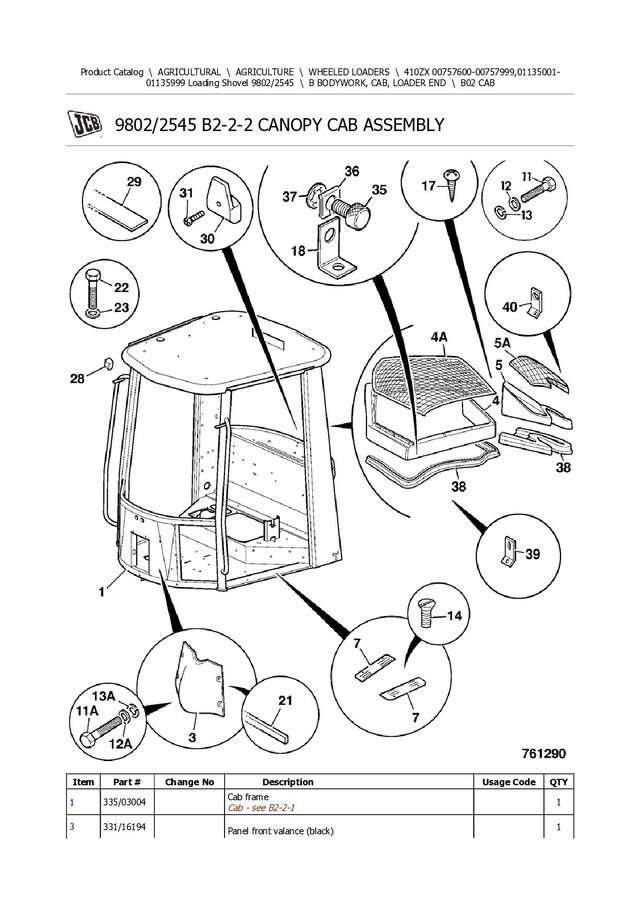

1. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-2-2 CANOPY CAB ASSEMBLY Item Part # Change No Description Usage Code QTY 1 335/03004 Cab frame Cab - see B2-2-1 1 3 331/16194 Panel front valance (black) 1
2. as 274/00776 but black 4 331/23180 Moulding valance, left side 1 4A 331/23372 Grille left side 1 5 331/23712 Moulding valance, right side 1 5A 331/23181 Grille rear intake 2 5A 331/26870 Grille rear, right side pre-cleaner 1 7 274/00887 Strip kick 2 11 826/01406 Screw M5 x 20 17 11A 1315/0308Z Setscrew M8 x 30 4 12 1420/0005Z Washer (M5) 12 12A 1420/0008Z Washer (M10) 4 13 1425/0007Z Washer Washer 12 13A 1425/0007Z Washer Washer 4 14 826/00688 Screw M6 X 25 4 17 826/01629 Screw button head socket centre of cab 2 18 331/24402 Bracket rear valance 2 21 926/17000 Seal Self Adhesive 13mm Diameter Used on item 3 also 1 22 1315/0307Z Setscrew M8 X 25 4 23 1420/0007Z Washer (M8) 4 24 2410/1103 Grommet Blind, 9.5mm x 3.5 mm Aerial socket, beacon plate 4 28 926/18200 Foam 4 29 824/50018 Strip Sealing 3 30 274/00756 Hook coat 1 31 826/01488 Screw Button Head M5 x 12 1 35 826/01704 Screw knurled 2 36 826/01365 Clip slip on recepticle 2 37 826/01321 Retainer 2 38 926/18700 Seal rubber 2.5M approx 0 39 275/00484 Bracket Rear valance L.H. 1 40 275/00485 Bracket Rear Valance R.H. 1
3. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-3-1 CAB FITTINGS Item Part # Change No Description Usage Code QTY 1 **** 'See Remark' Cab - see B2-2-1 1 2 274/00786 Roof 1
4. 3 274/00776 Panel front valance 1 4 275/00373 Panel rear 1 4A 275/00484 Bracket Rear valance L.H. 1 4B 275/00485 Bracket Rear Valance R.H. 1 5 331/13964 Grille centre 1 5A 331/13963 Grille right 1 5B 275/00424 Grille left 1 5B 331/13965 Grille left 1 6 275/00580 Mat 1 7 274/00887 Strip kick 2 8 **** 'See Remark' See Door Retainer page 2 8A **** 'See Remark' See Door Retainer page 2 8B **** 'See Remark' See Door Retainer page 2 9 826/01077 Screw 4 10 274/33300 Bracket door holder 2 11 926/22001 Seal edge (approx.1500mm) approx 1500mm long 1 14 826/00688 Screw M6 X 25 4 17 826/00861 Screw 13 18 1420/0005Z Washer (M5) 13 19 826/00842 Nut M5 Jacknut 11 22 1315/0307Z Setscrew M8 X 25 4 23 1420/0007Z Washer (M8) 4 23A 823/00325 Washer Used on cab roof bolts 4 24 2410/1103 Grommet Blind, 9.5mm x 3.5 mm Aerial socket, beacon plate 4 25 1315/0308Z Setscrew M8 x 30 8 26 1420/0007Z Washer (M8) 8 27 1425/0007Z Washer Washer 8 29 824/50018 Strip Sealing 3 30 274/00756 Hook coat 1 31 G46/6 Rivet pop 1 32 826/01321 Retainer 4 33 826/01365 Clip slip on recepticle 4 34 826/01704 Screw knurled 4 35 274/00646 Mat rear bulkhead servo controls 1 36 274/00757 Mat rear bulkhead manual controls 1
5. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-3-2 COVER LOADER VALVE Item Part # Change No Description Usage Code QTY 1 1420/0006Z Washer (M6) 4 2 1370/0103Z Nut Self Lock M6 4 3 1315/0207Z Screw M6x25 4
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. 5 140/00839 Strip clamping 1 6 140/00717 Cover valve 1
8. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-4-1 CAB MOUNTINGS Item Part # Change No Description Usage Code QTY 1 267/39078 Mounting resilient 4 2 1315/3409Z Bolt M10 x 35 16 3 1370/0303Z Nut lock M10 16
9. 4 1420/0008Z Washer (M10) 16 5 141/00561 Plate compression 4 6 1315/3721Z Bolt M16 x 110 4 7 1370/0603Z Nut lock M16 4 8 1420/0011Z Washer (M16) 0 9 823/00562 Washer 0
10. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-5-1 SERVO CONTROL ARM Item Part # Change No Description Usage Code QTY 1 335/01091 Bracket support 1 2 335/01092 Arm Requires item 20 1
11. 3 701/72500 Switch Red Top 1 4 1315/0401Z Bolt M10 x 10 1 5 1315/0410Z Setscrew Screw 1 6 1370/0301Z Nut Plain, M10 1 7 274/00718 Gaiter control lever 1 8 274/00824 Shim 1mm 0 9 274/00825 Shim 2 mm 0 10 1315/0407Z Setscrew M10 x 25 mm 4 11 1420/0008Z Washer (M10) 4 12 1315/0205Z Setscrew M6 x 20mm 4 13 1420/0006Z Washer (M6) 8 14 1370/0103Z Nut Self Lock M6 4 16 1315/0507Z Setscrew M12 x 25 1 17 1411/0005Z Washer (1/2" Medium) 1 18 274/00924 Strut gas 1 19 1370/0203Z Nut Nut M8 2 20 831/00065 Bearing For item 2 2
12. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-6-1 SEAT BELT
13. Item Part # Change No Description Usage Code QTY 1 40/910893 Kit seat belt 1
14. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-6-3 SEAT BELT
15. Item Part # Change No Description Usage Code QTY 1 40/902400 Kit-seat belt 1 2 1305/0314Z Bolt 7/16"UNFx2"long 2 3 1340/0303Z Nut lock Not required on this assembly 2 4 1410/0004Z Washer (7/16" Small) 2 4 1416/0007Z Washer Spring (7/16") 2 5 123/03852 Spacer 2
16. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-7-1 DOOR RETAINER Item Part # Change No Description Usage Code QTY 1 331/20775 Retainer 2 2 274/00894 Clamp 2 3 274/52700 Plate door lock L.H. 1
17. 4 274/52800 Plate door lock R.H. 1 5 274/00985 Washer Wear ( top hat ) 1 6 274/00986 Washer wear ( flat ) 2 7 828/00151 Stop 2 8 1412/0002Z Washer (5/16") 6 9 1370/0202Z Nut Thin (M8) 2 10 826/01077 Screw 4 11 1370/0103Z Nut Self Lock M6 2 12 1420/0006Z Washer (M6) 2 13 1315/0308Z Setscrew M8 x 30 4 14 1420/0007Z Washer (M8) 4 15 122/22701 Stop bump 2 16 2102/0413 Pin roll 2 17 1420/0009Z Washer (M12) 2 18 275/43013 Retainer male 2 19 331/20776 Rod 2 20 331/20777 Knob 2 21 1340/0103Z Nut 5/16" UNF 2
18. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-8-1 VISOR SUN Item Part # Change No Description Usage Code QTY 1 331/24572 Visor sun 1 2 1430/0202 Screw No 8x1/2" 3
19. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-9-1 SEAT, SUSPENSION
20. Item Part # Change No Description Usage Code QTY 1 40/213000 Seat suspension 1 1 40/910183 Seat Vinyl Used when canopy cab fitted 1 2 :6900/0016 Seat assembly Contains items 3 to 7 1 3 ::40/212701 Kit Back Cover Fabric Grey Brown 1 4 ::40/205605 Kit back foam 1 5 ::6900/0019 Kit seat cover 1 6 ::6900/0020 Kit seat foam 1 7 **** None serviced part Frame 1 8 :6900/0021 Kit cable adjustment 1 9 :6900/0022 Kit-spring height riser 1 11 :40/213001 Kit-suspension assembly 1 12 ::6900/0024 Damper assembly 1 13 ::40/205614 Kit knob/weight adjuster 1 14 ::40/205613 Kit-upstop/bumpstop 1 15 :6900/0026 Adjuster fore & aft Contains item 15 1 16 :6900/0028 Kit height riser 1 17 ::6900/0027 Handle assembly, grey 1 18 :6900/0029 Kit-suspension cover 1 19 **** None serviced part Handle, sliderail. Part of item 15 1 20 1315/0308Z Setscrew M8 x 30 4 21 1420/0007Z Washer (M8) 4 22 1370/0203Z Nut Nut M8 4
21. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-9-2 SEAT, SUSPENSION 5000LBS
22. Item Part # Change No Description Usage Code QTY 1 40/213000 Seat suspension 1 2 :6900/0016 Seat assembly Contains items 3 to 7 1 3 ::40/212701 Kit Back Cover Fabric Grey Brown 1 4 ::40/205605 Kit back foam 1 5 ::6900/0019 Kit seat cover 1 6 ::6900/0020 Kit seat foam 1 7 **** None serviced part Frame 1 8 :6900/0021 Kit cable adjustment 1 9 :6900/0022 Kit-spring height riser 1 11 :40/213001 Kit-suspension assembly 1 12 ::6900/0024 Damper assembly 1 13 ::40/205614 Kit knob/weight adjuster 1 14 ::40/205613 Kit-upstop/bumpstop 1 15 :6900/0026 Adjuster fore & aft Contains item 15 1 16 :6900/0028 Kit height riser 1 17 ::6900/0027 Handle assembly, grey 1 18 :6900/0029 Kit-suspension cover 1 19 **** None serviced part Handle, sliderail. Part of item 15 1 20 1315/0308Z Setscrew M8 x 30 4 21 1420/0007Z Washer (M8) 4 22 1370/0203Z Nut Nut M8 4 25 1425/0007Z Washer Washer 4 26 40/214000 Kit Tether fixing 2 27 40/214100 Belt Tether 2
23. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-9-3 SEAT SUSPENSION
24. Item Part # Change No Description Usage Code QTY 1 40/906200 Seat 1 3 :40/910136 Kit Rear squab 1 4 ::40/903118 Cover rear squab cloth 1 5 ::40/903120 Plug Headrest 2 5A 40/906903 Clip headrest 1 7 ::40/903119 Knob adjuster 1 8 ::40/903121 Pin tension 1 9 :40/903113 Cushion seat assembly 1 10 ::40/903114 Cover seat cushion cloth 1 12 :40/910135 Cushion frame, complete 1 13 ::40/903103 Damper 1 13 :::40/903131 Handle grip rear 1 14 ::40/903108 Cap side plate 2 15 :40/903109 Cover slave right hand sideplate 1 16 ::40/910137 Cover side plate 1 18 ::40/903112 Plate cushion frame back 1 20 :40/905201 Kit-suspension unit assembly 1 20A 40/906906 Kit-bush bolt 1 20B 40/910140 Spring 2 20C 40/910141 Clip black cushion frame 1 20D 40/910142 Handle height adjustment front 1 20E 40/910143 Handle height adjustment rear 1 20F 40/910144 Adjuster height 1 20G 40/910145 Adjuster height rear 1 21 ::40/903102 Spring tension 2 22 ::40/903103 Damper 1 22A 40/906905 Bush shock absorber 2 23 ::40/903104 Knob damper adjuster 1 24 ::40/903105 Bracket support 1 26 :40/905204 Kit-bellows 1 27 ::40/903116 Kit bellow fixings 1 28 :40/910139 Slide right hand 1 29 :40/910138 Slide left hand 1 30 :40/905205 Handle slide rail 1 31 :40/903125 Clip slide rail 1
25. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
26. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
27. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-9-4 SEAT SUSPENSION 5000LB
28. Item Part # Change No Description Usage Code QTY 1 40/906300 Seat 5000lbs. 1 3 :40/910136 Kit Rear squab 1 4 ::40/903118 Cover rear squab cloth 1 5 ::40/903120 Plug Headrest 2 5A 40/906903 Clip headrest 1 7 ::40/903119 Knob adjuster 1 8 ::40/903121 Pin tension 1 9 :40/903113 Cushion seat assembly 1 10 ::40/903114 Cover seat cushion cloth 1 12 :40/910135 Cushion frame, complete 1 13 ::40/903103 Damper 1 13 :::40/903131 Handle grip rear 1 14 ::40/903108 Cap side plate 2 15 :40/903109 Cover slave right hand sideplate 1 16 ::40/910137 Cover side plate 1 18 ::40/903112 Plate cushion frame back 1 20 :40/905201 Kit-suspension unit assembly 1 20A 40/906906 Kit-bush bolt 1 20B 40/910140 Spring 2 20C 40/910141 Clip black cushion frame 1 20D 40/910142 Handle height adjustment front 1 20E 40/910143 Handle height adjustment rear 1 20F 40/910144 Adjuster height 1 20G 40/910145 Adjuster height rear 1 20H 40/910146 Strap suspension unit 2 21 ::40/903102 Spring tension 2 22 ::40/903103 Damper 1 22A 40/906905 Bush shock absorber 2 23 ::40/903104 Knob damper adjuster 1 24 ::40/903105 Bracket support 1 26 :40/905204 Kit-bellows 1 27 ::40/903116 Kit bellow fixings 1 28 :40/910139 Slide right hand 1 29 :40/910138 Slide left hand 1 30 :40/905205 Handle slide rail 1 31 :40/903125 Clip slide rail 1
29. Product Catalog \ AGRICULTURAL \ AGRICULTURE \ WHEELED LOADERS \ 410ZX 00757600-00757999,01135001- 01135999 Loading Shovel 9802/2545 \ B BODYWORK, CAB, LOADER END \ B02 CAB 9802/2545 B2-9-5 SEAT AIR SUSPENSION Item Part # Change No Description Usage Code QTY 1 970/60138 Seat air suspension 1 3 331/22977 Plate seat 1 4 1315/0305Z Setscrew M8 x 20 4
